Synthesis of DNA

Synthesis of DNA. June.21.2010. DNA synthesis occurs by the process of replication. During replication, each of the two parental strands of DNA serves as a template for the synthesis of a Complementary strand. Each molecule generated by the replication process contains

manchu
Download Presentation

Synthesis of DNA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Synthesis of DNA June.21.2010

  2. DNA synthesis occurs by the process of replication. During replication, each of the two parental strands of DNA serves as a template for the synthesis of a Complementary strand.

  3. Each molecule generated by the replication process contains one intact parental strand and one newly synthesized strand.

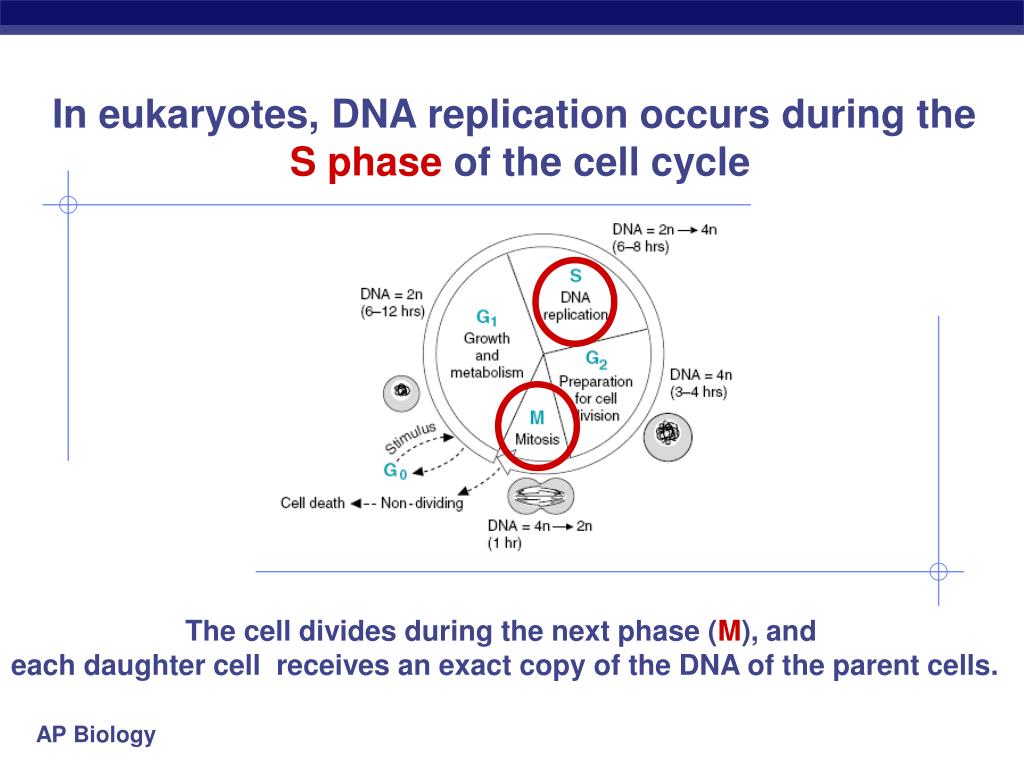

  4. In eukaryotes, DNA replication occurs during the S phase of the cell cycle The cell divides during the next phase (M), and each daughter cell receives an exact copy of the DNA of the parent cells.

  5. Cultured MDCK cells Day 3 Day 1

  6. 1953 article in Nature Watson and Crick

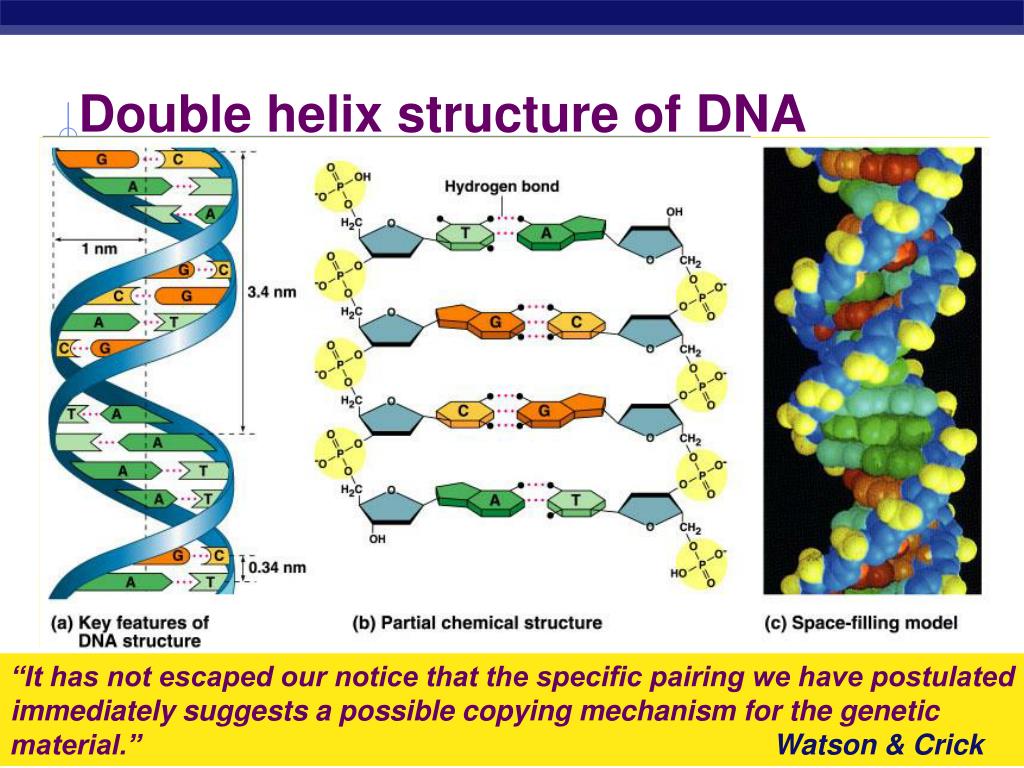

  7. Double helix structure of DNA “It has not escaped our notice that the specific pairing we have postulated immediately suggests a possible copying mechanism for the genetic material.” Watson & Crick

  8. Directionality of DNA • You need to number the carbons! • it matters! nucleotide PO4 N base 5 CH2 This will beIMPORTANT!! O 1 4 ribose 3 2 OH

  9. 5 The DNA backbone PO4 • Putting the DNA backbone together • refer to the 3 and 5 ends of the DNA • the last trailing carbon base CH2 5 O 4 1 C 3 2 O P –O O Sounds trivial, but…this will beIMPORTANT!! O base CH2 5 O 4 1 2 3 OH 3

  10. Anti-parallel strands • Nucleotides in DNA backbone are bonded from phosphate to sugar between 3 & 5 carbons • DNA molecule has “direction” • complementary strand runs in opposite direction 5 3 3 5

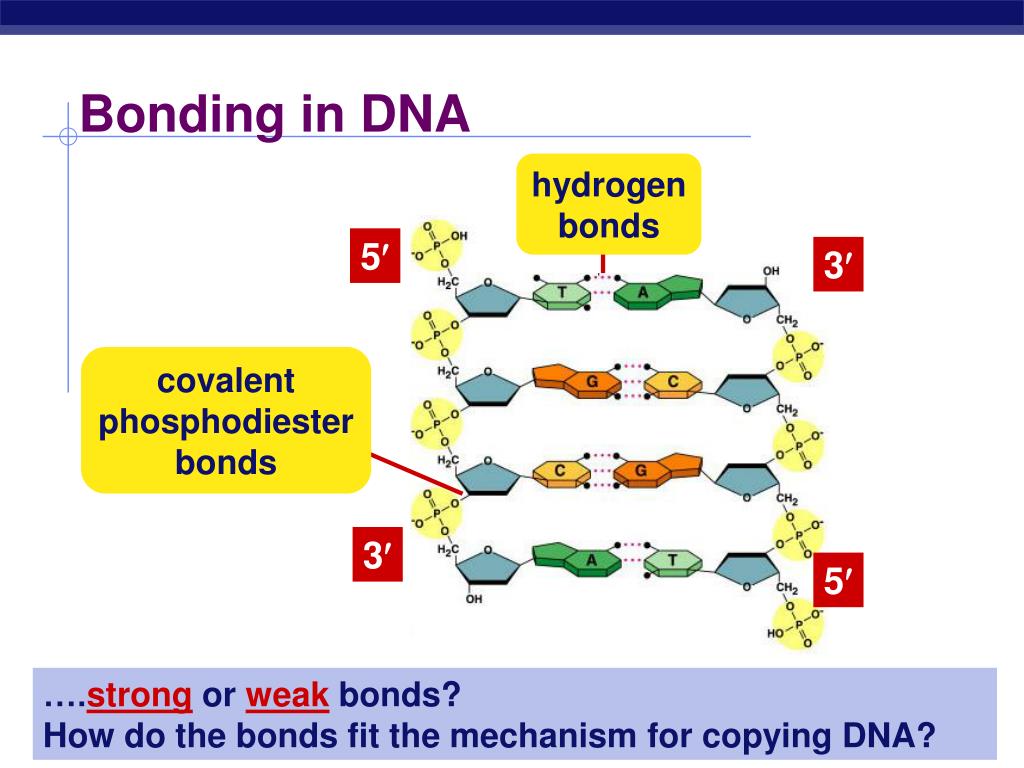

  11. hydrogen bonds covalent phosphodiester bonds Bonding in DNA 5 3 3 5 ….strong or weak bonds? How do the bonds fit the mechanism for copying DNA?

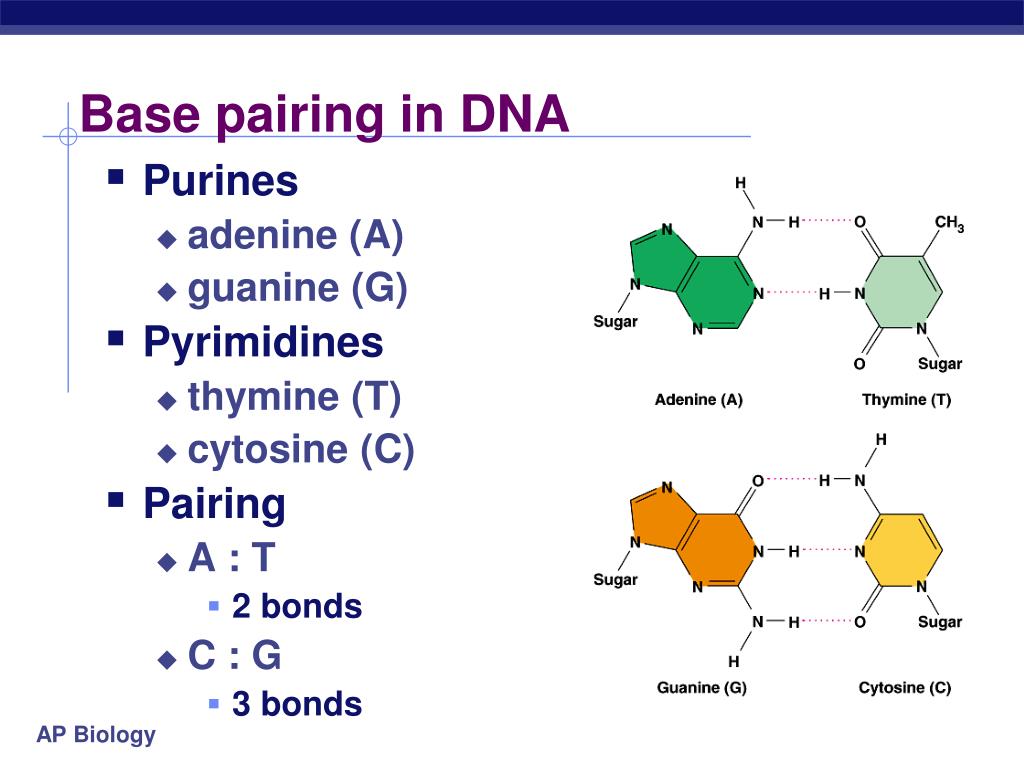

  12. Base pairing in DNA • Purines • adenine (A) • guanine (G) • Pyrimidines • thymine (T) • cytosine (C) • Pairing • A : T • 2 bonds • C : G • 3 bonds

  13. Copying DNA • Replication of DNA • base pairing allows each strand to serve as a template for a new strand • new strand is 1/2 parent template & 1/2 new DNA

  14. Let’s meetthe team… DNA Replication • Large team of enzymes coordinates replication

  15. Replication: 1st step • Unwind DNA • helicase enzyme • unwinds part of DNA helix • stabilized by single-stranded binding proteins helicase single-stranded binding proteins replication fork

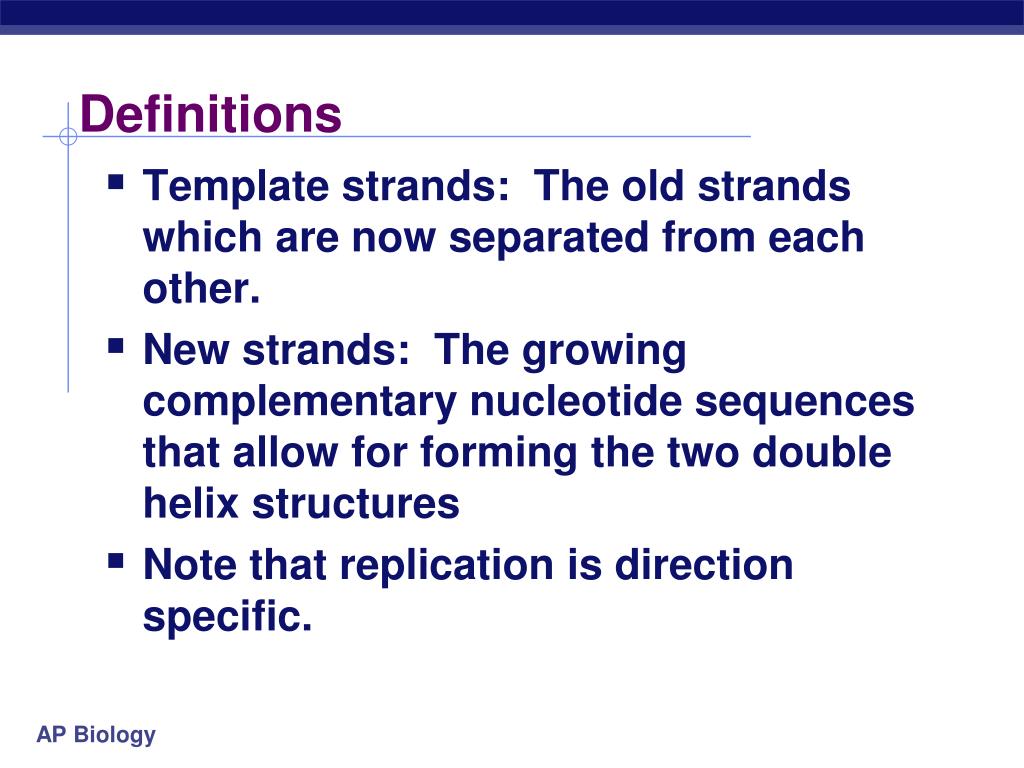

  16. Definitions • Template strands: The old strands which are now separated from each other. • New strands: The growing complementary nucleotide sequences that allow for forming the two double helix structures • Note that replication is direction specific.

  17. 5 DNA Elongation PO4 • Works only 5’ to 3’ • This means that the 5’ end of the nucleotide links on to the 3’ end of the DNA (or RNA primer) • The NEW strand only grows 5’ to 3’ base CH2 5 O 4 1 C 3 2 O P –O O O base CH2 5 O 4 1 2 3 OH 3

  18. 3 3 3 3 3 3 DNA polymerase III 5 5 5 5 5 5 Starting DNA synthesis: RNA primers Limits of DNA polymerase III • can only build onto 3 end of an existing DNA strand growing replication fork primase RNA RNA primer • built by primase • serves as starter sequence for DNA polymerase III

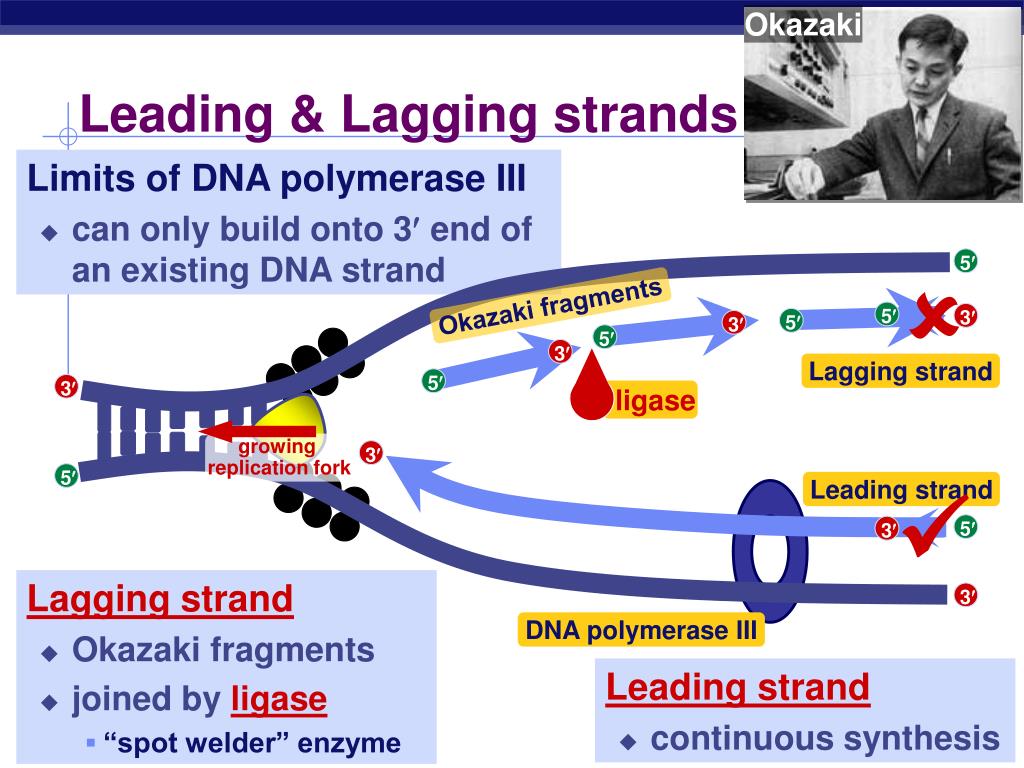

  19. Okazaki ligase 3 3 3 3 3 3 3 5 5 5 5 5 5 5 Leading & Lagging strands Limits of DNA polymerase III • can only build onto 3 end of an existing DNA strand  Okazaki fragments Lagging strand growing replication fork  Leading strand Lagging strand • Okazaki fragments • joined by ligase • “spot welder” enzyme DNA polymerase III Leading strand • continuous synthesis

  20. direction of replication Replication fork DNA polymerase III lagging strand DNA polymerase I 3’ primase Okazaki fragments 5’ 5’ ligase SSB 3’ 5’ 3’ helicase DNA polymerase III 5’ leading strand 3’ SSB = single-stranded binding proteins

  21. DNA polymerase III 3 3 3 3 3 3 3 3 3 3 3 growing replication fork growing replication fork 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 Replication fork / Replication bubble leading strand lagging strand leading strand lagging strand leading strand lagging strand

  22. Replication: 2nd step • Build daughter DNA strand • add new complementary bases • DNA polymerase III But… We’re missing something! What? Where’s theENERGYfor the bonding! DNA Polymerase III

  23. ligase 3 3 3 3 5 5 5 5 Replacing RNA primers with DNA DNA polymerase I • removes sections of RNA primer and replaces with DNA nucleotides DNA polymerase I growing replication fork RNA But DNA polymerase I still can only build onto 3 end of an existing DNA strand

  24. Fast & accurate! • It takes E. coli <1 hour to copy 5 million base pairs in its single chromosome • divide to form 2 identical daughter cells • Human cell copies its 6 billion bases & divide into daughter cells in only few hours • remarkably accurate • only ~1 error per 100 million bases • ~30 errors per cell cycle

  25. 1 2 3 4 What does it really look like?

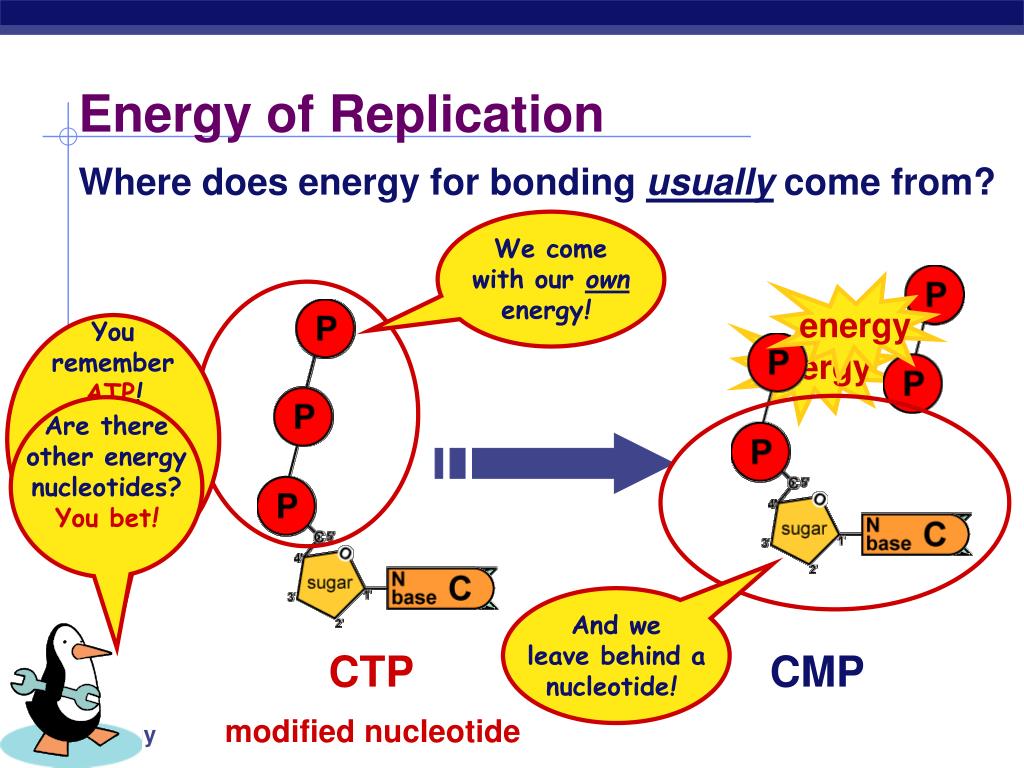

  26. Energy of Replication Where does energy for bonding usually come from? We comewith our ownenergy! energy YourememberATP!Are there other waysto get energyout of it? energy Are thereother energynucleotides?You bet! And weleave behind anucleotide! CTP ATP TTP GTP AMP ADP GMP TMP CMP modified nucleotide

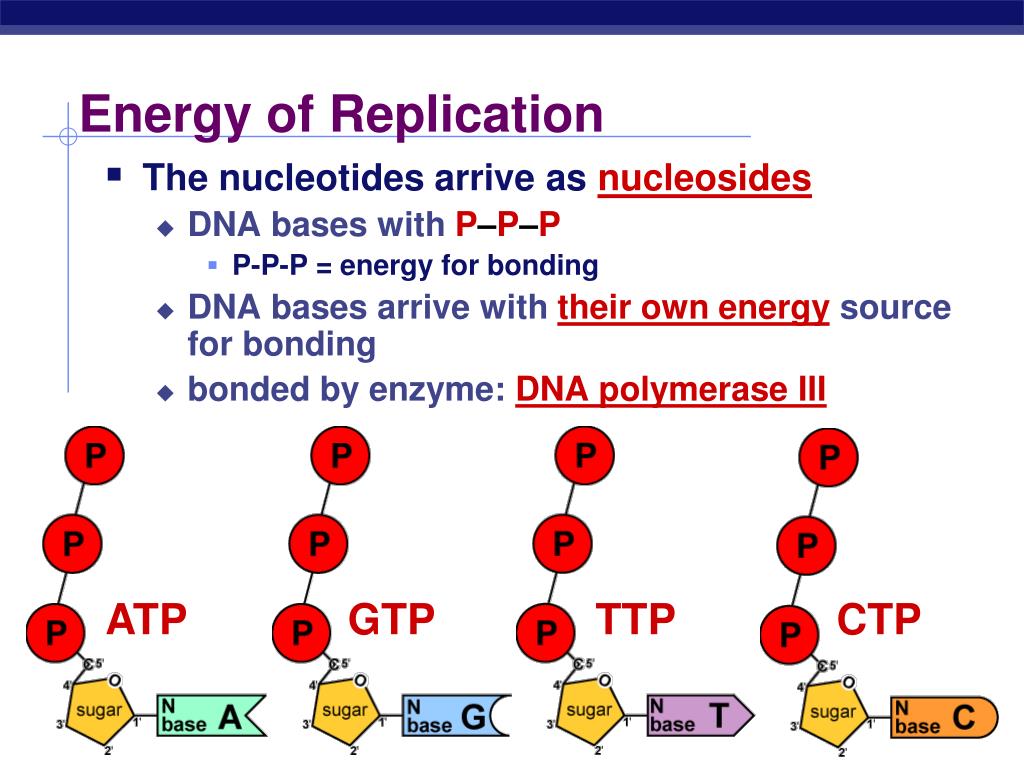

  27. Energy of Replication • The nucleotides arrive as nucleosides • DNA bases with P–P–P • P-P-P = energy for bonding • DNA bases arrive with their own energy source for bonding • bonded by enzyme: DNA polymerase III ATP GTP TTP CTP

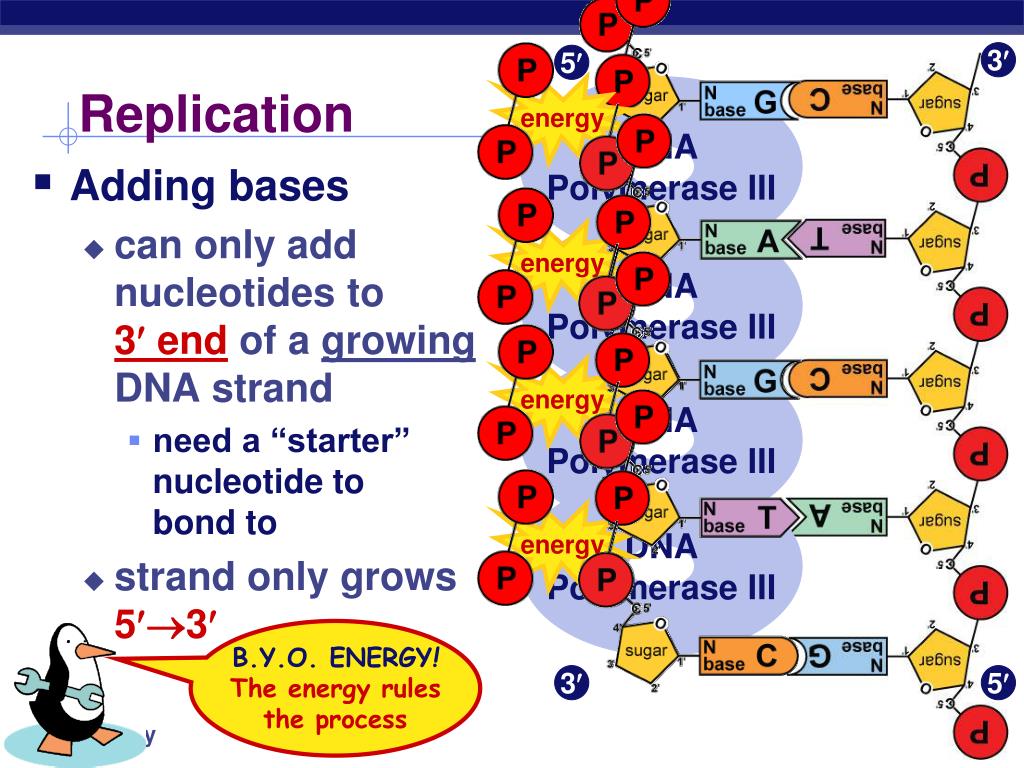

  28. 3 5 Replication energy DNA Polymerase III • Adding bases • can only add nucleotides to 3 end of a growing DNA strand • need a “starter” nucleotide to bond to • strand only grows 53 DNA Polymerase III energy DNA Polymerase III energy DNA Polymerase III energy B.Y.O. ENERGY! The energy rulesthe process 3 5

  29. ligase 5 3 5 3 need “primer” bases to add on to energy  no energy to bond energy energy energy energy energy energy 3 5 3 5

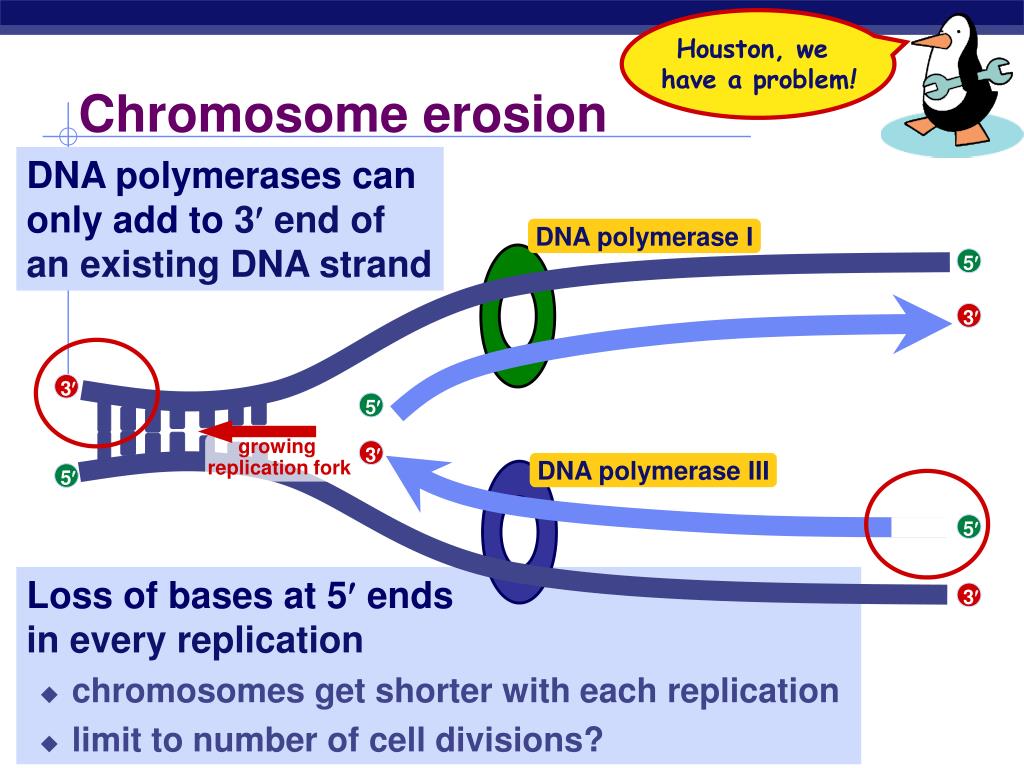

  30. 3 3 3 3 5 5 5 5 Houston, we have a problem! Chromosome erosion All DNA polymerases can only add to 3 end of an existing DNA strand DNA polymerase I growing replication fork DNA polymerase III RNA Loss of bases at 5 endsin every replication • chromosomes get shorter with each replication • limit to number of cell divisions?

  31. 3 3 3 3 5 5 5 5 Telomeres Repeating, non-coding sequences at the end of chromosomes = protective cap • limit to ~50 cell divisions growing replication fork telomerase Telomerase • enzyme extends telomeres • can add DNA bases at 5 end • different level of activity in different cells • high in stem cells & cancers -- Why? TTAAGGG TTAAGGG TTAAGGG

  32. Roger Kornberg 2006 Arthur Kornberg 1959 DNA polymerases • DNA polymerase III • 1000 bases/second! • main DNA builder • DNA polymerase I • 20 bases/second • editing, repair & primer removal DNA polymerase III enzyme

  33. Editing & proofreading DNA • 1000 bases/second = lots of typos! • DNA polymerase I • proofreads & corrects typos • repairs mismatched bases • removes abnormal bases • repairs damage throughout life • reduces error rate from 1 in 10,000 to 1 in 100 million bases

  34. Any Questions??

  35. Energy of Replication Where does energy for bonding usually come from? We comewith our ownenergy! YourememberATP!Are there other waysto get energyout of it? energy And weleave behind anucleotide! ATP GTP TTP ATP ADP AMP GMP TMP AMP modified nucleotide

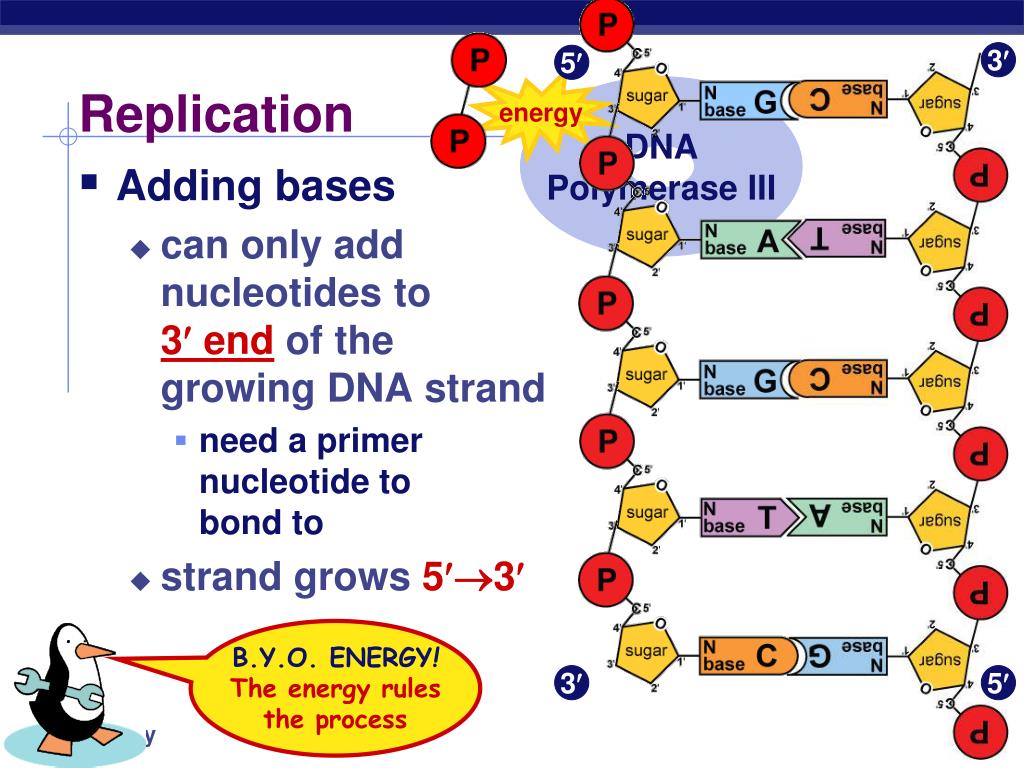

  36. 3 5 energy Replication DNA Polymerase III • Adding bases • can only add nucleotides to 3 end of the growing DNA strand • need a primer nucleotide to bond to • strand grows 53 B.Y.O. ENERGY! The energy rulesthe process 3 5

  37. 5 3 5 3  no energyto bond 3 5 5 3

  38. ligase 5 3 5 3 energy 3 5 3 5

  39. 3 3 3 3 5 5 5 5 Houston, we have a problem! Chromosome erosion DNA polymerases can only add to 3 end of an existing DNA strand DNA polymerase I growing replication fork DNA polymerase III Loss of bases at 5 endsin every replication • chromosomes get shorter with each replication • limit to number of cell divisions?

  40. direction of replication Replication fork 3’ 5’ 5’ 3’ 5’ 3’ 5’ 3’

  41. DNA synthesis in prokaryotes • Replication is bidirectional. • Replication is semi-conservative.

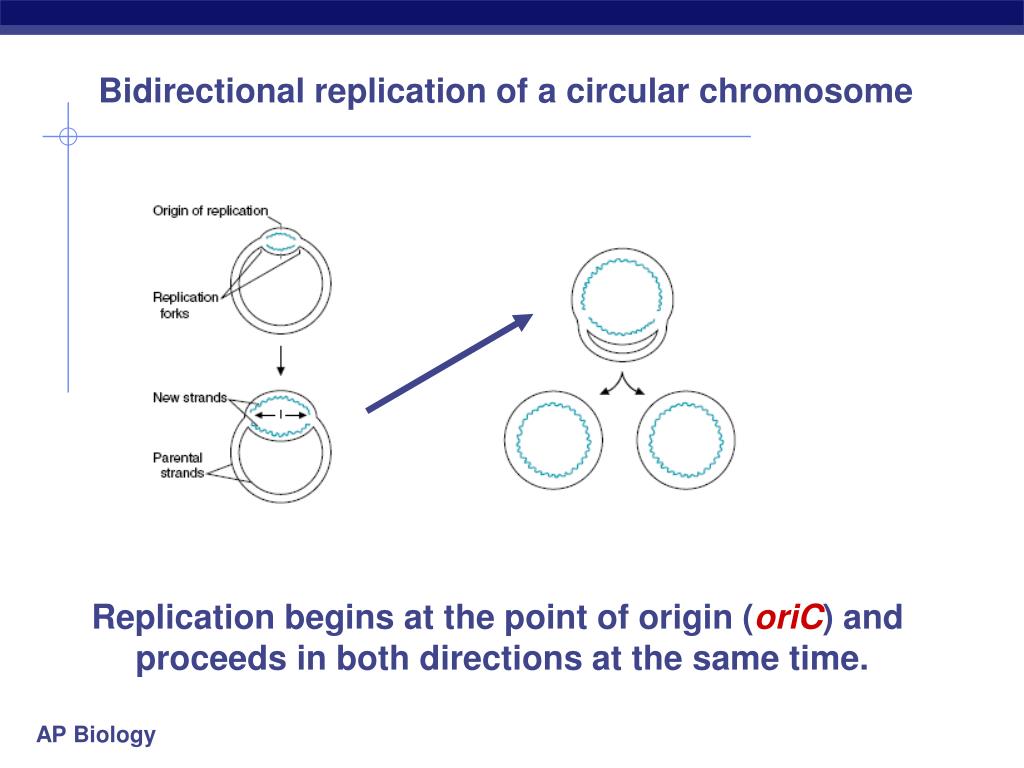

  42. Bidirectional replication of a circular chromosome Replication begins at the point of origin (oriC) and proceeds in both directions at the same time.

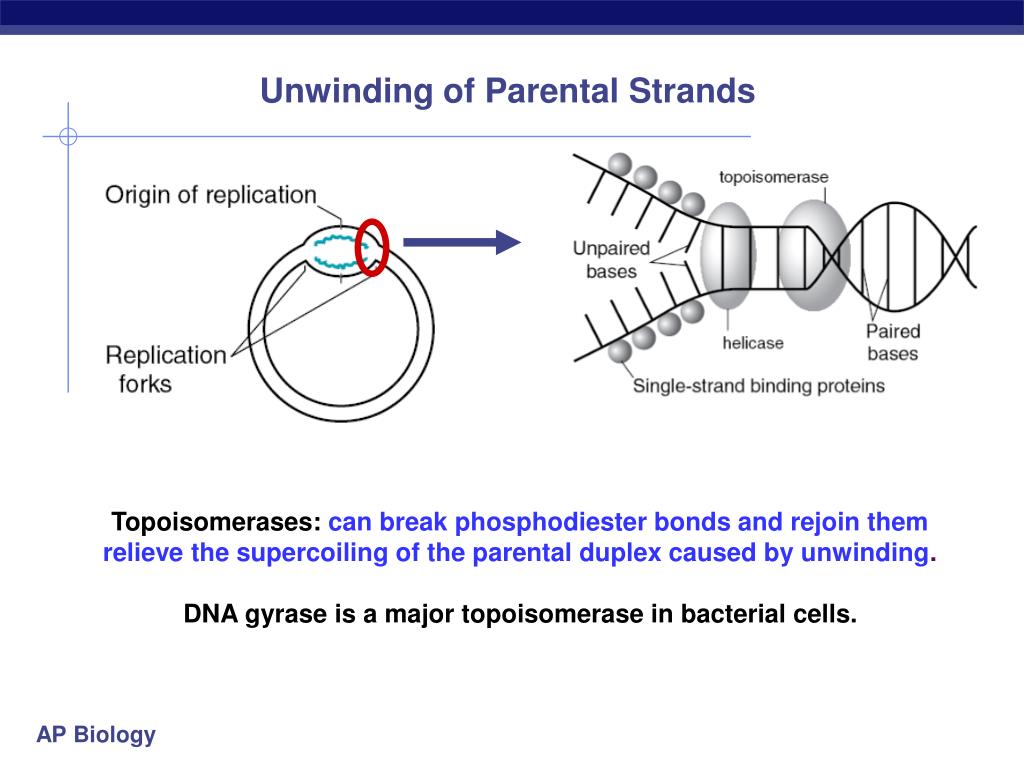

  43. Unwinding of Parental Strands Topoisomerases:can break phosphodiester bonds and rejoin them relieve the supercoiling of the parental duplex caused by unwinding. DNA gyrase is a major topoisomerase in bacterial cells.

  44. 以上です。
