  1. Aspire Release 5 January, 2006 Michael Pataky

  2. Release 5 Major Features • Unified Messaging – Aspire Mail DMS (Future) • Centralized Voice Mail (Future) • IntraMail On Aspire M • Video IP Soft Phone • Aspire Wireless Enhancements • Tandem Connection Of More Than 2 CO Lines • SIP Trunking • Flexible Ringing/Call Restriction By Caller ID • Fax Over Aspire Networking

  3. Release 5 Other Features • Center Telephone Book • Remote Setup By DTMF Signal • DID Call By Time Schedule • No-Answer Trunk-Trunk Forwarding • ACD Overflow Enhancement • RTP Forwarding • Latin American Spanish, Turkish & Swedish • Fill, Copy Commands Added

  4. Major Features

  5. Unified Messaging – Aspire Mail DMS - Future • Provides The Features Of Aspire Mail VMS Plus: • Desktop Messaging • Send .WAV File To An Email Client • Uses IMAP4 For Synchronization To The Email • Can Work Unsynchronized. • Desktop Call Control • Accept/Reject Call Transferred By Voice Mail • Send A Pre-Programmed Message To A Caller Being Transferred By Voice Mail To You. • View Caller ID Information For Call Being Transferred To You By Voice Mail.

  6. Aspire Mail DMS - Future (continued) • The Aspire Mail DMS Parts: • 4 Ports, 4DMSU – 0891030 • 8 Ports, 8DMSU – 0891031 • 4-8 Port Expansion License – 0891010 • 10 Seat Desktop Messaging/Desktop Call Control License – 0891020 • Please Refer To The Aspire Voice Mail Plan For More Details

  7. Centralized Voice Mail - Future • Provides Voice Mail Transparency Across A Network For In-Skin Voice Mails. • Provides Soft Key Functionality Across A Network. • Previously Only External Voice Mails Could Be Used • Works With All Versions Of In-Skin Voice Mail • Requires Firmware Update For Existing Aspire Mail and Aspire Mail Plus Voice Mails. • Aspire IntraMail Can Be Used As A CVM But SOFTKEYS ARE NOT SUPPORTED!!!!

  8. Centralized Voice Mail - Future (continued) Aspire S Example IP Network IP Network Aspire with DMS

  9. IntraMail on Aspire M • Supported on 64CPU (0891002) or 64CPU with PALA UGD (0891039). Not supported on the 512CPU (0891038) • Counts towards station port usage for CPU type. • Uses same IntraMail as Aspire S (0892180-4P8H, 0892182-8P16H) Can be carried over from an Aspire S system. • External VM or FMS/VMS/DMS can not work when IntraMail is installed. • DTMF/tone detectors on DSPDB do not work • Softkeys operate like Aspire S. This is different from the FMS/VMS/DMS.

  10. Aspire Wireless Enhancements • MW Indication by Envelope Icon • Abbreviated Dial Search by Name • Common, Group, Extension • Name/Number displayed in idle mode • Station forwarding status not shown • CID for transferred calls • Incoming call priority in case of collision • Requires change to Aspire software, DSIU firmware and handset firmware.

  11. Video IP Soft Phone • Second Aspire IP Soft Phone (0892015) • Similar to current Aspire IP Soft Phone • Supports a webcam appliance. We do not provide this . • Supports the new USB phone with 4 function keys and new USB cordless headset (CS50-USB, 730092)

  12. Video IP Soft Phone (continued) • Can send/receive video only from another Aspire Video IP Soft Phone connected to the system. Inter-system (either networked or not) video is not supported. • The new version of the Aspire IP Soft Phone also supports the new USB Phone with 4 function keys and the new USB Cordless Headset (CS50-USB, p/n 730092)

  13. Tandem Connection of > 2 CO Lines • A user can set up an unsupervised conference with more than 2 CO lines • The user that set up the conference can rejoin the conference at any time • Trunk keys are required to rejoin a conference • Trunks must support disconnect supervision

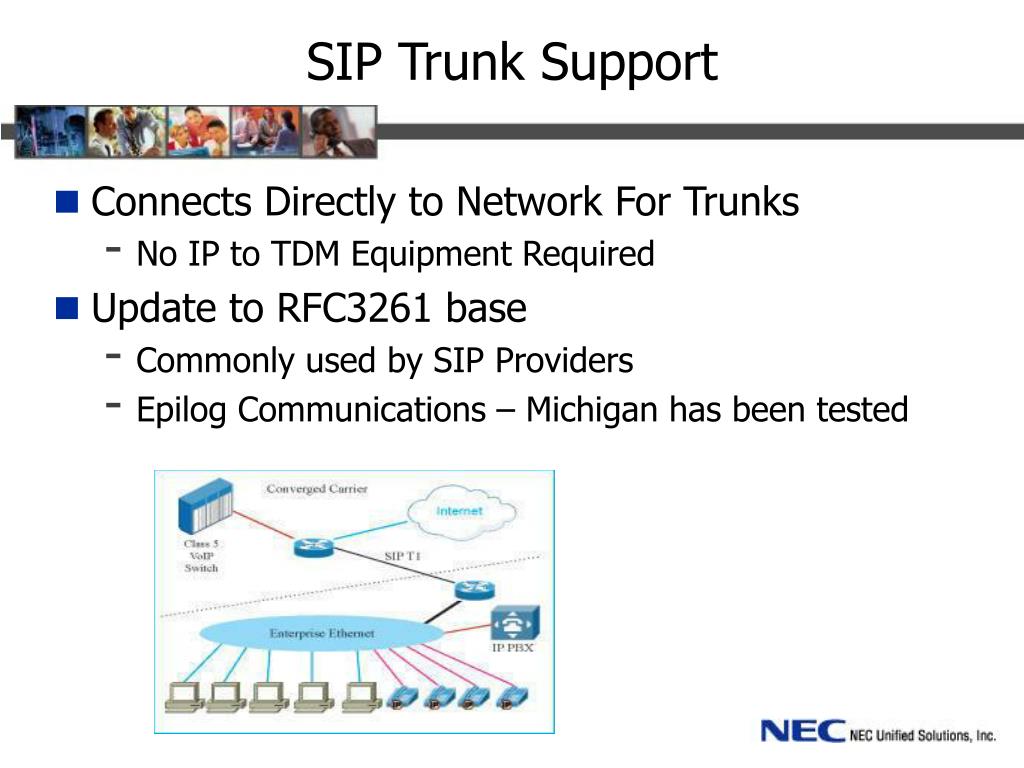

  14. SIP Trunk Support • Connects Directly to Network For Trunks • No IP to TDM Equipment Required • Update to RFC3261 base • Commonly used by SIP Providers • Epilog Communications – Michigan has been tested

  15. SIP Trunk Support (continued) • Testing in progress with CBeyond currently service 5 major metropolitan areas • Atlanta • Chicago • Dallas • Denver • Houston • Los Angeles next • New system software required (5.1)

  16. Flexible Ringing by Caller ID • Aspire can either reject incoming calls marked “Private” for CID and play a VRS message to the caller or route to a ring group or alternate extension. • When CID is received, Aspire can check it against an entry in the ABB table and reject or route the call to an alternate extension or ring group. • With a VRS, the customer can record the rejection message. With no VRS, ISDN will reject the call; analog lines will go to ring-no-answer if not programmed to go to a ring group. • Extension ability to set/cancel call rejection by COS.

  17. Fax Over Aspire Network • Currently, sending a fax over an Aspire network is not reliable. • No resource available/busy doesn’t send busy to fax machine • Error in IP transmission doesn’t perform a resend operation • Change to sending by H.245 Protocol instead of H.323

  18. Other Features

  19. Center Telephone Book • Provides each extension user a personal directory • Up to 600 numbers in Aspire M • Up to 600 numbers in Aspire S • Password protected • Each extension can have up to 2 Telephone Books. Each book can have 300 entries. • Aspire M – 100 Tables (Books) • Aspire S – 50 Tables (Books)

  20. Center Telephone Book (continued) • Search by name • Save LND & CID into Telephone Book • Books may be shared between 2 phones • If 2 books are assigned to a station, it is possible to share 1 and have the other book be private.

  21. Remote Setup by DTMF • Uses DISA to Set/Cancel Various Functions • Day/Night Mode Switching • VRS Message Record/Erase • Call Forwarding • DND • Automatic Trunk Transfer • Telephone Temporarily Disabled when a Terminal Related Function is Set by DISA • Guidance Messages when VRS Installed

  22. DID Call Routing by Time Schedule • 8 time patterns for each DID • Not associated with system settings (day, night, rest, etc) • May be changed manually • New function key • Under COS control

  23. No-Answer Trunk-Trunk Forwarding • Incoming call which ring-no-answer can be programmed to forward off-premise • Uses new timer for forwarding • Can try up to 8 locations • Answer detection is required (PRI, BRI)

  24. ACD Overflow Enhancement • Adds 2 new overflow destinations • Overflow off-premise using ABB dial • Overflow to incoming ring group • Current software allows overflow to either another ACD group or Voice Mail.

  25. Fill-Copy-Delete Added to TelPro • Fill Command added (Program 92-06-01) • Like the Fill Command on an Excel Spreadsheet • Input incremented numbers into consecutive locations • Copy Command • Basic copy command existed since Version 1.00 • Copying doorbox programming now available • Delete Command • Allows you to delete a group of entries

  26. RTP Forwarding • Real Time Transport Protocol (For Voice over IP) • Reduces Delay of Voice Packet • Without RTP Forwarding, RTP Packets are Converted to TDM • TDM Sent to Destination Via Backplane • TDM then Converted back to RTP • Cannot be used for IP Networked Sites • Requires Version 4.5 Firmware on 4/16VOIPU-A1 (0891042/0891022) and 4VOIPU-S1 (0891054)

  27. Back Board Back Board RTP Forwarding Decrease the delay Voice Voice VOIPU VOIPU RTP Packet RTP Packet RTP Packet RTP Packet IP Extension /IP Trunk IP Extension /IP Trunk IP Extension /IP Trunk IP Extension /IP Trunk

  28. Other New Hardware

  29. Conference Speakerphones • Analog Wired Audio Conference Unit • 750073: NEC Conference MAX • Analog Wireless Audio Conference Unit • 750074: NEC Conference MAX Plus Wall Analog Line AC Power Analog Line Wireless AC Power

  30. Conference Max Plus • Analog Cordless 2.4 GHz • 150’ Range • 12 Hours Talk Time • 36 Hours Stand-by

  31. Conference Max Expansion • P/N 750156 • Works with Conference Max • Up to 3 pods may be added to base POD • Includes: • 1 Phone Pod • Cables (Telephone & 12’ Cat 5) • Documentation (CD & Quick Start Guide) 750156

  32. Conference Speakerphones • Major Features • Full-duplex • Automatic Level Control • Fully functional dial pad • 3 built in microphones • First-mic priority activates microphone closest to the person who is speaking. • Distributed echo cancellation • 1 built in speaker • LCD display • Released for General Sales – 11/7/2005

  33. USB Wireless Headset • 730092, Plantronics Model CS50-USB • Up to 200 feet away from base • Remote ring detection and answer • 8 Hr talk time, 1.5 Hr charge time • 900 MHz band • Requires IP Softphone version 1.0.6.0 or Higher

  34. USB Phone UTR-1-1 • New Part Number 780097 • Replaces USB Phone 780094 • Has 4 programmable function keys • May be fixed feature key (DND, Flash, etc) • Programmable keys (Line key, Virtual, MW VM) • Requires IP Soft Phone version 1.0.6.0 or higher.
