Non-Metals

Periods Families(Groups) -- same # valence electrons. Non-Metals. Metals. Metalloids. As a general rule, metals don’t like to form bonds(compounds) with other metals(They will with themselves). Metals(+ ions) would rather form bonds with nonmetals(- ions)!!. Covalent Bonding.

mariko
Download Presentation

Non-Metals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Periods Families(Groups) --same # valence electrons Non-Metals Metals Metalloids As a general rule, metals don’t like to form bonds(compounds) with other metals(They will with themselves). Metals(+ ions) would rather form bonds with nonmetals(- ions)!!

  2. Covalent Bonding • Involves the sharing of electrons. • Covalent bonds form between nonmetals and nonmetals.

  3. Lewis Dot Structures(aka Electron Dot Diagrams) • Lewis dot structures are a shorthand to represent the valence electrons of an atom. • The structures are written as the element symbol surrounded by dots that represent the valence electrons.

  4. Lewis Dot Structures(cont.) • Lewis structures can also be used to show covalent bonding between atoms. • The bonding electrons are placed between the atoms and can be represented by a pair of dots or a dash (each dash represents one pair of electrons, or one bond).

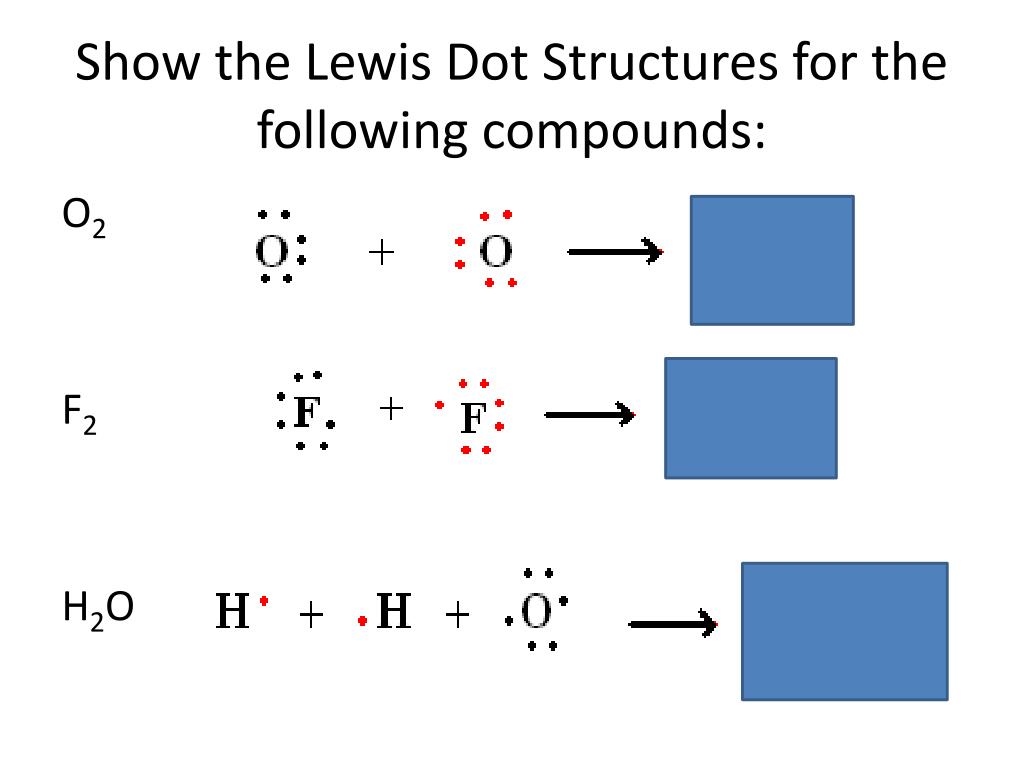

  5. Show the Lewis Dot Structures for the following compounds: O2 F2 H2O

  6. Covalent Bonds(cont.) • Sometimes electrons are shared equally among nonmetals in a covalent bond. Sometimes they are not. • It’s as if one element is pulling on the electrons just a little bit harder than the other.

  7. Covalent Bonds(cont.) Polar Covalent Bonds Non-Polar Covalent Bonds Both elements are pulling just as hard on the electrons. Equal sharing of electrons. • One element is pulling harder on the electrons than the other(s). • Unequal sharing of electrons. • This cause them to set up “poles”. • One element will become slightly positive and the other slightly negative.

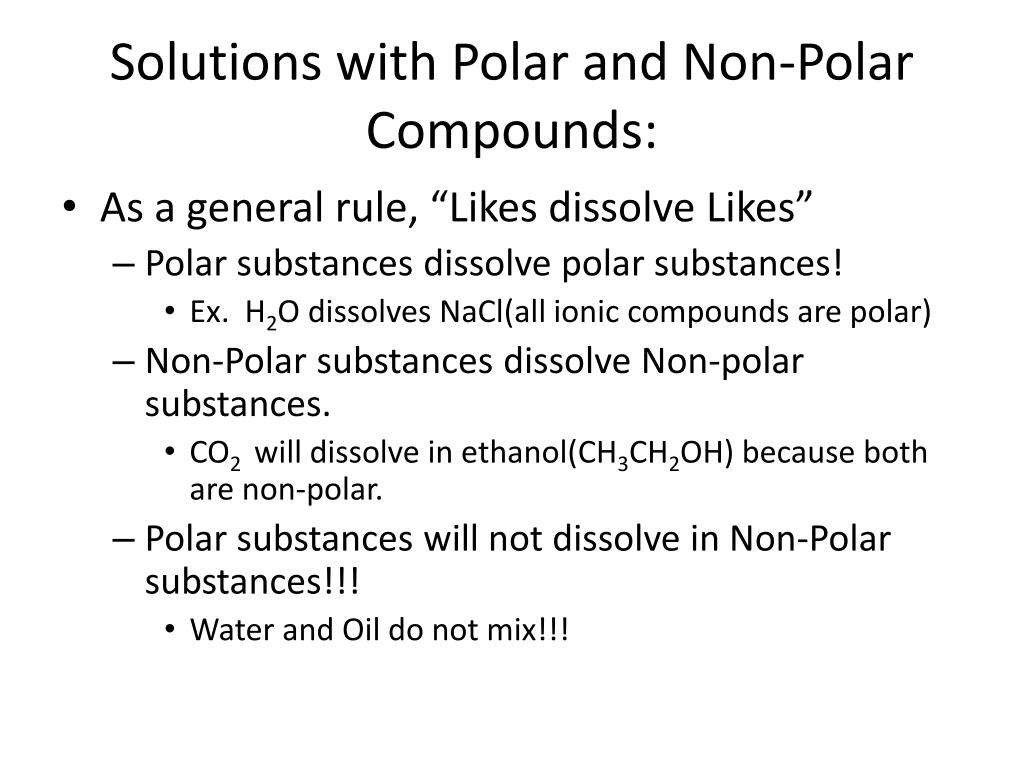

  8. Solutions with Polar and Non-Polar Compounds: • As a general rule, “Likes dissolve Likes” • Polar substances dissolve polar substances! • Ex. H2O dissolves NaCl(all ionic compounds are polar) • Non-Polar substances dissolve Non-polar substances. • CO2 will dissolve in ethanol(CH3CH2OH) because both are non-polar. • Polar substances will not dissolve in Non-Polar substances!!! • Water and Oil do not mix!!!

  9. Which compound is least affected by temperature? Which compound’s solubility decreases as temperature increases?

  10. How many grams of KNO3 will dissolve in 100 g of water at 60o C? 110 g

  11. At what temperature will approximately 95 g of NaNO3 dissolve in 100 g of water? 30 oC

  12. At what temperature will the same amount of KNO3 and NaNO3 dissolve in 100 g of water? ~ 68 oC

  13. Name the following compounds: Sodium Chloride • NaCl • CaO • KF • Na2CrO4 • Ca(ClO3)2 • Al2(CO3)3 Calcium Oxide Potassium Fluoride Sodium Chromate Calcium Chlorate Aluminum Carbonate

  14. Writing Chemical Formulas: Lithium and Selenium Li+1Se-2 Li2Se Calcium and Chlorate Ca+2ClO3-1 Ca(ClO3)2 Beryllium and Phosphorus Be+2P-3 Be3P2 Gallium and Carbonate Ga+3CO3-2 Ga2(CO3)3

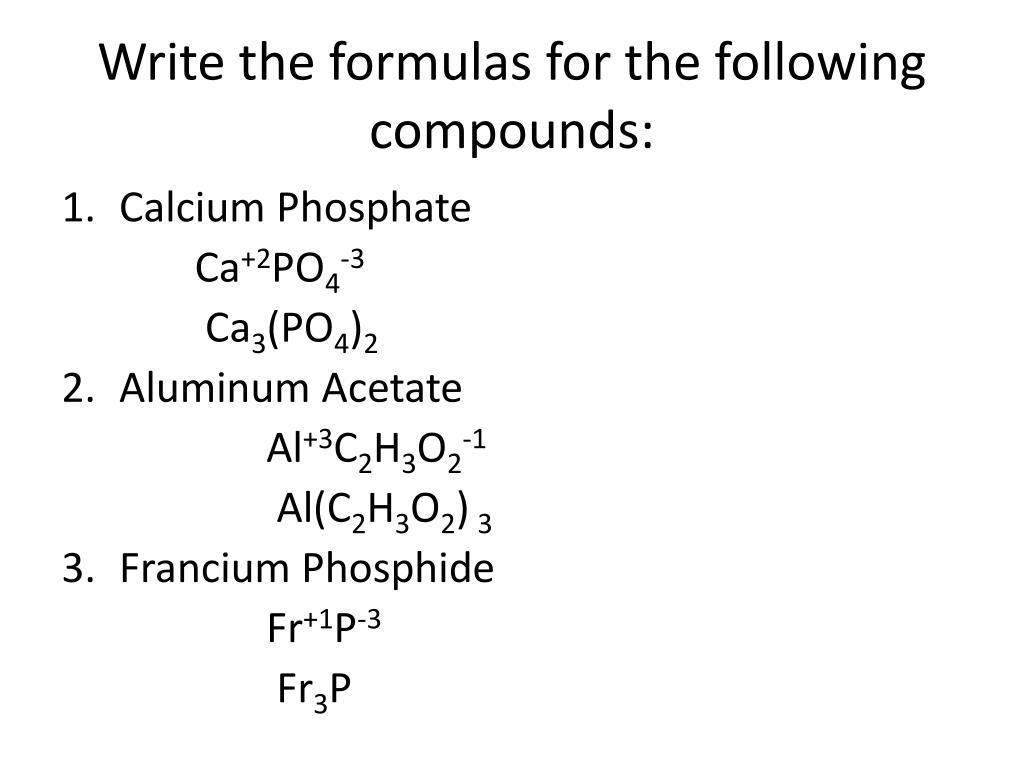

  15. Write the formulas for the following compounds: • Calcium Phosphate Ca+2PO4-3 Ca3(PO4)2 • Aluminum Acetate Al+3C2H3O2-1 Al(C2H3O2)3 • Francium Phosphide Fr+1P-3 Fr3P

  16. Determine the oxidation state of both elements in the following examples: • CuF2 Cu+2F-1 • Co2S3 Co+3S-2 • Fe2O3 Fe+3O-2

  17. Chemical Equations: • Reactants “yield” Products • Reactants Products • Must know the 4 types of chemical reactions: • Decomposition AB A + B • Synthesis A + B AB • Single Replacement AB + C AC + B • Double Replacement AB + CD  AD + CB
