  1. Lecture 5Viewing and projections • Viewing • In OpenGL • The camera frame • Other view APIs • Projections • Perspective projections • Parallel projections • View volumes • Parallelpiped • Frustum

  2. Viewing • Modeling coords • What we model object in • Independent of viewing • OpenGL uses the modeling part of the model-view matrix to convert from the modeling frame to the world frame • OpenGL camera • Placed at origin of world frame pointing in negative z direction

  3. Viewing • If we model scene around origin the camera will not see all objects so we must 1) move camera back, or 2) move scene to in front of camera • Sequence of operations 1.Begin with model_view matrix = identity matrix 2.Define objects using glVertex 3.Apply model_view matrix to move world frame to camera frame (I.e. move objects to eye space) • *If we now position an object, is w.r.t. the repositioned world frame These are equivalent operations

  4. Camera positioning • OpenGL Example • This moves points Or we can think of it as world space positioning the camera glMatrixMode (GL_MODEL_VIEW); glLoadIdentity (); glTranslate (0, 0, -d); glRotate (0, -90, 1, 0); z=-d -90deg z=+d 90deg M = TR = T(0,0,-d) Ry(-90) M-1 = R-1T-1 = Ry(90) T(0,0,d)

  5. y (1,sqrt(2))  d 1 z sqrt(2) Example:Find isometric view (p205) y 45deg (1,1,1) (-1,1,1) z y   (0,1,sqrt(2)) d = sqrt(1*1+sqrt(2)*sqrt(2)) = sqrt(1+2) = sqrt(3)  cos = sqrt(2)/sqrt(3) = sqrt(6)/3 sin = sqrt(1)/sqrt(3) = sqrt(3)/3   = acos(sqrt(6)/3) = 35.26 z y z R = RxRy= sqrt(2)/2 0 sqrt(2)/2 0 0 1 0 0 -sqrt(2)/2 0 sqrt(2)/2 0 0 0 0 1 1 0 0 0 0 sqrt(6)/3 sqrt(3)/3 0 0 -sqrt(3)/3 sqrt(6)/3 0 0 0 0 1

  6. Defining a camera frame 1. Position camera (VRP) set_view_reference_point (x, y, z) 2. Specify view plane by its normal (VPN) set_view_plane_normal (nx, ny, nz) 3. Specify camera up vector (VUP) set_view_up (vupx, vupy, vupz) (VUP must be orthogonal to VPN, so project to VP) 4. This gives us two orthogonal vectors, v and n find the third, u = v x n n vup v VP vrp u

  7. Creating a camera frame • Given: p, n (unit), and up • Find: view matrix, V, which takes x,y,z to u,v,n • x,y,z are world coords, u,v,n are eye coords • V= RT = ux uy uz 0 vx vy vz 0 nx ny nz 0 0 0 0 1 1 0 0 -vrpx 0 1 0 -vrpy 0 0 1 -vrpz 0 0 0 1 pu pv pn 1 px py pz 1 = V Need to find u and v

  8. Creating a camera frame • Find v: • Find u: 1. Project up onto n ([(up*n)/(n*n)]n) 2. Subtract the result (the comp. of up in the direction of n) from up to get v, which is orthogonal to n and thus lies in the plane VP: v = up - [(up*n)/(n*n)]n v = (I - nnT/nTn) up 3. Normalize up v u VP n This is the projection onto VP. What does this remind you of? 1. Take the cross product: u = v x n 2. Normalize

  9. OpenGL camera specification • Instead of arbitrarily specifying n, we can specify an eye position and a lookat position in world coords and compute n n = eye - at (in OpenGL, vrp = eye) • In OpenGL, we’ll use this convenient function gluLookAt (eyex, eyey, eyez, atx, aty, atz, upx, upy, upz)

  10. Other view APIs • Flight simulation • Orientation of an airplane is called its attitude • Defined by 3 angles independent angles around x, y, and z axes (Euler angles) • pitch (x), yaw (y), and roll (z)

  11. Other view APIs • Celestial navigation • Positions given in polar coordinates elevation- angle between the optical axis and the horizontal plane of view - sweeps optical axis up and down azimuth - angle between the optical axis and some arbitrary reference direction in the horizontal plane - sweeps optical axis left to right. twist angle - rotates camera about optical axis ELEVATION ANGLE AZIMUTH ANGLE

  12. Projections • A projection is • A mapping from Rn Rn • we often assume z=0, but we are still in 3D • Idempotent => P*P*…*P = P • subsequent projections have no effect • Two main types we will use in CG • Parallel • Perspective • Can be combined for a generalized projection

  13. Projections • Taxonomy of projections

  14. Projections Perspective (eye, origin of camera frame) COP view plane (VP) view volume, or frustum Parallel As COP moves to infinity, rays become parallel & we say DOP (direction of proj.) Both perspective and parallel projections are planar geometric projections because the surface is a plane and the projectors are lines*

  15. Perspective projections • Characteristics • Parallel lines of the object that are not parallel to view plane converge to a vanishing point • Closer objects look larger than farther objects • Natural view, used in rendering and animation • Does not preserve lengths or angles • Types • One, two, three point perspectives • defined by number of principal axes cut by proj.

  16. Perspective projections • One-point • One principle axis cut by projection plane • One axis vanishing point • Two-point • Two principle axes cut by projection plane • Two axis vanishing points • Three-point • Three principle axes cut by projection plane • Three axis vanishing points

  17. Perspective projections

  18. Perspective projections • Assume that the view plane (VP) is orthogonal to the z axis at z = d. • Find the projection p of a point p: • By similar triangles, • xp/d = x/z => xp = (d*x)/z = x/(z/d) • yp/d = y/z => yp = (d*y)/z = y/(z/d) p=(x,y,z) *d is a scale factor applied to x and y, *division by z causes distant objects to appear smaller than closer objects *perspective proj is irreversible (do you see why?) pp=(xp,yp,zp) z z=0 COP z=d VP

  19. Perspective projections • The fact that many points map to one point is a problem • We need depth info for hidden surface removal • Homogeneous coordinates allow a fix • Use p = (x, y, z, w) instead of p = (x, y, z, 1) x y z z/d x/(z/d) y/(z/d) d 1 xp yp zp 1 1 0 0 0 0 1 0 0 0 0 1 0 0 0 1/d 0 x y z 1 = = = Note: w = z/d cannot be zero (=> pts on plane z=0 do not project) (This division is not technically part of the projection.)

  20. Parallel projections • Characteristics: • Maps 3D points to view plane (VP) along lines parallel to VP • Preserves relative proportions of objects • used in drafting, esp. for plan views (top, side, etc.) because it gives accurate measurements of lengths and angles • does not give a realistic appearance • Defined by a projection vector • Two types, orthographic and oblique

  21. Parallel projections • Orthographic parallel projection • DOP is orthographic to projection plane • Elevations: • proj. plane is perpendicular to a principle axis. • front, top (plan), side • Axonometric: • proj. plane is not orthogonal to a principle axis • more than one face of an object will be in image • does not preserve distances or angles (in general, isometric is an exception)

  22. Parallel projections • Axonometric projections • Isometric • DOP makes equal angles with each principle axis • Most common axonometric projection • Maintains relative proportions • Dimetric • Proj. plane placed symmetrically to 2 faces • Trimetric • General case

  23. Parallel projections • Oblique parallel projection • DOP is not orthogonal to the projection plane; projection plane is normal to a principle axis. • less natural, eye and camera lens are  parallel to image plan, circles are projected to ellipses • Cavalier • DOP makes 45deg. angle with the proj. plane • Cabinet: • DOP makes a 63.4deg. angle with the proj. plane

  24. Projections • Isometric projection - architectural • http://www.mda1.demon.co.uk/html/htmpd/smary400.htm • Projection examples - varied http://cleo.murdoch.edu.au/asu/pubs/tlf/tlf99/ns/ostrogonac.html • Projection tutorial http://mane.mech.Virginia.EDU/~engr160/Graphics/Projection.html

  25. Parallel projections • Assume the VP is at z = 0 • Then the projection is easy, pp=(xp,yp,zp) p=(x,y,z) DOP z z=0 VP xp yp zp 1 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 x y z 1 x y 0 1 = =

  26. Generalized projections 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 Assumes: DOP parallel to z axis Mparallel = 1 0 0 0 0 1 0 0 0 0 1 0 0 0 1/d 0 Assumes: COP at origin Mperspective= A more robust formulation not only removes these restrictions but also integrates perspective and parallel projections into a single matrix

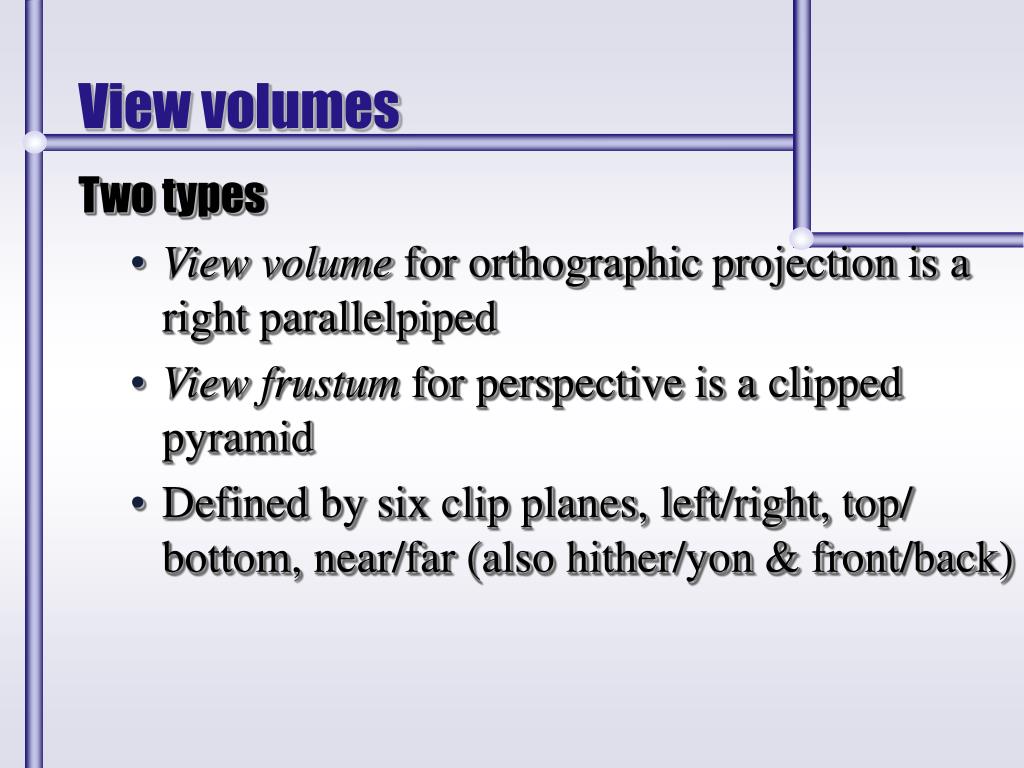

  27. View volumes • Two types • View volume for orthographic projection is a right parallelpiped • View frustum for perspective is a clipped pyramid • Defined by six clip planes, left/right, top/ bottom, near/far (also hither/yon & front/back)

  28. View volumes in OpenGL • Frustum • glFrustum(xmin, xmax, ymin, ymax, near, far) • near and far must be positive distances measured from COP, they describe planes parallel to z=0 • frustum does not have to be a right frustum, i.e., xmin/xmax and ymin/ymax • Alters CTM glMatrix(GL_PROJECTION); glLoadIdentity(); glFrustum(xmin, xmax, ymin, ymax,near, far);

  29. View volumes in OpenGL • Alternatively, we can specify volume using the angle, or field, of view • gluPerspective (fovy, aspect, near, far) • fovy is angle between top and bottom clip planes • aspect is the aspect ratio (width/height) of VP • near and far are the same as before • Alters CTM

  30. near plane Find x extents (t): fov =  left = -t, right = +t s t 1 /2  t=sin(/2) Find y extents (s): height/width = s/t (keep aspect ratio of window) => s = t * height/width s t Perspective view frustum • Define frustum by field of view and near and far clip planes

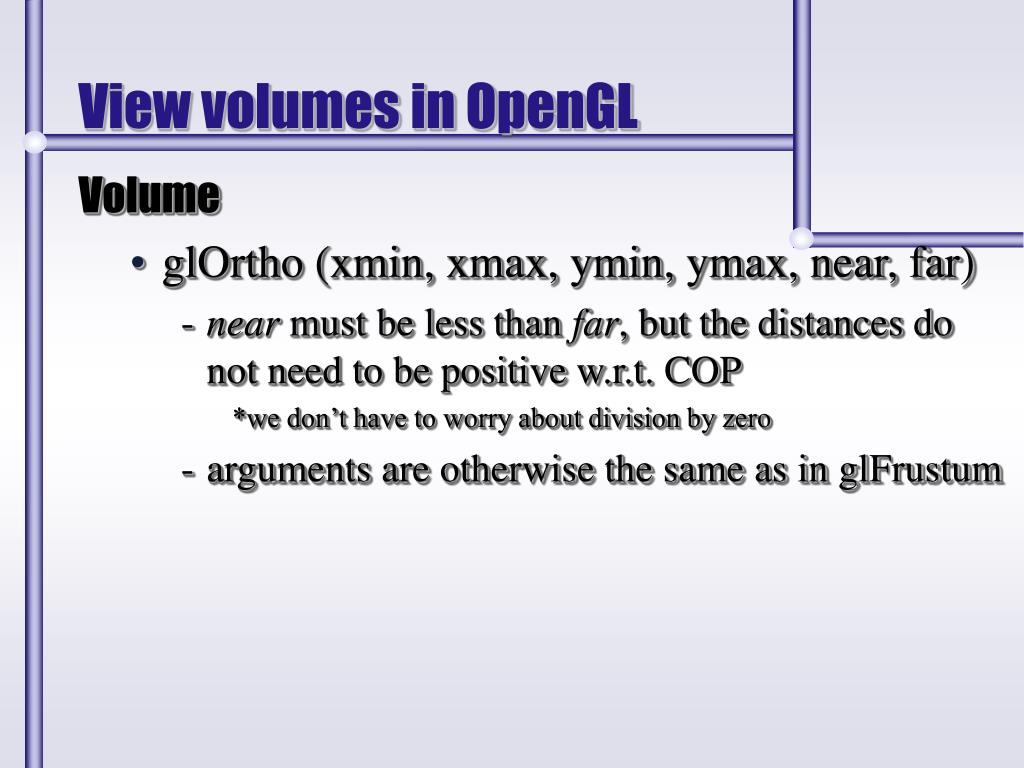

  31. View volumes in OpenGL • Volume • glOrtho (xmin, xmax, ymin, ymax, near, far) • near must be less than far, but the distances do not need to be positive w.r.t. COP *we don’t have to worry about division by zero • arguments are otherwise the same as in glFrustum

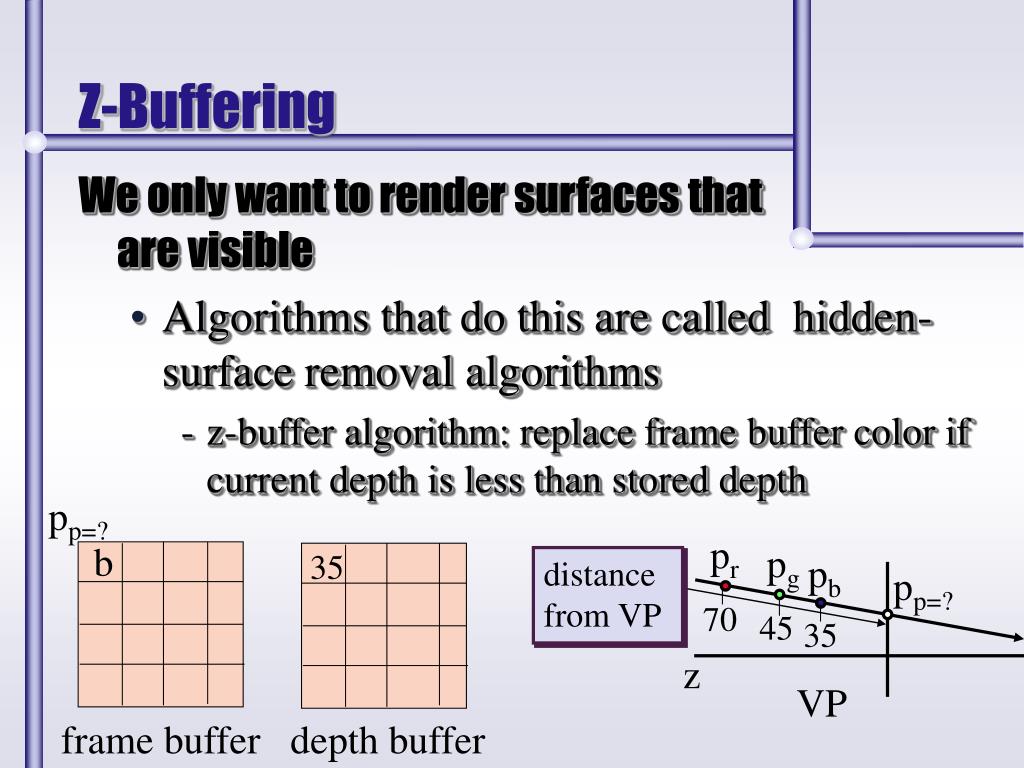

  32. Z-Buffering • We only want to render surfaces that are visible • Algorithms that do this are called hidden-surface removal algorithms • z-buffer algorithm: replace frame buffer color if current depth is less than stored depth pp=? pr b pg 35 pb distance from VP pp=? 70 45 35 z VP frame buffer depth buffer

  33. Z-Buffering • z-buffer algorithm • Part of projection process (image space) • (object space algorithms work on objects) • OpenGL • glutInitDisplayMode(GLU_RGB | GLUT_DEPTH) - initialize buffers • glEnable(GL_DEPTH_TEST) - enable vsp • glClear(GL_DEPTH_TEST) - clear buffer

  34. y y VP VP x x z z Parallel projection matrices • Projection normalization • Convert all projections to orthogonal proj 1. Normalize view volume (will distort object) 2. Project orthogonally • The orthogonal projection of the distorted object will equal the original projection of the original object (x,y,z) (xp,yp,zp) orthogonal proj of distorted obj obliqueproj of object

  35. (z,y) y (0,yp) (x,z) z  x (xp,0) y z  VP x z View volume normalization • 1. Shear view volume to make ortho to VP • Find matrix that shears volume in x and y • Oblique projection characterized by angle projectors make with VP cos = (x-xp)/len sin = z/len => tan = z/(x-xp) => xp= x-zcot perspective view top view (from +y) co  = (y-yp)/len sin = z/len => tan = z/(y-yp) => yp= y-zcot And, zp= 0 side view (from +x)

  36. y (x,z)  x (xp,0) z VP x z General parallel projection • 1. Shear view volume to make ortho to VP • Find matrix that shears volume in x and y • Oblique projection characterized by angle projectors make with VP • Find xp len = sqrt(x2+z2) sub xp from x (moves xp to origin) cos = (x-xp)/len sin = z/len => tan = z/(x-xp) => cot = (x-xp)/z => x-xp= zcot => xp= x-zcot top view (from +y)

  37. (z,y) y (0,yp) z y  VP x z General parallel projection • Find yp • Find zp len = sqrt(y2+z2) sub yp from y (moves yp to origin) cos = (y-yp)/len sin = z/len => tan  = z/(y-yp) => cot  = (y-yp)/z => y-yp= zcot  => yp= y-zcot  side view (from +x) And, zp= 0

  38. (xmax,ymax,zmin) (1,1,-1) M (-1,-1,1) (xmin,ymin,zmax) View volume normalization • OpenGL • Canonical view volume in OpenGL is x = y = z = +-1 (maps to 2D screen coords) • We specify a convenient clip volume with glOrtho(xmin,xmax,ymin,ymax,near,far) • Let GL map our volume to the canonical one

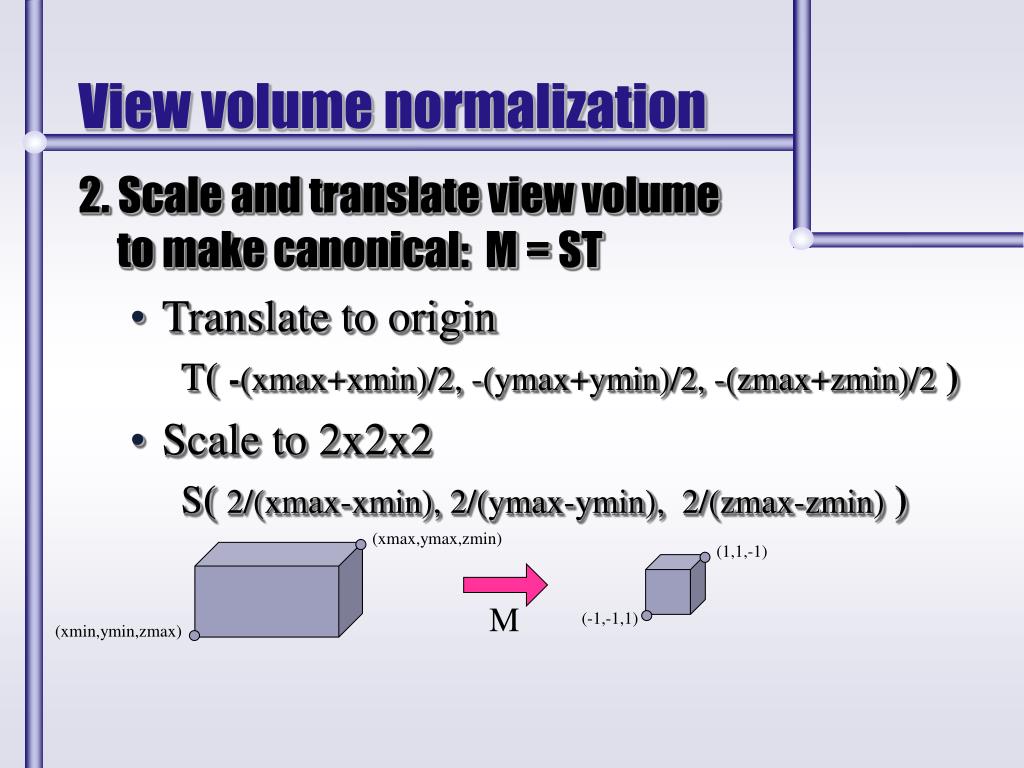

  39. (xmax,ymax,zmin) (1,1,-1) M (-1,-1,1) (xmin,ymin,zmax) View volume normalization • 2. Scale and translate view volume to make canonical: M = ST • Translate to origin T( -(xmax+xmin)/2, -(ymax+ymin)/2, -(zmax+zmin)/2) • Scale to 2x2x2 S( 2/(xmax-xmin), 2/(ymax-ymin), 2/(zmax-zmin))

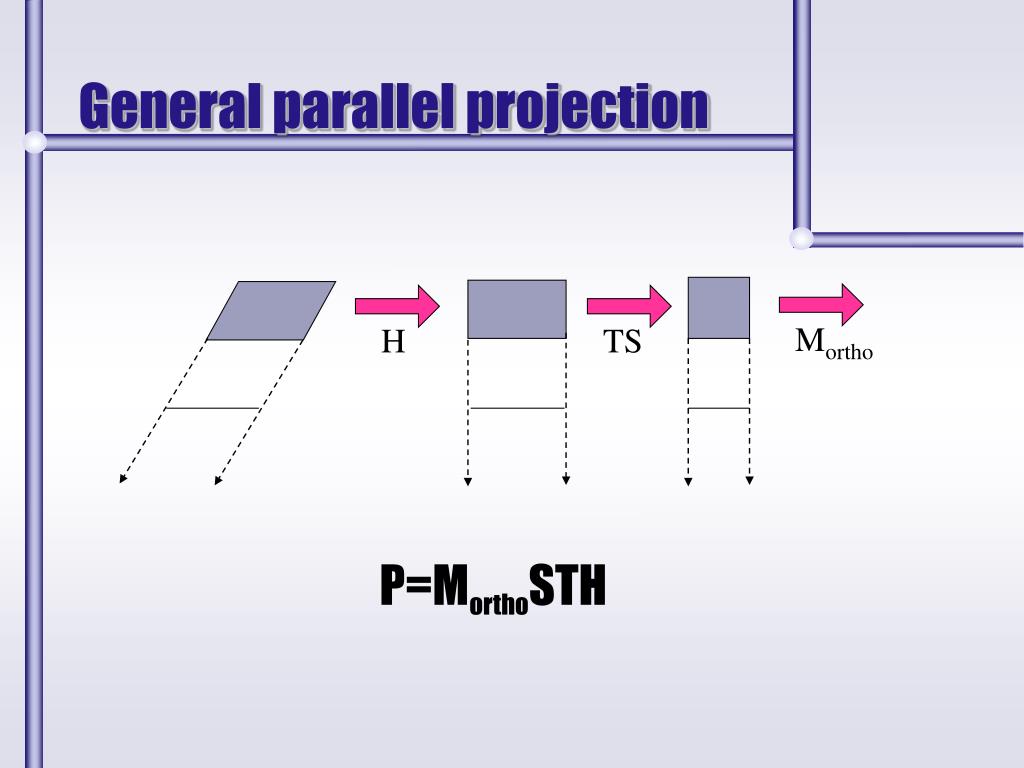

  40. General parallel projection Mortho H TS P=MorthoSTH

  41. H VP n General parallel projection 1. Align proj. vector with VP normal (shear in x,y along z) 1 0 kxz 0 0 1 kyz 0 0 0 1 0 0 0 0 1 1 0 -cot 0 0 1 -cot 0 0 0 1 0 0 0 0 1 Hxy= = where: so that: kxz = -px/pz x = x - z(px/pz) kyz = -py/pz y = y - z(py/pz) z = z

  42. 1 kxy kxz kyx 1 kyz kzx kzy 1 K = General 3x3 shear matrix Read entry kxy as ‘a shear in x along y’

  43. Sx 0 0 0 0 Sy 0 0 0 0 Sz 0 0 0 0 1 ST 2/(xmax-xmin)0 0 0 02/(ymax-ymin)0 0 0 02/(zmax-zmin)0 0 0 0 1 S= = VP n General parallel projection 2. Scale to normalized device coords (NDC) M = ST 1 0 0 Tx 0 1 0 Ty 0 0 1 Tz 0 0 0 1 1 0 0 -(xmax+xmin)/2 0 1 0 -(ymax+ymin)/2 0 0 1 -(zmax+zmin)/2 0 0 0 1 T= =

  44. General parallel projection Mortho H TS P=MorthoSTH

  45. H Sxy P Nz c c eye eye eye General perspective projection cop cop (1,1,1) (-1,-1,-1) P=MorthNPSH

  46. 1 0 kxz 0 0 1 kyz 0 0 0 1 0 0 0 0 1 Hxy = c c eye eye General perspective proj. 1. Shear view volume so centerline of proj is perp to VP (shear in x,y along z) shear c = ((l+r)/2, (t+b)/2, n) to c = (0,0,n) cop cop H where: so that: kxz = (l+r)/2n x = x + z(l+r)/2n kyz = (t+b)/2n y = y + z(t+b)/2n z = z

  47. Sxy Ppersp 2n/(r-l) 0 0 0 0 2n/(t-b) 0 0 0 0 1 0 0 0 0 1 Sxy = eye 1 0 0 0 0 1 0 0 0 0 1 0 0 0 1/d 0 Ppersp. = General perspective proj. 2. Scale sides of frustum,i.e. normalize in x,y (want l = -1, r = 1, n = -1) cop l=-1 r =1 n=-1 eye eye 3. Persp proj creates rect. parallelpiped

  48. (1,1,1) Nz (-1,-1,-1) General perspective proj. 4. Normalize in z (scale and translate far plane) fz=1 1 0 0 0 0 1 0 0 0 0 (f+n)/(f-n) 2fn/(f-n) 0 0 1 1 Nz = Final projection matrix is: P = Hxy Sxy Ppersp Nz *in text, N includes Ppersp

  49. H Sxy P Nz c c eye eye eye General perspective projection cop cop (1,1,1) (-1,-1,-1) P=MorthNPSTH
