  1. IPT CAD DESIGNAND INTEGRATION IBL WG 3 Sébastien MICHAL on behalf the project office

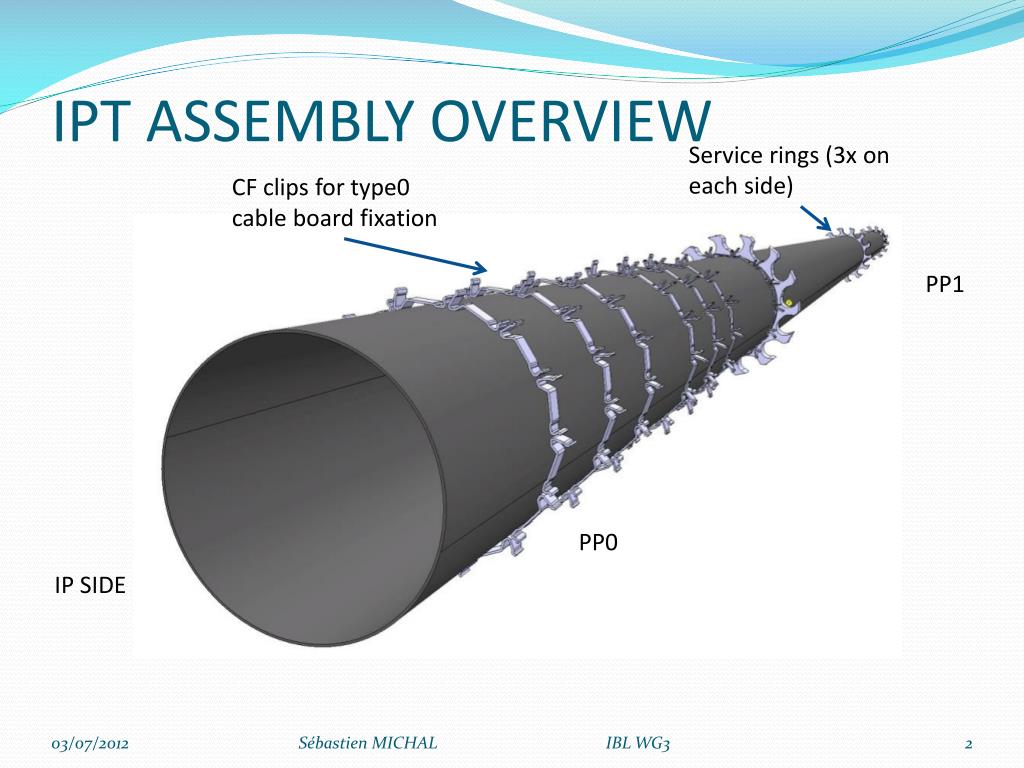

  2. IPT ASSEMBLY OVERVIEW Service rings (3x on eachside) CF clips for type0 cableboard fixation PP1 PP0 IP SIDE Sébastien MICHAL IBL WG3

  3. IPT-BP-IST INTERFACE IP PP1 SIDE Sébastien MICHAL IBL WG3

  4. IPT-BP-IST INTERFACE IST ID: 85 OD: 85.91 Beam pipe ring Beam pipe ID 47 IPT ID: 58 mm OD: 58.78 mm SERVICE RING Sébastien MICHAL IBL WG3

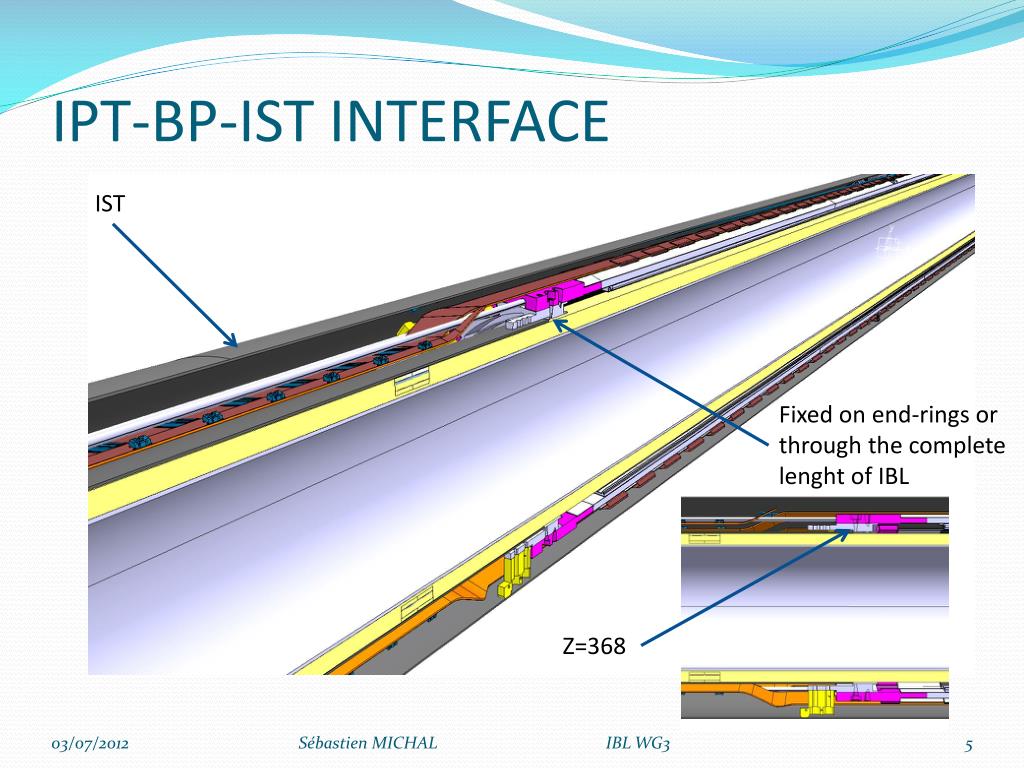

  5. IPT-BP-IST INTERFACE IST Fixed on end-rings or through the completelenghtof IBL Z=368 Sébastien MICHAL IBL WG3

  6. IPT-BP-IST INTERFACE BP XTENDER IPT CONNECTING TOOL Z=3348 mm Sébastien MICHAL IBL WG3
