The ATLSS Vegetative Succession Model

The ATLSS Vegetative Succession Model. Scott M. Duke-Sylvester ATLSS Project : University of Tennessee. Project web-site : www.atlss.org E-mail : sylv@tiem.utk.edu. Overview. Purpose of the model Application to restoration planning Model description Calibration/validation

melvyn
Download Presentation

The ATLSS Vegetative Succession Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The ATLSS Vegetative Succession Model Scott M. Duke-Sylvester ATLSS Project : University of Tennessee Project web-site : www.atlss.org E-mail : sylv@tiem.utk.edu

  2. Overview • Purpose of the model • Application to restoration planning • Model description • Calibration/validation • Development/delivery schedule • Availability

  3. Purpose of the vegetative succession model • Provide vegetative succession dynamics • Modeling changes to habitat is important for accurate modeling of higher trophic levels • A rigorous succession model would include process dynamics : Everglades Landscape Model (ELM) • The ATLSS objective is to interface with ELM, but also produce a alternative less complex succession model.

  4. Application to restoration planning • Provides another tool for assessing the potential for change due to alternative hydrologic scenarios • Directly through changes in habitat diversity and structure • Diversity : number of species, evenness • Structure : tree islands • Indirectly by providing a changing habitat for other models

  5. Model features • Time step : 1 year • Spatial scale : 500x500 meters • Possibly finer if computationally feasible • 58 habitat types (FGAP 6.6) • Stochastic process influenced by local environmental processes

  6. Model response • The model will simulate succession dynamics in response to a number of environmental processes • Hydrologic disturbance : hydroperiod • Nutrient disturbance : phosphorus • Fire disturbance • Response to disturbance is habitat type specific

  7. Model description • Space is broken into a set of discrete cells • Cell model • Starts with a habitat type: H0 • Set of alternative habitat types : H1 .. Hn • Transition probabilities from H0 to H0 .. Hn : P0 .. Pn • P0 .. Pn depend on the current environmental conditions • Cell model replicated in each discrete cell

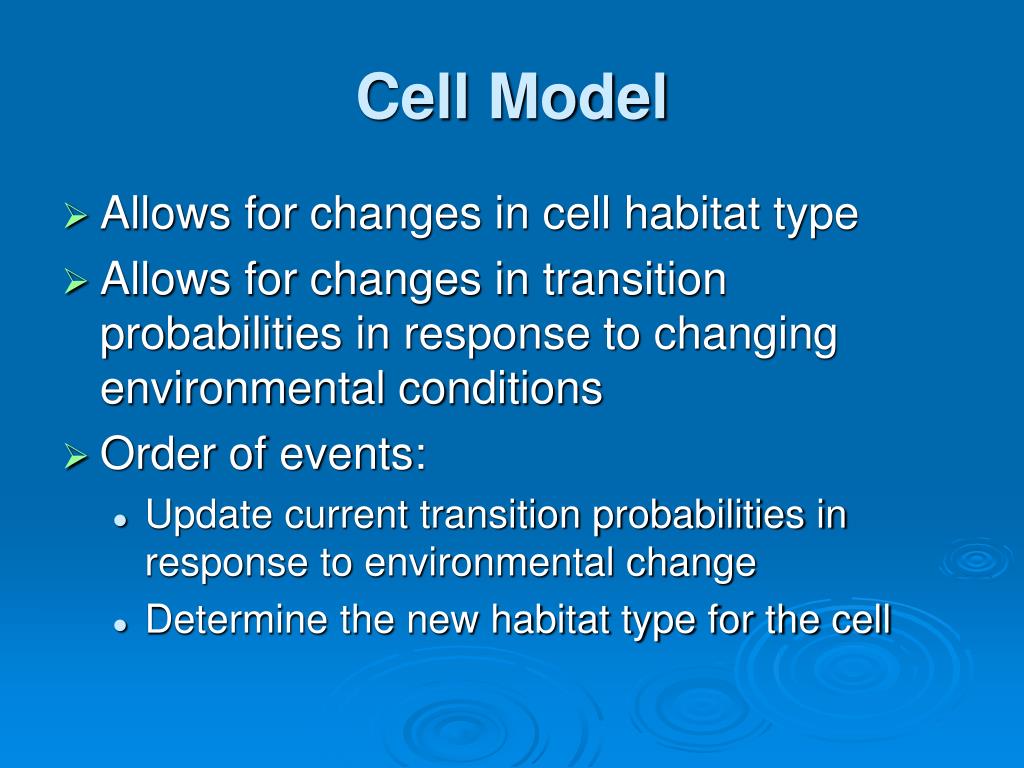

  8. Cell Model • Allows for changes in cell habitat type • Allows for changes in transition probabilities in response to changing environmental conditions • Order of events: • Update current transition probabilities in response to environmental change • Determine the new habitat type for the cell

  9. Change in cell state H1 P1 P2 H0 H2 P0 Pn … Hn

  10. Change in cell state H1 P1 P2 H0 H2 P0 Pn … Hn

  11. Change in cell state H1 P1 P2 H0 H2 P0 Pn … Hn

  12. Change in transition probabilities H1 P1 P2 H0 H2 P0 Pn … Hn E0

  13. Change in transition probabilities H1 P1 P2 H0 H2 P0 Pn … Hn E0 Et

  14. Status • Currently: • Estimation of model parameters is complete • Paul Wetzel • Conceptual frame work • End year 2002: • Working draft • August 2003: • Model finished, results available • Publications

  15. Availability • Current plans • Sun/Solaris environment • C++/object oriented • Outputs will be posted at www.atlss.org • Executables available to collaborating agencies

  16. Collaborators • Paul Wetzel • Leonard Pearlstine : FGAP

  17. Contact information • E-mail : sylv@tiem.utk.edu • Website : www.atlss.org/~sylv
