Test Pile Sites

Test Pile Sites. Corson. Spink/Beadle. Minnehaha. Lincoln. Fall River. Corson County SD Hwy 65 over Grand River. HP12x74 Steel H-piles. Corson County. Coarse Alluvium. TP-2. Pierre Shale. TP-1. Corson County. HP12x74 Steel H-piles.

Download Presentation

Test Pile Sites

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Test Pile Sites

  2. Corson Spink/Beadle Minnehaha Lincoln Fall River

  3. Corson CountySD Hwy 65 over Grand River HP12x74 Steel H-piles

  4. Corson County Coarse Alluvium TP-2 Pierre Shale TP-1

  5. Corson County HP12x74 Steel H-piles *SPI D30-32 open end diesel hammer, max. rated energy 69,937 ft-lbs. **MVE M19 open end diesel hammer, max. rated energy 43,225 ft-lbs.

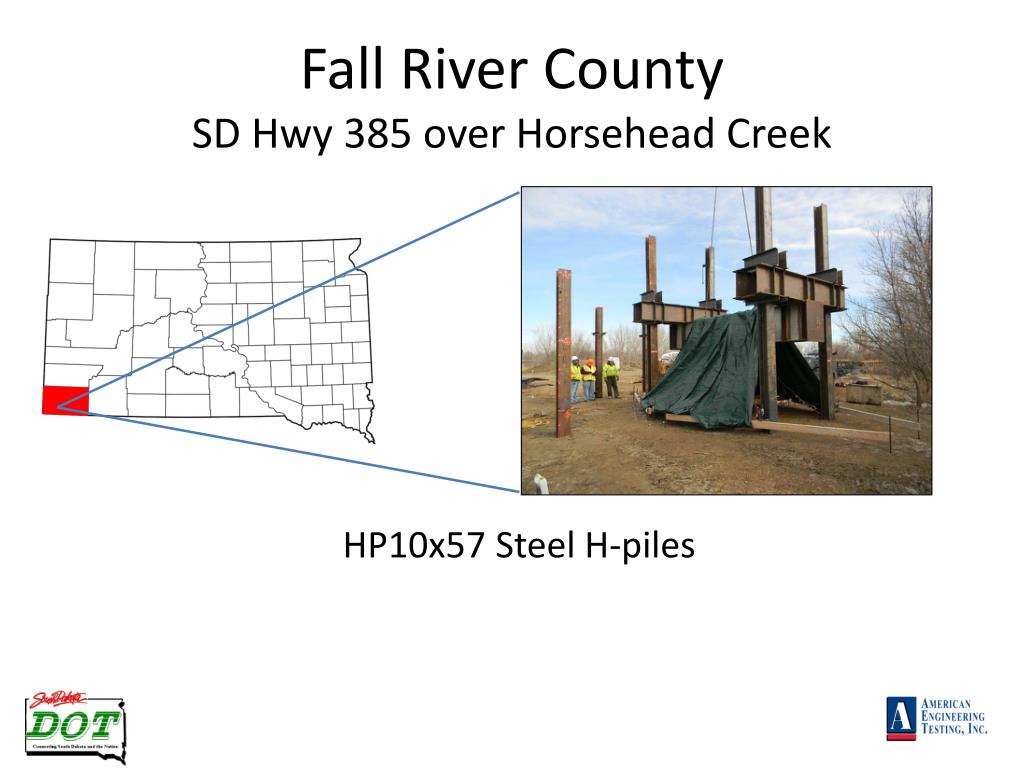

  6. Fall River CountySD Hwy 385 over Horsehead Creek HP10x57 Steel H-piles

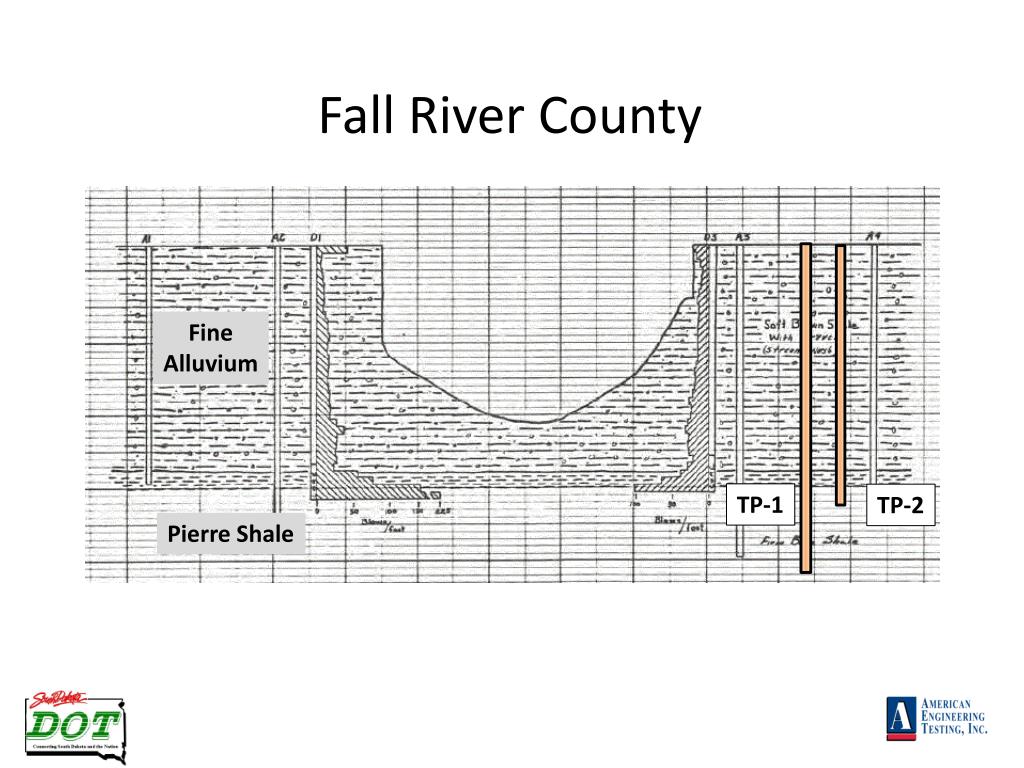

  7. Fall River County Fine Alluvium TP-1 TP-2 Pierre Shale

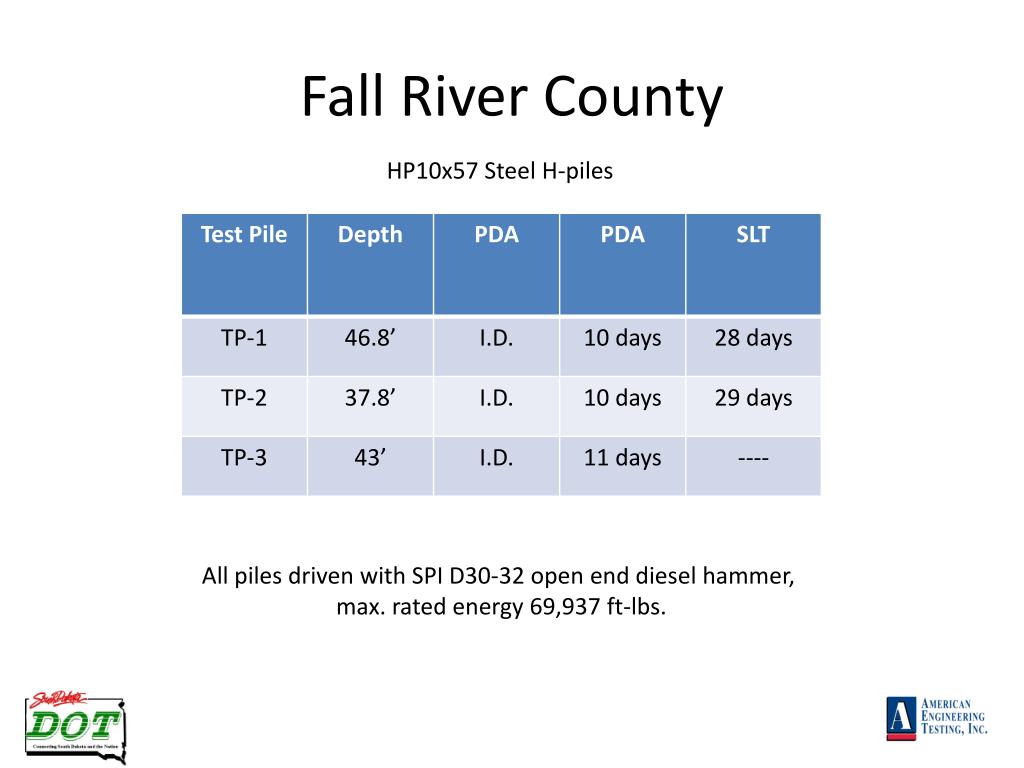

  8. Fall River County HP10x57 Steel H-piles All piles driven with SPI D30-32 open end diesel hammer, max. rated energy 69,937 ft-lbs.

  9. Lincoln CountySolberg Avenue over I-229 HP12x74 Steel H-piles

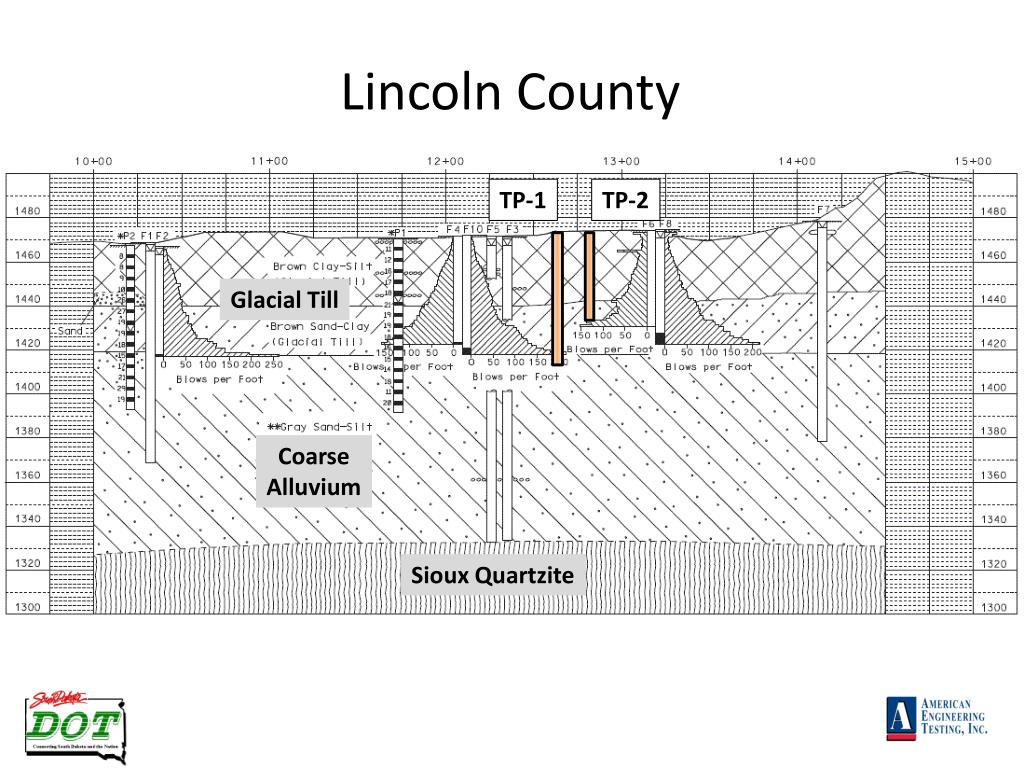

  10. Lincoln County TP-1 TP-2 Glacial Till Coarse Alluvium Sioux Quartzite

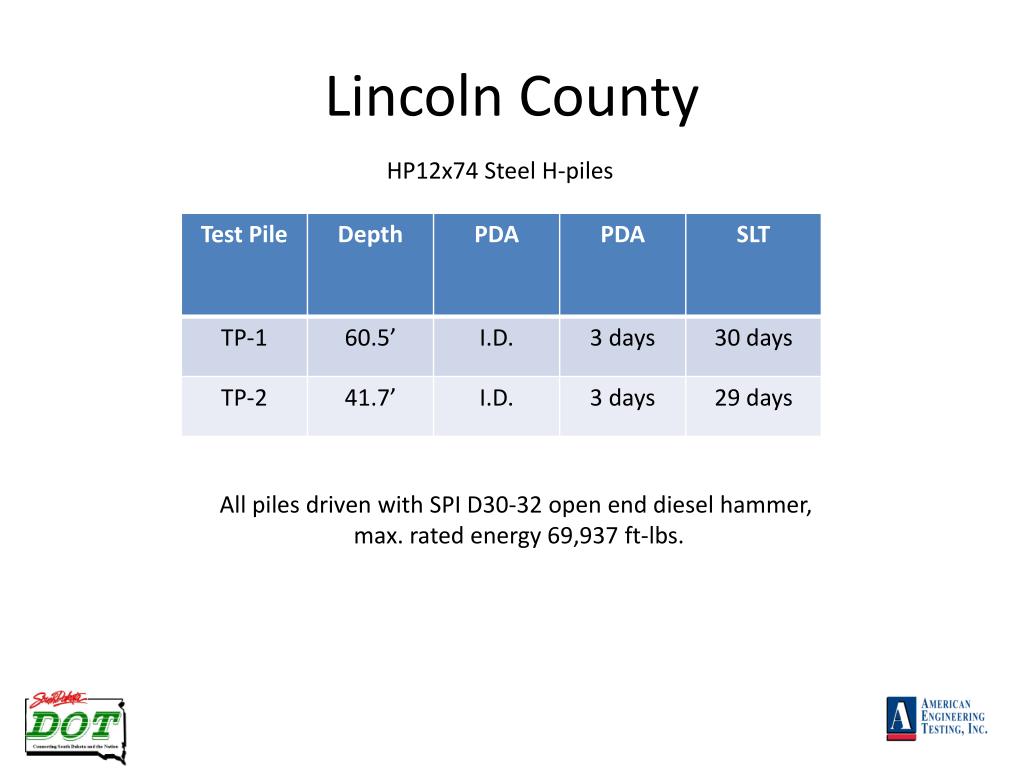

  11. Lincoln County HP12x74 Steel H-piles All piles driven with SPI D30-32 open end diesel hammer, max. rated energy 69,937 ft-lbs.

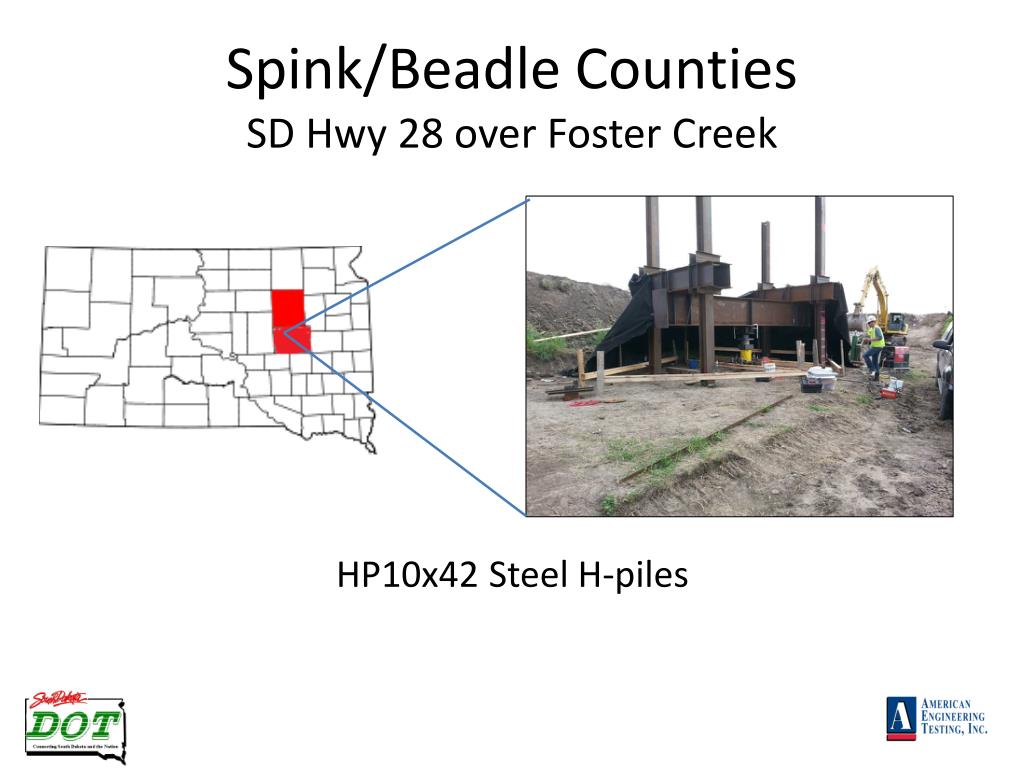

  12. Spink/Beadle CountiesSD Hwy 28 over Foster Creek HP10x42 Steel H-piles

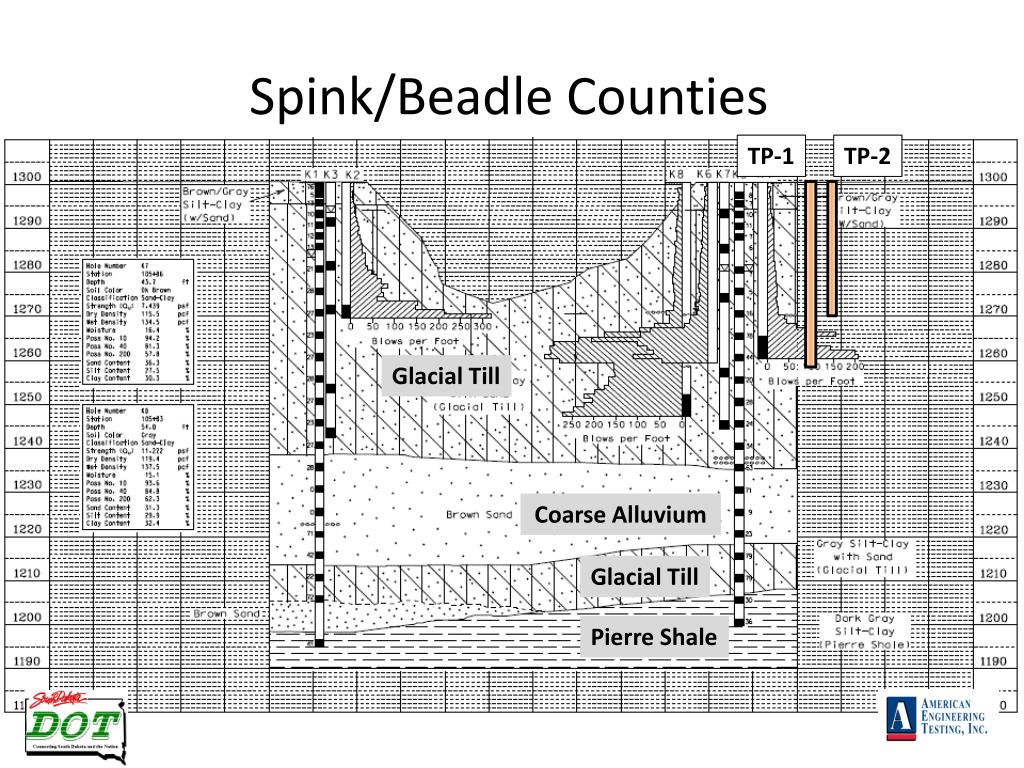

  13. Spink/Beadle Counties TP-1 TP-2 Glacial Till Coarse Alluvium Glacial Till Pierre Shale

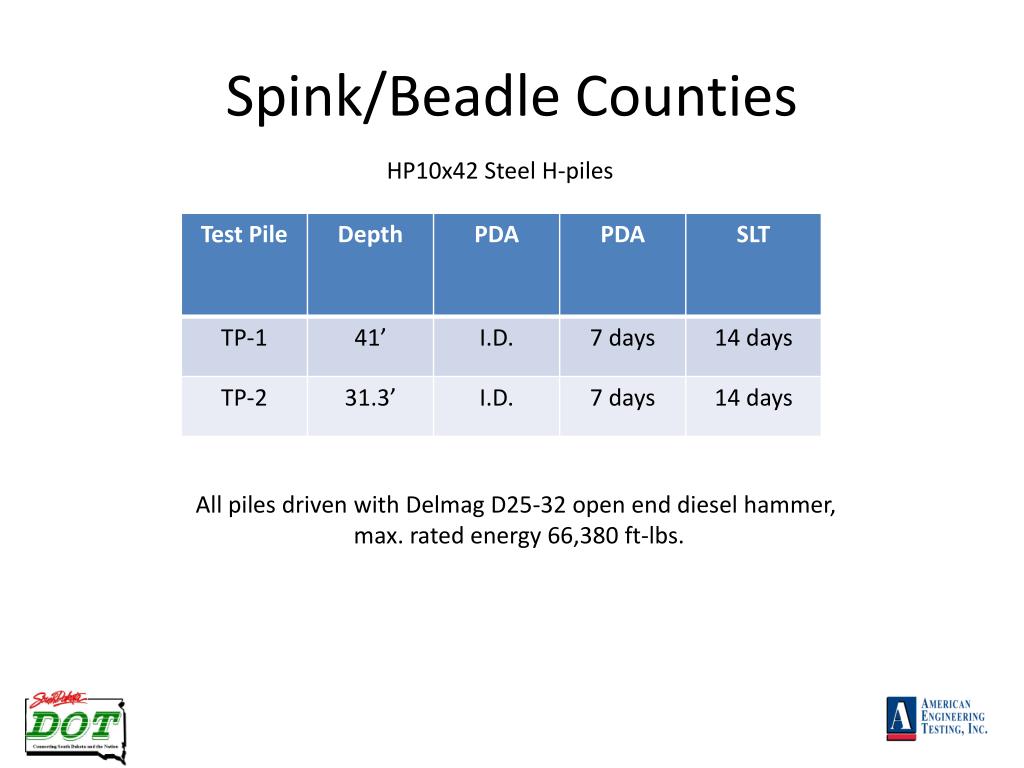

  14. Spink/Beadle Counties HP10x42 Steel H-piles All piles driven with Delmag D25-32 open end diesel hammer, max. rated energy 66,380 ft-lbs.

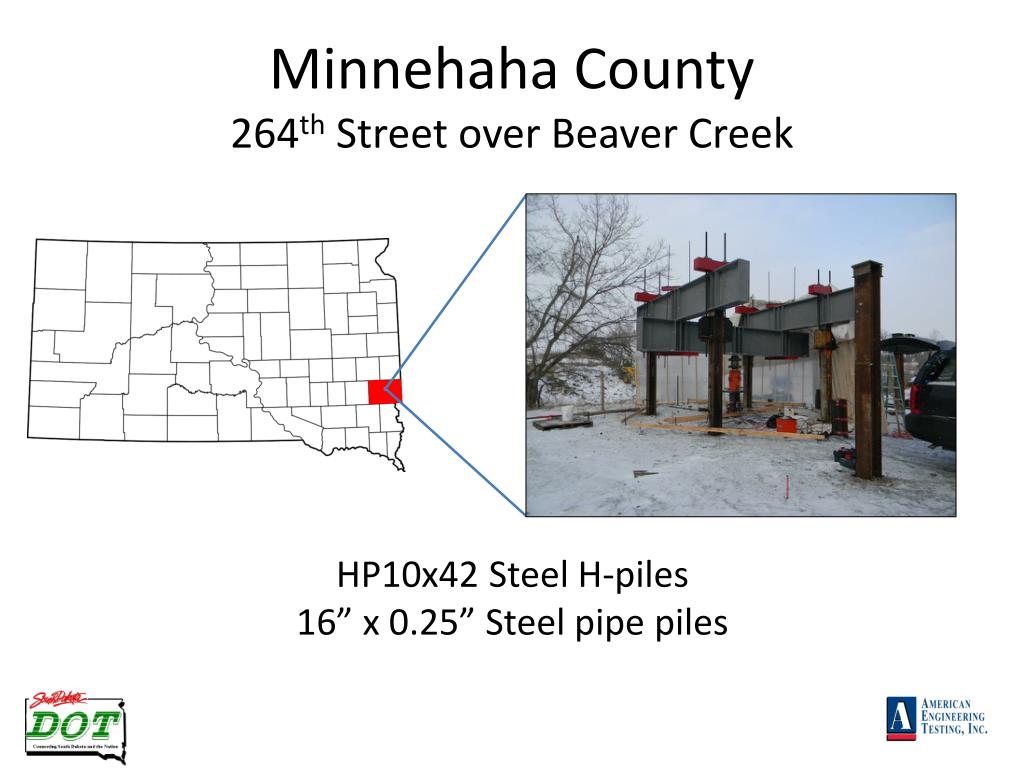

  15. Minnehaha County264th Street over Beaver Creek HP10x42 Steel H-piles 16” x 0.25” Steel pipe piles

  16. Minnehaha County TP-2 TP-4 TP-1 TP-3 Coarse Alluvium Glacial Till Claystone

  17. Minnehaha County All piles driven with MKT D42/35 open end diesel hammer, max. rated energy 42,000 ft-lbs.

  18. Typical SLT Instrumentation

  19. Typical SLT Results

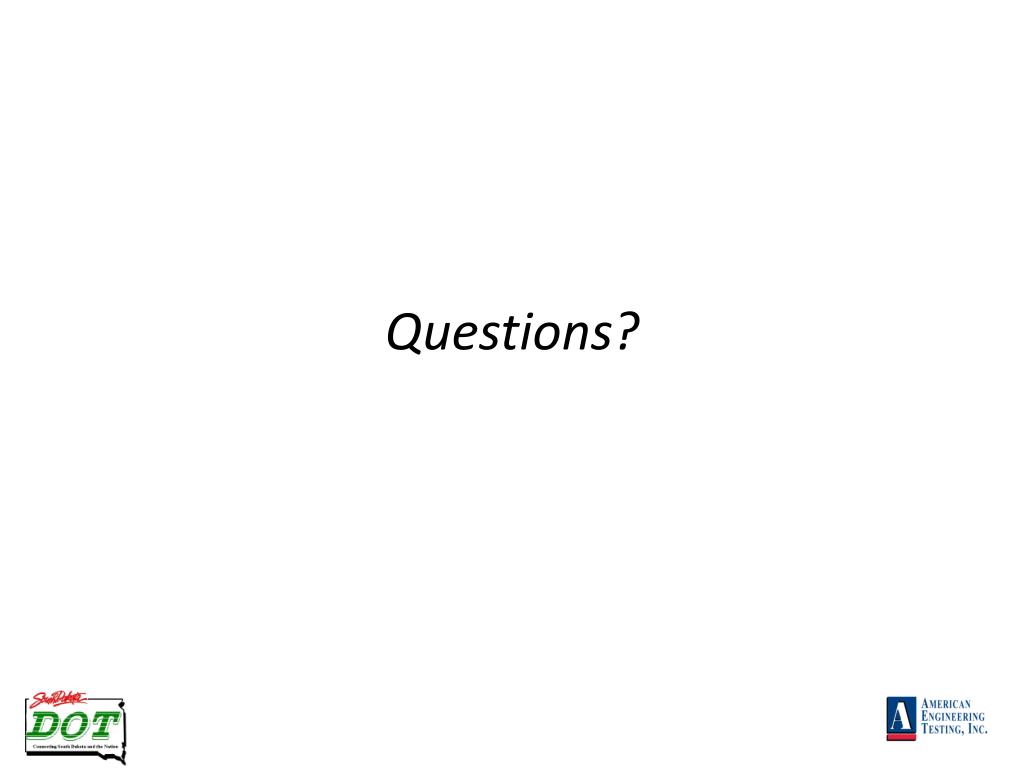

  20. Questions?
