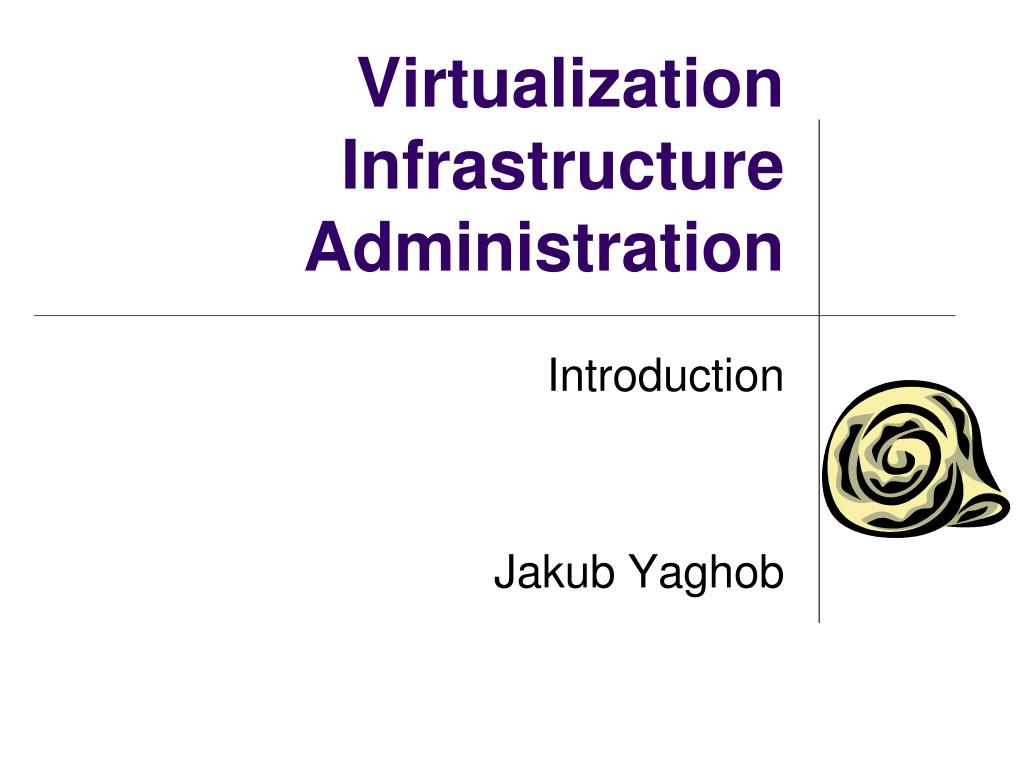

  1. Virtualization Infrastructure Administration Introduction Jakub Yaghob

  2. Course organization • VMware vSphere • Microsoft Hyper-V • Oracle Virtualbox

  3. Resources • VMware • http://labs.vmware.com/courseware • Microsoft Hyper-V • http://technet.microsoft.com/en-us/library/cc732470%28v=ws.10%29.aspx

  4. vSphere 5.5 vs Hyper-V 2012 R2 – features

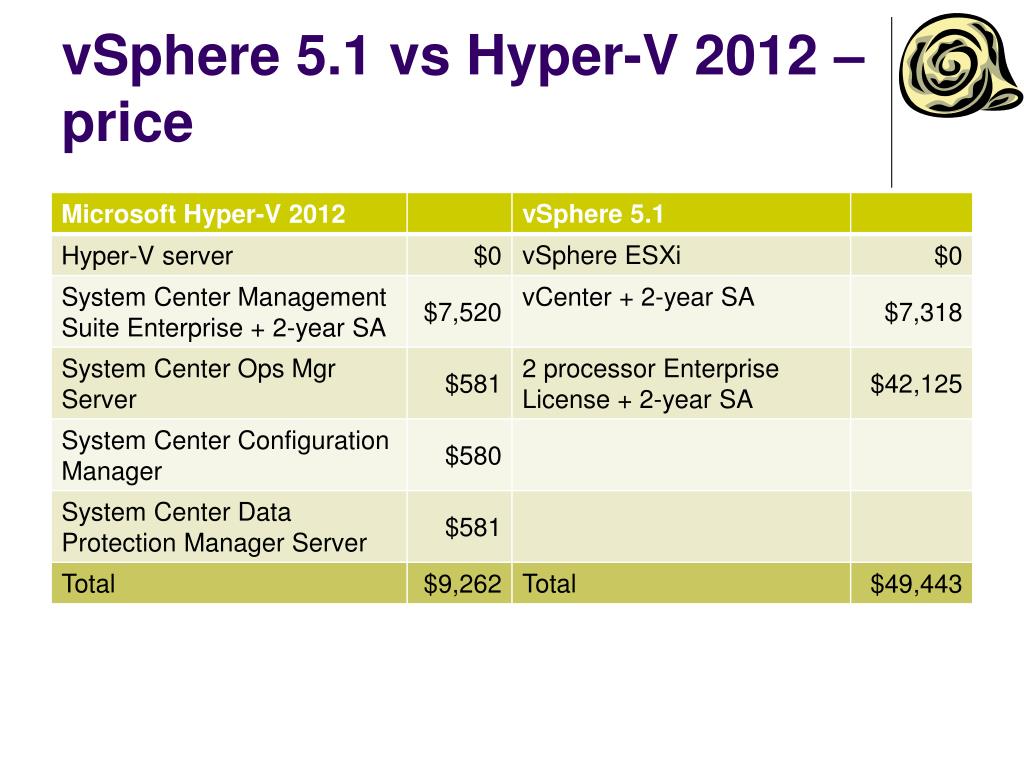

  5. vSphere 5.1 vs Hyper-V 2012 – price

  6. Network and naming organization, virtual laboratory • Each student has the number X • Part of login name to the virtual laboratory • Virtual machines naming convention • Part of private IP addresses • Number X is firmly assigned, find it in Grupíček • Virtual laboratory • Shared laboratory with other courses • Shutdown/pause your virtual machines • Access point • bobr.ms.mff.cuni.cz • Thick client (Windows only), Web client • User: virt_X, Password: find it in Grupíček

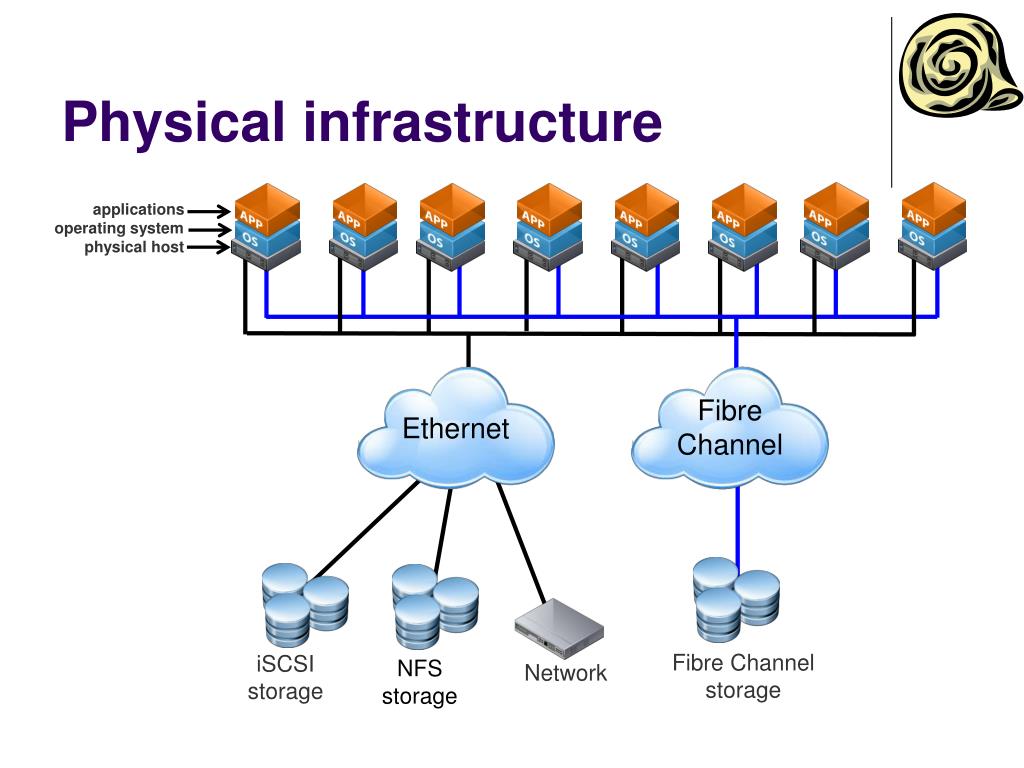

  7. FibreChannel Ethernet Physical infrastructure applicationsoperating system physical host Fibre Channelstorage iSCSIstorage NFSstorage Network

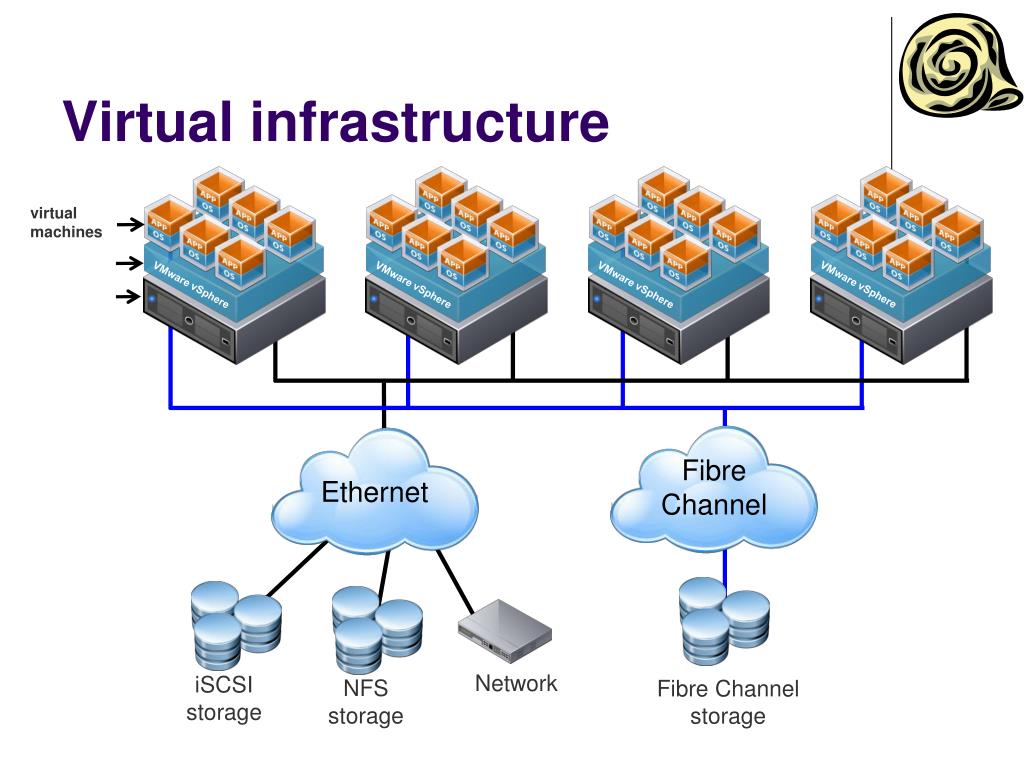

  8. FibreChannel Ethernet VMware vSphere VMware vSphere VMware vSphere VMware vSphere Virtual infrastructure virtual machines Network iSCSIstorage NFSstorage Fibre Channelstorage

  9. What is VMware vSphere? • Components • ESXi • vCenter Server • vSphere Client • vSphere VMFS • vSphere Virtual SMP

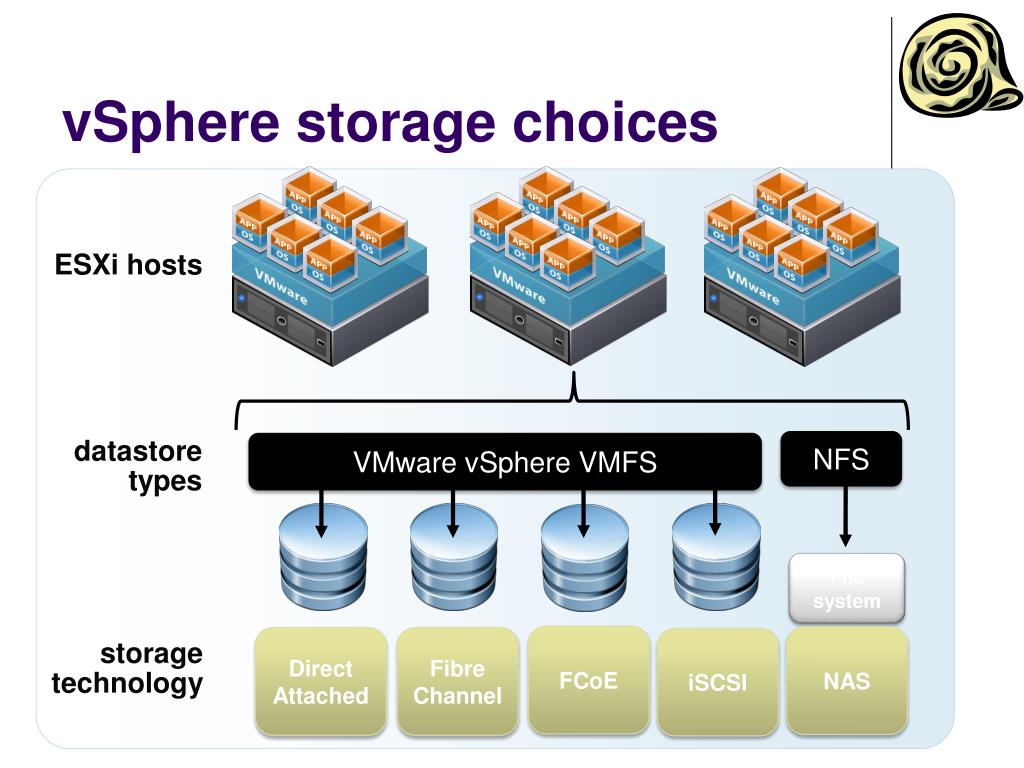

  10. vSphere storage choices ESXi hosts NFS VMware vSphere VMFS datastore types Filesystem FCoE NAS DirectAttached Fibre Channel iSCSI storage technology

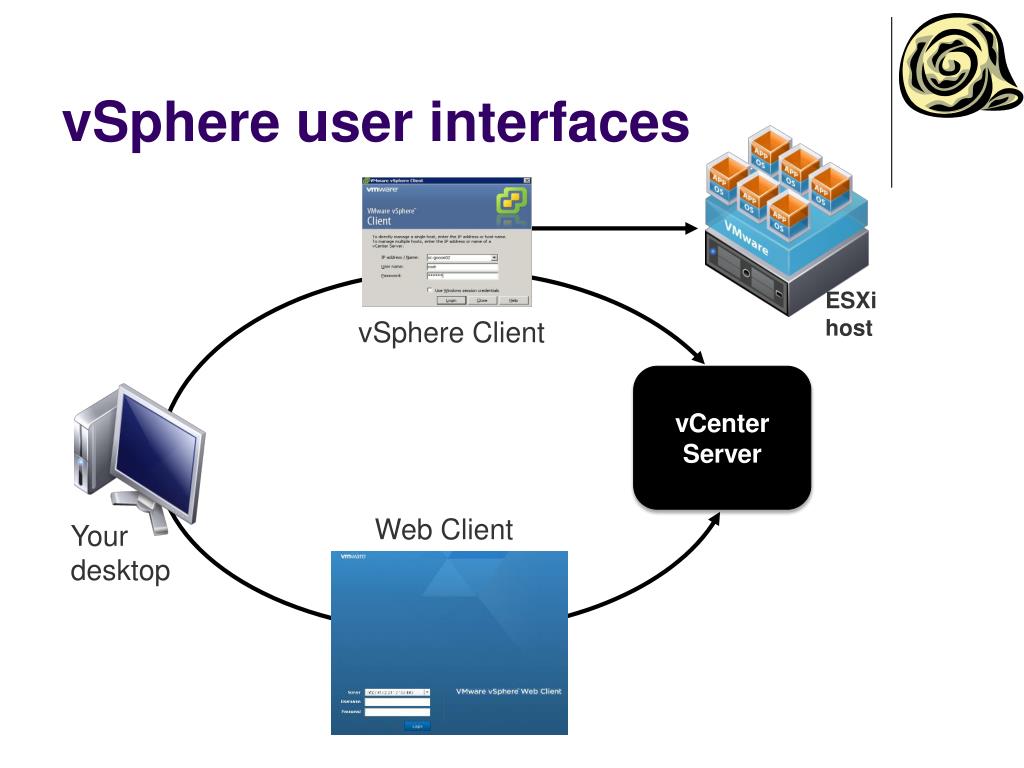

  11. vSphere user interfaces ESXi host vSphere Client vCenterServer Web Client Yourdesktop

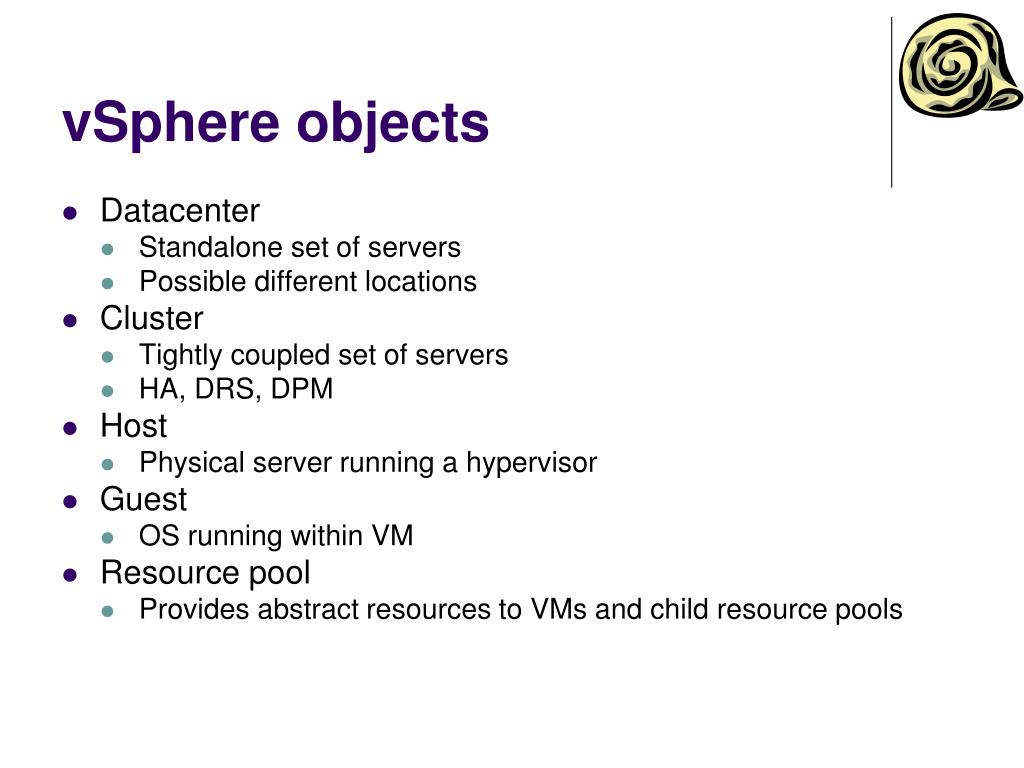

  12. vSphere objects • Datacenter • Standalone set of servers • Possible different locations • Cluster • Tightly coupled set of servers • HA, DRS, DPM • Host • Physical server running a hypervisor • Guest • OS running within VM • Resource pool • Provides abstract resources to VMs and child resource pools

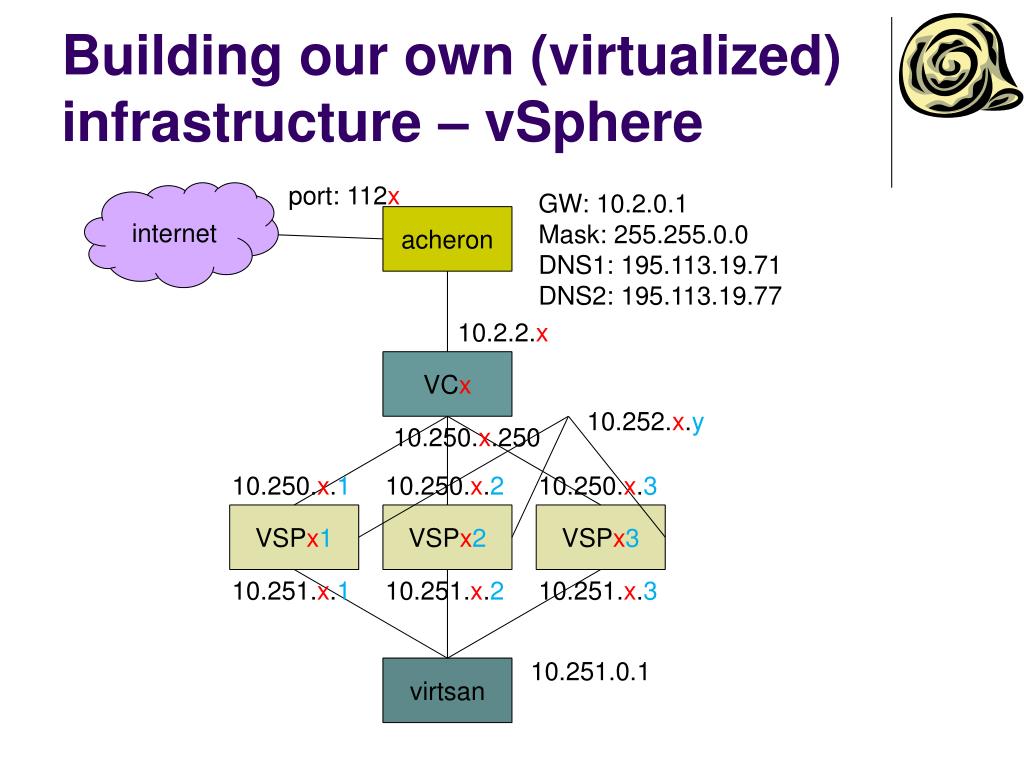

  13. Building our own (virtualized) infrastructure – vSphere port: 112x internet GW: 10.2.0.1 Mask: 255.255.0.0DNS1: 195.113.19.71DNS2: 195.113.19.77 acheron 10.2.2.x VCx 10.252.x.y 10.250.x.250 10.250.x.1 10.250.x.2 10.250.x.3 VSPx1 VSPx2 VSPx3 10.251.x.1 10.251.x.2 10.251.x.3 10.251.0.1 virtsan

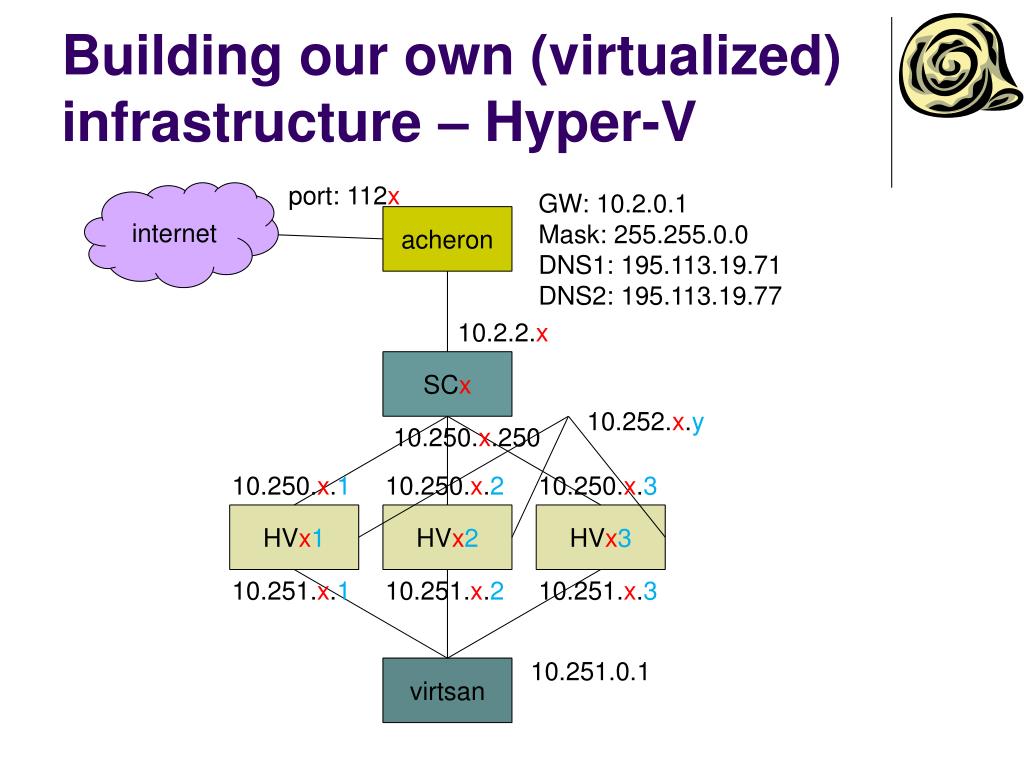

  14. Building our own (virtualized) infrastructure – Hyper-V port: 112x internet GW: 10.2.0.1 Mask: 255.255.0.0DNS1: 195.113.19.71DNS2: 195.113.19.77 acheron 10.2.2.x SCx 10.252.x.y 10.250.x.250 10.250.x.1 10.250.x.2 10.250.x.3 HVx1 HVx2 HVx3 10.251.x.1 10.251.x.2 10.251.x.3 10.251.0.1 virtsan

  15. Building simple (virtualized) infrastructure – vSphere port: 112x internet GW: 10.2.0.1 Mask: 255.255.0.0DNS1: 195.113.19.71DNS2: 195.113.19.77 acheron 10.2.2.x VCx(w2k8r2) 10.250.x.250 10.250.x.1 VSPx1

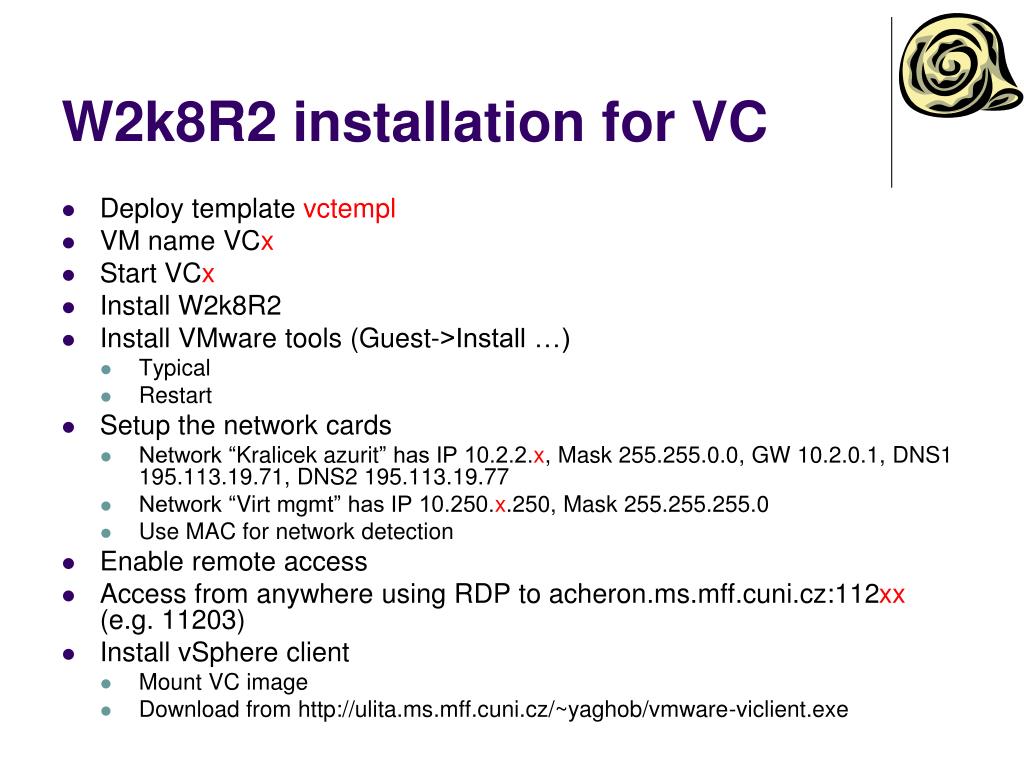

  16. W2k8R2 installation for VC • Deploy template vctempl • VM name VCx • Start VCx • Install W2k8R2 • Install VMware tools (Guest->Install …) • Typical • Restart • Setup the network cards • Network “Kralicekazurit” has IP 10.2.2.x, Mask 255.255.0.0, GW 10.2.0.1, DNS1 195.113.19.71, DNS2 195.113.19.77 • Network “Virt mgmt” has IP 10.250.x.250, Mask 255.255.255.0 • Use MAC for network detection • Enable remote access • Access from anywhere using RDP to acheron.ms.mff.cuni.cz:112xx (e.g. 11203) • Install vSphere client • Mount VC image • Download from http://ulita.ms.mff.cuni.cz/~yaghob/vmware-viclient.exe

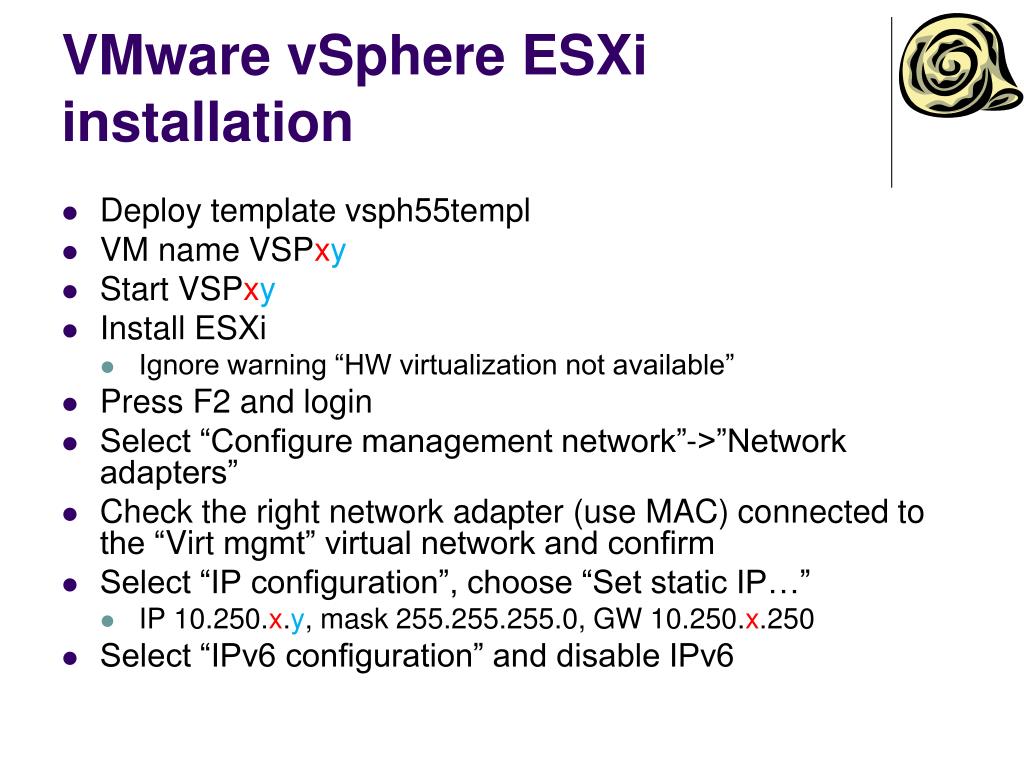

  17. VMware vSphereESXi installation • Deploy template vsph55templ • VM name VSPxy • Start VSPxy • Install ESXi • Ignore warning “HW virtualization not available” • Press F2 and login • Select “Configure management network”->”Network adapters” • Check the right network adapter (use MAC) connected to the “Virt mgmt” virtual network and confirm • Select “IP configuration”, choose “Set static IP…” • IP 10.250.x.y, mask 255.255.255.0, GW 10.250.x.250 • Select “IPv6 configuration” and disable IPv6
