  1. Charging at 120 and 240 Volts 120-Volt Portable Vehicle Charge Cord 240-Volt Home Charge Unit

  2. Charging at 120 and 240 Volts • Customers have options based on individual needs • 120-volt outlets are abundantly available • No additional equipment or installation required with 120-volt charging • 120-volt vehicle charge cord is portable • Charging at 240 volts is faster • Charging at 240 volts is efficient and enables more opportunity to drive electrically

  3. Industry Standardization New industry standards for charging ofEVs are being developed

  4. Industry Standardization • Society of Automotive Engineers J1772™ committee developing charging standards • SAE J1772™ committee made up of all major automakers, EV start-up companies and charging equipment suppliers • Vehicle charge cord plug and on-board charge receptacle have common functionality and design • New charging standards cover durability, safety and communication • Durability: Designed to be plugged in 10,000 times. Charge cord plug assembly designed to be driven over. • Safety: UL approval, drive away prevention, sealed connector, latching capability, ground fault monitoring and more • Communication: Electric Vehicle Supply Equipment (EVSE) to vehicle, available current, safety ground check and more

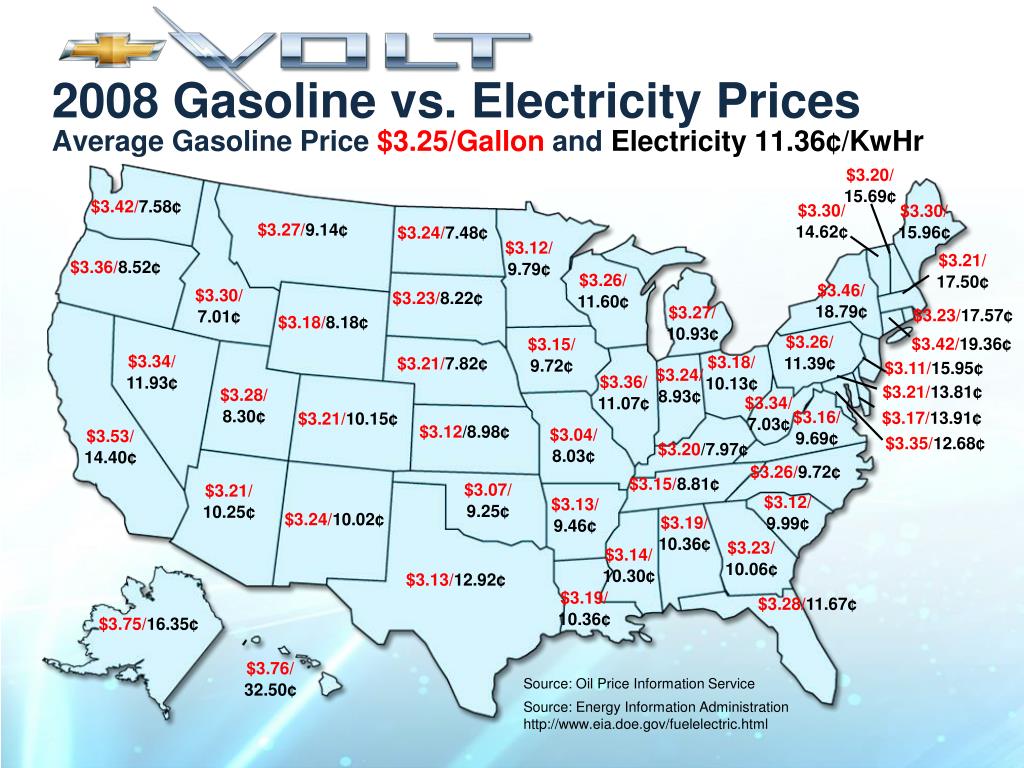

  5. 2008 Gasoline vs. Electricity PricesAverage Gasoline Price $3.25/Gallon and Electricity11.36¢/KwHr $3.20/15.69¢ $3.42/7.58¢ $3.30/ 14.62¢ $3.30/15.96¢ $3.27/9.14¢ $3.24/7.48¢ $3.12/ 9.79¢ $3.21/17.50¢ $3.36/8.52¢ $3.26/ 11.60¢ $3.46/ 18.79¢ $3.30/7.01¢ $3.23/8.22¢ $3.27/10.93¢ $3.23/17.57¢ $3.18/8.18¢ $3.26/11.39¢ $3.42/19.36¢ $3.15/9.72¢ $3.34/11.93¢ $3.18/ 10.13¢ $3.21/7.82¢ $3.11/15.95¢ $3.24/ 8.93¢ $3.36/ 11.07¢ $3.21/13.81¢ $3.28/8.30¢ $3.34/ 7.03¢ $3.16/ 9.69¢ $3.17/13.91¢ $3.21/10.15¢ $3.12/8.98¢ $3.04/ 8.03¢ $3.53/ 14.40¢ $3.35/12.68¢ $3.20/7.97¢ $3.26/9.72¢ $3.15/8.81¢ $3.07/9.25¢ $3.21/10.25¢ $3.12/ 9.99¢ $3.13/ 9.46¢ $3.24/10.02¢ $3.19/ 10.36¢ $3.23/10.06¢ $3.14/ 10.30¢ $3.13/12.92¢ $3.19/ 10.36¢ $3.28/11.67¢ $3.75/16.35¢ $3.76/32.50¢ Source: Oil Price Information Service Source: Energy Information Administration http://www.eia.doe.gov/fuelelectric.html

  6. Price: Gas vs. Electricity • Electricity price varies by state yet is still very inexpensive compared to gasoline • Charging during off-peak hours (evening/night) can be half the price of on-peak (daytime) charging • Cost per mile to drive electrically is a fraction of the cost compared to gasoline • Kilowatt Hours is the main unit of measurement vs. gallons of gasoline • Electricity rates are more stable than fluctuating fuel prices

  7. Electricity Generation – Diversity Among States Source: Energy Information Administration

  8. Electricity Generation – Diversity Among States • Electricity is generated in a number of ways and varies by state • Diversity of electricity generation is a function of what natural resources exist in a particular area • With grid management, the electric grid can handle millions of EVs • In many regions, “green” electricity made from renewable sources is becoming more available • Electricity is largely generated domesticallyand doesn’t rely heavily on importing foreign oil
