  1. German cockroach allergen standardization – progress report

  2. Cockroaches

  3. Highly allergic individuals Serial 3-fold dilutions Establish dilution at which SE = 50 mm (D50) Biological potency by ID50EAL testing (Intradermal Dilution for 50 mm Sum of Erythema Determines Bioequivalent Allergy Units)

  4. Biological potency by ID50EAL testing

  5. Testing • Screen: puncture test (bifurcated needle) with concentrates • Intradermal testing with serial 3-fold dilutions • Record wheal and erythema size • Calculate E

  6. Calculation of D50 D50

  7. ID50EAL method • D50 = 14 100,000 BAU/mL • BAU/mL = 100,000 x 3 (D50 - 14)

  8. Testing • ID testing with serial 3-fold dilutions • Calculate E • The skin response (SE) should fall within the limits of >0 to < 125 mm • Each more concentrated dilution should produce a graded erythema response • The four dilutions selected should span a wide range of SE (for example from 0-20 mm to 80-125 mm) and bracket SE of 50 mm

  9. S H

  10. S H

  11. S H

  12. S H

  13. S H

  14. S H

  15. S H

  16. Manufacturing data

  17. Preclinical data • Bla g 1 • Bla g 2 • Bla g 5 • Relative potency • Human • Rabbit • Anti-CR • Pooled anti-specific allergens

  18. Specific allergen data (two-site ELISA)

  19. Overall allergenicitycompetition ELISA

  20. IND 11319: German Cockroach Allergen Standardization Evaluation (CASE) • Sponsor: DAIT/NIAID • Four sites • Baltimore • Washington DC • Chicago • Denver

  21. Thanks to • Inner City Asthma Consortium • Robert L. James, M.S., M.Stat., Rho • Herman Mitchell, PhD, Rho • Peyton A. Eggleston, MD, Baltimore • Andrew H. Liu, MD, Denver • Jacqueline A. Pongracic, MD, Chicago • Sampson Sarpong, MD, Washington, DC

  22. IND 11319: German Cockroach Allergen Standardization Evaluation (CASE) • Purpose • Determination of the biological potency of three (3) commercially available German cockroach allergen extracts and test of their bioequivalence. • Patient Population • Adults with a history of allergenic disease or asthma and a demonstrated sensitivity to German cockroach allergen tested.

  23. IND 11319: German Cockroach Allergen Standardization Evaluation (CASE) • Design • Multi-center, open-label • Number Planned: 61 • Number Entered: 62 • Number Completed: 62

  24. IND 11319: German Cockroach Allergen Standardization Evaluation (CASE) • Age Range: 18-59 • Gender: Male=15, Female=47 • Race/ethnicity • Black = 35 • Hispanic = 14 • White = 5 • Asian = 1 • Native American = 0 • Other = 1 • More than one race = 6

  25. 50 Approaches to analysis • Linear regression • Standard method included in the protocol • In previous CBER studies using this protocol, poor correlation coefficients were a major source of data invalidation • In the current study, several subjects’ data were non-linear D50

  26. 50 Another approach: Linear interpolation • Rather than assume a mathematical relationship, a simpler method would take the serial dilution number at which the plots cross the 50 mm line • Linear interpolation between two data points: the data point immediately before and the data point after the 50 mm line is crossed D50

  27. Linear interpolation rules • Use the first crossing followed by at least two consecutive non-missing dilutions above the 50mm SEline. • If the above criterion does not apply and the data’s most concentrated dilution is above the 50 mm SE, then assume that any more concentrated dilutions (had they been collected) would also have remained above 50mm. Use this last crossing for calculating D50. • If the extract for a subject does not cross the 50 mm SE line at any serial dilution tested, or if whenever the line is crossed, first two criteria do not apply, then the D50 is not calculated for that subject’s extract.

  28. Regression vs interpolation

  29. 50 A third approach: Four-parameter logistic model min = minimum erythema diameter possible at conc = 0 max = maximum erythema diameter possible at conc = infinity EC50 = extract concentration at which half of the change (max-min) in S(erythema) is expected. D = Hill coefficient or slope factor. (When D=1, the equation reduces to the 3-parameter logistic equation.) D50

  30. D50 data

  31. Potency data (BAU/mL)

  32. Conclusions • The D50s calculated using the “interpolation” and “4-parameter” methods had slightly tighter standard deviations than the D50s calculated using the “regression” method. • Using the “interpolation” or “regression” methods maximized the number of study subjects whose data could be analyzed. • Bioequivalence (d < 20%): using all methods, the three extracts were bioequivalent. • The “A vs B” and the “B vs C” had significantly different D50s even though they were bioequivalent. The A and C extracts were not statistically different from each other.

  33. Which in vitro data best reflect in vivo potency?

  34. All data (normalized to extract B)

  35. All data (normalized to extract B) • In aggregate, Bla g 2 data appear to best reflect overall potency • In order to determine the best test, we will need to examine IgE-specificities of individual sera and correlate to individual D50 data

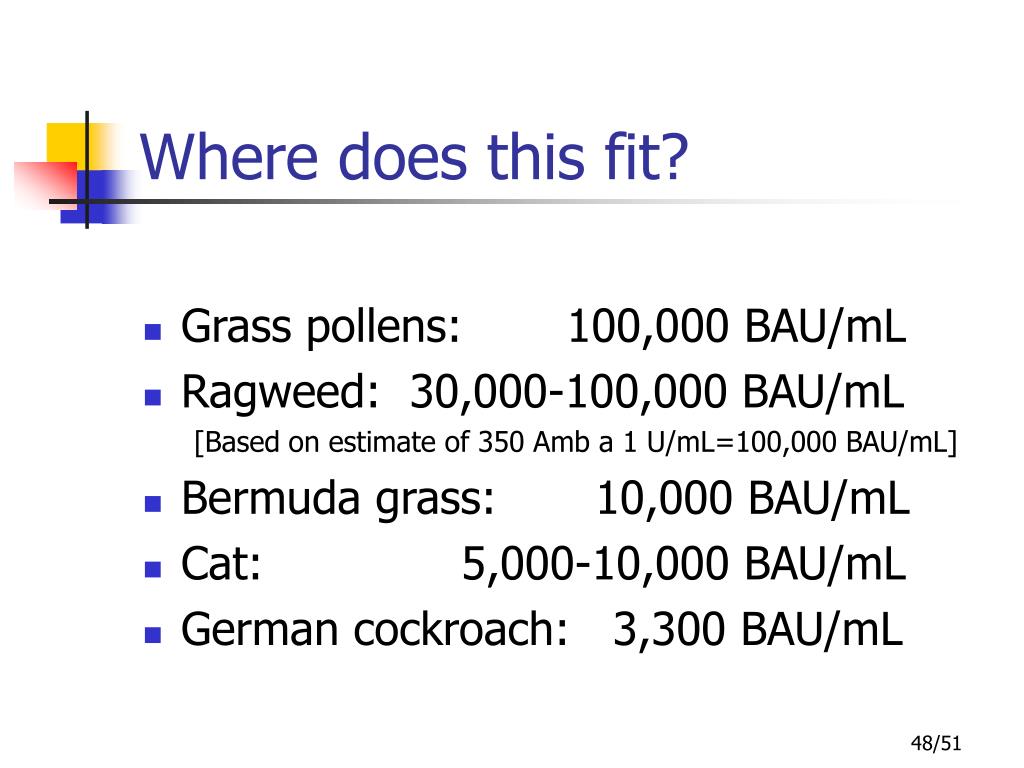

  36. Where does this fit? • Grass pollens: 100,000 BAU/mL • Ragweed: 30,000-100,000 BAU/mL [Based on estimate of 350 Amb a 1 U/mL=100,000 BAU/mL] • Bermuda grass: 10,000 BAU/mL • Cat: 5,000-10,000 BAU/mL • German cockroach: 3,300 BAU/mL

  37. Where does this fit? • Skin test doses • 100-1000 BAU/mL • Ann Allergy Asthma Immunol. 1995; 75:553 • IT doses: • 100-2500 BAU • Clin Allergy Immunol 1999; 12:321 • 2000-4000 BAU • Ann Allergy Asthma Immunol. 2003;90(1 Suppl 1):1

  38. Where does this fit? Calculated from Nelson, chapter 24, in Lockey and Bukantz, Allergens and Allergen Immunotherapy, 3rd ed, 2004
