  1. 3D IBI TMP IBI SAL (1000m) The IBI Component in MyOcean Sotillo M.G.1, Cailleau S.2, Cotelo C.3, Lorente P. 1, Levier B. 2, Aznar R. 1, Amo-Baladrón A. 1, Alvarez-Fanjul E.1 1) Puertos del Estado 2) Mercator-Ocean 3) CESGA (Centro de Supercomputación de Galicia) MyOcean2 User training workshop. Exeter, July 2014.

  2. Outline • Context: MyOcean, MyOcean-2 Projects • Marine Core Service • The IBI (Iberian-Biscay-Ireland) area in MyO2 • IBI in situ-TAC (for observations) • IBI-MFC (IBI Monitoring & Forecasting Centre) • Internal Organization • Products, System & Services

  3. Context A 3-year Demo (2009-2012) to implement GMES Marine Service for ocean monitoring & forecasting 61 partners, 29 countries A ‘CORE’ service to… operationallyproduce and distribute reference oceanographic information MyOcean-2 (2012-2014) An open & free service for all users … continuity for consolidation … From 2015: CopernicusMarine Service …

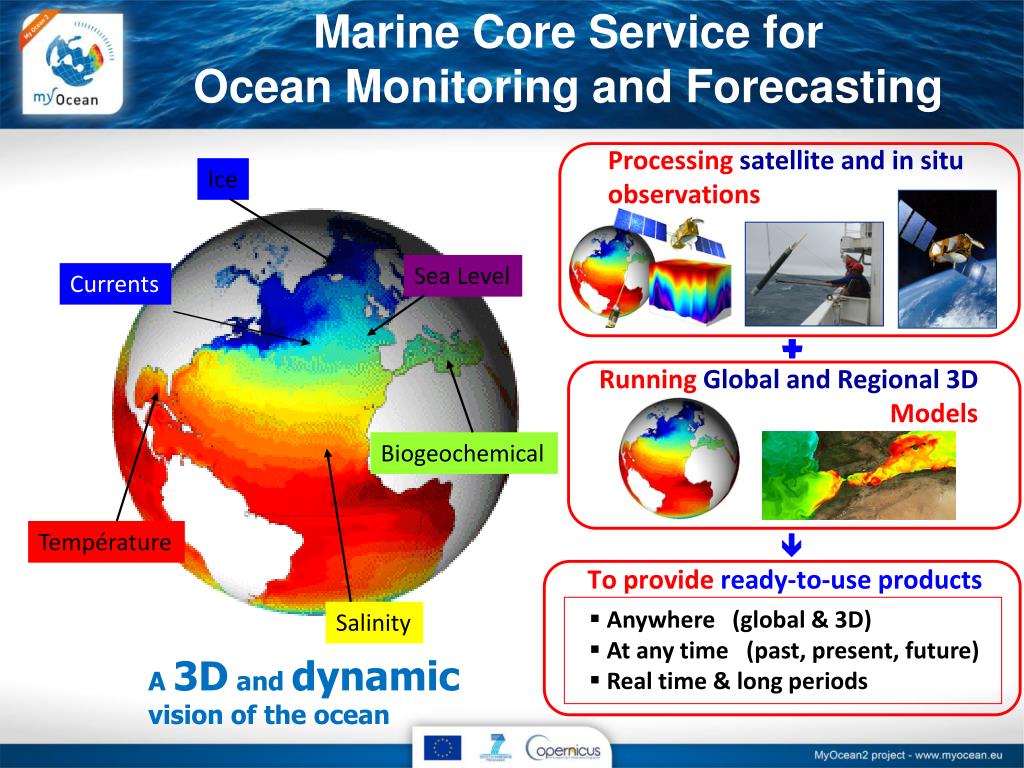

  4. Marine Core Service for Ocean Monitoring and Forecasting Processing satellite and in situ observations Ice Sea Level Currents + RunningGlobal and Regional 3D Models Biogeochemical Température  To provideready-to-useproducts • Anywhere (global & 3D) • At anytime (past, present, future) • Real time & long periods Salinity A 3D and dynamic vision of the ocean

  5. An European Integrated Production System 2 4 3 7 1 6 5 6 • The MyOcean system composed of 14 sub-systems: • 12 Production Centers: • 5 ThematicAssembly Centres (TACs) + • 7 Monitoring & Forecasting Centres (MFCs) • a unified Service Desk • MyO Central Information System (CIS). The IBI-MFC

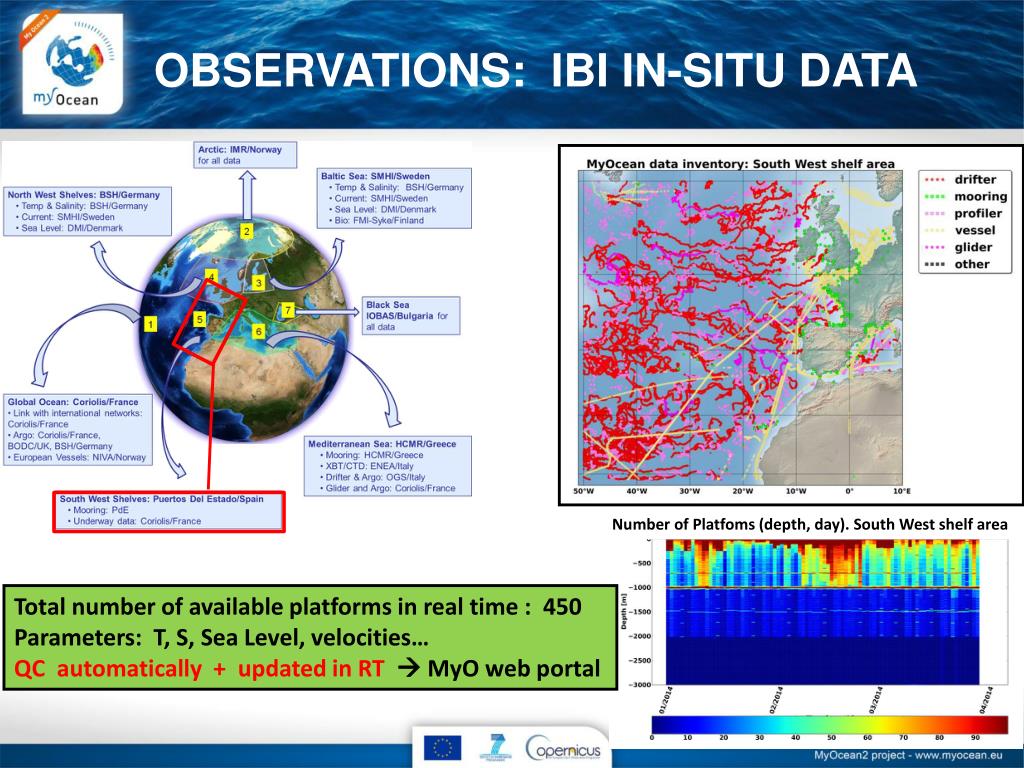

  6. OBSERVATIONS: IBI IN-SITU DATA Number of Platfoms (depth, day). South West shelf area Total number of available platforms in real time : 450 Parameters: T, S, Sea Level, velocities… QC automatically + updated in RT  MyO web portal

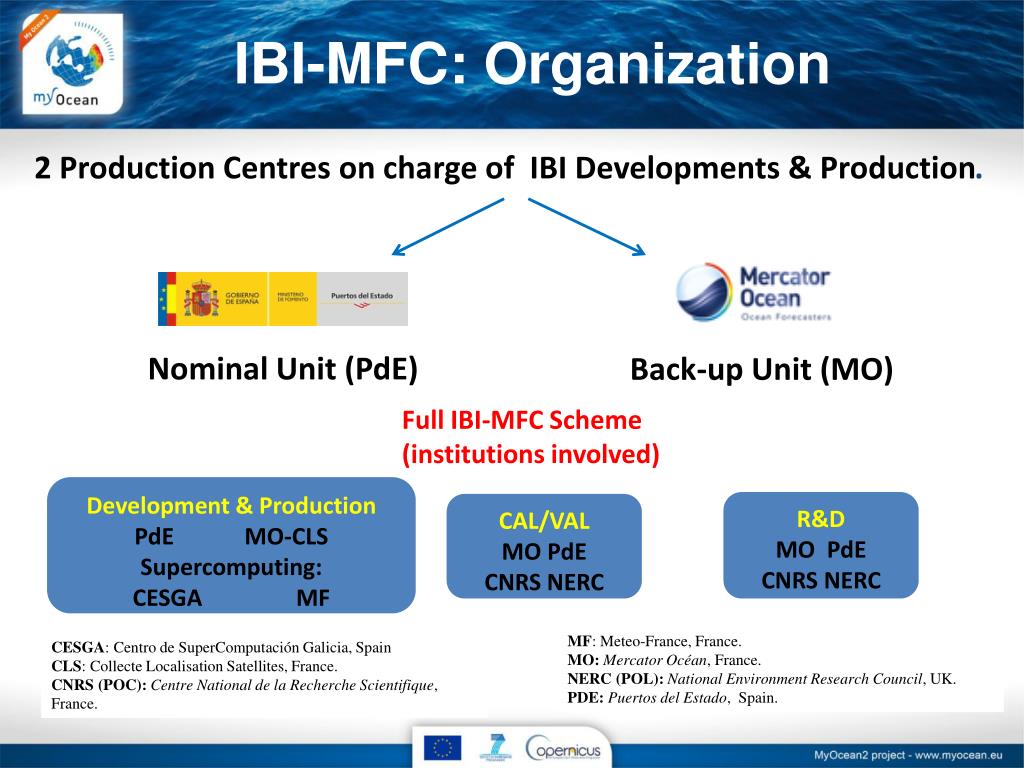

  7. IBI-MFC: Organization 2 Production Centres on charge of IBI Developments & Production. • Nominal Unit (PdE) • Back-up Unit (MO) Full IBI-MFC Scheme (institutions involved) Development & Production PdE MO-CLS Supercomputing: CESGA MF R&D MO PdE CNRS NERC CAL/VAL MO PdE CNRS NERC MF: Meteo-France, France. MO:Mercator Océan, France. NERC (POL): National Environment Research Council, UK. PDE: Puertos del Estado, Spain. CESGA: Centro de SuperComputación Galicia, Spain CLS: Collecte Localisation Satellites, France. CNRS (POC): Centre National de la Recherche Scientifique, France.

  8. IBI-MFC: Products A complete Ocean Forecast Service Updated daily Forecast horizon: 5 days (HC01 + FC05) Based on NEMO model V3.2 (Nucleus for European Modeling of the Ocean) Spatial resolution: 1/36ᵒ (< 2 Km)  “Submesoscale permitting” application Products: only PHYS T, S, UCU, VCU, SSH… Hourly means (surface level) Daily means (3D fields in the entire water column)

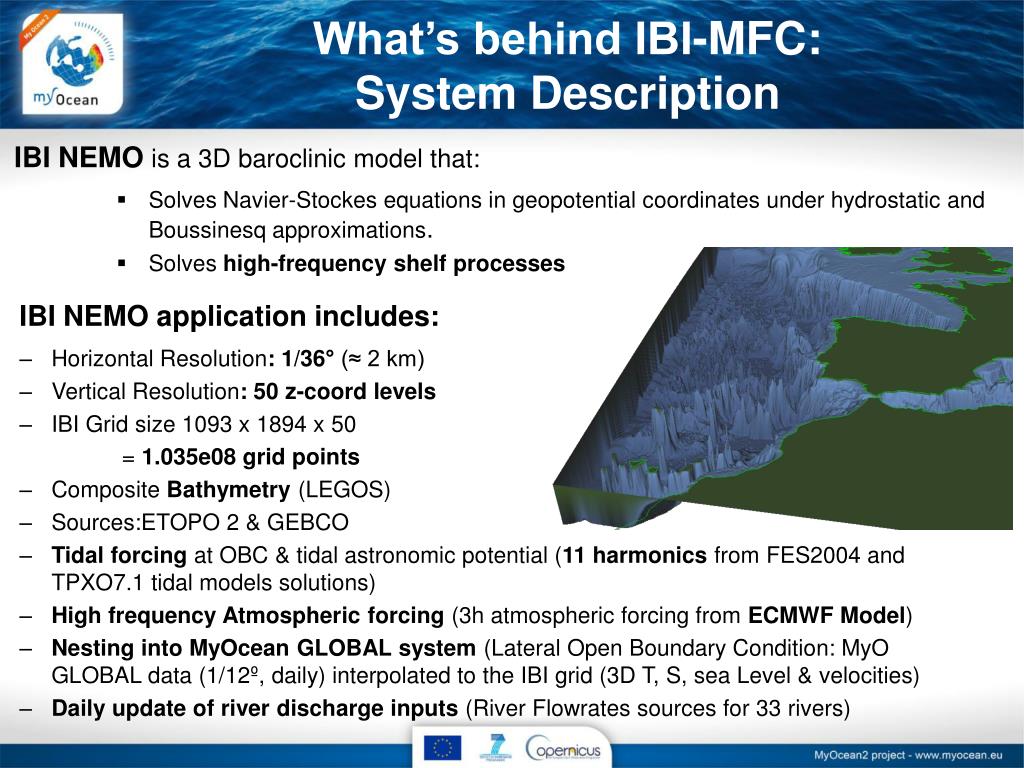

  9. What’s behind IBI-MFC: System Description • IBI NEMO is a 3D baroclinic model that: • Solves Navier-Stockes equations in geopotential coordinates under hydrostatic and Boussinesq approximations. • Solves high-frequency shelf processes IBI NEMO application includes: • Horizontal Resolution: 1/36° (≈ 2 km) • Vertical Resolution: 50 z-coord levels • IBI Grid size 1093 x 1894 x 50 • = 1.035e08 grid points • Composite Bathymetry (LEGOS) • Sources:ETOPO 2 & GEBCO • Tidal forcing at OBC & tidal astronomic potential (11 harmonics from FES2004 and TPXO7.1 tidal models solutions) • High frequency Atmospheric forcing (3h atmospheric forcing from ECMWF Model) • Nesting into MyOcean GLOBAL system (Lateral Open Boundary Condition: MyO GLOBAL data (1/12º, daily) interpolated to the IBI grid (3D T, S, sea Level & velocities) • Daily update of river discharge inputs (River Flowrates sources for 33 rivers)

  10. IBI-MFC system description NEMO model

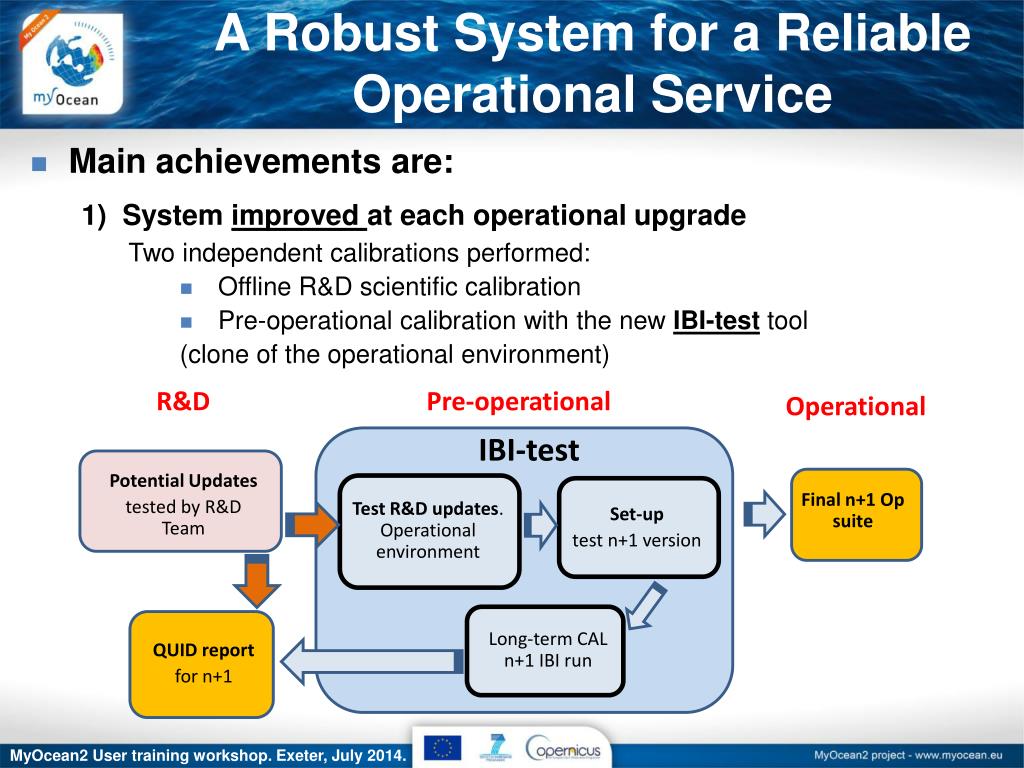

  11. A Robust System for a Reliable Operational Service • Main achievements are: • 1) System improved at each operational upgrade • Two independent calibrations performed: • Offline R&D scientific calibration • Pre-operational calibration with the new IBI-test tool • (clone of the operational environment) R&D Pre-operational Operational Set-up test n+1 version IBI-test Final n+1 Op suite Potential Updates tested by R&D Team Test R&D updates. Operational environment QUID report for n+1 Long-term CAL n+1 IBI run MyOcean2 User training workshop. Exeter, July 2014.

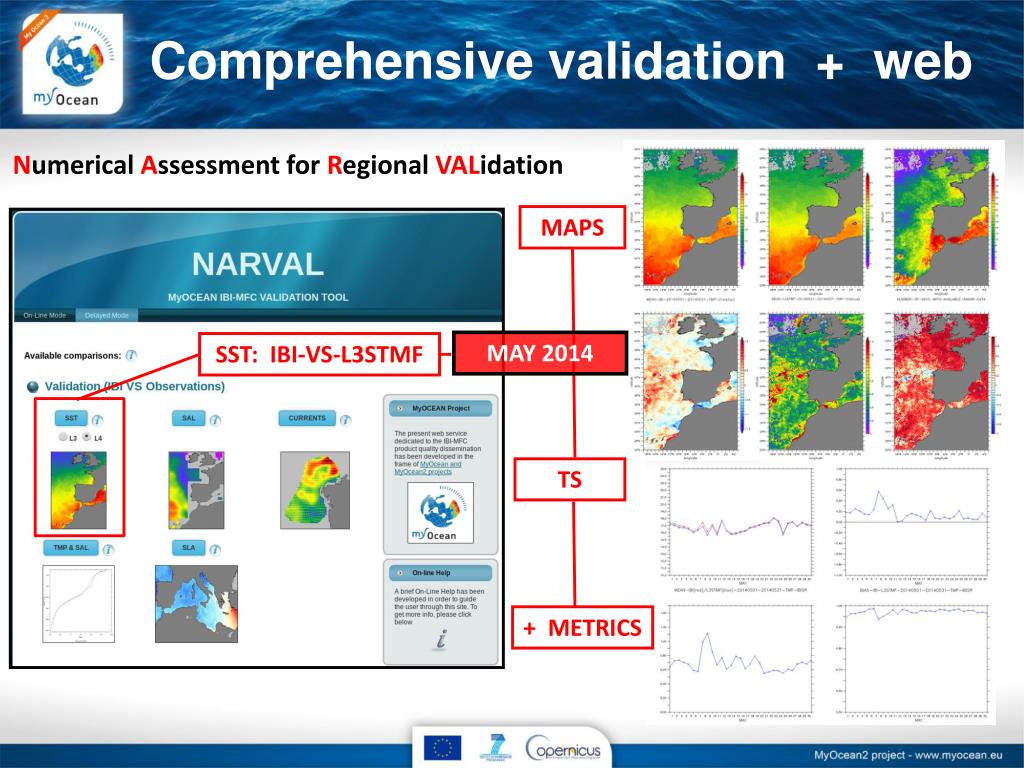

  12. Comprehensive validation + web Numerical Assessment for Regional VALidation MAPS MAY 2014 SST: IBI-VS-L3STMF TS + METRICS

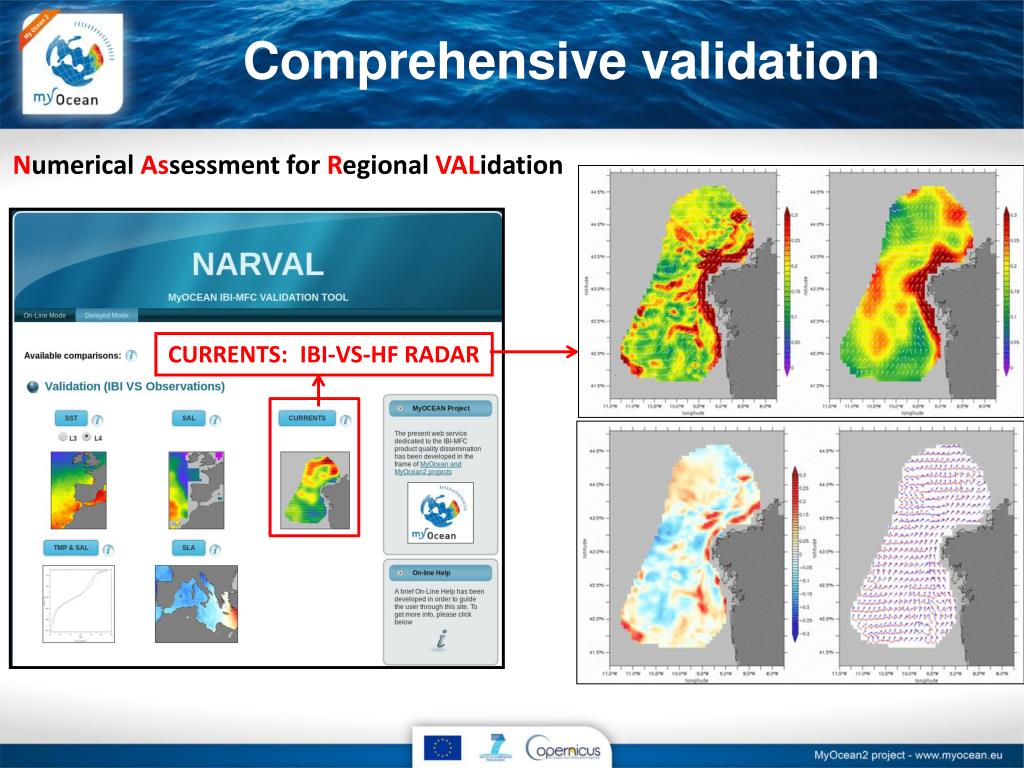

  13. Comprehensive validation Numerical Assessment for Regional VALidation CURRENTS: IBI-VS-HF RADAR

  14. Comprehensive validation IRISH • Previously (IBI-V3): • Comparison: SST • Sources: IBI vs L4 ODYSSEA (MF product) • Region: only IBISR (full IBI servicedomain) • Forecasthorizons: HC01 (IBI bestestimate) ECHAN GOBIS IBISR NIBSH WIBSH • CurrentState: • Comparison: SST • Sources (MyO products): • IBI vs L4 OSTIA • IBI vs L3 • Regions: 10 different regions • Forecast horizons: HC01 / FC03 / FC05 WSMED GIBST CADIZ ICANA

  15. A Robust System for a Reliable Operational Service • Main achievements are: • 2) Special attention to any factor causing potential recurrent • incidents  Plan of mitigation / correction measures Incident causes (since April 2011): MyOcean2 User training workshop. Exeter, July 2014.

  16. A Robust System for a Reliable Operational Service • IBI is a quite robust system • But sensitive to issues in the computing environment & acqusition of external input forcings • From April 2014. Back-up capability: reduction of impacts on users due to incidents in NOM PC • > 97% of the days, daily IBI forecast bulletin served without delay or problems. • Incidents more frequent outside working days MyOcean2 User training workshop. Exeter, July 2014.

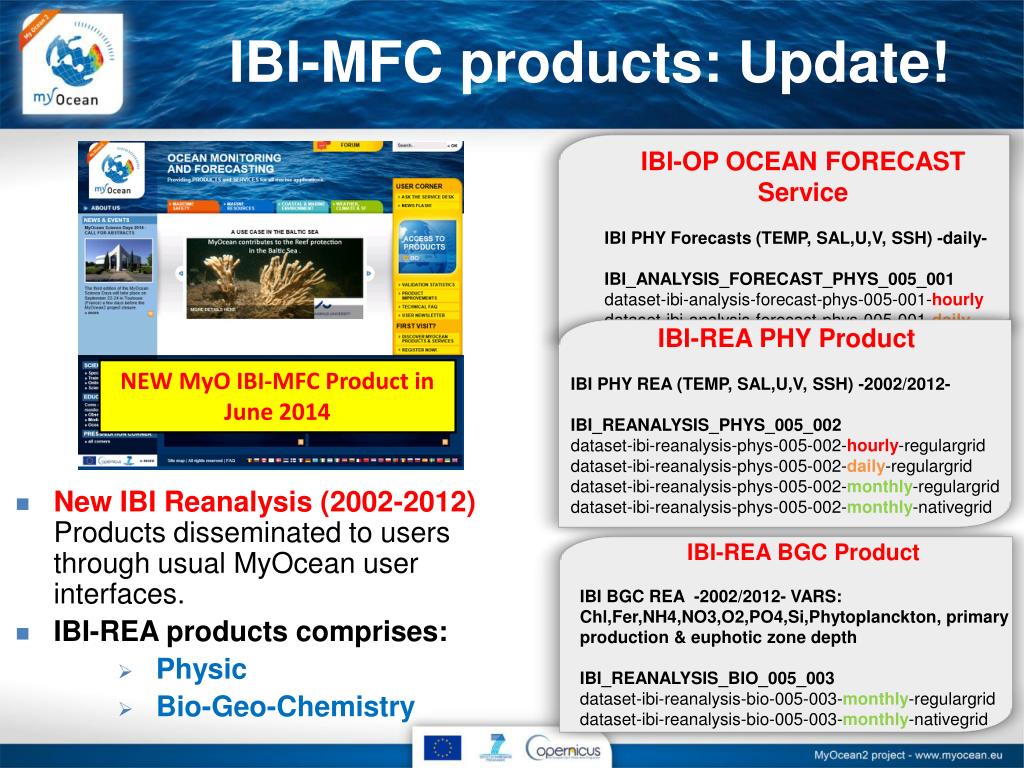

  17. IBI-MFC products: Update! IBI-OP OCEAN FORECAST Service IBI PHY Forecasts (TEMP, SAL,U,V, SSH) -daily- IBI_ANALYSIS_FORECAST_PHYS_005_001 dataset-ibi-analysis-forecast-phys-005-001-hourly dataset-ibi-analysis-forecast-phys-005-001-daily IBI-REA PHY Product IBI PHY REA (TEMP, SAL,U,V, SSH) -2002/2012- IBI_REANALYSIS_PHYS_005_002 dataset-ibi-reanalysis-phys-005-002-hourly-regulargrid dataset-ibi-reanalysis-phys-005-002-daily-regulargrid dataset-ibi-reanalysis-phys-005-002-monthly-regulargrid dataset-ibi-reanalysis-phys-005-002-monthly-nativegrid NEW MyO IBI-MFC Product in June 2014 Daily IBI SST Forecastproduct • New IBI Reanalysis (2002-2012) Products disseminated to users through usual MyOcean user interfaces. • IBI-REA products comprises: • Physic • Bio-Geo-Chemistry IBI-REA BGC Product IBI BGC REA -2002/2012- VARS: Chl,Fer,NH4,NO3,O2,PO4,Si,Phytoplanckton, primary production & euphotic zone depth IBI_REANALYSIS_BIO_005_003 dataset-ibi-reanalysis-bio-005-003-monthly-regulargrid dataset-ibi-reanalysis-bio-005-003-monthly-nativegrid

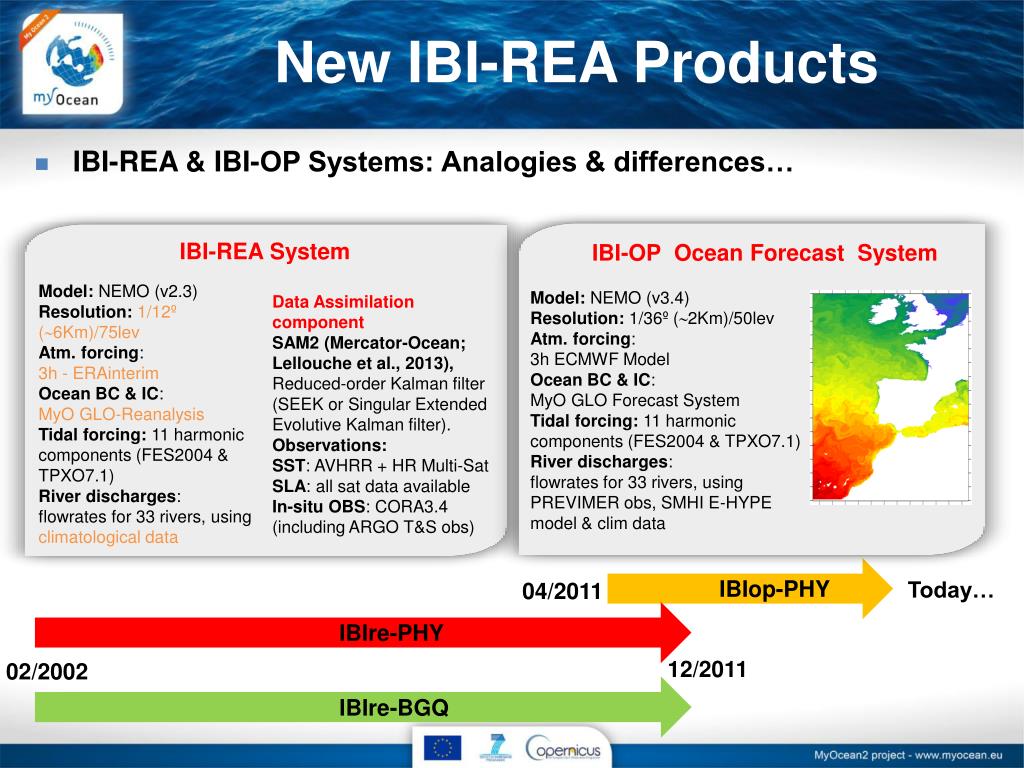

  18. New IBI-REA Products • IBI-REA & IBI-OP Systems: Analogies & differences… IBI-REA System IBI-OP Ocean Forecast System Model: NEMO (v2.3) Resolution: 1/12º (6Km)/75lev Atm. forcing: 3h - ERAinterim Ocean BC & IC: MyO GLO-Reanalysis Tidal forcing: 11 harmonic components (FES2004 & TPXO7.1) River discharges: flowrates for 33 rivers, usingclimatological data Model: NEMO (v3.4) Resolution: 1/36º (2Km)/50lev Atm. forcing: 3h ECMWF Model Ocean BC & IC: MyO GLO Forecast System Tidal forcing: 11 harmonic components (FES2004 & TPXO7.1) River discharges: flowrates for 33 rivers, using PREVIMER obs, SMHI E-HYPE model & clim data Data Assimilation component SAM2 (Mercator-Ocean; Lellouche et al., 2013), Reduced-order Kalman filter (SEEK or Singular Extended Evolutive Kalman filter). Observations: SST: AVHRR + HR Multi-Sat SLA: all sat data available In-situ OBS: CORA3.4 (including ARGO T&S obs) IBIop-PHY Today… 04/2011 IBIre-PHY 12/2011 02/2002 IBIre-BGQ

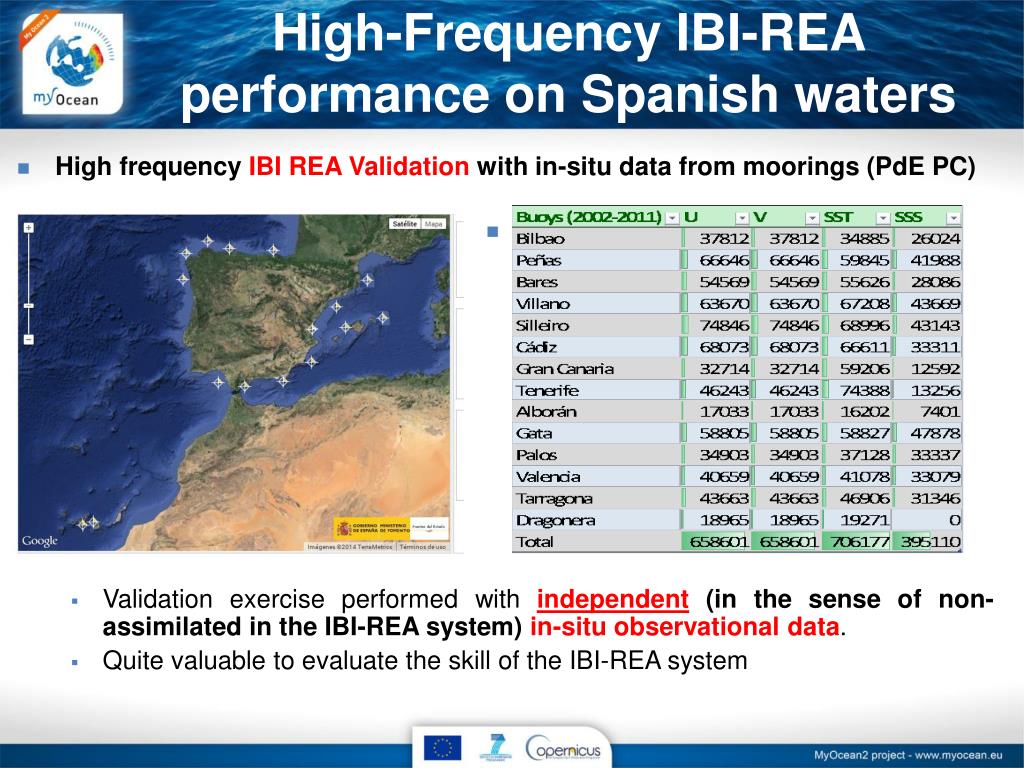

  19. High-Frequency IBI-REA performance on Spanish waters • High frequency IBI REA Validation with in-situ data from moorings (PdE PC) • Metrics computed using high frequency (1-h) in-situ measured data over the 10-yr period across 14 moorings from the Puertos del Estado Network. • Validation exercise performed with independent (in the sense of non-assimilated in the IBI-REA system) in-situ observational data. • Quite valuable to evaluate the skill of the IBI-REA system

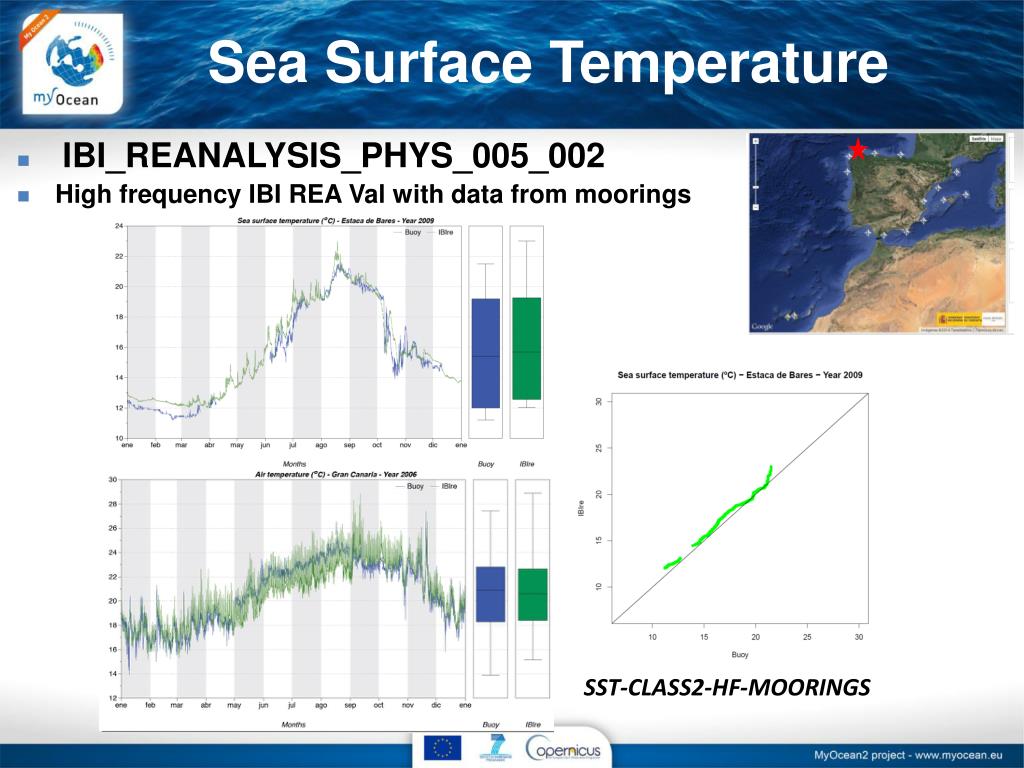

  20. Sea Surface Temperature • IBI_REANALYSIS_PHYS_005_002 • High frequency IBI REA Val with data from moorings • SST-CLASS2-HF-MOORINGS

  21. Summarize Bilbao, 2011 • IBI_REANALYSIS_PHYS_005_002 Silleiro, 2011 Valencia, 2011 Cadiz, 2011 Tenerife, 2011 • Taylor Diagrams

  22. And what about cool applications from IBI area…?? Next Friday 9am Thanks!
