  1. Horizontal Datum Shifts in NHD History and Action Plans in Place

  2. NHD Create Process • 2002 • USGS, USFS, and others begin work to produce 24k (High Resolution) NHD • Different file types used to create initial point, line and polygon vector datasets • Digital Line Graph (DLG) • Cartographic Feature File (CFF) • Tagged Vector Hydro (TVH) • Technicians assigned to do a group of quadrangles within a subbasin • Most quadrangles were in North American Datum 1927 (NAD27) and had to be converted to NAD 1983 by transformation • 2007 • Conversions and conflation of Nationwide 24K (High Resolution) geodatabase completed

  3. What was used in the NHD Create Process? (AK 98% TVH or other data; HI, PR, Guam mostly DLG)

  4. Discovery of Horizontal Datum Shifts • November 2008 - Dean Tyler and a colleague from USGS Earth Resources Observation and Science (EROS) developed method to compare NHD streamline end-points with DLG end-points • Examined 1271 7.5’ quadrangles • 36 quads were determined to have a horizontal datum shift (>28M shift) • 4 quads were in the “possible” category • Two contiguous groups of quadrangles - 15 in VA, 18 in NM • Total USGS 7.5 Minute Quadrangles – 65,532 • 20,806 quads converted from only DLG, most other quads were converted from CFF (6668), CFF+DLG (3697), or TVH (34361) • Dean estimated that approximately 3% of quadrangles where DLG were used could be affected based on these findings – approximately 735 quadrangles

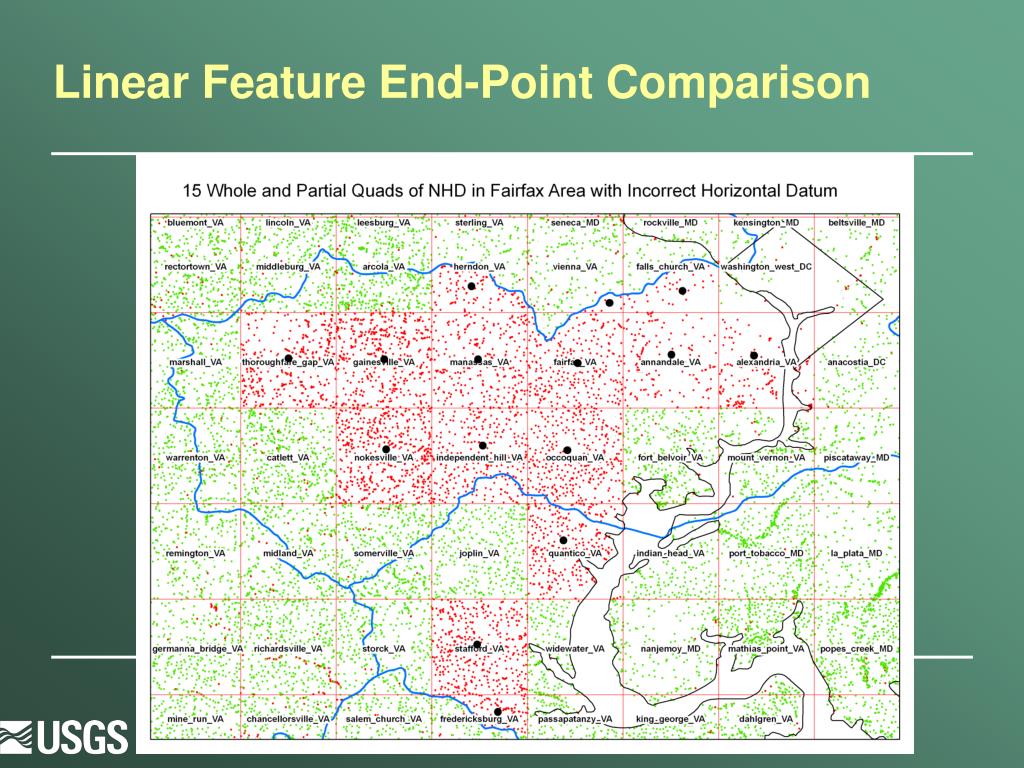

  5. Linear Feature End-Point Comparison

  6. Water Body Centroid Comparison

  7. How did this happen? • Seems to be limited to areas of grouped quadrangles • Incorrect projection assigned upon conversion of source data • Projection deleted or no transformation applied • Source data incorrectly assigned projection

  8. Horizontal Shift Across Quadrangle Boundary (NAD83 – NAD27)

  9. Shifts are mostly apparent

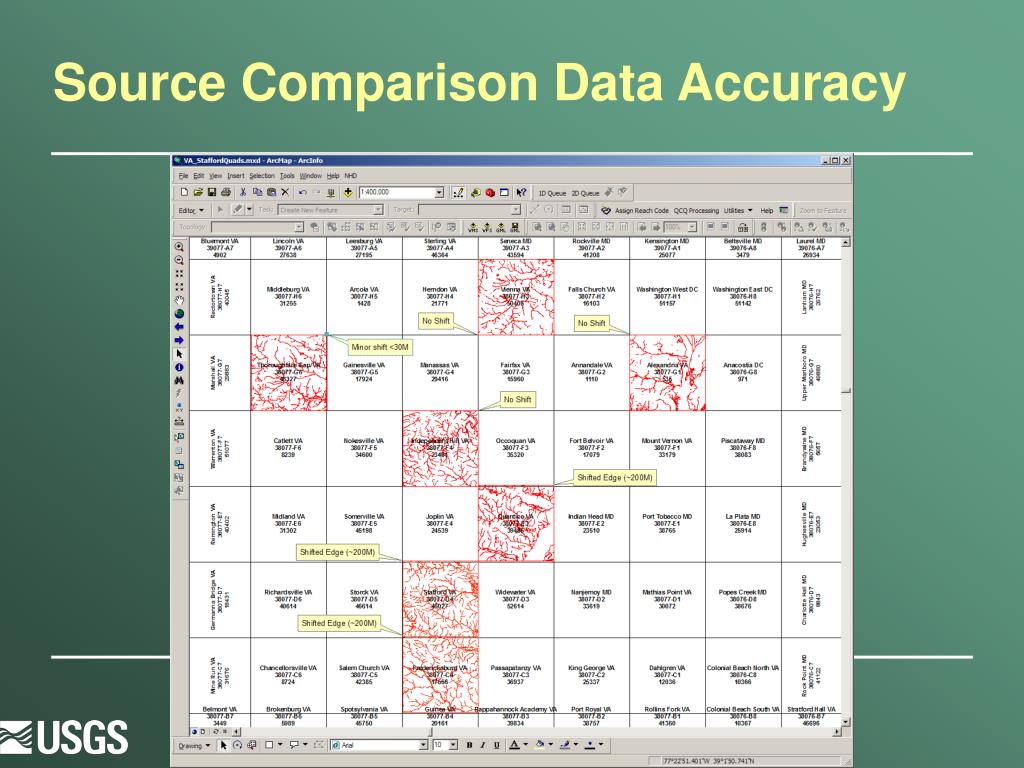

  10. Source Comparison Data Accuracy

  11. Correcting Horizontal Datum Shifts • Phase I – Detection and verification, establish areas of interest (AOI) • Phase II – Extraction (clipping), conversion (pgdb2shp), transformation applied, visual check with source data • Phase III – Erase, load feature changes (ArcCatalog Load), update status table (Load of ComID and Modify Geometry status) • Phase IV – Edge matching and merge features • Phase V – Verification of correction, Run QA/QC process, upload to repository

  12. Questions or Comments?
