The environment and characteristics of convective events over Niamey, Niger:

The environment and characteristics of convective events over Niamey, Niger: AMMA SOP2 observations and climatological context Matthew A. Janiga 1 , Chris D. Thorncroft 1 , and Earle Williams 2 University at Albany 1 , MIT Lincoln Laboratory 2. July 26 Event. Introduction.

sally
Download Presentation

The environment and characteristics of convective events over Niamey, Niger:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

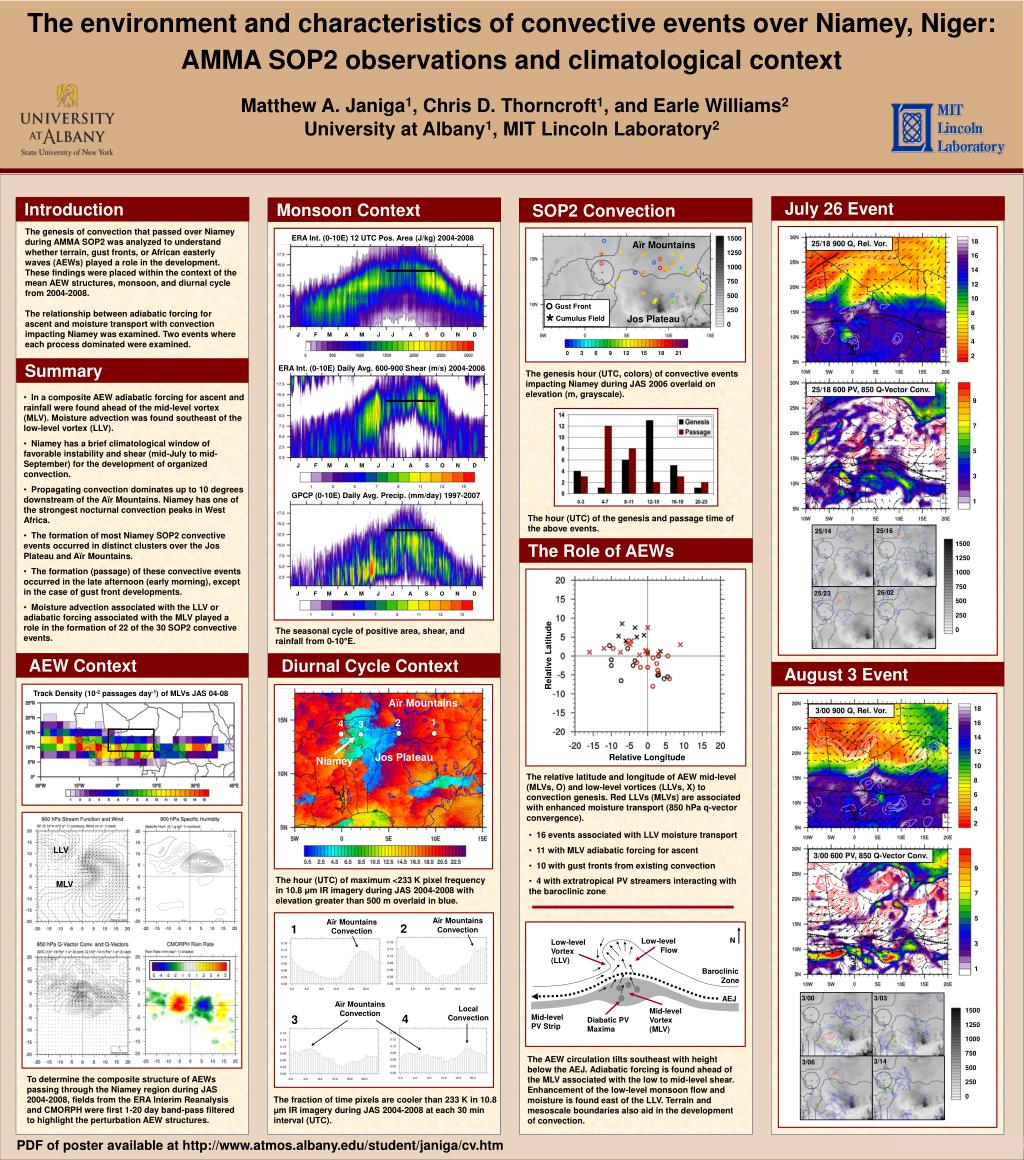

  1. The environment and characteristics of convective events over Niamey, Niger: AMMA SOP2 observations and climatological context Matthew A. Janiga1, Chris D. Thorncroft1, and Earle Williams2 University at Albany1, MIT Lincoln Laboratory2 July 26 Event Introduction Monsoon Context SOP2 Convection The genesis of convection that passed over Niamey during AMMA SOP2 was analyzed to understand whether terrain, gust fronts, or African easterly waves (AEWs) played a role in the development. These findings were placed within the context of the mean AEW structures, monsoon, and diurnal cycle from 2004-2008. The relationship between adiabatic forcing for ascent and moisture transport with convection impacting Niamey was examined. Two events where each process dominated were examined. ERA Int. (0-10E) 12 UTC Pos. Area (J/kg) 2004-2008 Aїr Mountains 18 16 14 12 10 8 6 4 2 1500 1250 1000 750 500 250 0 25/18 900 Q, Rel. Vor. Aїr Mountains Gust Front * Jos Plateau Cumulus Field J F M A M J J A S O N D 0 3 6 9 12 15 18 21 Summary ERA Int. (0-10E) Daily Avg. 600-900 Shear (m/s) 2004-2008 The genesis hour (UTC, colors) of convective events impacting Niamey during JAS 2006 overlaid on elevation (m, grayscale). 25/18 600 PV, 850 Q-Vector Conv. • In a composite AEW adiabatic forcing for ascent and rainfall were found ahead of the mid-level vortex (MLV). Moisture advection was found southeast of the low-level vortex (LLV). • Niamey has a brief climatological window of favorable instability and shear (mid-July to mid-September) for the development of organized convection. • Propagating convection dominates up to 10 degrees downstream of the Aїr Mountains. Niamey has one of the strongest nocturnal convection peaks in West Africa. • The formation of most Niamey SOP2 convective events occurred in distinct clusters over the Jos Plateau and Aїr Mountains. • The formation (passage) of these convective events occurred in the late afternoon (early morning), except in the case of gust front developments. • Moisture advection associated with the LLV or adiabatic forcing associated with the MLV played a role in the formation of 22 of the 30 SOP2 convective events. 9 7 5 3 1 J F M A M J J A S O N D GPCP (0-10E) Daily Avg. Precip. (mm/day) 1997-2007 The hour (UTC) of the genesis and passage time of the above events. 25/16 25/14 The Role of AEWs 1500 1250 1000 750 500 250 0 26/02 25/23 J F M A M J J A S O N D The seasonal cycle of positive area, shear, and rainfall from 0-10°E. Relative Latitude AEW Context Diurnal Cycle Context August 3 Event Track Density (10-2 passages day-1) of MLVs JAS 04-08 Aїr Mountains 18 16 14 12 10 8 6 4 2 3/00 900 Q, Rel. Vor. 1 2 4 3 Jos Plateau Relative Longitude Niamey The relative latitude and longitude of AEW mid-level (MLVs, O) and low-level vortices (LLVs, X) to convection genesis. Red LLVs (MLVs) are associated with enhanced moisture transport (850 hPa q-vector convergence). • 16 events associated with LLV moisture transport • 11 with MLV adiabatic forcing for ascent • 10 with gust fronts from existing convection • 4 with extratropical PV streamers interacting with the baroclinic zone LLV 3/00 600 PV, 850 Q-Vector Conv. 9 7 5 3 1 The hour (UTC) of maximum <233 K pixel frequency in 10.8 μm IR imagery during JAS 2004-2008 with elevation greater than 500 m overlaid in blue. MLV Aїr Mountains Convection Aїr Mountains Convection 2 1 N Low-level Flow Low-level Vortex (LLV) Baroclinic Zone AEJ 3/00 3/03 Aїr Mountains Convection Local Convection Mid-level Vortex (MLV) 1500 1250 1000 750 500 250 0 4 3 Mid-level PV Strip Diabatic PV Maxima The AEW circulation tilts southeast with height below the AEJ. Adiabatic forcing is found ahead of the MLV associated with the low to mid-level shear. Enhancement of the low-level monsoon flow and moisture is found east of the LLV. Terrain and mesoscale boundaries also aid in the development of convection. 3/14 3/06 To determine the composite structure of AEWs passing through the Niamey region during JAS 2004-2008, fields from the ERA Interim Reanalysis and CMORPH were first 1-20 day band-pass filtered to highlight the perturbation AEW structures. The fraction of time pixels are cooler than 233 K in 10.8 μm IR imagery during JAS 2004-2008 at each 30 min interval (UTC). PDF of poster available at http://www.atmos.albany.edu/student/janiga/cv.htm
