Construct the two point group diagrams for point group 32. (45 secs)

Construct the two point group diagrams for point group 32. (45 secs) symmetry elements equivalent points CaF 2 is Fm3m, a = 5.462 Å, Ca in 4 a, F in 8c. Make a drawing of the crystal structure projected down [001] The F atoms have how many Ca nearest

sanne
Download Presentation

Construct the two point group diagrams for point group 32. (45 secs)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

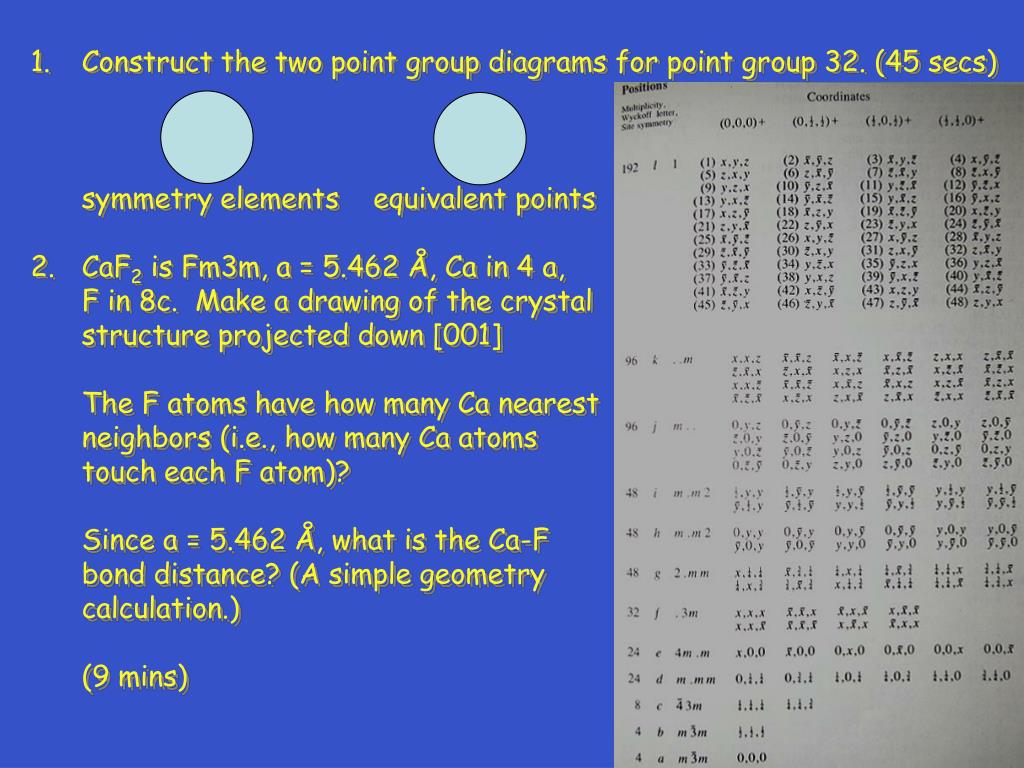

  1. Construct the two point group diagrams for point group 32. (45 secs) symmetry elements equivalent points CaF2 is Fm3m, a = 5.462 Å, Ca in 4 a, F in 8c. Make a drawing of the crystal structure projected down [001] The F atoms have how many Ca nearest neighbors (i.e., how many Ca atoms touch each F atom)? Since a = 5.462 Å, what is the Ca-F bond distance? (A simple geometry calculation.) (9 mins)

  2. Metals with the ccp and hcp structures are both close packed. How are they different? Explain; you must use drawings in your discussion. (2 mins) 4. For characteristic x-radiation, why is K> K? (1 min)

  3. Construct the two point group diagrams for point group 6mm. (45 secs) symmetry elements equivalent points PtO2 is Pnnm, a = 4.533, b = 4.488, c = 3.138 Å, Pt in 2a, O in 4g, x = 0.652, y = 0.281. Make a drawing of the crystal structure projected down [001]. See list of equipoints on next slide. What is the coordination number for the Pt atoms (i.e., how many O atoms touch each Pt atom)? What is the shape of the Pt coordination polyhedron. (4 mins)

  4. 2.

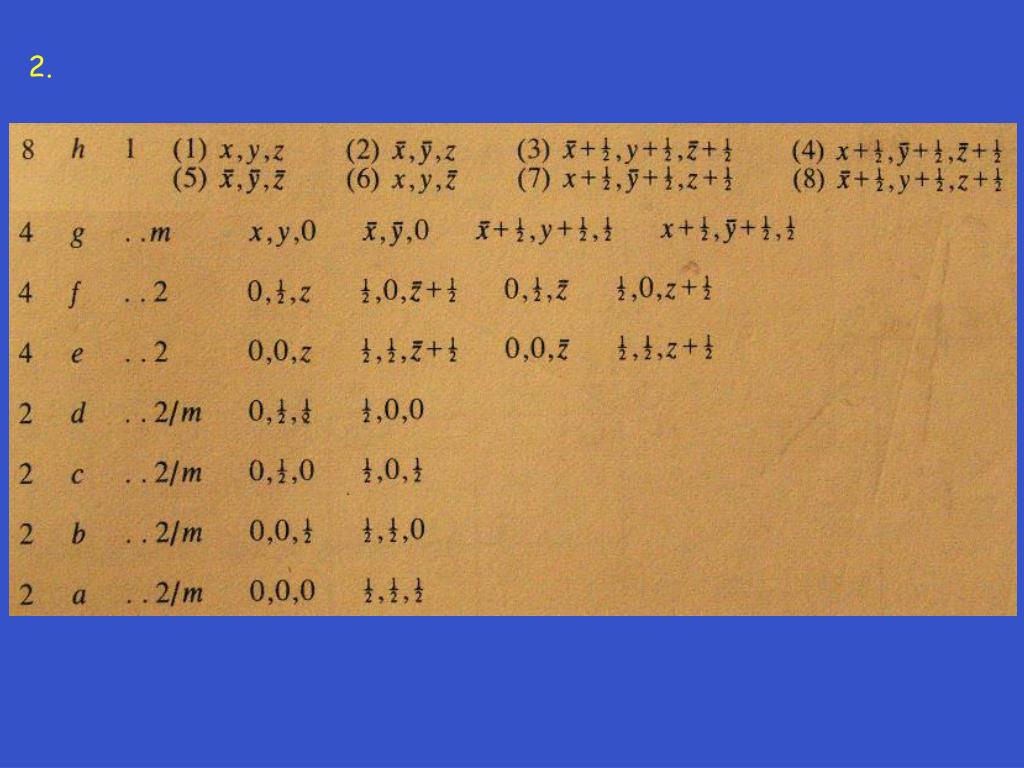

  5. a. Are rutile and anatase polytypes?____ b. Are rutile and anatase polymorphs?____ c. Discuss how (in what way) the crystal structures of rutile and anatase are different. (1 min) A monoclinic crystal has a = 6, b = 4, c = 10 Å,  = 110°. Draw the k = 0 level of the reciprocal lattice. You will have to estimate (guess) what the distances and angles are on your drawing. Show (mark) the reciprocal lattice vectors and angle for the reciprocal lattice unit cell. (2 min)
