  1. ROI Systems, Western Region User Group November 2001 ECA Basics & More Manage 2000 6.5C SP6 presented by Don Luoto Powerwave Technologies dluoto@pwav.com THE POWER IN WIRELESS™

  2. Agenda • ECA – what is it? • Setup • Workshop – ECA.BUILD • How does it work? • Tables for referencing contacts • ECA.SCAN - demo • Reports & Debugging • Advanced stuff • Q&A

  3. ECA – What It Is, What It Does • What it is. • “…. The slickest thing from ROI since CTO on release 6.2.” • …. A great tool for management and users. • Event • Condition • Action • What it does. • Monitors data activity in Manage 2000. • Create, delete, change, read. • Notifies someone based on a triggered event. • Email, FAX, pop UP message, action.1 record.

  4. ECA Setup • ECA.AGENT.CTLS • Phantom process that looks for unprocessed ECAT (transaction) records. • One phantom process per account (MAIN,TRAIN,etc). • Uses, 1 M2K license and 0 IBM/U2 (Unidata) license per phantom. • MONITOR.CONTROLS (optional) • Add for each user so that ECA processing can be monitored. Standard MONITOR.OPTIONS. • ECA.ALERT.01 INBOX • ECA.ALERT.01 STOPPED • ECA.ALERT.03 ERROR • ECA.SUM.01 AGENT SUMMARY STATUS

  5. ECA Setup – ECA.AGENT.CTLS

  6. ECA Setup – CONTACTS • CONTACTS • All ECAs require the setup of a contact in order to send an email of any kind. • M2K email • Intranet email • External internet email • Required fields for email • Screen 1 - Record ID, Name, File • Screen 2 - Type = EMAIL • Screen 2 - E-Mail = somebody@somewhere.com • Screen 2 - Auto Notify = Y

  7. ECA Setup – CONTACTS, Screen 1

  8. ECA Setup – CONTACTS, Screen 2 Manage 2000 email address

  9. ECA Workshop – Starting Simple!!!! • Objective • Create an ECA to notify via email when a new part is added to the item master. • ECA.BUILD • Screen 1 – Define the ECA and related files and functions • Screen 2 – Create and format the output notification • Screen 3 – Define the EVENT & ACTION

  10. ECA Workshop – ECA.BUILD screen 1

  11. ECA Workshop – ECA.BUILD screen 2

  12. ECA Workshop – ECA.BUILD screen 2 Screen 2, Prompt 12 – Body, in full screen edit mode \EDP

  13. ECA Workshop – ECA.BUILD screen 3

  14. ECA Workshop – Test it with ITEMS Test the ECA by entering a new part in ITEMS.

  15. ECA Workshop – Resulting Email Resulting Manage 2000 Email (The body of an Outlook email should be identical)

  16. How does it work?Notes on Basic Function • Most M2K transactional functions have code in the controlling program that call the ECA.UPDATE program. i.e. SO.ENTRY is run by program SOP111. • If function is a data update such as ITEMS, then the controlling program MT500 calls ECA.UPDATE program. • The ECA.AGENT.CTLS does NOT have to be running to have records written to the ECAT file. • The ECAT (transaction) file creates 1 record for every notification that is attempted. • A single ECA triggered event that is sent to 5 people will create 5 ECAT records.

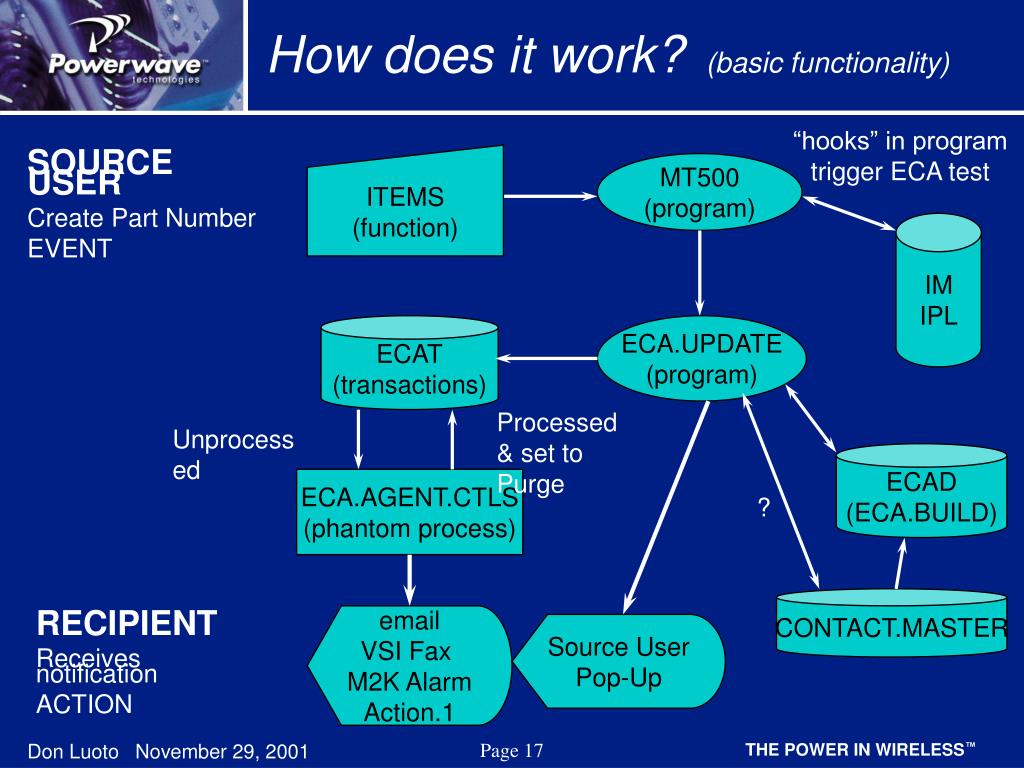

  17. How does it work?(basic functionality) “hooks” in program trigger ECA test ITEMS (function) SOURCE USER Create Part Number EVENT MT500 (program) IM IPL ECAT (transactions) ECA.UPDATE (program) Processed & set to Purge Unprocessed ECAD (ECA.BUILD) ECA.AGENT.CTLS (phantom process) ? CONTACT.MASTER email VSI Fax M2K Alarm Action.1 RECIPIENT Receives notification ACTION Source User Pop-Up

  18. Tables for Referencing Contacts Everything must end with a contact • ECA.KEYWORDS – groupings of contacts • Attach ECA.KEYWORDS to CONTACTS screen 1 and ECA.BUILD screen 3 • ECA.SYSTEM.REFS – links record data to contacts • Planners • Buyers • Sales Reps • Custom Fields

  19. Tables – ECA.KEYWORDS

  20. Tables – ECA.SYSTEM.REFS

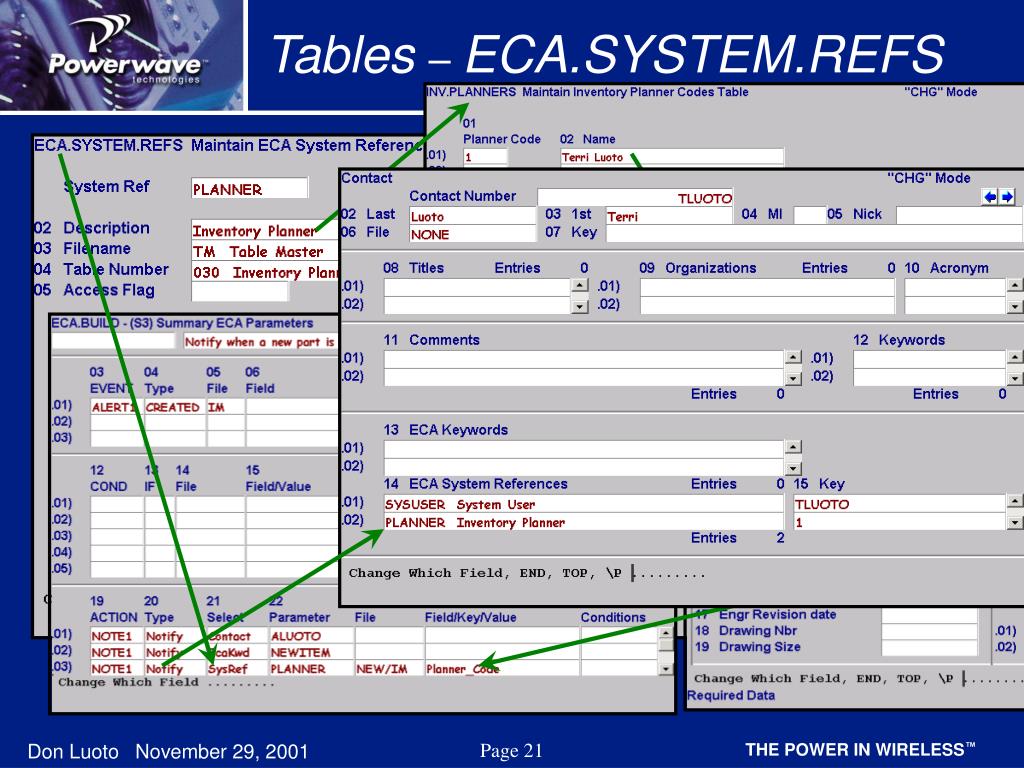

  21. Tables – ECA.SYSTEM.REFS

  22. ECA Workshop – Add Conditions • Add an EVENT “condition” that excludes parts with the Inventory Type Code = CO • CO = non inventory items used for CTO development • Add an ACTION “condition” so that the planner only receives manufactured parts. • NOTE: The “condition” must be TRUE to allow processing of the EVENT and/or ACTION • Read the prompt help for entering multiple conditions with and/or logic.

  23. ECA Workshop – Add Conditions

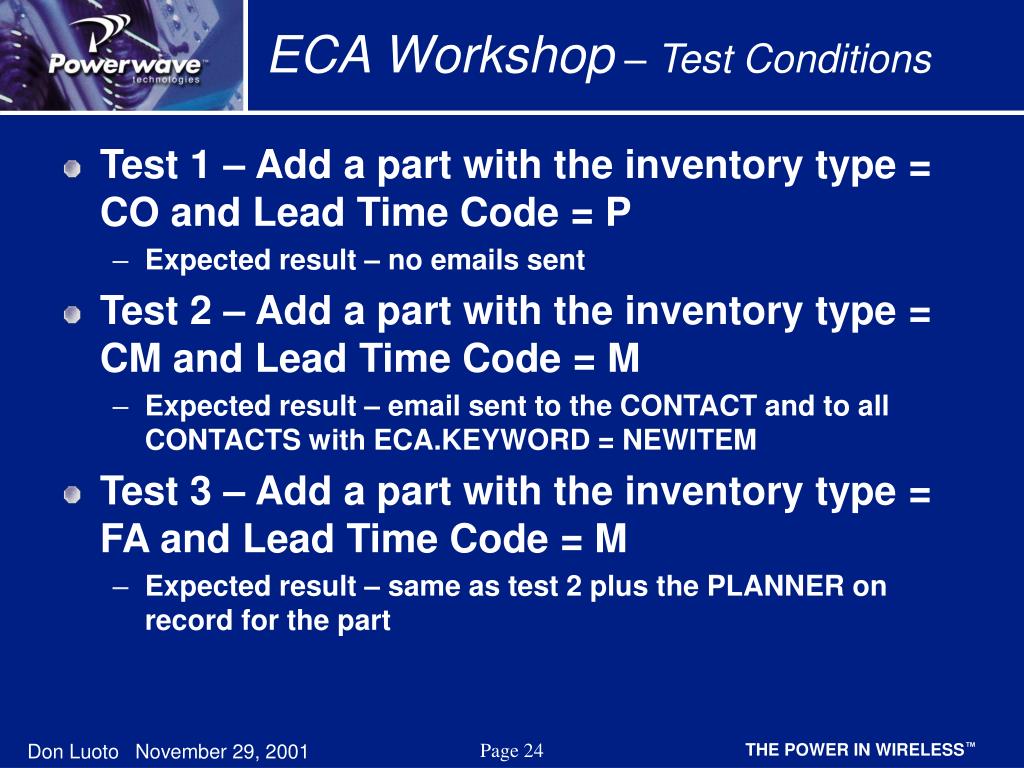

  24. ECA Workshop – Test Conditions • Test 1 – Add a part with the inventory type = CO and Lead Time Code = P • Expected result – no emails sent • Test 2 – Add a part with the inventory type = CM and Lead Time Code = M • Expected result – email sent to the CONTACT and to all CONTACTS with ECA.KEYWORD = NEWITEM • Test 3 – Add a part with the inventory type = FA and Lead Time Code = M • Expected result – same as test 2 plus the PLANNER on record for the part

  25. ECA Workshop – Simple Pop UP A pop up browser of the notification can be sent to the source user.

  26. ECA Workshop – Simple Pop UP The user entering the part number will get this upon ENDing.

  27. ECA Workshop – Simple Pop UP NOTES: All Manage 2000 logins must be setup in CONTACTS for Pop Up ECAs to work. The CONTACT record key must match the SYS.USER record key.

  28. ECA.SCAN • Use to periodically scan files for specific existing data and send a notification if conditions are met. • Can be run manually or perhaps launched by DJS (delayed job stream) or BATCH.MASTER.

  29. ECA.BUILD for ECA.SCAN SCREEN 1

  30. ECA.BUILD for ECA.SCAN SCREEN 2

  31. ECA.BUILD for ECA.SCAN SCREEN 3

  32. Reports & Debugging Methods • Key Reports • ECA.TXN.DTL.RPT • Prompt.Update.Truth.Results • Produces a browser report to the source user that traces and displays the entire ECA logic. • USE TCL to analyze the ECAT file • :LIST ECAT WITH Src_Eca_Key = DEMO_1

  33. Advanced Stuff • I – descriptors • Can be used in all cases where a dictionary item is used. • Prompts 8 & 9 in screen 2 of ECA.BUILD work like a TRANS I - descriptor • Email formatting • /INCLUDE.SENT.TO.LIST • List other users notified of the ECA • /FORM.FIELDS • Used to format columns of multivalued data • Add a hyperlink that takes the email recipient to a help document • Complex conditional statements

  34. Advanced Stuff, I-Descriptors Works like a “TRANS” I-Descriptor

  35. Advanced Stuff, Formatting

  36. Advanced Stuff, Complex Cond

  37. General Notes • Advise users to NOT to use MS Word as their email editor. ECAs are best viewed in plain text. • Watch your ECAT file size, it will increase dramatically! Use FILE.STAT & RESIZE. • For testing purposes, change your SYS.USER for Screen 6, Pmt 8, “Delete Self in Sent Mail” to N. Otherwise you cannot send and an ECA email to yourself. • wSendmail for NT or sendmail UNIX will need to be installed and configured before emails can be forwarded to MS Exchange. • There are treasures where some transactional functions do not trigger the ECA for certain files. i.e. PO.RECEIPTS for the IT file.

  38. General Notes • Create the ECA as simply as possible at first to confirm that the ECA will trigger and send the notice. Then add the gravy.

  39. Q & A Thank you! Questions?
