Significant Figures

Significant Figures. Significant figures are the digits in any measurement that are known with certainty plus one digit that is uncertain. Number of significant figures = All certain digits + One uncertain digit.

simeon
Download Presentation

Significant Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Significant Figures

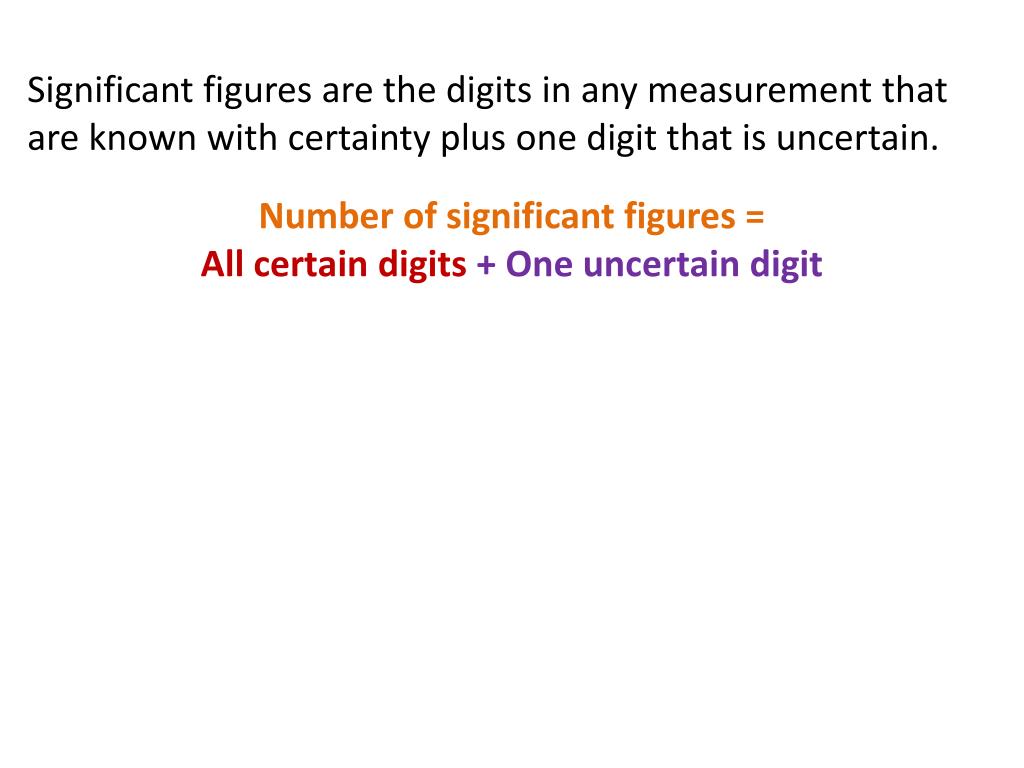

  2. Significant figures are the digits in any measurement that are known with certainty plus one digit that is uncertain. Number of significant figures = All certain digits +One uncertain digit

  3. Determine the number of significant figures in each of the following measurements: 1. 14.386 5 sig. fig. Rule #1All non-zero digits are significant. 2 sig. fig. 2. 0.0078 Rule #2Zeros to the left of the first non-zero digit are not significant. 3. 5.0078 5 sig. fig. Rule #3Zeros between non-zero digits are significant. 4 sig. fig. 4. 65.00 Rule #4Trailing zeros at the end of a number are significant only if the number (a) contains a decimal point or (b) contains an overbar.

  4. 1. 36 000 5 sig. fig. Rule #4Trailing zeros at the end of a number are significant only if the number (a) contains a decimal point or (b) contains an overbar. 2 sig. fig. 2. 7 800 Rule #4Trailing zeros at the end of a number are significant only if the number (a) contains a decimal point or (b) contains an overbar. 3. 0.00069 2 sig. fig. Rule #2Zeros to the left of the first non-zero digit are not significant. 5 sig. fig. 4. 30008 Rule #3Zeros between non-zero digits are significant.

  5. More Practice Problems Determine the number of significant figures in each of the following measurements: a) 5 000 1 sig. fig. Rule #4Trailing zeros at the end of a number are significant only if the number (a) contains a decimal point or (b) contains an overbar. 4 sig. fig. b) 3005 Rule #1All non-zero digits are significant. c) 0.000002 1 sig. fig. Rule #2Zeros to the left of the first non-zero digit are not significant. 2 sig. fig. d) 0.00050 Rule #2Zeros to the left of the first non-zero digit are not significant.

  6. e) 7 698 4 sig. fig. Rule #1All non-zero digits are significant. 4 sig. fig. f) 76 980 Rule #4Trailing zeros at the end of a number are significant only if the number (a) contains a decimal point or (b) contains an overbar. g) 0.50 2 sig. fig. Rule #2Zeros to the left of the first non-zero digit are not significant. Rule #4 2 sig. fig. h) 70 Rule #2Zeros to the left of the first non-zero digit are not significant.
