5m. 2m. The Assembly of ATLAS Muon chambers @NIKHEF. NIKHEF Muon Mission: 96 Barrel Outer Large (BOL) chambers. Assembly Station - general Introduction Tube placing + Gluing Tomograph@CERN + test stand@NIKHEF Summary: Status & Plans. QC-Wire tension. Quality Control on drift tubes, specs:

sloan
Download Presentation

The Assembly of ATLAS Muon chambers @NIKHEF

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

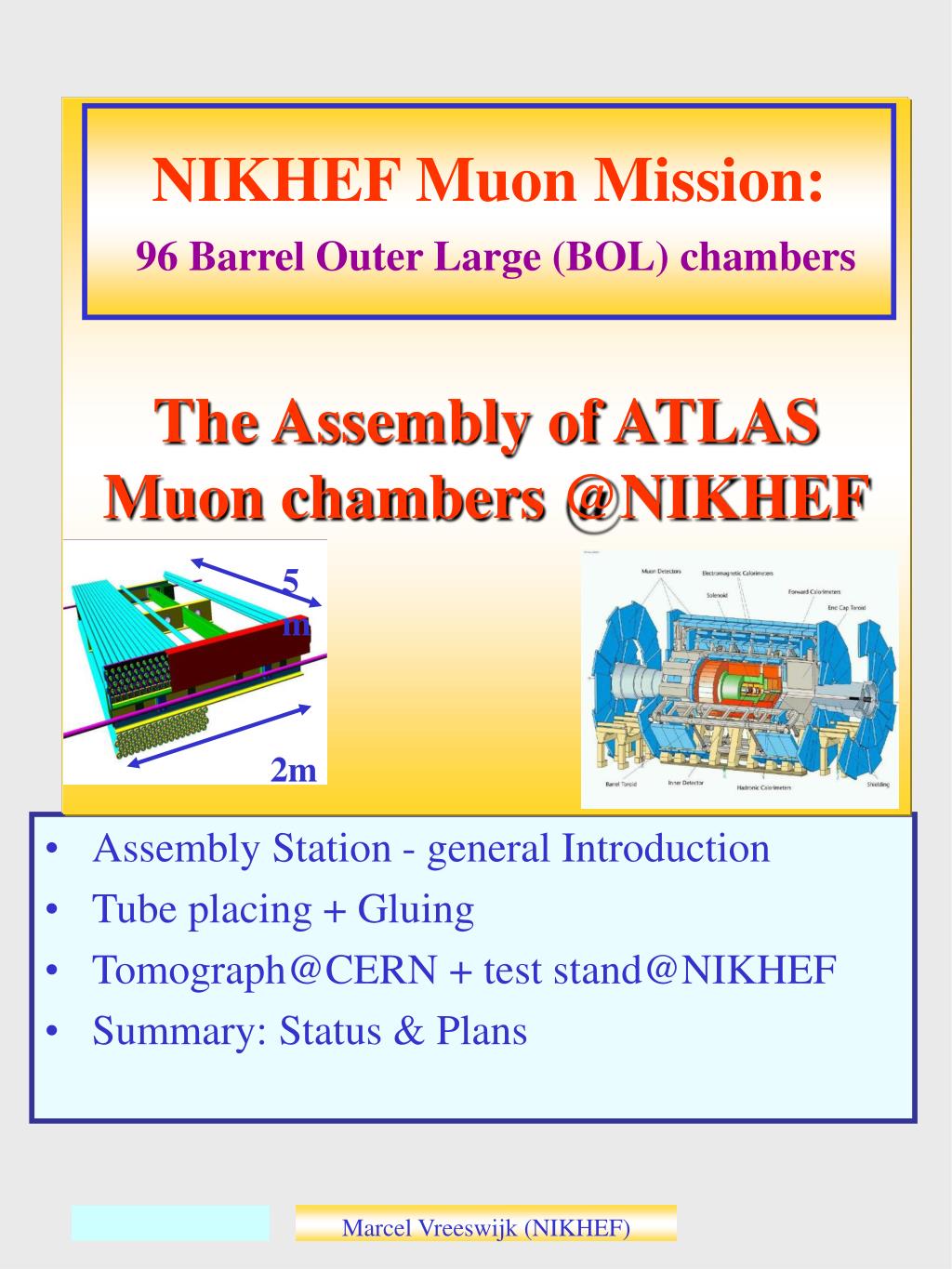

  1. 5m 2m The Assembly of ATLAS Muon chambers @NIKHEF NIKHEF Muon Mission:96 Barrel Outer Large (BOL) chambers • Assembly Station - general Introduction • Tube placing + Gluing • Tomograph@CERN + test stand@NIKHEF • Summary: Status & Plans Marcel Vreeswijk (NIKHEF)

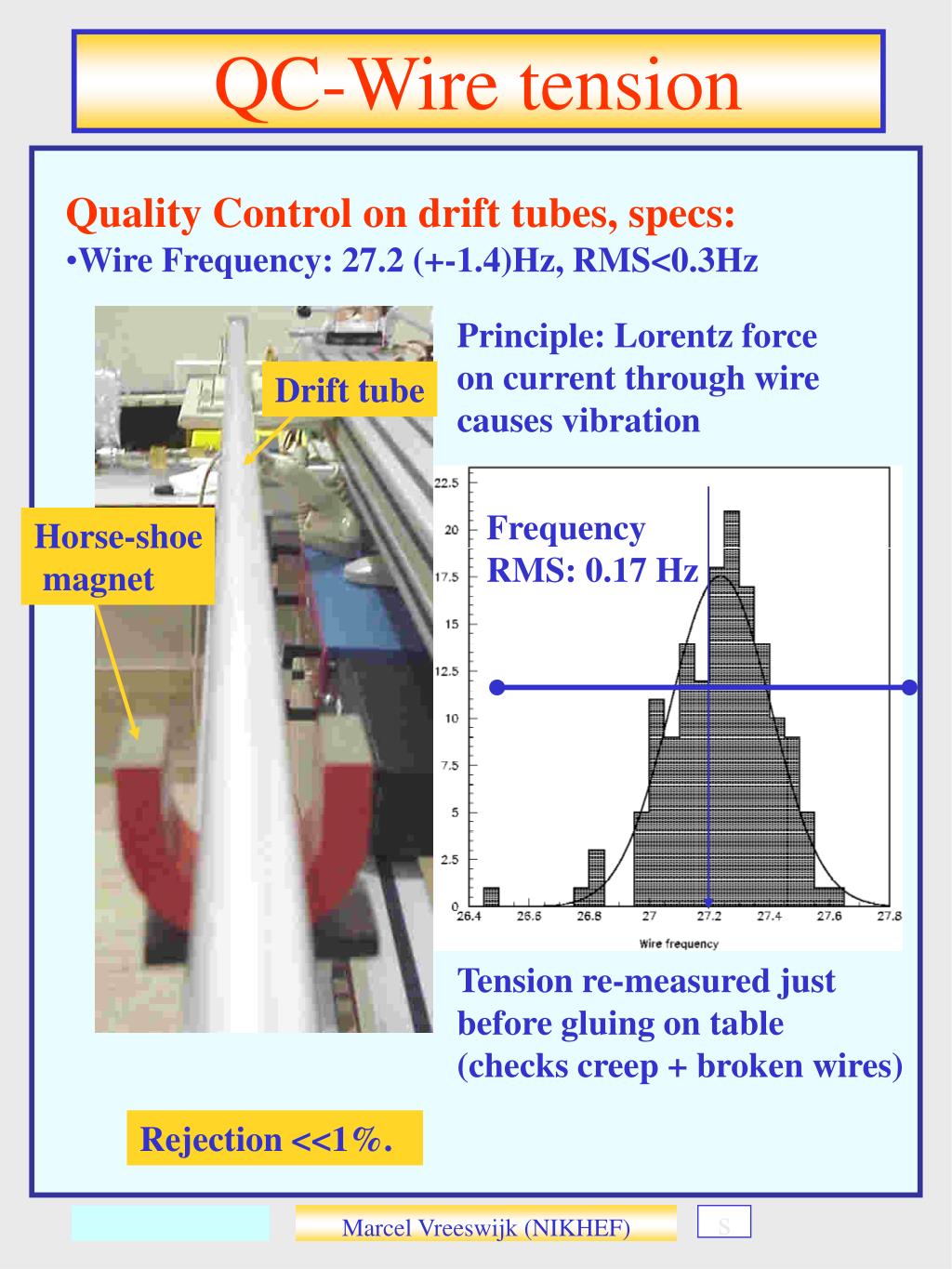

  2. QC-Wire tension • Quality Control on drift tubes, specs: • Wire Frequency: 27.2 (+-1.4)Hz, RMS<0.3Hz Principle: Lorentz force on current through wire causes vibration Drift tube Frequency RMS: 0.17 Hz Horse-shoe magnet Tension re-measured just before gluing on table (checks creep + broken wires) Rejection <<1%. Marcel Vreeswijk (NIKHEF) s

  3. Tube wiring + QC • Drift tubes: • Extruded aluminum drift tubes (3cm) • Wire (50mm gold-plated tungsten) positioned by two end-plugs Endplug • QC on drift tubes, specs: • Wire position: |Z,Y|<25mm • Wire tension=> • frequency 27.2+-1.4 Hz, RMS<0.3Hz • Leak rate: <2.5 10-8 bl/s • HV check: <20nA @3500V Marcel Vreeswijk (NIKHEF)

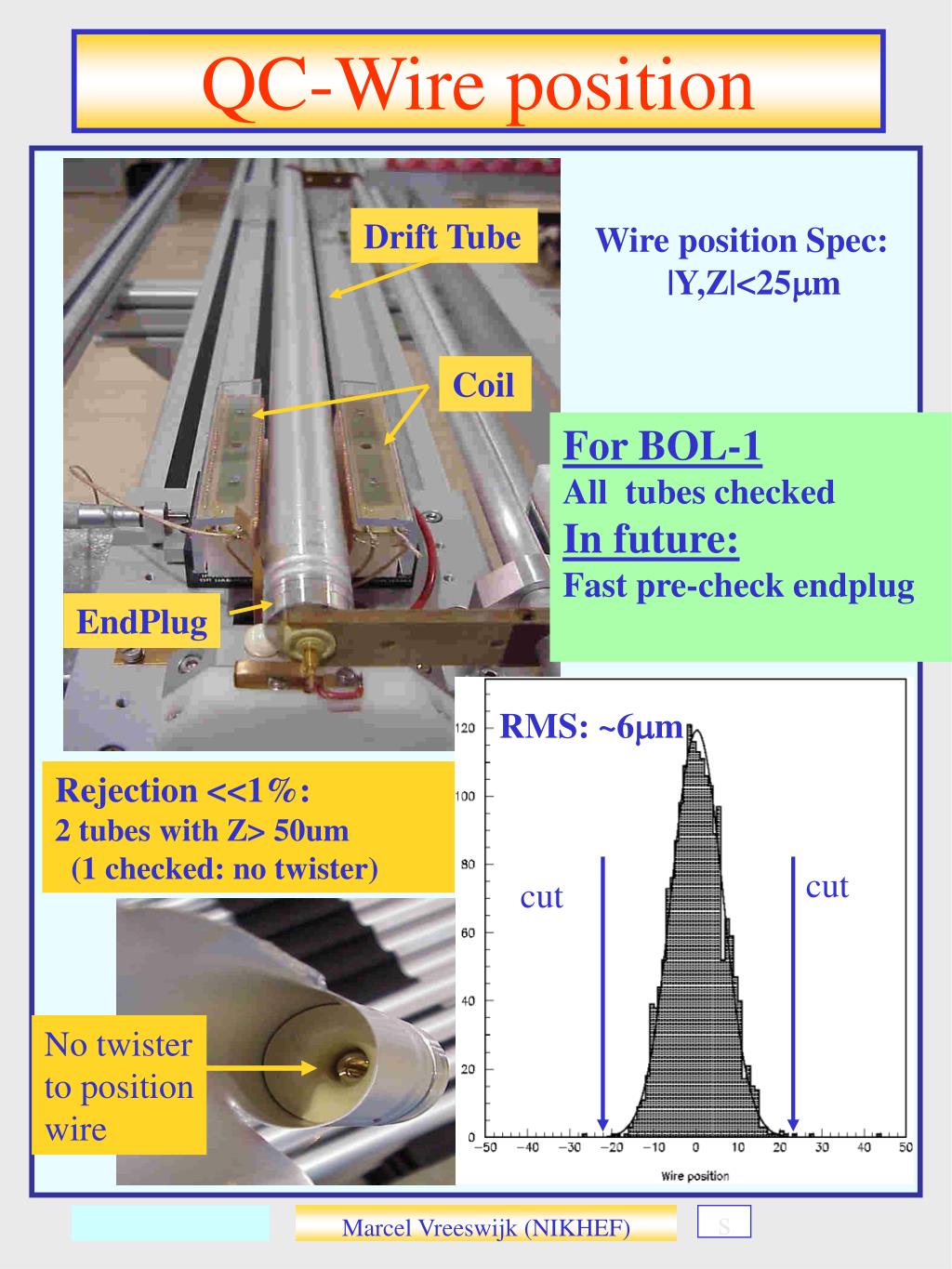

  4. Drift Tube Coil EndPlug RMS: ~6mm QC-Wire position • Wire position Spec: • |Y,Z|<25mm For BOL-1 All tubes checked In future: Fast pre-check endplug Rejection <<1%: 2 tubes with Z> 50um (1 checked: no twister) cut cut No twister to position wire Marcel Vreeswijk (NIKHEF) s

  5. QC-Wire tension • Quality Control on drift tubes, specs: • Wire Frequency: 27.2 (+-1.4)Hz, RMS<0.3Hz Principle: Lorentz force on current through wire causes vibration Drift tube Frequency RMS: 0.17 Hz Horse-shoe magnet Tension re-measured just before gluing on table (checks creep + broken wires) Rejection <<1%. Marcel Vreeswijk (NIKHEF) s

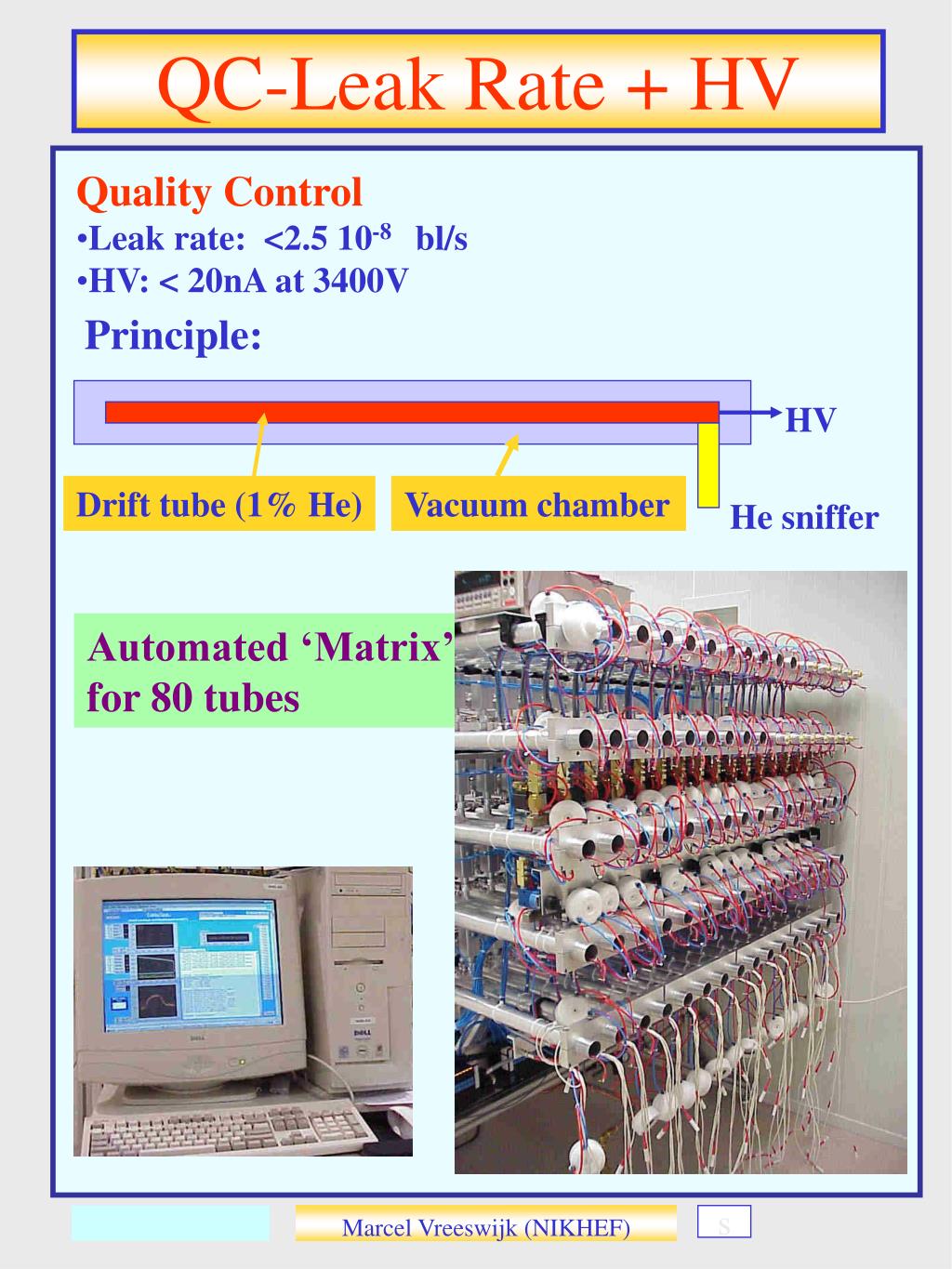

  6. QC-Leak Rate + HV • Quality Control • Leak rate: <2.5 10-8 bl/s • HV: < 20nA at 3400V Principle: HV Drift tube (1% He) Vacuum chamber He sniffer Automated ‘Matrix’ for 80 tubes Marcel Vreeswijk (NIKHEF) s

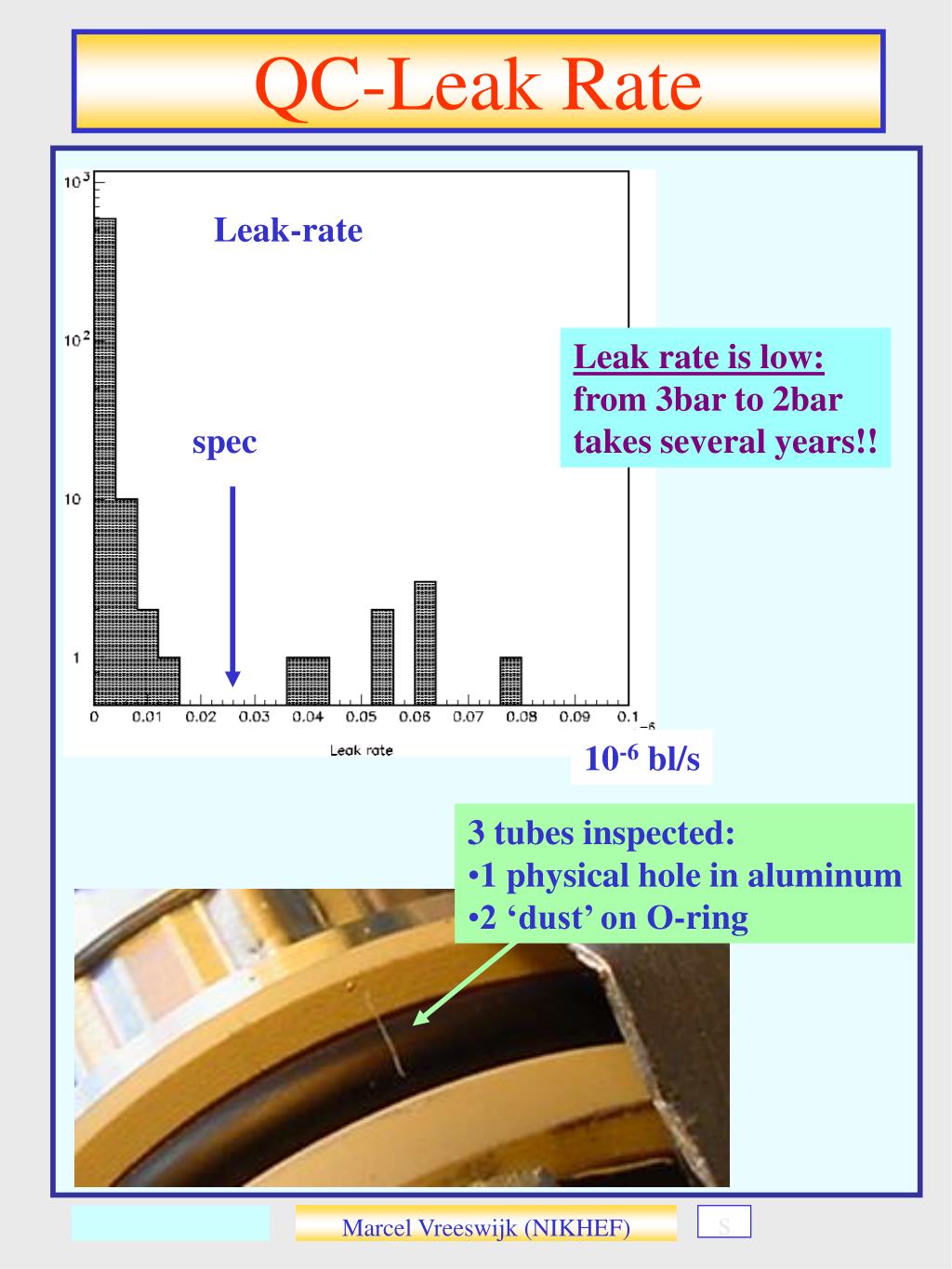

  7. QC-Leak Rate Leak-rate Leak rate is low: from 3bar to 2bar takes several years!! spec Rejection 1% (!) 10-6 bl/s • 3 tubes inspected: • 1 physical hole in aluminum • 2 ‘dust’ on O-ring Marcel Vreeswijk (NIKHEF) s

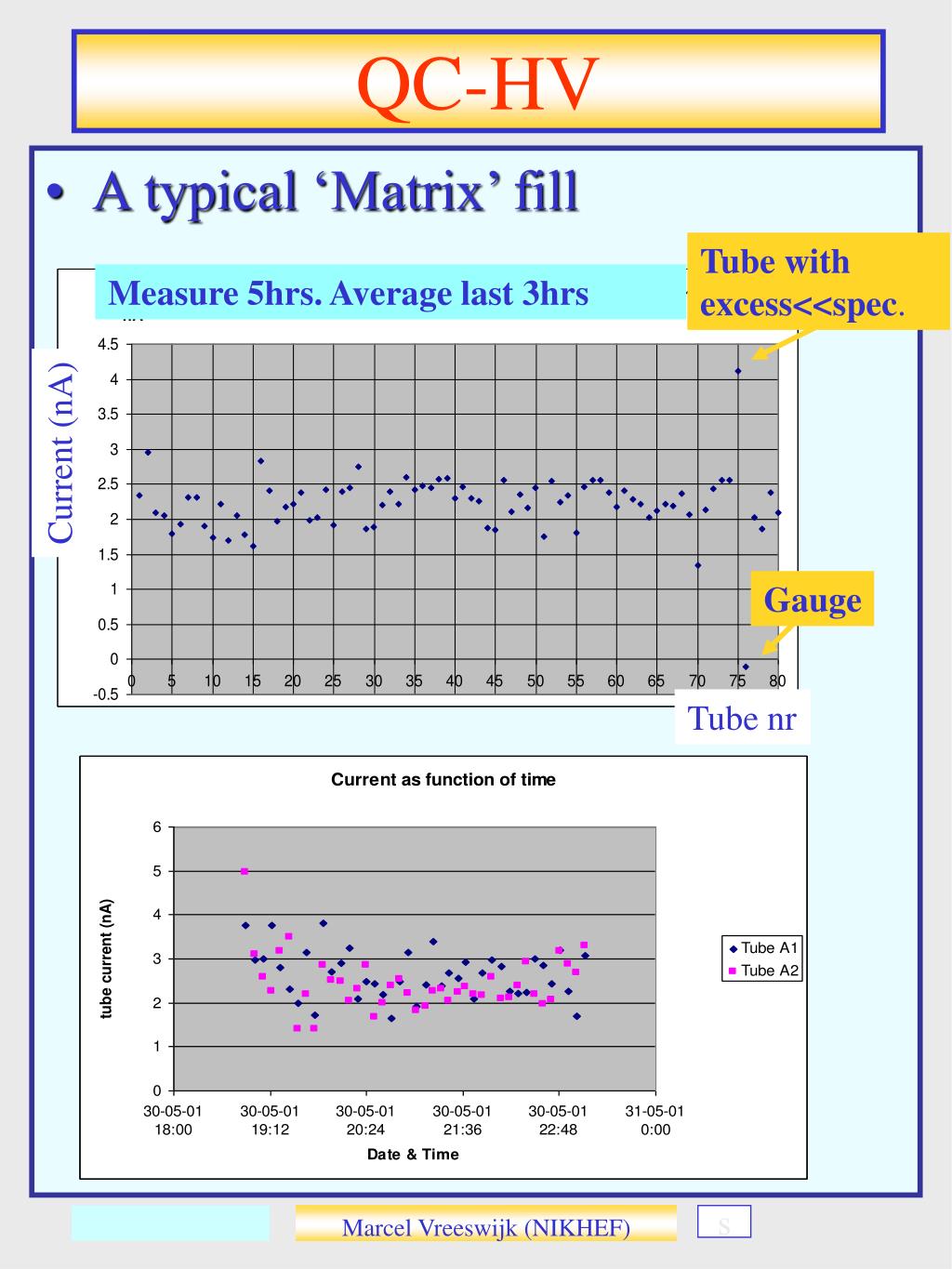

  8. QC-HV • A typical ‘Matrix’ fill Tube with excess<<spec. Measure 5hrs. Average last 3hrs Current (nA) Gauge Tube nr Marcel Vreeswijk (NIKHEF) s

  9. Chamber Assembly • Spacer monitored by RASAS Situation mid 2000 No Flexo In-plane lens NIKHEF Comb longbeam RASAS tower Xplate In-plane mask Frascati comb ‘Ear’ with sphere and RASAS-MASK Sphere tower with changeable block to adapt to tube layers West side has expansion length o 0.1m in Xras Marcel Vreeswijk (NIKHEF) s

  10. Block 3 Block 2 Ypitch 26.011mm Scatter 5um Block 1 ‘RASAS’ Monitors Monitor positioning during assembly by RASAS monitor: Support ‘ear’ which holds the mask xplate Changeable blocks The RASAS tower which holds the camera and lens Measured temperatures explain (small) drift Marcel Vreeswijk (NIKHEF) s

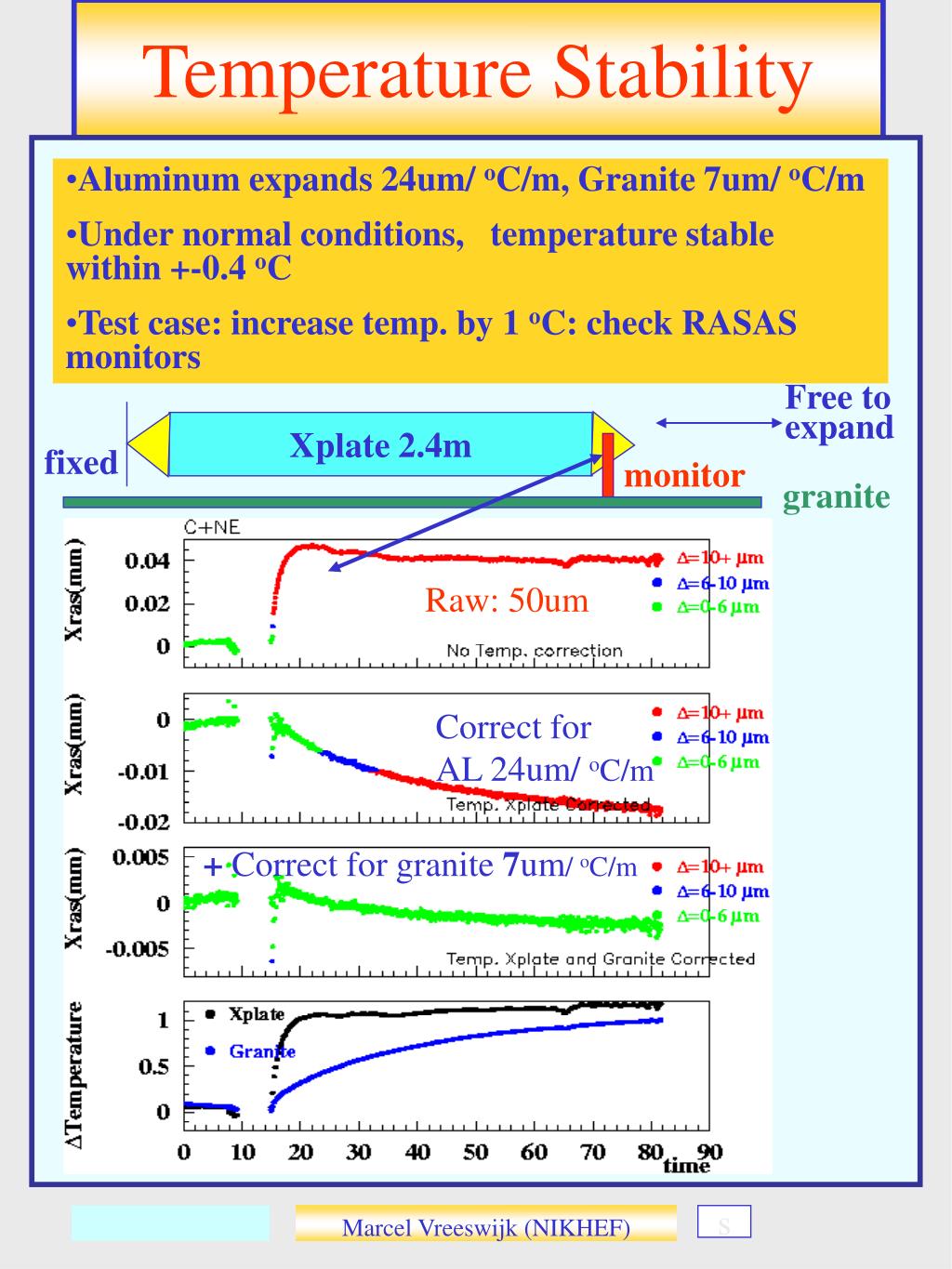

  11. Xplate 2.4m fixed Temperature Stability • Aluminum expands 24um/ oC/m, Granite 7um/ oC/m • Under normal conditions, temperature stable within +-0.4 oC • Test case: increase temp. by 1 oC: check RASAS monitors Free to expand monitor granite Raw: 50um Correct for AL 24um/ oC/m + Correct for granite 7um/ oC/m Marcel Vreeswijk (NIKHEF) s

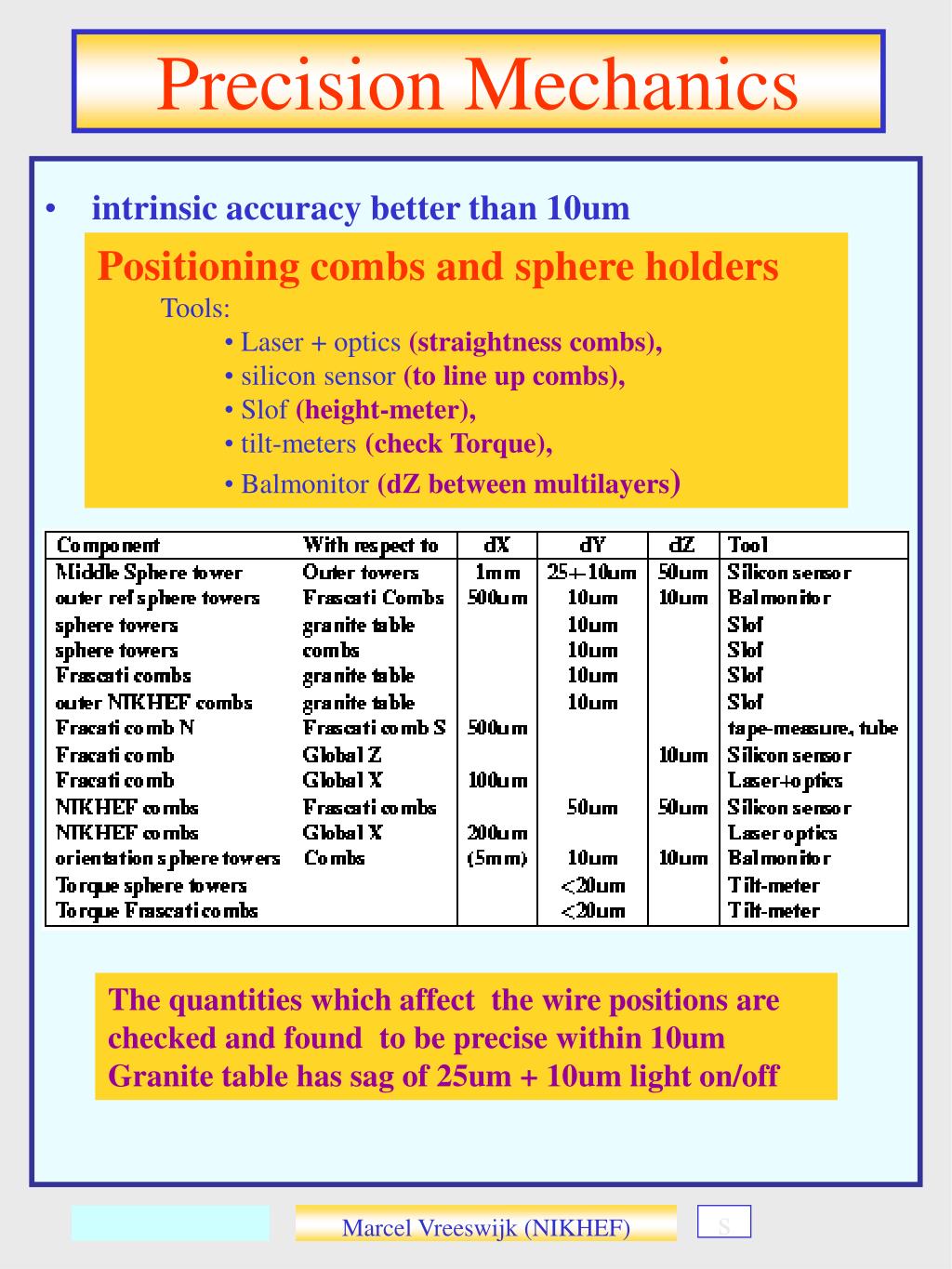

  12. Precision Mechanics • intrinsic accuracy better than 10um • Positioning combs and sphere holders • Tools: • Laser + optics (straightness combs), • silicon sensor (to line up combs), • Slof (height-meter), • tilt-meters (check Torque), • Balmonitor (dZ between multilayers) The quantities which affect the wire positions are checked and found to be precise within 10um Granite table has sag of 25um + 10um light on/off West side has expansion length o 0.1m in Xras Marcel Vreeswijk (NIKHEF) s

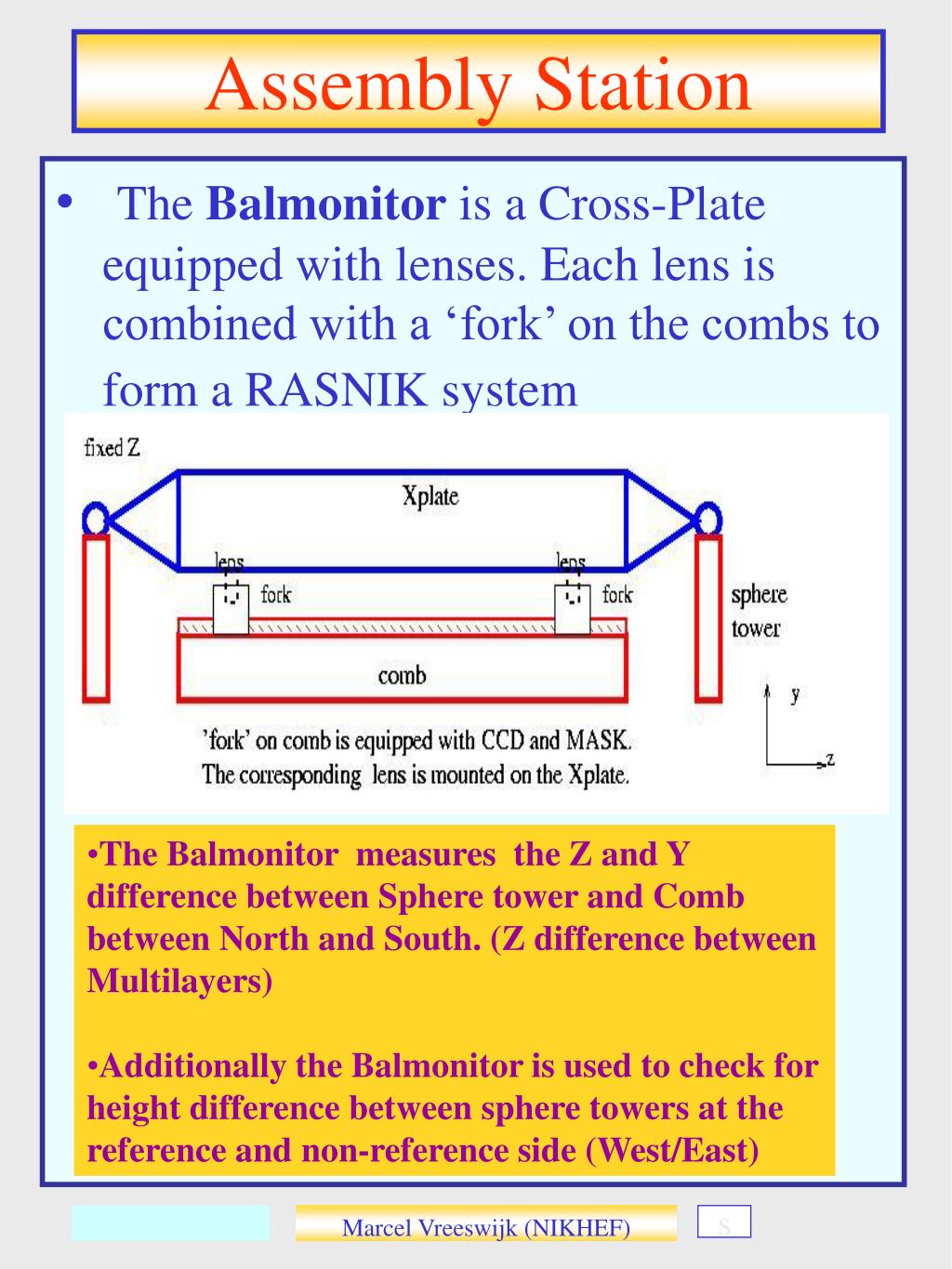

  13. Assembly Station • The Balmonitor is a Cross-Plate equipped with lenses. Each lens is combined with a ‘fork’ on the combs to form a RASNIK system • The Balmonitor measures the Z and Y difference between Sphere tower and Comb between North and South. (Z difference between Multilayers) • Additionally the Balmonitor is used to check for height difference between sphere towers at the reference and non-reference side (West/East) West side has expansion length o 0.1m in Xras Marcel Vreeswijk (NIKHEF) s

  14. Tube Placing I Place tubes (with clocking pins) on combs (Re-)Measure Wire Frequency Run Final-OK program IF all tubes OK, follow placing scheme Frequency Small calibration problem Specs: RMS< 0.3 Hz BOL1: 27.2+-0.7 Hz Later: 27.2+-1.4 Hz FOK program ensures 72 tubes are OK Tube numbers and positions stored in dbase Marcel Vreeswijk (NIKHEF) s

  15. Tube Placing II Fix gas jumpers -length differences get ‘neutralized’ Spec=-+0.5mm (FE-cards+ground foil) Marcel Vreeswijk (NIKHEF) s

  16. Tube Placing QC Vacuum on Remove clocking pins, loosen gas jumpers Check precision: Guido Laser (not automated yet) Y deviation (mm) Tube Position (South) Tube Position (North) Marcel Vreeswijk (NIKHEF) s

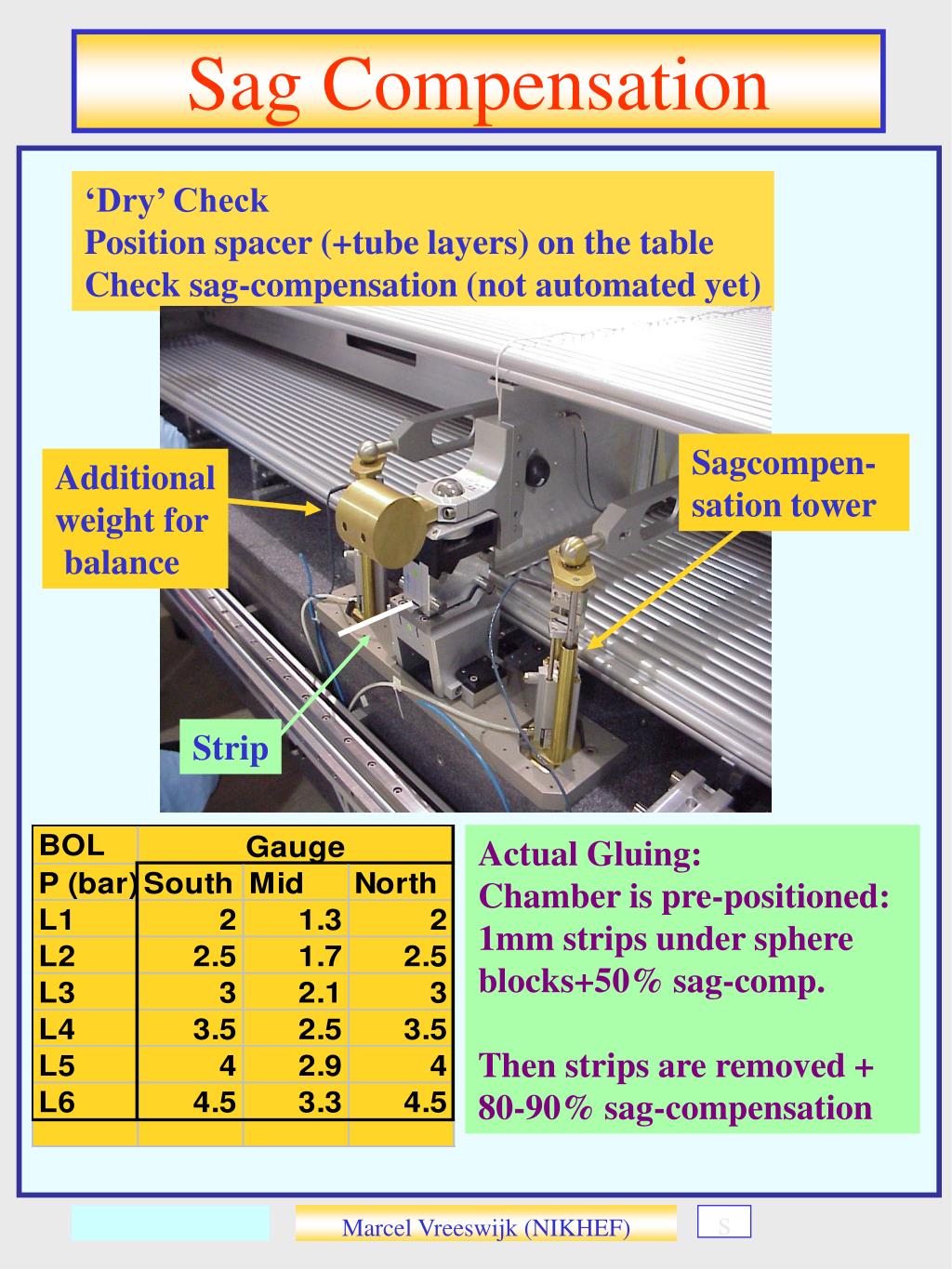

  17. Sagcompen-sation tower Additional weight for balance Sag Compensation ‘Dry’ Check Position spacer (+tube layers) on the table Check sag-compensation (not automated yet) Strip Actual Gluing: Chamber is pre-positioned: 1mm strips under sphere blocks+50% sag-comp. Then strips are removed + 80-90% sag-compensation Marcel Vreeswijk (NIKHEF) s

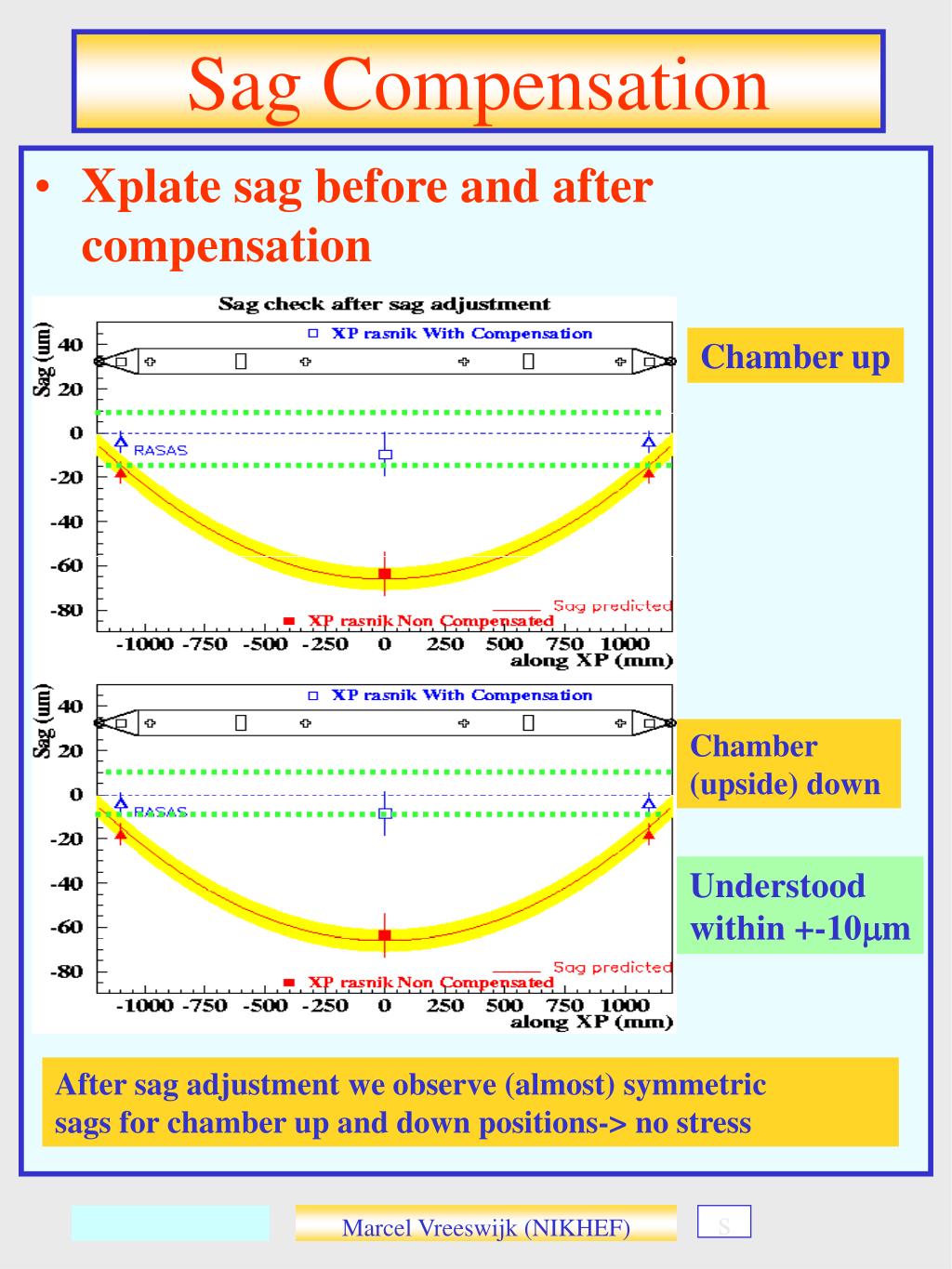

  18. Sag Compensation • Xplate sag before and after compensation Chamber up Chamber (upside) down Understood within +-10mm After sag adjustment we observe (almost) symmetric sags for chamber up and down positions-> no stress Marcel Vreeswijk (NIKHEF) s

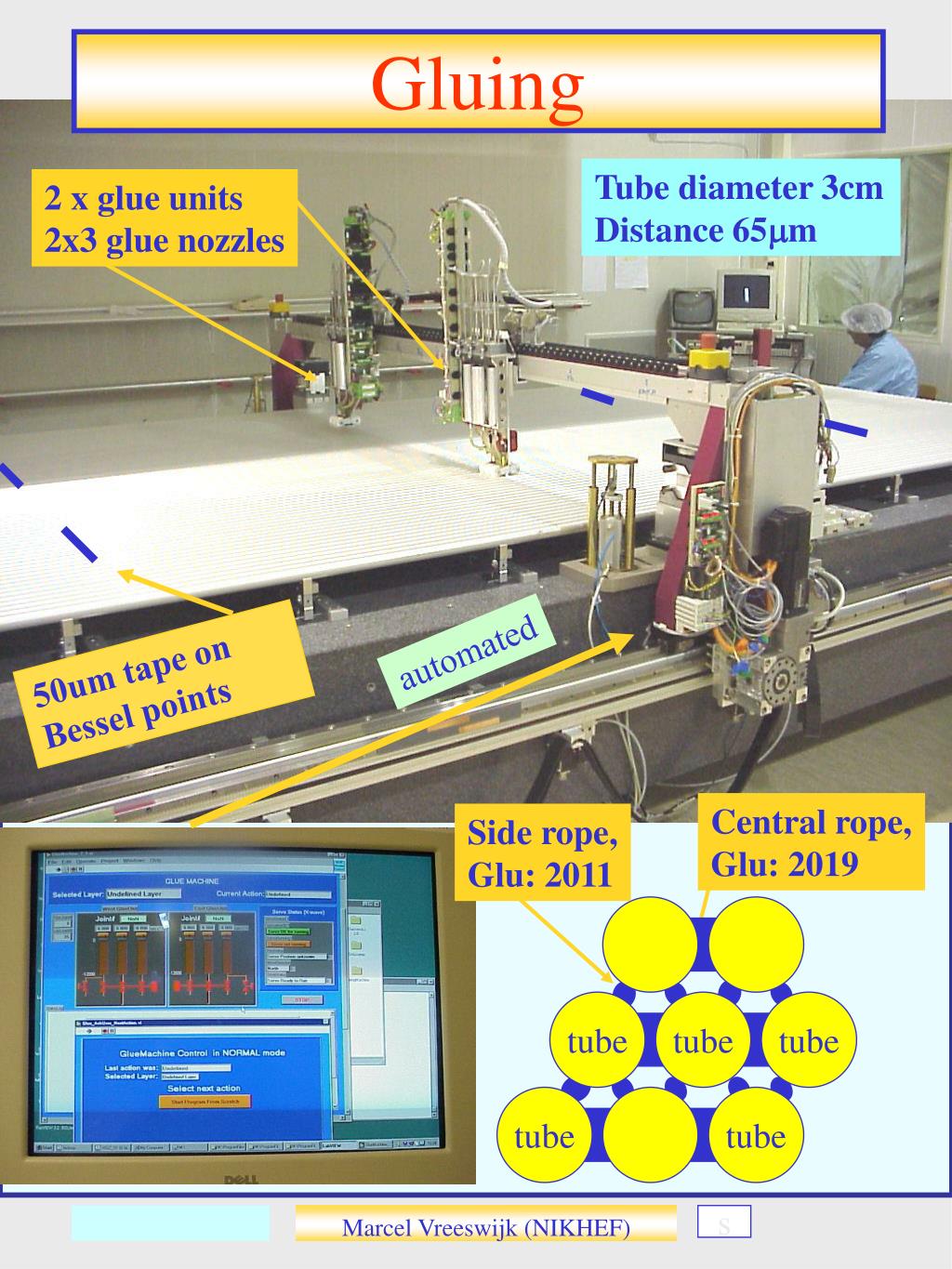

  19. tube tube tube tube tube Gluing Tube diameter 3cm Distance 65mm 2 x glue units 2x3 glue nozzles automated 50um tape on Bessel points Central rope, Glu: 2019 Side rope, Glu: 2011 Marcel Vreeswijk (NIKHEF) s

  20. Gluing BOL Marcel Vreeswijk (NIKHEF) s

  21. Monitoring badly positioned -> action! Compensation on • 3 systems monitor chamber during assembly: • RASAS system (include temperature check) • In-Plane system • RASNIKS on cross-plates (sag) Plot xplare rasnik Monitoring system + actions not yet user friendly…. Marcel Vreeswijk (NIKHEF) s

  22. NW NE Global X Global Z, RASAS X SW SE Gluing BOL-0 • RASAS monitors Global Z • Relatively large Z movement layer 6 (spacer floats on glue?) Lever arm in stacking block Global Y (up) • Stability in Y appears good Marcel Vreeswijk (NIKHEF) s

  23. The road to BOL-1 • From 1st tube layer to 6th tube layer took 14 days (spacer not counted) • With optimal/parallel preparation the present scheme would allow a 7 day production cycle • Infrastructure and manpower-> • 10 working-days/chamber Marcel Vreeswijk (NIKHEF)

  24. Power Outage- BOL1 Power outage Amsterdam, during curing of layer 5 Chamber immediately covered with foil (sag compensation remained on + vacuum probably ok No indications for damage Marcel Vreeswijk (NIKHEF) s

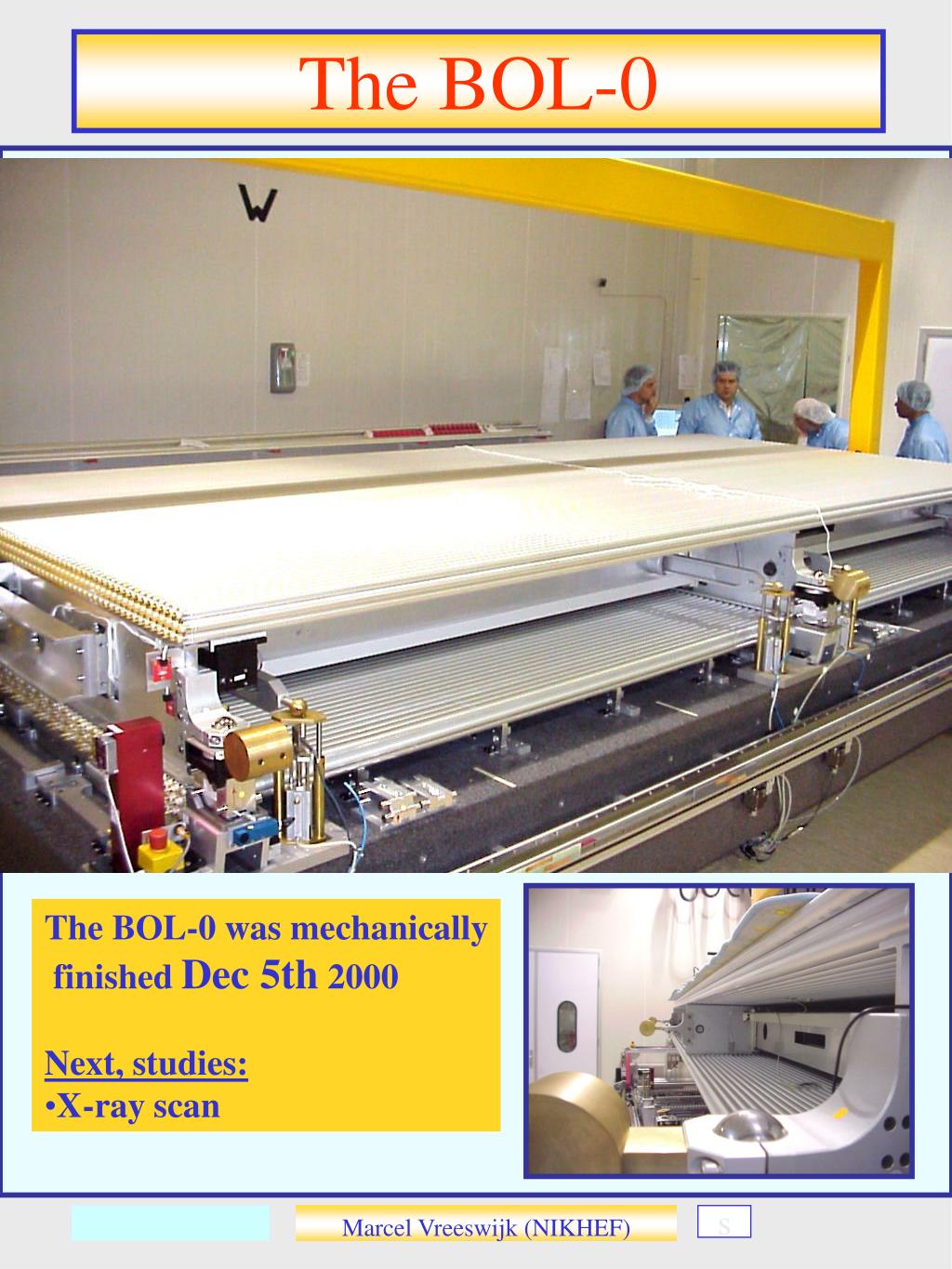

  25. The BOL-0 • The BOL-0 was mechanically • finished Dec 5th 2000 • Next, studies: • X-ray scan Marcel Vreeswijk (NIKHEF) s

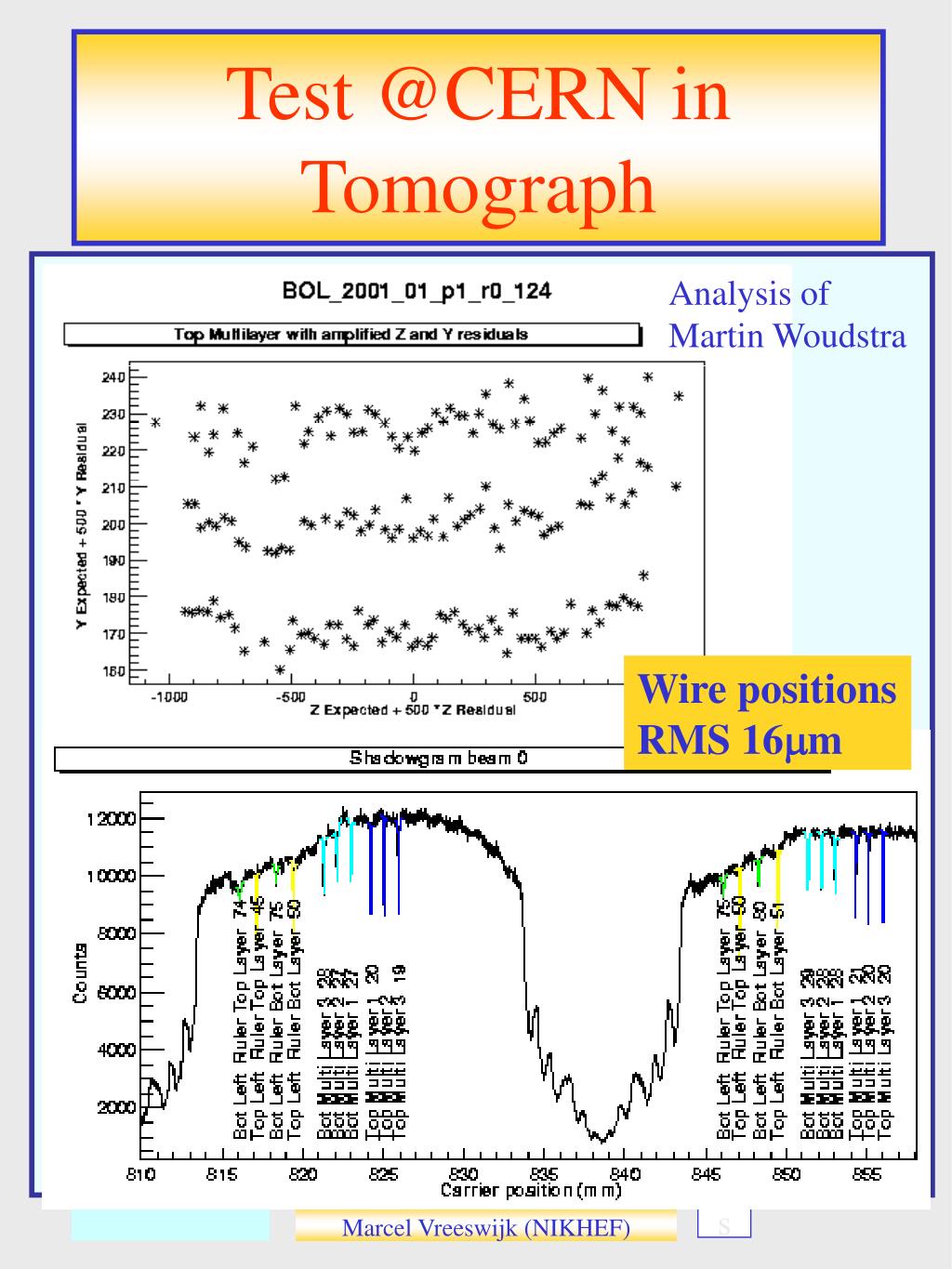

  26. Test @CERN inTomograph Analysis of Martin Woudstra Wire positions RMS 16mm Marcel Vreeswijk (NIKHEF) s

  27. Parameters • Zpitch wires: • 30.0354mm (30.0353 expected) • Ypitch wire-planes: • 26.026mm (26.011 expected). Especially between two inner layers we have a larger pitch. Inelastic deformation during gluing? • dY multilayers ~75mm. • Hard to understand. ALL chamber scanned at CERN have deviations in this parameter?! • dZ multilayers ~12mm. • We expected deviations of this order, based on Balmonitor measurements • Relevant Parameters (goal 20mm): • RO side s=15.8mm HV side s=16.1mm Marcel Vreeswijk (NIKHEF) s

  28. Expected shifts Marcel Vreeswijk (NIKHEF) s

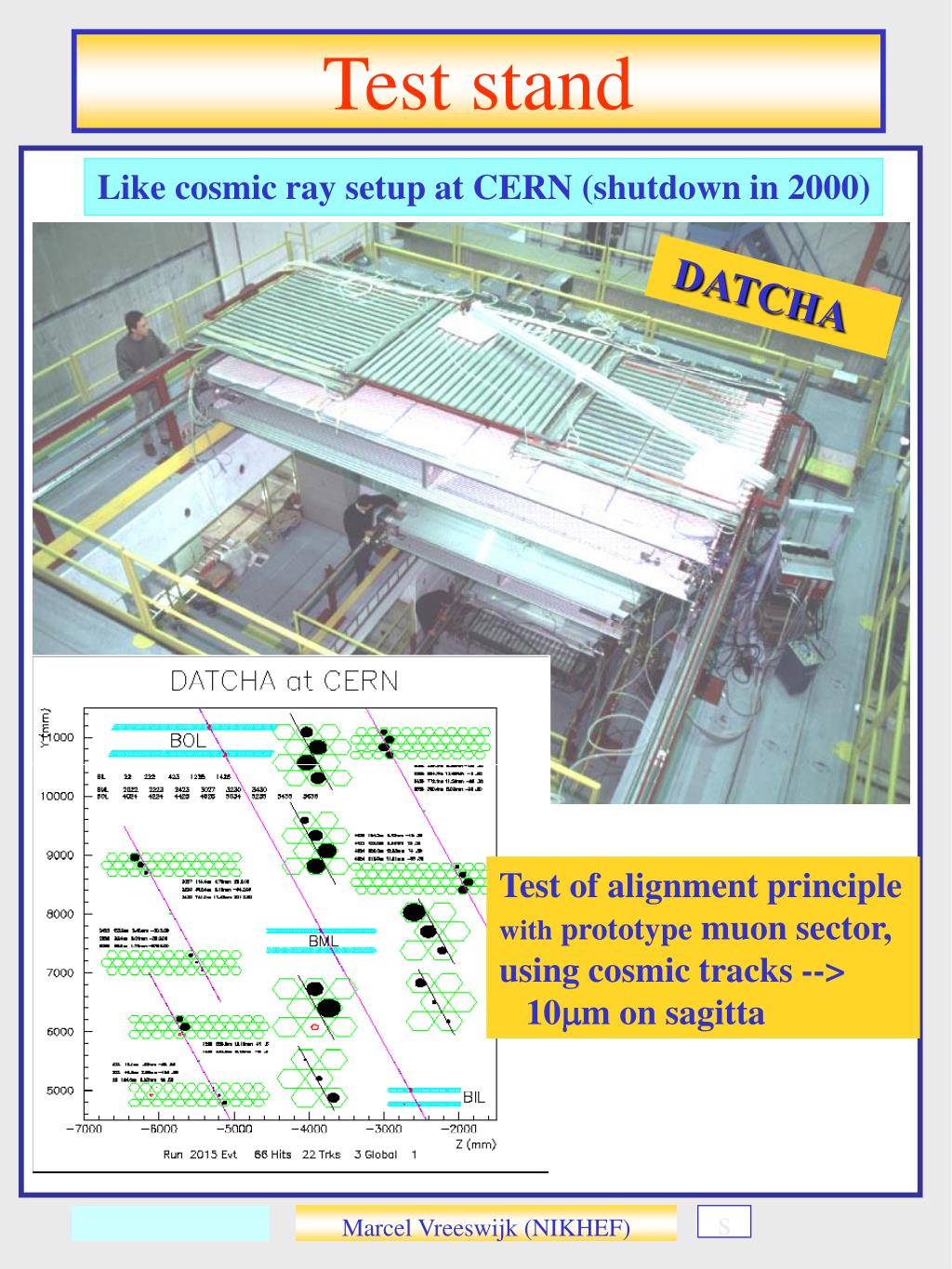

  29. Test stand DATCHA Like cosmic ray setup at CERN (shutdown in 2000) Test of alignment principle with prototype muon sector, using cosmic tracks --> 10mm on sagitta Marcel Vreeswijk (NIKHEF) s

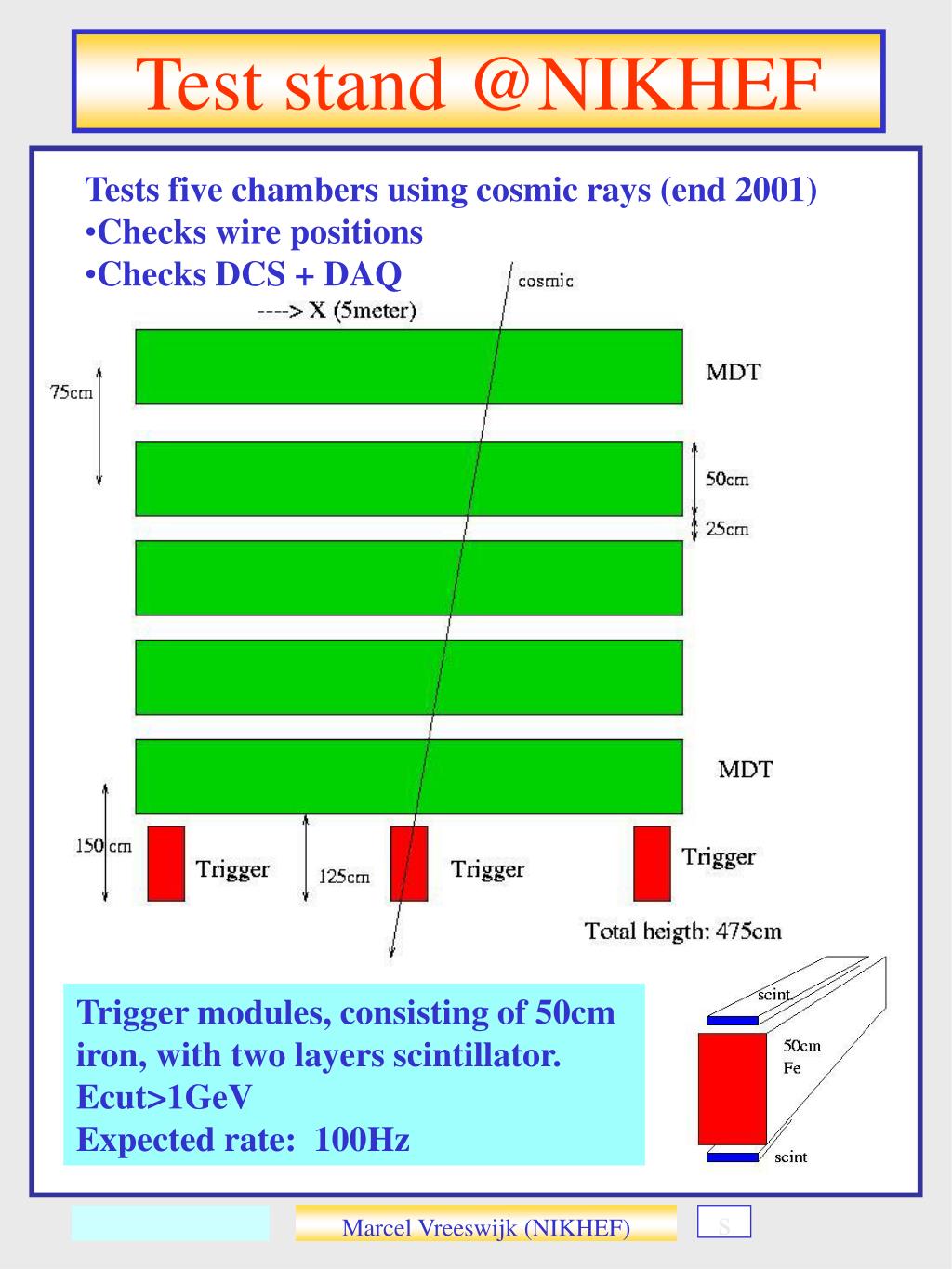

  30. Test stand @NIKHEF • Tests five chambers using cosmic rays (end 2001) • Checks wire positions • Checks DCS + DAQ Trigger modules, consisting of 50cm iron, with two layers scintillator. Ecut>1GeV Expected rate: 100Hz Marcel Vreeswijk (NIKHEF) s

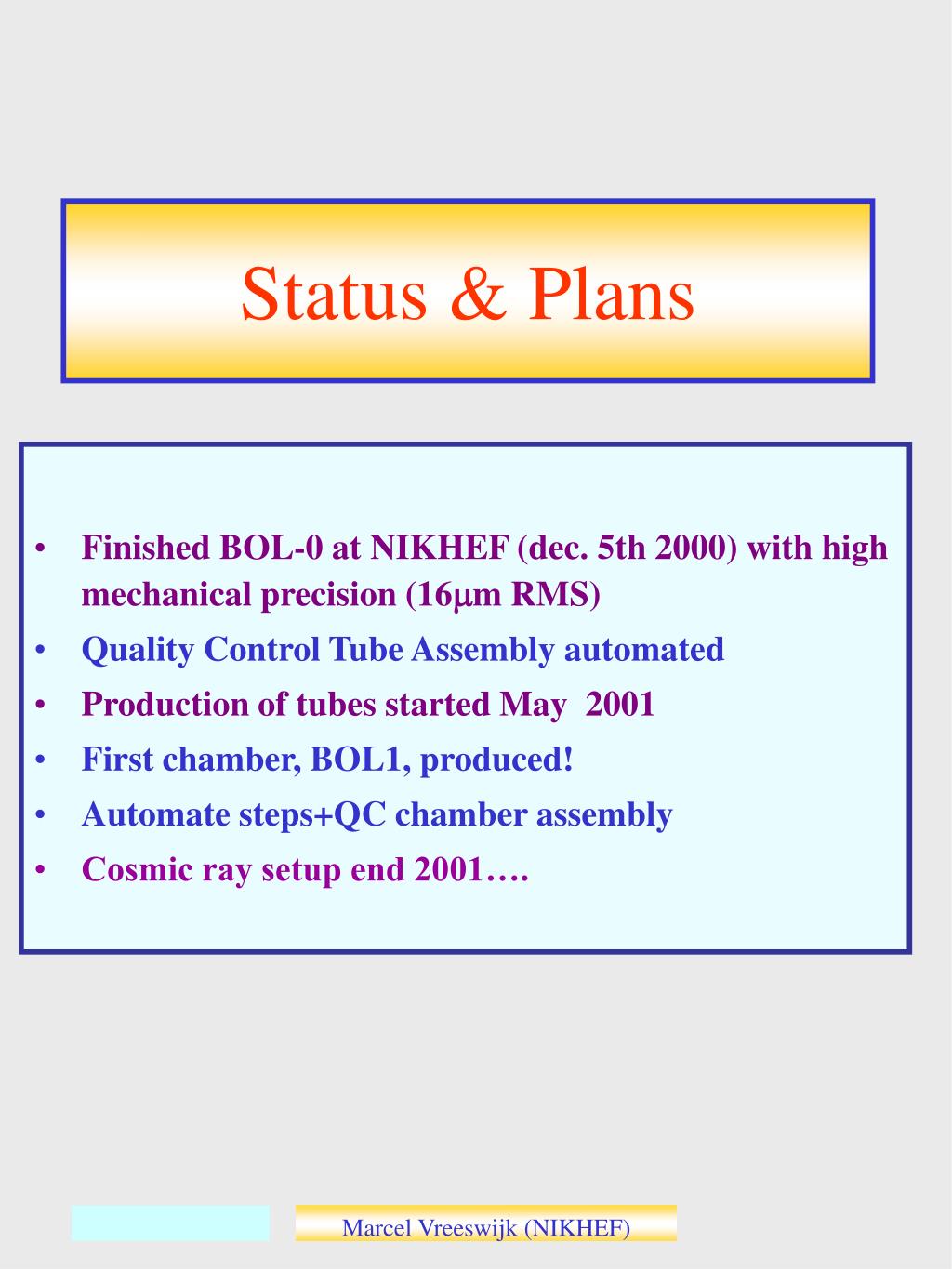

  31. Status & Plans • Finished BOL-0 at NIKHEF (dec. 5th 2000) with high mechanical precision (16mm RMS) • Quality Control Tube Assembly automated • Production of tubes started May 2001 • First chamber, BOL1, produced! • Automate steps+QC chamber assembly • Cosmic ray setup end 2001…. Marcel Vreeswijk (NIKHEF)

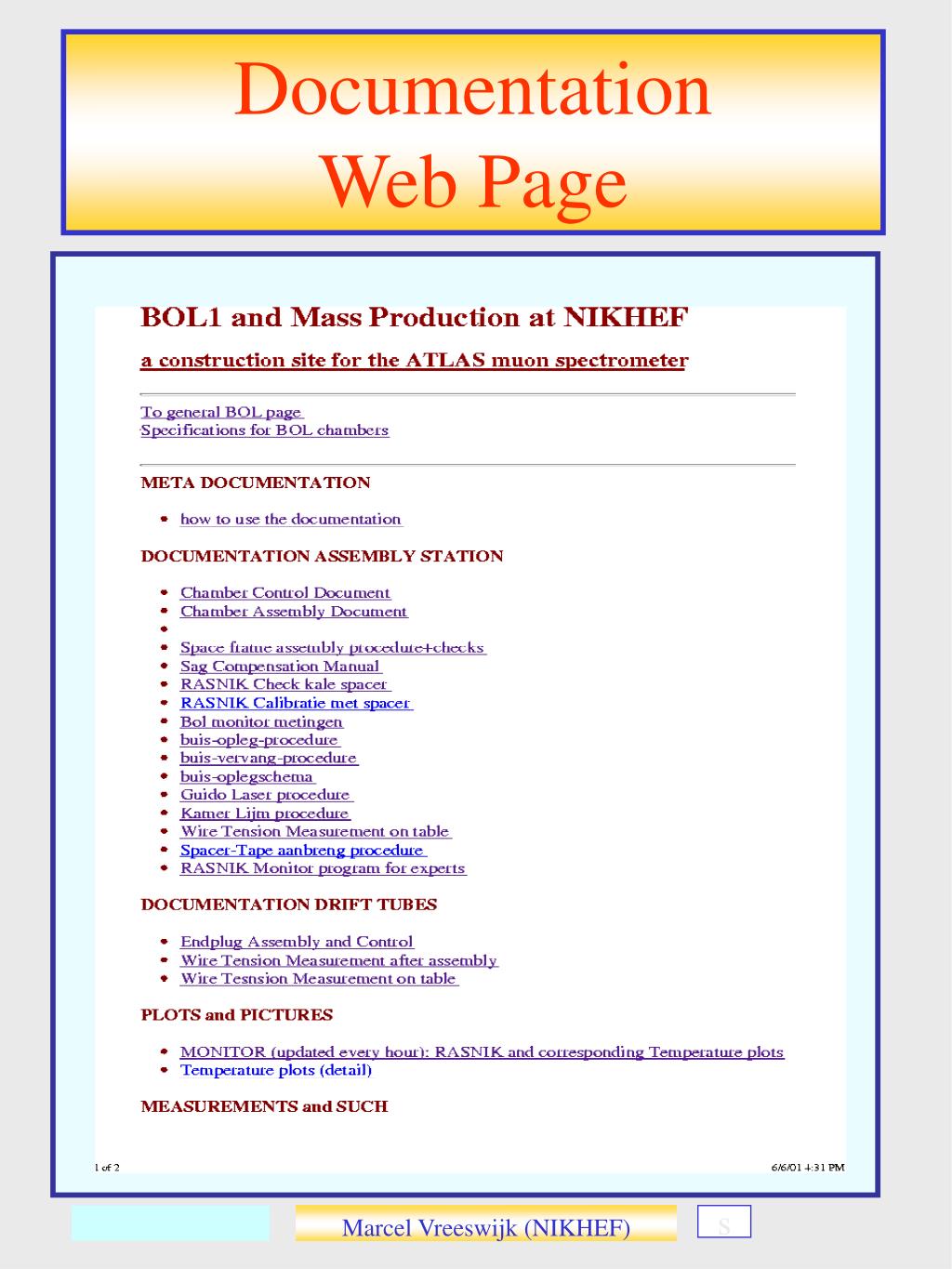

  32. Documentation Web Page Marcel Vreeswijk (NIKHEF) s

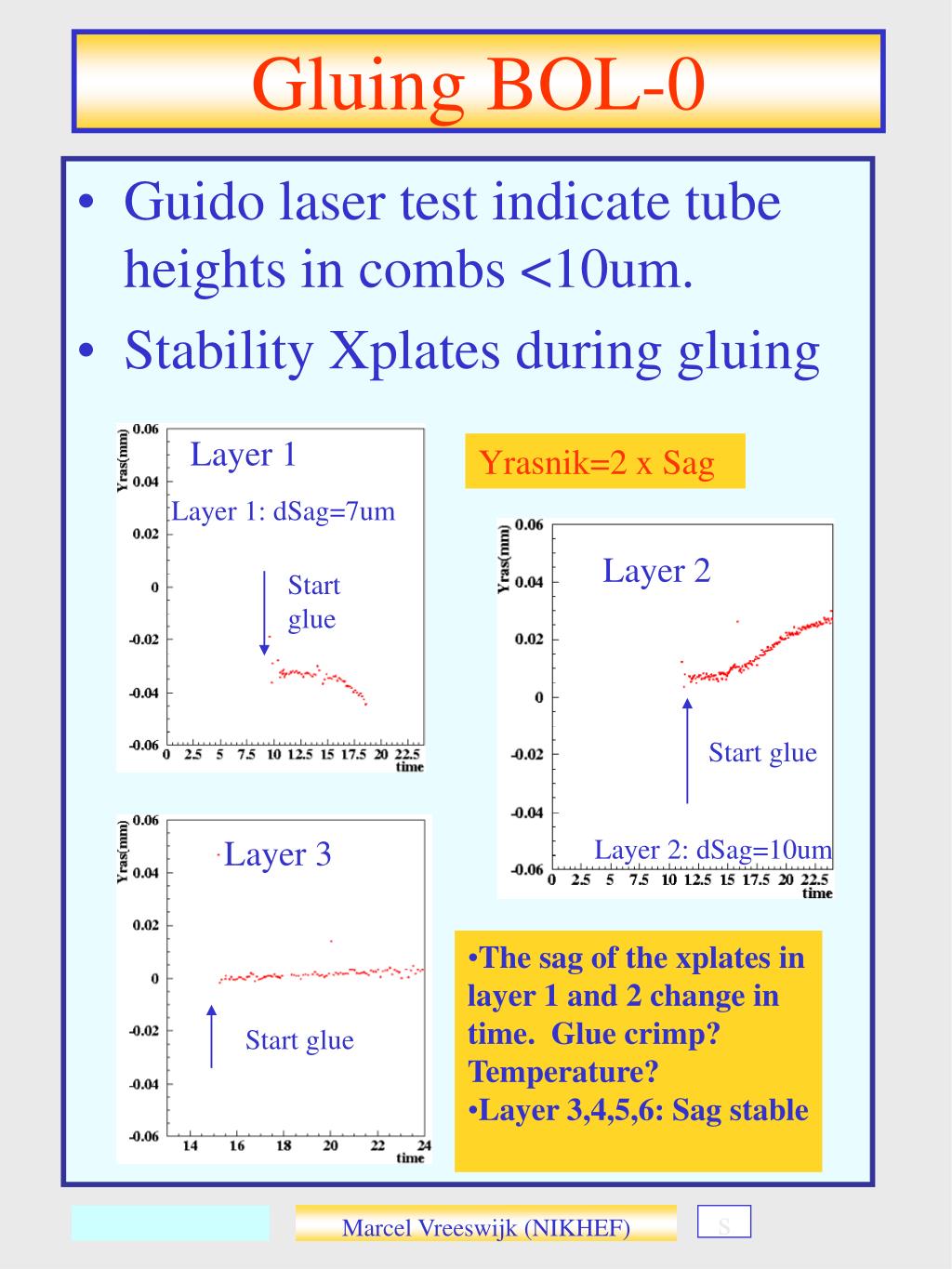

  33. Start glue Start glue Gluing BOL-0 • Guido laser test indicate tube heights in combs <10um. • Stability Xplates during gluing Layer 1 Yrasnik=2 x Sag Layer 1: dSag=7um Layer 2 Start glue Layer 3 Layer 2: dSag=10um • The sag of the xplates in layer 1 and 2 change in time. Glue crimp? Temperature? • Layer 3,4,5,6: Sag stable Marcel Vreeswijk (NIKHEF) s

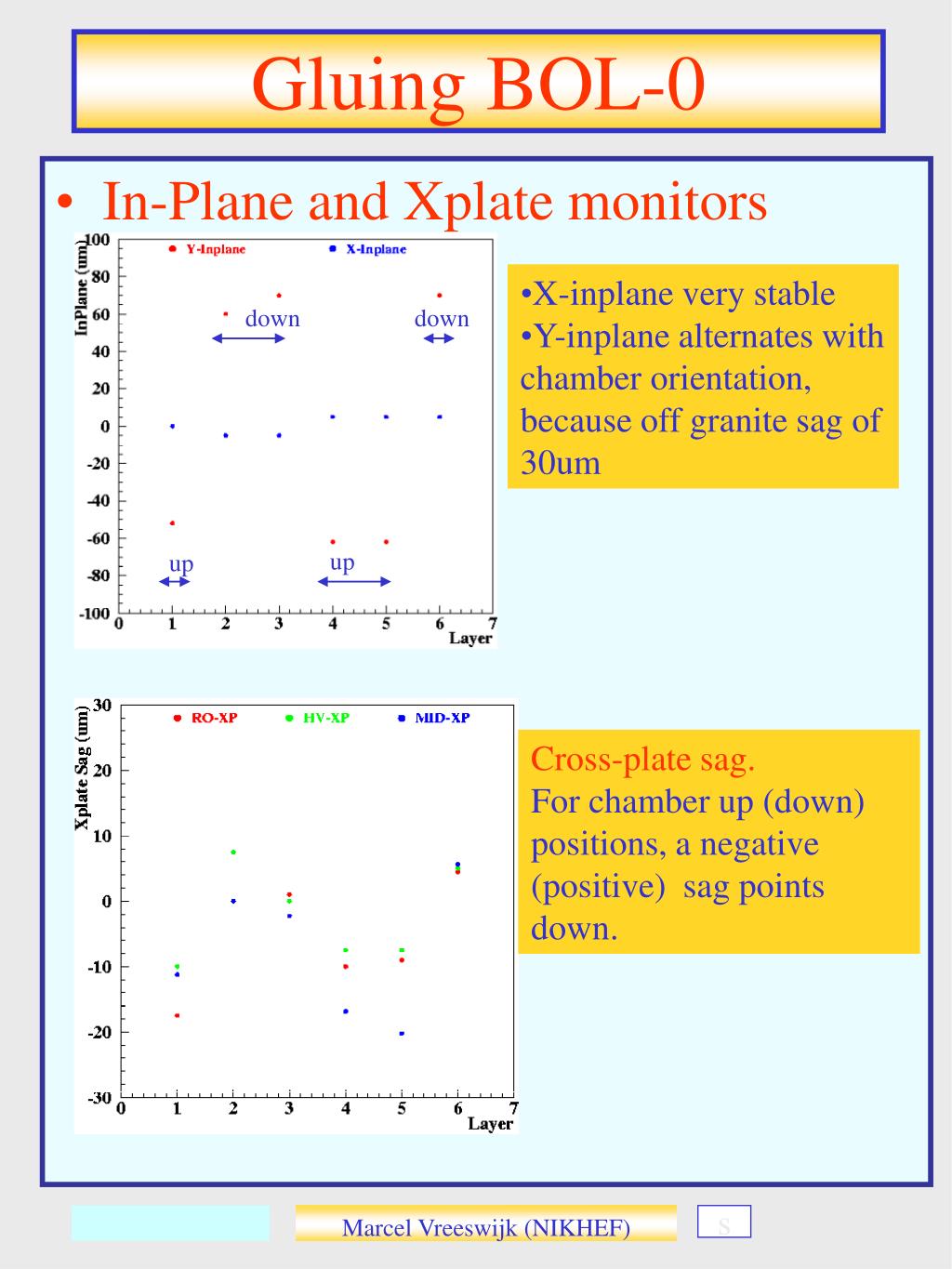

  34. Gluing BOL-0 • In-Plane and Xplate monitors • X-inplane very stable • Y-inplane alternates with chamber orientation, because off granite sag of 30um down down up up Cross-plate sag. For chamber up (down) positions, a negative (positive) sag points down. Marcel Vreeswijk (NIKHEF) s

  35. BOL-0 Thickness Multi-layers BOL0 has tape between tubes at one side Much work.. 2 layers • Tubes press glue away? • Tubes deform? • Affects precision praxial platforms! 3 layers Marcel Vreeswijk (NIKHEF) s

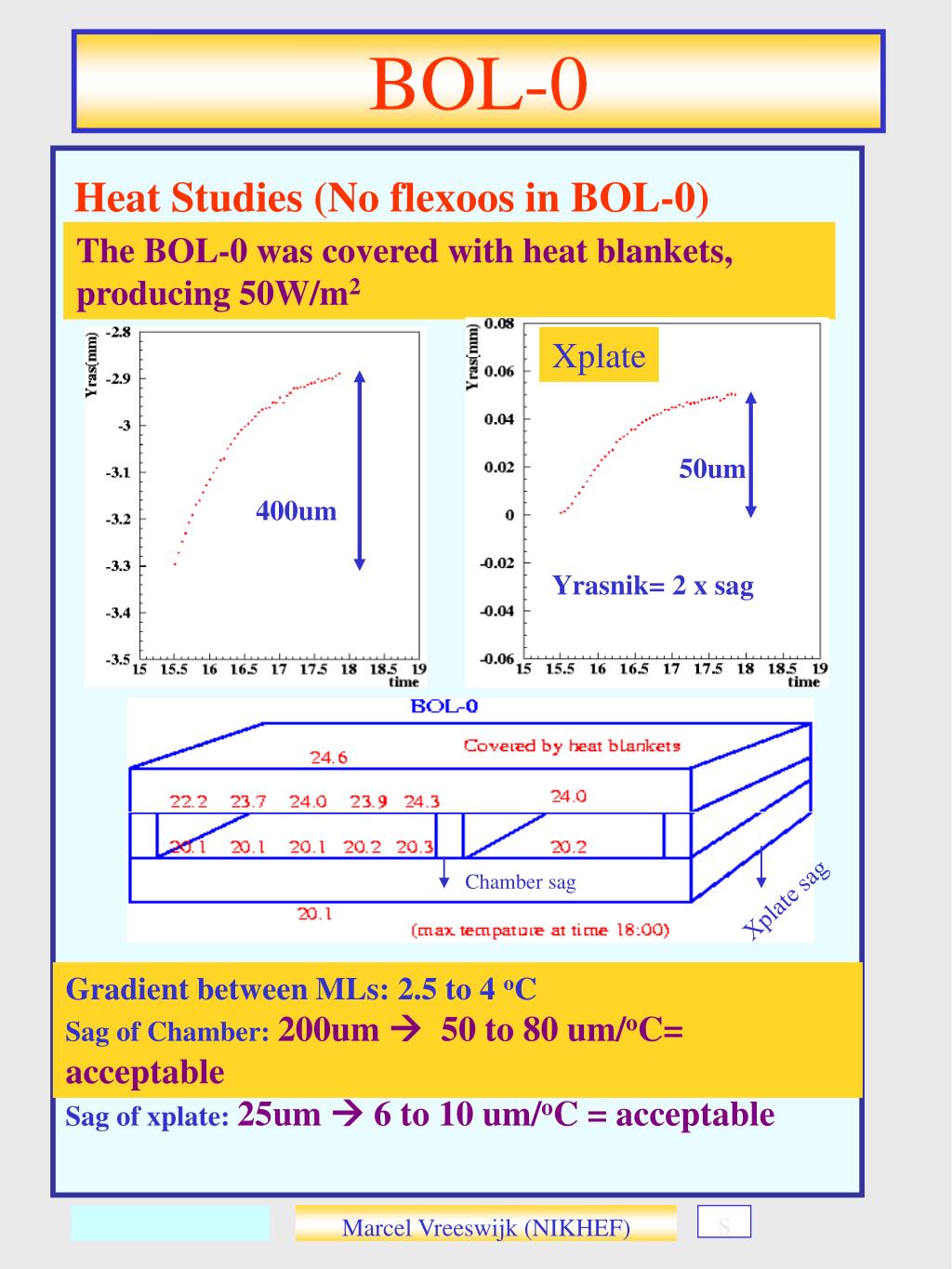

  36. Xplate 50um 400um Yrasnik= 2 x sag Chamber sag Xplate sag BOL-0 Heat Studies (No flexoos in BOL-0) The BOL-0 was covered with heat blankets, producing 50W/m2 Inplane Yrasnik= 2 x sag Gradient between MLs: 2.5 to 4 oC Sag of Chamber: 200um  50 to 80 um/oC= acceptable Sag of xplate: 25um  6 to 10 um/oC = acceptable Marcel Vreeswijk (NIKHEF) s

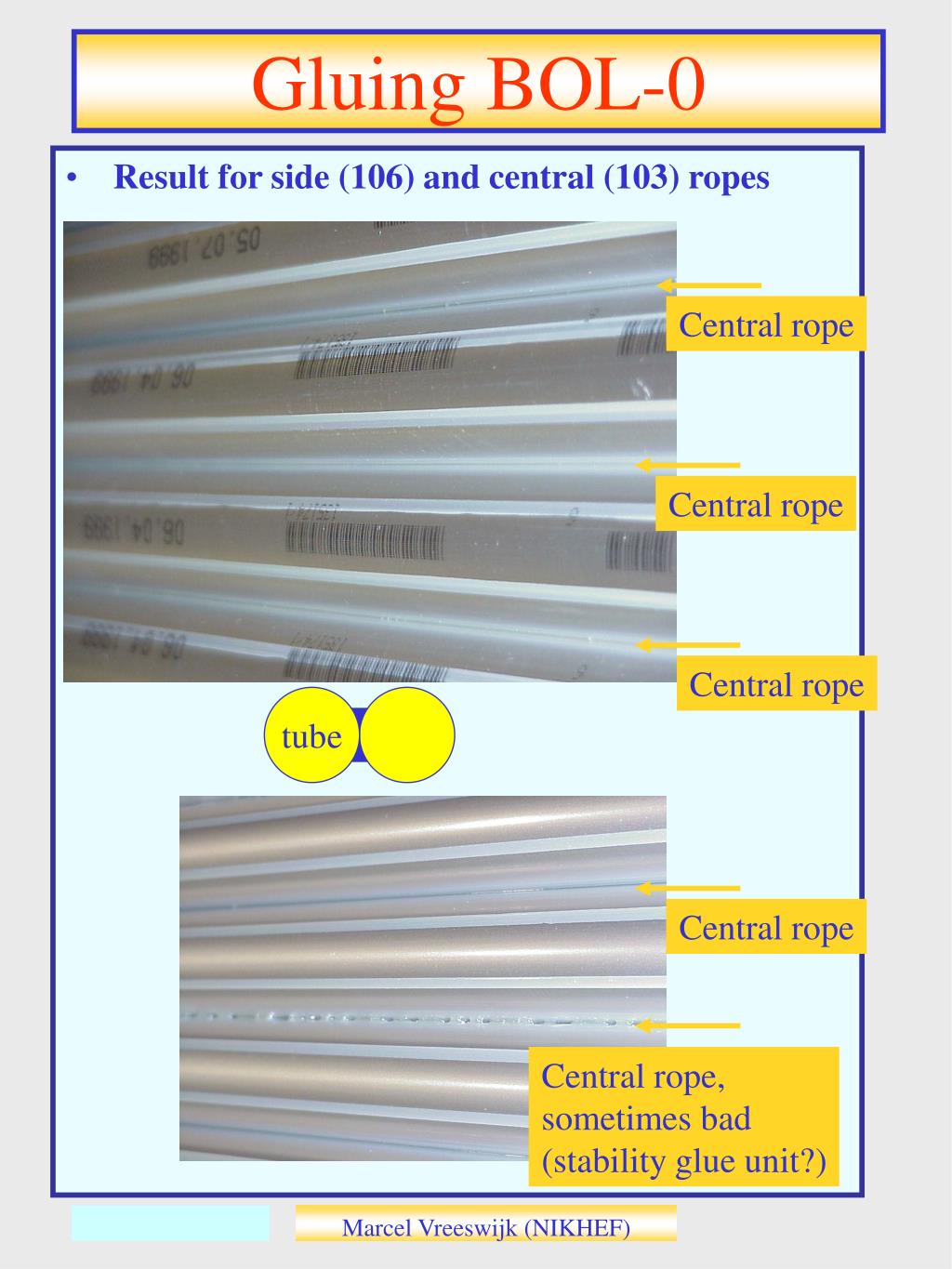

  37. tube Gluing BOL-0 • Result for side (106) and central (103) ropes Central rope Central rope Central rope Central rope Central rope, sometimes bad (stability glue unit?) Marcel Vreeswijk (NIKHEF)

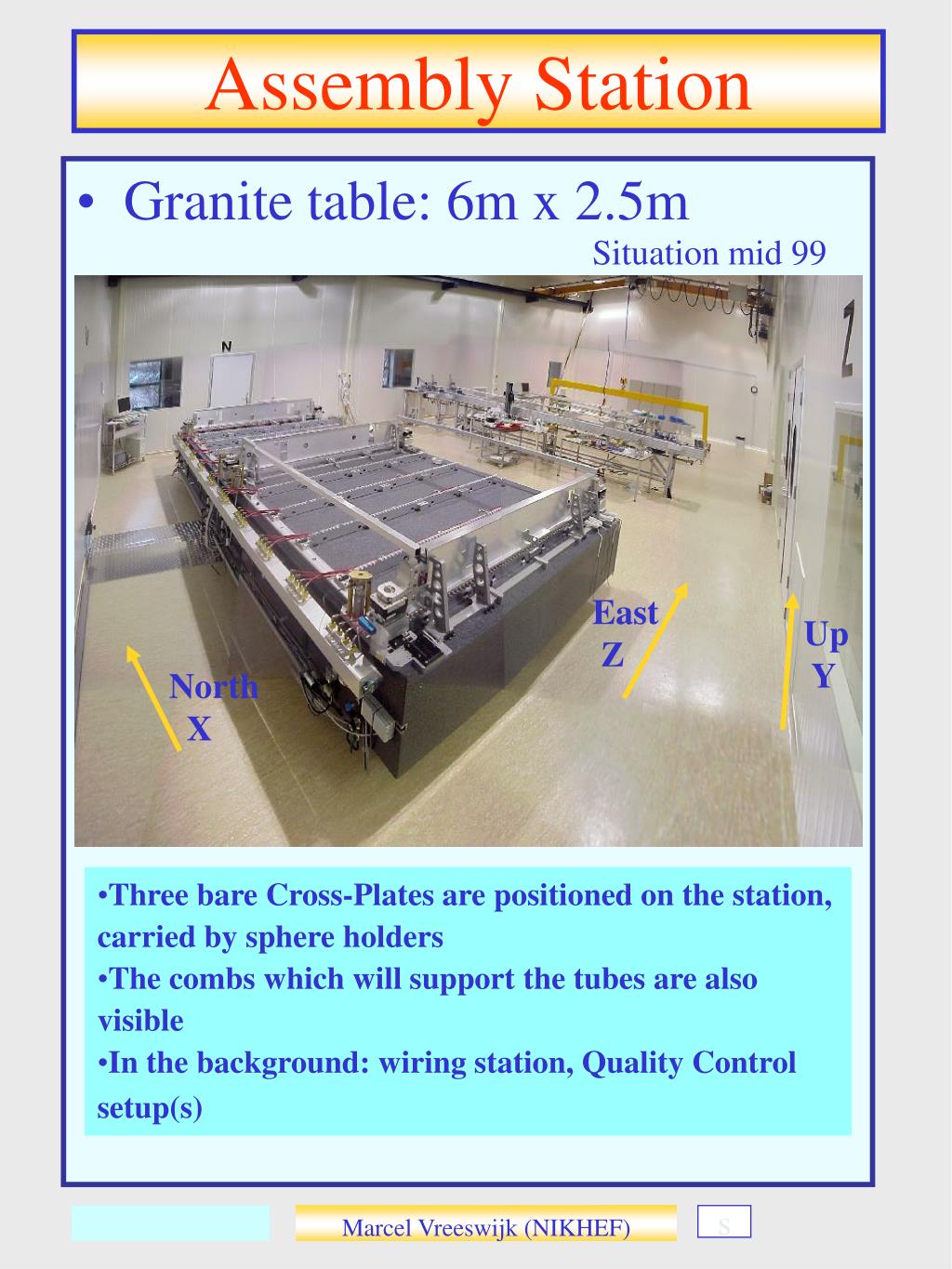

  38. Assembly Station • Granite table: 6m x 2.5m Situation mid 99 East Z Up Y North X • Three bare Cross-Plates are positioned on the station, carried by sphere holders • The combs which will support the tubes are also visible • In the background: wiring station, Quality Control setup(s) West side has expansion length o 0.1m in Xras Marcel Vreeswijk (NIKHEF) s
