  1. A MOSS 2007 WCM Solution – presented by Peter Anker Kuoni global cms

  2. Who is who? • About Peter Anker • About Valtech • About Kuoni

  3. The challenge • Before: 50+ platforms • Now and beyond: 1 platform! Examples next ...

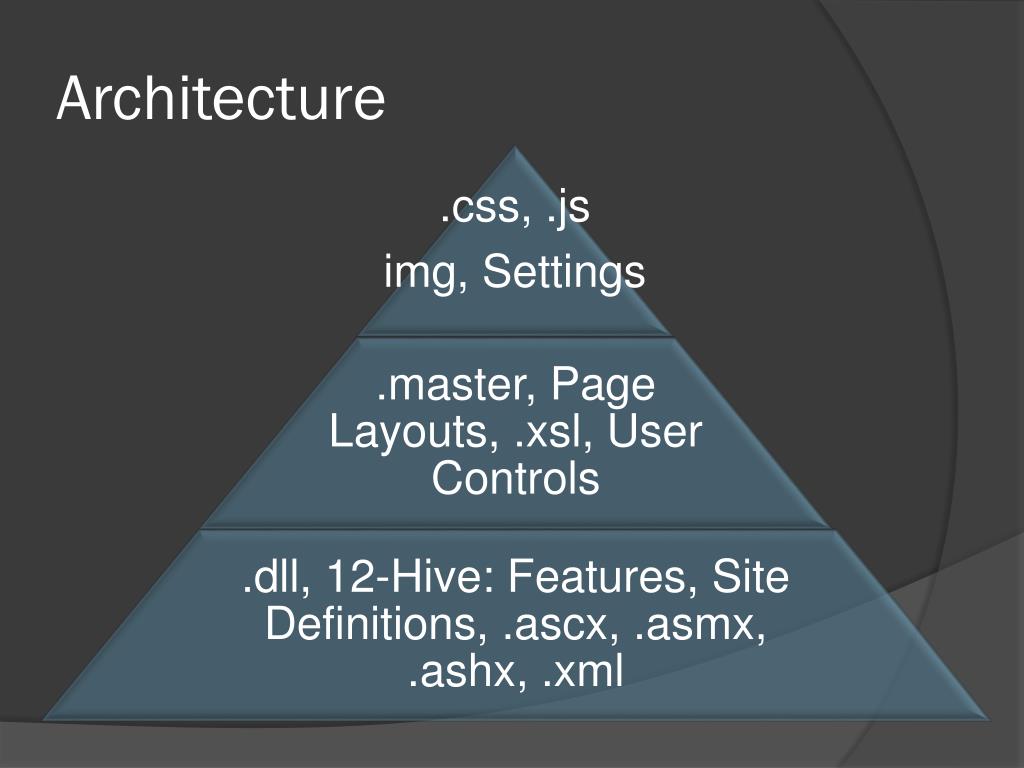

  4. Architecture

  5. Architecture

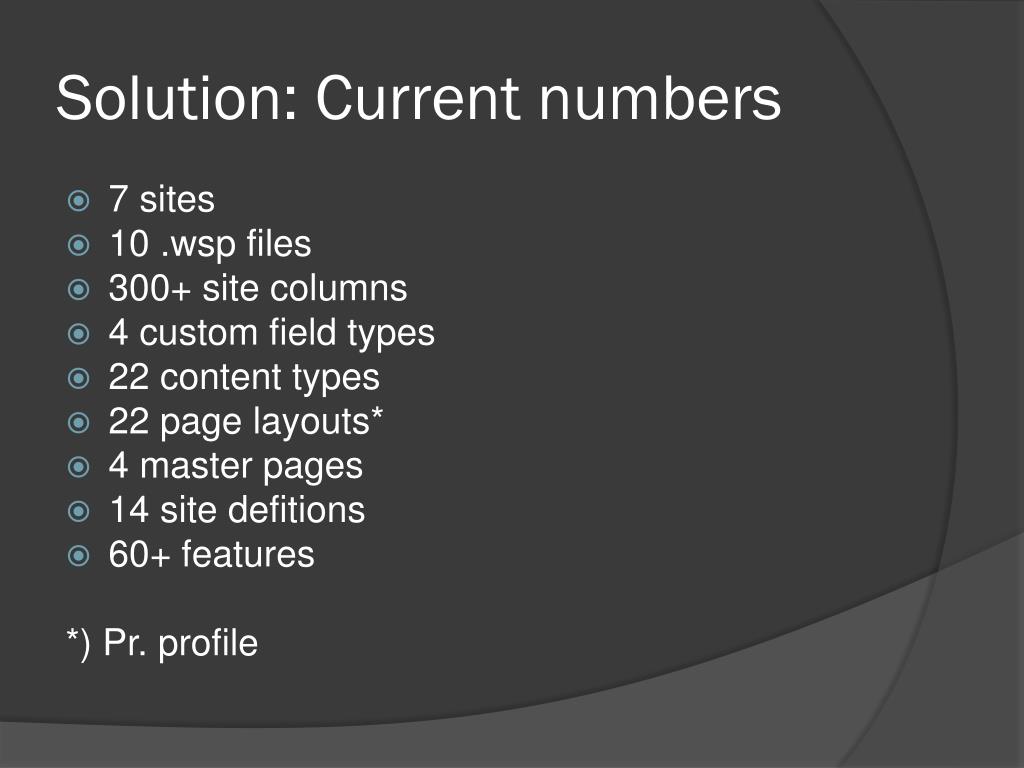

  6. Solution: Current numbers • 7 sites • 10 .wsp files • 300+ site columns • 4 custom field types • 22 content types • 22 page layouts* • 4 master pages • 14 site defitions • 60+ features *) Pr. profile

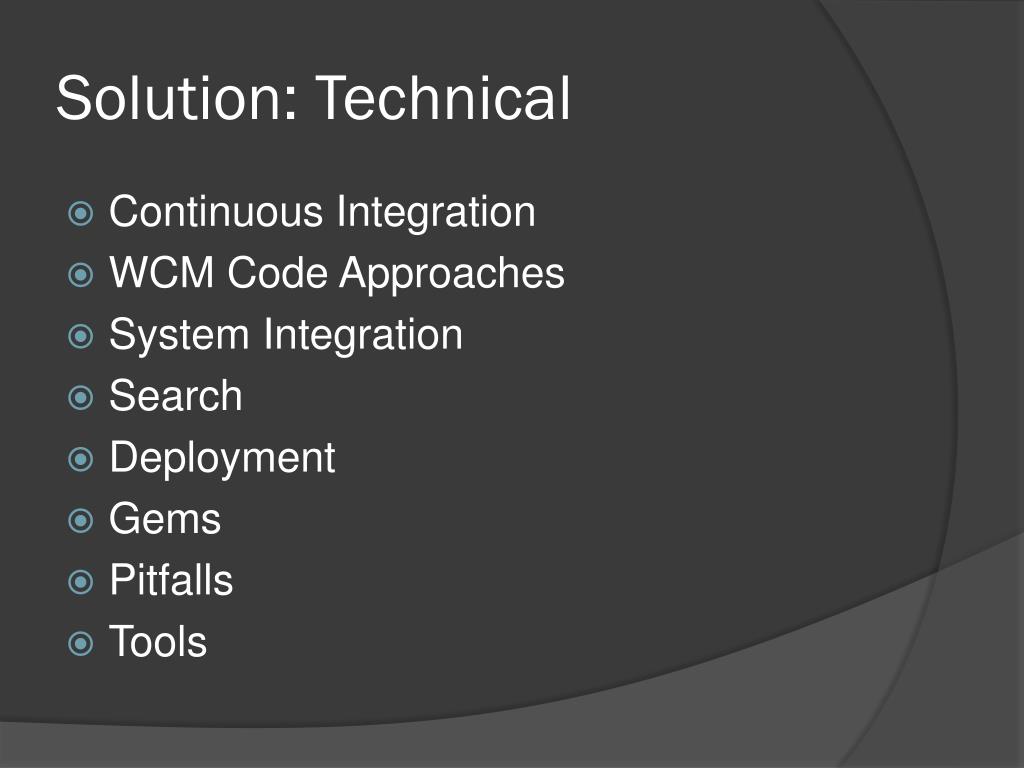

  7. Solution: Technical • Continuous Integration • WCM Code Approaches • System Integration • Search • Deployment • Gems • Pitfalls • Tools

  8. Continuous Integration • MS Team Foundation Server 2005 • Build Server • MS Build Scripts • Shell Scripts • PsExec • WSP Builder by Carsten Keutmann • Brand Layer Solution Generator Diagram next ...

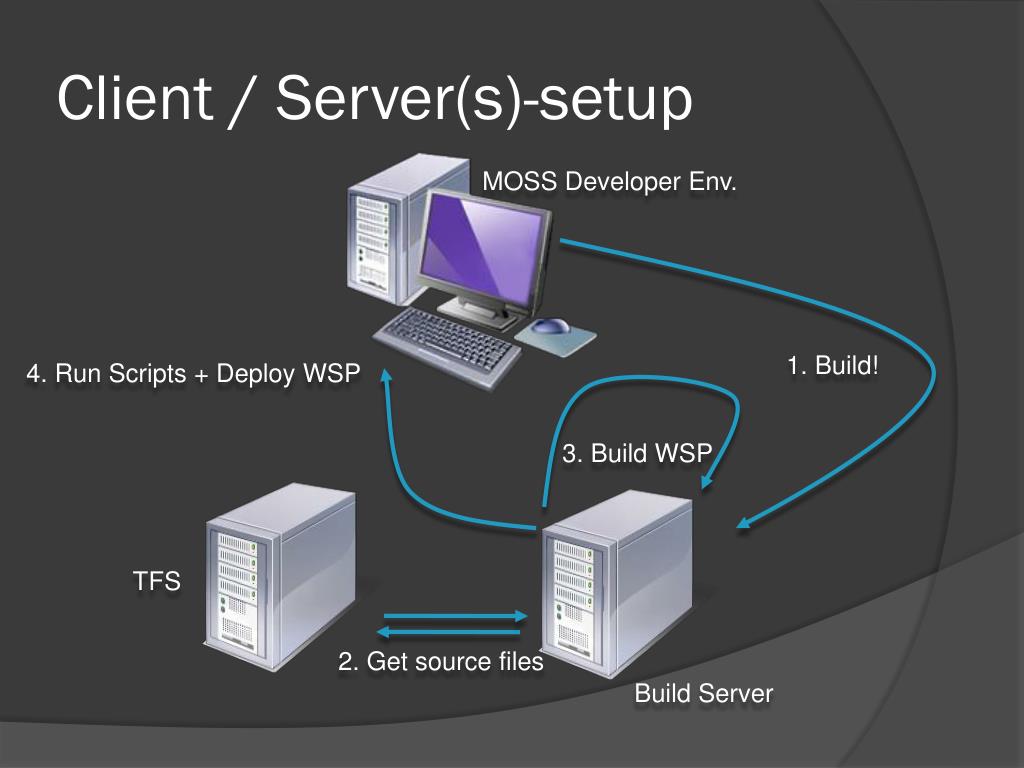

  9. Client / Server(s)-setup MOSS Developer Env. 1. Build! 4. Run Scripts + Deploy WSP 3. Build WSP TFS 2. Get source files Build Server

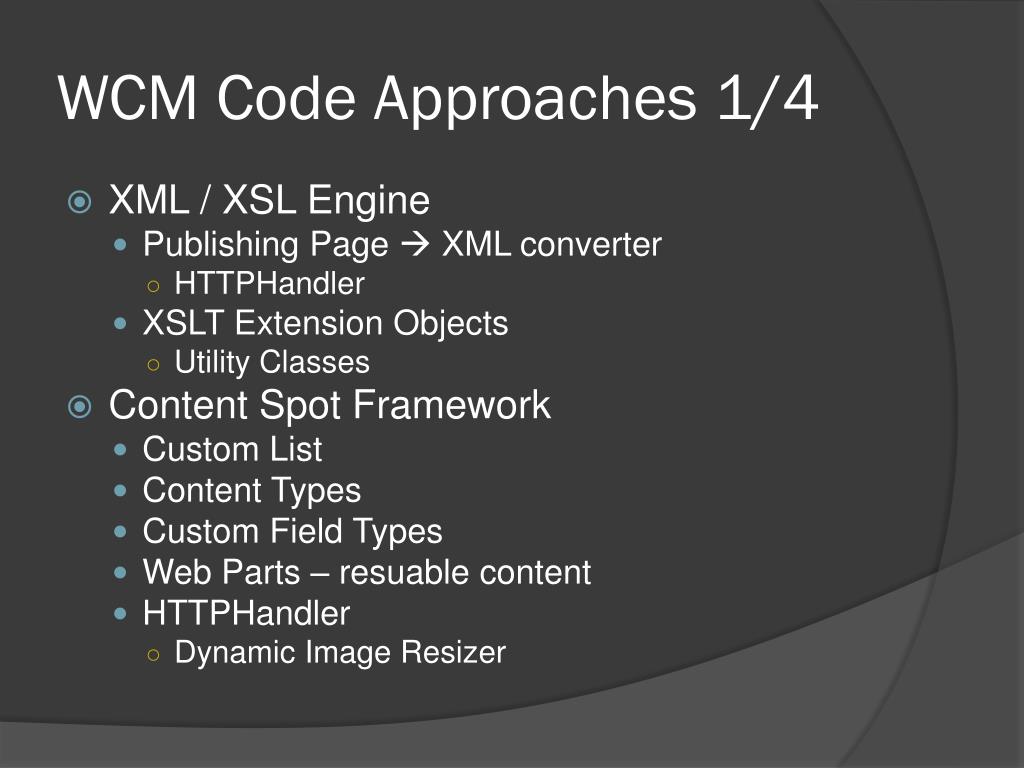

  10. WCM Code Approaches 1/4 • XML / XSL Engine • Publishing Page  XML converter • HTTPHandler • XSLT Extension Objects • Utility Classes • Content Spot Framework • Custom List • Content Types • Custom Field Types • Web Parts – resuable content • HTTPHandler • Dynamic Image Resizer

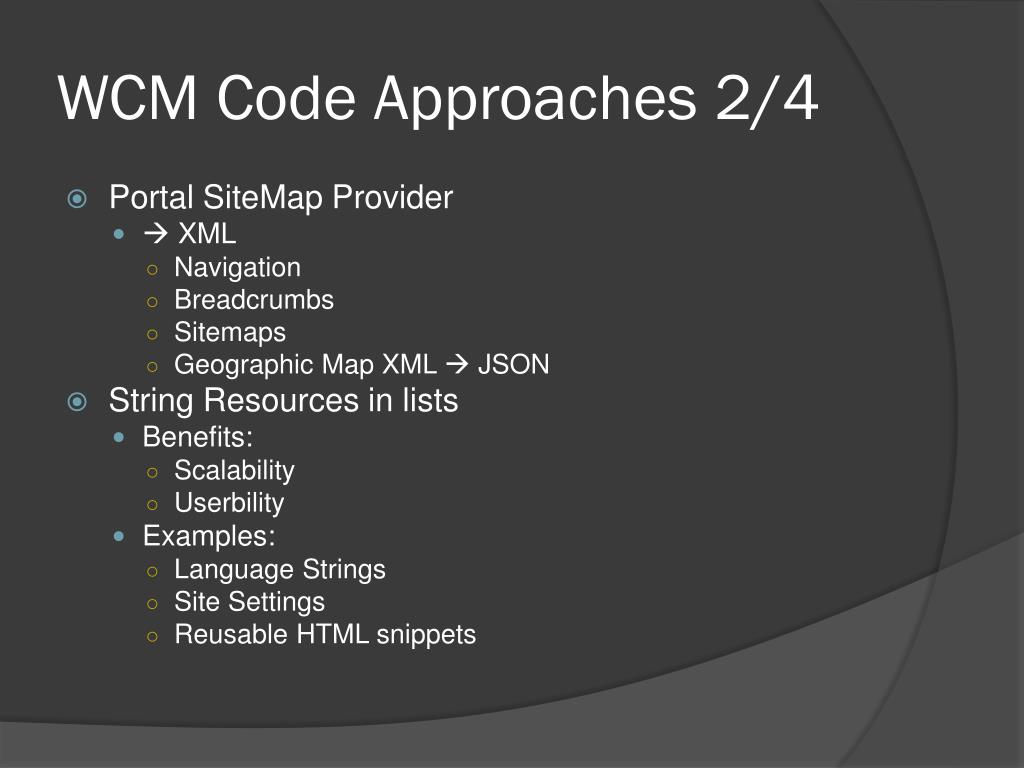

  11. WCM Code Approaches 2/4 • Portal SiteMap Provider •  XML • Navigation • Breadcrumbs • Sitemaps • Geographic Map XML  JSON • String Resources in lists • Benefits: • Scalability • Userbility • Examples: • Language Strings • Site Settings • Reusable HTML snippets

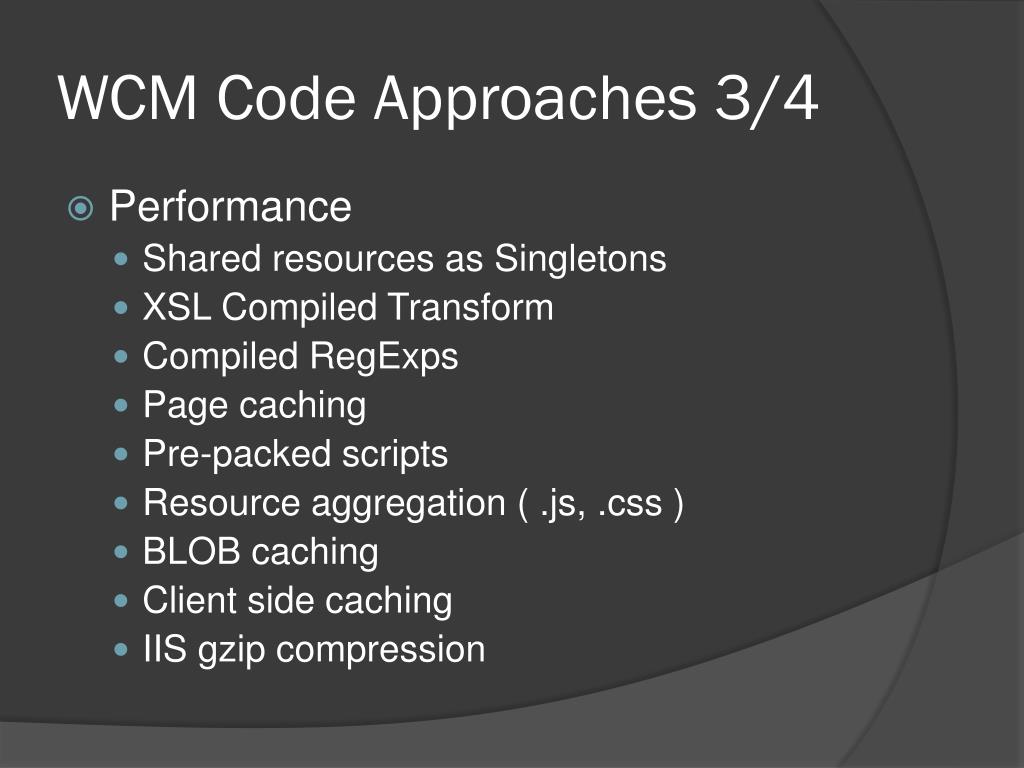

  12. WCM Code Approaches 3/4 • Performance • Shared resources as Singletons • XSL Compiled Transform • Compiled RegExps • Page caching • Pre-packed scripts • Resource aggregation ( .js, .css ) • BLOB caching • Client side caching • IIS gzip compression

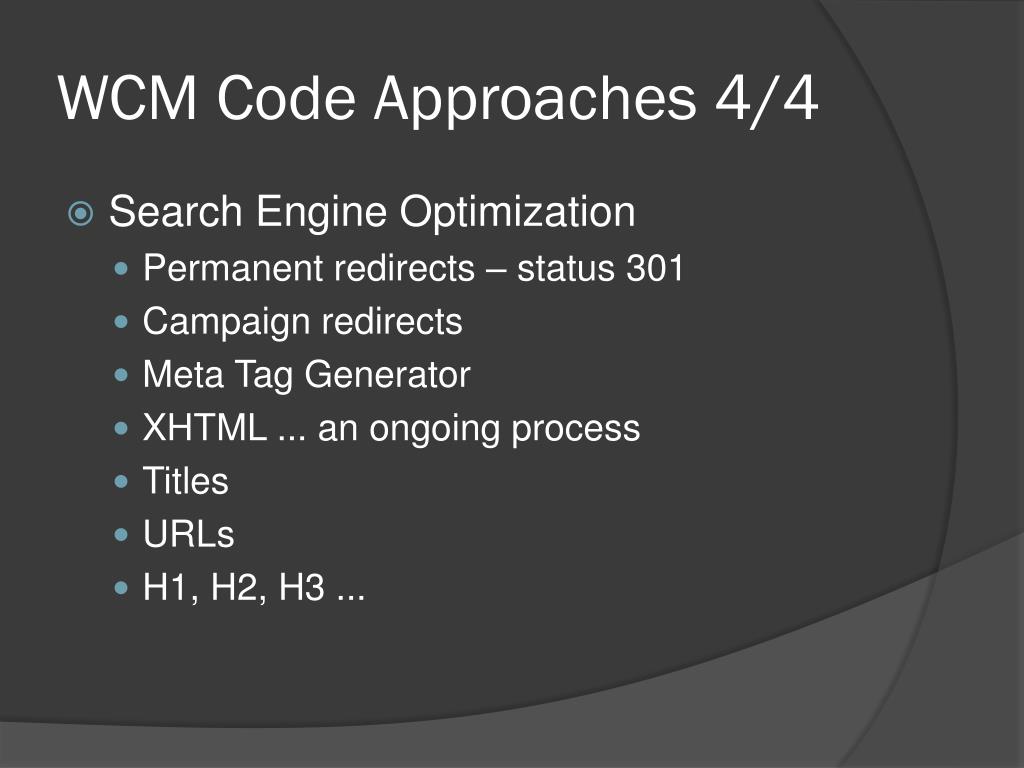

  13. WCM Code Approaches 4/4 • Search Engine Optimization • Permanent redirects – status 301 • Campaign redirects • Meta Tag Generator • XHTML ... an ongoing process • Titles • URLs • H1, H2, H3 ...

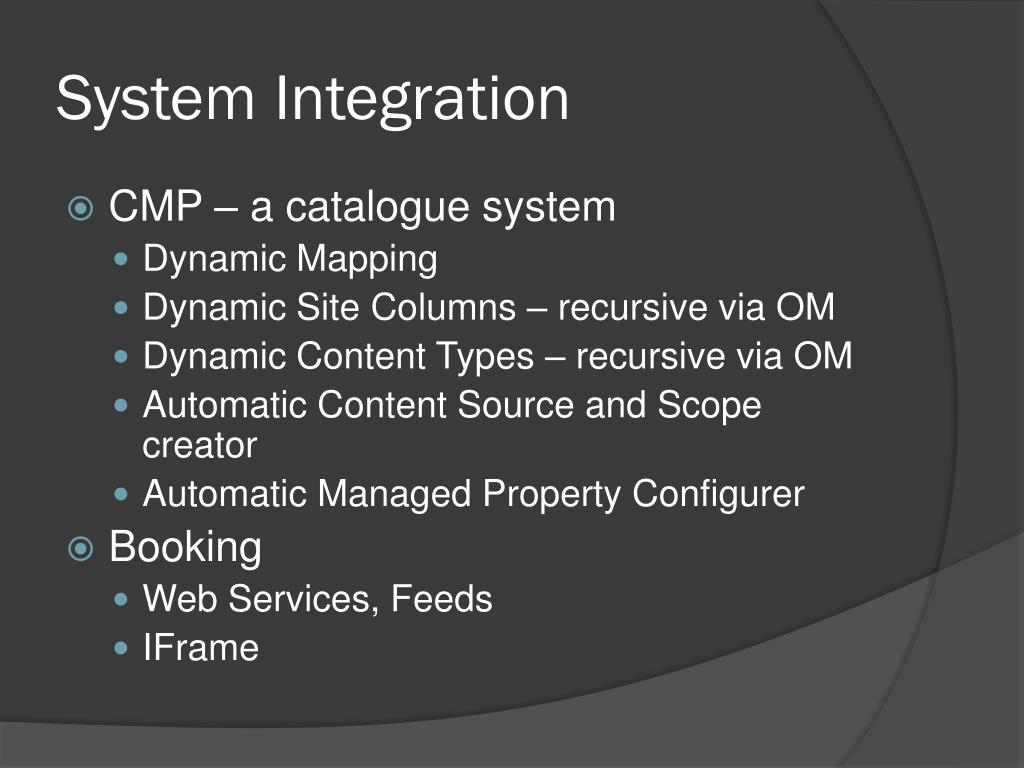

  14. System Integration • CMP – a catalogue system • Dynamic Mapping • Dynamic Site Columns – recursive via OM • Dynamic Content Types – recursive via OM • Automatic Content Source and Scope creator • Automatic Managed Property Configurer • Booking • Web Services, Feeds • IFrame

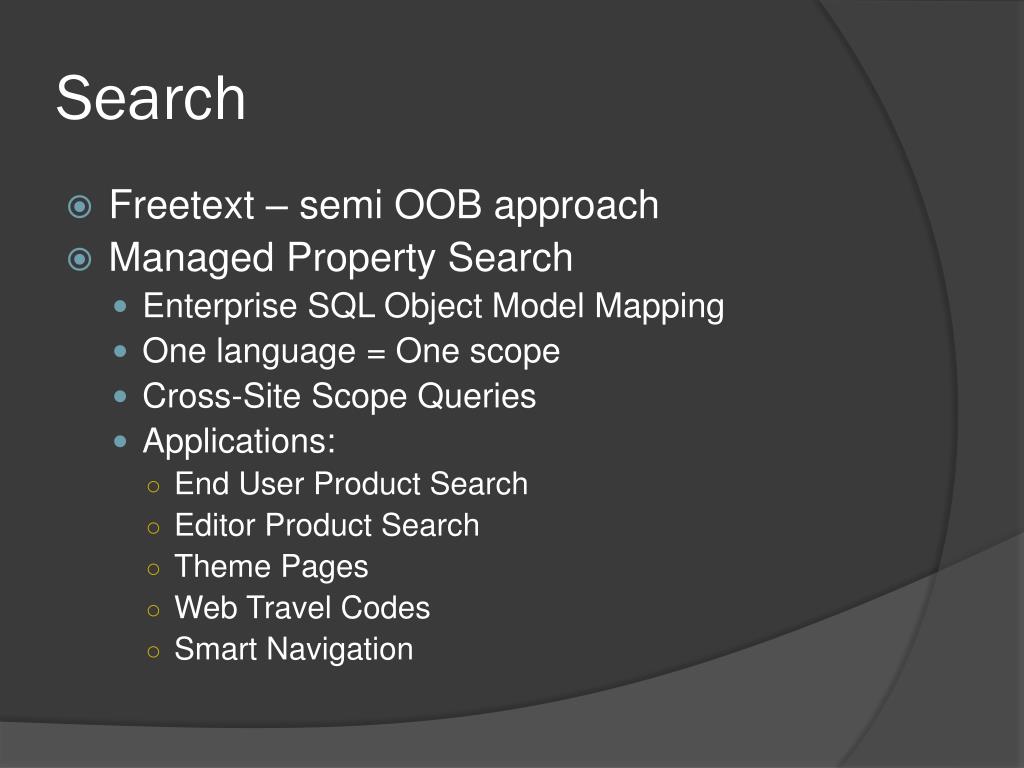

  15. Search • Freetext – semi OOB approach • Managed Property Search • Enterprise SQL Object Model Mapping • One language = One scope • Cross-Site Scope Queries • Applications: • End User Product Search • Editor Product Search • Theme Pages • Web Travel Codes • Smart Navigation

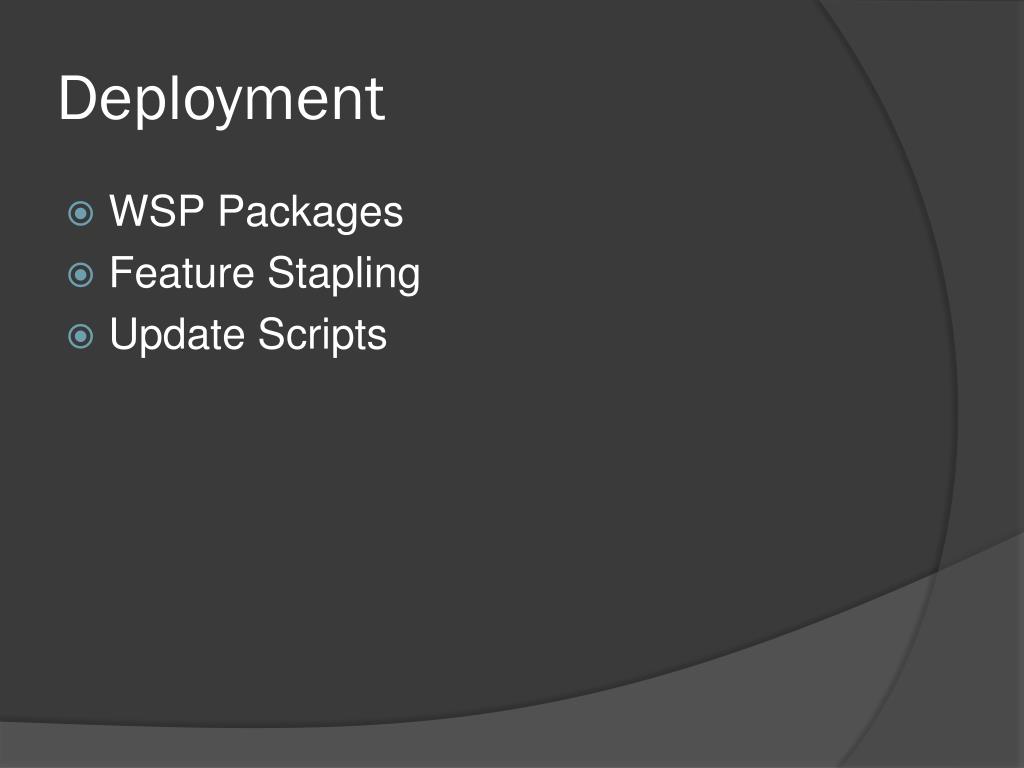

  16. Deployment • WSP Packages • Feature Stapling • Update Scripts

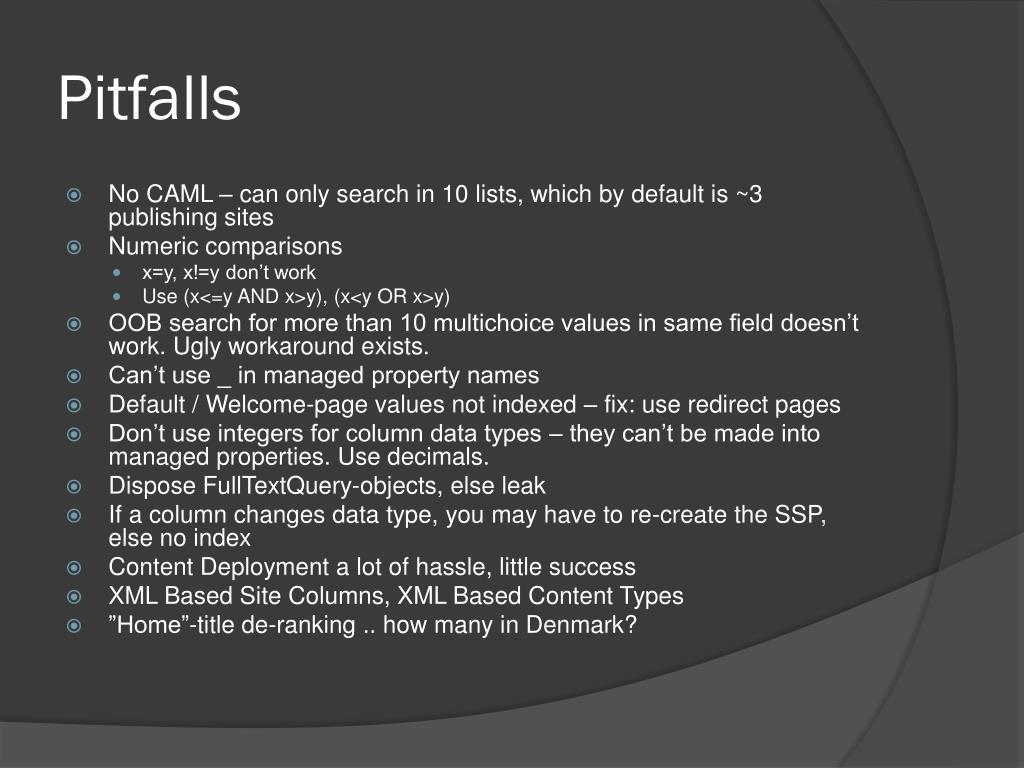

  17. Pitfalls • No CAML – can only search in 10 lists, which by default is ~3 publishing sites • Numeric comparisons • x=y, x!=y don’t work • Use (x<=y AND x>y), (x<y OR x>y) • OOB search for more than 10 multichoice values in same field doesn’t work. Ugly workaround exists. • Can’t use _ in managed property names • Default / Welcome-page values not indexed – fix: use redirect pages • Don’t use integers for column data types – they can’t be made into managed properties. Use decimals. • Dispose FullTextQuery-objects, else leak • If a column changes data type, you may have to re-create the SSP, else no index • Content Deployment a lot of hassle, little success • XML Based Site Columns, XML Based Content Types • ”Home”-title de-ranking .. how many in Denmark?

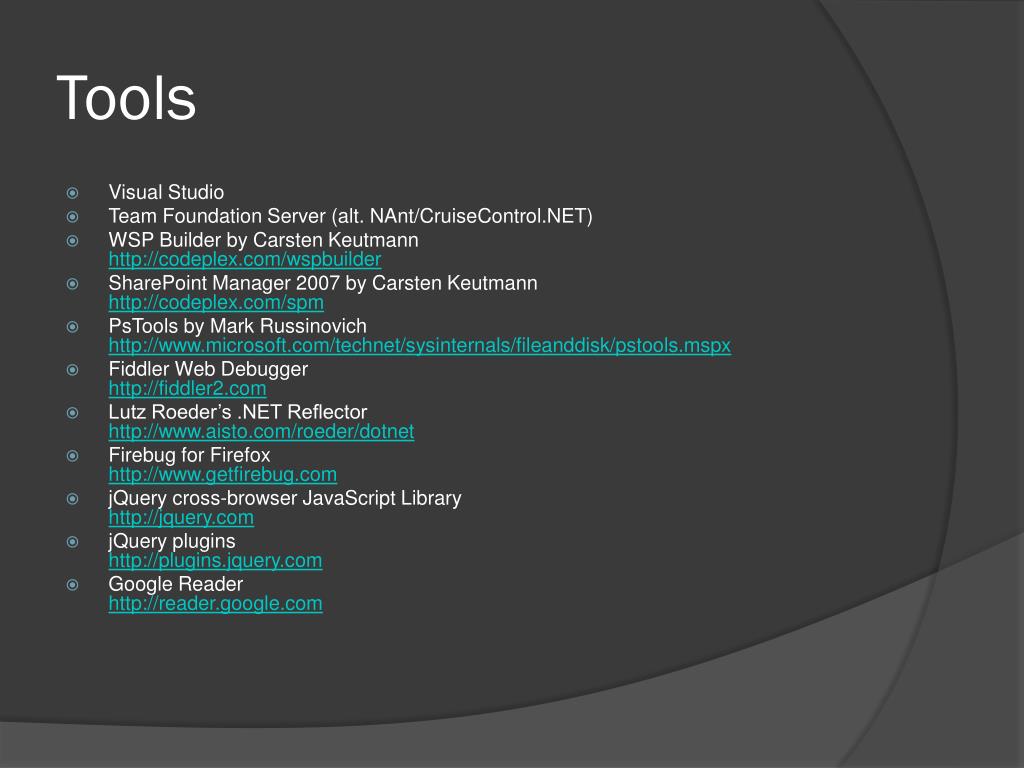

  18. Tools • Visual Studio • Team Foundation Server (alt. NAnt/CruiseControl.NET) • WSP Builder by Carsten Keutmannhttp://codeplex.com/wspbuilder • SharePoint Manager 2007 by Carsten Keutmannhttp://codeplex.com/spm • PsTools by Mark Russinovichhttp://www.microsoft.com/technet/sysinternals/fileanddisk/pstools.mspx • Fiddler Web Debuggerhttp://fiddler2.com • Lutz Roeder’s .NET Reflectorhttp://www.aisto.com/roeder/dotnet • Firebug for Firefoxhttp://www.getfirebug.com • jQuery cross-browser JavaScript Libraryhttp://jquery.com • jQuery pluginshttp://plugins.jquery.com • Google Readerhttp://reader.google.com

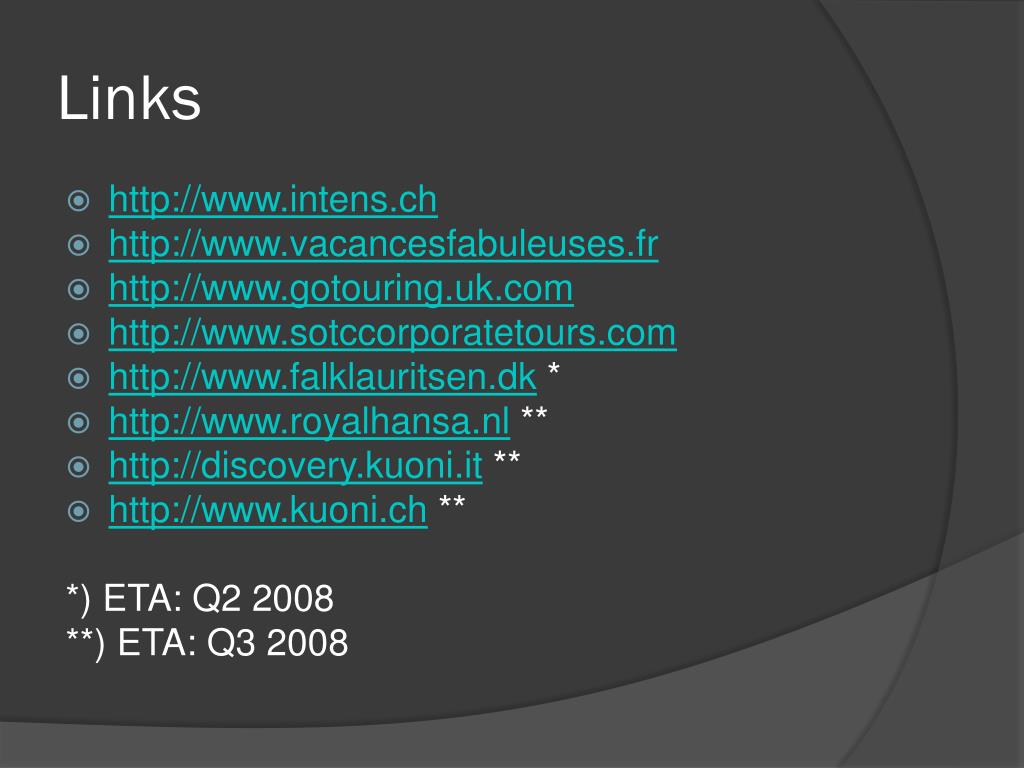

  19. Links • http://www.intens.ch • http://www.vacancesfabuleuses.fr • http://www.gotouring.uk.com • http://www.sotccorporatetours.com • http://www.falklauritsen.dk * • http://www.royalhansa.nl ** • http://discovery.kuoni.it ** • http://www.kuoni.ch ** *) ETA: Q2 2008 **) ETA: Q3 2008

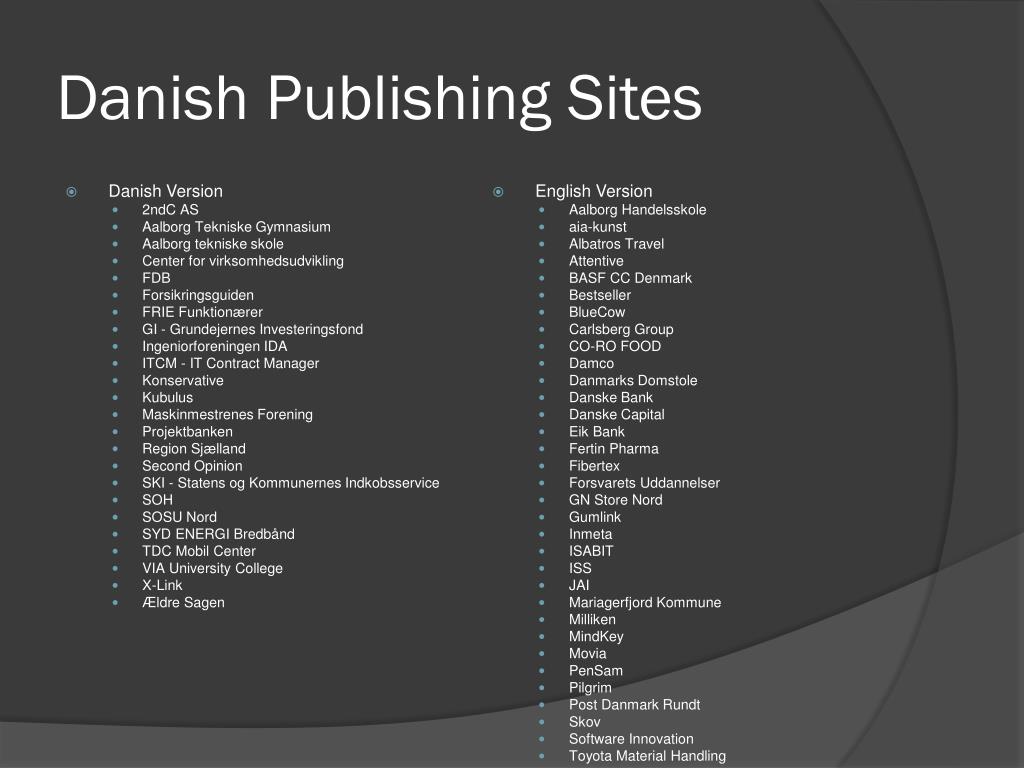

  20. Danish Publishing Sites • Danish Version • 2ndC AS • AalborgTekniske Gymnasium • Aalborgtekniskeskole • Center for virksomhedsudvikling • FDB • Forsikringsguiden • FRIE Funktionærer • GI - GrundejernesInvesteringsfond • Ingeniorforeningen IDA • ITCM - IT Contract Manager • Konservative • Kubulus • MaskinmestrenesForening • Projektbanken • Region Sjælland • Second Opinion • SKI - StatensogKommunernesIndkobsservice • SOH • SOSU Nord • SYD ENERGI Bredbånd • TDC Mobil Center • VIA University College • X-Link • ÆldreSagen • English Version • AalborgHandelsskole • aia-kunst • Albatros Travel • Attentive • BASF CC Denmark • Bestseller • BlueCow • Carlsberg Group • CO-RO FOOD • Damco • DanmarksDomstole • Danske Bank • Danske Capital • Eik Bank • FertinPharma • Fibertex • ForsvaretsUddannelser • GN Store Nord • Gumlink • Inmeta • ISABIT • ISS • JAI • MariagerfjordKommune • Milliken • MindKey • Movia • PenSam • Pilgrim • Post DanmarkRundt • Skov • Software Innovation • Toyota Material Handling

  21. Thank you! • Mail:me@anchorpoint.dk • MSN:anchorpoint2002@hotmail.com • LinkedIn:http://www.linkedin.com/in/anchorpoint • Phone:+45 40936099
