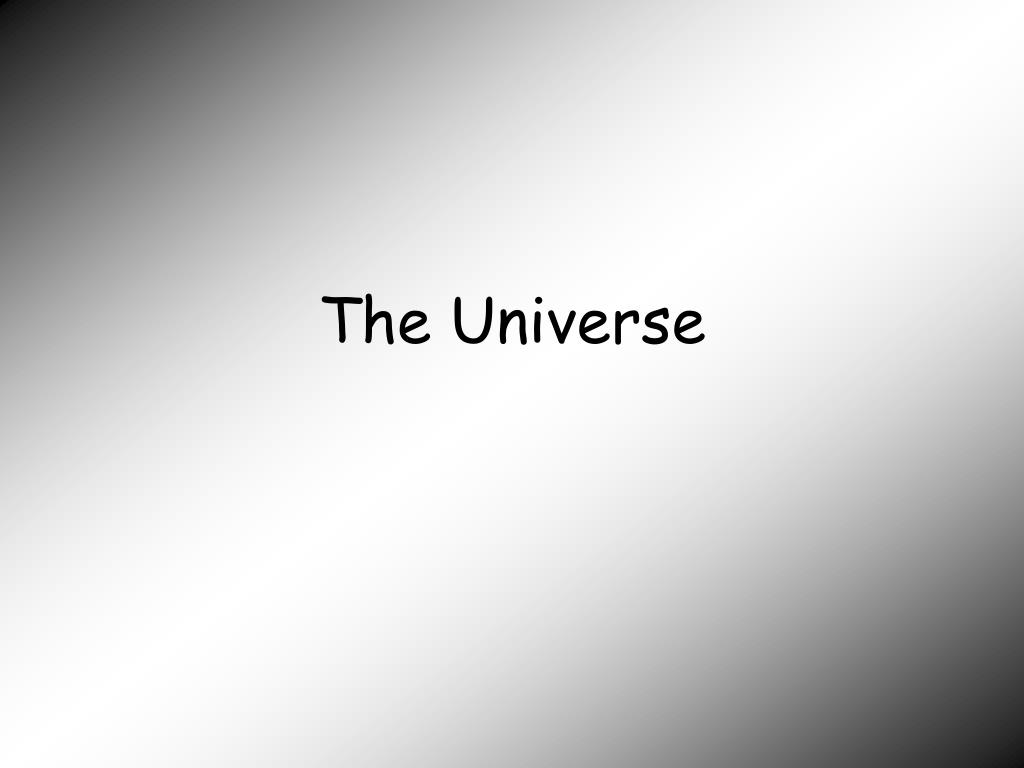

  1. The Universe

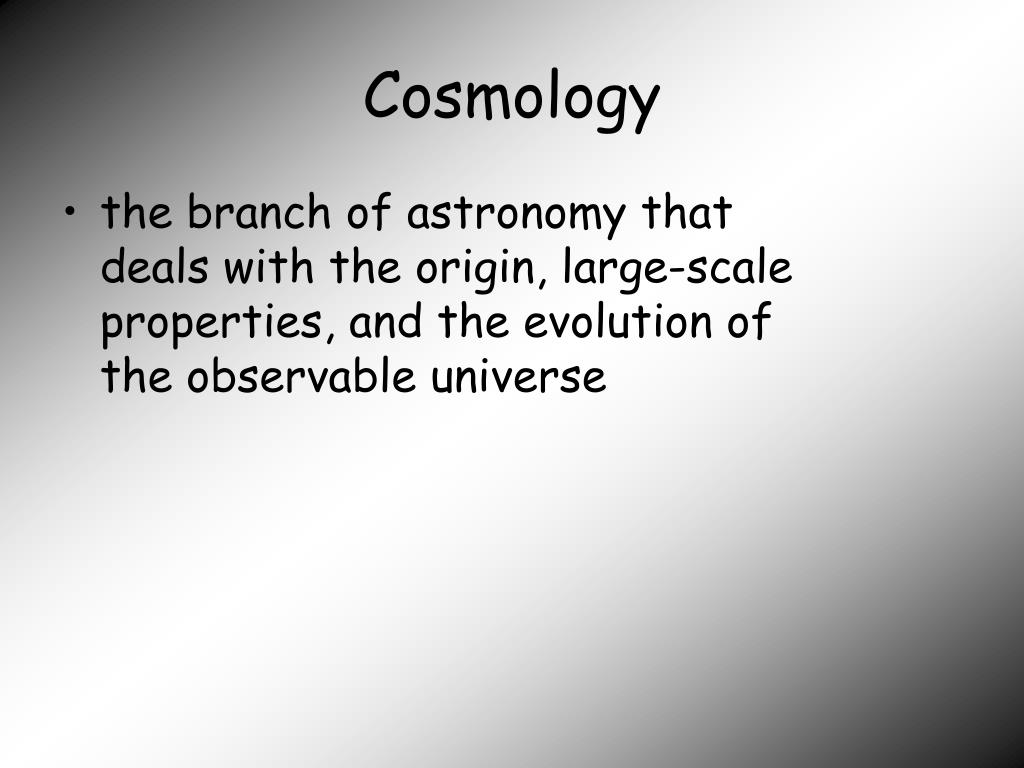

  2. Cosmology • the branch of astronomy that deals with the origin, large-scale properties, and the evolution of the observable universe

  3. The Universe • in astronomy, the sum total of all things which can be directly observed or whose physical effects on other things can be detected • in simpler terms, space and all the matter and energy in it • major components: • galaxies • solar systems • planets Can you think of something in the universe that cannot be seen, but its effects on other things can be detected?

  4. “Big Bang” Theory • the primeval explosion of space, time, matter and energy that most astronomers think gave rise to the universe as we see it today. • occurred about 13.7 billion years ago • thought to have expanded from something smaller than the size of a spec of dust Misconception Alert: Describing this theory as the “Big Bang” is a misnomer because there really was not an explosion, just a release of energy

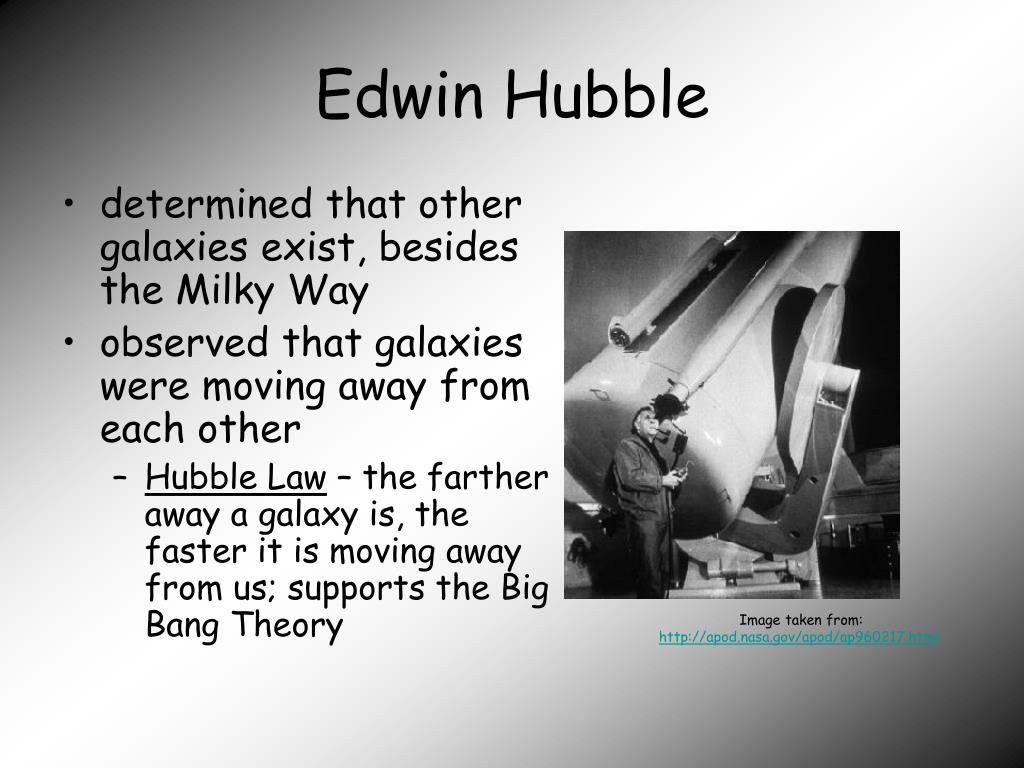

  5. Edwin Hubble • determined that other galaxies exist, besides the Milky Way • observed that galaxies were moving away from each other • Hubble Law – the farther away a galaxy is, the faster it is moving away from us; supports the Big Bang Theory Image taken from: http://apod.nasa.gov/apod/ap960217.html

  6. Galaxy • a large assemblage of stars (and often gas and dust), typically containing millions to hundreds of billions of member stars • Star - a large hot ball of gas which generates energy in its core by nuclear reactions • around 100 billion in the universe • held together by the gravitational attraction of all its member stars on one another • formed around 200 million years after the “Big Bang” • most large ones seem to have super-massive black holes at their centers • sometimes contain very bright centers called quasars • 3 major types: • Spiral • Elliptical • Irregular What is the name of the galaxy we reside in?

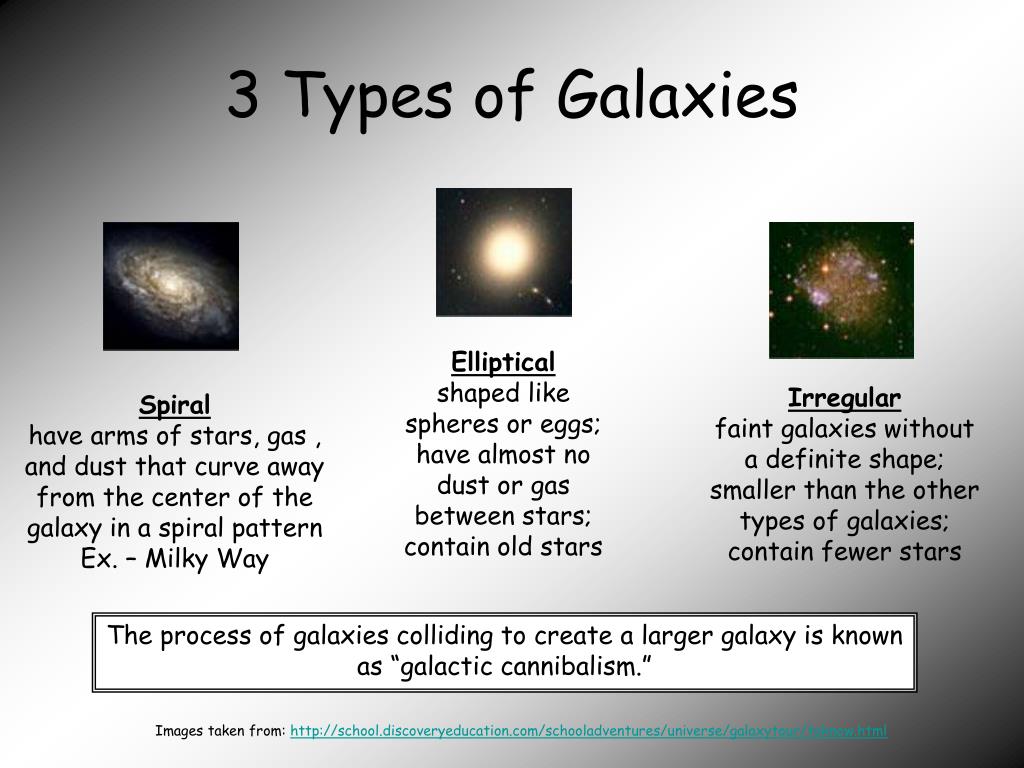

  7. 3 Types of Galaxies Elliptical shaped like spheres or eggs; have almost no dust or gas between stars; contain old stars Irregular faint galaxies without a definite shape; smaller than the other types of galaxies; contain fewer stars Spiral have arms of stars, gas , and dust that curve away from the center of the galaxy in a spiral pattern Ex. – Milky Way The process of galaxies colliding to create a larger galaxy is known as “galactic cannibalism.” Images taken from: http://school.discoveryeducation.com/schooladventures/universe/galaxytour/toknow.html

  8. Milky Way Galaxy • Scientists now know that black holes are  inexorably linked with galaxies, lying at their center and directly influencing how large a galaxy may grow. These aren’t your ordinary stellar variety black holes of mass couple of times that of our sun. No, these are classed as supermassive black holes and can have millions or, in some extreme cases, billion solar masses. Our own galaxy, the Milky Way is no exception.

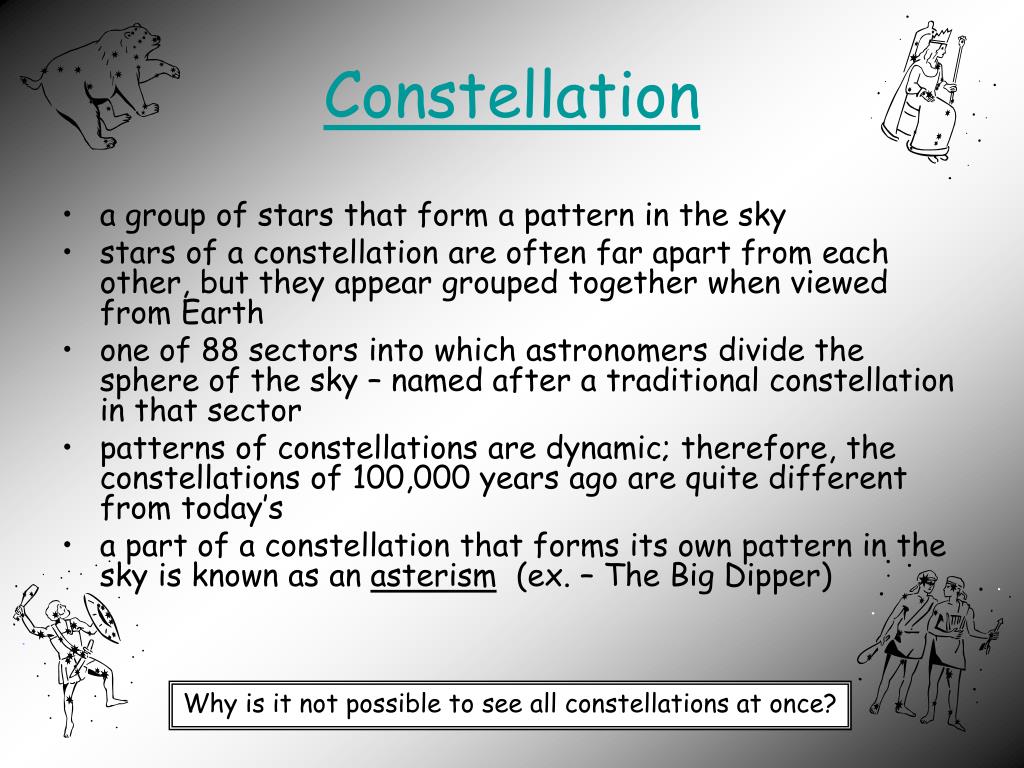

  9. Constellation • a group of stars that form a pattern in the sky • stars of a constellation are often far apart from each other, but they appear grouped together when viewed from Earth • one of 88 sectors into which astronomers divide the sphere of the sky – named after a traditional constellation in that sector • patterns of constellations are dynamic; therefore, the constellations of 100,000 years ago are quite different from today’s • a part of a constellation that forms its own pattern in the sky is known as an asterism (ex. – The Big Dipper) Why is it not possible to see all constellations at once?

  10. Solar System • the sun and all things orbiting around it, including the eight major planets, their satellites, and all the smaller pieces such as asteroids and comets • formed around 4.6 billion years ago What is incorrect or misleading about this visual? Image taken from: http://asm.arc.nasa.gov/Gallery/images/generic/LG_Capableofeverything.jpg

  11. Planet • derived from a Greek word that means “wanderer” • a major object which orbits around a star • in our solar system, there are eight such objects which are traditionally called “planets”

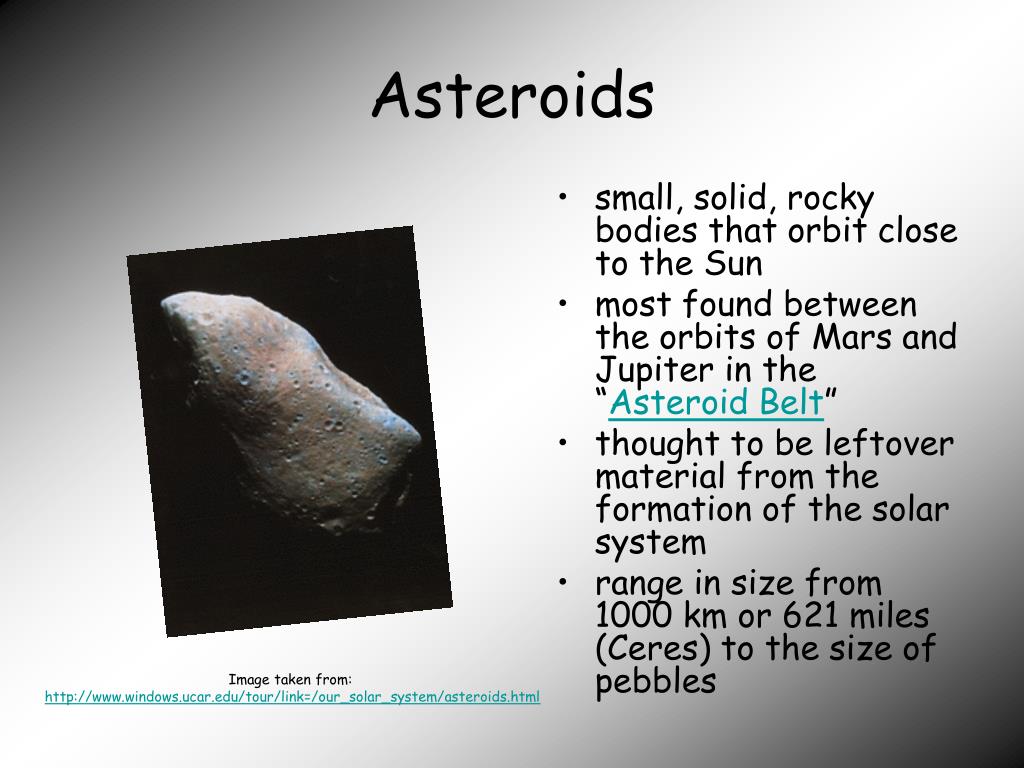

  12. Asteroids • small, solid, rocky bodies that orbit close to the Sun • most found between the orbits of Mars and Jupiter in the “Asteroid Belt” • thought to be leftover material from the formation of the solar system • range in size from 1000 km or 621 miles (Ceres) to the size of pebbles Image taken from: http://www.windows.ucar.edu/tour/link=/our_solar_system/asteroids.html

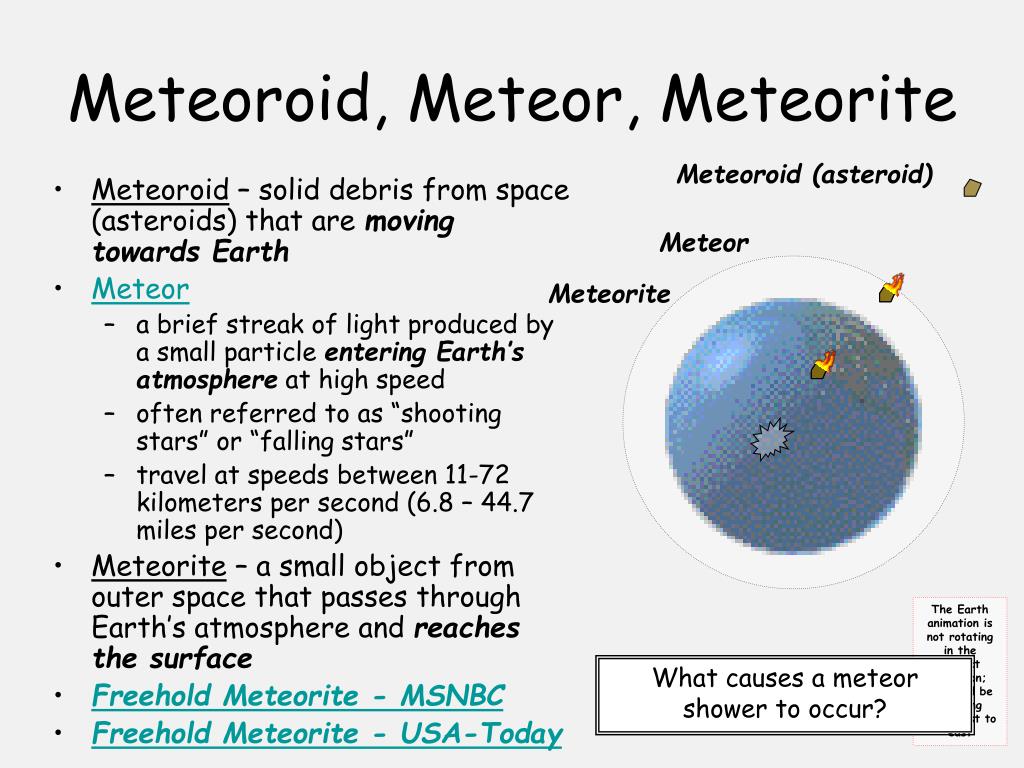

  13. Meteoroid, Meteor, Meteorite Meteoroid (asteroid) • Meteoroid – solid debris from space (asteroids) that are moving towards Earth • Meteor • a brief streak of light produced by a small particle entering Earth’s atmosphere at high speed • often referred to as “shooting stars” or “falling stars” • travel at speeds between 11-72 kilometers per second (6.8 – 44.7 miles per second) • Meteorite – a small object from outer space that passes through Earth’s atmosphere and reaches the surface • Freehold Meteorite - MSNBC • Freehold Meteorite - USA-Today Meteor Meteorite The Earth animation is not rotating in the correct direction; it should be rotating from west to east What causes a meteor shower to occur?

  14. Comet • a small body of ice and dust (“dirty snowball”) that orbits the Sun • contain a head (coma) followed by a tail(s) of gas and dust • the tail always points away from the sun and can be millions of kilometers long (but the amount of matter it contains can be very small) Image taken from: http://www.space.com/bestimg/index.php?guid=45b0fd31f065d&cat=bestcomet

  15. Satellite • an object that orbits a more massive object (i.e. – moons) • probes we launch into orbit around the Earth are called “artificial satellites” The Earth animation is not rotating in the correct direction; it should be rotating from west to east

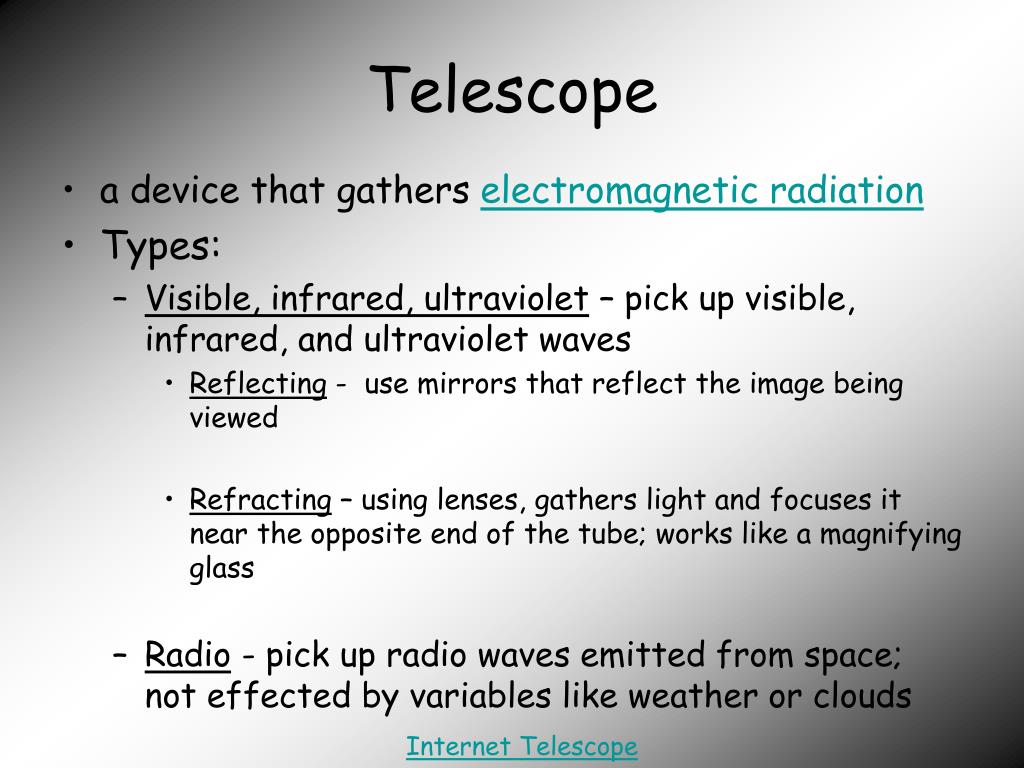

  16. Telescope • a device that gathers electromagnetic radiation • Types: • Visible, infrared, ultraviolet – pick up visible, infrared, and ultraviolet waves • Reflecting - use mirrors that reflect the image being viewed • Refracting – using lenses, gathers light and focuses it near the opposite end of the tube; works like a magnifying glass • Radio - pick up radio waves emitted from space; not effected by variables like weather or clouds Internet Telescope

  17. Hubble Space Telescope • a reflecting telescope that was placed into orbit in 1990 • sends images and measurements back to Earth electronically Image taken from: http://hubblesite.org/gallery/ What is one of the main benefits of having the Hubble Space Telescope in orbit, as opposed to it being here on Earth?

  18. Edwin Hubble at Mt. Wilson Hubble’s observations at the 100 inch during the 1920’s led him to the conclusion that the universe is expanding, and that an object’s recession velocity is proportional to its distance from the observer. Hubble guiding the Hooker 100 inch telescope in 1923. The Hooker 100 inch telescope atop Mt. Wilson near Pasadena, CA. It was the largest telescope in the world from 1917-1947.

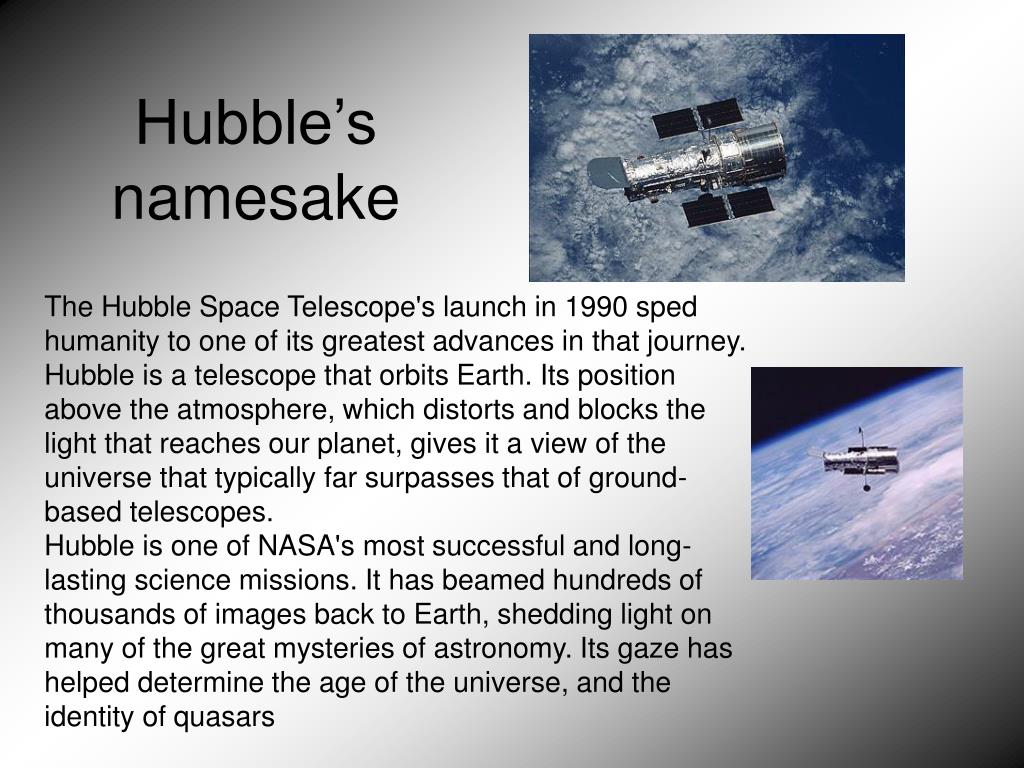

  19. Hubble’s namesake The Hubble Space Telescope's launch in 1990 sped humanity to one of its greatest advances in that journey. Hubble is a telescope that orbits Earth. Its position above the atmosphere, which distorts and blocks the light that reaches our planet, gives it a view of the universe that typically far surpasses that of ground-based telescopes. Hubble is one of NASA's most successful and long-lasting science missions. It has beamed hundreds of thousands of images back to Earth, shedding light on many of the great mysteries of astronomy. Its gaze has helped determine the age of the universe, and the identity of quasars

  20. Hubble facts The Hubble Telescope is roughly the size of a school bus, but still fits into the cargo bay of a space shuttle Mission Launch: April 24, 1990 from space shuttle Discovery (STS-31) Deployment: April 25, 1990 Mission Duration: Up to 20 years Size Length: 43.5 ft (13.2 m)Weight: 24,500 lb (11,110 kg) Maximum Diameter: 14 ft (4.2 m) Cost at Launch: $1.5 billion

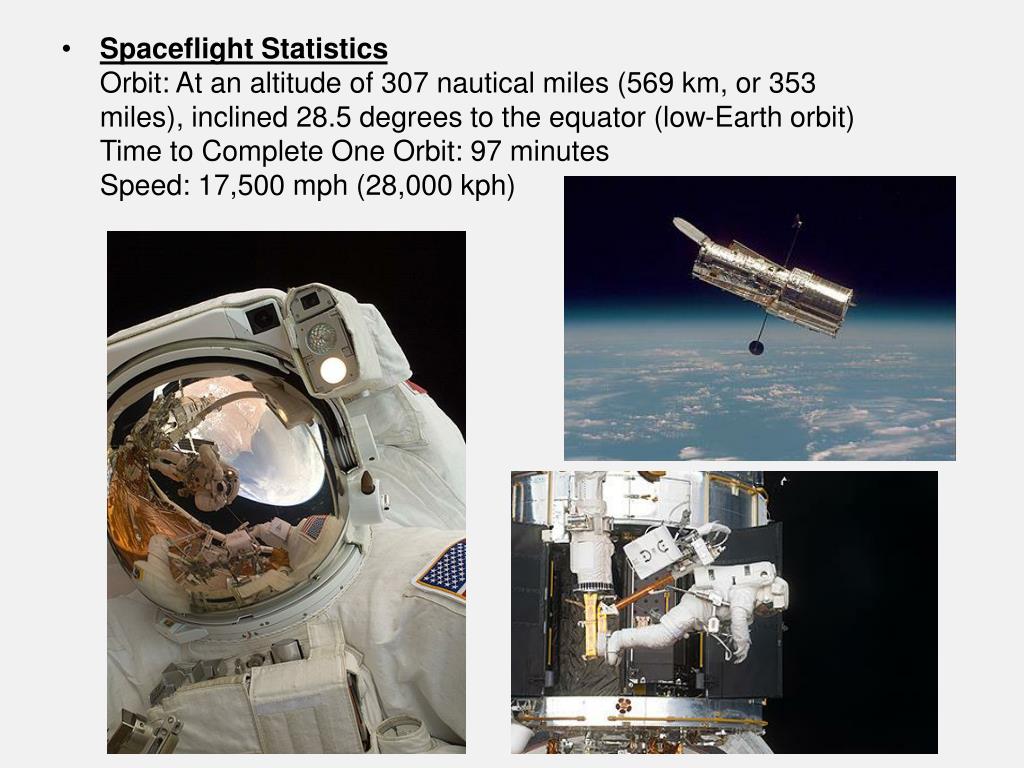

  21. Spaceflight Statistics Orbit: At an altitude of 307 nautical miles (569 km, or 353 miles), inclined 28.5 degrees to the equator (low-Earth orbit)Time to Complete One Orbit: 97 minutes Speed: 17,500 mph (28,000 kph)

  22. Deep Hubble Space Telescope Image A deep image of an “empty” portion of the sky with the Hubble Space Telescope reveals that the universe is filled with galaxies- many just like our own. The light we see from the most distant galaxies has traveled approx- imately 10 billion years to reach us.

  23. DeepHubble Space Telescope Images http://hubblesite.org/videos/ http://tools.wmflabs.org/zoomviewer/index.php?f=Earth%27s_Location_in_the_Universe_%28JPEG%29.jpg

  24. Astronomical Unit (AU) • unit of distance equal to the average spacing between the Earth and the Sun • equal to about 150 million kilometers (93 million miles) • light takes about eight minutes to cover this distance The Earth animation is not rotating in the correct direction; it should be rotating from west to east 150 million km (93 million mi.)

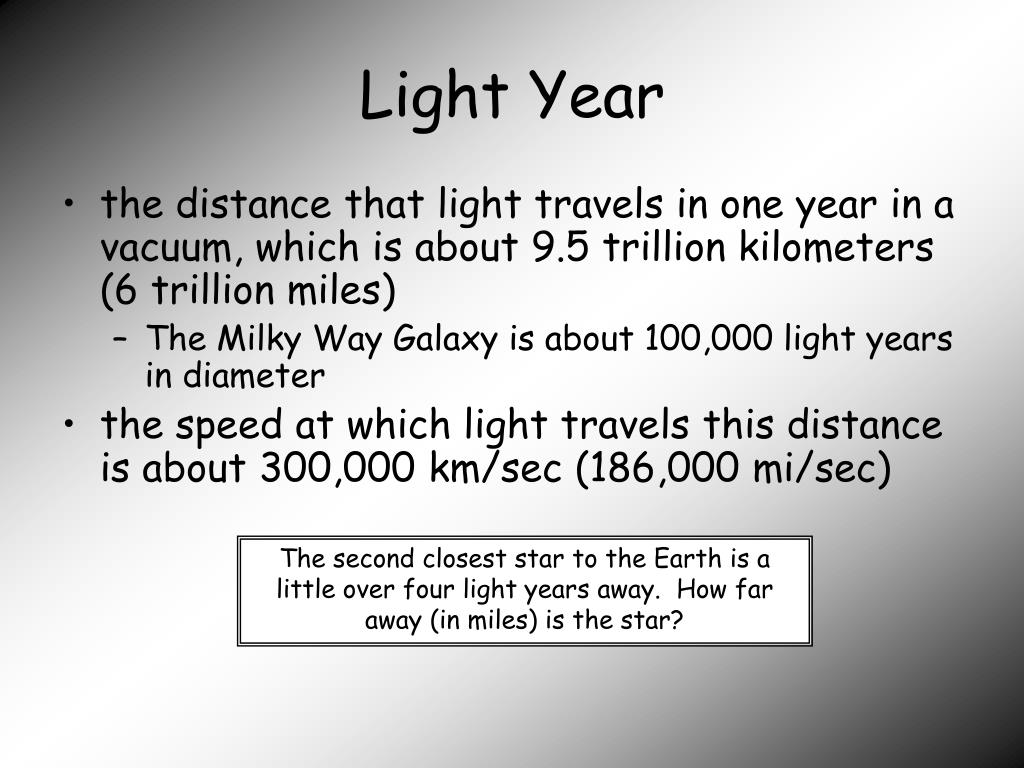

  25. Light Year • the distance that light travels in one year in a vacuum, which is about 9.5 trillion kilometers (6 trillion miles) • The Milky Way Galaxy is about 100,000 light years in diameter • the speed at which light travels this distance is about 300,000 km/sec (186,000 mi/sec) The second closest star to the Earth is a little over four light years away. How far away (in miles) is the star?

  26. Parsec • unit of distance equal to about 3.26 light years (or 206,265 AU) If one parsec equals 206, 265 AU, how many miles is it equal to?

  27. Parallax • the apparent shift in position of an object when viewed from different locations • used by astronomers to measure distance Put your pointer finger in front of your face and begin opening and closing your eyes in an alternating manner. What do you notice about the your finger’s position? Parallax Simulation Parallax Simulation – 1 Parallax Simulation - 2 Find the Distance to HT Cas Using Parallax
