  1. LBT Diagnostics Installation Update Dan Padrazo Diagnostics & Instrumentation Group Feb 1, 2012

  2. Acknowledgements Om Singh Timur Shaftan Igor Pinayev Kurt Vetter Bernie Kosciuk Yong Hu Ray Fliller Sergei Seletskiy Dick Hseuh Tony Caracappa Mike Johanson

  3. Overview • Diagnostics Technical Support for Installation • Diagnostics for Linac To Booster Transport Line • Integration Model of LBT. • Illustration of LBT Diagnostics Part 1 & 2. • Illustration of LINAC BPM / PUE. • Installation of LBT Diagnostics Part 1 • Integration of LBT Diagnostics Part 1 • Electronics, Racks, Controls Interface • Injector Diagnostics Installation Schedule • Summary / Status

  4. Diagnostics Technical Support for LBT Installation Group Leader – Om Singh Project Engineer – Dan Padrazo Project Engineer- Bernie Kosciuk Engineer – Bel Bacha Engineer – Tony Caracappa AP – Igor Pinayev AP - Sergei Seletskiy Technical Supervisor- Wayne Rambo Technical Support – Jack Tallent, Chris Danneil, Marshall Maggipinto, Artie Munoz, Al Borelli, Dennis Poshka,George Stenby(MOU), Dave Tupper(JS), Bill Brannigan(JS)

  5. Diagnostics Supported for (LBT / LINAC)

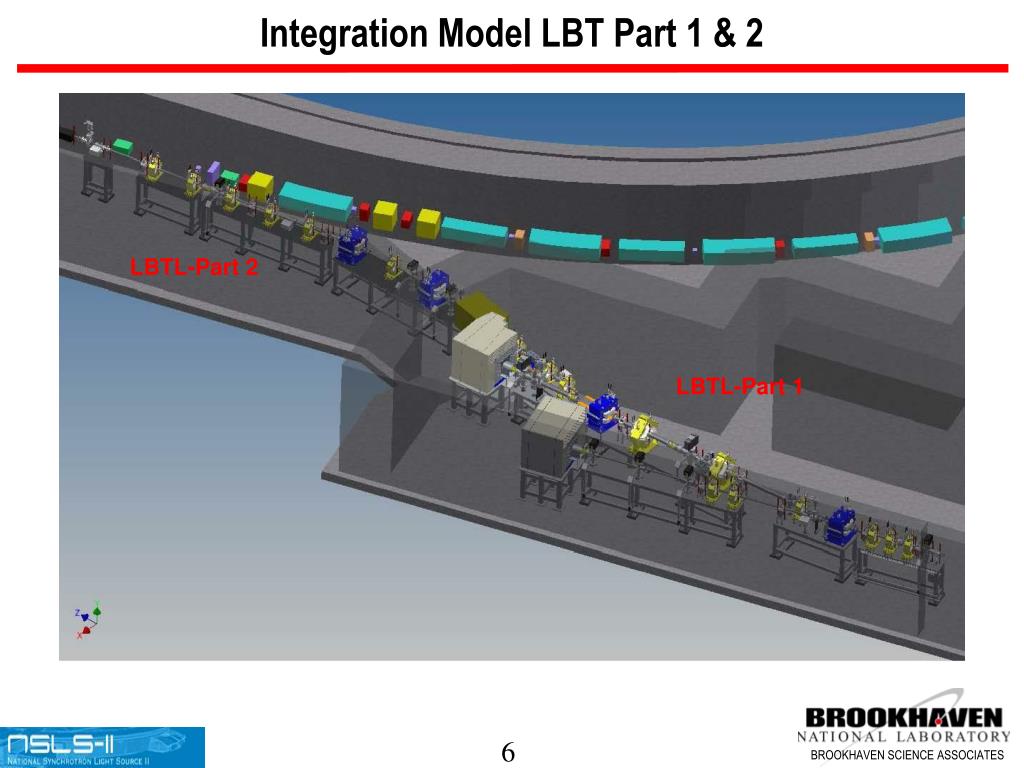

  6. Integration Model LBT Part 1 & 2 LBTL-Part 2 LBTL-Part 1

  7. Illustration LBT Diagnostics-Part 1 2 Part1 Diagnostics

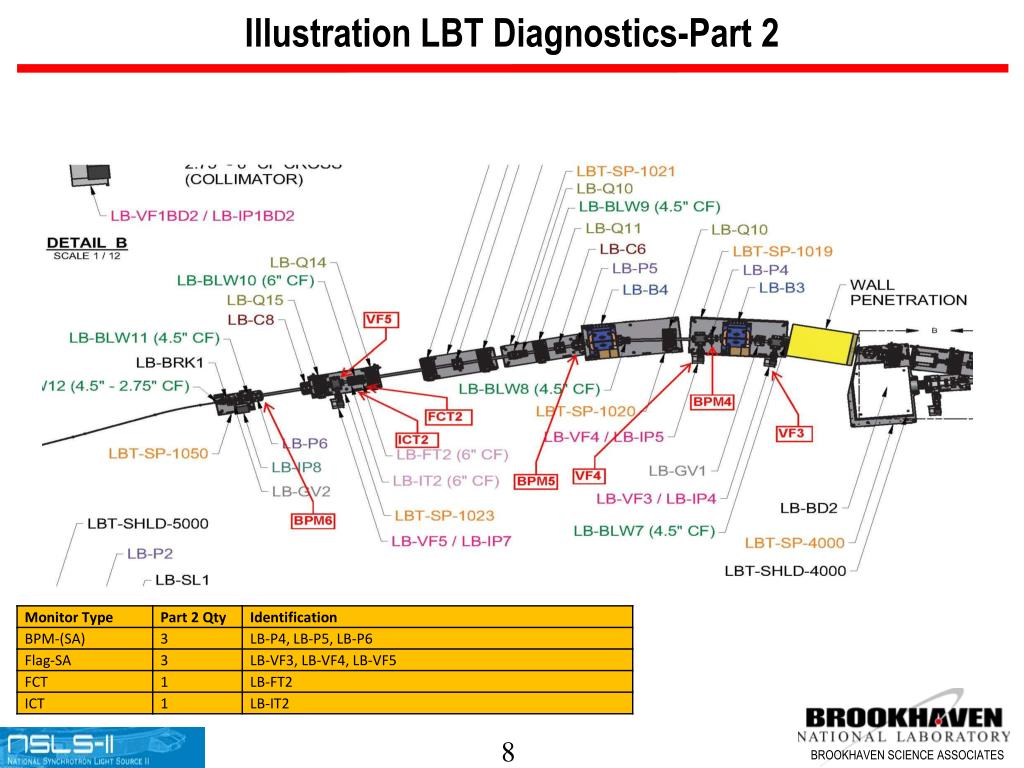

  8. Illustration LBT Diagnostics-Part 2 2 Part2 Diagnostics

  9. BPM Supported in LINAC LIN-P5 LIN-P3 LIN-P1 LIN-P4 LIN-P2 LINAC BPM

  10. Pre-Installation Work (LBT-BPM Chamber/PUE) TL Button/Feed-thru assembly 11-15-11 SA BPM Assembly 11-12-11 LA BPM Chamber- populated w/Button Feed-thru Assembly (11-12-11) 40mm x 90mm Elliptical Fixture using single wire test LA BPM Assembly 11-12-11

  11. Pre-Installation Work (Testing Energy Slit/ Flags) Test Rack used for Diagnostics Electronics and Controls. Test Stand using SP-1005 Girder top for SA Flag testing (11-23-11) Energy Slit & LA Flag mounted on Production Version SP-1006 Girder, captured in portable clean room (11-4-11)

  12. Pre-Installation Work (FCT/ICT) In-Flange Bergoz FCT- Cleaned and prepared for install. FCT-CF6”3/4-96.0-UHV-20:1-H FCT-Test Fixture for Pre test prior to install Beam Charge Monitor Chassis BCM-IHR Module In-Flange Bergoz ICT – Cleaned and prepared for install. ICT-CF6”-60.4-UHV-070-20:1-H

  13. Tunnel Installation Work (LBT Part 1 & 2) LBT Component Install Part 1(1-4-12) LBT Girder Install Part 1(11-7-11) LBT Part 2 (11-30-11) LBT Part 2 Diagnostics Cables Pulled (12-6-11)

  14. Cable Description / Specification • LMR-240FR – Low Loss Coax Cable (RF BPM / ICT) • Attenuation (db/ft) .057db @500Mhz • Jacket Diameter .240” • Custom trim to relative timing specification of +/-25pS, with a delta phase specification of 4.5 degrees @ 500Mhz. • LMR-400FR – Low Loss Coax Cable (RF BPM / FC) • Attenuation (db/ft) .028db @500Mhz • Jacket Diameter .400” • LMR-900FR – Low Loss Coax Cable (FCT) • Attenuation (db/ft) .014db @500Mhz • Jacket Diameter .900” • SIO2 – Silicon Dioxide Low Loss Coax Cable (RF BPM) • Attenuation (db/ft) .06db @500Mhz • Jacket Diameter .141” • Semi-Rigged, fired glass hermetically sealed assembly • Commercially fabricated as a straight length and a relative timing specification of +/- 25ps, with a delta phase specification of 4.5 degrees @ 500Mhz

  15. BPM Cable Work LMR-240FR Cable install (11-8-11) Pneumatic Crimp tool Mobile Cart for Cable Time / Terminate (1-10-12) SIO2 Cable Assembly (1Meter)

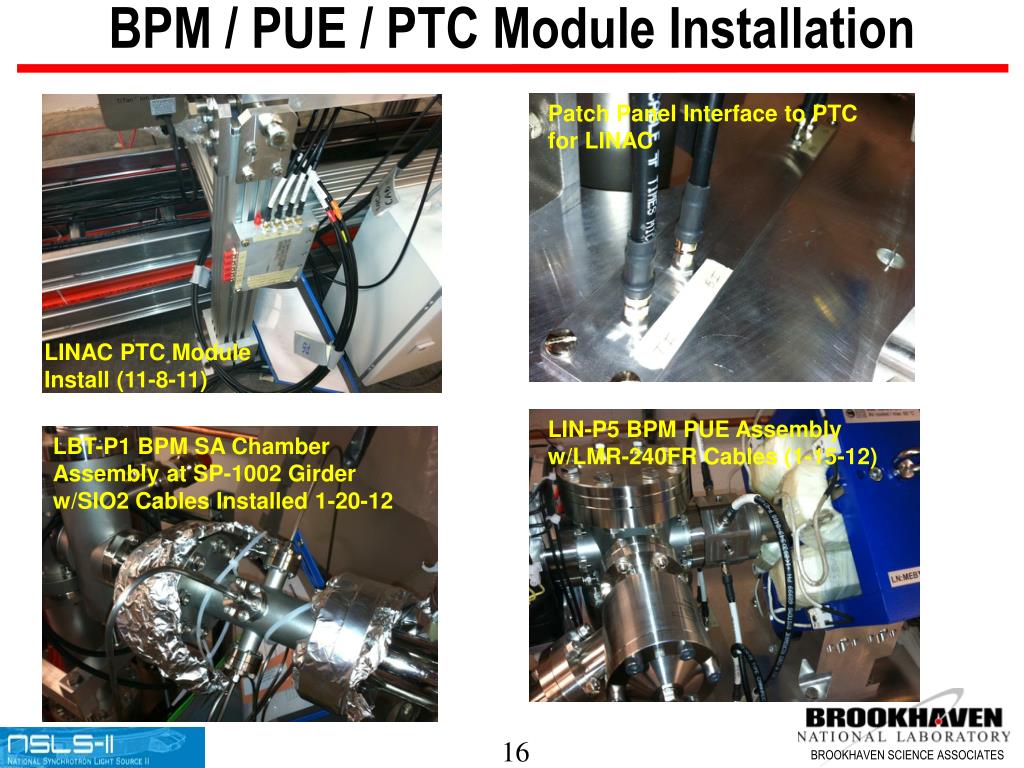

  16. BPM / PUE / PTC Module Installation Patch Panel Interface to PTC for LINAC LINAC PTC Module Install (11-8-11) LIN-P5 BPM PUE Assembly w/LMR-240FR Cables (1-15-12) LBT-P1 BPM SA Chamber Assembly at SP-1002 Girder w/SIO2 Cables Installed 1-20-12

  17. LBT Flags Installation SA Flag Assembly at SP-1005 Girder LA Flag Assembly at SP-1006 Girder Tunnel patch for Energy Slit / Flag at SP-1006 Tunnel patch panels for flag Pneumatics / PLC / Controls

  18. LBT Beam Dump / Faraday Cup Install Dump 1 at SP-3000 Girder (1-20-12) Dump 2 at SP-4000 Girder (1-20-12)

  19. LBT Electronics Rack Layout cPCI Acqiris digitizer cPCI CPU board

  20. Diagnostics Electronics / Cable Management (RG-Q) BPM receiver LINAC (Front View) PLC Controls for Flags (Rear View) Cable Route into Rack Penetrations (Top View) Custom patch Panel /SR for LMR Cables (Top View)

  21. Injector Diagnostics Installation Schedule

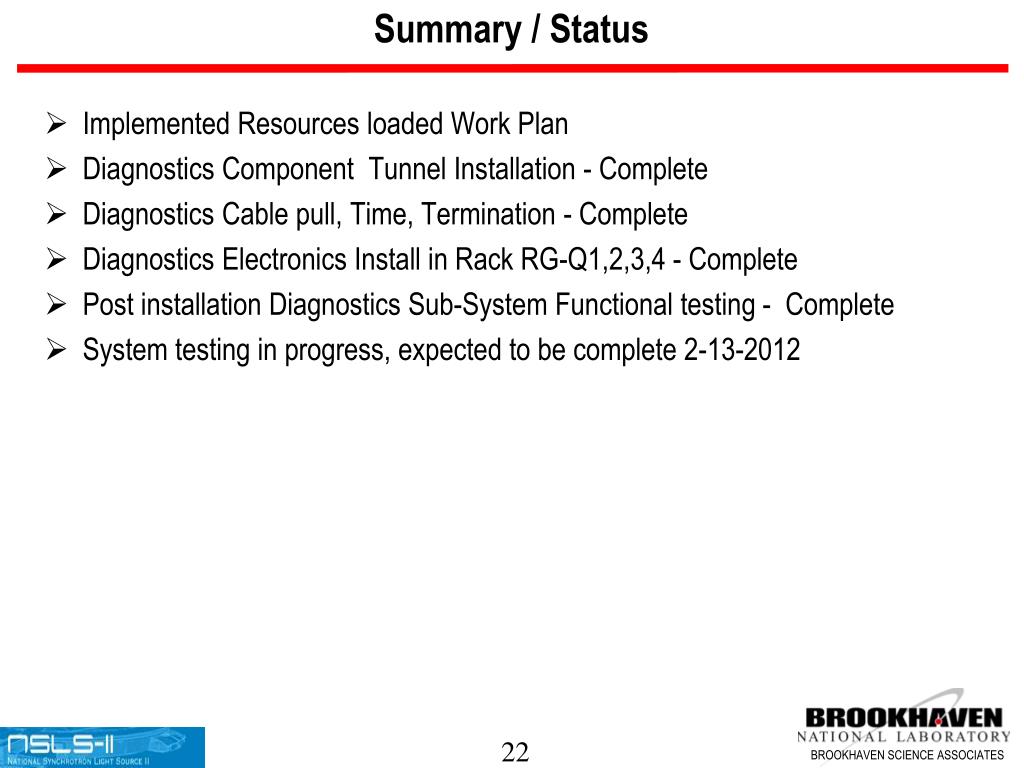

  22. Summary / Status • Implemented Resources loaded Work Plan • Diagnostics Component Tunnel Installation - Complete • Diagnostics Cable pull, Time, Termination - Complete • Diagnostics Electronics Install in Rack RG-Q1,2,3,4 - Complete • Post installation Diagnostics Sub-System Functional testing - Complete • System testing in progress, expected to be complete 2-13-2012
