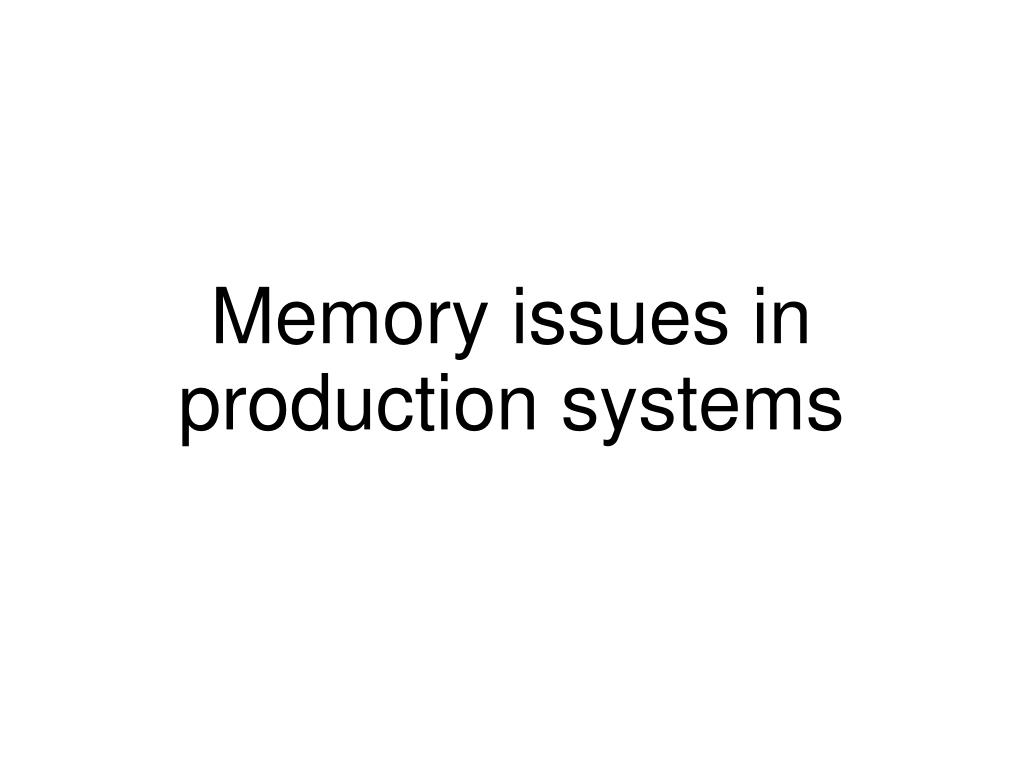

  1. Memory issues in production systems

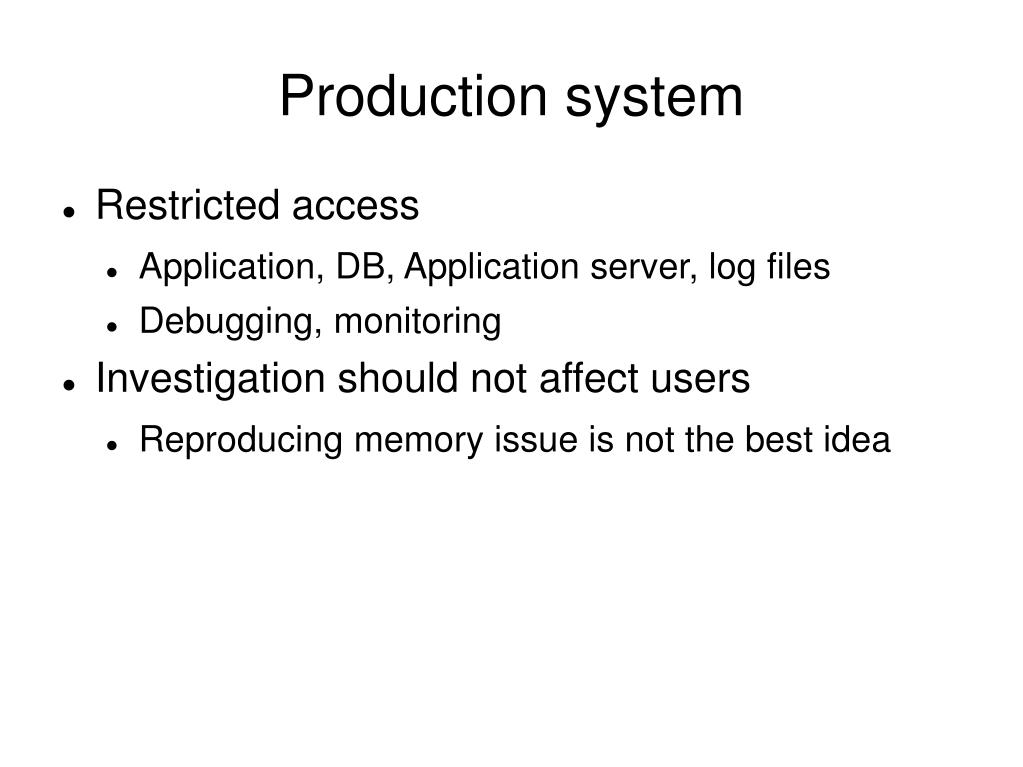

  2. Production system • Restricted access • Application, DB, Application server, log files • Debugging, monitoring • Investigation should not affect users • Reproducing memory issue is not the best idea

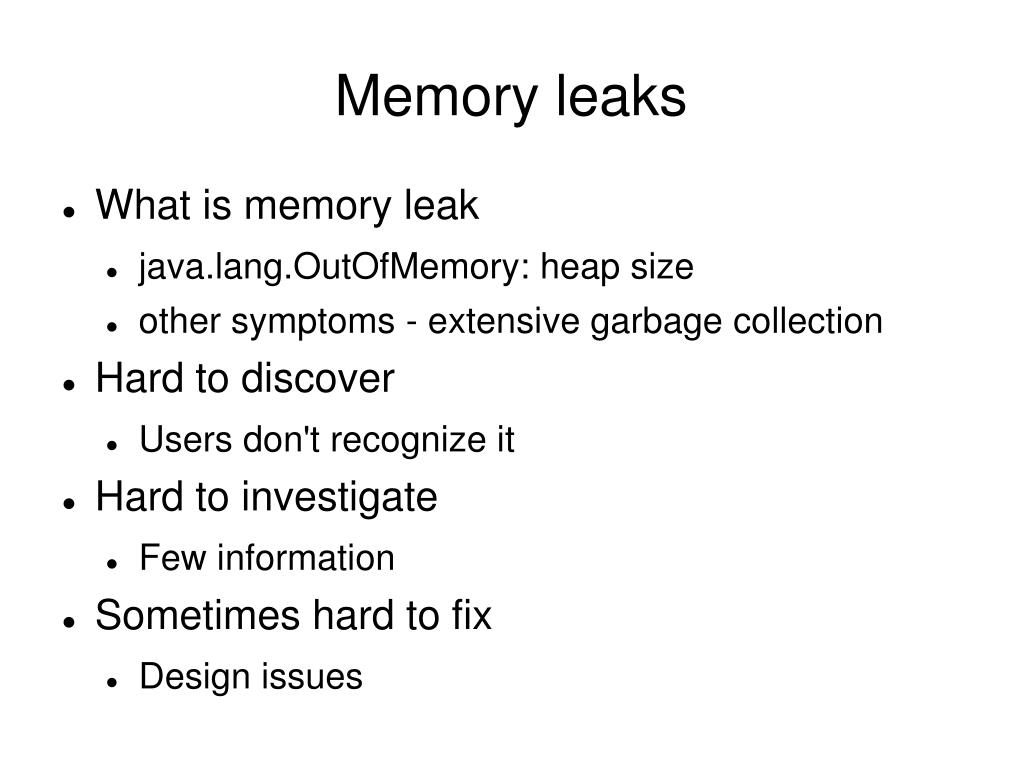

  3. Memory leaks • What is memory leak • java.lang.OutOfMemory: heap size • other symptoms - extensive garbage collection • Hard to discover • Users don't recognize it • Hard to investigate • Few information • Sometimes hard to fix • Design issues

  4. Investigation of memory issues • Log files • application logs, access logs, gc logs • Monitoring behavior of running application • JConsole • Heap dump Analysis • JHAT, MAT, Netbeans

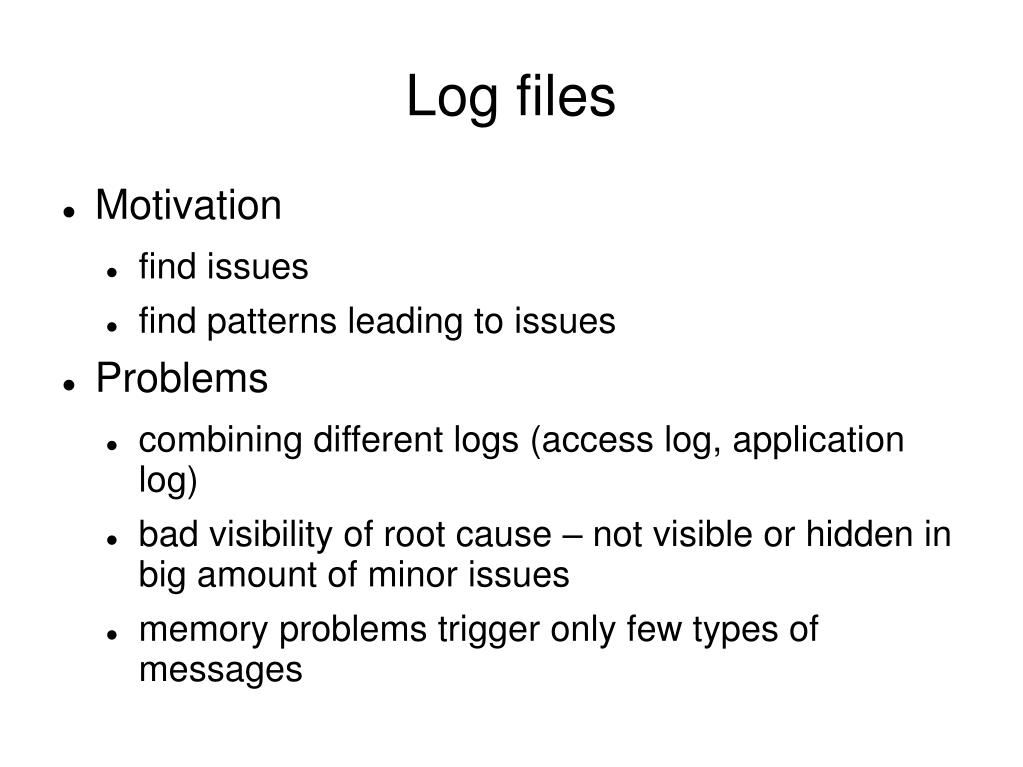

  5. Log files • Motivation • find issues • find patterns leading to issues • Problems • combining different logs (access log, application log) • bad visibility of root cause – not visible or hidden in big amount of minor issues • memory problems trigger only few types of messages

  6. Investigating log files • Application logs • Log free memory once per minute • Access logs • Analysis of traffic and business use cases • GC logs • Show problems with GC (stop the world)

  7. Monitoring via JMX • Tools • JConsole • Motivation • More information than in logs • Monitoring tests • Problems • Not always applicable on production system (security reasons) • Test might not cover all scenarios

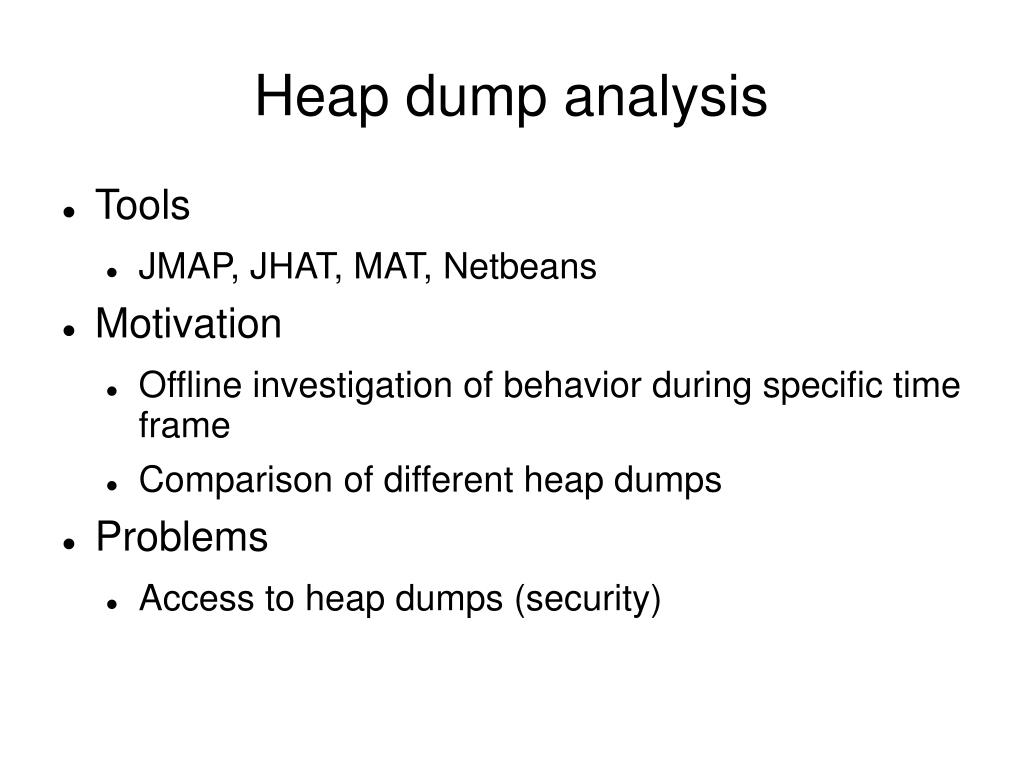

  8. Heap dump analysis • Tools • JMAP, JHAT, MAT, Netbeans • Motivation • Offline investigation of behavior during specific time frame • Comparison of different heap dumps • Problems • Access to heap dumps (security)

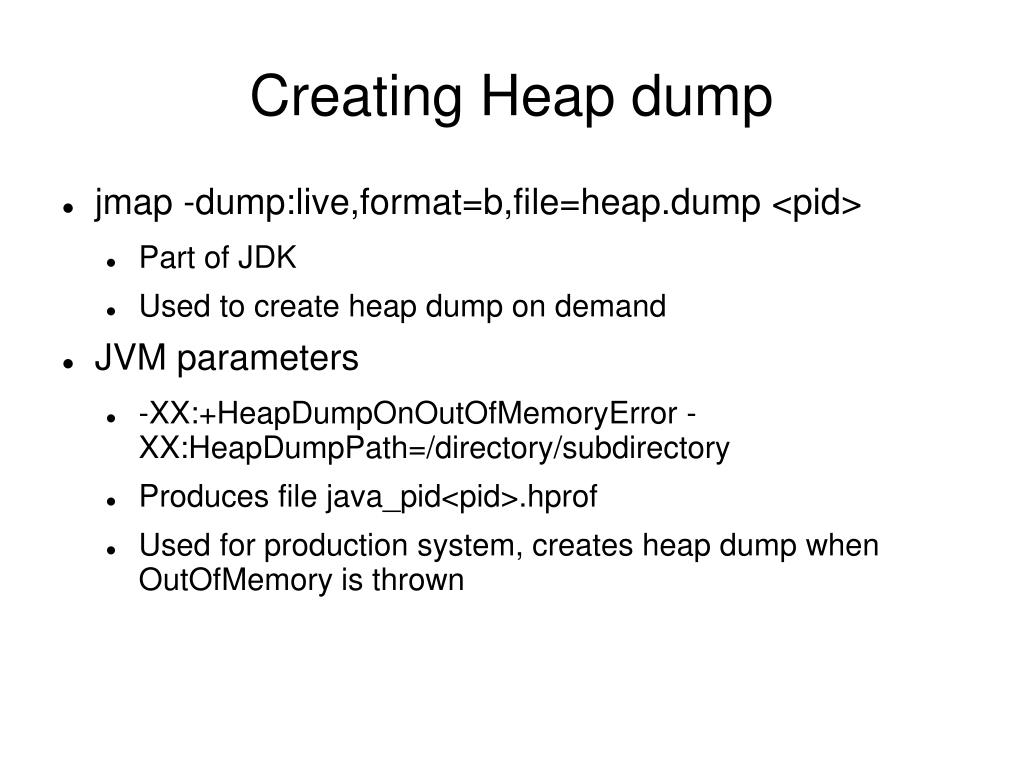

  9. Creating Heap dump • jmap -dump:live,format=b,file=heap.dump <pid> • Part of JDK • Used to create heap dump on demand • JVM parameters • -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/directory/subdirectory • Produces file java_pid<pid>.hprof • Used for production system, creates heap dump when OutOfMemory is thrown

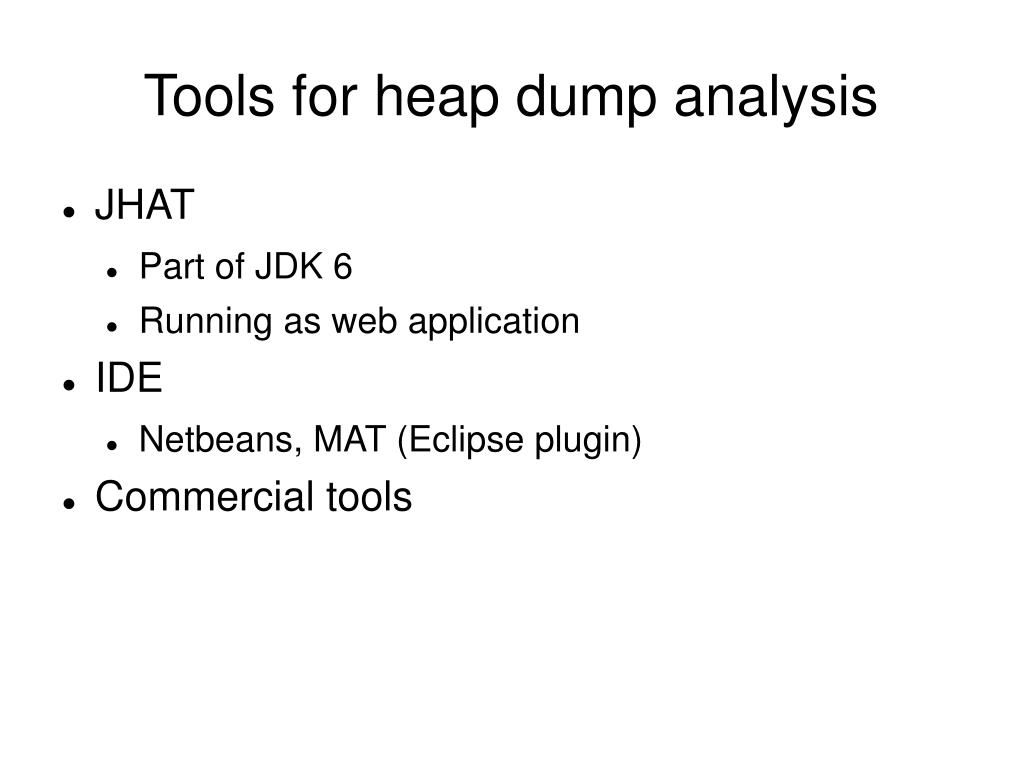

  10. Tools for heap dump analysis • JHAT • Part of JDK 6 • Running as web application • IDE • Netbeans, MAT (Eclipse plugin) • Commercial tools

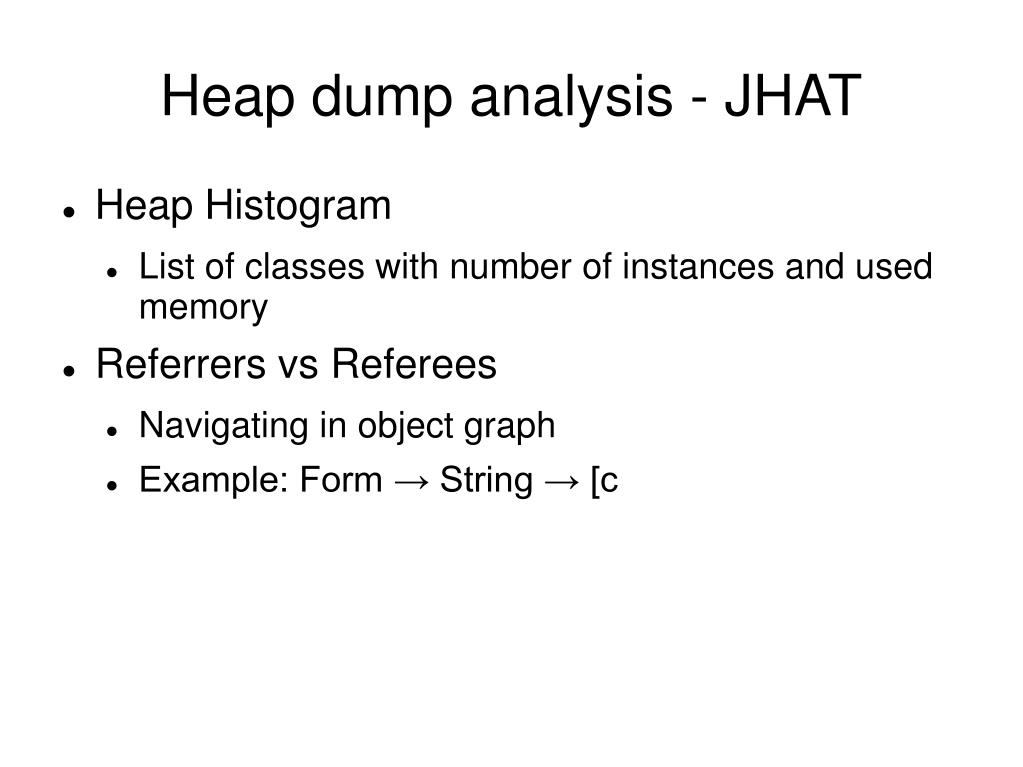

  11. Heap dump analysis - JHAT • Heap Histogram • List of classes with number of instances and used memory • Referrers vs Referees • Navigating in object graph • Example: Form → String → [c

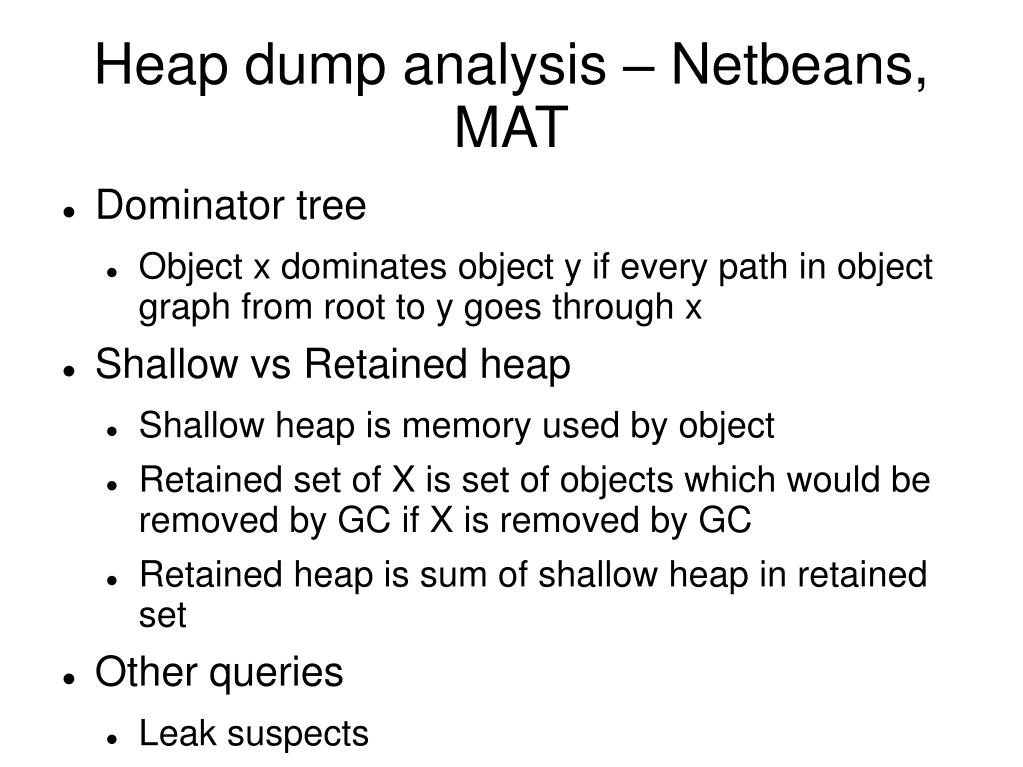

  12. Heap dump analysis – Netbeans, MAT • Dominator tree • Object x dominates object y if every path in object graph from root to y goes through x • Shallow vs Retained heap • Shallow heap is memory used by object • Retained set of X is set of objects which would be removed by GC if X is removed by GC • Retained heap is sum of shallow heap in retained set • Other queries • Leak suspects • Top consumers

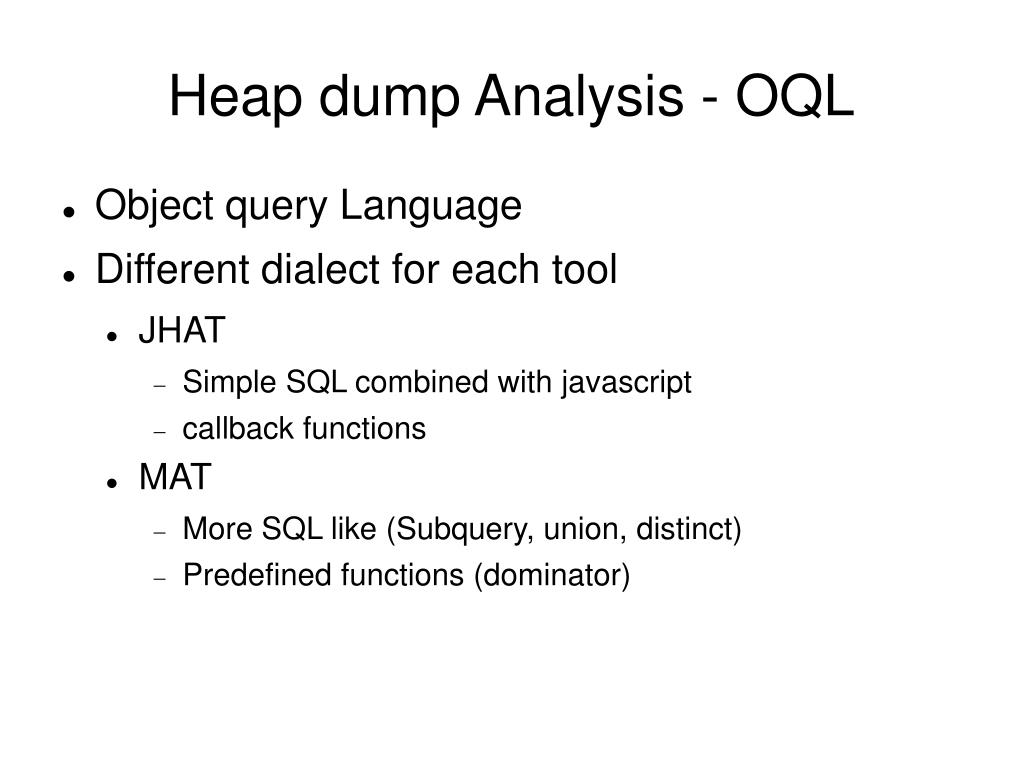

  13. Heap dump Analysis - OQL • Object query Language • Different dialect for each tool • JHAT • Simple SQL combined with javascript • callback functions • MAT • More SQL like (Subquery, union, distinct) • Predefined functions (dominator)

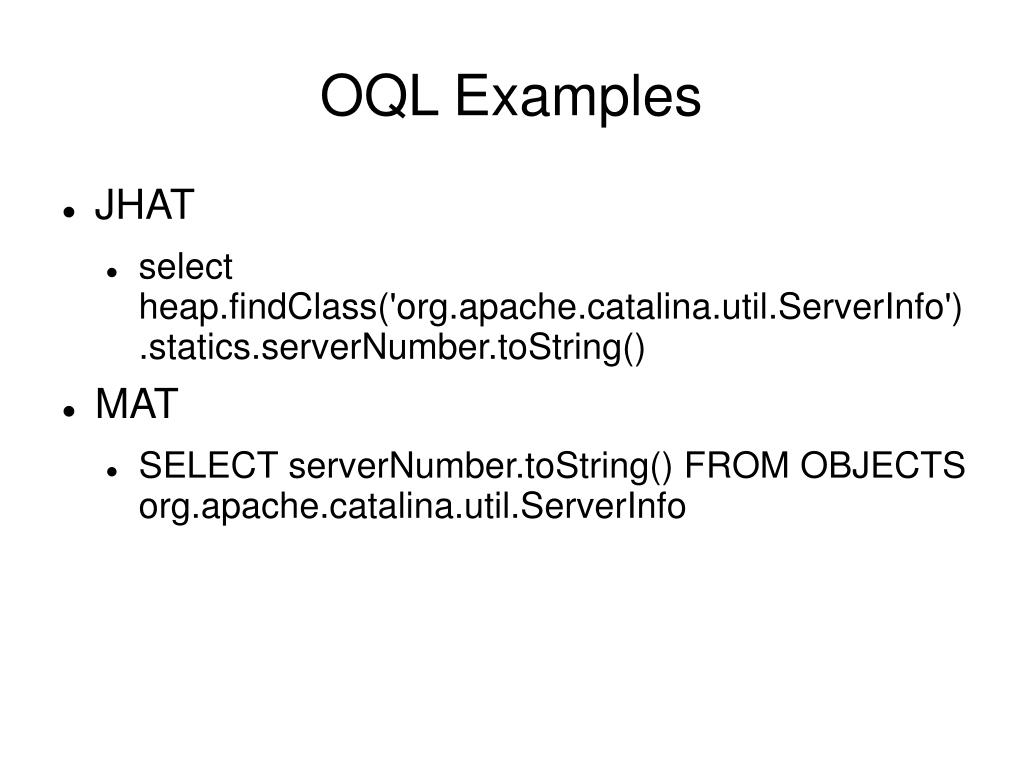

  14. OQL Examples • JHAT • select heap.findClass('org.apache.catalina.util.ServerInfo').statics.serverNumber.toString() • MAT • SELECT serverNumber.toString() FROM OBJECTS org.apache.catalina.util.ServerInfo

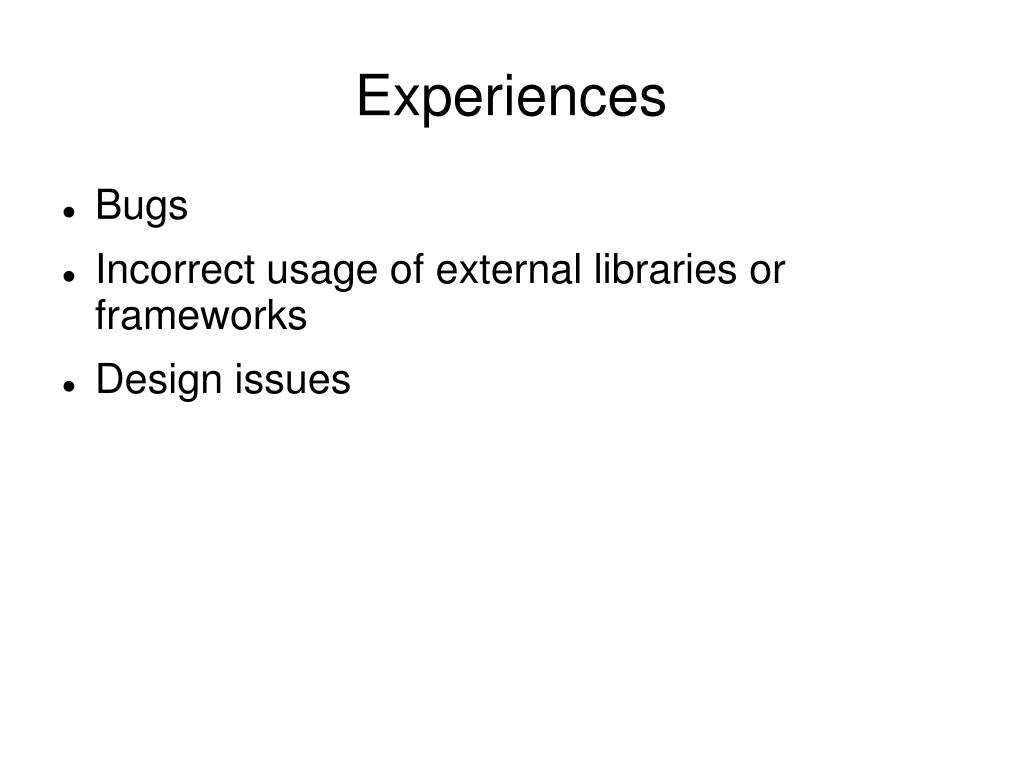

  15. Experiences • Bugs • Incorrect usage of external libraries or frameworks • Design issues

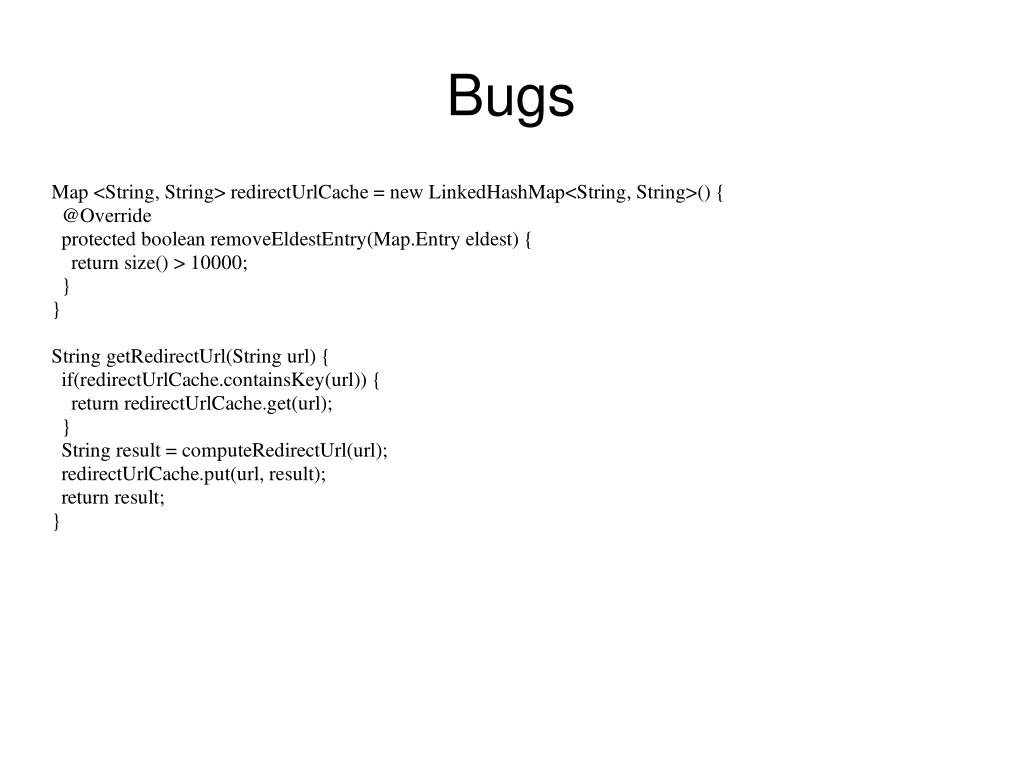

  16. Bugs

  17. Usage of frameworks • Hibernate • Short time usage of big amount of memory • Too big first level cache • Good understanding of framework is a must

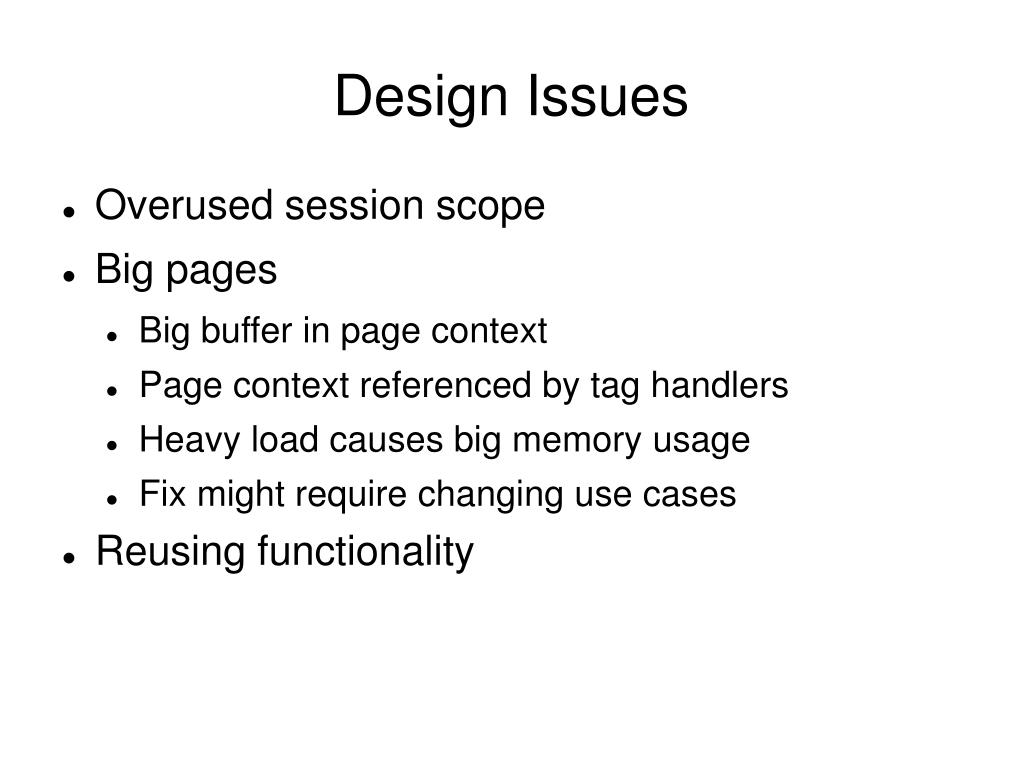

  18. Design Issues • Overused session scope • Big pages • Big buffer in page context • Page context referenced by tag handlers • Heavy load causes big memory usage • Fix might require changing use cases • Reusing functionality

  19. Interesting links • http://blogs.sun.com/sundararajan/entry/querying_java_heap_with_oql • OQL help for JHAT • http://www.eclipse.org/mat/downloads.php • Standalone MAT • www.google.com
