Diffusion. Diffusion coefficient: flux J = D(T) dC/dx D(T) = D o exp (-Q/RT) . For C diffusing in Fe: D(T) = 0.21 exp (-33.8/RT) = 6.7 x 10 -11 cm 2 /sec @ 500° C = 4 x 10 -7 cm 2 /sec @ 1000° C. Diffusion. For C diffusing in Fe: D(T) = 0.21 exp (-33.8/RT)

tejana
Download Presentation

Diffusion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

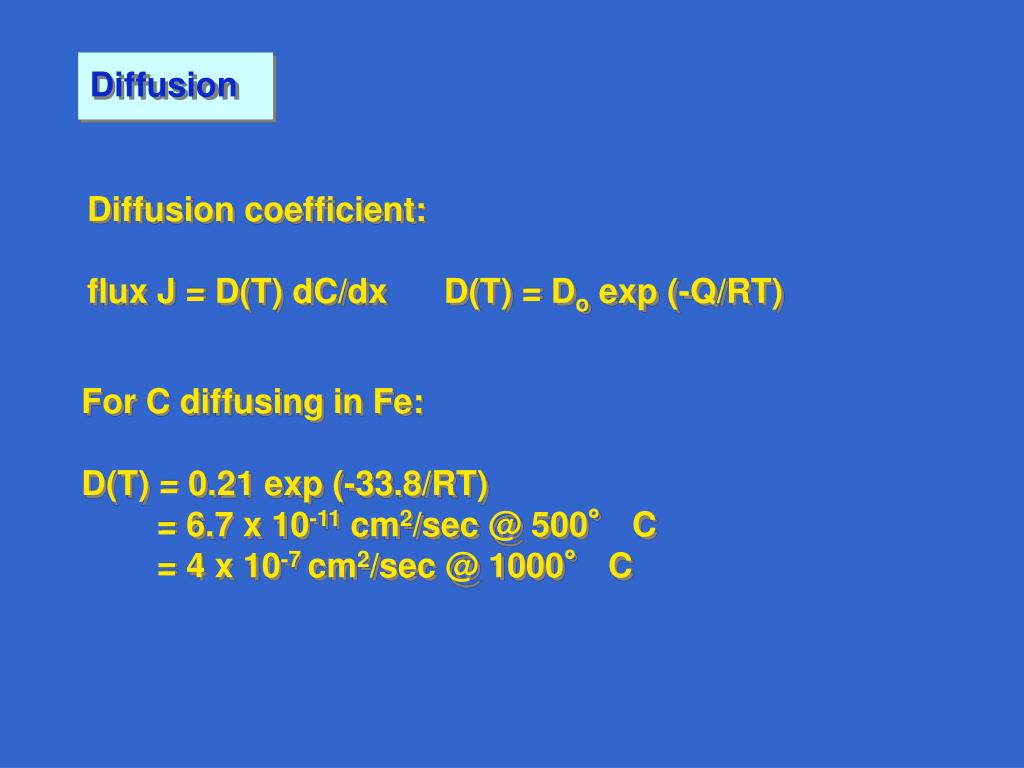

  1. Diffusion Diffusion coefficient: flux J = D(T) dC/dx D(T) = Do exp (-Q/RT) For C diffusing in Fe: D(T) = 0.21 exp (-33.8/RT) = 6.7 x 10-11 cm2/sec @ 500° C = 4 x 10-7 cm2/sec @ 1000° C

  2. Diffusion For C diffusing in Fe: D(T) = 0.21 exp (-33.8/RT) = 6.7 x 10-11 cm2/sec @ 500° C = 4 x 10-7 cm2/sec @ 1000° C Ex - carburizing a steel shaft: how long to carburize to depth of 1 mm x2 = D t D(1000° C) = 3 x 10-7 cm2/sec t = 10 hr D(1200° C) = 1.8 x 10-6 cm2/sec t = 1.5 hr

  3. The Fe-C system -iron -iron -iron

  4. The Fe-C system -iron - dissolves considerable carbon -iron - dissolves very little carbon

  5. The Fe-C system C forms interstitial solid solutions in Fe

  6. The Fe-C system (austenite) (austenite) (ferrite) These are the solid solution regions

  7. The Fe-C system (austenite) (ferrite) There is also a compound Fe3C (cementite)

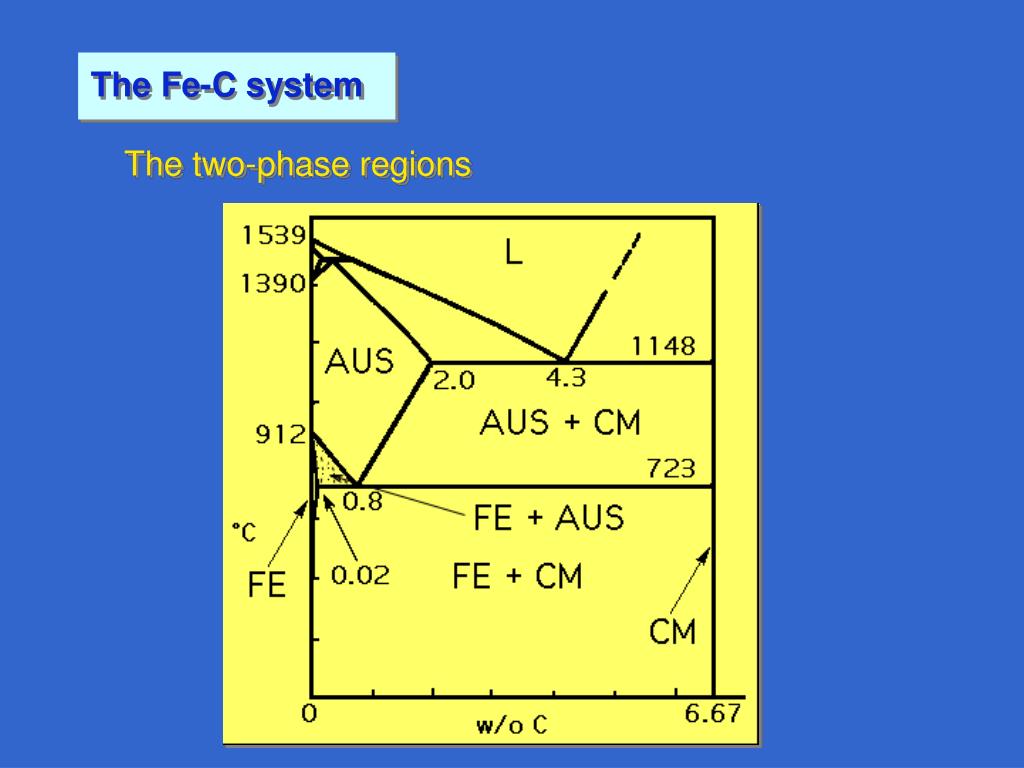

  8. The Fe-C system The two-phase regions

  9. The Fe-C system Pearlite

  10. The Fe-C system See time-temperature-transformation (TTT) curves Pearlite is two phases FE + CM Pearlite forms by diffusion - takes time diffusion rate high, Grxn low diffusion rate low, Grxn high

  11. The Fe-C system Proeutectoid FE starts to form Hypoeutectoid steels - cooling from AUS range

  12. The Fe-C system Hypoeutectoid steels - cooling from AUS range Eutectoid (P) forms

  13. The Fe-C system Hypoeutectoid steels - cooling from AUS range Proeutectoid FE + P
