  1. Composite Resin Developments LimitedIntroducesCompensators designed for Glass Reinforced Pipes

  2. CRD Innovation • For the Ship Owner • Operational Advantages • Compensates for differential movement between hull and pipes: • Compensates for different coefficients of expansion: • Reduces noise and fatigue failure: • Eliminates many “in service” failures • For the Ship Builder • Installation Advantages • Provides linear, angular and axial flexibility: • Delimits pipe run limitations: • Extends permissible dimensional tolerances: • Speeds construction – • Eliminates many budget overruns Compensators designed for Pipes Classification Society Type Approvals for Marine and Offshore Use

  3. Composite Resin Developments Ltd Compensator Range suitable for Marine, Offshore and Land Based Applications Drinking, cold, warm and waste water; sea water; ; Grey & Black Water, Ballast, Fire Mains; HVAC ERV Red Butyl/EPDM ERV Red NBR Petroleum based products, High Octane Fuel, contaminated sea water ERV Yellow ERV Yellow Steel NBR + Steel Reinforcement As yellow band – approved for use in machinery spaces Other materials available Viton, PTFE, and others Other materials Technical information on request Standard Size Range 1.0 in (25mm) – 12 in (300mm) Special compensators include circular up to 160 in (4000 mm); square; rectangular and square to circular configurations.

  4. Composite Resin Developments Ltd Moulded Flanges Standards: ANSI; DIN; ISO, BS and JIS By Composite Resin Developments Limited Using Proven High Performance reinforced Isotropic Epoxy Resin Systems  Outstanding Corrosion Resistance • Significant Weight Savings • Lower Costs

  5. Composite Resin Developments Ltd Standard Range Standard Bellows 25 mm – 1000 mm NB Full Bellow Range to 4,000 mm Tied Bellows 25 mm – 1000 mm NB Full Bellow Range to 4,000 mm

  6. Composite Resin Developments Ltd Standard Range Minimum - 30 mm - 30 mm - 30 mm - 40 mm - 40 mm Maximum + 30 mm + 30 mm +30 mm +35 mm +35 mm Lateral Offset +/- 20 mm +/- 20 mm +/- 20 mm +/- 20 mm +/- 20 mm Angular Rotation +/- 30° +/- 20° +/- 12° +/- 8° +/- 5° DN 25-80 DN 100-150 DN 200-300 DN 350-600 DN 700-1000 Configurations are available to provide greater angular rotation if required.

  7. Composite Resin Developments Ltd • Example of estimated service life for a one type of polymer/reinforcement combination. Similar information is available for all materials offered. 80 60 40 20 Service time in years ½ 1 2 3 4 5 6 7 8 9 10 15 20 Average insertion loss across frequency range Noise level reduction

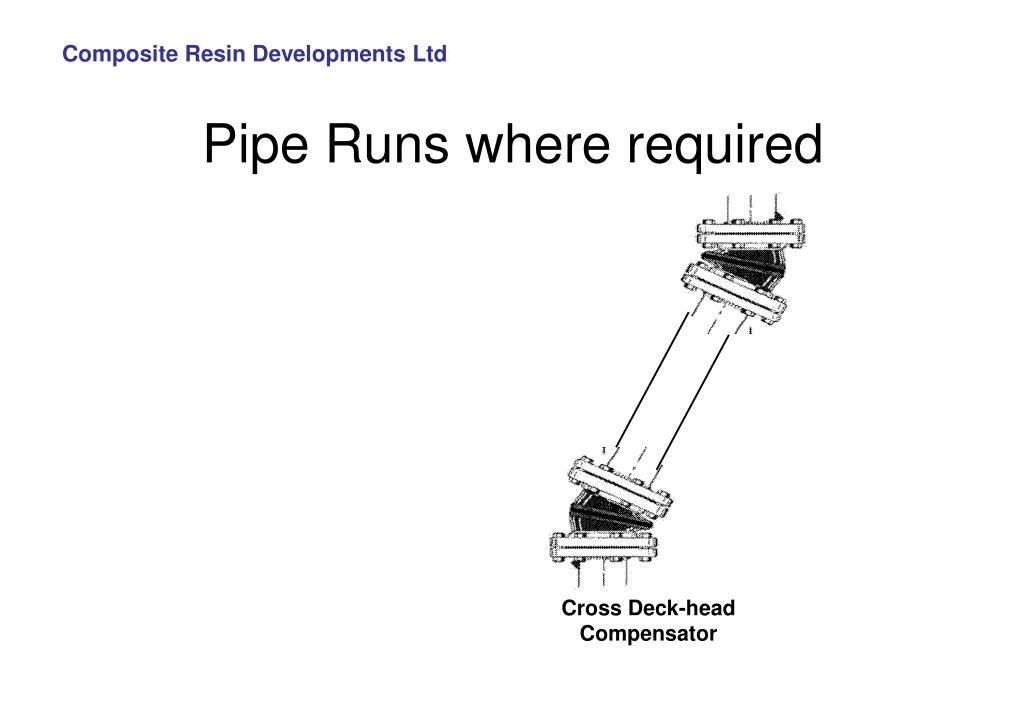

  8. Pipe Runs where required Composite Resin Developments Ltd Cross Deck-head Compensator

  9. Composite Resin Developments Ltd Special Developments Multi-arch compensators: For added linear; lateral offset and angular rotations. Composite Resin Developments LtdFuture Developments Stub Flanges for rapid pipe to flange connection

  10. Composite Resin Developments Ltd Wherever corrosion resistance and weight savings at economic costs are issues The Components Division ofComposite Resin Developments Limitedcan provide solutions – just contact Neil Huntley on +44.1843.223045 Unit J1G Channel Road, Westwood Industrial EstateMargate, CT9 4JS, EnglandT; +44.1843.223045 e-mail: neil@compresdev.co.uk, Web: www.compresdev.co.uk
