Mass Spectrometer Auto Sampler

Mass Spectrometer Auto Sampler. Kyle Sala Jake Ahrens Stephen Pearson Seth Yellin. Project Summary. Develop an auto sampling device to interface with a mass spectrometer Samples involve bacterial pathogens to be recognized and catalogued by the mass spectrometer. Where We’re At….

tomas
Download Presentation

Mass Spectrometer Auto Sampler

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

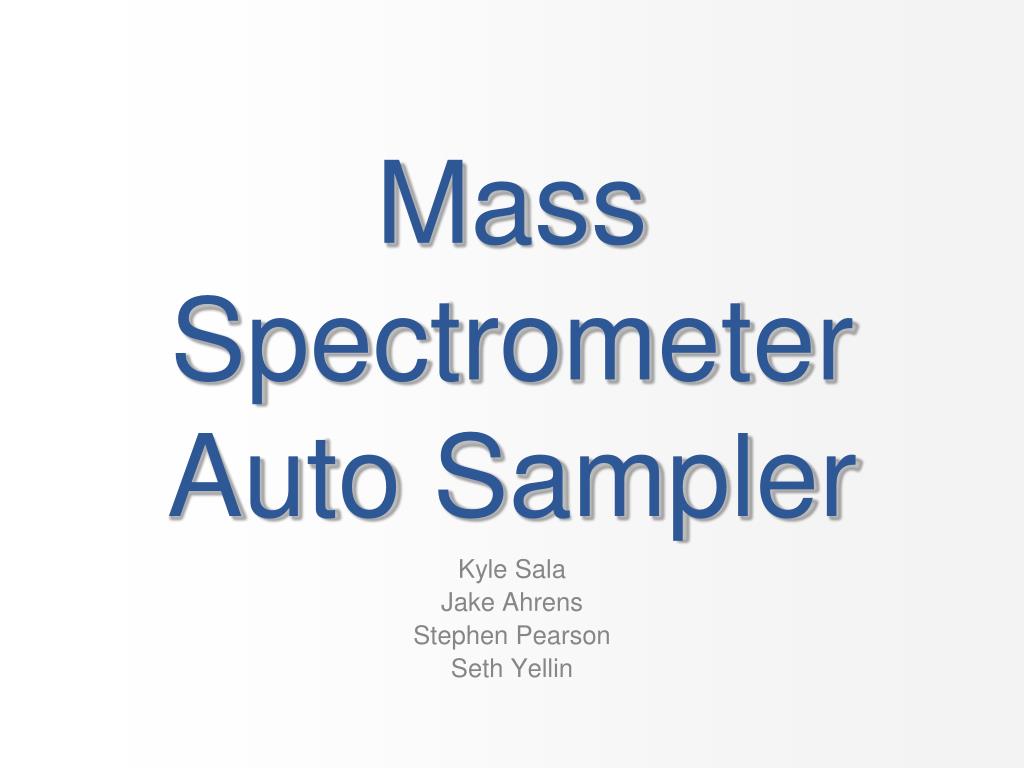

  1. Mass SpectrometerAuto Sampler Kyle Sala Jake Ahrens Stephen Pearson Seth Yellin

  2. Project Summary • Develop an auto sampling device to interface with a mass spectrometer • Samples involve bacterial pathogens to be recognized and catalogued by the mass spectrometer

  3. Where We’re At… • No Significant Design Changes • Valve System Construction • Solenoid Valves • Tubing • Incubator • Valve Code • Full interface capabilites with Mass Spectrometer will be left for future CS students • Magnetic Stirrer • As requested by our faculty advisor, is no longer a parameter of our project

  4. Valve System Construction…Previously… • Did not have all the parts (tubing, valves, connectors…) • Recently obtained the incubator • Temperature needs to stay constant in the samples in order to secure consistent readings • Had not begun construction

  5. Valve System Construction…Now… • Completed • Valves are mounted in the incubator and connected in series via tubing system • Bottles are prepped and ready to be filled with samples and incorporated into the system

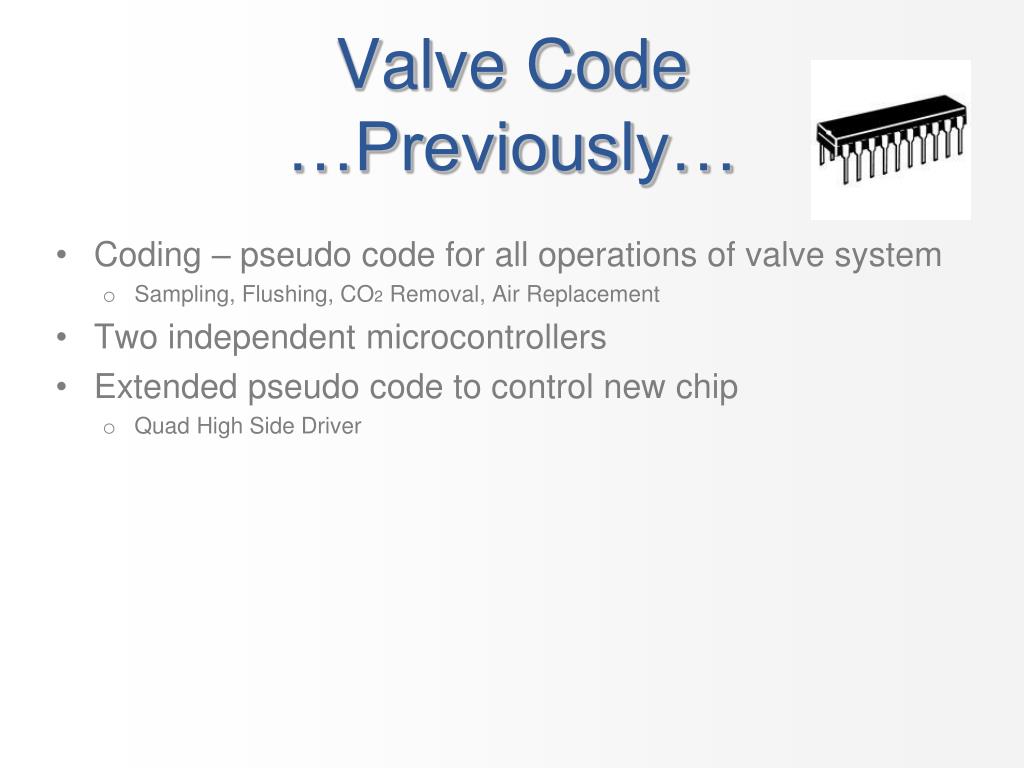

  6. Valve Code…Previously… • Coding – pseudo code for all operations of valve system • Sampling, Flushing, CO2 Removal, Air Replacement • Two independent microcontrollers • Extended pseudo code to control new chip • Quad High Side Driver

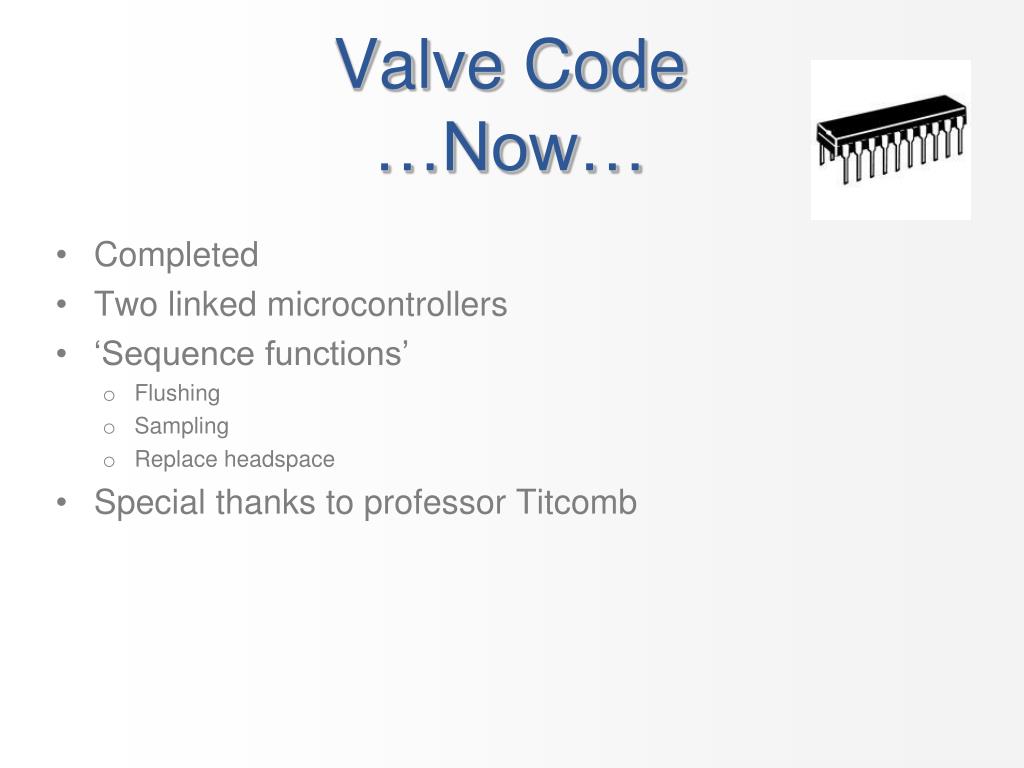

  7. Valve Code…Now… • Completed • Two linked microcontrollers • ‘Sequence functions’ • Flushing • Sampling • Replace headspace • Special thanks to professor Titcomb

  8. Testing • Valve system has to be air tight • Valves tested with pressure gauges in lab • Preview video on how our code operates the valves

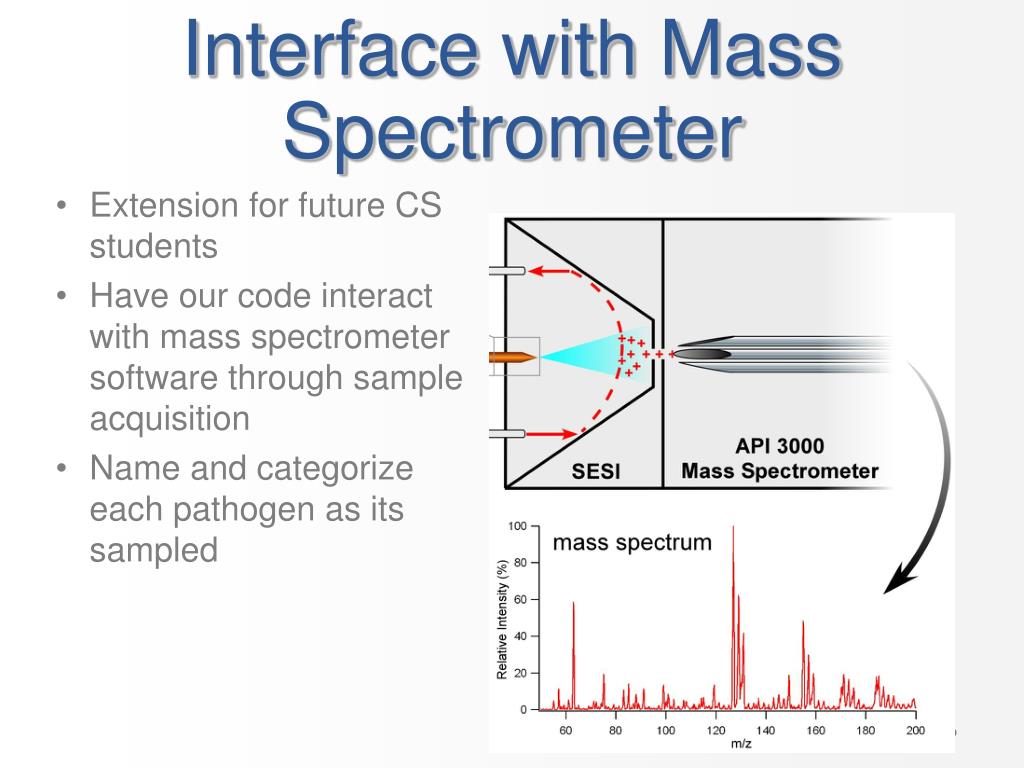

  9. Interface with Mass Spectrometer • Extension for future CS students • Have our code interactwith mass spectrometersoftware through sampleacquisition • Name and categorizeeach pathogen as itssampled

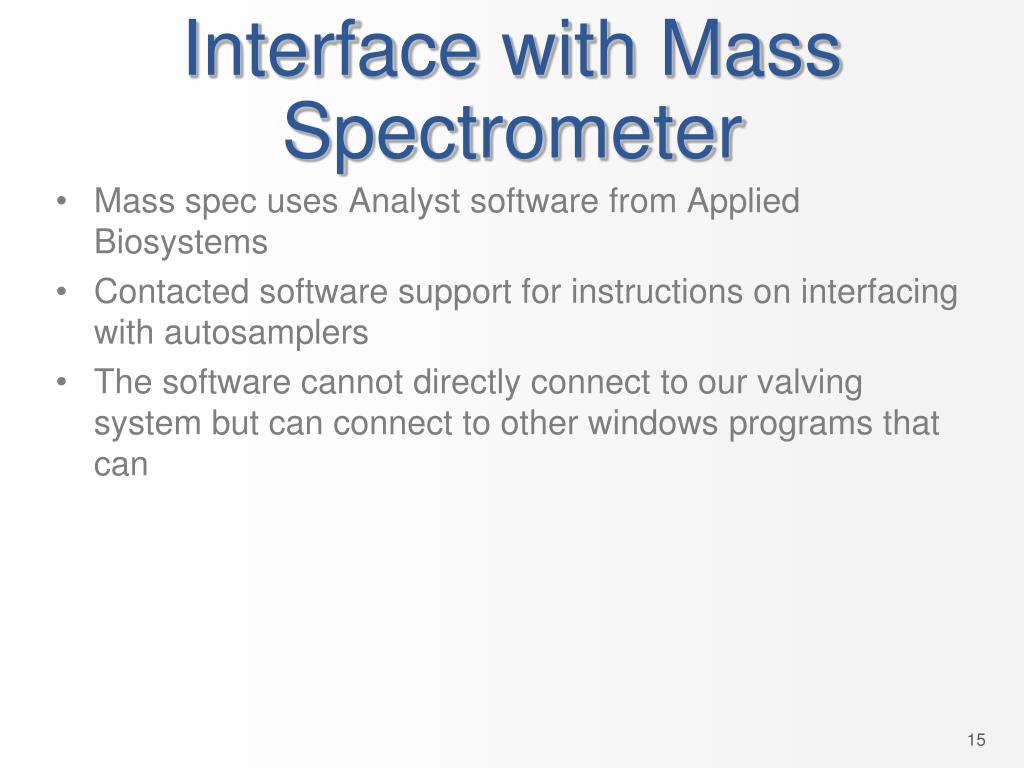

  10. Interface with Mass Spectrometer • Mass spec uses Analyst software from Applied Biosystems • Contacted software support for instructions on interfacing with autosamplers • The software cannot directly connect to our valving system but can connect to other windows programs that can

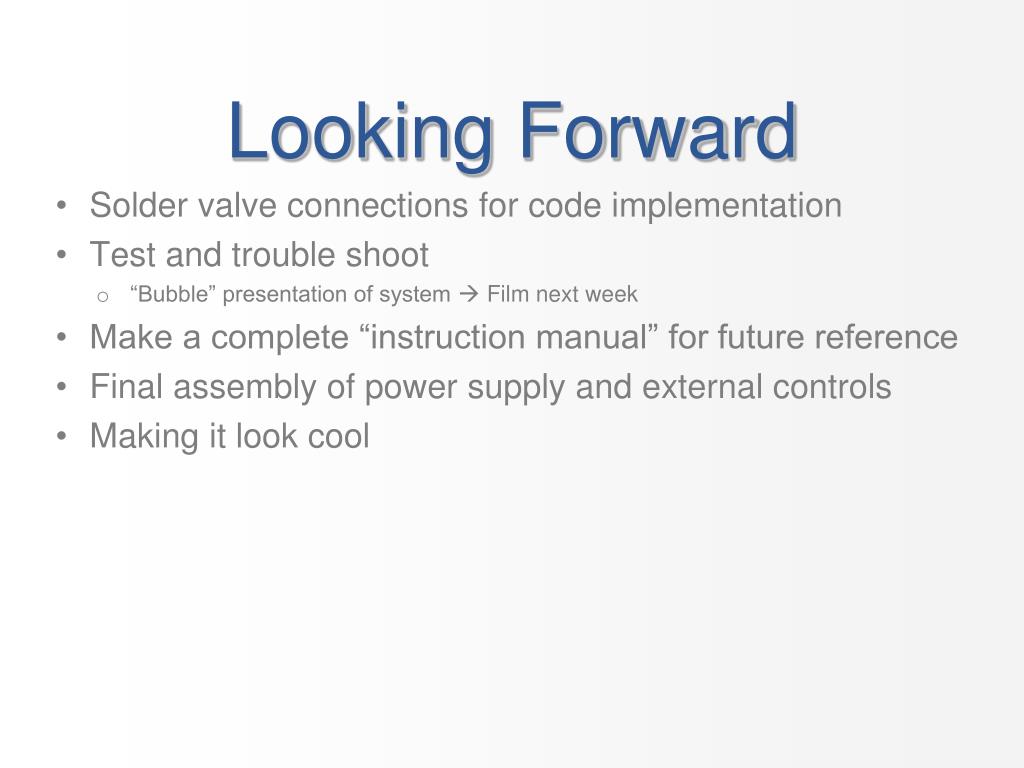

  11. Looking Forward • Solder valve connections for code implementation • Test and trouble shoot • “Bubble” presentation of system  Film next week • Make a complete “instruction manual” for future reference • Final assembly of power supply and external controls • Making it look cool

  12. Questions?
