  1. Id Technology Group Plc A working partnership

  2. Introduction Honeywell Key Personnel Product Offering Service Offering Commercial Offering Summary

  3. Company Structure

  4. A Global Security Business

  5. Security Business Structure New organisation combining ADI,Northern Computers, Ademco, Ademco International and Ademco Video into a single Global Security Business • New functional leaders • Provide support and guidance • Ensure transfer of good practice • Manage interface to/from Honeywell Clear single organisation without internal barriers

  6. Global CCTV Business Structure • A single Global CCTV business has been formed from the resources in VCL, Ultrak, Betatech and Rapideye. • Sales, Marketing Communications and Technical Support will be managed by designated channel in each country • This group will steer • Global sourcing • Product Development • Brand and Channel strategy • Manufacturing Strategy

  7. Honeywell International Security Group

  8. International Organisation • International Leadership group formed • Business will be run more as a single business in Europe • New CFO + Finance team based in Europe (Holland) • Microtech & Secom Integrated • VCL Strategic Marketing and Product development now part of CCTV business. • International Marketing Group now part of Ademco marketing. • Value Added Distribution with country managers retained. • New Eastern Europe Region planned to drive growth in region. • Access and CCTV stream Leaders to co-ordinate activities across Country Based organisations. • Pan European Sales Leader. International Leadership Team Members New single Product Development and Sales Group formed

  9. Location High Wycombe Runcorn

  10. VCL Site Map Total floor space 45k sq ft VCL Ops 15k sq ft VCL Office 10k sq ft VCL Dist 10k sq ft Ademco 10k sq ft Raw material Stores Manufacturing Repairs Ademco Distribution Warehouse VCL Distribution Warehouse VCL Design /Marketing / Finance / Sales Support Repairs

  11. Photographs Main Office Sales Office

  12. European Repairs • Factory • SMT • Board Assembly • Integration • Test • Kit Configuration

  13. Product Offering

  14. Video Systems Profile • Complete product offering • High Quality • Industry recognized product brands $188M Revenue Profile Strengths: Segments Domes manufactured Orbiter/RapidDome and KD5 and KD6 Systems (analog) manufactured MaxPro and VideoBloX Digital Components manufactured and sourced DVR’s (embedded and PC based), IP servers, encoders/decoder Analog Components sourced Cameras, lenses, quads, muxes, monitors, VCR’s, power supplies Full Line Video Surveillance and Security Supplier

  15. Global Engineering Org Chart Eng group spread across 6 geographical locations

  16. The vision of a leader • The Mathematics of Video Controls and AdemcoVideo: • High quality products • clear video images and high product integrity • Complete product range • products to suit all applications • Plug and play • simple and quick to install, saving time and money • Fair price with market leading features • the best price performer in every category Mid to high end spec

  17. Background • Product selection and procurement • PM’s US and UK • UK coordinate International requirements • Procurement • Product evaluation US and UK • 5 years in the market • In stock • Marketing communications - 7 languages • Literature • Web • Advertising • £10m United Kingdom and Europe UK centre of excellence

  18. Training • Training will be required on • Video servers • Transpac • VideoBloX (Betatech) • DVR’s • Microspheres/MaxCom • Product Managers and Training Manager Fully supported products

  19. Orbiter Gold & Orbiter Lite • Plug and play bayonet connection • like fitting a light bulb • Full range of mounting options • wall, ceiling, false ceiling, pole, corner, regent and vandal resistant • Colour, colour/mono ExView and colour/mono wide dynamic range options • Combined “twisted pair” (RS485 data) and “in coax” telemetry • Scaleable privacy zones • 28 on RapidDome Gold, 1 on RapidDome • Variable speed up to 400° per second with variable speed zoom lens down to 0.1° per second

  20. Orbiter Gold & Orbiter Lite • Compatible with VCL MaxCom and other leading control equipment • Remote reset • Home position - to home preset or tour • Range of lens options including 16, 18, 22 and 23x zoom • Up to 128 preset positions, 64 on RapidDome • Up to 4 programmable tours, 2 on RapidDome • 4 mimic tours, 2 on RapidDome - PTZF, 3 mins • 8 alarm inputs at the camera head, 4 on the RapidDome • 360° continuous rotation and 180° flip • 0.4 lux colour to 0.01 lux monochrome with frame integration • Better than 50dB signal to noise ratio • IP65 rating on external versions • 16 sector ID’s, 10 characters

  21. ADEMCO Video product portfolio • Systems & E series cameras • Lenses • Compact static domes • Monitors • VCRs • Transpac video transmission & storage • Housings • Multiplexers • Twisted pair transmission • Quads Full range

  22. E-series cameras • DSP processing • Mono 580TVL (0.2lux) and 400TVL (0.1lux) • Colour 490 TVL (1.0lux) and 330 TVL (1.5lux) • 1/3” Interline transfer CCD • Backlight compensation selectable on/off • Automatic electronic shutters for correct exposure with manual iris lens • Line lock synchronisation with phase adjustment • Back focus adjustment for simple adjustment and installation • Automatic gain control • Lens connections - Auto Iris (AI), Electronic Iris (EI) and Direct Drive (DD)

  23. Systems cameras • Twisted Pair video output (TPX) • Discrete Cosine Transfer switch (DCT) • AGC limit in low light reducing image data size • Backlight compensation - 8 window selectable (4 on MR colours) • DSP processing across range • Auto Iris (AI), Electronic Iris (EI) and Direct Drive (DD) lens connections • Peak White Inversion • Wide ranging power supply • LV 11 - 28VDC, 20 - 29VAC • Mains 98 - 260VAC 50/60Hz • Line lock with phase adjust • Automatic gain control • C or CS lens mount • 1/3” interline transfer CCD • HR mono 570TVL(0.1) • Colour 480 (0.7) and 330 (1.0) TVL

  24. Lenses • High quality precision glass optics - Japanese origin • Low F.stop - exceptional light gathering ability • Manual and direct drive auto iris options available • Fixed and varifocal options available • All lenses are 1/3” CS mount format compatible with all ADEMCO Video cameras and most other leading CCD camera brands • Lightweight and durable

  25. Indoor, static 2” and 3” domes • DSP colour or monochrome • Distortion free acrylic • 3” = integral 4.0 – 9.0mm varifocal lens • Auto gain control • Backlight compensation • Ceiling or wall mount • Compact and unobtrusive for installation in almost any indoor environment • Built in flickerless mode • Manual pan, tilt, 360° rotation mechanism • 2” dome - 12VDC • 3” dome - 12VDC/24VAC

  26. AD4V range VR domes • HR Colour & mono varifocal options • MR Colour & mono fixed lens options • All units surface & flush mount • Tough polycarbonate hemisphere • Cast aluminium case, with 11mm glass fibre backbox 12vdc/24Vac Hermetically sealed IP66 Screw or flying lead connections 4-9mm DD lens on varifocal units Threaded for 25mm conduit.

  27. Camera housings • Hands free camera/lens installation and maintenance • Integral scratch resistant polycarbonate window • IP66 rated • Extruded aluminium body - durable and light weight • Suitable for indoor and outdoor applications • Power requirement options available - 12VDC/24VAC, 110-240VAC • Standard or cable managed mounting options • Available with optional sunshield, heater, blower, thermostat and air filter • Suitable for use with all ADEMCO camera and lens combinations id Technology Group Plc Screen Printed housings and Pre Built Teams

  28. Monitors • Tough and durable metal cabinet • Wide range power supply • Front panel controls • Monochrome monitors • 9”, 12” (800TVL), 17” and 20” (900TVL) CCIR / EIA • 90 - 264VAC • Audio 17” and 20” • Colour monitors • 9” and 10” (300TVL), 14” (400TVL), 17” (700TVL) and 21” (450TVL) PAL / NTSC • Dual composite input • Audio • OSD 17” and 20”

  29. Time-lapse VCRs - 24 and 240 hour • AVR24TLAX and AVR240TLAX • Jog / shuttle ring for easy search during playback • Mode selectable timer • 3 speed 24 hr - 3, 12, 24 • 9 speed 240 hr - 3, 12, 24, 48, 72, 120, 168 and 240 • Audio recording in 3, 12 & 24 hour modes • Auto head-cleaning mechanism • Many other standard VCR features

  30. Quad processors • Real time refresh rates • Full screen or quad views • On Screen Display (OSD) • Available in colour and monochrome version • Programmable dwell times • Sequencing of both full screen or quad images

  31. Structured cabling - NVT • ADEMCO Video total compatibility • Range using Cat 5 cable • Distances • passive to passive = 300m • passive Tx to active Rx = 1000m • active Tx to active Rx = 1600m • Passive video transceivers • non amplified or no power • ATP212 - single channel transceiver (150m) • ATP213A - single channel transceiver (built into M/S) • ATP1613A - 16 channel transceiver • Active video receivers and transmitters • amplified or powered • ATP652R - single channel receiver • ATP1662R - 16 channel receiver • ATP653T - single channel transmitter

  32. Why choose NVT? • Costs less per signal than coax or fibre • Colour-coded cabling is easy to identify • Smaller than coax, takes up less space and saves on containment costs • Easy to install and terminate, simple terminations save time and money • Existing cable infrastructure can be used • Easily expanded - cameras can be added quickly and at a lower cost • Transient protection built-in - eliminates voltage-spike problems • Ground lifting ensures no annoying “hum-bars” when ground potential differences exist

  33. NVT cabling cost comparison

  34. Transpac • Digital Video Storage and Transmission System • remote monitoring, control and management of CCTV installations • bundled PC Supervisor software • Picture editing - PhotoLab image processing • Digital watermarking (encryption) secures all recorded images against unauthorised change (“chained finger printing”) • Easy set up of remote sites with QuickAdd tool • Live and recorded video reception and management • Visual Alarm Verification (VAV) dial on event • to comply with ACPO policy • Log for archived event records • Simultaneous recording and transmission • Communication types: PSTN, ISDN, GSM or TCP/IP

  35. Multiplexers • 4, 9 and 16 input duplex • 1 main, 4 spot monitor outputs • Advanced vector based motion detection - sequential 2 grids • Multilingual on screen set up menus - mouse controlled • S-VHS VCR connections and main monitor output • Comprehensive multi-screen displays • Mouse control • Easily integrated into MaxCom system • 32x digital zoom • 256 event alarm history • Password protection • Rack mountable

  36. Ademco Video SystemsEmbedded DVRs

  37. Common Features • VCR style interface and graphical menus • Jog / shuttle playback • pause, x0.5, x1, x2, x4 forward and backward play speeds • Simplex up to 50 ips - duplex at up to 25 ips • Image archiving to USB HDD and CDRW or across network • Small image data size • approx 1/3 that of competitors • PC review of archived images - executable files (encrypted) • Password protected menus and keyboard lockout • Direct printing of images via printer port

  38. AHDR1X • Hi End VCR replacement • AHDR1X – 40 GB removable HDD • 40GB, 80GB & 120GB additional HDD available • Complements AX mux range • IRAS s/w allows viewing of all connected cameras for live & playback across network • Series recording • Schedulable recording • S-VHS connections

  39. AHDR4, 9, 16X • AHDR4, 9, &16X multiple drive options • 80GB, 160GB & 320GB • Integrated mux • TCPIP / modem support • Pre / Post alarm recording • VMD • 2 recording schedules • Configurable & upgradeable via IRAS s/w • Powerful search options • Fully programmable alarm handling with schedules • 4 configurable alarm outputs

  40. Storage times • Recording times based on 80Gb HDD in DAYS • Resolution Low Std High V high • Analogue equivalent VHS S-VHS • Image size 2Kb 4Kb 8Kb 12Kb • 50ips 9.3 4.6 2.3 1.5 • 25ips 18.5 9.3 4.6 3.1 • 12.5ips 37 18.5 9.3 6.2 • 5ips 92.6 46.3 23.1 15.4 • 1ips 463 231 116 77 • 320 Gb available = 2 mths at v high res

  41. AKJX8A Keyboards • Control of multi-channel AHDR or AX multiplexers • Control of VCL domes • Daisy chain keyboards

  42. Features • Ultimate scalability - from 16/8 to 4080x256+ • Compatible with 3rd part telemetry • Economic upgrade solution • Proven applications • Casinos world-wide • Stadiums • US border schemes • Casino Niagara • Video and audio switching

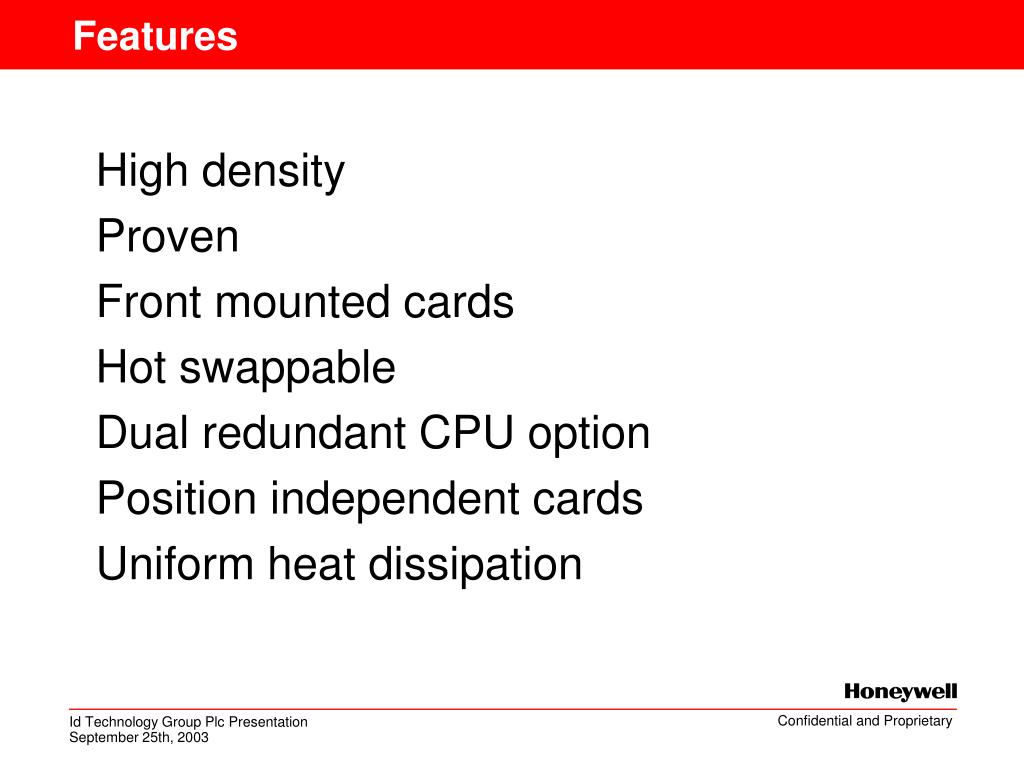

  43. Features • High density • Proven • Front mounted cards • Hot swappable • Dual redundant CPU option • Position independent cards • Uniform heat dissipation

  44. ADEMCO Video • Key Summary of Benefits • Wide range of products • Best price and performance • New products • Investment in testing and product evaluation

  45. Product Evaluation and Test Suite Our investment in quality

  46. What is it for? • To provide scientific, repeatable test conditions • To test CCTV equipment for: • Specification compliance • EMC compliance • Performance • Compatibility with other products • Application suitability • Provide feedback to drive supplier quality • Benchmarking equipment

  47. Performance Testing

  48. Performance Testing
