1. An Integrated Source Transcoding and Congestion Control Paradigm for Video Streaming in the Internet Proposed by R. Puri, K.W. Lee, K. Ramchandran and V. Bharghavan Presented by Felix

2. Agenda • Introduction • LIMD/H Congestion Control • MD-FEC Transcoder • Performance Summary • Discussion

3. Introduction • More and more video traffic are using best-effort and unreliable channel service (eg. UDP) because of its low delay feature • Explicit TCP-friendly Congestion Control policy is required to achieve fairness with other TCP flows

4. Introduction • Two questions: • How to control the transmission rate? • How to control the video source to adapt to the transmission rate?

5. LIMD/H Congestion Control • LIMD (Linear Increase Multiplicative Decrease) • r : sending rate • f : fraction of packet loss in the last period • If f = 0, r  r + a • If f > 0, r  r * (1-b) • Typically, (a, b) = (1, 0.5)

6. LIMD/H Congestion Control • Problems of traditional LIMD • React identically and aggressively to any kind of packet loss, both congestion induced and non-congestion induced. • Even if the channel bandwidth is invariant, the sending rate fluctuates greatly

7. LIMD/H Congestion Control • LIMD/H (LIMD with History) • h : a history factor • If f = 0, r  r + a, and h  1 • If f > 0, r  r *(1 – b’*h), and h  2h • b’ should be small to reduce the variation of sending rate

8. LIMD/H Congestion Control

9. MD-FEC Transcoder • Layered or Multi-Resolution (MR) source coding is a common coding method to provide quality/bit-rate scalability Raw Video Stream Base Layer Multiresolution (MR) Source Coder Enhancement Layer 1 Enhancement Layer 2 . . Enhancement Layer N

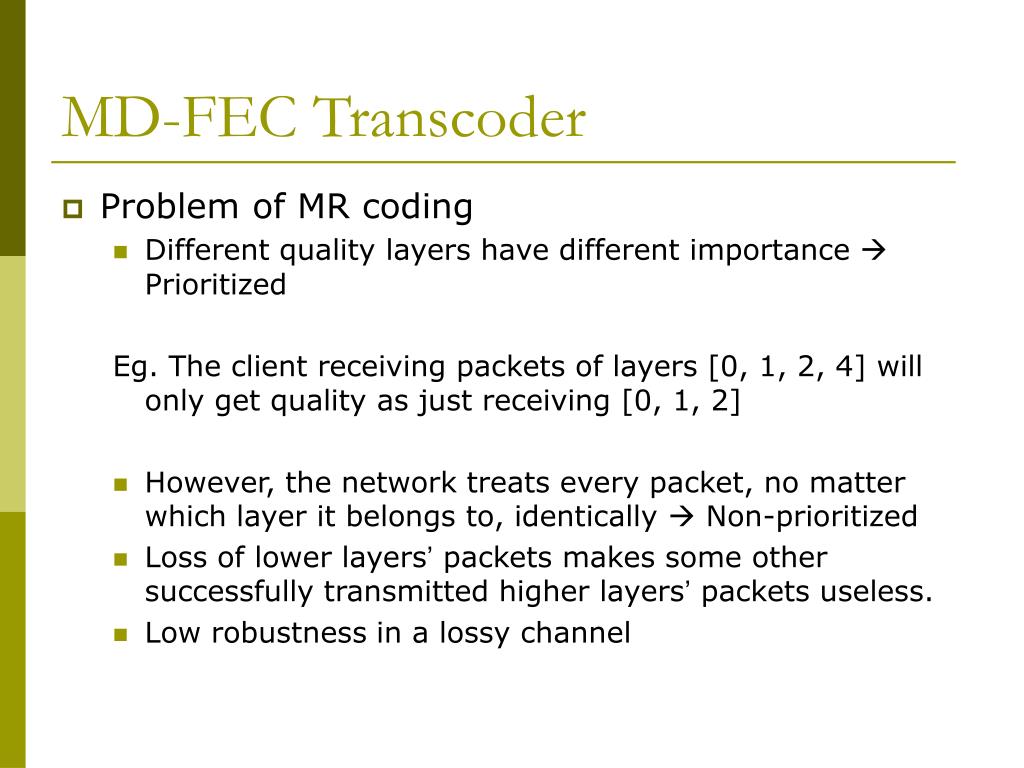

10. MD-FEC Transcoder • Problem of MR coding • Different quality layers have different importance  Prioritized Eg. The client receiving packets of layers [0, 1, 2, 4] will only get quality as just receiving [0, 1, 2] • However, the network treats every packet, no matter which layer it belongs to, identically  Non-prioritized • Loss of lower layers’ packets makes some other successfully transmitted higher layers’ packets useless. • Low robustness in a lossy channel

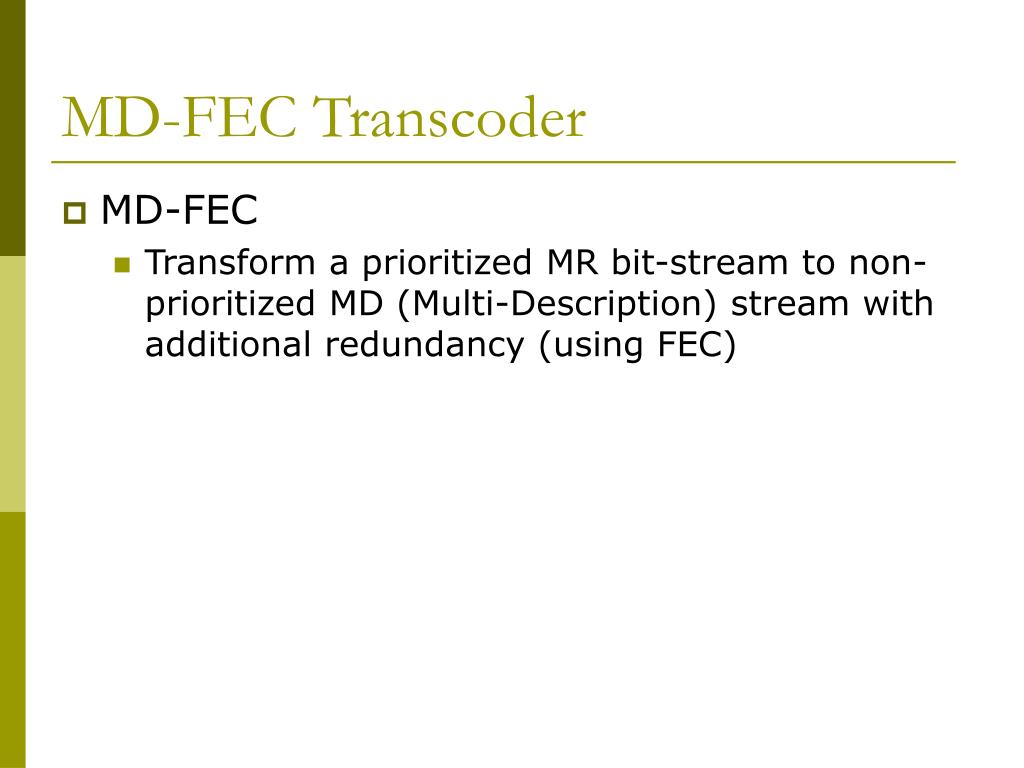

11. MD-FEC Transcoder • MD-FEC • Transform a prioritized MR bit-stream to non-prioritized MD (Multi-Description) stream with additional redundancy (using FEC)

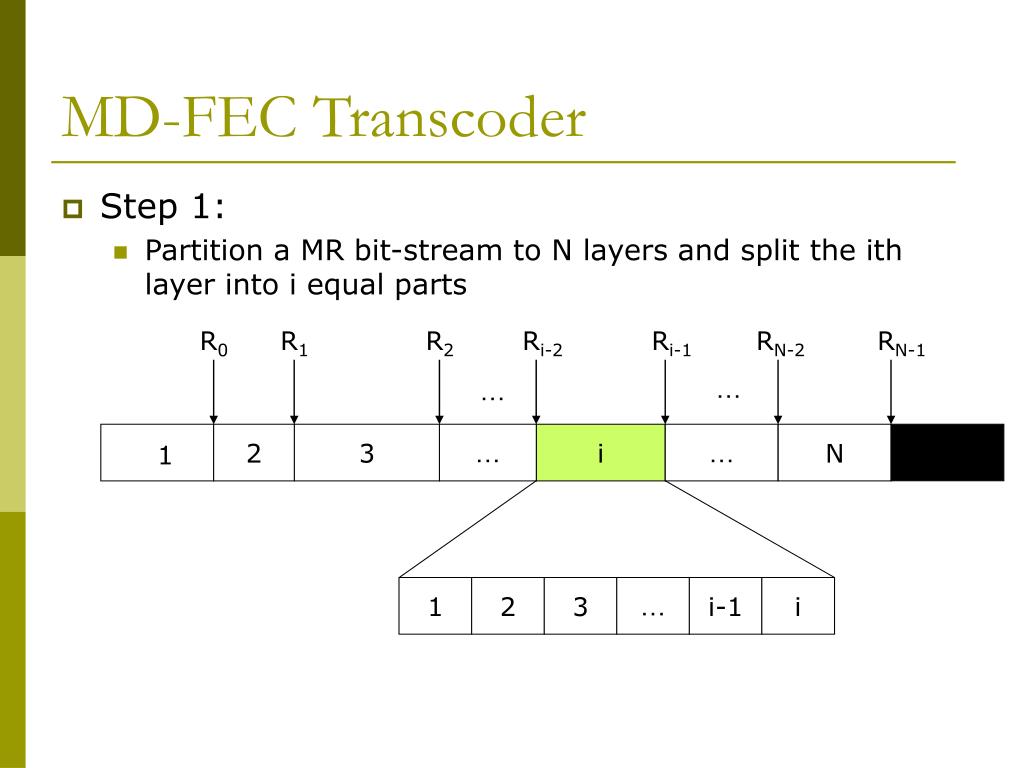

12. MD-FEC Transcoder • Step 1: • Partition a MR bit-stream to N layers and split the ith layer into i equal parts R0 R1 R2 Ri-2 Ri-1 RN-2 RN-1 … … 2 3 … i … N 1 1 2 3 … i-1 i

13. MD-FEC Transcoder • Step 2: • Adopt (N, i, N-i+1) Reed-Solomon code to the ith layer and form N packets as follows: 1 2 … i … N Packet 1 FEC 2 … i … N Packet 2 . . . FEC FEC … i … N Packet i FEC FEC … FEC … N Packet i+1 . . . FEC FEC … FEC … N Packet N

14. MD-FEC Transcoder • Optimization on Ri, i=0…N • Notations: • qi(N) : probability that i+1 out of N packets are delivered to the destination • D(r) : Distortion function of rate r Distortion … Rate … R0 R1 Ri RN-1

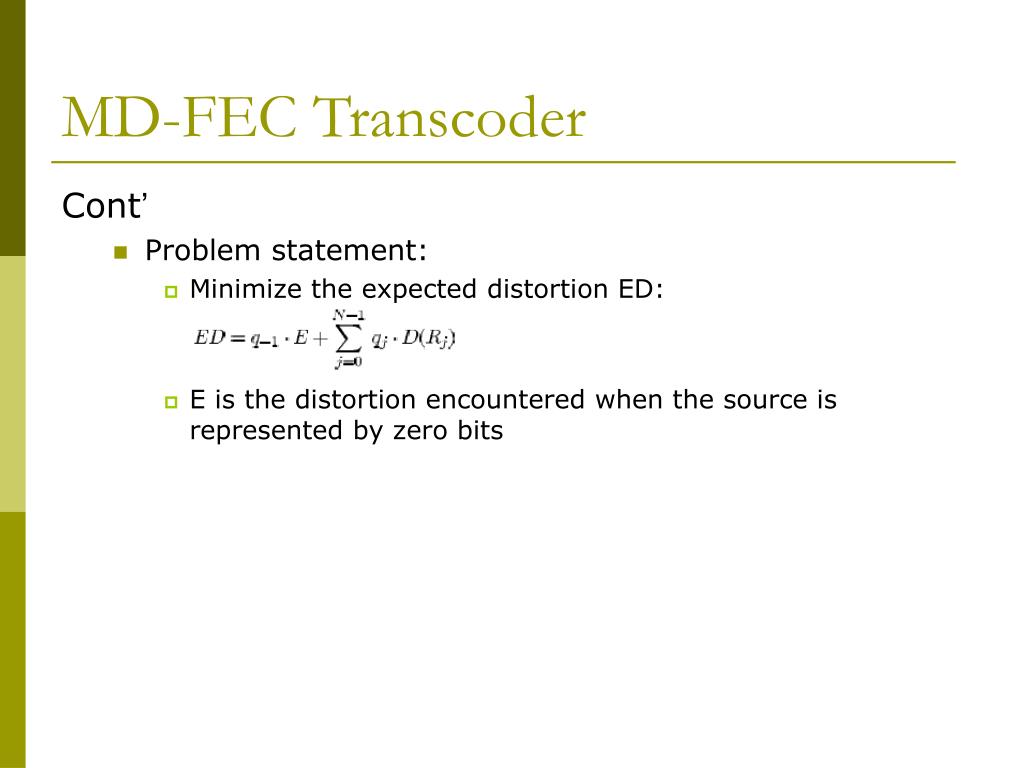

15. MD-FEC Transcoder Cont’ • Problem statement: • Minimize the expected distortion ED: • E is the distortion encountered when the source is represented by zero bits

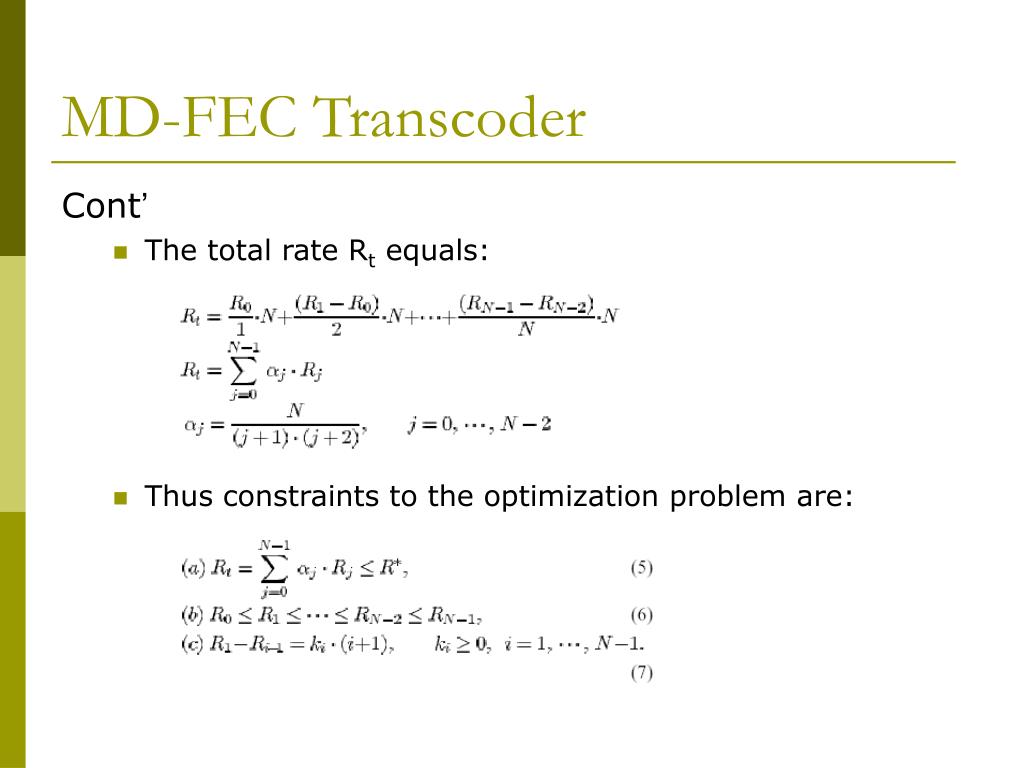

16. MD-FEC Transcoder Cont’ • The total rate Rt equals: • Thus constraints to the optimization problem are:

17. Performance Summary • Simulations have been done to show the variation of sending rate and PSNR upon variation in network capacity and random losses • MD-FEC can maintain a smooth PSNR • LIMD/H can adapt to the variation of network bandwidth quickly while reducing the rate fluctuation induced by random losses and channel probing

18. Discussion • The MD-FEC is a novel technique to add robustness to many layer coding schemes • LIMD/H congestion control mechanism can provide low variation in transmission rate while guaranteeing inter-traffic fairness • However, the delay caused by explicit end-to-end feedback and FEC operations may affect the performance of the system
