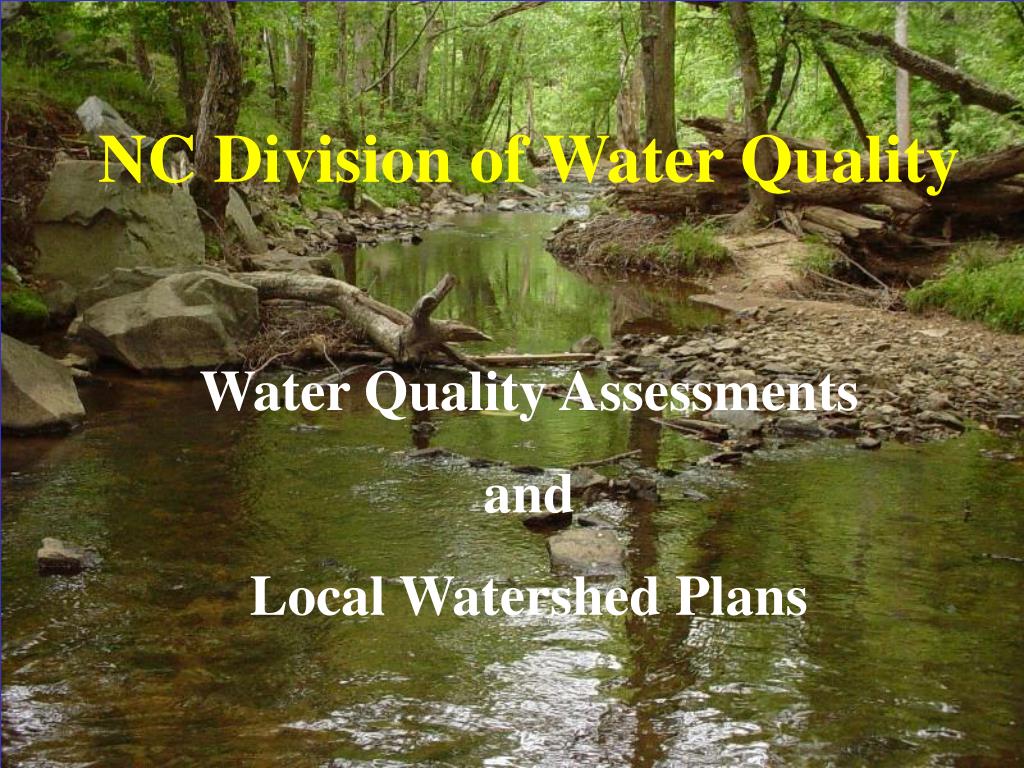

  1. NC Division of Water Quality Water Quality Assessments and Local Watershed Plans

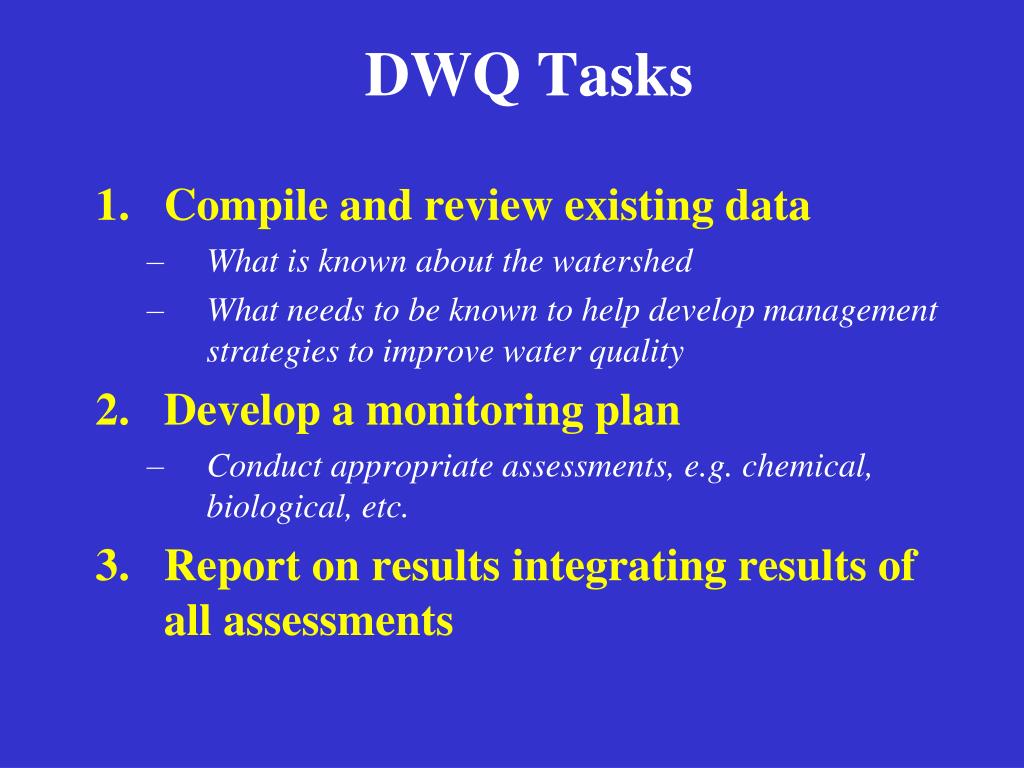

  2. DWQ Tasks • Compile and review existing data • What is known about the watershed • What needs to be known to help develop management strategies to improve water quality • Develop a monitoring plan • Conduct appropriate assessments, e.g. chemical, biological, etc. • Report on results integrating results of all assessments

  3. Types of Water Quality Assessments Conducted by DWQ • Chemical Monitoring (includes field measurements) • Biological Monitoring – benthos and/or fish • Habitat Assessments • Wetland Functional Assessments (new in 2008)

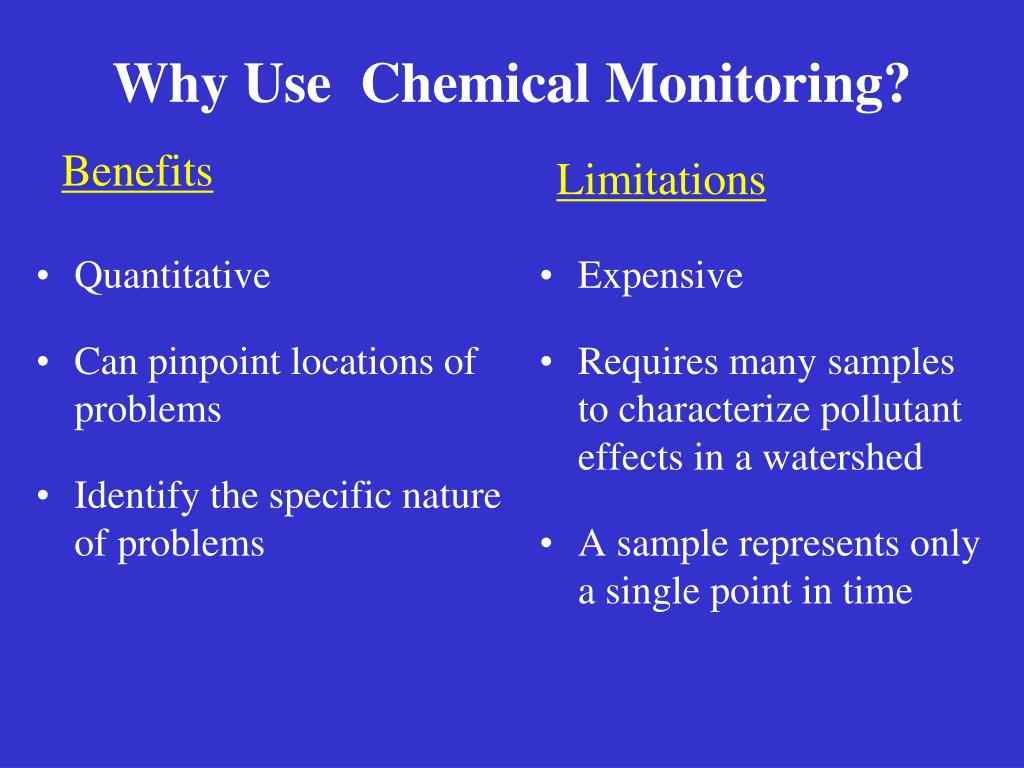

  4. Quantitative Can pinpoint locations of problems Identify the specific nature of problems Expensive Requires many samples to characterize pollutant effects in a watershed A sample represents only a single point in time Why Use Chemical Monitoring? Benefits Limitations

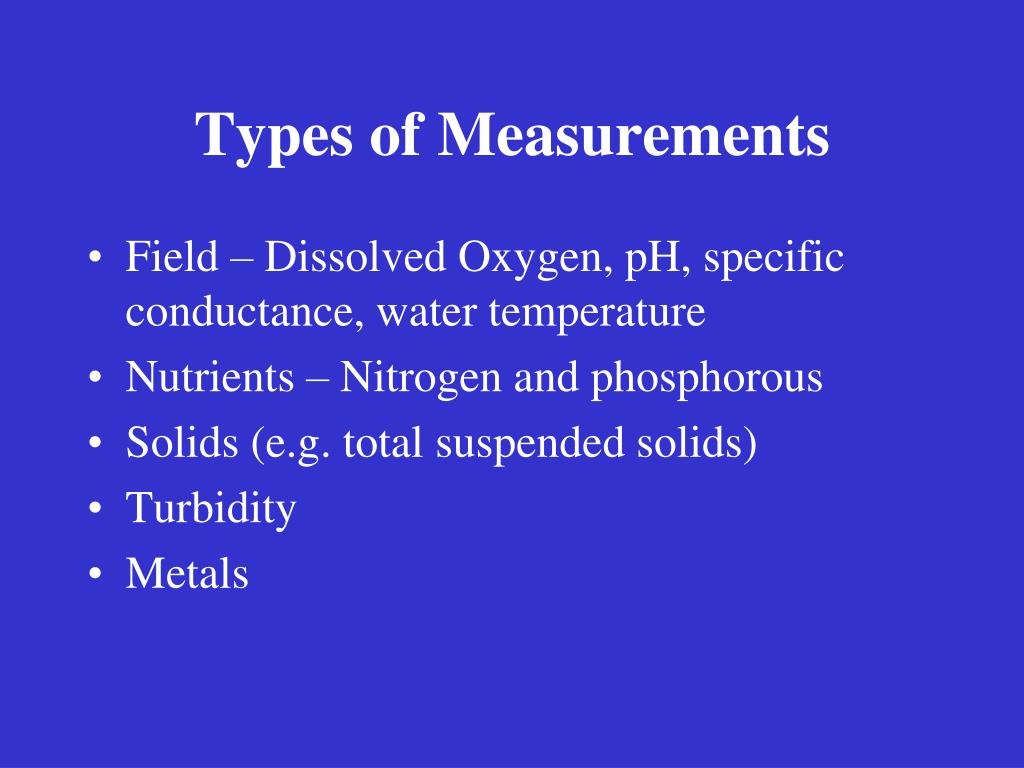

  5. Types of Measurements • Field – Dissolved Oxygen, pH, specific conductance, water temperature • Nutrients – Nitrogen and phosphorous • Solids (e.g. total suspended solids) • Turbidity • Metals

  6. Example of Results - Chemistry

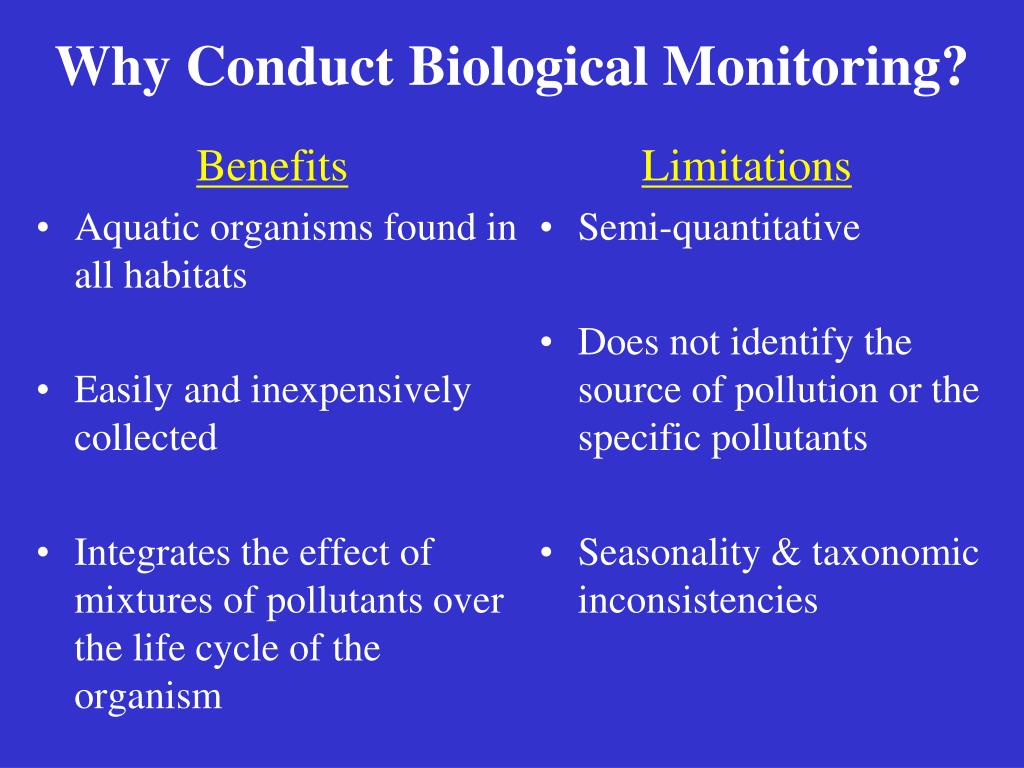

  7. Aquatic organisms found in all habitats Easily and inexpensively collected Integrates the effect of mixtures of pollutants over the life cycle of the organism Semi-quantitative Does not identify the source of pollution or the specific pollutants Seasonality & taxonomic inconsistencies Why Conduct Biological Monitoring? Benefits Limitations

  8. Benthic Macroinvertebrates • Benthic- The community of organisms living in or on the bottom or other substrate in an aquatic environment • Macro - Large enough to be seen by the unaided eye and which can be retained by a U.S. standard no. 30 seive (0.6 mm openings) • Invertebrate - animals without backbones

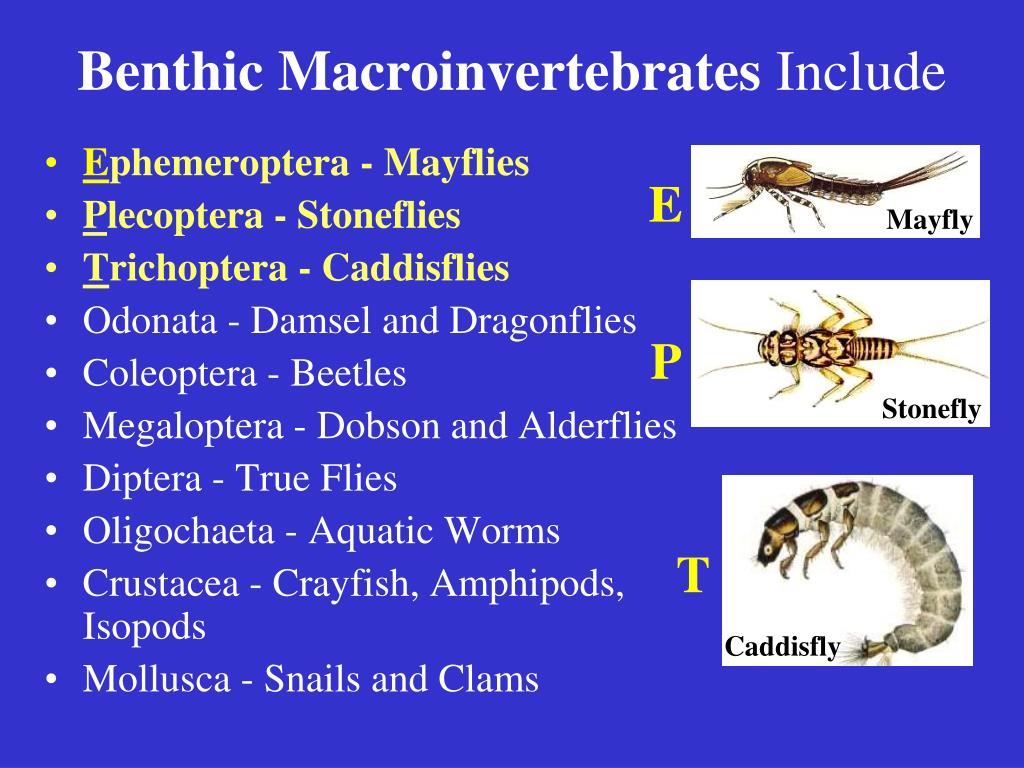

  9. Benthic MacroinvertebratesInclude E Mayfly • Ephemeroptera - Mayflies • Plecoptera - Stoneflies • Trichoptera - Caddisflies • Odonata - Damsel and Dragonflies • Coleoptera - Beetles • Megaloptera - Dobson and Alderflies • Diptera - True Flies • Oligochaeta - Aquatic Worms • Crustacea - Crayfish, Amphipods, Isopods • Mollusca - Snails and Clams P Stonefly T Caddisfly

  10. P T E

  11. Unimpacted Site- greater diversity and number of individuals

  12. Assigning BioclassificationsUsing Macroinvertebrates • Taxa Richness (number of species) • Total number of species • Total number of EPT species • Biotic Index (uses a species’ tolerance to pollution and measures of species abundances) • Species are assigned a “tolerance value” (range 0 to 10) • A Biotic Index (BI; range 0 to 10) is a weighted average of the “abundance” and “tolerance value” • Higher BI values indicate poorer conditions (i.e., more tolerant species present)

  13. Benthos Data for Goose/Crooked Creeks

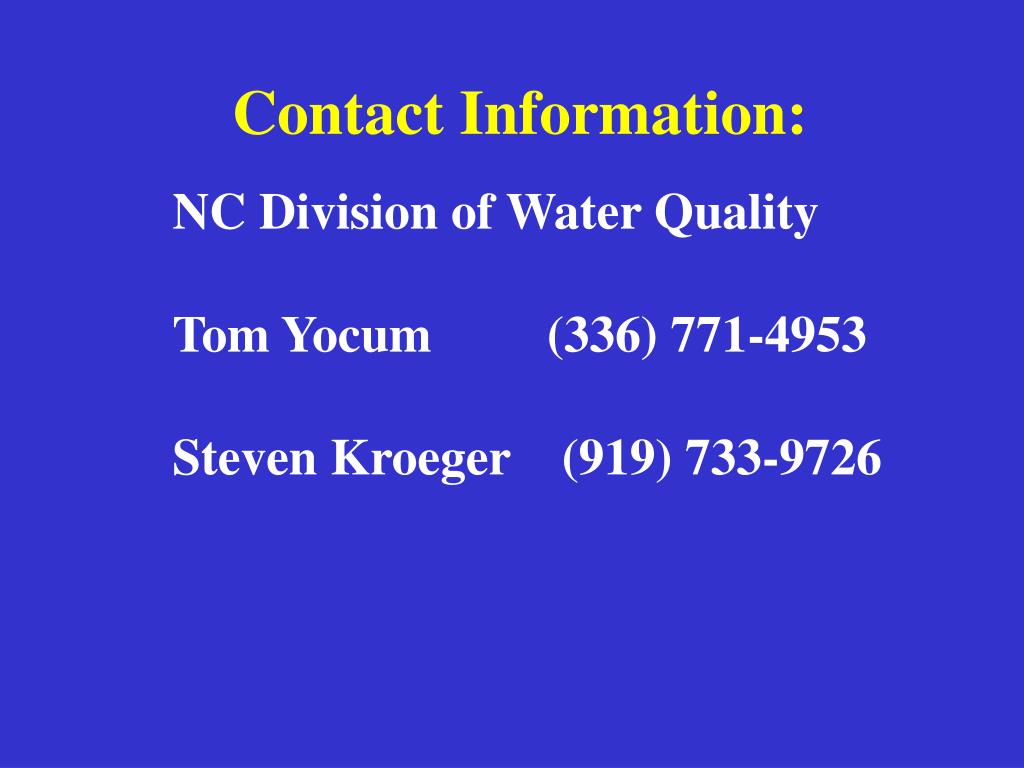

  14. NC Division of Water Quality Tom Yocum (336) 771-4953 Steven Kroeger (919) 733-9726 Contact Information:
