Atomic Layer Deposition - ALD Introduction Example of Al2O3 ALD at MiNaLab Deposition materials Advantages and disadvantages Summary

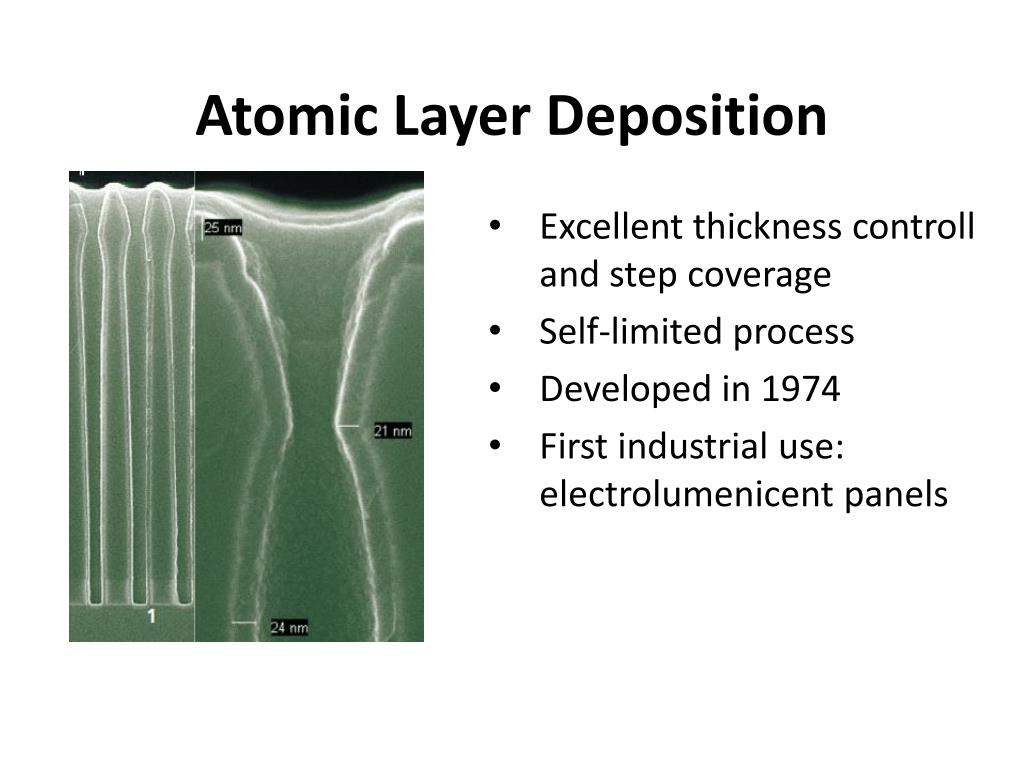

Atomic Layer Deposition Excellent thickness controll and step coverage Self-limited process Developed in 1974 First industrial use: electrolumenicent panels
Some opportunities of ALD • Nanolaminate: ZrO2 and SiO2 • Coated deep trench structure
ALD at MiNaLab Al2O3, ZnO, TiO2 Thickness: sub nm - 400 nm
ALD – deposited materials • Oxides (Al2O3, ZnO, TiO2, HfO2, HfSiO, La2O3, SiO2, Ta2O5) • Nitrides (TiN, TaN, SiN, HfN, AlN) • Sulfides (ZnS) • Metals (Cu, W, Pt, Ru)
Applications • High quality photonics • Thin solarcells laminate => • Thin gate oxides with high dielectric constant • Diffusion barriers and passivation of active layers • Single metal coating for catalysts
Advantages of ALD • Low temperature deposition is possible • Excellent step coverage and reproducibility • High density film and no pinholes • Easy to scale up

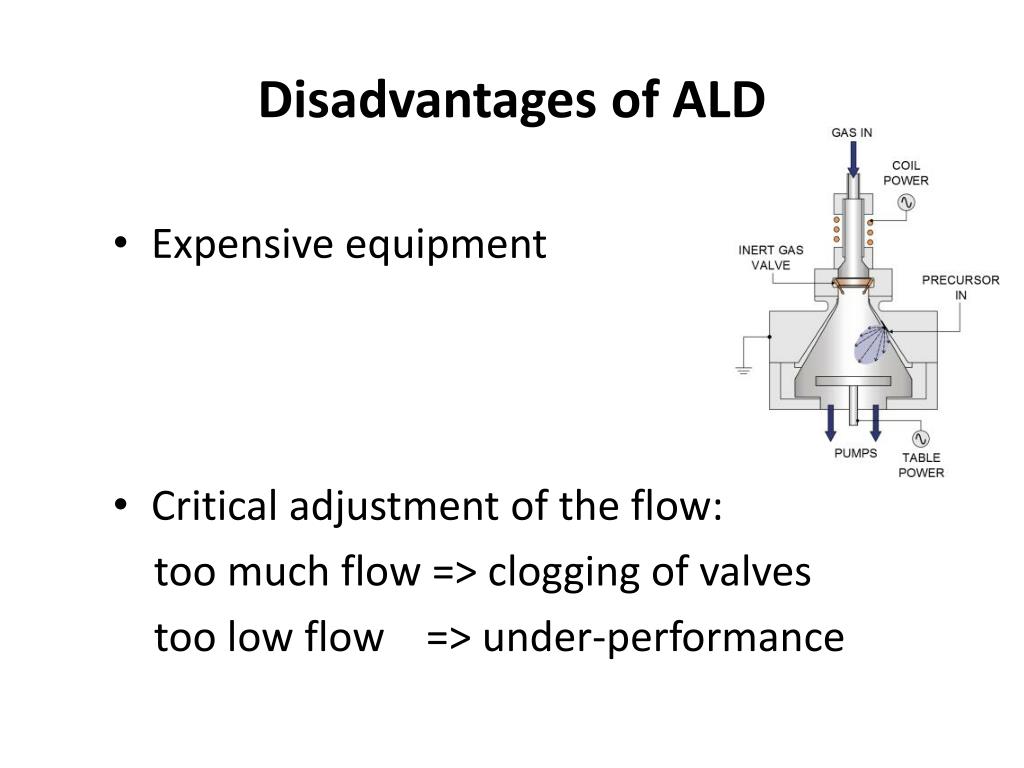

Disadvantages of ALD • Expensive equipment • Critical adjustment of the flow: too much flow => clogging of valves too low flow => under-performance
Summary ALD is excellent for: • Thin films • High density • Excellent stociometry controll • 3D structures • Large area substrates: no problem
