  1. Logo PRELUDE V5 Inspect : 3D metrology integrated in the V5 environment Place, Date 3D Metrology competence center

  2. 3D metrology integrated in the V5 environment 3D Metrology competence center

  3. MDTVISION launches PRELUDE V5 Inspect • After 12 months development under CAAV5 of DASSAULT Systèmes, MDTVISION known as Inspection leader launches PRELUDE V5 Inspect a metrology workbench integrated in CATIA V5. • Part-program creation on CATIA native data • Homogeneous user interface V5 environment • On-line + Off-line solution • Independence among measurement hardware manufacturers : 14 direct drivers including universal I++ DME client. 3D Metrology competence center

  4. PRELUDE V5 Inspect : A complete solution • ONLINE programming (auto-teach mode) • Connection to various measurement systems & accessories • Geometrical & surfacic measurement (ISO 1101 GPS tolerancing) • Report output for analysis • OFFLINE programming • Non contact measurement (creation & post-computation of point clouds) 3D Metrology competence center

  5. PRELUDE V5 Inspect the answer to various needs • Manual measurement in « investigation » mode by point surface projection with automated geometry nominal features extracting from CAD during measurement process • Assistance in tuning metrology fixtures & complex assembly setup • Serial parts inspection in DCC mode • Statistical Process Control (SPC) for tuning manufacturing process 3D Metrology competence center

  6. PRELUDE V5 Inspect : A modular solution 3 basic packages : Off-line + On-Line On-Line Off-line 5 Options : DCC auto Rotary table CMM error mapp Cloud Inspect Auto-change 14 Drivers : (+ standards drivers) FARO Tracker API2 Tracker API3 Tracker FARO arm CIMCORE arm ROMER arm METRONOR ACTICM METRIS laser KREON laser FARO laser I++ DME CMM ZEISS ME5007 Controller 3D Metrology competence center

  7. PRELUDE V5 Inspect : a perfect integration in CATIA V5 • User interface matching with CATIA V5 concepts • Working on native CATIA V4/V5 data • Use of standard interfaces of CATIA V5 • Iges, STEP, PRO/E, UG, Solidworks, … • PRELUDE V5 Inspect integrated under a new V5 workbench • Single switch available between design (Part Design), Digital Mockup (DMU), Functional Tolerancing & Annotations (FT&A) & PRELUDE V5 Inspect • Easy license management & floating access to common server available between CATIA V5 et PRELUDE V5 Inspect • Complete integration in CATIA V5 PPR (Product, Process, Resources) • Visualization of measurement tasks in the tree to facilitate the user interface 3D Metrology competence center

  8. Tracked stylus Laser trackers Manual/DCC CMM’s Portable arms Laser Scanners Universal I++ DME driver PRELUDE V5 Inspect: An opened solution 3D Metrology competence center

  9. 3 basic packages : Off-line + On-Line On-Line Off-line Basic packages 5 Options : DCC auto Rotary table CMM error mapp Cloud Inspect Auto-change 14 Drivers : (+ standards drivers) FARO Tracker API2 Tracker API3 Tracker FARO arm CIMCORE arm ROMER arm METRONOR ACTICM METRIS laser KREON laser FARO laser I++ DME CMM ZEISS ME5007 Controller 3D Metrology competence center

  10. PRELUDE V5 Inspect On-Line • On-line part-program creation on CAD file • Geometry features measurements • Free-form surfaces & curves measurement • Investigation mode measurement by instantaneous projection (surfaces & each geometry feature) • Powerful alignment possibilities (isostatic or hyperstatic by bestfit under individual constraints…) 3D Metrology competence center

  11. PRELUDE V5 Inspect On-Line : Reports output • Automated reporting output to facilitate analysis (EXCEL, JPEG,…) : • Automatic Inserting of graphic views associatedto tolerance features • Reports customization via MS Excel macros, templates,… • Shading render reporting with automatic stickers layout views • Graphic Print out layout customizable 3D Metrology competence center

  12. PRELUDE V5 Inspect Off-Line • CMM’s workcell devices configuration (Probe heads, probes, auto-change,...) • Part setup & alignment according to probe head orientation on CMM • Inter-action if alignment already measured • Paths generating (geometry, surfaces & curves, paths editor assistance…) • Simulation & display of collisions • Instantaneous Switch OFFLINE/ONLINE (path tuning on CMM updating OFFLINE) 3D Metrology competence center

  13. 3 basic packages : Off-line + On-Line On-Line Off-line Options 5 Options : DCC auto Rotary table CMM error mapp Cloud Inspect Auto-change 14 Drivers : (+ standards drivers) FARO Tracker API2 Tracker API3 Tracker FARO arm CIMCORE arm ROMER arm METRONOR ACTICM METRIS laser KREON laser FARO laser I++ DME CMM ZEISS ME5007 Controller 3D Metrology competence center

  14. PRELUDE V5 Inspect: DCC option • Measurement path creation in auto-teach mode (CMM’s Joystick) • Measurement path creation on CAD (surface points, curve points, section features). • Motorized probe heads driving (PH9, PH10, RDS…) • Semi-automatic calibration or automatic calibration on multi-calibration spheres • Twin CMM’s driving • Path generating assistance geometry features (planes, lines, circles,…) • Editing, step by step modes, to adjust the final path … • Graphic simulation of paths before running it on CMM • Serial part measurement & patterns • Operator level part-programs to put Cmm’s in « self-service » mode 3D Metrology competence center

  15. PRELUDE V5 Inspect: Cloud Inspect option • Inspection on point cloud files digitized by various scanner technologies • Driving the digitizing process (calibration, scanning paths, density,…) mixing Renishaw contact probe & scanner • Complete 3D Metrology in one single part-program on geometric & free form surface features (GD&T) with automatic tracability of point cloud files • Comparison point cloud/CAD or point cloud / point cloud • Color mapping output, dimensional & free-form surface deviations • Working Methodologies : • Digitizing then comparison with CAD • Comparison between various points clouds • Auto-teaching measurement automated • Serial parts measurement with statistic process control (SPC) 3D Metrology competence center

  16. PRELUDE V5 Inspect: Auto Change Option • Auto-change racks driving ACR1, MCR20, SCR200, + other brands via I++DME,… • Probe matrix defining probe N° into the matching rack N° • Calibration management & path if without I++DME • Safety zone management between probe & auto-change rack while measuring parts. 3D Metrology competence center

  17. PRELUDE V5 Inspect: CMM’s Error mapping Option • CMM’s geometry inaccuracy decreasing through software opened error mapping. • No protected utility software required • User manual available to help any calibration services company entering his matrix after laser interferometer & gauge checking. • Template Read & write File given • Measurement check tool with or without software compensation to evaluate the error mapping impact. 3D Metrology competence center

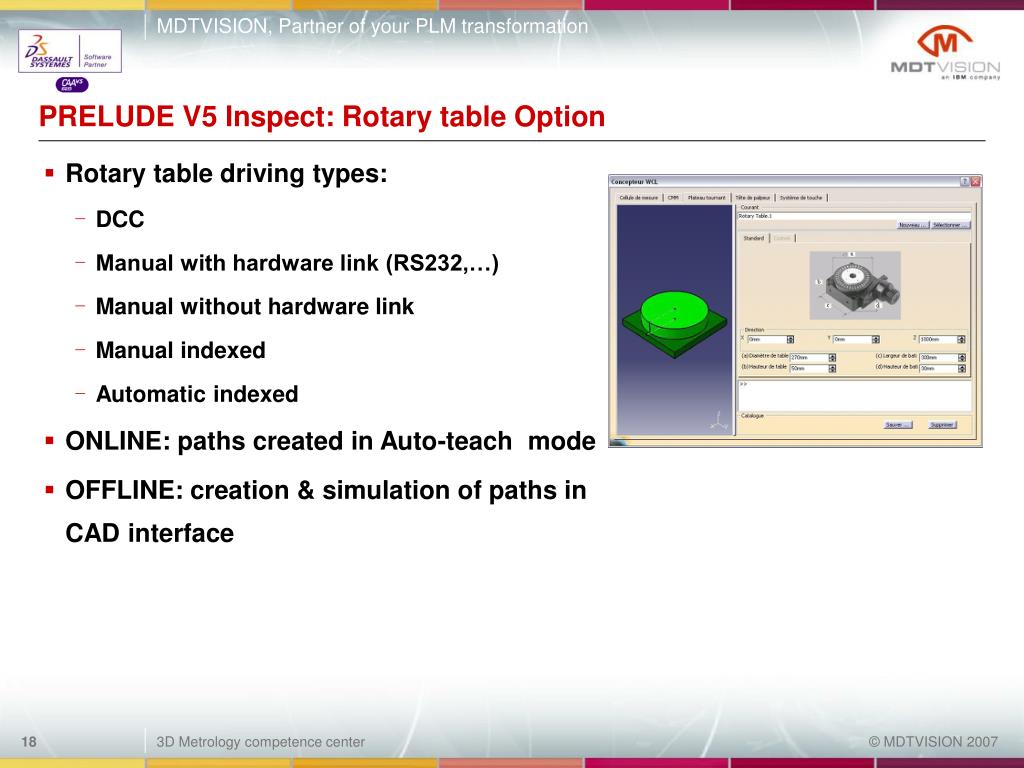

  18. PRELUDE V5 Inspect: Rotary table Option • Rotary table driving types: • DCC • Manual with hardware link (RS232,…) • Manual without hardware link • Manual indexed • Automatic indexed • ONLINE: paths created in Auto-teach mode • OFFLINE: creation & simulation of paths in CAD interface 3D Metrology competence center

  19. 3 basic packages : Off-line + On-Line On-Line Off-line Drivers 5 Options : DCC auto Rotary table CMM error mapp Cloud Inspect Auto-change 14 Drivers : (+ standards drivers) FARO Tracker API2 Tracker API3 Tracker FARO arm CIMCORE arm ROMER arm METRONOR ACTICM METRIS laser KREON laser FARO laser I++ DME CMM ZEISS ME5007 Controller 3D Metrology competence center

  20. PRELUDE V5 Inspect: ACTICM Driver • Manual measurement in On-line mode with tracked stylus • Investigation measurement • « Leapfrog » alignment on any kind of feature after setup changing (positioning of camera or measured part) • Measurement in guidance mode with probe real time display & dynamic auto-zoom on target point with approach vumeter displayer • Automatic section measurement via crossing plane 3D Metrology competence center

  21. PRELUDE V5 Inspect: METRONOR driver • Driving 3 METRONOR camera types • Investigation measurement with various styli sets • Wifi communication between stylus & PC • Big volume parts inspection • « Leapfrog » alignment on any kind of feature after camera or measured part setup change • Sections & border shapes measurement 3D Metrology competence center

  22. PRELUDE V5 Inspect: Driver Laser Tracker API 2 • Manual measurement in On-line mode with tracked mirrors • Investigation Measurement • « Leapfrog » alignment on any kind of feature after tracker or measured part setup change • Guided measurement mode with mirror target real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane 3D Metrology competence center

  23. PRELUDE V5 Inspect: Driver Laser Tracker API 3 • Manual measurement in On-line mode with tracked mirrors • Investigation Measurement • « Leapfrog » alignment on any kind of feature after tracker or measured part setup change • Guided measurement mode with mirror target real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane • DCC measurement (automatic re-measurement of targets) • « Intelliprobe » management 3D Metrology competence center

  24. PRELUDE V5 Inspect: Driver Laser Tracker FARO • Manual measurement in On-line mode with tracked mirrors • Investigation measurement mode • « Leapfrog » alignment on any kind of feature after tracker or measured part setup change • Guided measurement mode with mirror target real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane • DCC measurement (automatic re-measurement of targets) • Tracker functionalities management (auto target search, temperature compensation,…) 3D Metrology competence center

  25. PRELUDE V5 Inspect: Driver MMT Zeiss • ZEISS CMM’s driving via CMM-OS communication protocol (developed by ZEISS) • Calibration process managed by CMM-OS as error mapping compensation preserving original CMM’s accuracy • Driving manual Cmm’s (horizontal arms) & DCC • RDS & DSE Probe heads management 3D Metrology competence center

  26. PRELUDE V5 Inspect: ME5007 DCC controler driver • Metrologic Group ME5007 Controller driver • Driving horizontal arm Cmm’s & bridge machines • Motorized probe heads managementincluded 3D Metrology competence center

  27. PRELUDE V5 Inspect: METRIS Laser scanner driver • Driving Metris LC50 & XC50 on Renishaw UCC controllers or others • Automated calibration process of PH10 angular positions with video settings (Laser power, integration time & noise filtering,..) • DCC laser digitizing • Contact probe management & scanner in same part-program • Post-computation on geometrical & surfacic features in point cloud • Color mapping comparisonpoint cloud/CAD • Part program can be used on another CMMwith contact probe 3D Metrology competence center

  28. PRELUDE V5 Inspect: KREON Laser scanner driver • Driving Zephyr KZ25,KZ50 & KZ100 scanners on Renishaw UCC controllers or others. • Calibration process of PH10 angular positions with video settings (Laser power, integration time & noise filtering,..) • DCC laser digitizing storing each video settings into each path • Contact probe management & scanner in same part-program • Post-computation on geometrical & surfacic features in point cloud • Color mapping comparison point cloud/CAD • Part program can be used on another CMM with contact probe 3D Metrology competence center

  29. PRELUDE V5 Inspect: FARO ScanArm driver • Integration of ScanArm FARO laser scanner SDK • CCD settings, probe + laser scanner calibration, automatic probe detection • Scanning line display to help completing the point cloud. • Complete post computation on geometrical & surfacic features into point cloud or coming from touch hard probe • Color mapping comparison point cloud/CAD • Complete report output 3D Metrology competence center

  30. PRELUDE V5 Inspect: CIMCORE Arm driver • Driving old System 6 3000i/Stinger & new generation arms « Infinite » • Investigation measurement with « hard probe » or Renishaw TP • Automatic probe detection • « Leapfrog » alignment on any kind of feature after setup changing (re-positioning of arm or measured part) • Guided measurement mode with probe real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane • Shrink factor available in CAD coordinate system 3D Metrology competence center

  31. PRELUDE V5 Inspect: FARO Arm driver • Driving old Silver/Gold & new generation arms Platinum, Titanium • Investigation measurement with « hard probe » or Renishaw TP • « Leapfrog » alignment on any kind of feature after setup changing (re-positioning of arm or measured part) • Guided measurement mode with probe real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane • Shrink factor available in CAD coordinate system 3D Metrology competence center

  32. PRELUDE V5 Inspect: ROMER Arm driver • Driving old System 6, LX series & new generation arms « Sigma » via Ethernet link • Investigation measurement with « hard probe » or Renishaw TP • Automatic probe detection • « Leapfrog » alignment on any kind of feature after setup changing (re-positioning of arm or measured part) • Guided measurement mode with probe real time display & dynamic auto-zoom on target point with approach tuning displayer • Automatic section measurement via crossing plane • Shrink factor available in CAD coordinate system 3D Metrology competence center

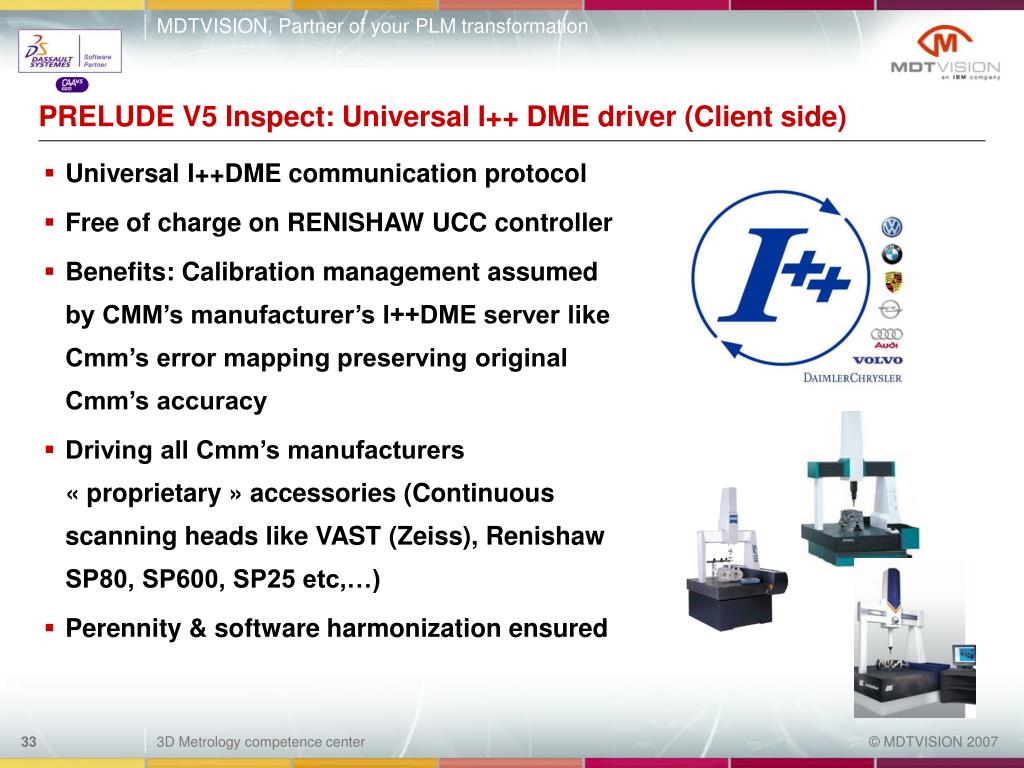

  33. PRELUDE V5 Inspect: Universal I++ DME driver (Client side) • Universal I++DME communication protocol • Free of charge on RENISHAW UCC controller • Benefits: Calibration management assumed by CMM’s manufacturer’s I++DME server like Cmm’s error mapping preserving original Cmm’s accuracy • Driving all Cmm’s manufacturers « proprietary » accessories (Continuous scanning heads like VAST (Zeiss), Renishaw SP80, SP600, SP25 etc,…) • Perennity & software harmonization ensured 3D Metrology competence center

  34. PRELUDE V5 Inspect : Hardware pre-requisite • Hardware pre-requisite: • According to the developpement platform used & pre-requisite of DELMIA used for product, PRELUDE V5 Inspect has got the same than CATIA V5. The whole configurations validated by DASSAULT Systèmes are available on their web site : http://www.3ds.com/fr/support/workstations-peripherals/windows/certified-workstations-list/ Example of suggestedconfiguration : 3D Metrology competence center

  35. PRELUDE V5 Inspect : A large distribution network • PRELUDE V5 Inspect is distributed worldwide through following companies : 3D Metrology competence center

  36. Ils nous font confiance … ’ Ficocipa • Phillips (France/Belgique) • AQS (base POLI France) • Gates • Pixley Richards • AMP ECTM • Gaz De France • Pont à Mousson • APO MBPM • General Electric Power Systems (UK) SAFE ASCOFORGE • • ARO • Schligler SA GE Energy Products Belfort • Atlancim • • GIAT INDUSTRIES SEH • Automotive Europe Prototype • • Sermati GOM france • Benteler Automotive • • Groebli Seroma • Bolton Plastic • • Setforges Hutchinson • Bombardier (transport & produit récréatifs) • • Hyundai Design Center ( Korea ) Shanghai Visteon Yanfeng Automotive + Clutch • Bourbon/ Fabi Automobile • • Factory (China) I.G.A. (IRAUSA france ) C.E.A./D.A.M. • • Sodev • IMAQS (Distribution in Belgium ) CERTA • • Stévenin Nollevaux § Inergy Automotive System CINI SA Tomblaine • Stiga (Suède) § Key Plastic International C.M.H. • • TEKSID Group Fonderies Du • Kréon technologies CPRO/CPM • Poitou/S.B.F.M./F.A.C. • Krupp Mavilor Centre de Ressources Techniques de Morlaix • T.I.M. ( Carwall Group) • • Laroche SA Dassault Aviation (Biard & Martignas ) • Thyssen Krupp ( Sofedit ,TKA Tallent Chassis …) • • M3D (Distribution MMT MORA en France) DBM Reflex • TRW France • • M3M D.G.A. (A.I.A.) • Valeo • • Metrolec DSO DI SANTE • Unitools (République Tchèque) • • Mitutoyo (Développement Logiciel OFF - LINE TOOLCIM Duarte Groupe • Zeiss (" Virtual - Cmm" interface entre Delmia & • CADPAK Win ) Ecole Centrale de Lille • Umess ) MARKIV ECM Hivet • Valmold • • New Holland Education nationale (Tous lycées/IUT) • Waeles Industries ( Luchard ) • • Oxford Automotive ( Aubry , Douai, ECRIM...) E.N.S. CACHAN • Wagon Automotive • • Paulstra ESTANFOR • Wimetal (groupe Tenneco ) • 3D Metrology competence center

  37. France : Minsk Hamburg • SAS, capital : 3 353 K€ • 400+ employees • Certified ISO 9001 • Regional proximity MDTVISION Les Ulis Paris Munchen Vienna Strasbourg Zurich Allemagne : Lyon • 130 employees • Certified ISO 9001 • Regional proximity Aix en Provence Toulouse www.mdtvision.com Structure Offshore MINSK 28 years developement in PLM solutions & services • 40+ employees • Owned at 100%, since 1993 • Fully Integrated to projects 1979 : Creation of DATAVISION : development & sales of EUCLID, 3D Solid CAD/CAM modeler 1993 : EUCLID 3 launch 1998 : Signature of a partnership agreement with IBM & Dassault Systèmes for CATIA, ENOVIA, SMARTEAM distribution. EADS Matra Datavision becomes services provider in PLM2003 : IBM acquires EADS Matra Datavision which becomes MDTVISION 2006 : MDTVISION becomes CAA Partner of DASSAULT Systèmes for 3D metrology solutions 2007 : PRELUDE V5 Inspect launch MDTVISION : 28 years experience in PLM & industry Nantes www.mdtvision.com 3D Metrology competence center

  38. Yannick JOUAULT+33 6 85 04 20 99y-jouault@mdtvision.com Your contact : Visit our Web site : MDTVISION, an IBM Company http://www.mdtvision.com/en/offre_metrologie_3D.php 3D Metrology competence center
