  1. “A bit more Deferred” - CryEngine 3 Triangle Game Conference 2009 Martin Mittring – Lead Graphics Programmer

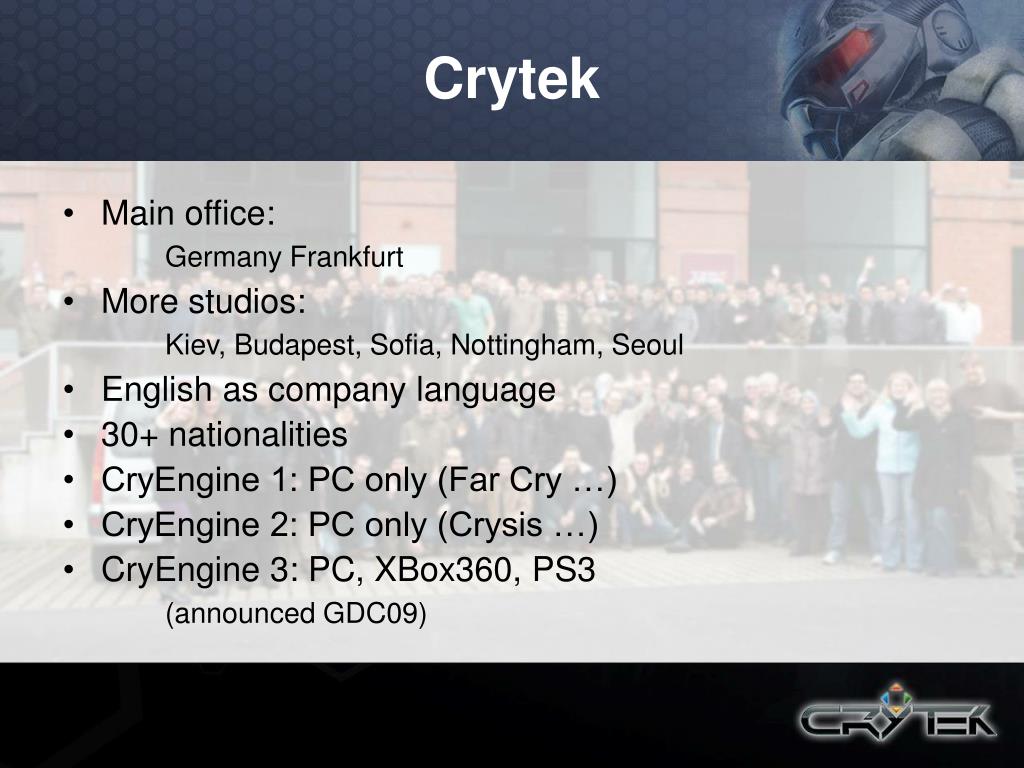

  2. Crytek Main office:Germany Frankfurt More studios: Kiev, Budapest, Sofia, Nottingham, Seoul English as company language 30+ nationalities CryEngine 1: PC only (Far Cry …) CryEngine 2: PC only (Crysis …) CryEngine 3: PC, XBox360, PS3(announced GDC09)

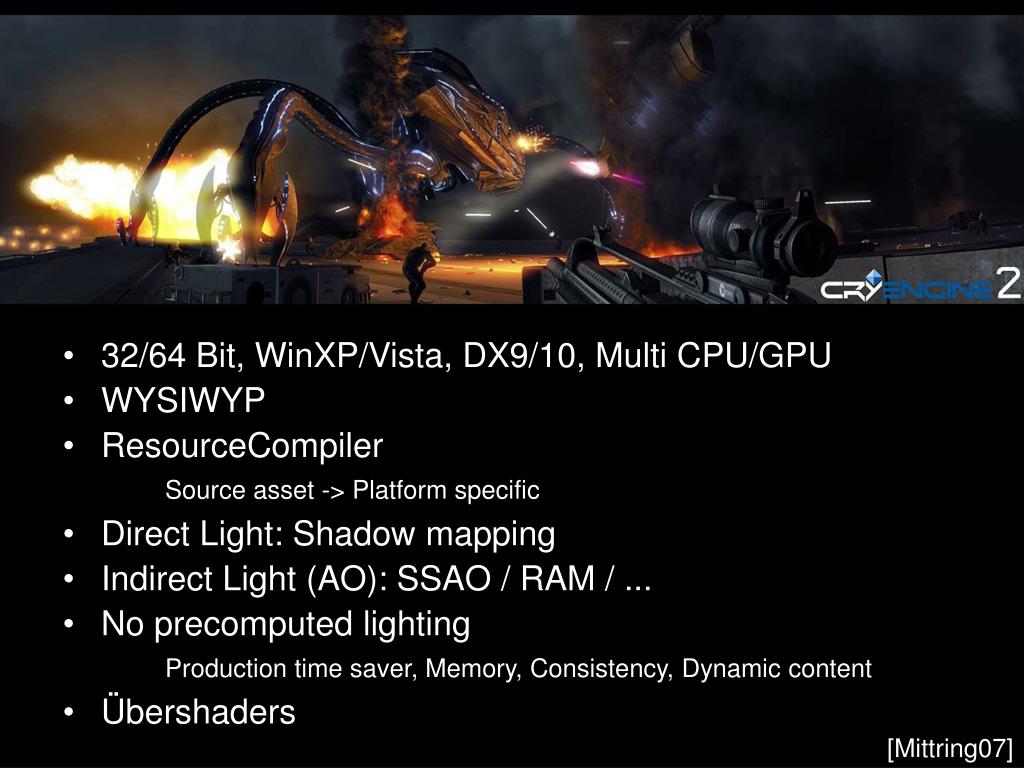

  3. 32/64 Bit, WinXP/Vista, DX9/10, Multi CPU/GPU • WYSIWYP • ResourceCompilerSource asset -> Platform specific • Direct Light: Shadow mapping • Indirect Light (AO): SSAO / RAM / ... • No precomputed lightingProduction time saver, Memory, Consistency, Dynamic content • Übershaders [Mittring07]

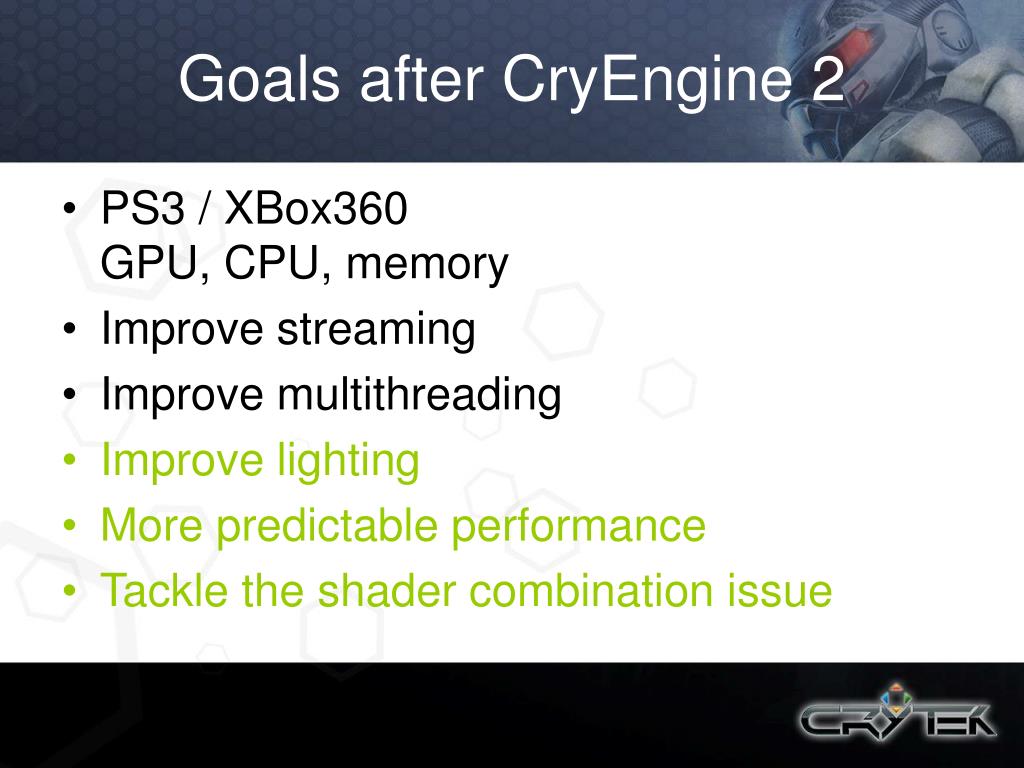

  4. Goals after CryEngine 2 • PS3 / XBox360GPU, CPU, memory • Improve streaming • Improve multithreading • Improve lighting • More predictable performance • Tackle the shader combination issue

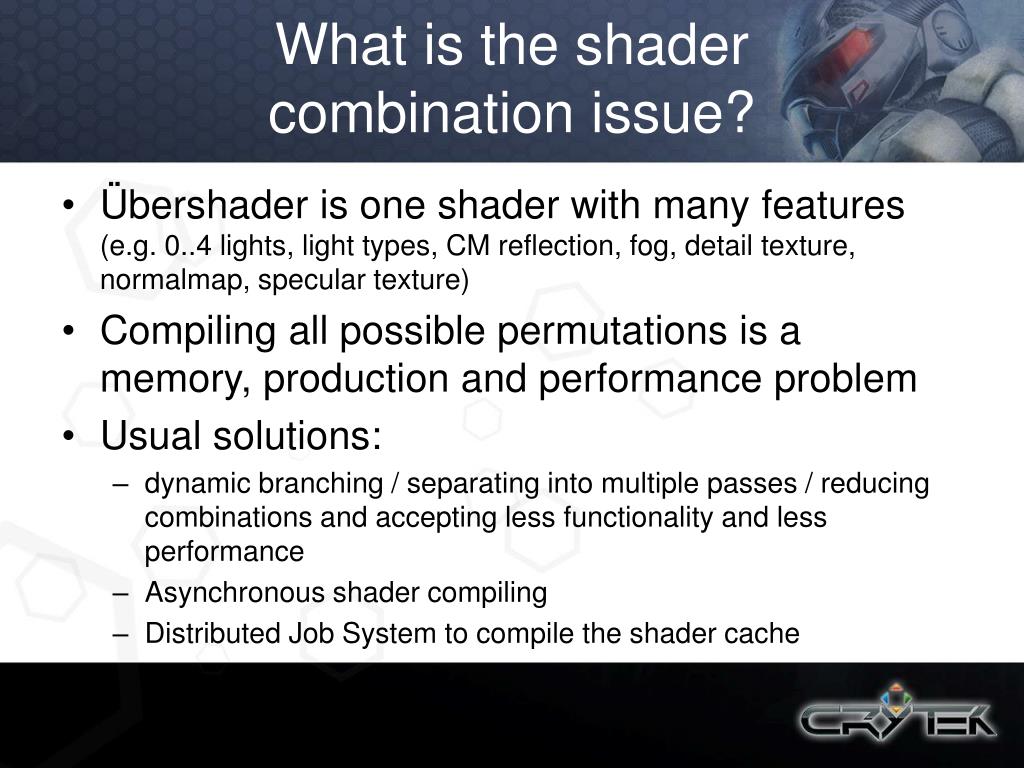

  5. What is the shadercombination issue? • Übershader is one shader with many features (e.g. 0..4 lights, light types, CM reflection, fog, detail texture, normalmap, specular texture) • Compiling all possible permutations is a memory, production and performance problem • Usual solutions: • dynamic branching / separating into multiple passes / reducing combinations and accepting less functionality and less performance • Asynchronous shader compiling • Distributed Job System to compile the shader cache

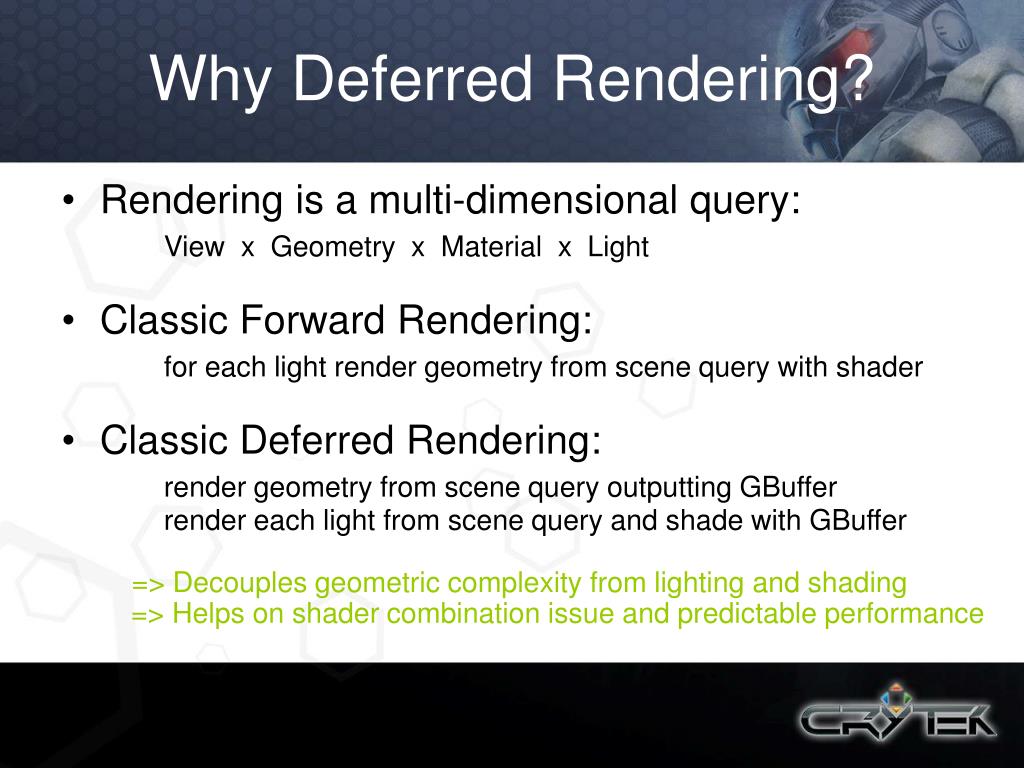

  6. Why Deferred Rendering? • Rendering is a multi-dimensional query:View x Geometry x Material x Light • Classic Forward Rendering: for each light render geometry from scene query with shader • Classic Deferred Rendering:render geometry from scene query outputting GBuffer render each light from scene query and shade with GBuffer => Decouples geometric complexity from lighting and shading => Helps on shader combination issue and predictable performance

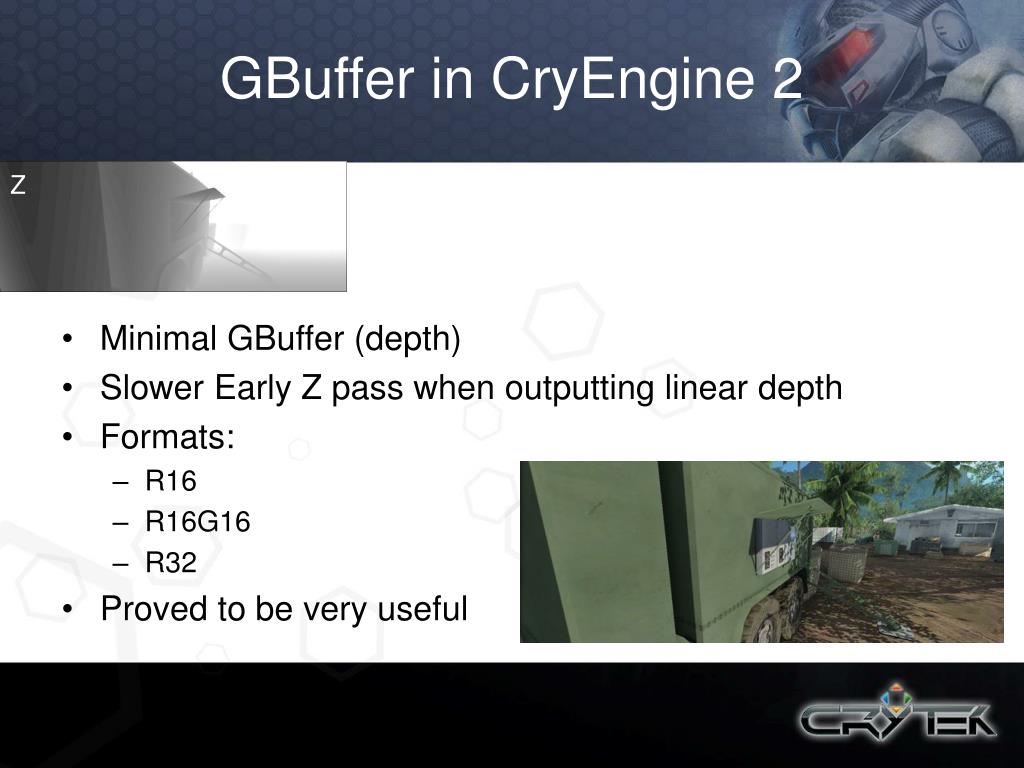

  7. GBuffer in CryEngine 2 Z • Minimal GBuffer (depth) • Slower Early Z pass when outputting linear depth • Formats: • R16 • R16G16 • R32 • Proved to be very useful

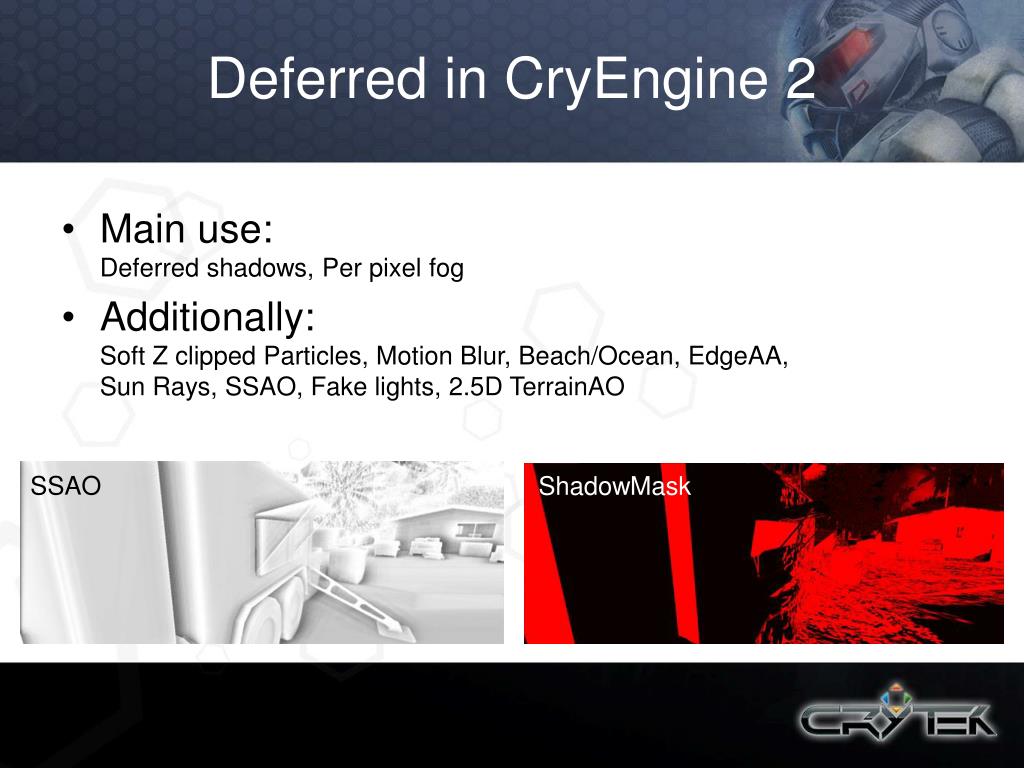

  8. Deferred in CryEngine 2 • Main use:Deferred shadows, Per pixel fog • Additionally:Soft Z clipped Particles, Motion Blur, Beach/Ocean, EdgeAA,Sun Rays, SSAO, Fake lights, 2.5D TerrainAO SSAO ShadowMask

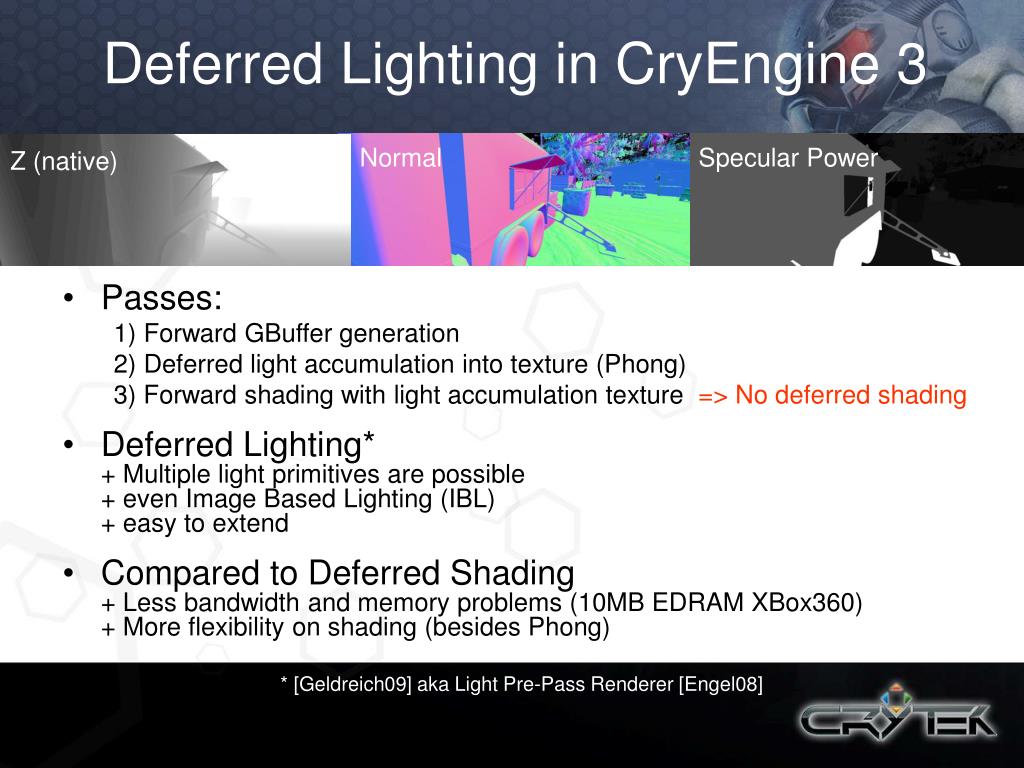

  9. Deferred Lighting in CryEngine 3 Normal Specular Power Z (native) • Passes: 1) Forward GBuffer generation 2) Deferred light accumulation into texture (Phong) 3) Forward shading with light accumulation texture =>No deferred shading • Deferred Lighting* + Multiple light primitives are possible+ even Image Based Lighting (IBL)+ easy to extend • Compared to Deferred Shading+ Less bandwidth and memory problems (10MB EDRAM XBox360)+ More flexibility on shading (besides Phong) * [Geldreich09] aka Light Pre-Pass Renderer [Engel08]

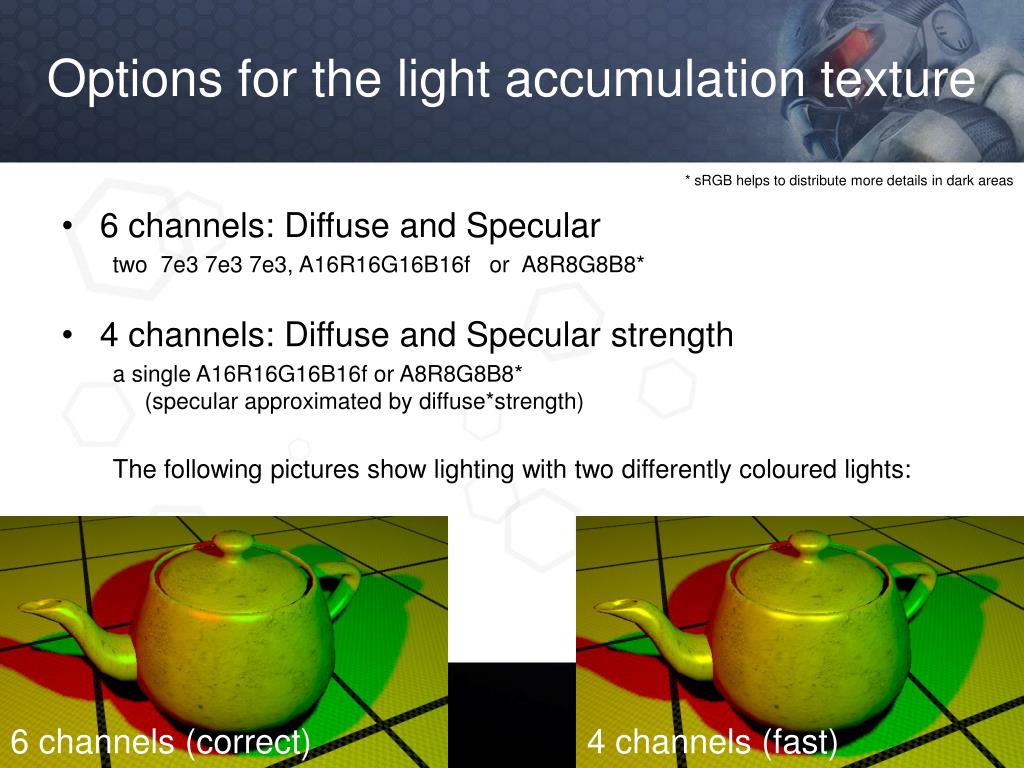

  10. Options for the light accumulation texture * sRGB helps to distribute more details in dark areas • 6 channels: Diffuse and Specular two 7e3 7e3 7e3, A16R16G16B16f or A8R8G8B8* • 4 channels: Diffuse and Specular strength a single A16R16G16B16f or A8R8G8B8* (specular approximated by diffuse*strength) The following pictures show lighting with two differently coloured lights: 6 channels (correct) 4 channels (fast)

  11. Light accumulation texture in IBL The following pictures show lighting with Diffuse and Specular Cubemaps: • Diffuse RGBSpecular RGBHigh Quality(left) • Diffuse RGBSpecular StrengthFast Rendering(right) • Difference often neglectable (depends on environment)

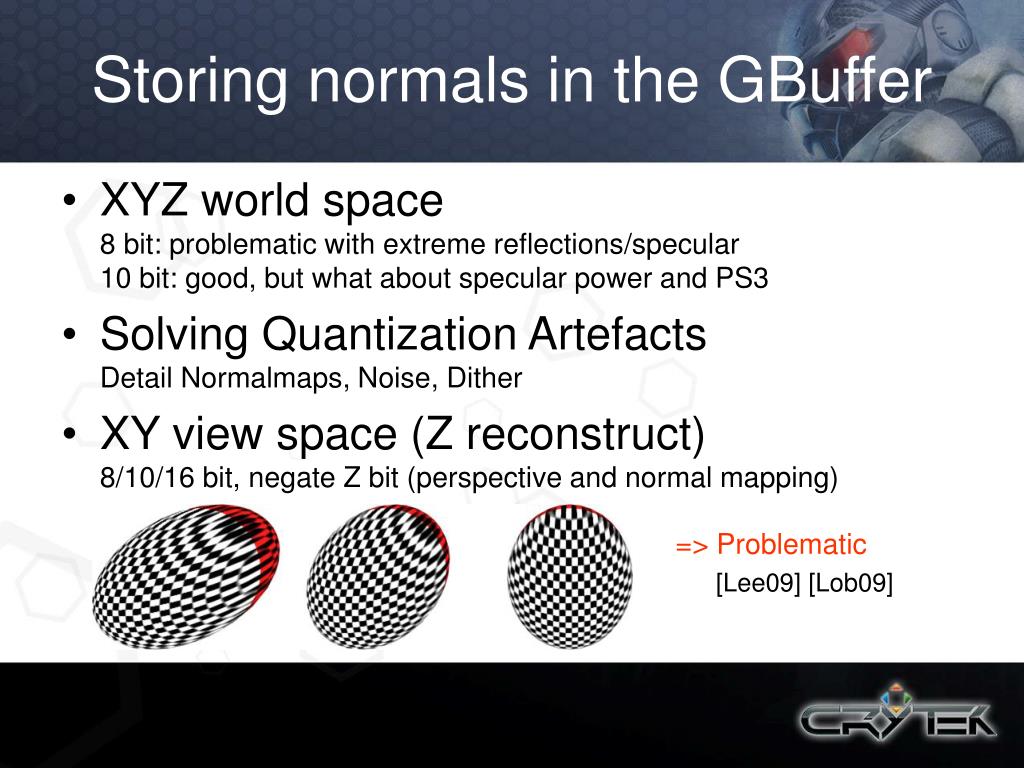

  12. Storing normals in the GBuffer • XYZ world space8 bit: problematic with extreme reflections/specular10 bit: good, but what about specular power and PS3 • Solving Quantization ArtefactsDetail Normalmaps, Noise, Dither • XY view space (Z reconstruct)8/10/16 bit, negate Z bit (perspective and normal mapping) => Problematic [Lee09] [Lob09]

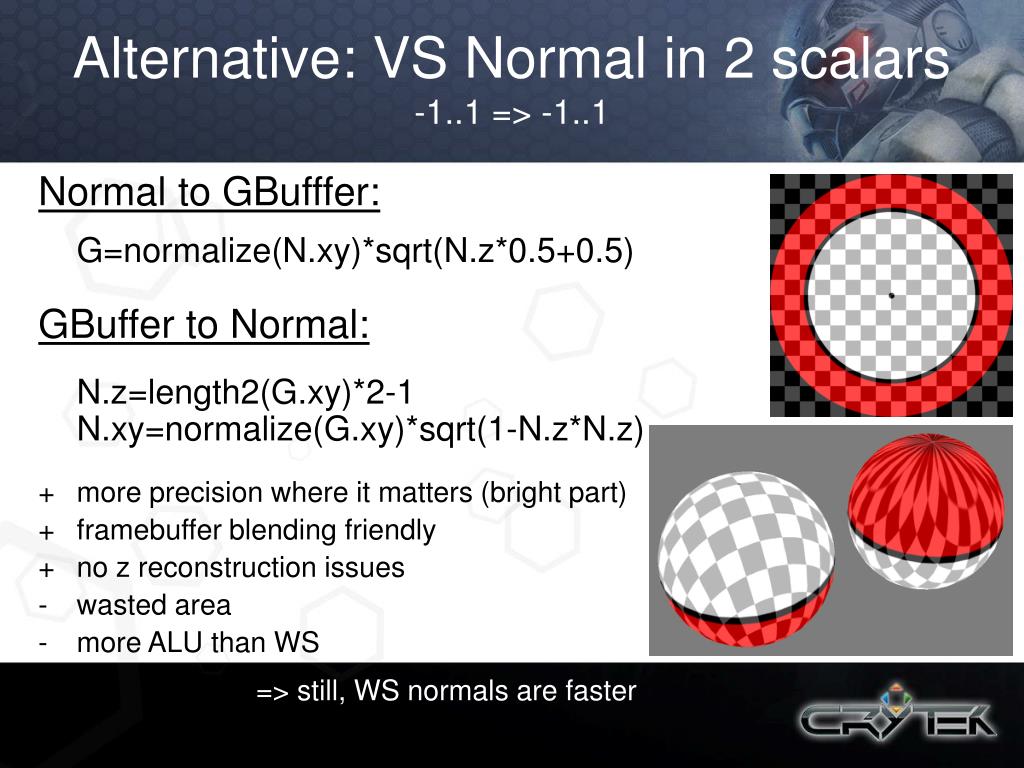

  13. Alternative: VS Normal in 2 scalars-1..1 => -1..1 Normal to GBufffer:G=normalize(N.xy)*sqrt(N.z*0.5+0.5) GBuffer to Normal:N.z=length2(G.xy)*2-1N.xy=normalize(G.xy)*sqrt(1-N.z*N.z) + more precision where it matters (bright part) + framebuffer blending friendly + no z reconstruction issues • wasted area • more ALU than WS => still, WS normals are faster

  14. Video Improved SSAO (with normals)

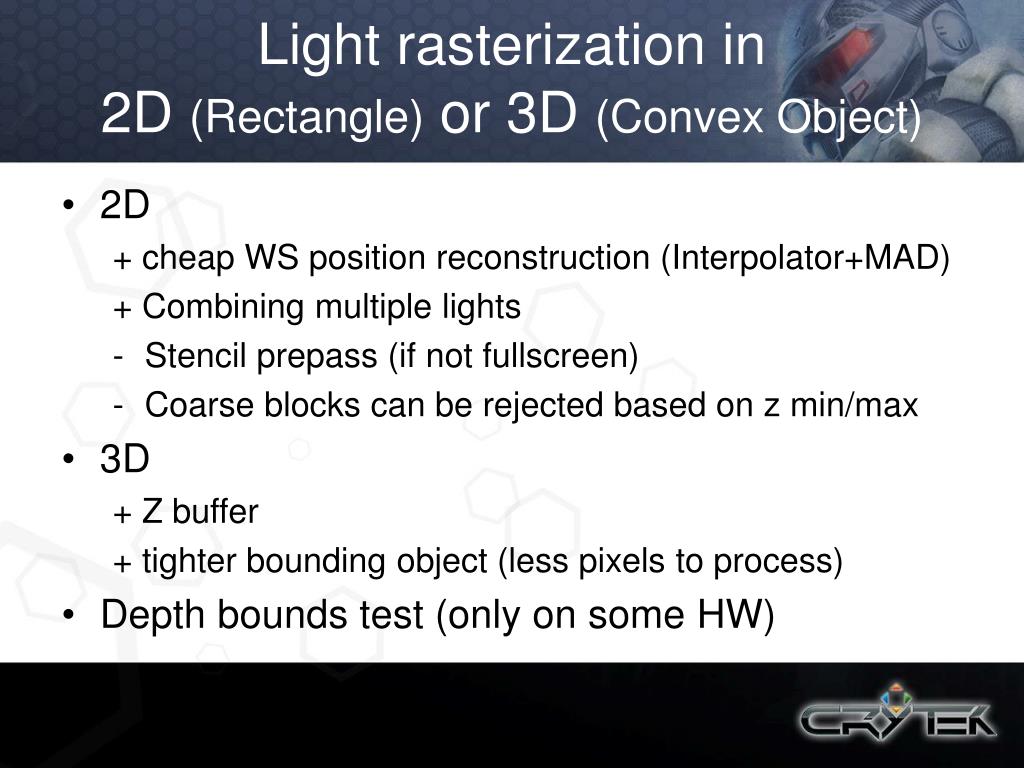

  15. Light rasterization in2D (Rectangle) or 3D (Convex Object) • 2D + cheap WS position reconstruction (Interpolator+MAD) + Combining multiple lights • Stencil prepass (if not fullscreen) • Coarse blocks can be rejected based on z min/max • 3D + Z buffer + tighter bounding object (less pixels to process) • Depth bounds test (only on some HW)

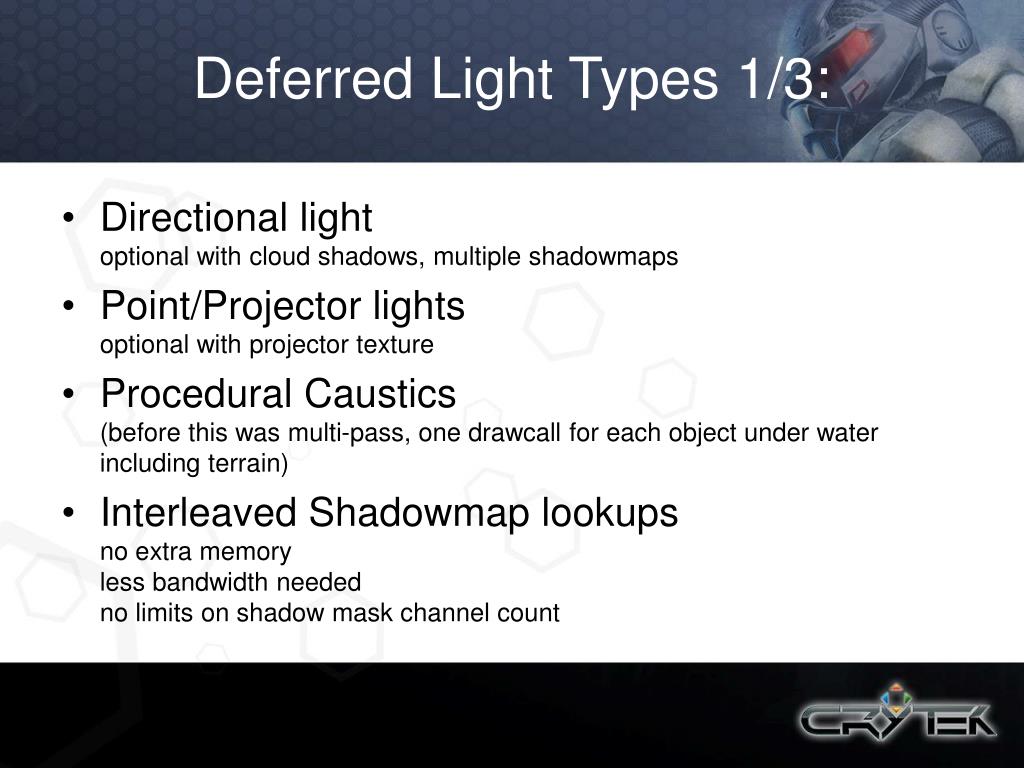

  16. Deferred Light Types 1/3: • Directional lightoptional with cloud shadows, multiple shadowmaps • Point/Projector lightsoptional with projector texture • Procedural Caustics(before this was multi-pass, one drawcall for each object under water including terrain) • Interleaved Shadowmap lookupsno extra memoryless bandwidth neededno limits on shadow mask channel count

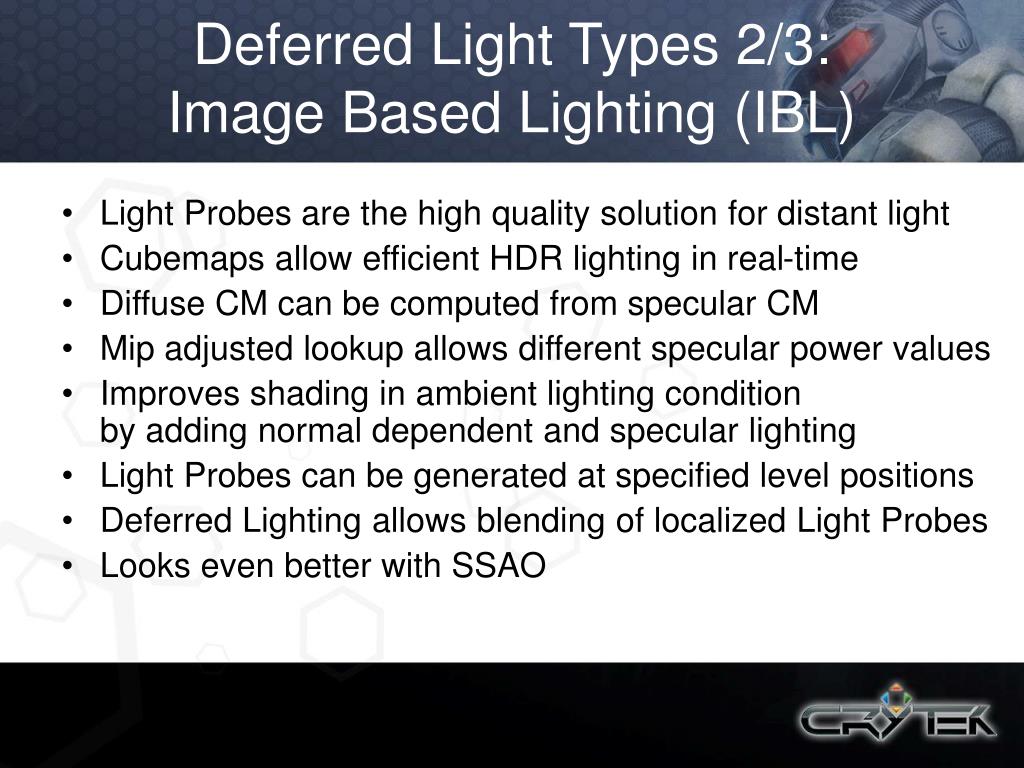

  17. Deferred Light Types 2/3:Image Based Lighting (IBL) • Light Probes are the high quality solution for distant light • Cubemaps allow efficient HDR lighting in real-time • Diffuse CM can be computed from specular CM • Mip adjusted lookup allows different specular power values • Improves shading in ambient lighting conditionby adding normal dependent and specular lighting • Light Probes can be generated at specified level positions • Deferred Lighting allows blending of localized Light Probes • Looks even better with SSAO

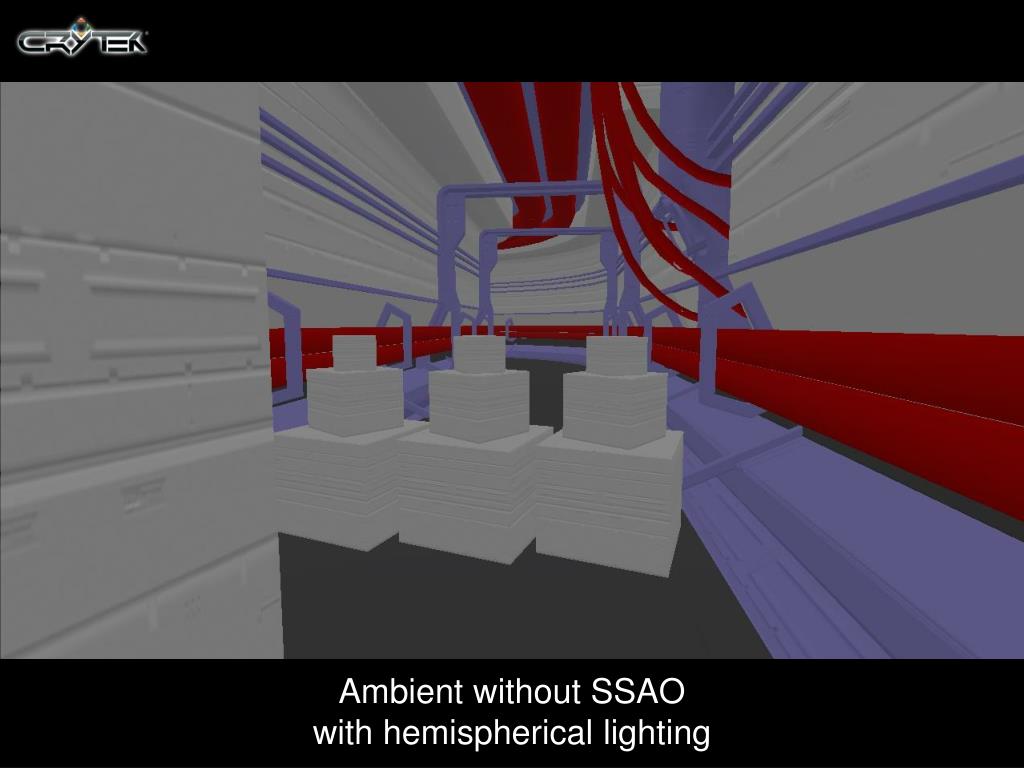

  18. Ambient without SSAOwith hemispherical lighting

  19. Bright ambient SSAO Black ambient Shadow casting light source SSAO Grey ambient (hemispherical)Shadow casting light source SSAO IBL ambient (Specular and Diffuse)Shadow casting light sourceSSAO

  20. IBL ambient (Specular and Diffuse) SSAO * brightened up for better display Video

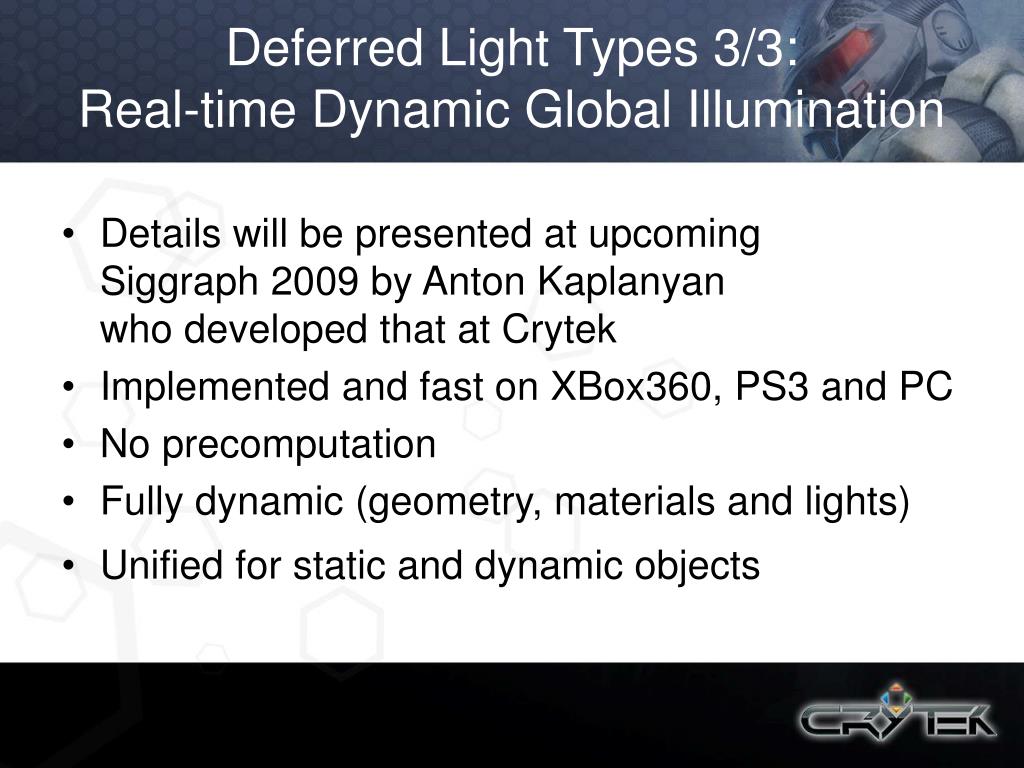

  21. Deferred Light Types 3/3:Real-time Dynamic Global Illumination • Details will be presented at upcomingSiggraph 2009 by Anton Kaplanyanwho developed that at Crytek • Implemented and fast on XBox360, PS3 and PC • No precomputation • Fully dynamic (geometry, materials and lights) • Unified for static and dynamic objects

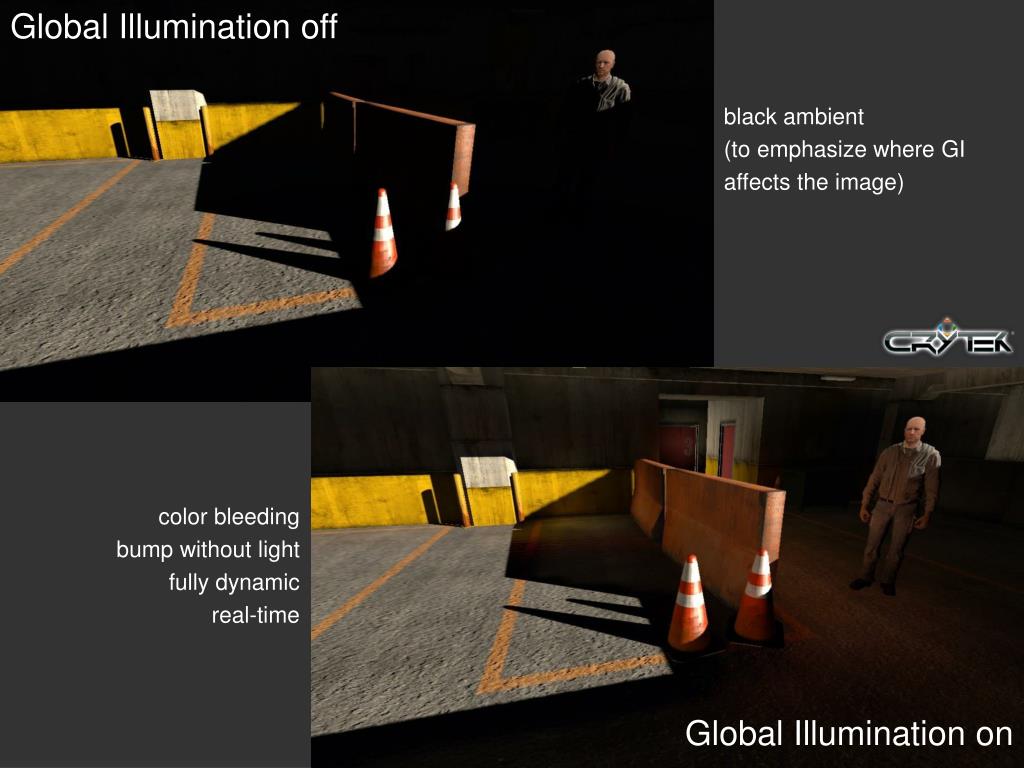

  22. Global Illumination off black ambient (to emphasize where GI affects the image) color bleeding bump without light fully dynamic real-time Global Illumination on

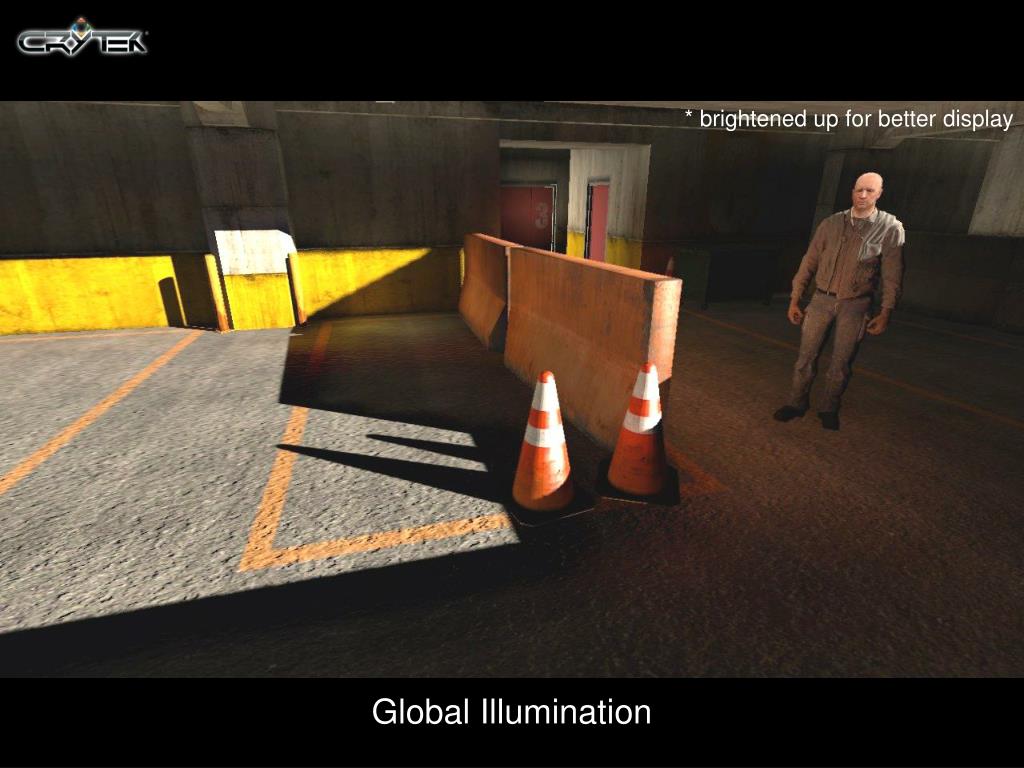

  23. Global Illumination * brightened up for better display

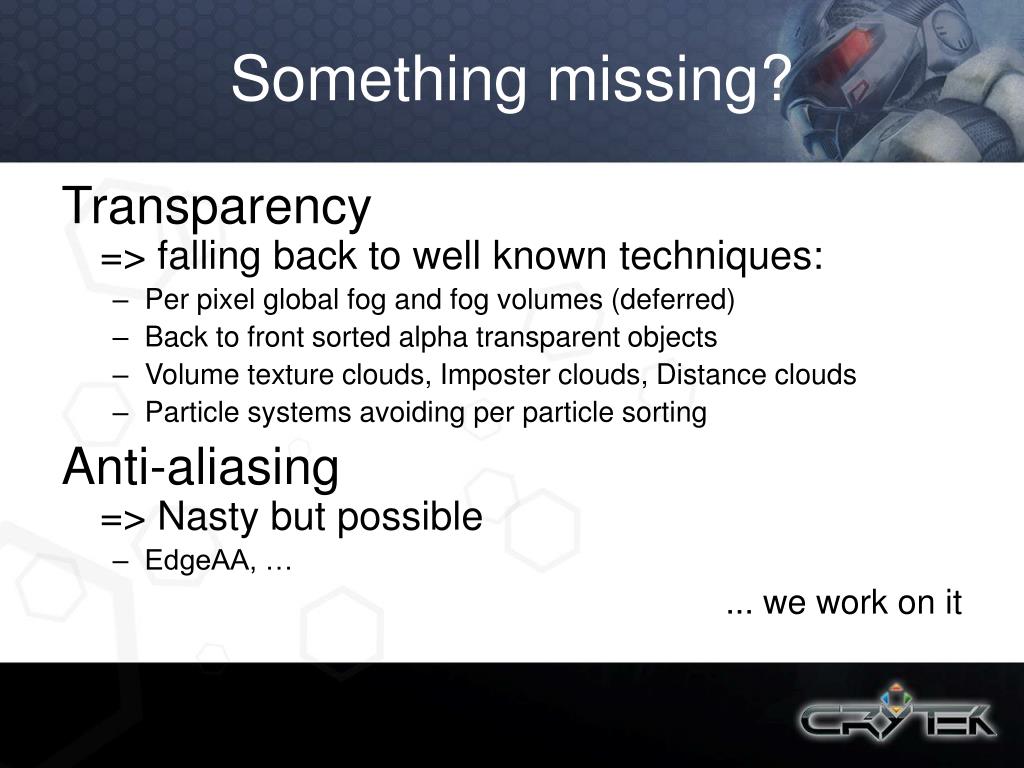

  24. Something missing? Transparency => falling back to well known techniques: • Per pixel global fog and fog volumes (deferred) • Back to front sorted alpha transparent objects • Volume texture clouds, Imposter clouds, Distance clouds • Particle systems avoiding per particle sorting Anti-aliasing => Nasty but possible • EdgeAA, … ... we work on it

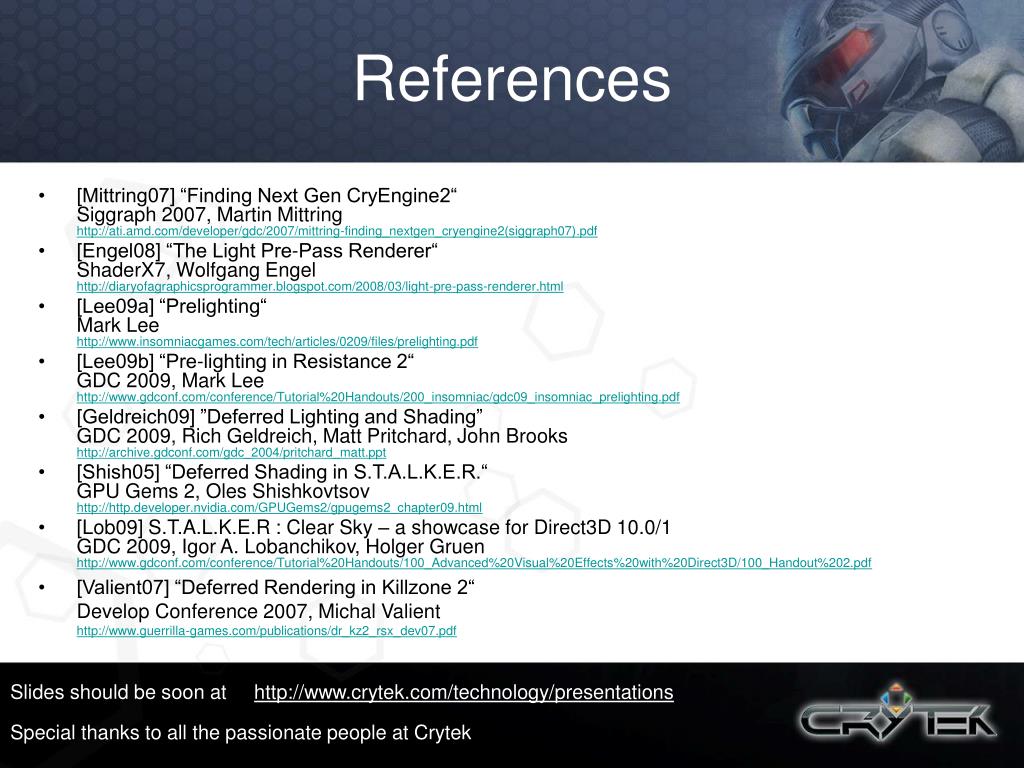

  25. References • [Mittring07] “Finding Next Gen CryEngine2“Siggraph 2007, Martin Mittringhttp://ati.amd.com/developer/gdc/2007/mittring-finding_nextgen_cryengine2(siggraph07).pdf • [Engel08] “The Light Pre-Pass Renderer“ShaderX7, Wolfgang Engelhttp://diaryofagraphicsprogrammer.blogspot.com/2008/03/light-pre-pass-renderer.html • [Lee09a] “Prelighting“Mark Leehttp://www.insomniacgames.com/tech/articles/0209/files/prelighting.pdf • [Lee09b] “Pre-lighting in Resistance 2“GDC 2009, Mark Leehttp://www.gdconf.com/conference/Tutorial%20Handouts/200_insomniac/gdc09_insomniac_prelighting.pdf • [Geldreich09] ”Deferred Lighting and Shading”GDC 2009, Rich Geldreich, Matt Pritchard, John Brookshttp://archive.gdconf.com/gdc_2004/pritchard_matt.ppt • [Shish05] “Deferred Shading in S.T.A.L.K.E.R.“GPU Gems 2, Oles Shishkovtsovhttp://http.developer.nvidia.com/GPUGems2/gpugems2_chapter09.html • [Lob09] S.T.A.L.K.E.R : Clear Sky – a showcase for Direct3D 10.0/1GDC 2009, Igor A. Lobanchikov, Holger Gruenhttp://www.gdconf.com/conference/Tutorial%20Handouts/100_Advanced%20Visual%20Effects%20with%20Direct3D/100_Handout%202.pdf • [Valient07] “Deferred Rendering in Killzone 2“Develop Conference 2007, Michal Valienthttp://www.guerrilla-games.com/publications/dr_kz2_rsx_dev07.pdf Slides should be soon at http://www.crytek.com/technology/presentations Special thanks to all the passionate people at Crytek
