  1. Polycom Conference Firewall Solutions

  2. The use of Video Conferencing Is Rapidly Growing • More and More people are adopting IP conferencing • Audio and Video is improving drastically, making it easy to conference over the internet • Increasing need to scale, manage, and deploy all while maintaining a secure environment • The goal is to connect Anywhere, Anytime, without boundaries

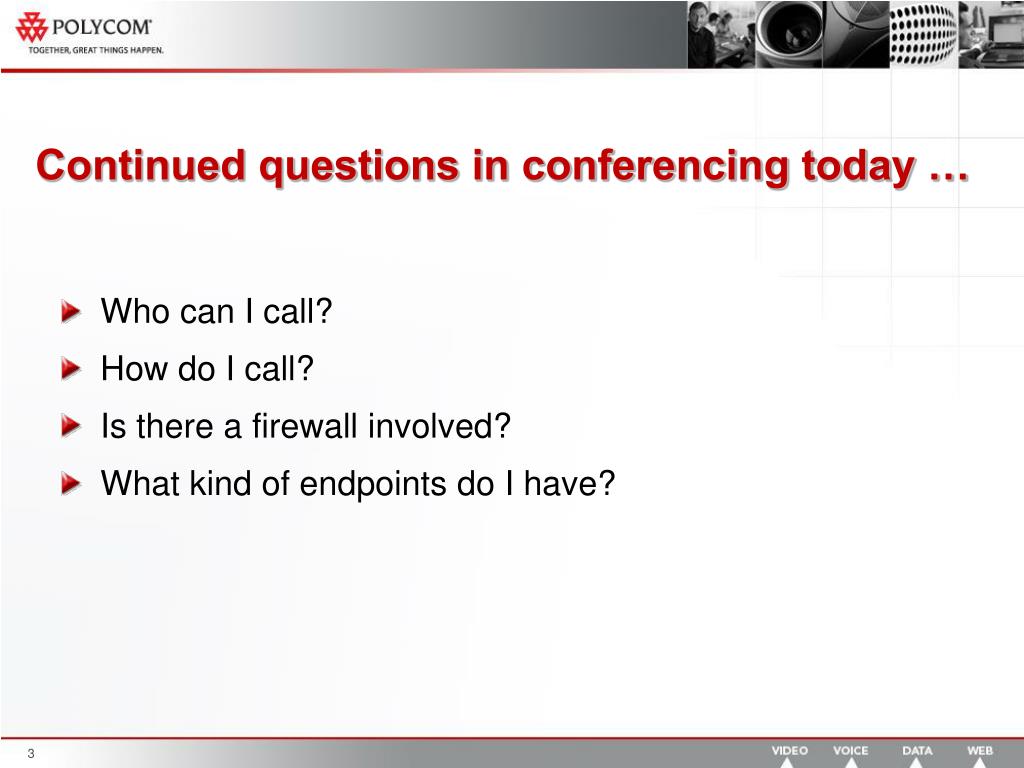

  3. Continued questions in conferencing today … • Who can I call? • How do I call? • Is there a firewall involved? • What kind of endpoints do I have?

  4. Video over IP Deployment Challenges • Existing networking infrastructure is not “media-aware” • Firewalls block Media (Video/Audio) calls • Network Address Translation (NAT) breaks addressing • Video/Audio and data traffic on shared WAN pipes degrades voice and video quality • User Concerns • Dialing concerns • How do I call them? What should I dial? • Do I have to register with them? • Why can’t they call me? • Designing around the above problems is difficult and expensive with legacy CPE hardware

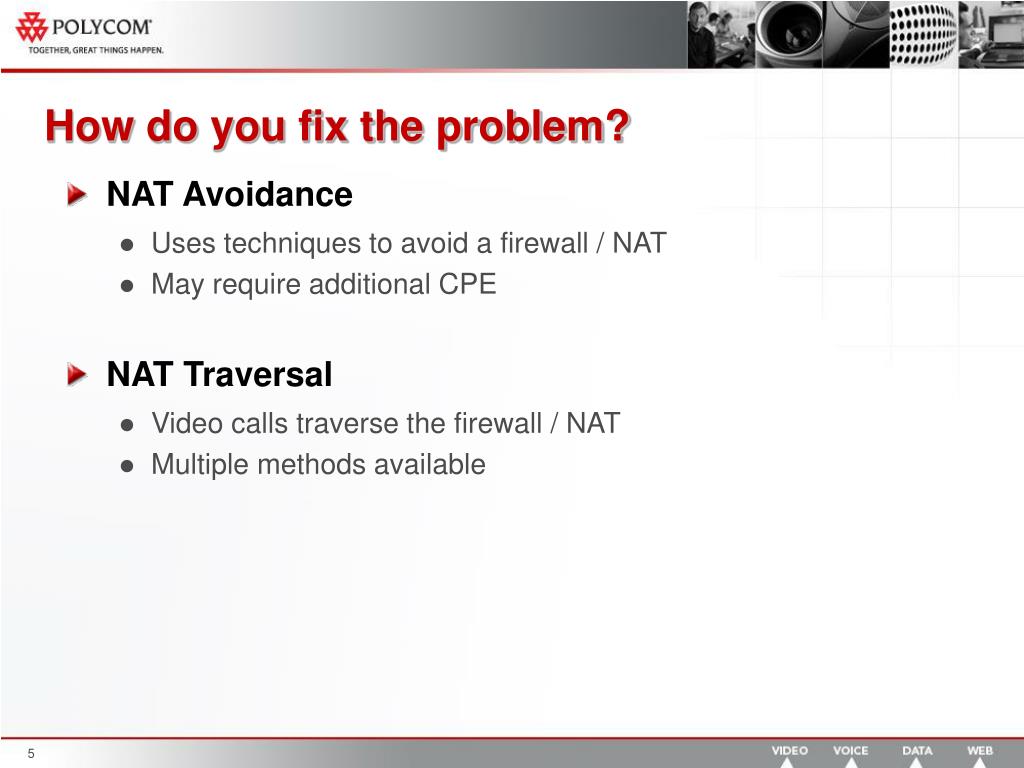

  5. How do you fix the problem? • NAT Avoidance • Uses techniques to avoid a firewall / NAT • May require additional CPE • NAT Traversal • Video calls traverse the firewall / NAT • Multiple methods available

  6. Public IP PROXY Public – Private IP TUNNELS Virtual Private Networks (VPN) One approach – Avoid the NAT problem

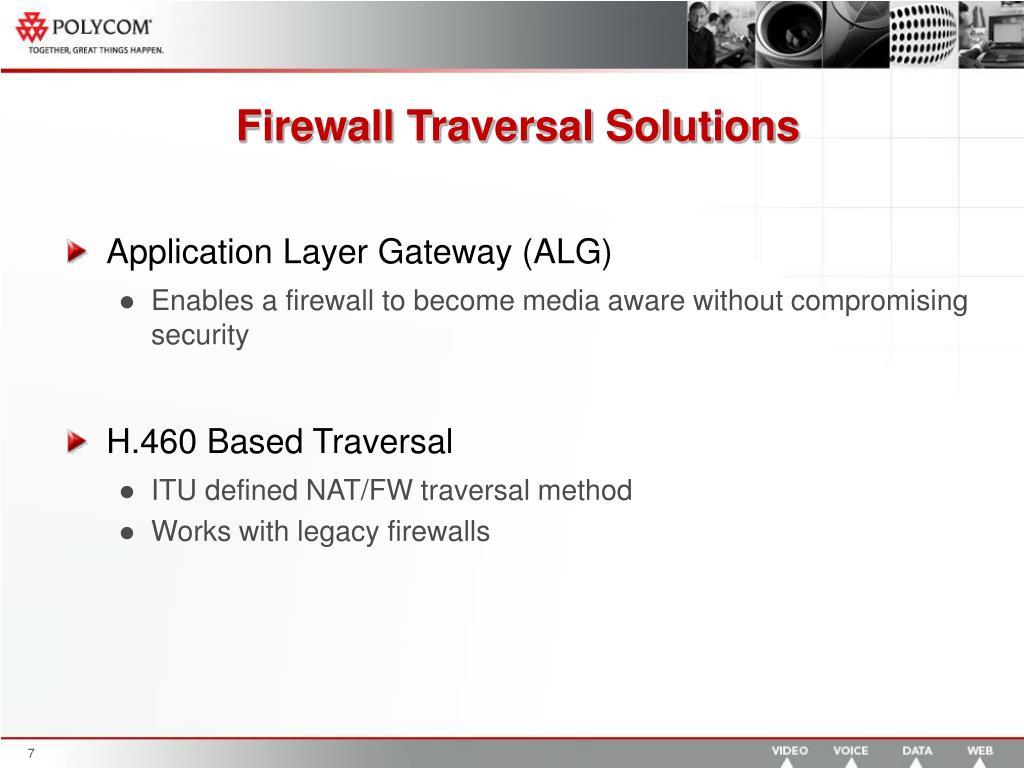

  7. Firewall Traversal Solutions • Application Layer Gateway (ALG) • Enables a firewall to become media aware without compromising security • H.460 Based Traversal • ITU defined NAT/FW traversal method • Works with legacy firewalls

  8. Application Layer Gateway (ALG) • Resolves Network Address Translations issues • Media and protocol aware • Preserves all features (Encryption/Content Sharing) • Uses Stateful Packet Inspection • Dynamically opens and closes ports • Provides topology hiding to protect the H.323 Components (endpoints, bridges, gatekeepers) and data devices

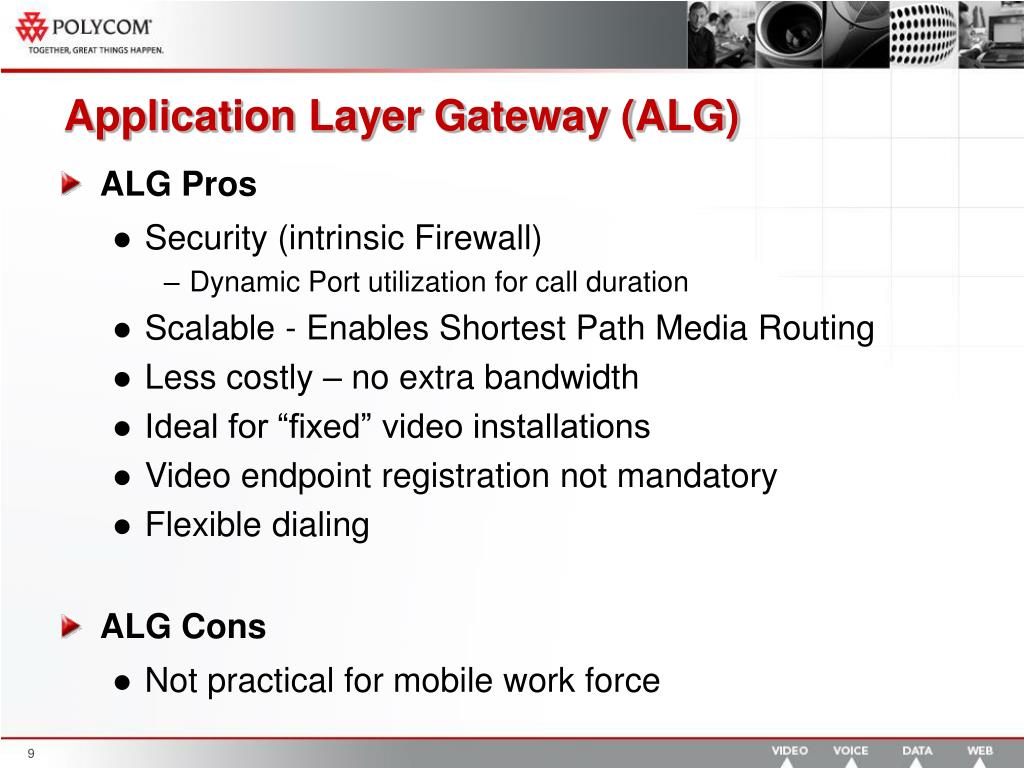

  9. Application Layer Gateway (ALG) • ALG Pros • Security (intrinsic Firewall) • Dynamic Port utilization for call duration • Scalable - Enables Shortest Path Media Routing • Less costly – no extra bandwidth • Ideal for “fixed” video installations • Video endpoint registration not mandatory • Flexible dialing • ALG Cons • Not practical for mobile work force

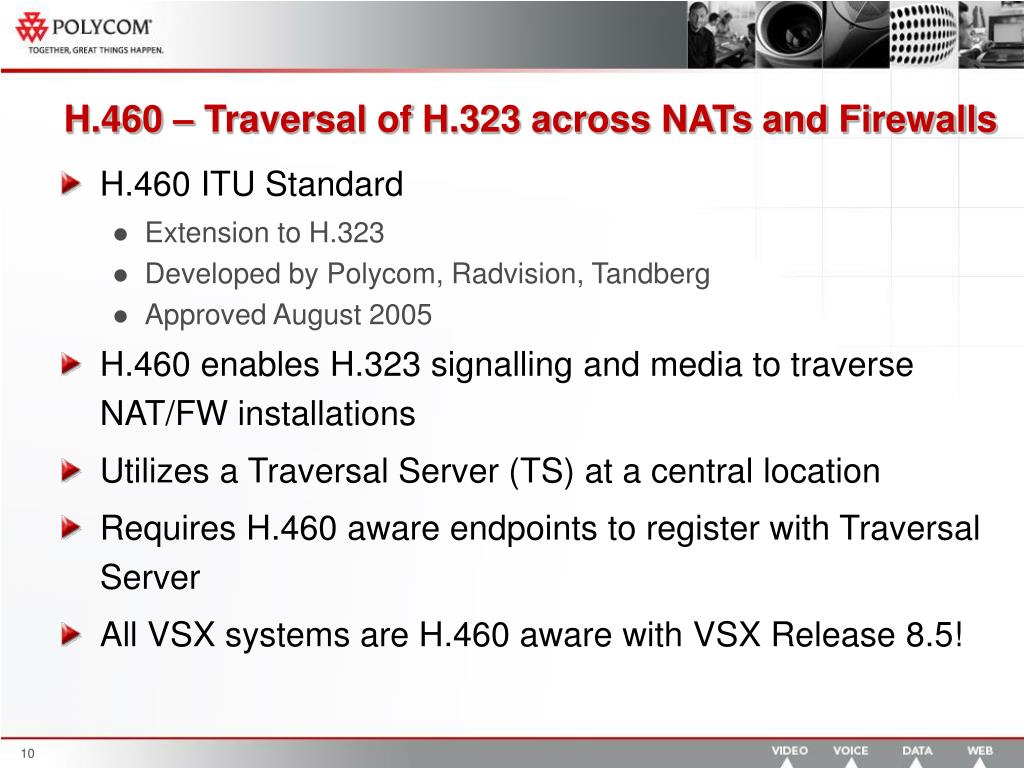

  10. H.460 – Traversal of H.323 across NATs and Firewalls • H.460 ITU Standard • Extension to H.323 • Developed by Polycom, Radvision, Tandberg • Approved August 2005 • H.460 enables H.323 signalling and media to traverse NAT/FW installations • Utilizes a Traversal Server (TS) at a central location • Requires H.460 aware endpoints to register with Traversal Server • All VSX systems are H.460 aware with VSX Release 8.5!

  11. H.460 – Traversal Server • H.460 Pros • Allows for IP calling with legacy firewalls • IP and Port issues resolved at Traversal Server • Simplistic for registered H.460 endpoints • Ideal for mobile users (road warriors / hot spots / home users) • H.460 Cons • Extra bandwidth may be needed at Traversal Server location • Requires endpoints to register with the Traversal Server • Scalability - all traffic routed through the host location (signaling and media) • Less Secure (Traversal Server may not be a Firewall)

  12. Choosing The Right Solution • ISDN gateway • More expensive • ISDN not available everywhere • H.323 aware firewall • Restricts the feature set – encryption • Not ISP friendly • VPN • Exposure risk for Home Offices • Not used for enterprise-to-enterprise communication • Put all video systems on public IP addresses • Vulnerable to attack • Limited availability of public IP addresses • Not scalable

  13. Introducing the Polycom V2IU • Simplifies - Inter-company video conferencing • Resolves - NAT/Firewall traversal problems for Video over IP • Protects - Video and Voice devices with an application aware firewall • Flexible –Can be deployed as an ALG or Traversal Server (H.460) 6400 Series 85 Meg Base MSRP - $42,800 5300 Series 10 Meg or 25 Meg Base MSRP - $7,199 4300 3 Meg Base MSRP - $1,999 • V2IU Product Family – “Voice and Video Interface Unit”

  14. V2IU Key Features And Benefits With VSX Release 8.5, all VSX solutions are H.460 compliant!

  15. Complete PolycomSolution

  16. Thanks !Questions?
