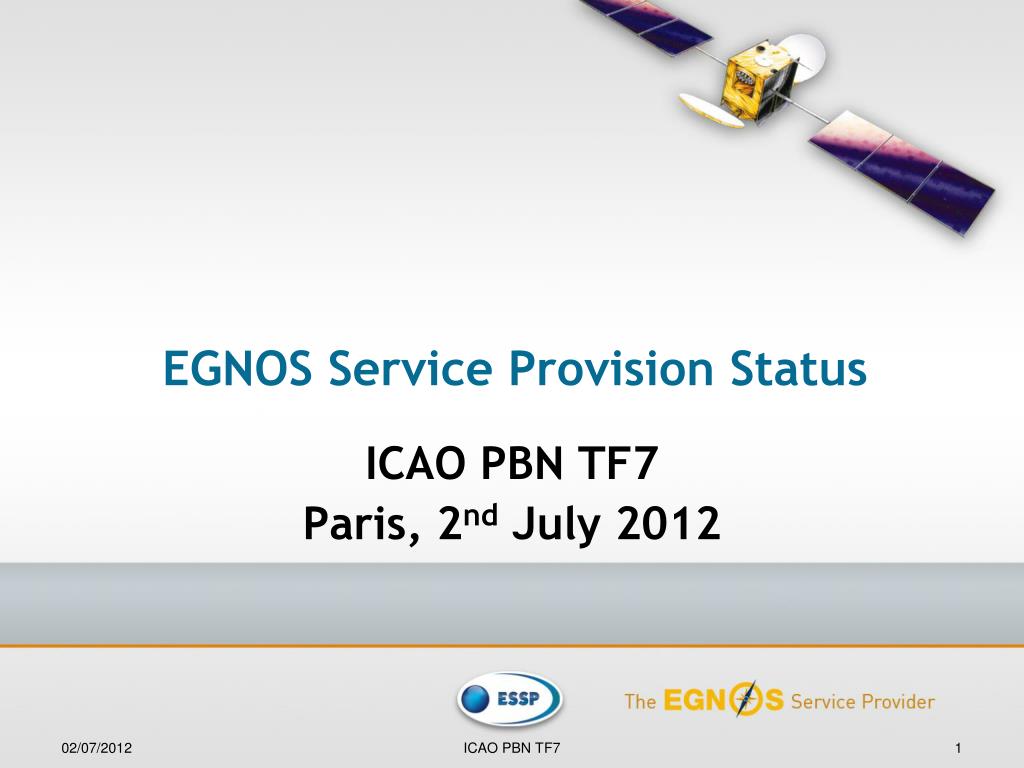

  1. EGNOS Service Provision Status ICAO PBN TF7 Paris, 2ndJuly 2012 ICAO PBN TF7

  2. TABLE OF CONTENT • EGNOS System & Services Status • EGNOS SoL Service issues • EGNOS Services Roadmap • EGNOS SoL Service introduction Status ICAO PBN TF7

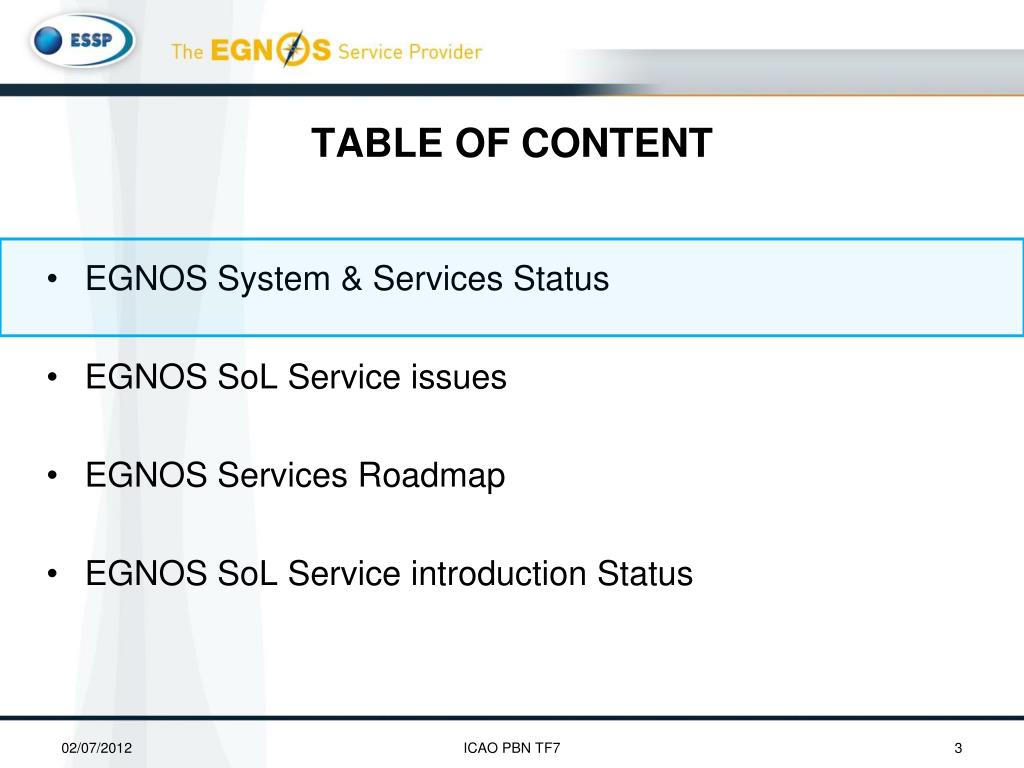

  3. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

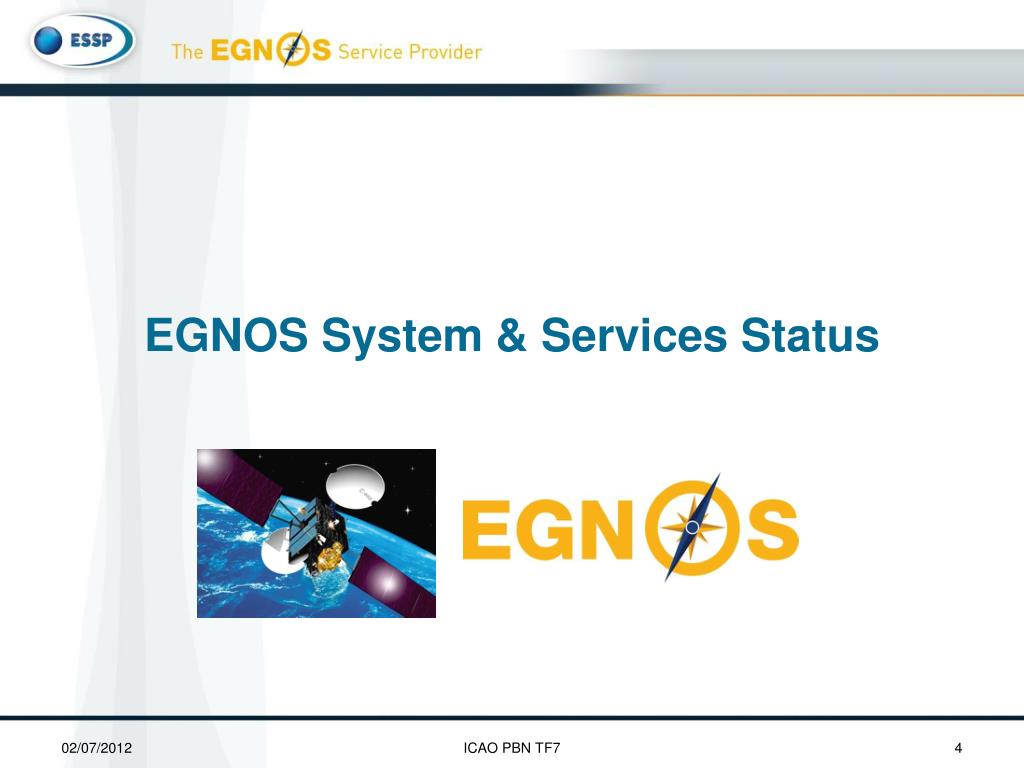

  4. EGNOS System & Services Status ICAO PBN TF7

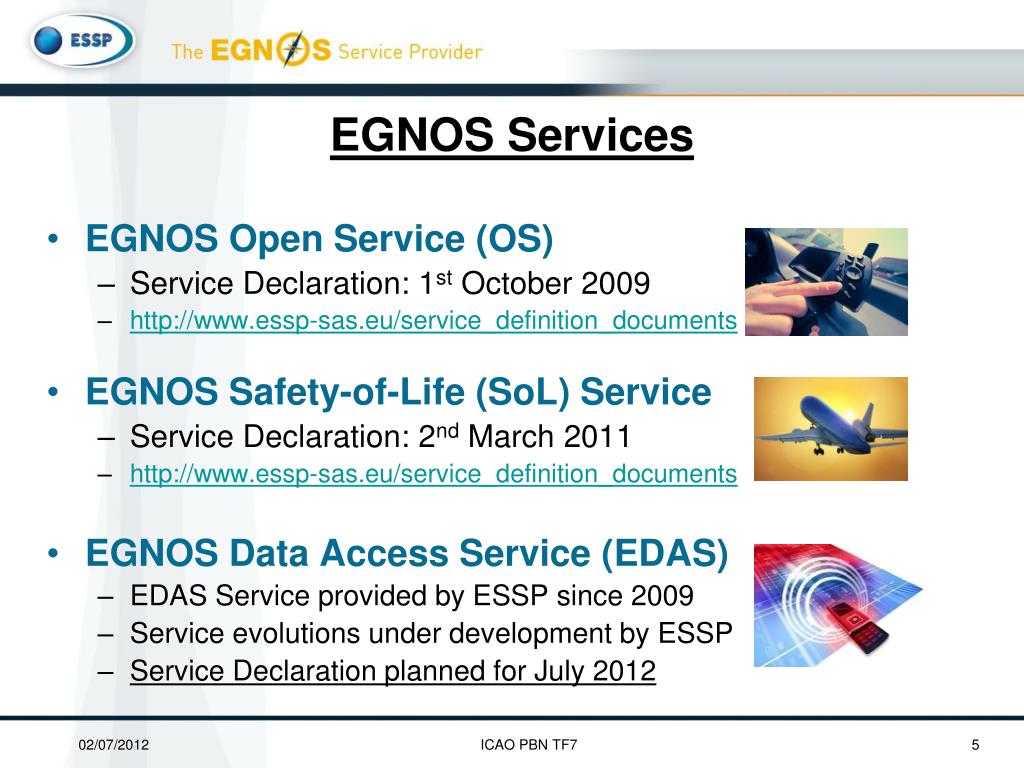

  5. EGNOS Services EGNOS Safety-of-Life (SoL) Service Service Declaration: 2nd March 2011 http://www.essp-sas.eu/service_definition_documents • EGNOS Open Service (OS) • Service Declaration: 1st October 2009 • http://www.essp-sas.eu/service_definition_documents • EGNOS Data Access Service (EDAS) • EDAS Service provided by ESSP since 2009 • Service evolutions under development by ESSP • Service Declaration planned for July 2012 02/07/2012 ICAO PBN TF7 5

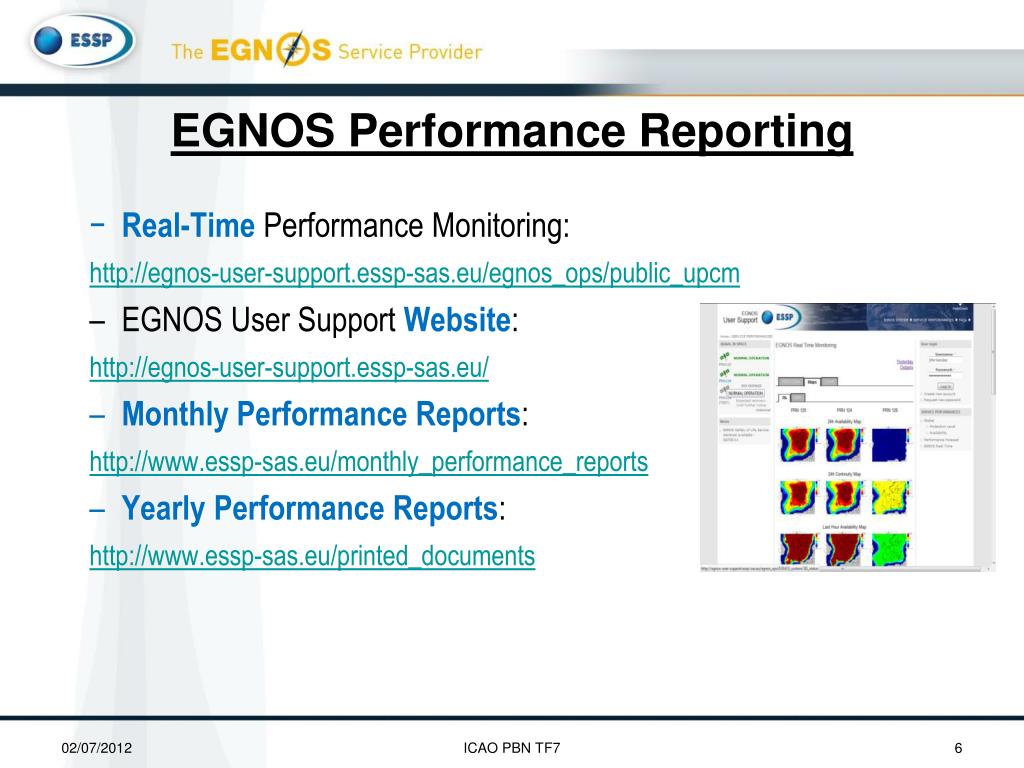

  6. EGNOS Performance Reporting • Real-Time Performance Monitoring: http://egnos-user-support.essp-sas.eu/egnos_ops/public_upcm • EGNOS User Support Website: http://egnos-user-support.essp-sas.eu/ • Monthly Performance Reports: http://www.essp-sas.eu/monthly_performance_reports • Yearly Performance Reports: http://www.essp-sas.eu/printed_documents ICAO PBN TF7

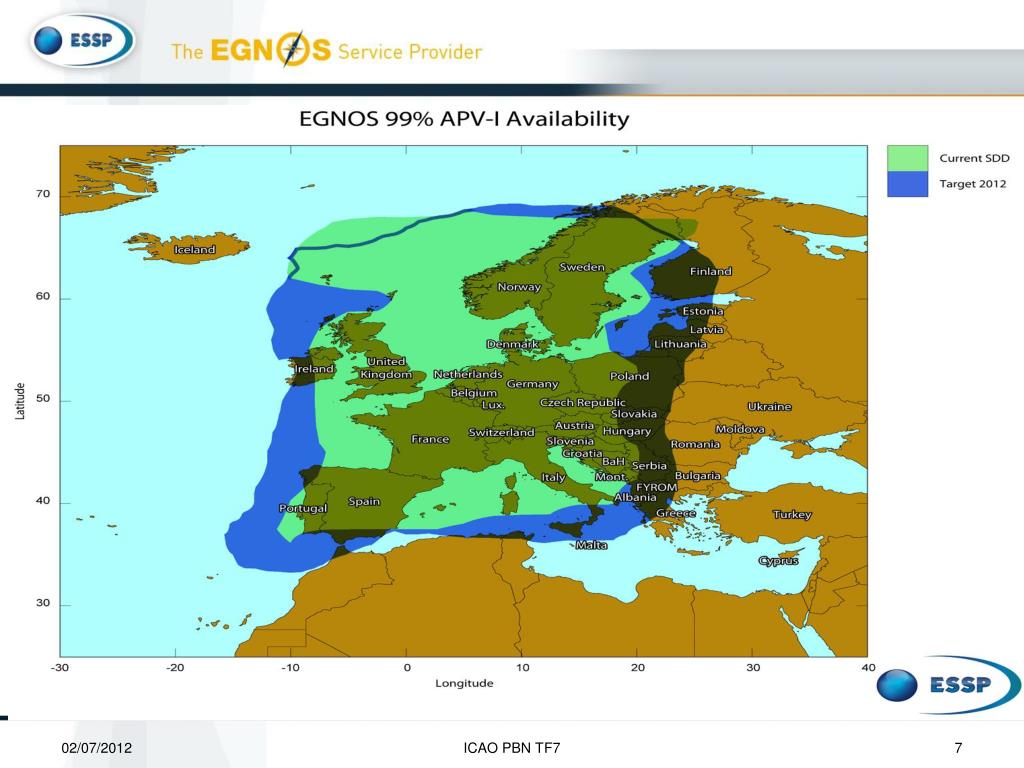

  7. EGNOS Latest Improvements (I/II) Increased service area and improved service robustness in border areas • New EGNOS System Release V2.3.1p was deployed in February-March 2012 with: • GEO Swap (22/3/12): INMARSAT satellite 4F2 (PRN 126) replaced ARTEMIS satellite (PRN 124), thus improving the visibility over the North ECAC area • New reference stations: La Palma (Spain) and Alexandria (Egypt). Athens (Greece) to be deployed in the short term • Improvement in EGNOS functions (iono monitoring) • MT9/MT17 coherency guaranteed • More GPS satellites used by EGNOS (GPS block IIF) ICAO PBN TF7

  8. EGNOS Latest Improvements (II/II) • Actual performance obtained on a typical day… ICAO PBN TF7

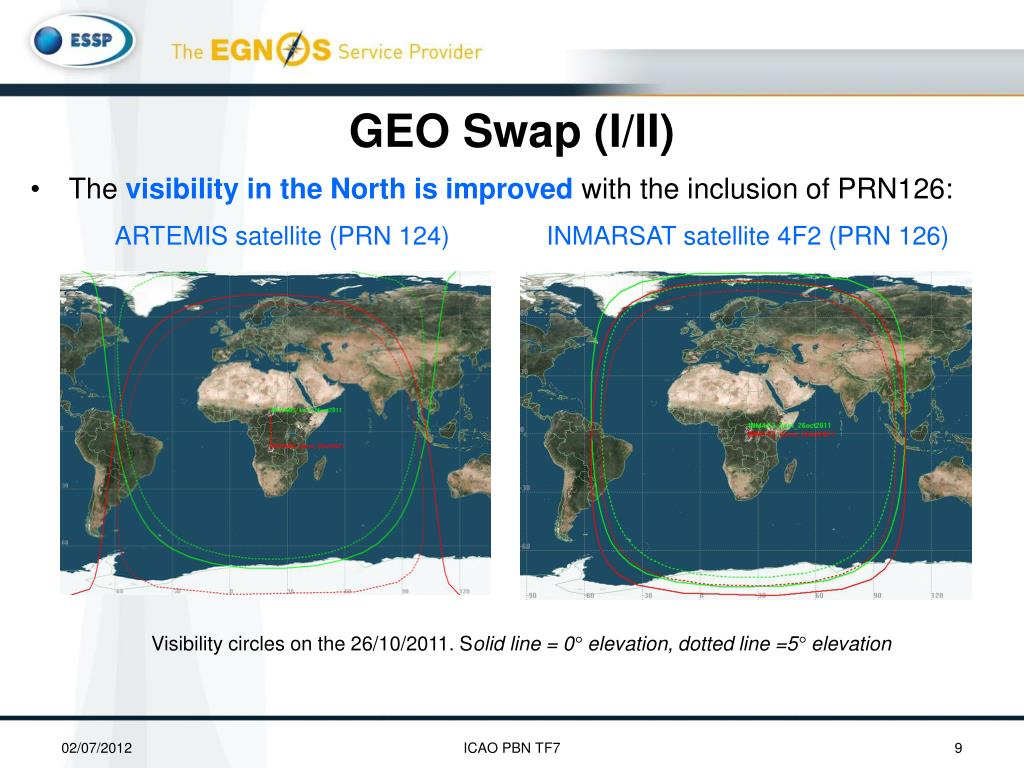

  9. GEO Swap (I/II) The visibility in the North is improved with the inclusion of PRN126: ARTEMIS satellite (PRN 124) INMARSAT satellite 4F2 (PRN 126) Visibility circles on the 26/10/2011. Solid line = 0° elevation, dotted line =5° elevation ICAO PBN TF7

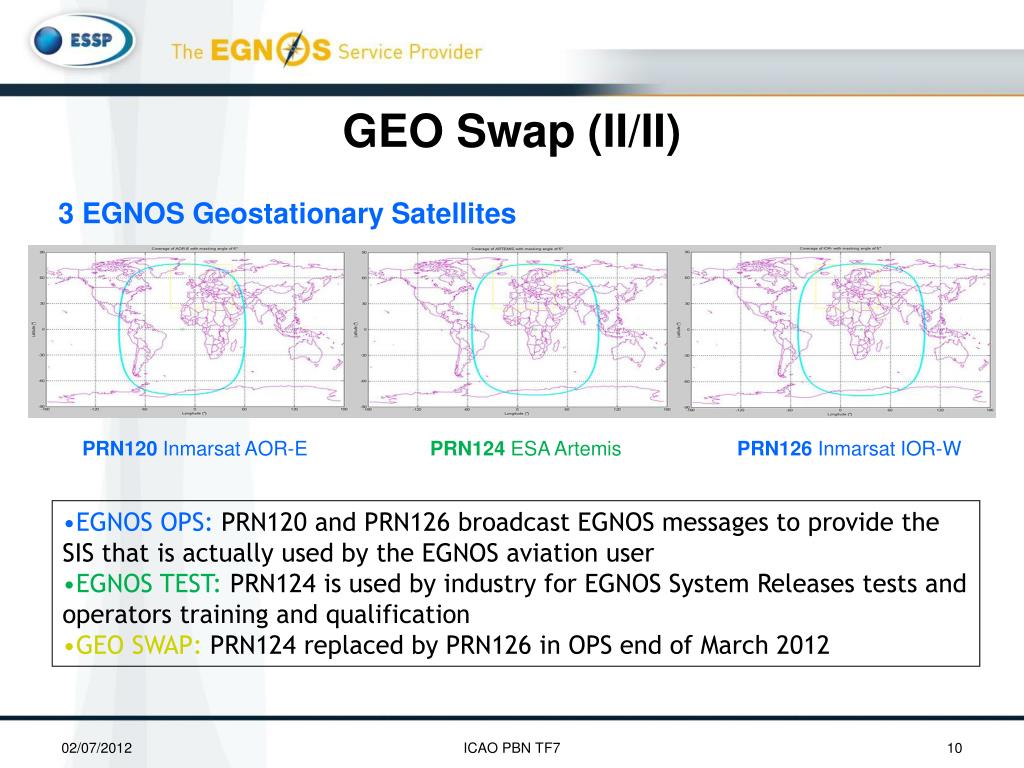

  10. GEO Swap (II/II) 3 EGNOS GeostationarySatellites PRN120Inmarsat AOR-E PRN124 ESA Artemis PRN126 Inmarsat IOR-W • EGNOS OPS: PRN120 and PRN126 broadcast EGNOS messages to provide the SIS that is actually used by the EGNOS aviation user • EGNOS TEST:PRN124 is used by industry for EGNOS System Releases tests and operators training and qualification • GEO SWAP: PRN124 replaced by PRN126 in OPS end of March 2012 ICAO PBN TF7

  11. EGNOS future improvements APV-I target service area 2014 • ESR V2.3.1i: Summer 2012. • The Industry is working in the development of a new EGNOS system release more robust to ionospheric disturbances. • It is expected that this new release will be deployed in Summer 2012. • ESR V2.3.2 and V2.4.x: 2013-2014 • Improvement of Ionospheric monitoring • LPV-200 service • Addition of new RIMS (up to 40) • Next generation infrastructure (New GEOs, improved comm network, etc.) • APV I target Service Area in 2014… ICAO PBN TF7

  12. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

  13. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

  14. EGNOS SoL Service Issues ICAO PBN TF7

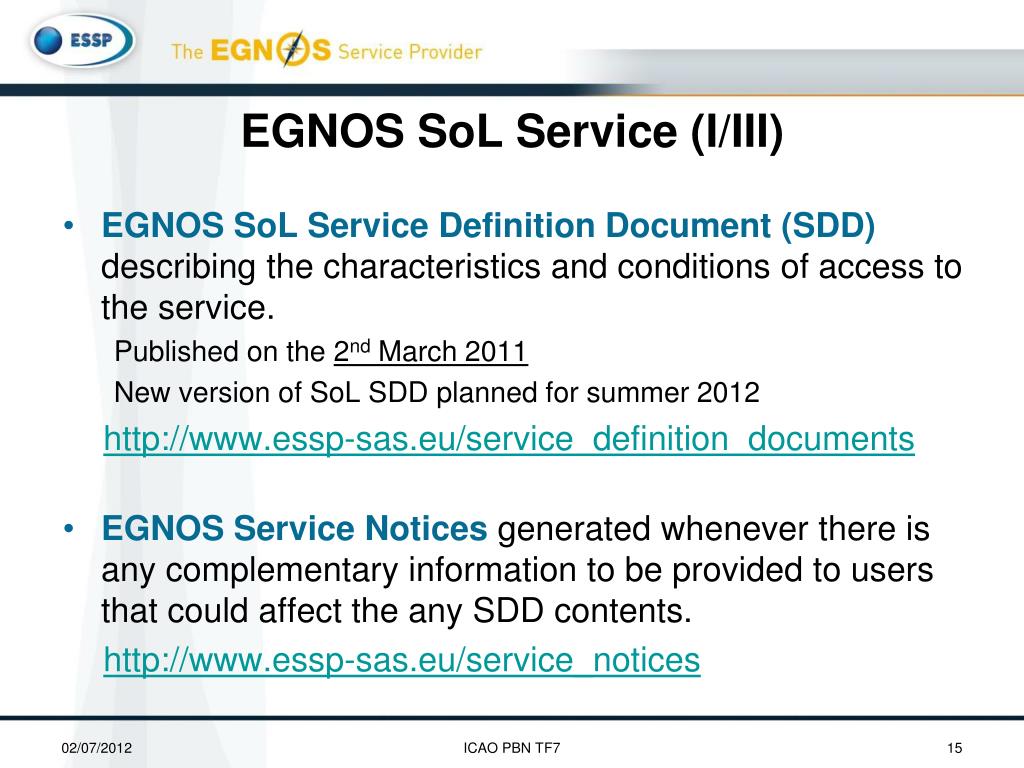

  15. EGNOS SoL Service (I/III) • EGNOS SoL Service Definition Document (SDD) describing the characteristics and conditions of access to the service. Published on the 2nd March 2011 New version of SoL SDD planned for summer 2012 http://www.essp-sas.eu/service_definition_documents • EGNOS Service Notices generated whenever there is any complementary information to be provided to users that could affect the any SDD contents. http://www.essp-sas.eu/service_notices ICAO PBN TF7

  16. EGNOS SoL Service (II/III) • A new SoL SDD will be published this summer ICAO PBN TF7

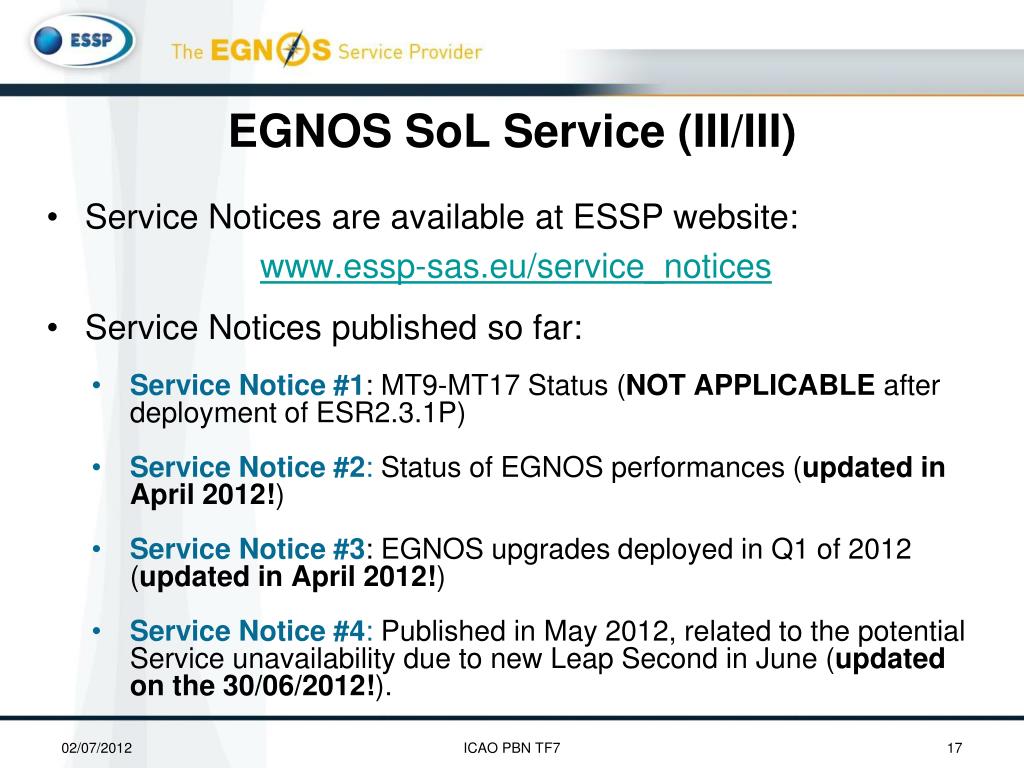

  17. Service Notices are available at ESSP website: www.essp-sas.eu/service_notices Service Notices published so far: Service Notice #1: MT9-MT17 Status (NOT APPLICABLE after deployment of ESR2.3.1P) Service Notice #2: Status of EGNOS performances (updated in April 2012!) Service Notice #3: EGNOS upgrades deployed in Q1 of 2012 (updated in April 2012!) Service Notice #4: Published in May 2012, related to the potential Service unavailability due to new Leap Second in June (updated on the 30/06/2012!). EGNOS SoL Service (III/III) ICAO PBN TF7

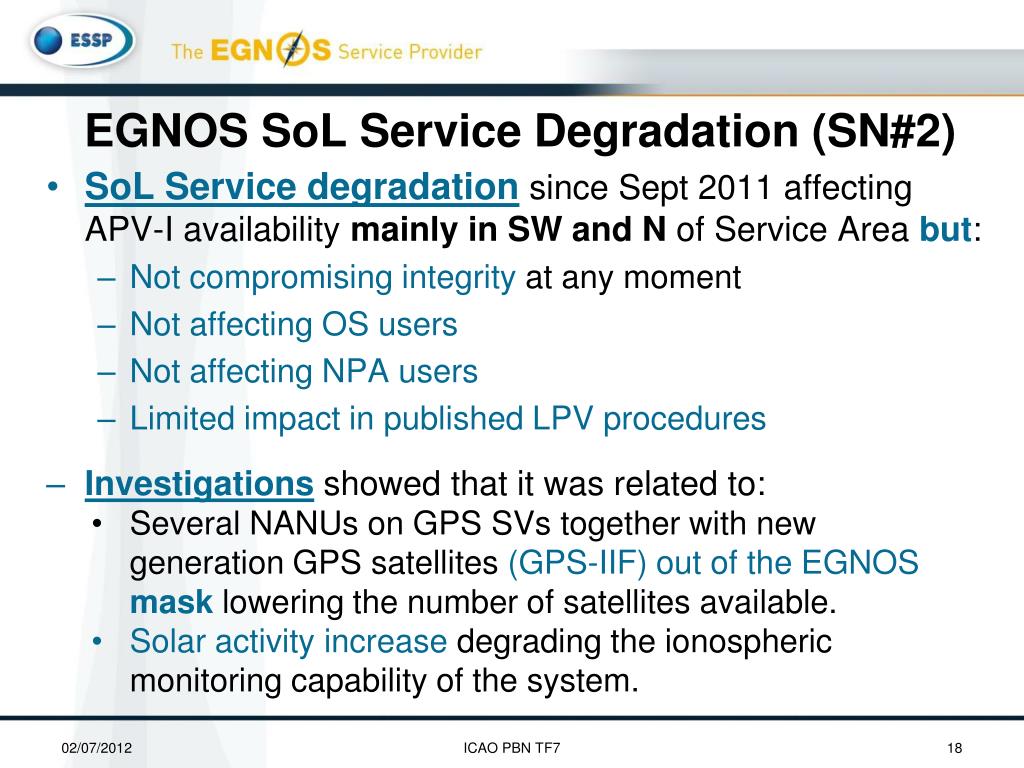

  18. EGNOS SoL Service Degradation (SN#2) • Investigations showed that it was related to: • Several NANUs on GPS SVs together with new generation GPS satellites (GPS-IIF) out of the EGNOS mask lowering the number of satellites available. • Solar activity increase degrading the ionospheric monitoring capability of the system. • SoL Service degradationsince Sept 2011 affecting APV-I availability mainly in SW and N of Service Area but: • Not compromising integrity at any moment • Not affecting OS users • Not affecting NPA users • Limited impact in published LPV procedures ICAO PBN TF7

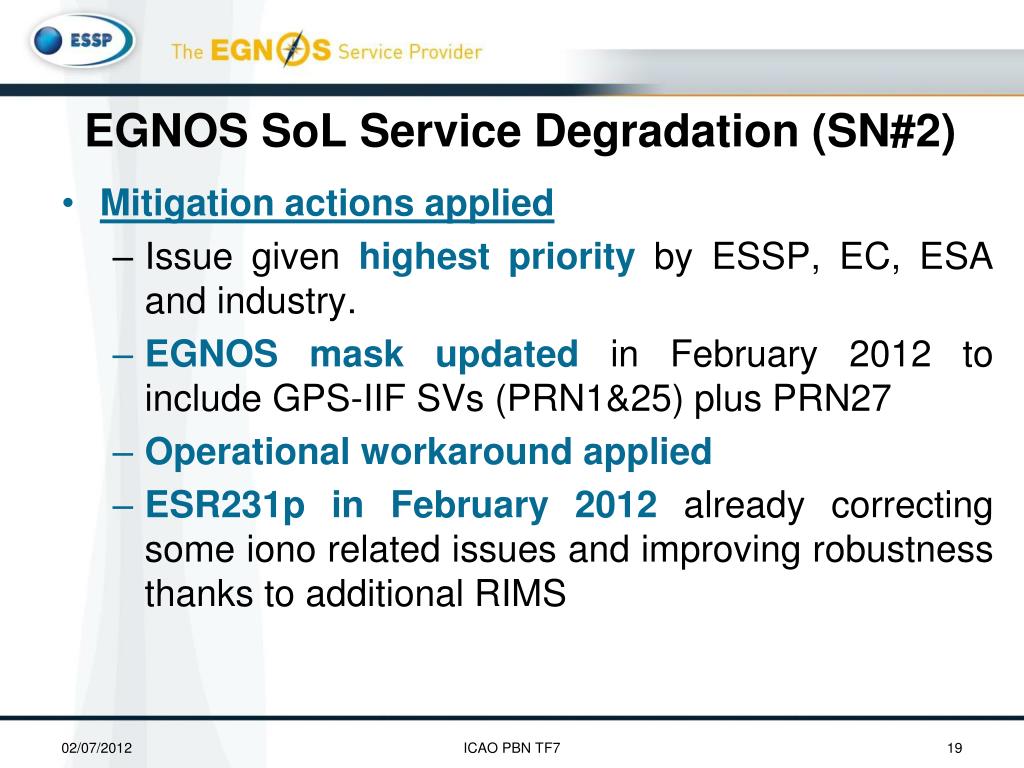

  19. EGNOS SoL Service Degradation (SN#2) • Mitigation actions applied • Issue given highest priority by ESSP, EC, ESA and industry. • EGNOS mask updated in February 2012 to include GPS-IIF SVs (PRN1&25) plus PRN27 • Operational workaround applied • ESR231p in February 2012 already correcting some iono related issues and improving robustness thanks to additional RIMS ICAO PBN TF7

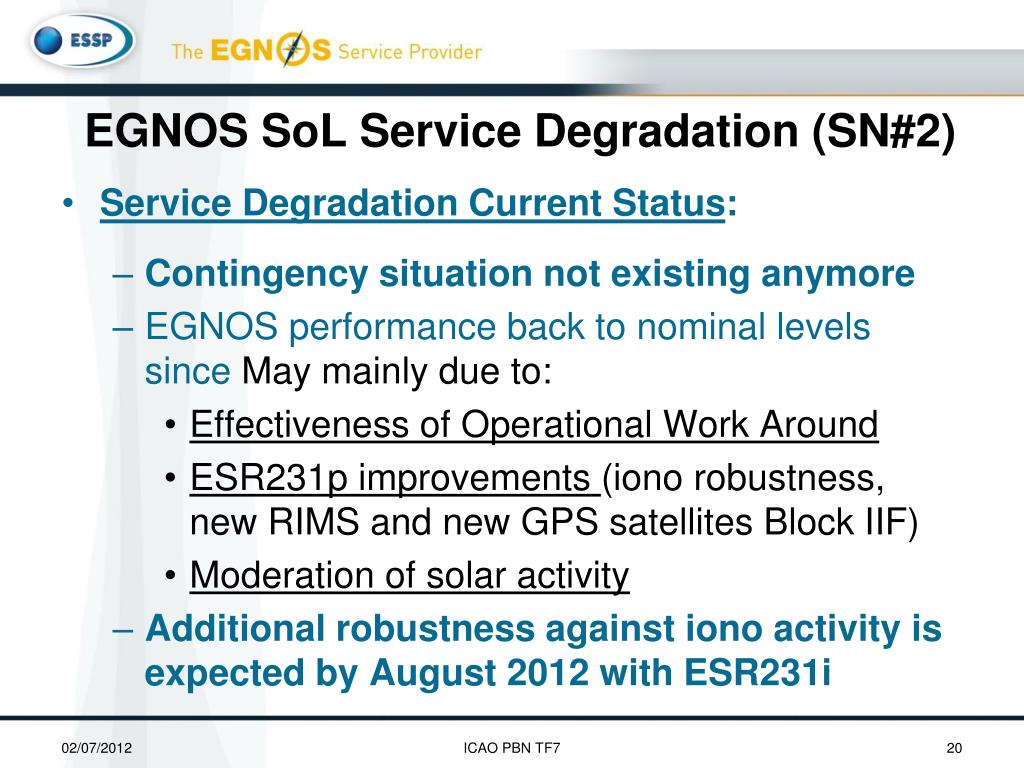

  20. EGNOS SoL Service Degradation (SN#2) • Service Degradation Current Status: • Contingency situation not existing anymore • EGNOS performance back to nominal levels since May mainly due to: • Effectiveness of Operational Work Around • ESR231p improvements (iono robustness, new RIMS and new GPS satellites Block IIF) • Moderation of solar activity • Additional robustness against iono activity is expected by August 2012 with ESR231i ICAO PBN TF7

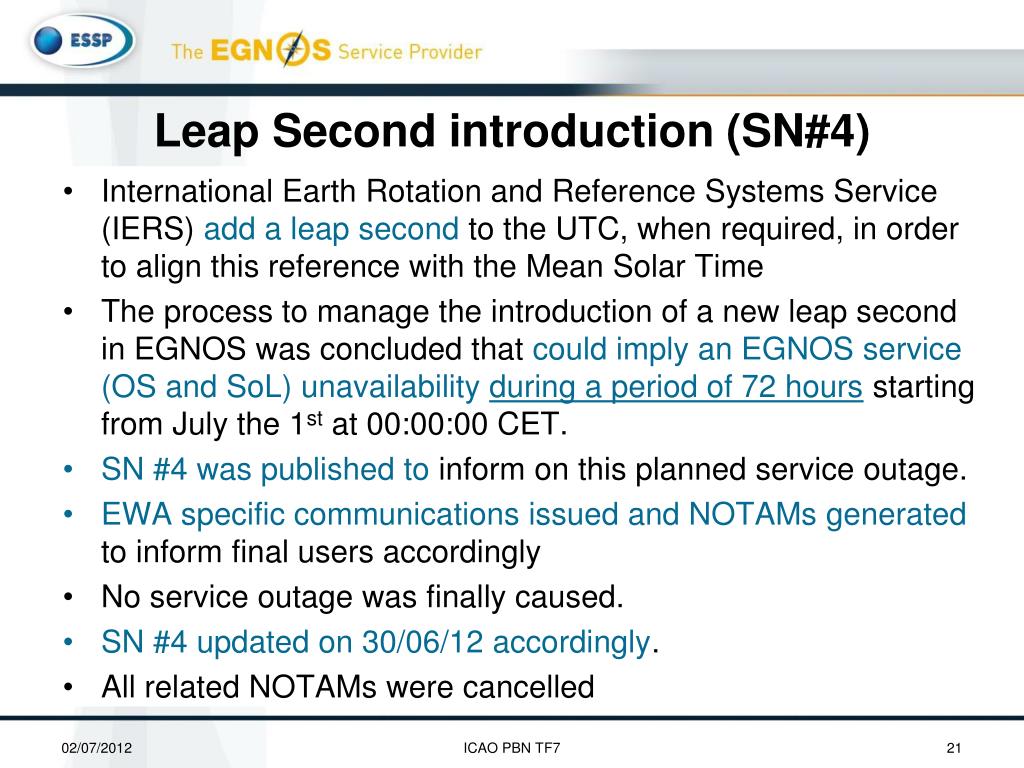

  21. Leap Second introduction (SN#4) International Earth Rotation and Reference Systems Service (IERS) add a leap second to the UTC, when required, in order to align this reference with the Mean Solar Time The process to manage the introduction of a new leap second in EGNOS was concluded that could imply an EGNOS service (OS and SoL) unavailability during a period of 72 hoursstarting from July the 1st at 00:00:00 CET. SN #4 was published to inform on this planned service outage. EWA specific communications issued and NOTAMs generated to inform final users accordingly No service outage was finally caused. SN #4 updated on 30/06/12 accordingly. All related NOTAMs were cancelled ICAO PBN TF7

  22. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

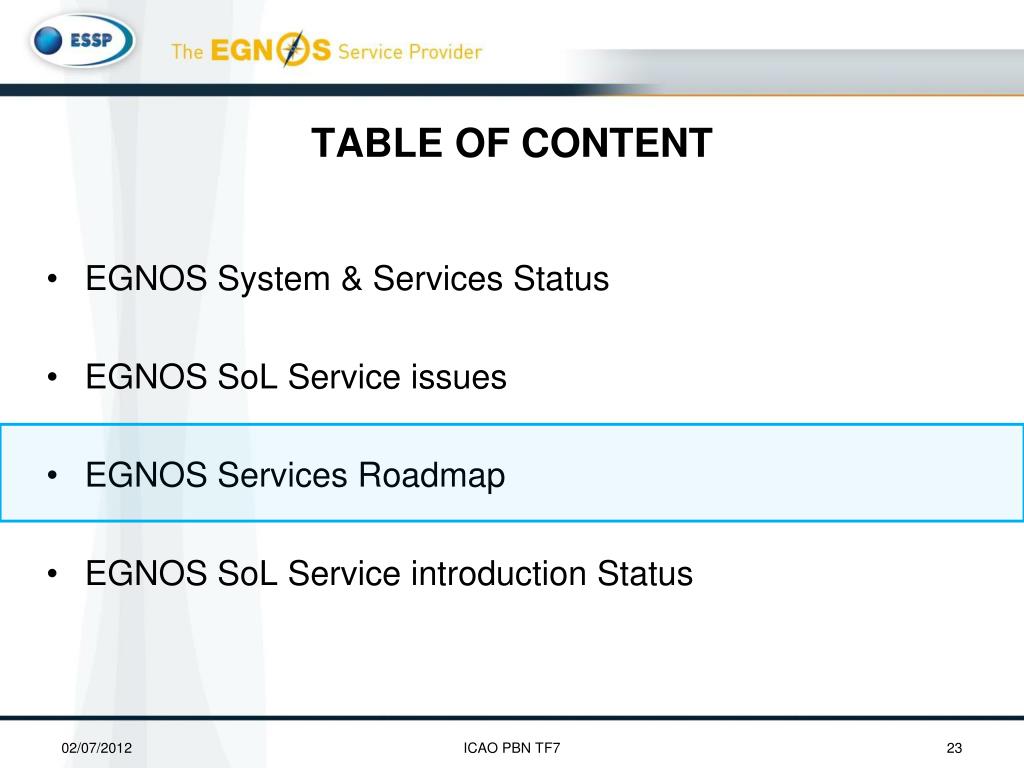

  23. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

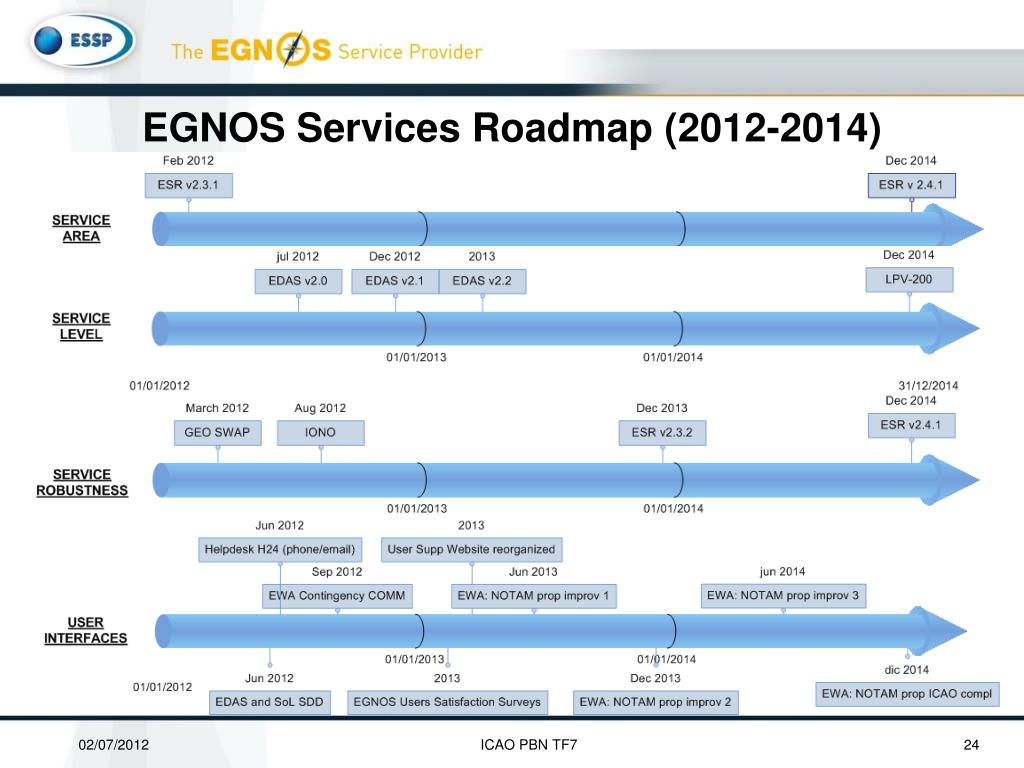

  24. EGNOS ServicesRoadmap (2012-2014) • EGNOS Service Roadmap document will be published by ESSP soon including: • A high-level overview of EGNOS services’ current status • EGNOS Services expected evolutions related to: • Service Area extensions • Service Level improvements • Service Robustness improvements • User Interfaces enhacements 02/07/2012 ICAO PBN TF7 24

  25. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

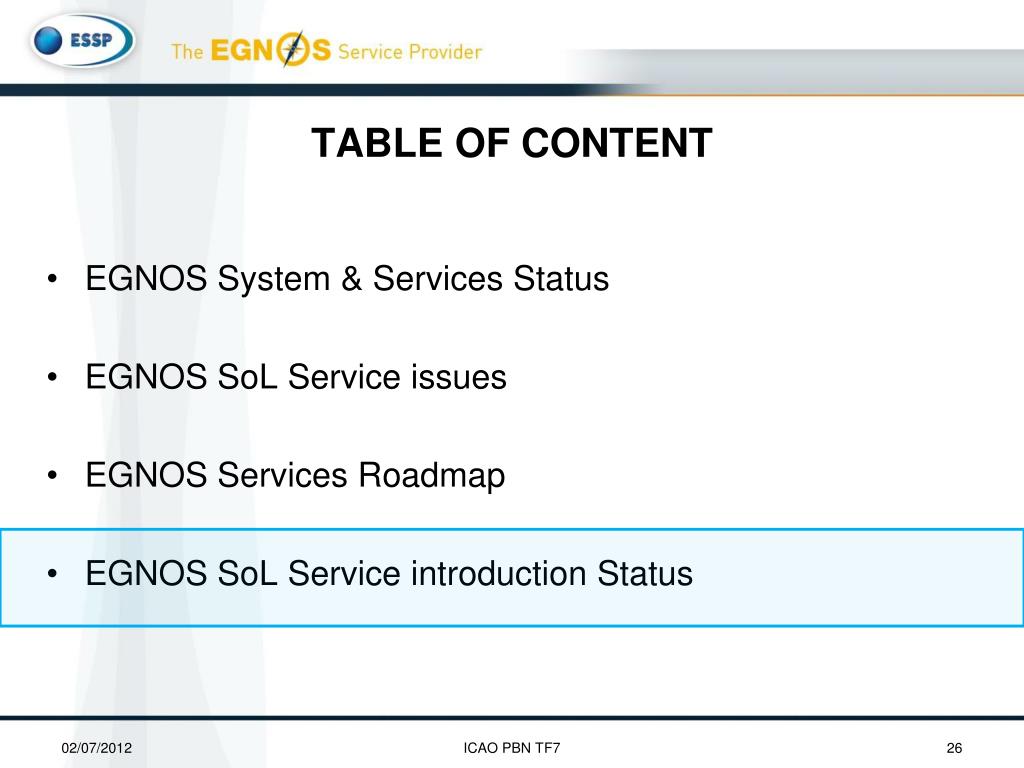

  26. TABLE OF CONTENT EGNOS System & Services Status EGNOS SoL Service issues EGNOS Services Roadmap EGNOS SoL Service introduction Status ICAO PBN TF7

  27. EGNOS SoL Service Introduction Status ICAO PBN TF7

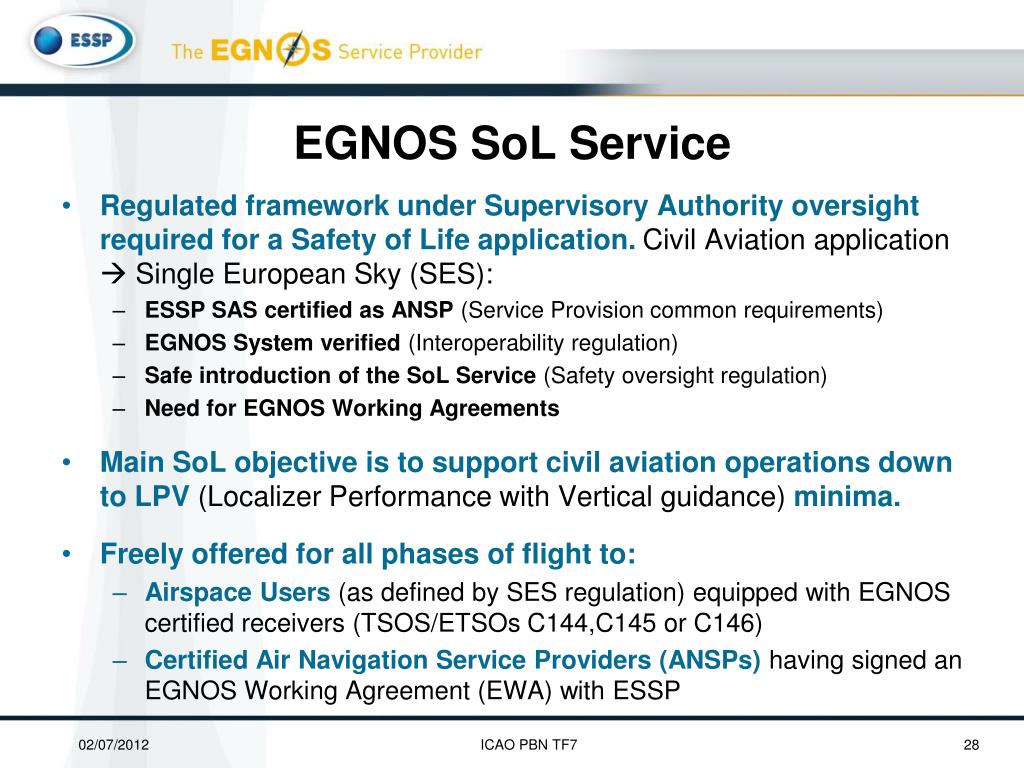

  28. EGNOS SoL Service • Regulated framework under Supervisory Authority oversight required for a Safety of Life application. Civil Aviation application  Single European Sky (SES): • ESSP SAS certified as ANSP (Service Provision common requirements) • EGNOS System verified (Interoperability regulation) • Safe introduction of the SoL Service (Safety oversight regulation) • Need for EGNOS Working Agreements • Main SoL objective is to support civil aviation operations down to LPV (Localizer Performance with Vertical guidance)minima. • Freely offered for all phases of flight to: • Airspace Users (as defined by SES regulation) equipped with EGNOS certified receivers (TSOS/ETSOs C144,C145 or C146) • Certified Air Navigation Service Providers (ANSPs)having signed an EGNOS Working Agreement (EWA) with ESSP 02/07/2012 ICAO PBN TF7 28

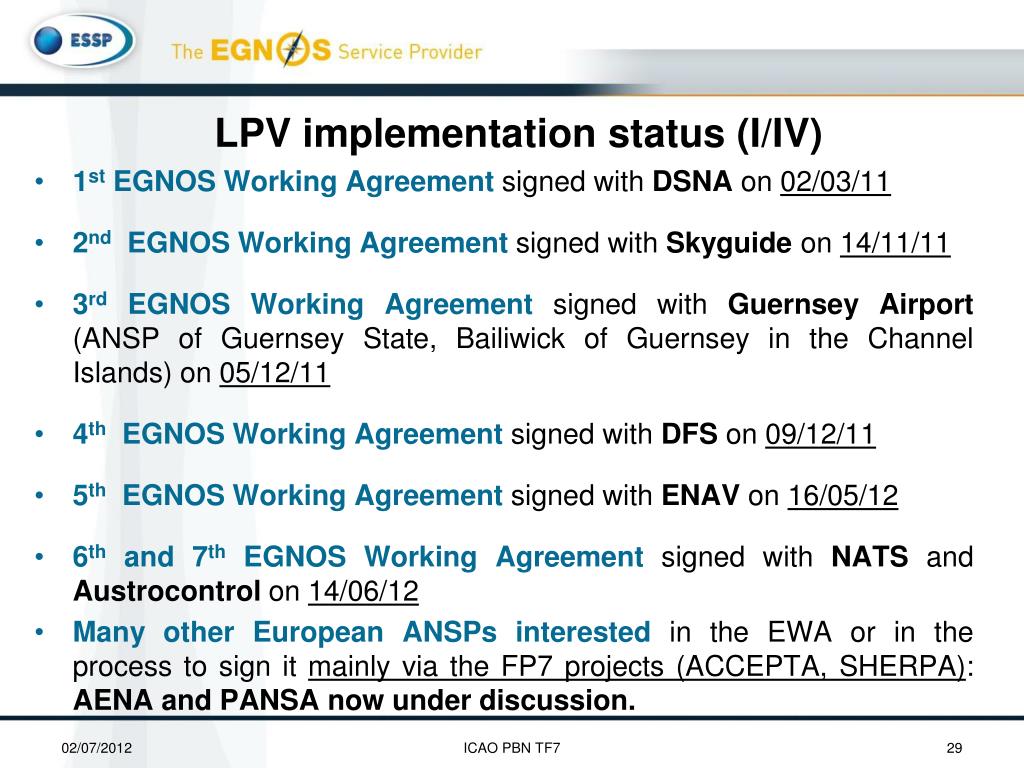

  29. LPV implementation status (I/IV) 1st EGNOS Working Agreementsigned with DSNA on 02/03/11 2nd EGNOS Working Agreementsigned with Skyguide on 14/11/11 3rd EGNOS Working Agreementsigned with Guernsey Airport (ANSP of Guernsey State, Bailiwick of Guernsey in the Channel Islands) on 05/12/11 4th EGNOS Working Agreement signed with DFS on 09/12/11 5th EGNOS Working Agreement signed with ENAV on 16/05/12 6th and 7th EGNOS Working Agreement signed with NATS and Austrocontrol on 14/06/12 Many other European ANSPs interestedin the EWA or in the process to sign it mainly via the FP7 projects (ACCEPTA, SHERPA): AENA and PANSA now under discussion. ICAO PBN TF7

  30. LPV implementation status (II/IV) EGNOS-based procedures implementation map and detailed list included in the ESSP website www.essp-sas.eu 02/07/2012 ICAO PBN TF7 30

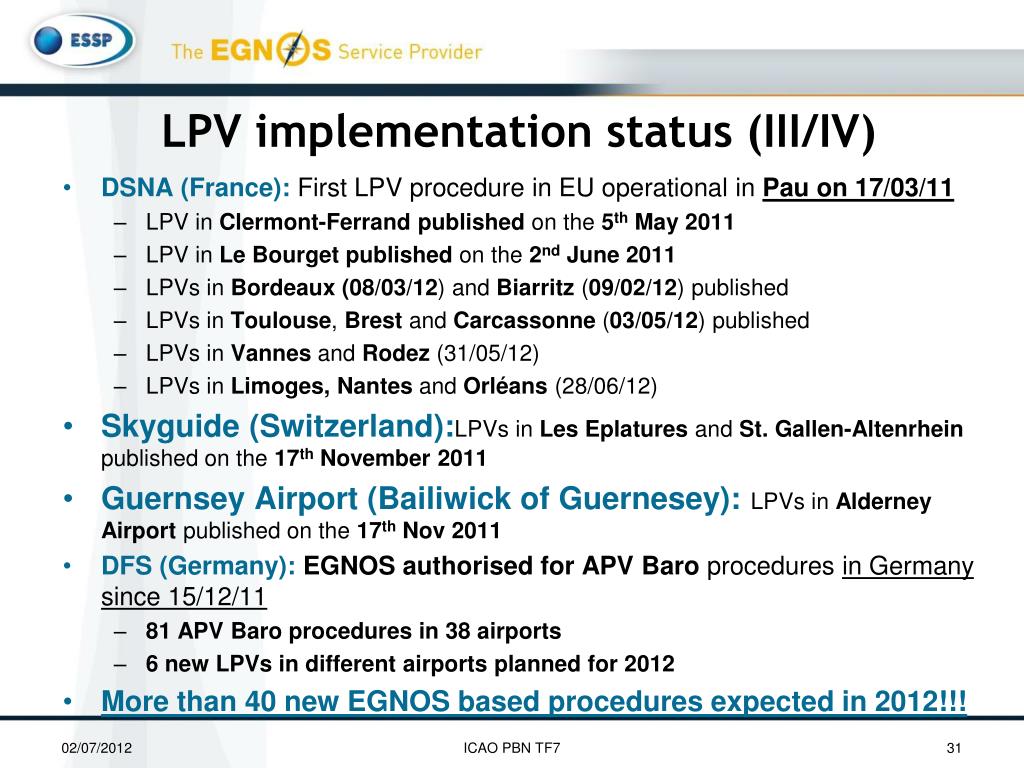

  31. LPV implementation status (III/IV) • DSNA (France): First LPV procedure in EU operational in Pau on 17/03/11 • LPV in Clermont-Ferrandpublished on the 5th May 2011 • LPV in Le Bourgetpublished on the 2nd June 2011 • LPVs in Bordeaux (08/03/12) and Biarritz (09/02/12) published • LPVs in Toulouse, Brest and Carcassonne (03/05/12) published • LPVs in Vannes and Rodez (31/05/12) • LPVs in Limoges, Nantes and Orléans (28/06/12) • Skyguide (Switzerland):LPVs in Les Eplatures and St. Gallen-Altenrhein published on the 17th November 2011 • Guernsey Airport (Bailiwick of Guernesey): LPVs in Alderney Airport published on the 17th Nov 2011 • DFS (Germany): EGNOS authorised for APV Baro proceduresin Germany since 15/12/11 • 81 APV Baro procedures in 38 airports • 6 new LPVs in different airports planned for 2012 • More than 40 new EGNOS based procedures expected in 2012!!! ICAO PBN TF7

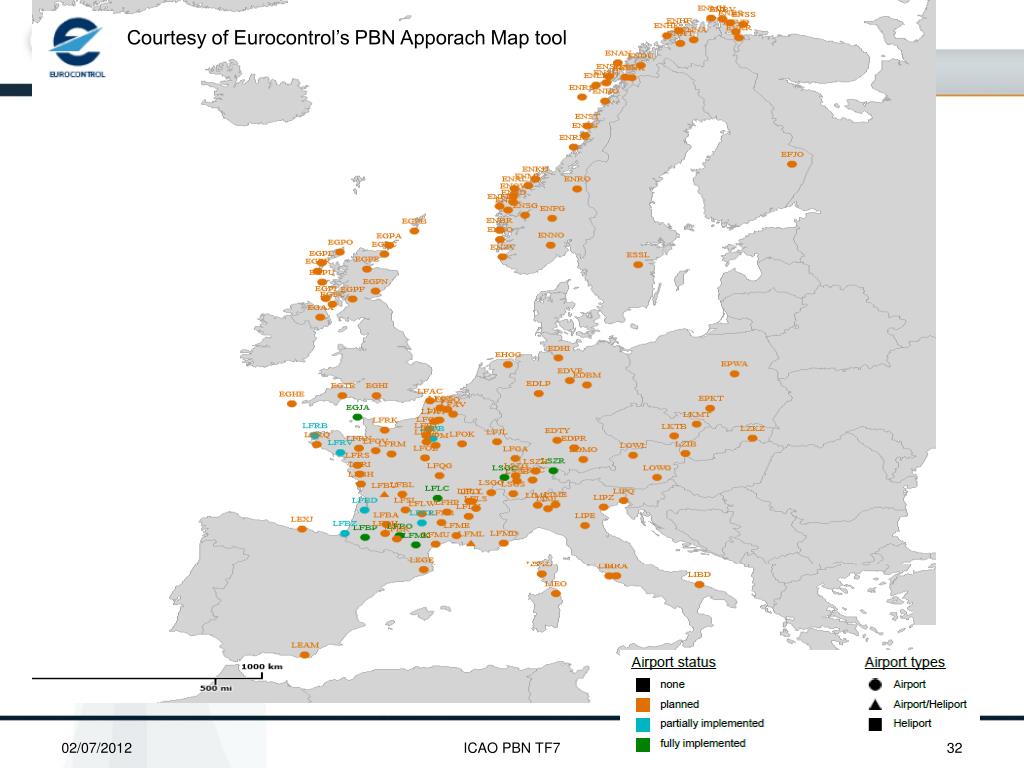

  32. Courtesy of Eurocontrol’s PBN Apporach Map tool LPV implementation status (IV/IV) • As a summary of the current status: • Plans for the rest of 2012: • Some tens more LPVs in France • 6 new LPVs in different German regional airports • 1st LPV in Spain? • 1st LPV in UK? • 1st LPV in Italy? • Plans in the short-mid term… • High expectations based on ANSPs communicated plans for APV implementation… ICAO PBN TF7 32

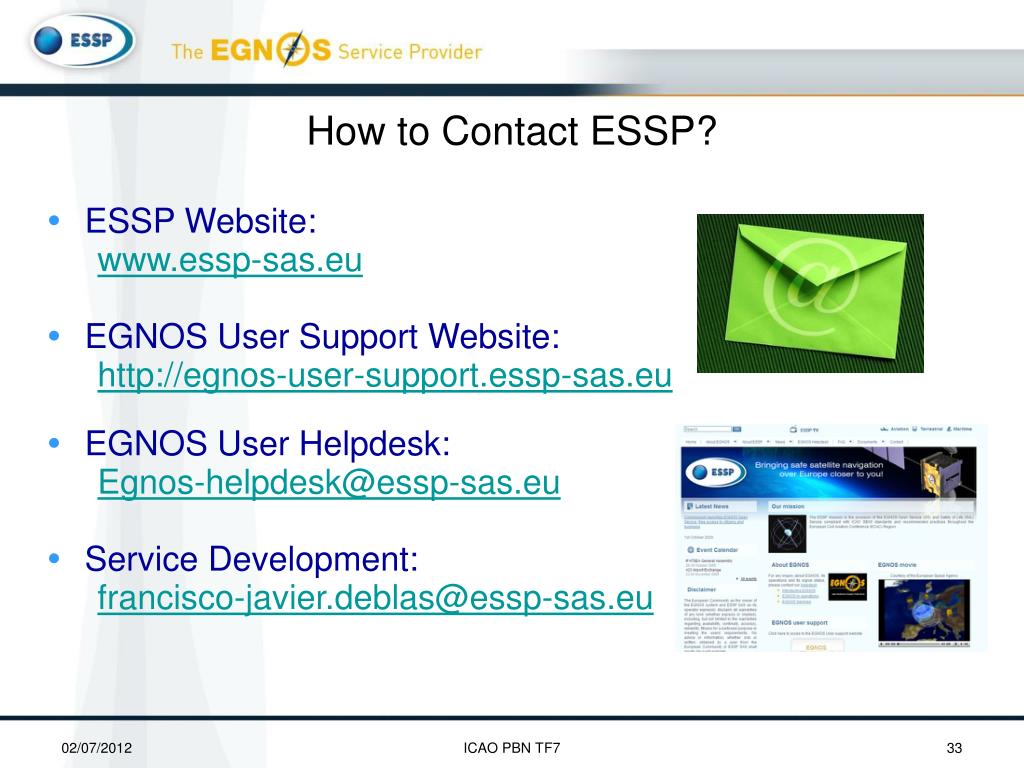

  33. How to Contact ESSP? • ESSP Website: www.essp-sas.eu • EGNOS User Support Website: http://egnos-user-support.essp-sas.eu • EGNOS User Helpdesk: Egnos-helpdesk@essp-sas.eu • Service Development: francisco-javier.deblas@essp-sas.eu ICAO PBN TF7

  34. Questions? 02/07/2012 ICAO PBN TF7 34
