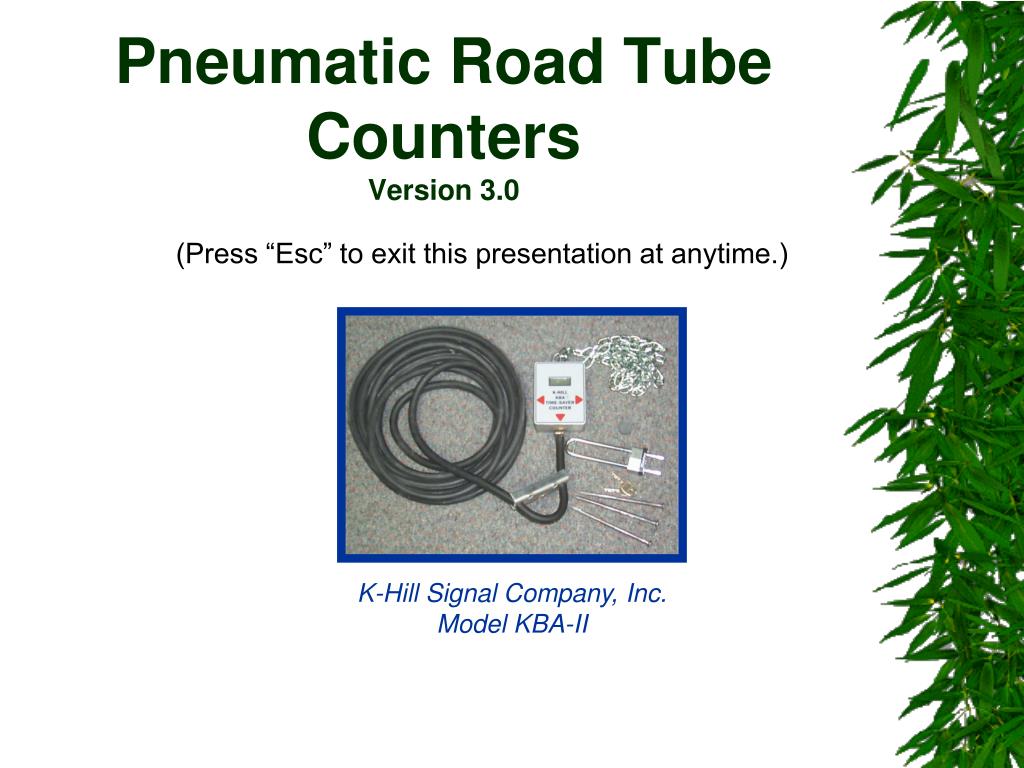

  1. Pneumatic Road Tube CountersVersion 3.0 (Press “Esc” to exit this presentation at anytime.) K-Hill Signal Company, Inc. Model KBA-II

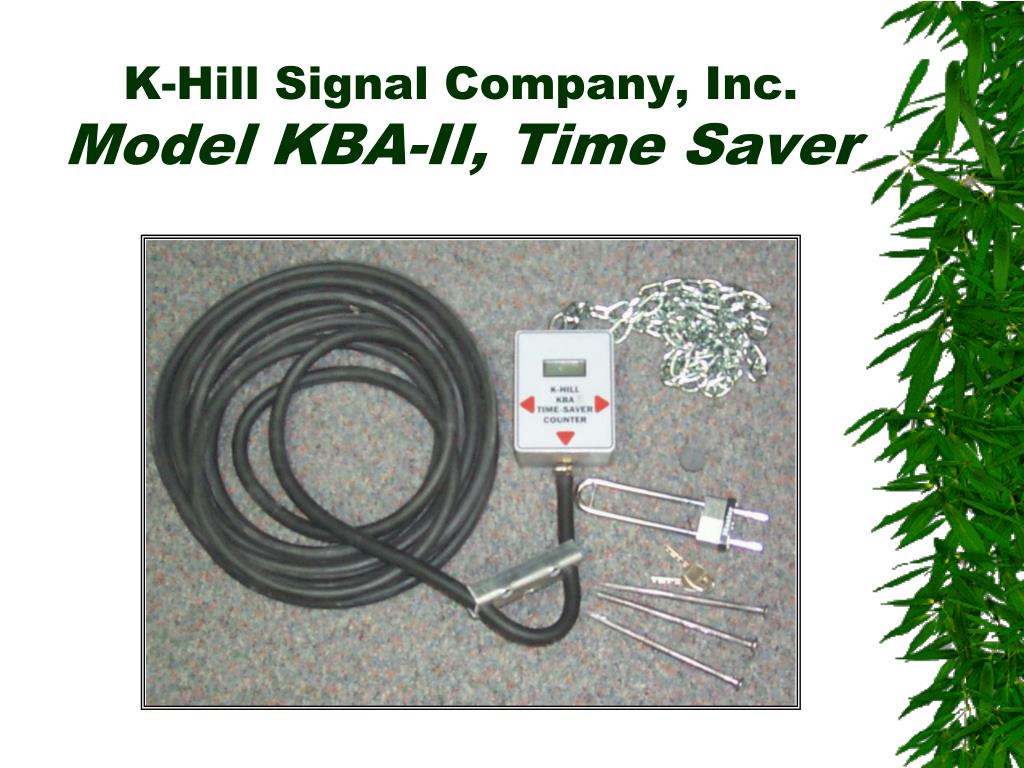

  2. K-Hill Signal Company, Inc.Model KBA-II, Time Saver

  3. KBA-II — Key Features • 8-place alpha/numeric liquid crystal display (LCD) with backlight option; • Magnet zero reset; • Magnet interval length selection; • Selectable intervals: 1hr to 12 hrs., 1 day to 99 days, and continuous; • Magnet interval data read out; • Grand total and 24 recorded intervals; • 5-year lithium batteries; • Simple to operate; • Waterproof / compact case; • 1/4" (6 mm) thick walled aluminum case, with lock and chain.

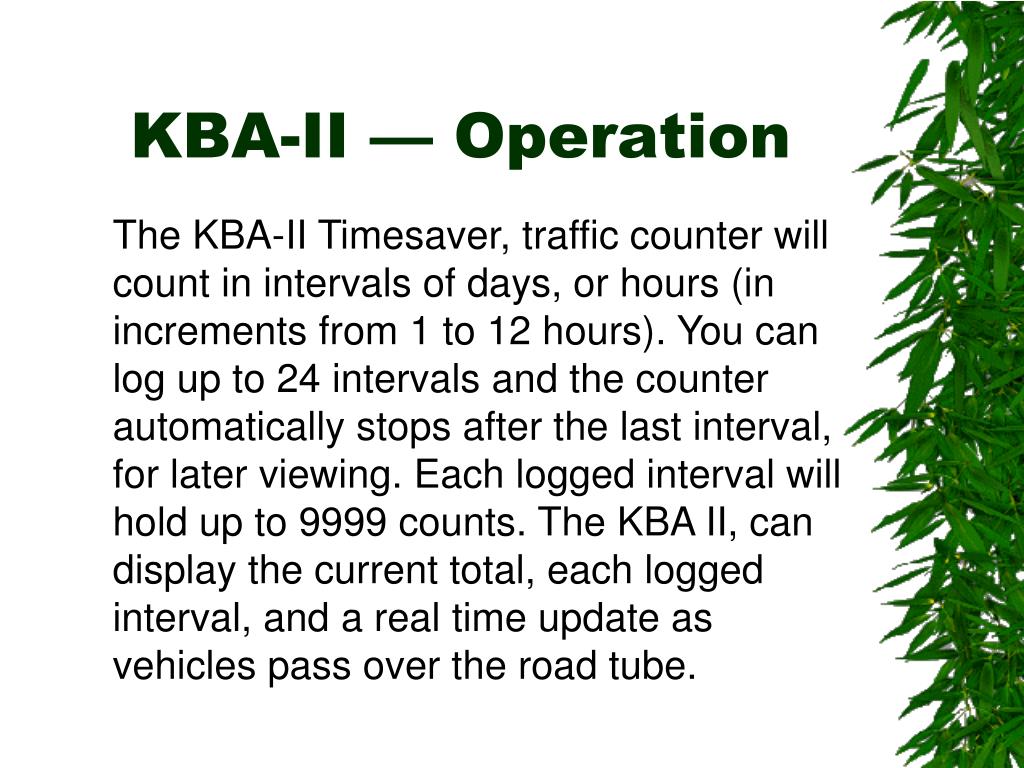

  4. KBA-II — Operation The KBA-II Timesaver, traffic counter will count in intervals of days, or hours (in increments from 1 to 12 hours). You can log up to 24 intervals and the counter automatically stops after the last interval, for later viewing. Each logged interval will hold up to 9999 counts. The KBA II, can display the current total, each logged interval, and a real time update as vehicles pass over the road tube.

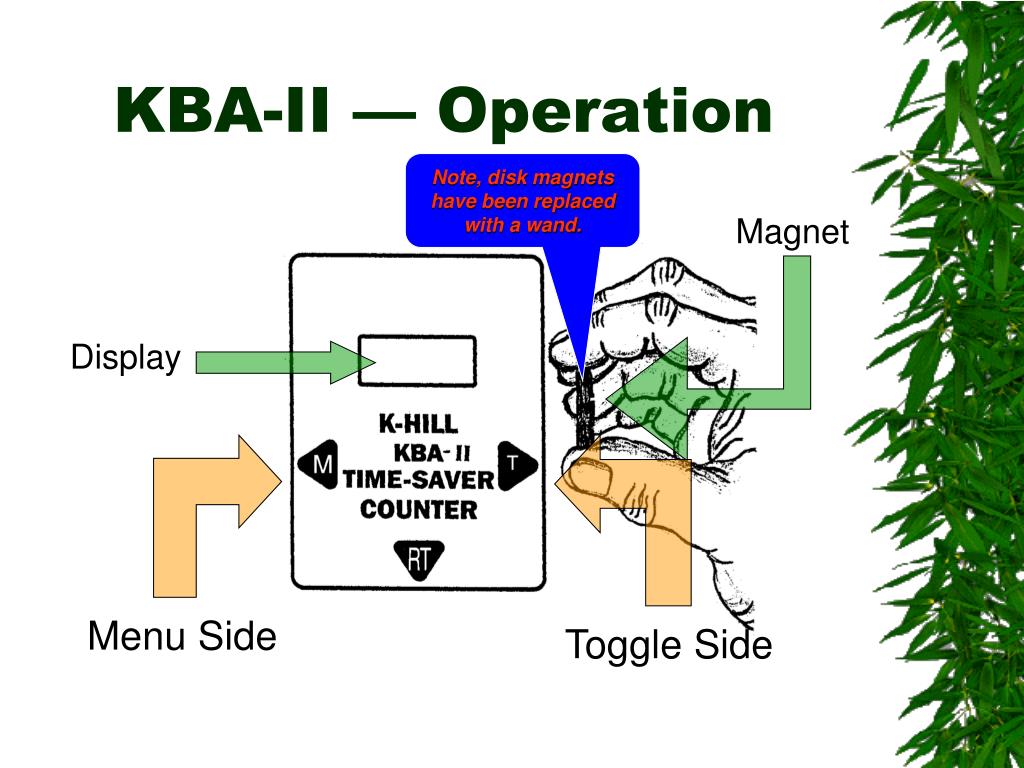

  5. KBA-II — Operation Note, disk magnets have been replaced with a wand. Magnet Display Menu Side Toggle Side

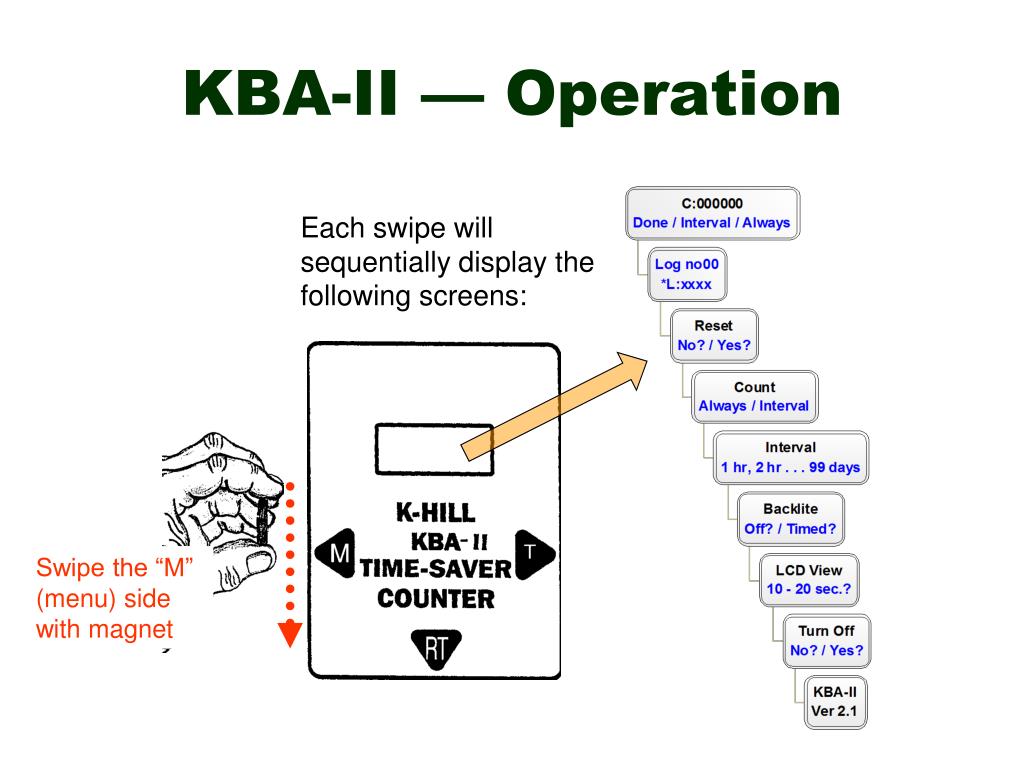

  6. KBA-II — Operation Each swipe will sequentially display the following screens: Swipe the “M” (menu) side with magnet

  7. KBA-II — Operation Each swipe will sequentially display the following screens: Swipe the “M” (menu) side with magnet

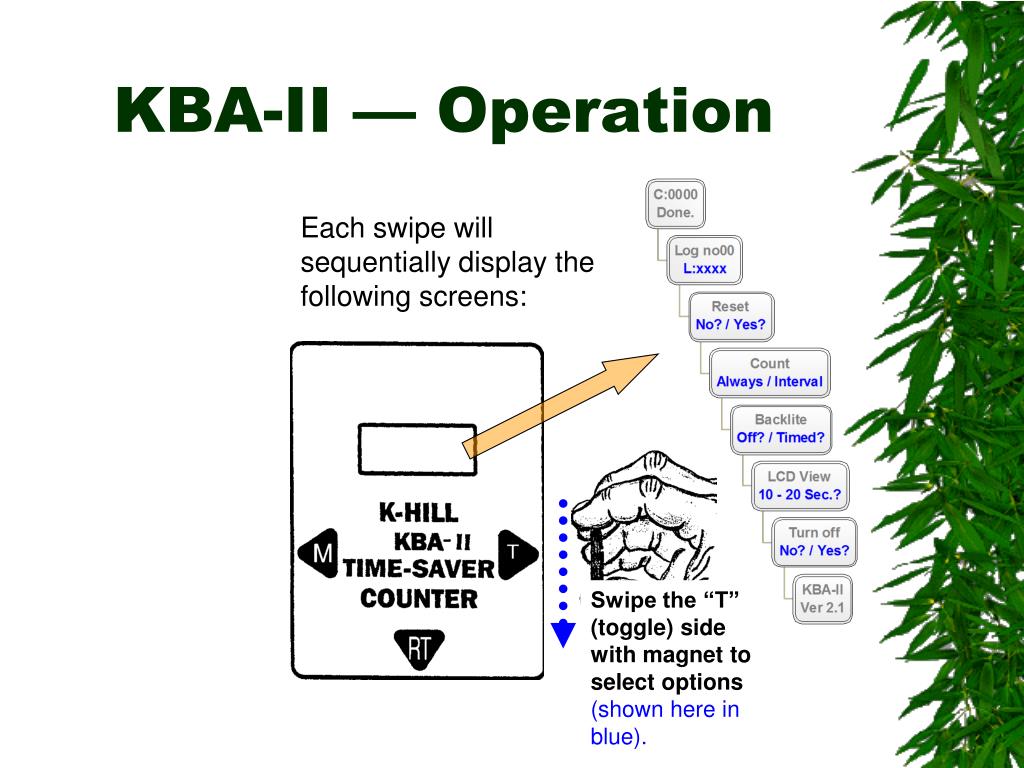

  8. KBA-II — Operation Each swipe will sequentially display the following screens: Swipe the “T” (toggle) side with magnet to select options (shown here in blue).

  9. Important Note The counter is designed to tally one-half count for each axle on the vehicle. Example, a two axle truck towing a two axle trailer will show up as a double count.

  10. Important Note-cont’d The counter will automatically shut off after completing the 24 hours of counting.

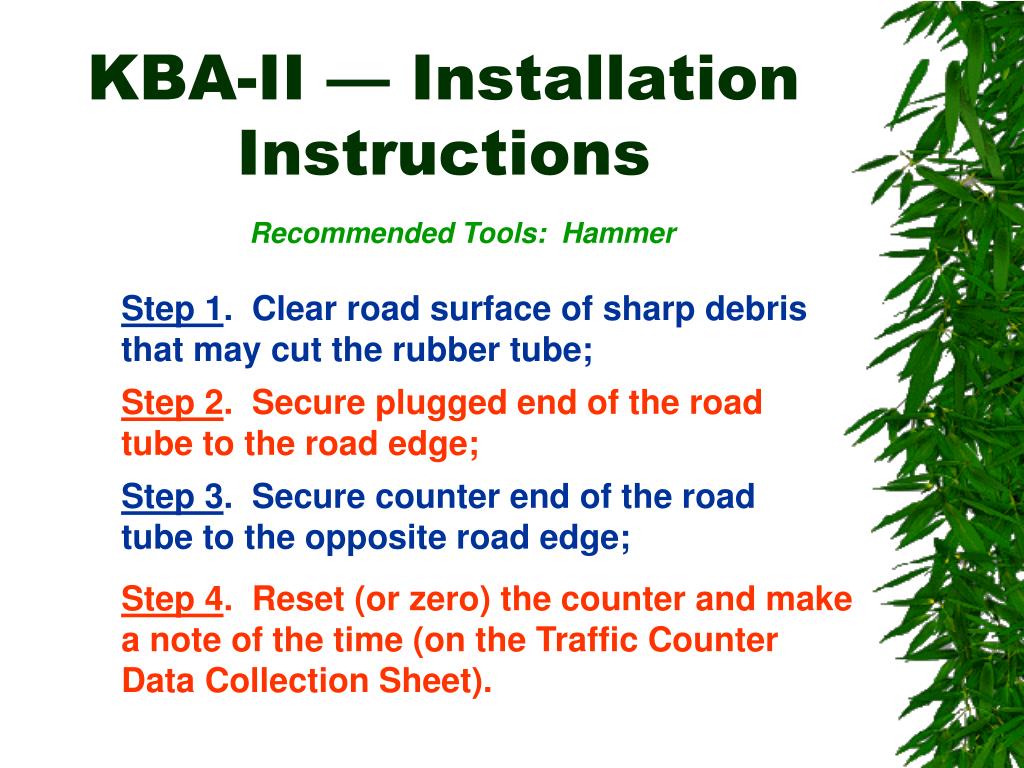

  11. KBA-II — Installation Instructions Recommended Tools: Hammer Step 1. Clear road surface of sharp debris that may cut the rubber tube; Step 2. Secure plugged end of the road tube to the road edge; Step 3. Secure counter end of the road tube to the opposite road edge; Step 4. Reset (or zero) the counter and make a note of the time (on the Traffic Counter Data Collection Sheet).

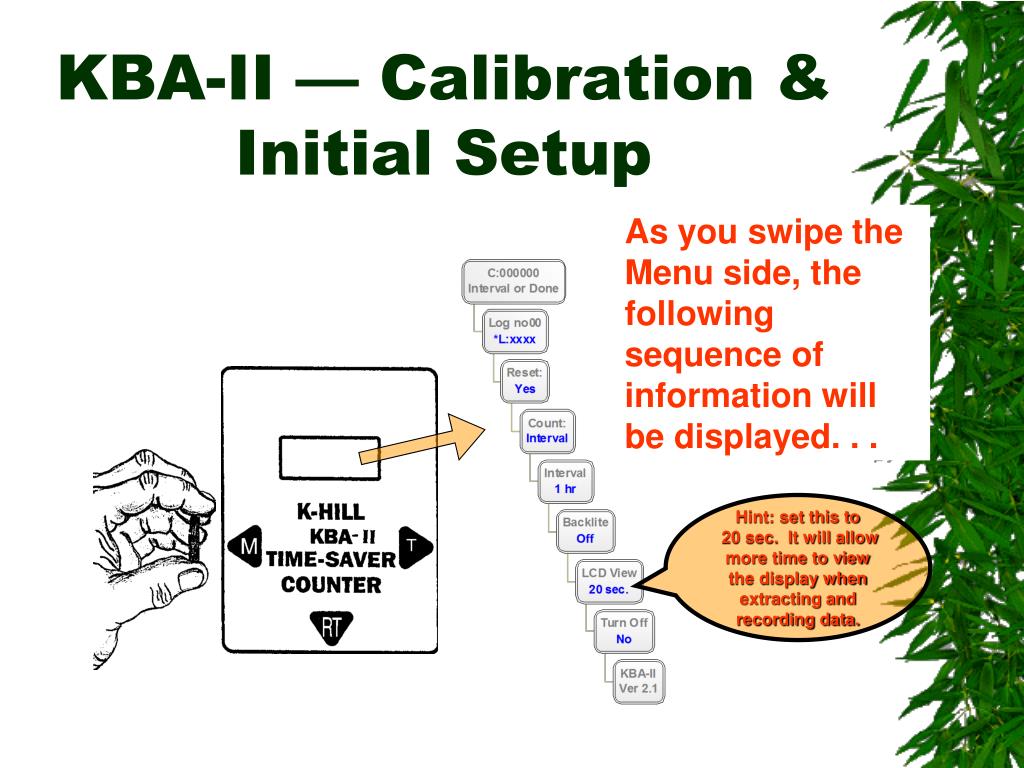

  12. KBA-II — Calibration & Initial Setup As you swipe the Menu side, the following sequence of information will be displayed. . . Hint: set this to 20 sec. It will allow more time to view the display when extracting and recording data.

  13. KBA-II — Calibration & Initial Setup

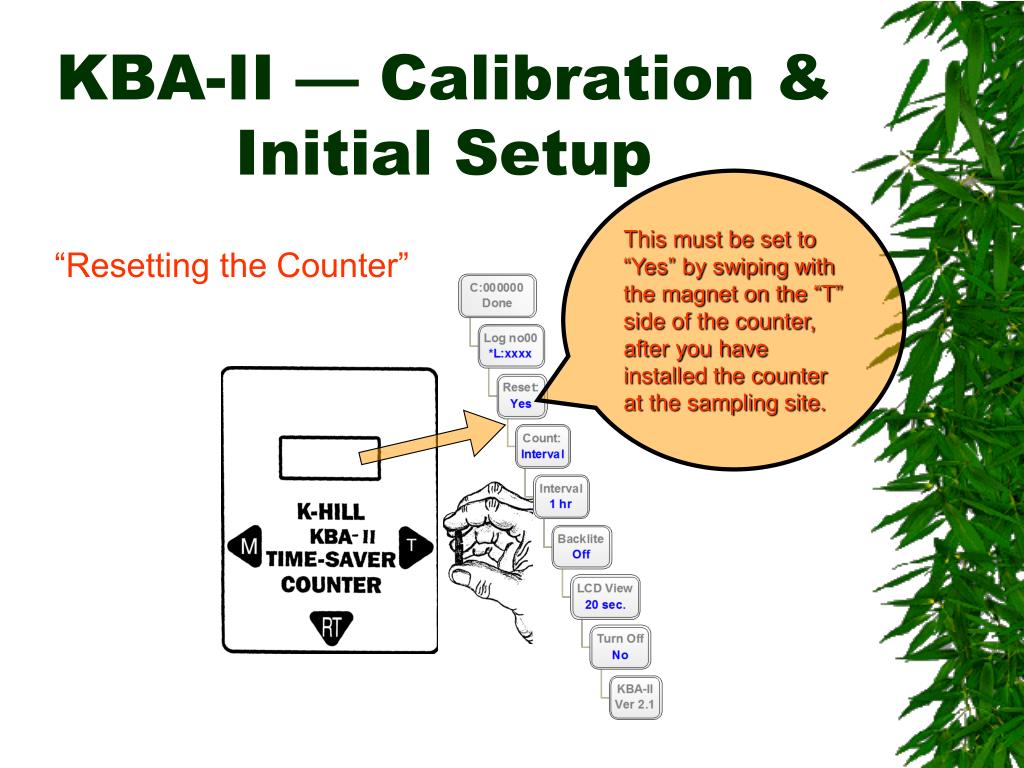

  14. KBA-II — Calibration & Initial Setup This must be set to “Yes” by swiping with the magnet on the “T” side of the counter, after you have installed the counter at the sampling site. “Resetting the Counter”

  15. KBA-II — Calibration & Initial Setup Total Counts “Log no00” corresponds to the first hour (or interval period) of counts, Log no01 corresponds to the second hour of counts, and so on. Display Number of counts for the 1 hour interval (Log no00). This is the number you will be entering into the summary sheet

  16. KBA-II — Recording Collected Data The “Done” will be displayed when the 24 hours of counts are completed. Display

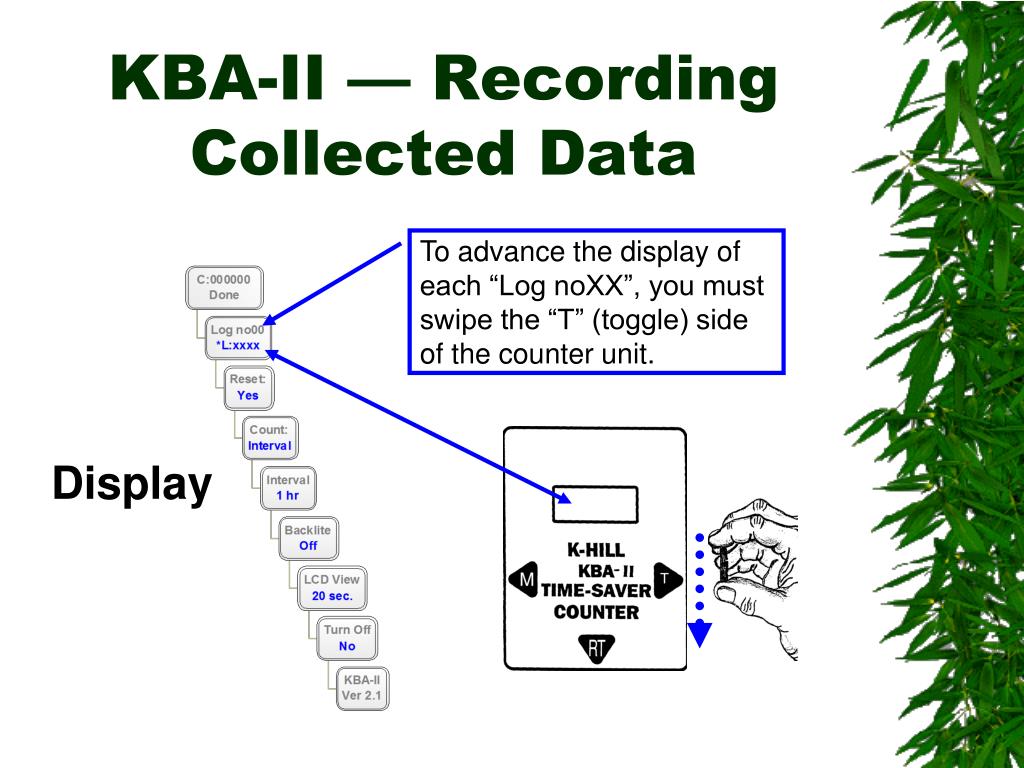

  17. KBA-II — Recording Collected Data To advance the display of each “Log noXX”, you must swipe the “T” (toggle) side of the counter unit. Display

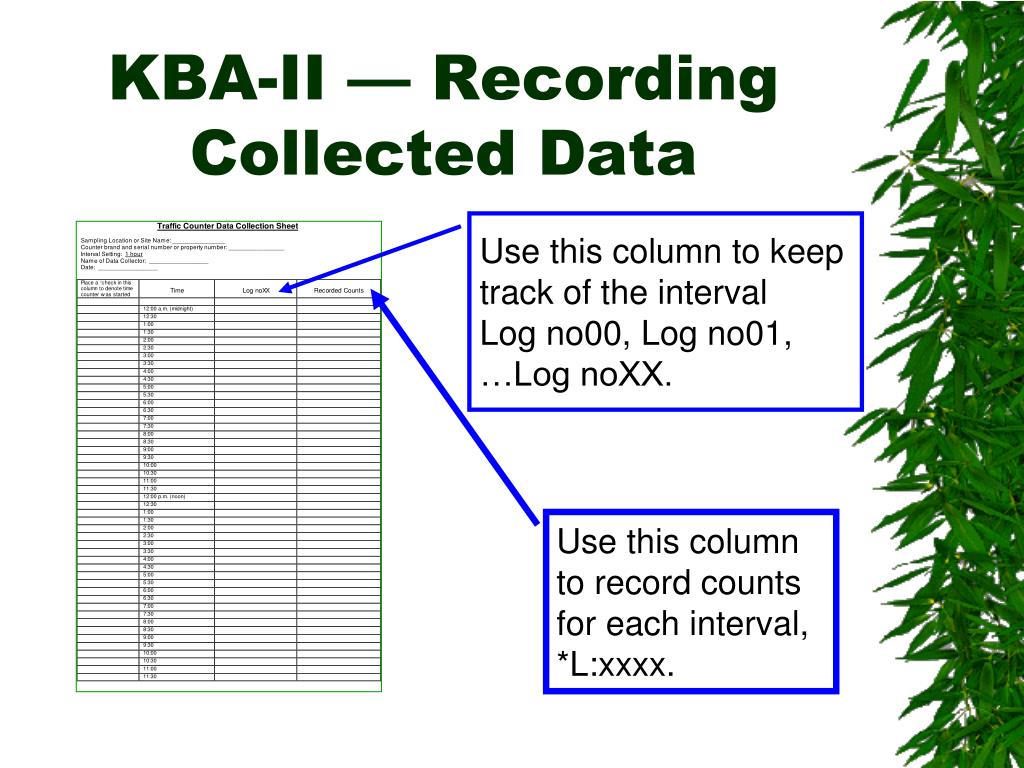

  18. KBA-II — Recording Collected Data Suggestions for using a form to record data: Use this column, (rounded off to closest half hour) to indicate the time you started the counter. This will determine what row (on this form) to record your counts for each Log noXX.

  19. KBA-II — Recording Collected Data Use this column to keep track of the interval Log no00, Log no01, …Log noXX. Use this column to record counts for each interval, *L:xxxx.

  20. KBA-II — Product Service Information K-Hill Signal Company, Inc. 326 West Third Street Uhrichsville, OH 44683-2036 Contact: Bill Hall Phone: 800-730-0872 or 740-922-0421 Fax: 740-922-0421 Website: www.khilltrafficounters.com e-mail: khillco@tusco.net
