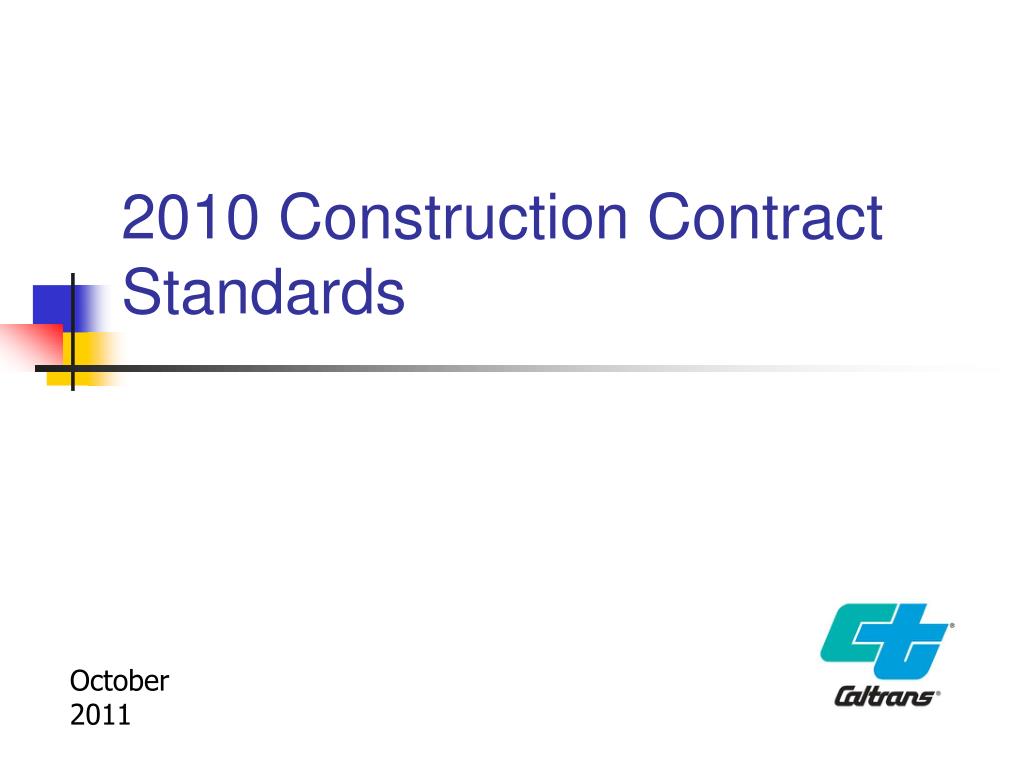

  1. 2010 Construction Contract Standards October 2011

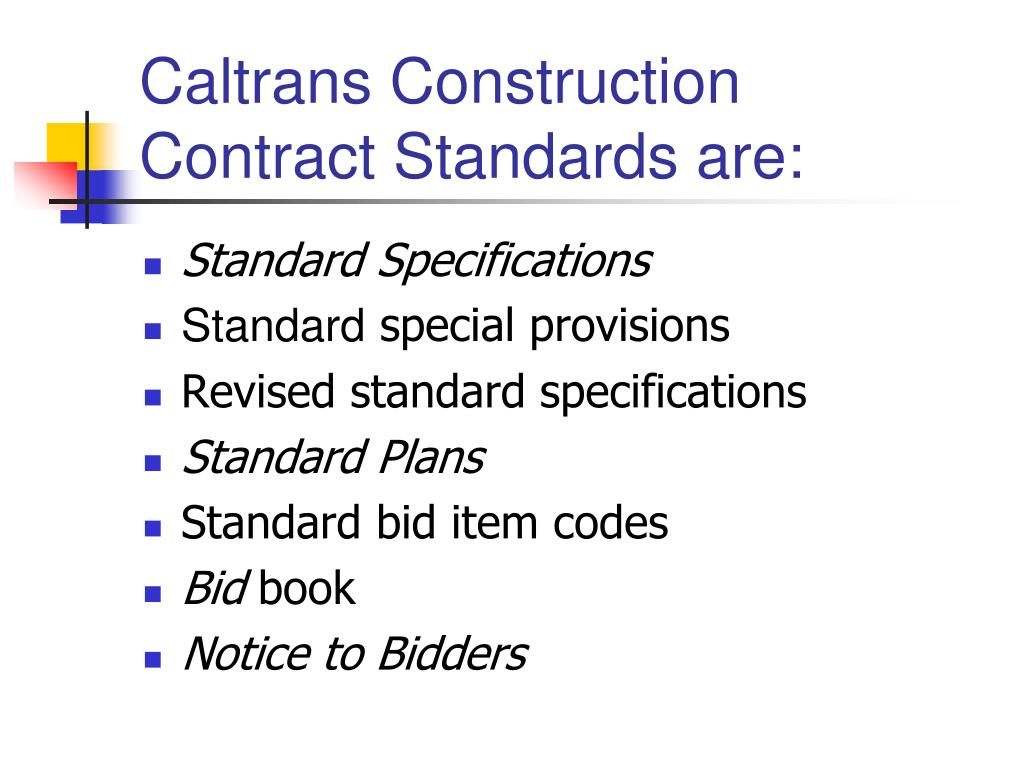

  2. Caltrans Construction Contract Standards are: • Standard Specifications • Standard special provisions • Revised standard specifications • Standard Plans • Standard bid item codes • Bid book • Notice to Bidders

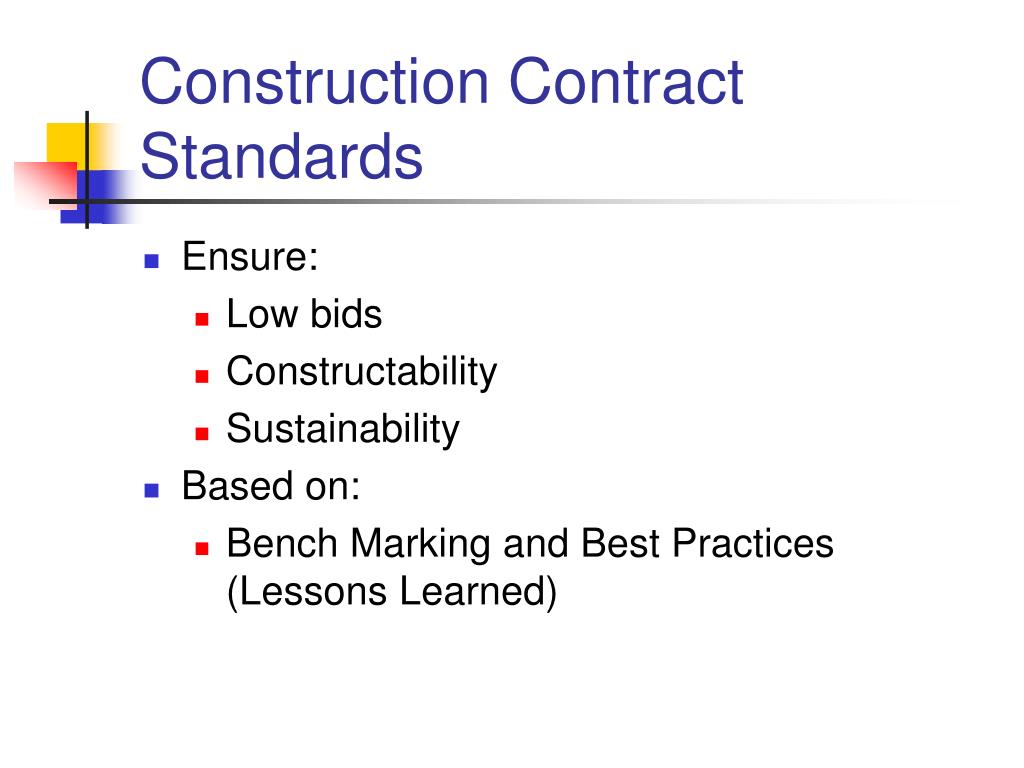

  3. Construction Contract Standards • Ensure: • Low bids • Constructability • Sustainability • Based on: • Bench Marking and Best Practices (Lessons Learned)

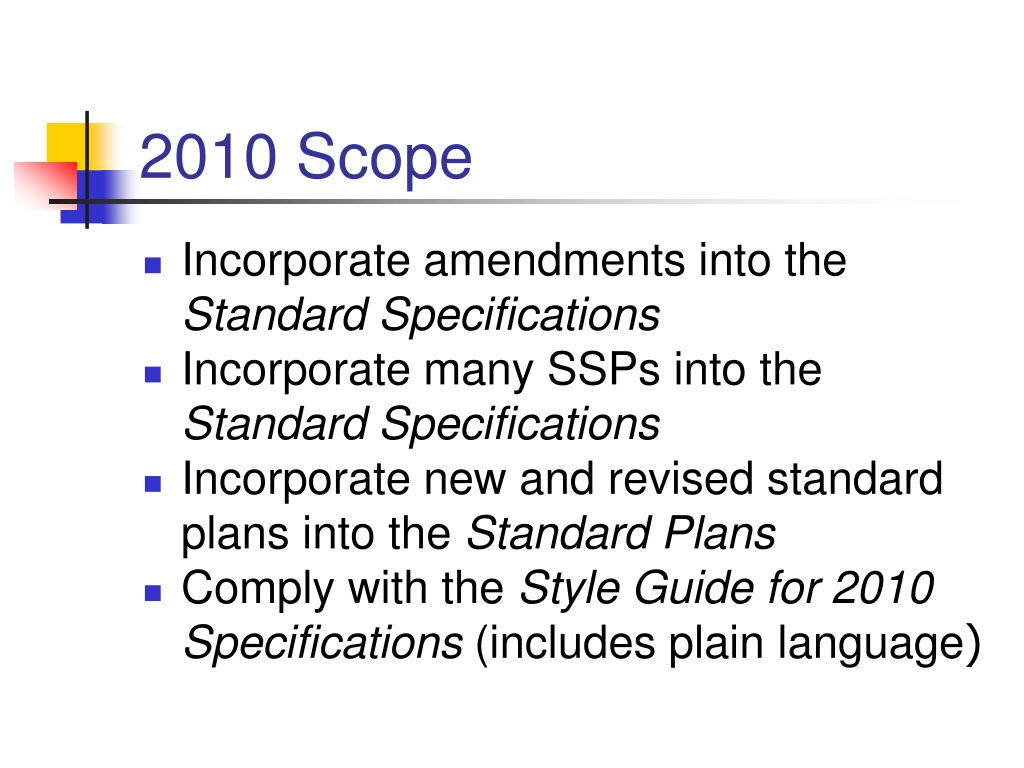

  4. 2010 Scope • Incorporate amendments into the Standard Specifications • Incorporate many SSPs into the Standard Specifications • Incorporate new and revised standard plans into the Standard Plans • Comply with the Style Guide for 2010 Specifications (includes plain language)

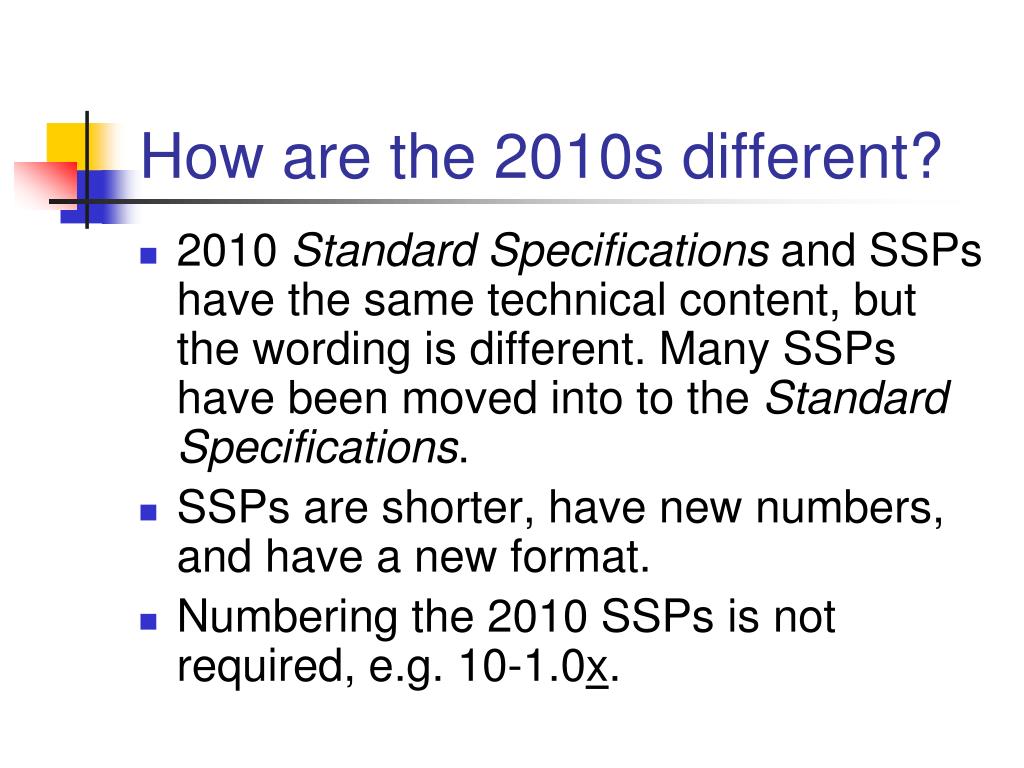

  5. How are the 2010s different? • 2010 Standard Specifications and SSPs have the same technical content, but the wording is different. Many SSPs have been moved into to the Standard Specifications. • SSPs are shorter, have new numbers, and have a new format. • Numbering the 2010 SSPs is not required, e.g. 10-1.0x.

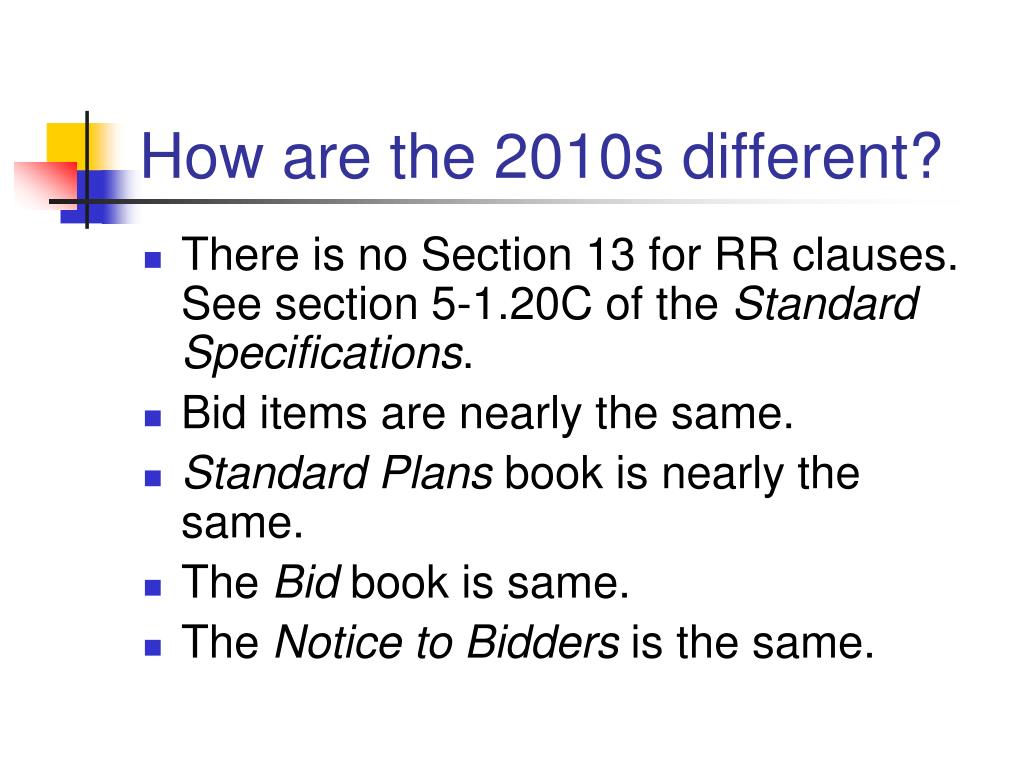

  6. How are the 2010s different? • There is no Section 13 for RR clauses. See section 5-1.20C of the Standard Specifications. • Bid items are nearly the same. • Standard Plans bookis nearly the same. • The Bid book is same. • The Notice to Bidders is the same.

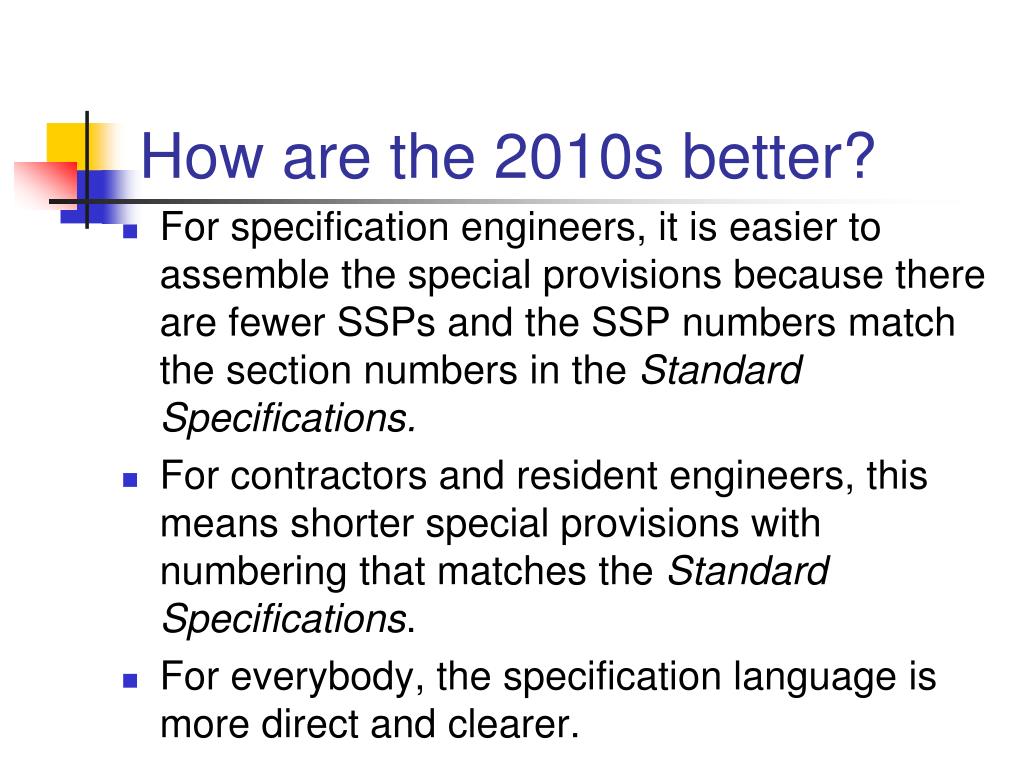

  7. How are the 2010s better? • For specification engineers, it is easier to assemble the special provisions because there are fewer SSPs and the SSP numbers match the section numbers in the Standard Specifications. • For contractors and resident engineers, this means shorter special provisions with numbering that matches the Standard Specifications. • For everybody, the specification language is more direct and clearer.

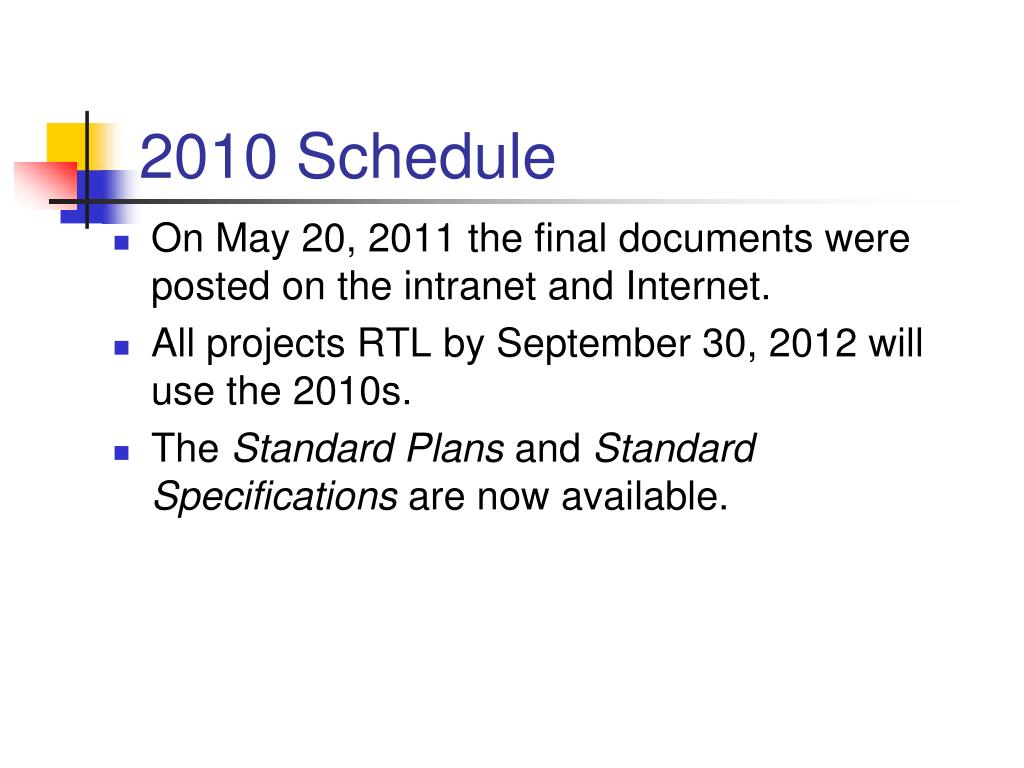

  8. 2010 Schedule • On May 20, 2011 the final documents were posted on the intranet and Internet. • All projects RTL by September 30, 2012 will use the 2010s. • The Standard Plans and Standard Specifications are now available.

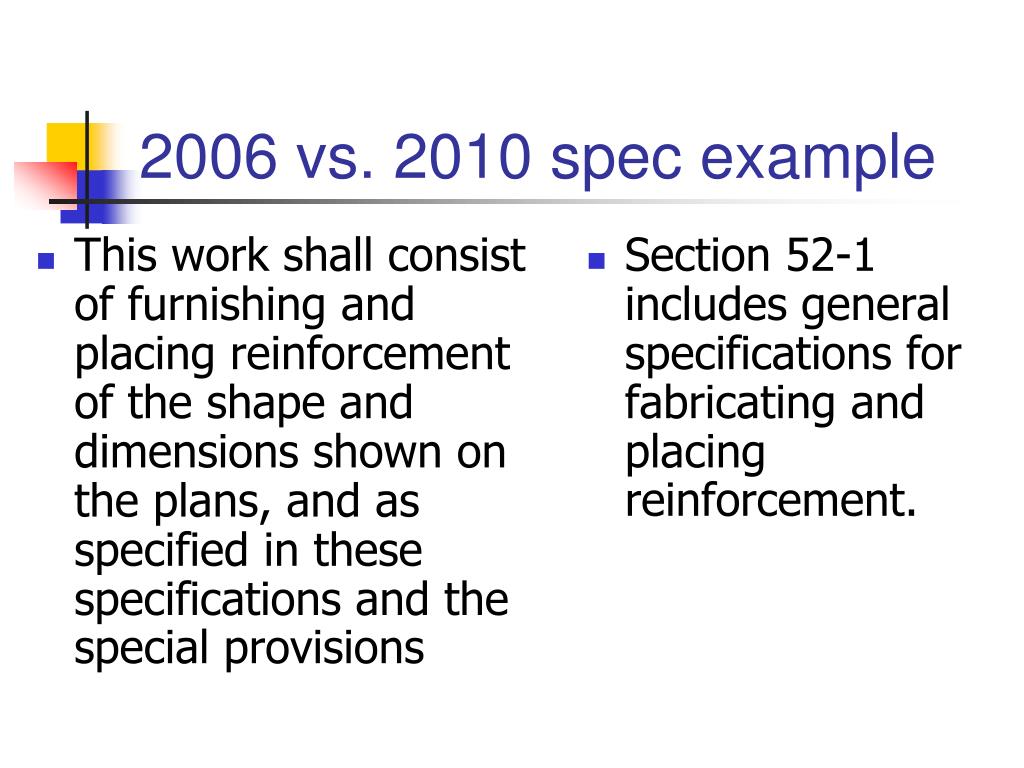

  9. This work shall consist of furnishing and placing reinforcement of the shape and dimensions shown on the plans, and as specified in these specifications and the special provisions Section 52-1 includes general specifications for fabricating and placing reinforcement. 2006 vs. 2010 spec example

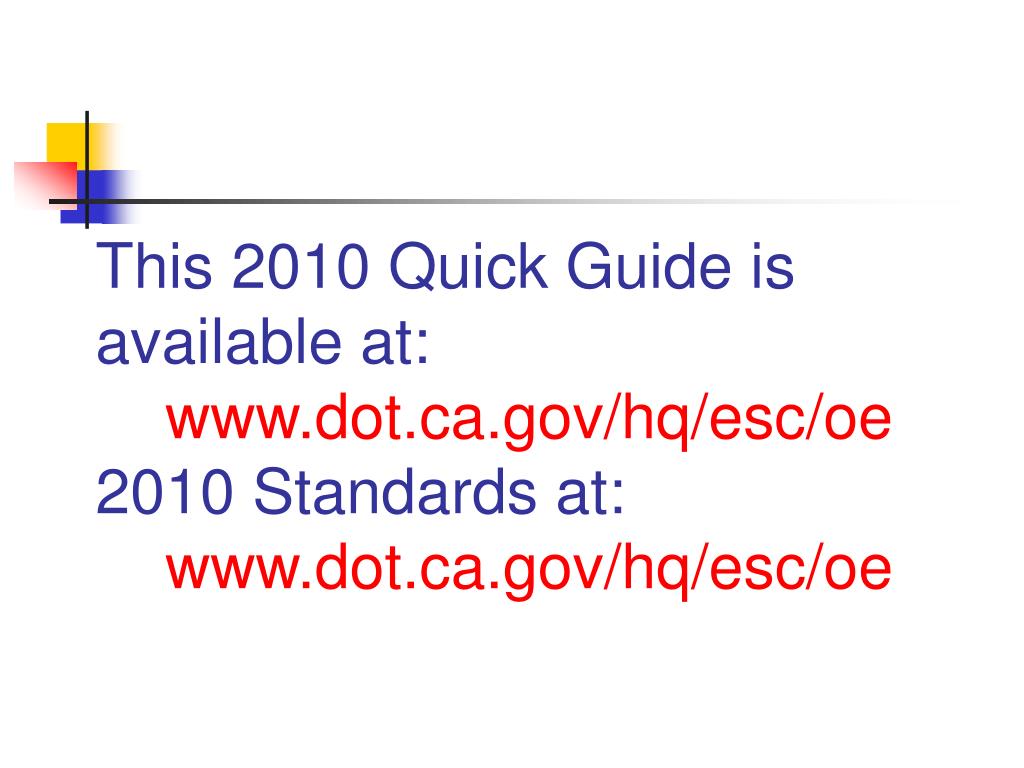

  10. This 2010 Quick Guide is available at: www.dot.ca.gov/hq/esc/oe 2010 Standards at: www.dot.ca.gov/hq/esc/oe

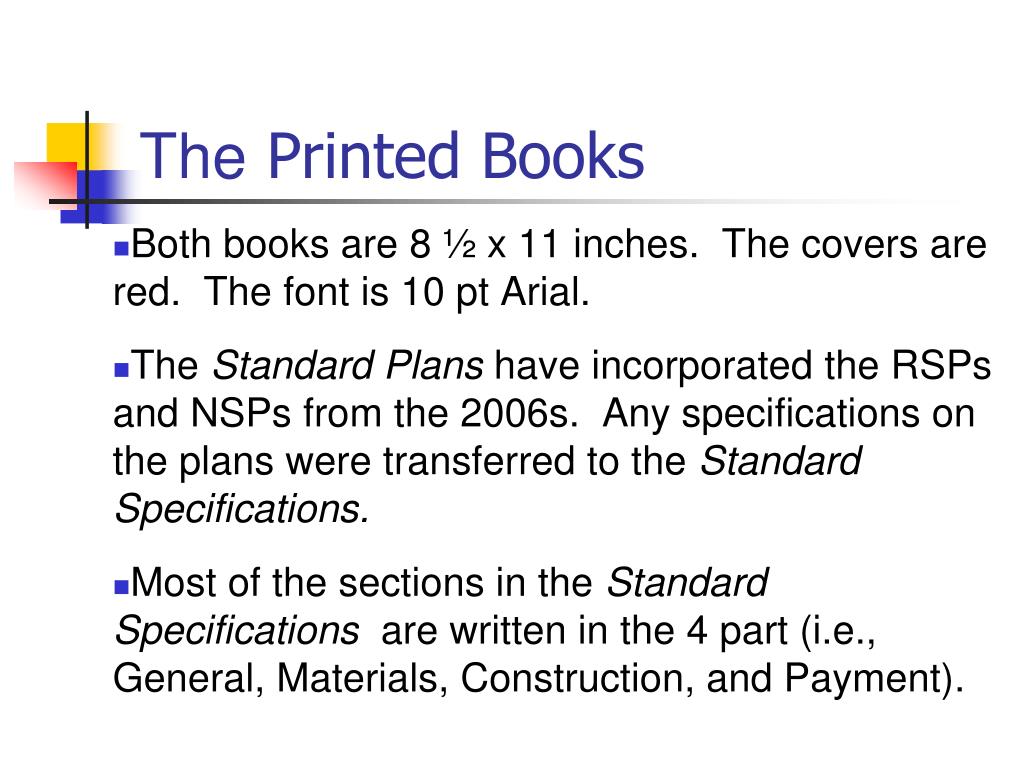

  11. Both books are 8 ½ x 11 inches. The covers are red. The font is 10 pt Arial. The Standard Plans have incorporated the RSPs and NSPs from the 2006s. Any specifications on the plans were transferred to the Standard Specifications. Most of the sections in the Standard Specifications are written in the 4 part (i.e., General, Materials, Construction, and Payment). The Printed Books

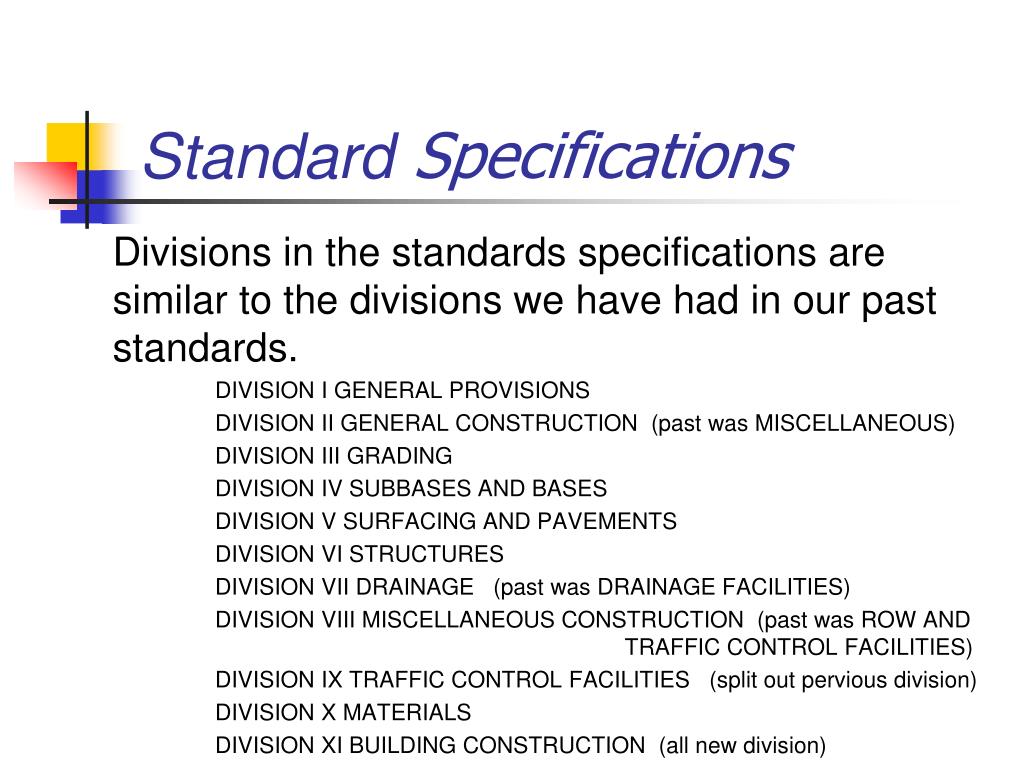

  12. Divisions in the standards specifications are similar to the divisions we have had in our past standards. DIVISION I GENERAL PROVISIONS DIVISION II GENERAL CONSTRUCTION (past was MISCELLANEOUS) DIVISION III GRADING DIVISION IV SUBBASES AND BASES DIVISION V SURFACING AND PAVEMENTS DIVISION VI STRUCTURES DIVISION VII DRAINAGE (past was DRAINAGE FACILITIES) DIVISION VIII MISCELLANEOUS CONSTRUCTION (past was ROW AND TRAFFIC CONTROL FACILITIES) DIVISION IX TRAFFIC CONTROL FACILITIES (split out pervious division) DIVISION X MATERIALS DIVISION XI BUILDING CONSTRUCTION (all new division) Standard Specifications

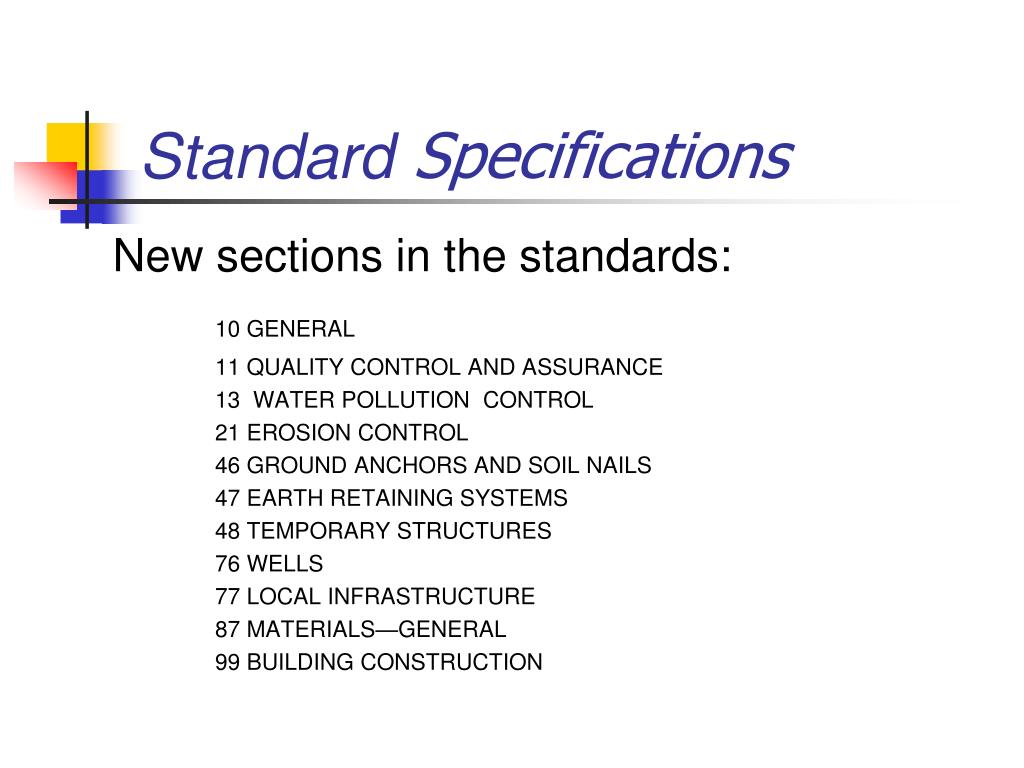

  13. New sections in the standards: 10 GENERAL 11 QUALITY CONTROL AND ASSURANCE 13 WATER POLLUTION CONTROL 21 EROSION CONTROL 46 GROUND ANCHORS AND SOIL NAILS 47 EARTH RETAINING SYSTEMS 48 TEMPORARY STRUCTURES 76 WELLS 77 LOCAL INFRASTRUCTURE 87 MATERIALS—GENERAL 99 BUILDING CONSTRUCTION Standard Specifications

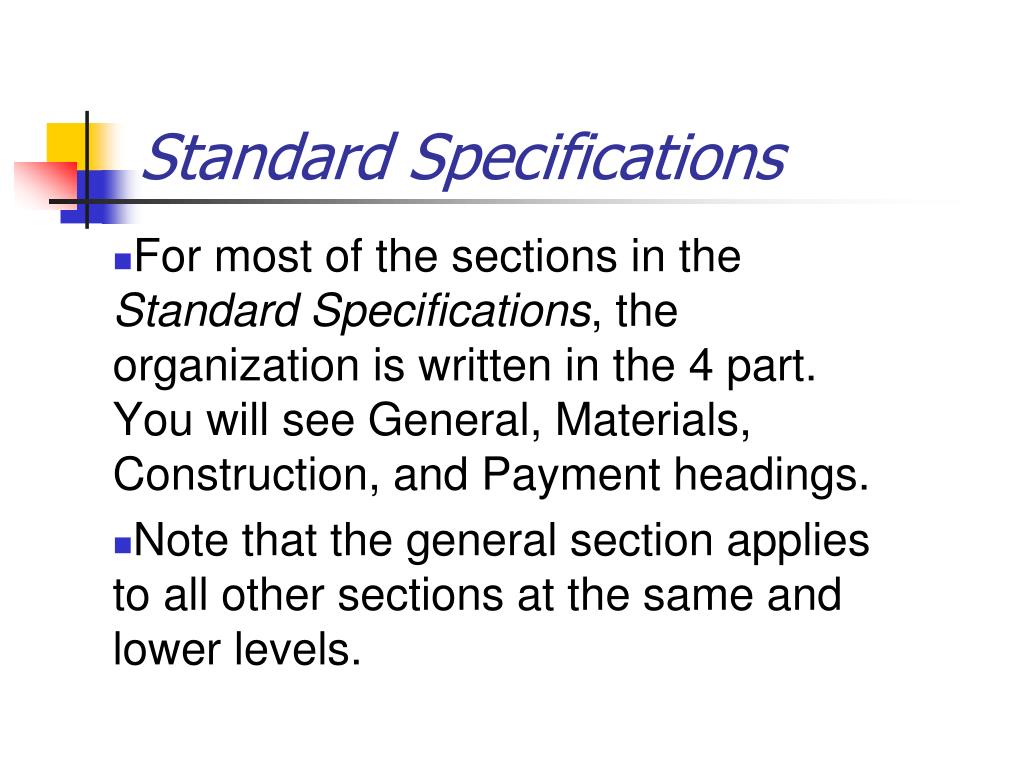

  14. For most of the sections in the Standard Specifications, the organization is written in the 4 part. You will see General, Materials, Construction, and Payment headings. Note that the general section applies to all other sections at the same and lower levels. Standard Specifications

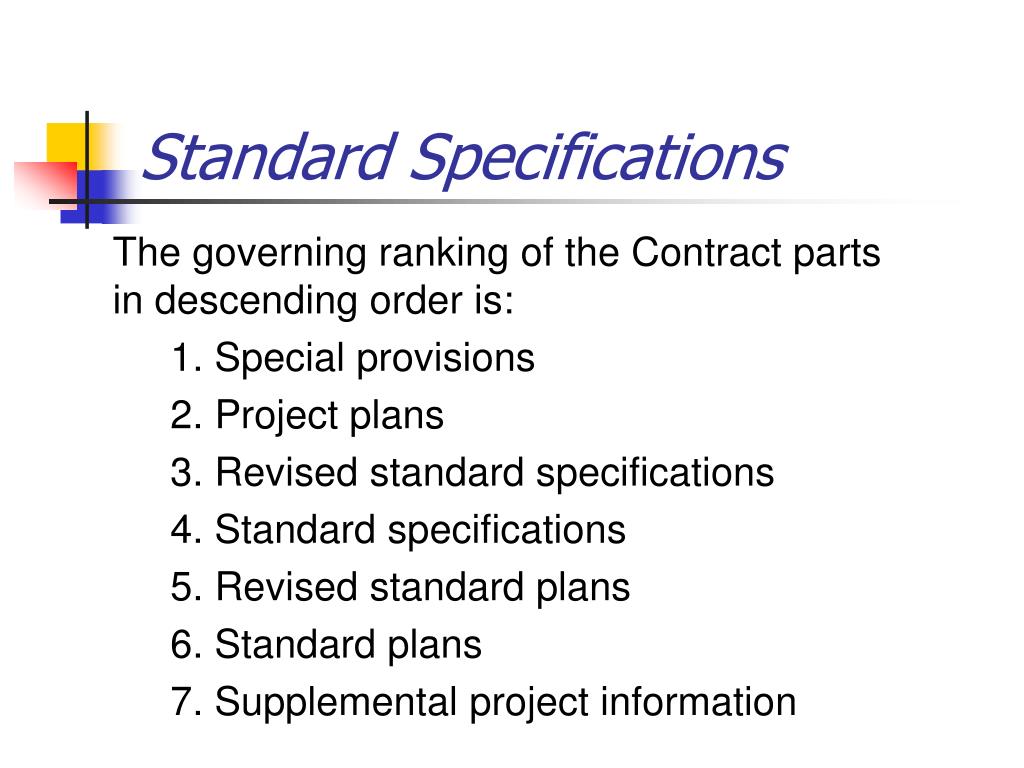

  15. The governing ranking of the Contract parts in descending order is: 1. Special provisions 2. Project plans 3. Revised standard specifications 4. Standard specifications 5. Revised standard plans 6. Standard plans 7. Supplemental project information Standard Specifications

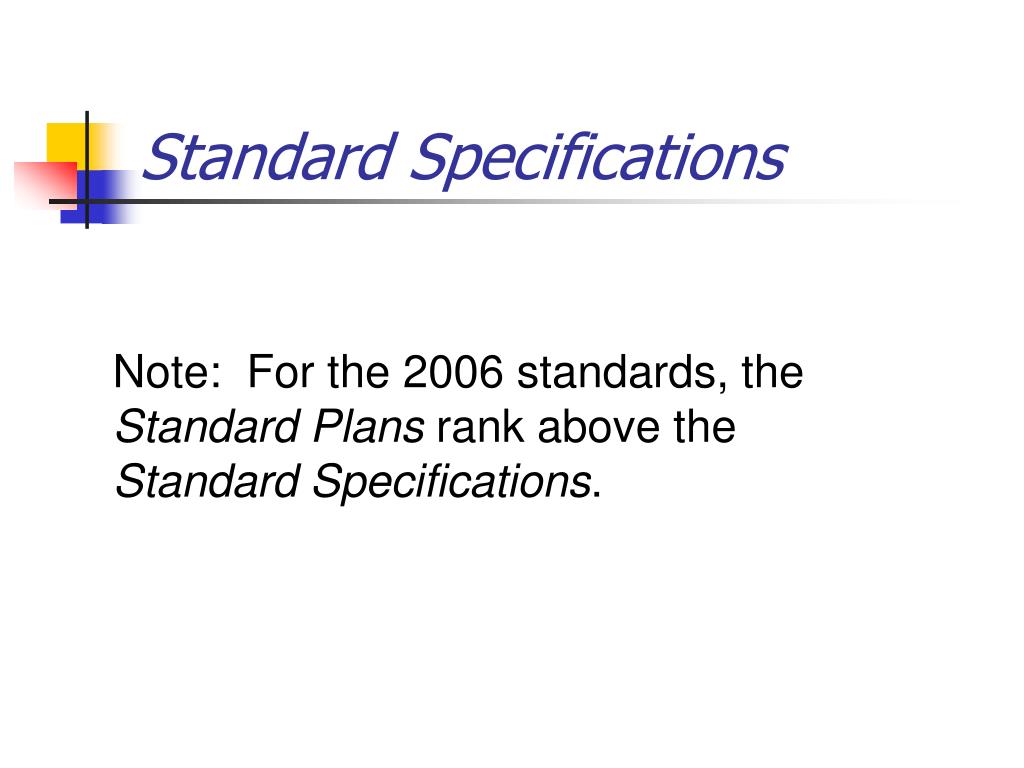

  16. Note: For the 2006 standards, the Standard Plans rank above the Standard Specifications. Standard Specifications

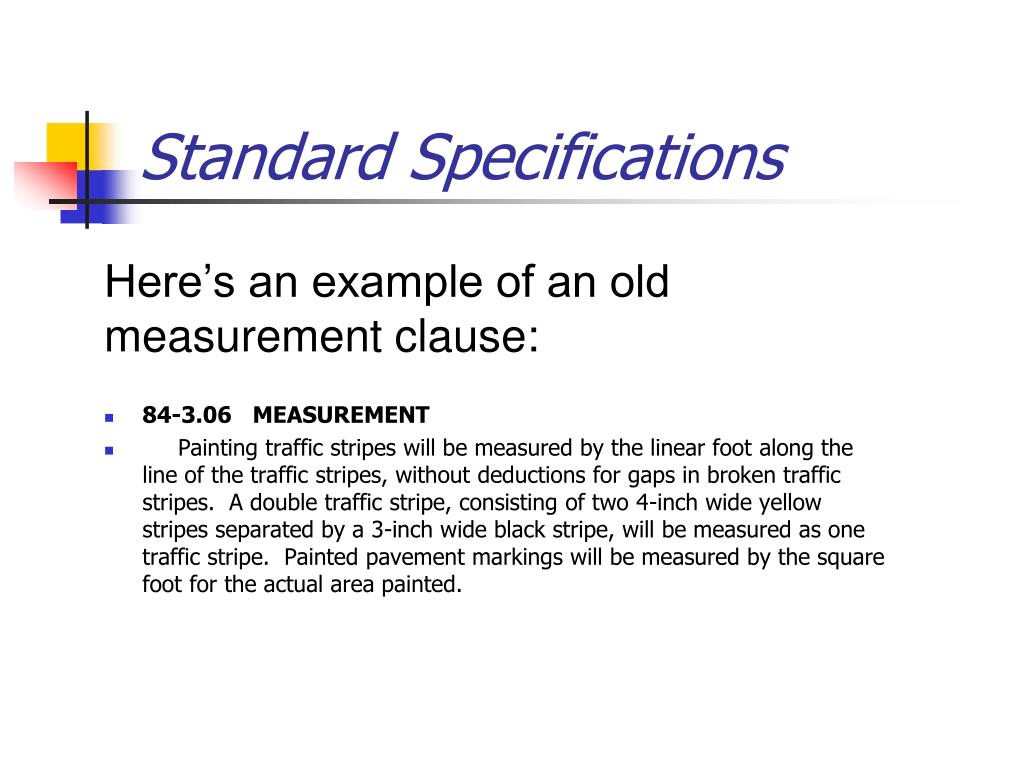

  17. Here’s an example of an old measurement clause: 84‑3.06   Measurement Painting traffic stripes will be measured by the linear foot along the line of the traffic stripes, without deductions for gaps in broken traffic stripes. A double traffic stripe, consisting of two 4‑inch wide yellow stripes separated by a 3‑inch wide black stripe, will be measured as one traffic stripe. Painted pavement markings will be measured by the square foot for the actual area painted. Standard Specifications

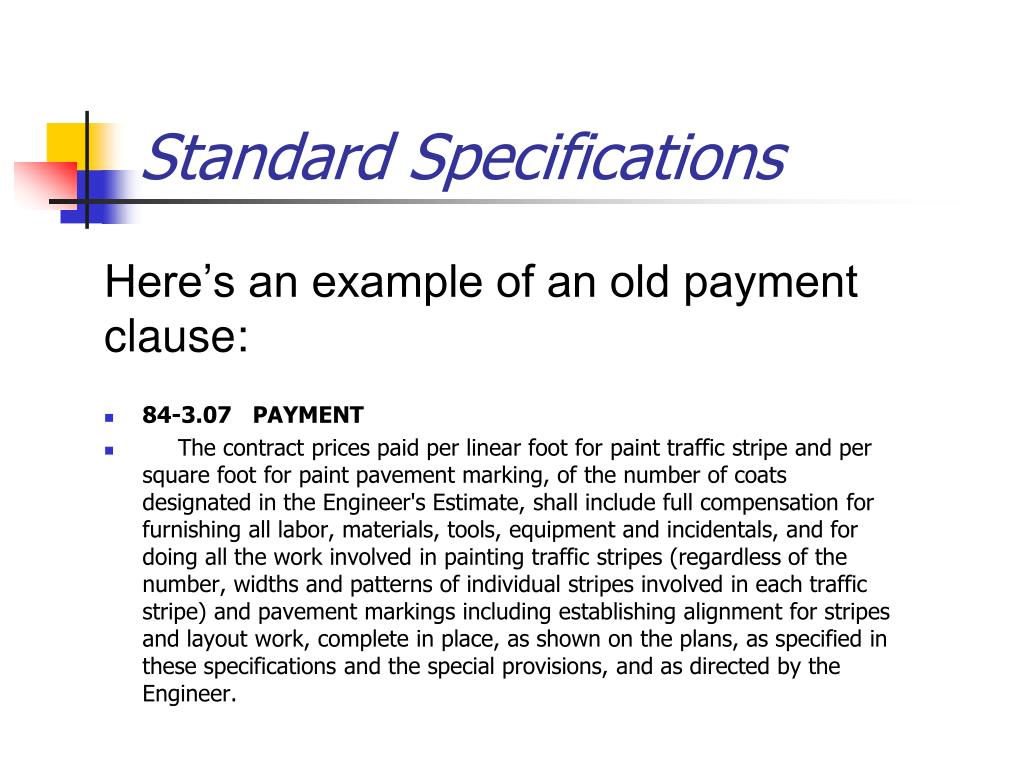

  18. Here’s an example of an old payment clause: 84‑3.07   Payment The contract prices paid per linear foot for paint traffic stripe and per square foot for paint pavement marking, of the number of coats designated in the Engineer's Estimate, shall include full compensation for furnishing all labor, materials, tools, equipment and incidentals, and for doing all the work involved in painting traffic stripes (regardless of the number, widths and patterns of individual stripes involved in each traffic stripe) and pavement markings including establishing alignment for stripes and layout work, complete in place, as shown on the plans, as specified in these specifications and the special provisions, and as directed by the Engineer. Standard Specifications

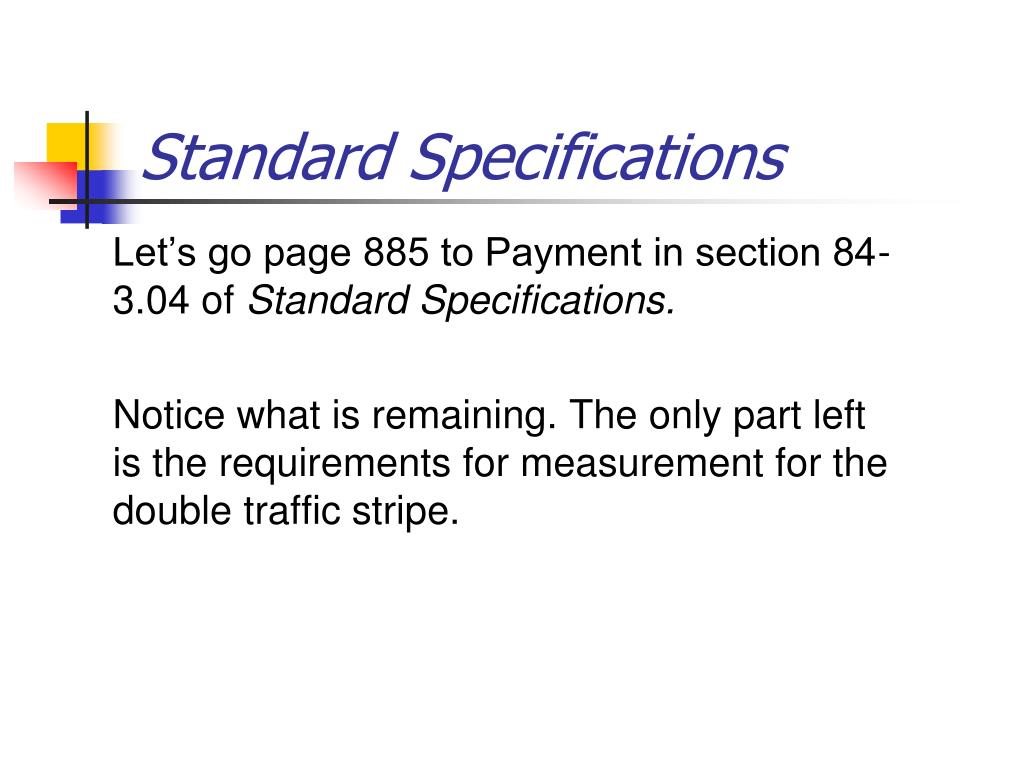

  19. Let’s go page 885 to Payment in section 84-3.04 of Standard Specifications. Notice what is remaining. The only part left is the requirements for measurement for the double traffic stripe. Standard Specifications

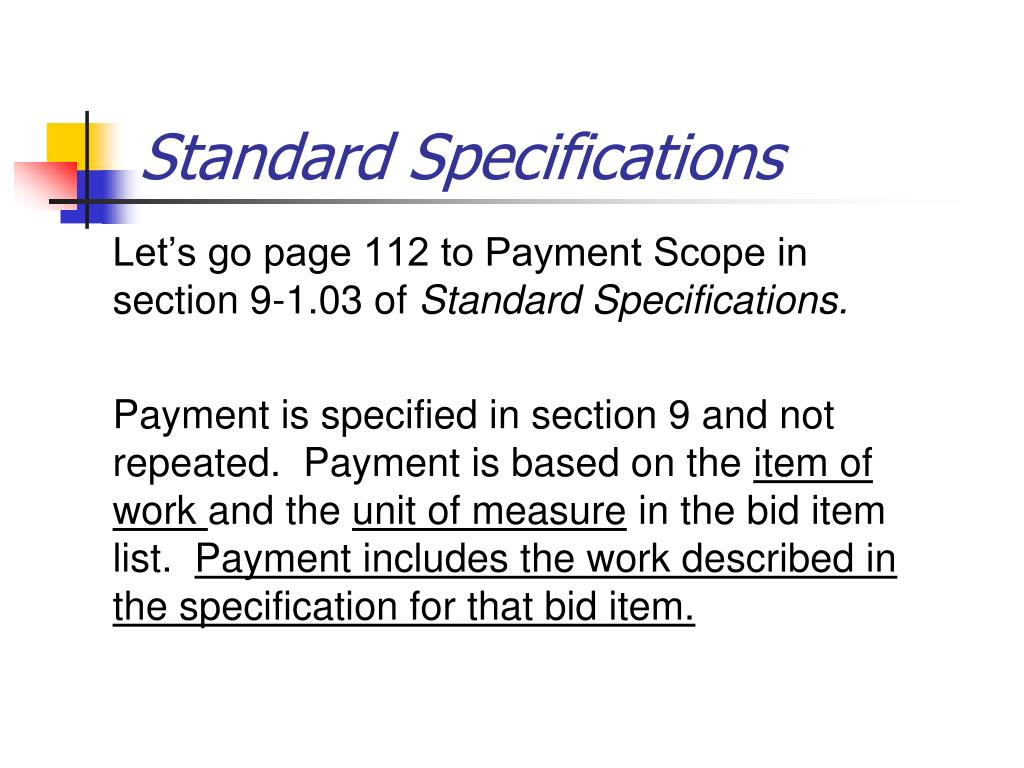

  20. Let’s go page 112 to Payment Scope in section 9-1.03 of Standard Specifications. Payment is specified in section 9 and not repeated. Payment is based on the item of work and the unit of measure in the bid item list. Payment includes the work described in the specification for that bid item. Standard Specifications

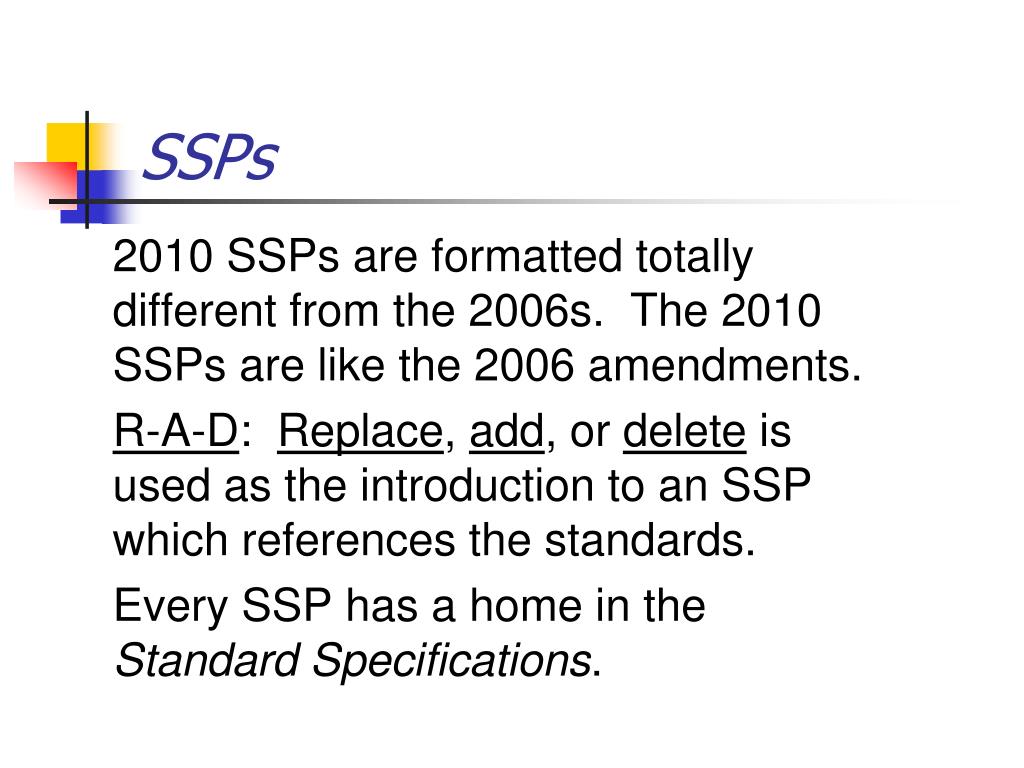

  21. 2010 SSPs are formatted totally different from the 2006s. The 2010 SSPs are like the 2006 amendments. R-A-D: Replace, add, or delete is used as the introduction to an SSP which references the standards. Every SSP has a home in the Standard Specifications. SSPs

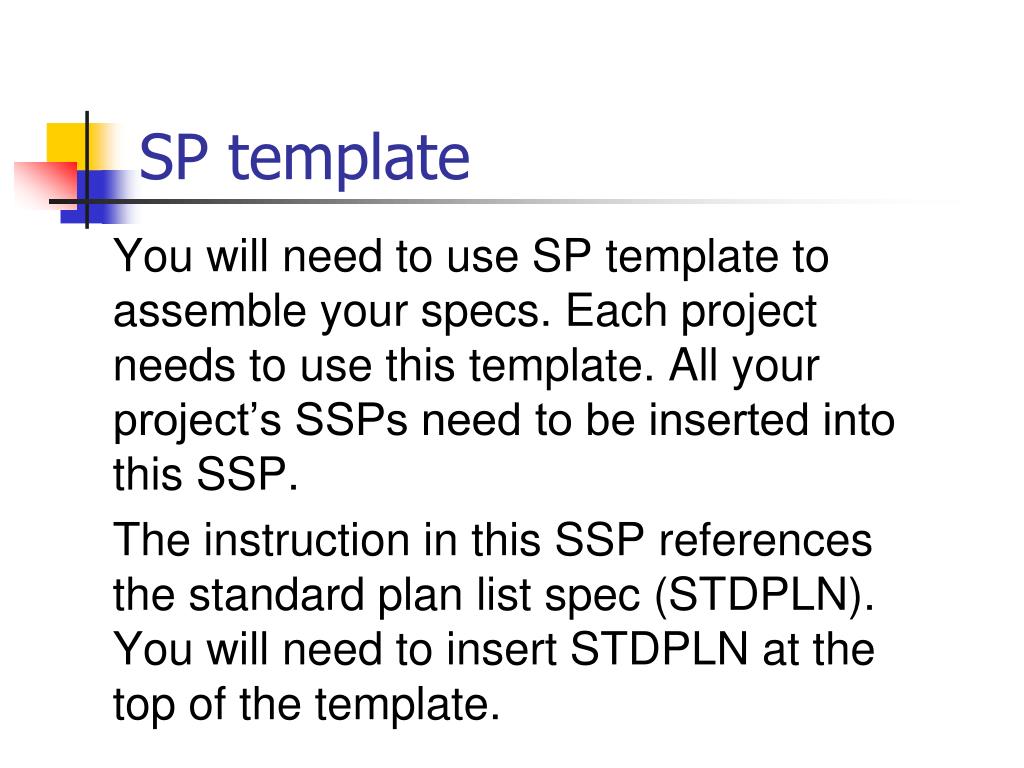

  22. You will need to use SP template to assemble your specs. Each project needs to use this template. All your project’s SSPs need to be inserted into this SSP. The instruction in this SSP references the standard plan list spec (STDPLN). You will need to insert STDPLN at the top of the template. SP template

  23. At this time our existing bid item codes need to be used for both 2006 and 2010 projects. The first 2 digits in the bid item code correspond to the section that applies. For a bid item with the first 2 digits different from the section that applies, use SSP 1-1.01. This SSP lists all the bid items that do not match the section that applies. SSP 1-1.01

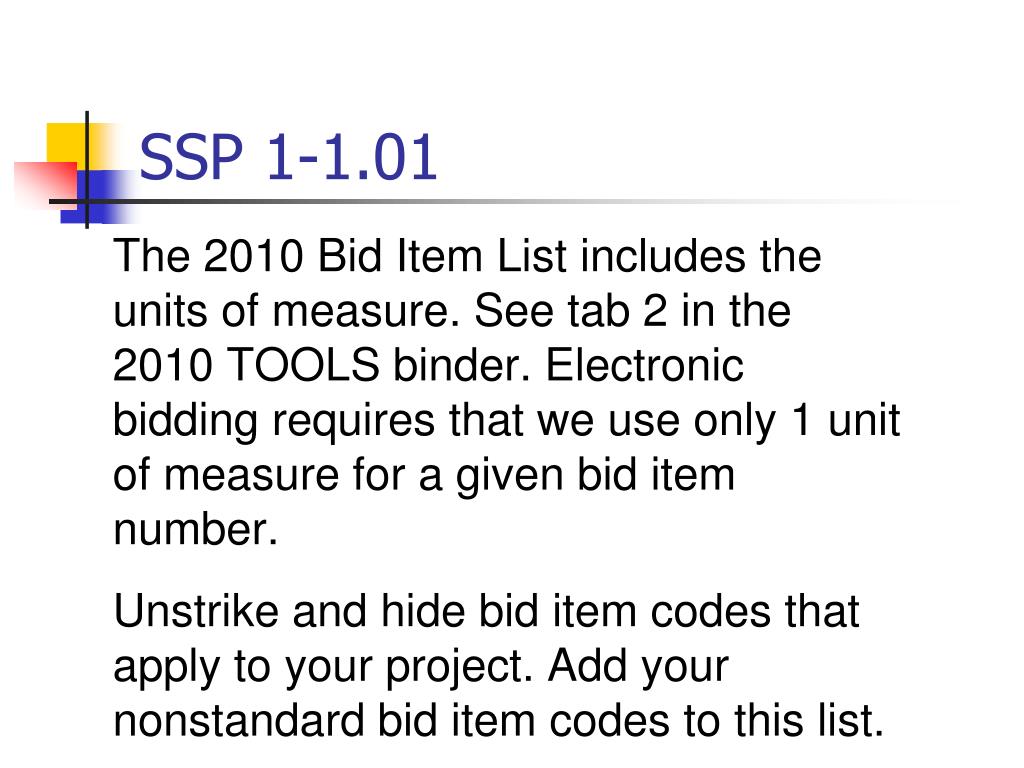

  24. The 2010 Bid Item List includes the units of measure. See tab 2 in the 2010 TOOLS binder. Electronic bidding requires that we use only 1 unit of measure for a given bid item number. Unstrike and hide bid item codes that apply to your project. Add your nonstandard bid item codes to this list. SSP 1-1.01

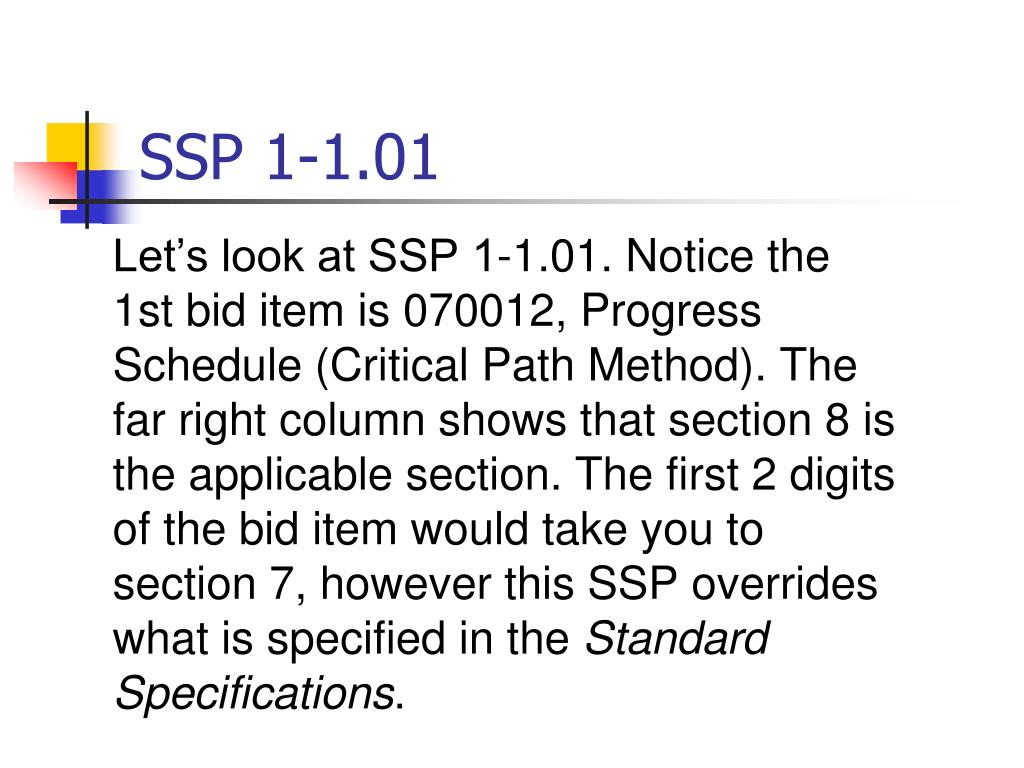

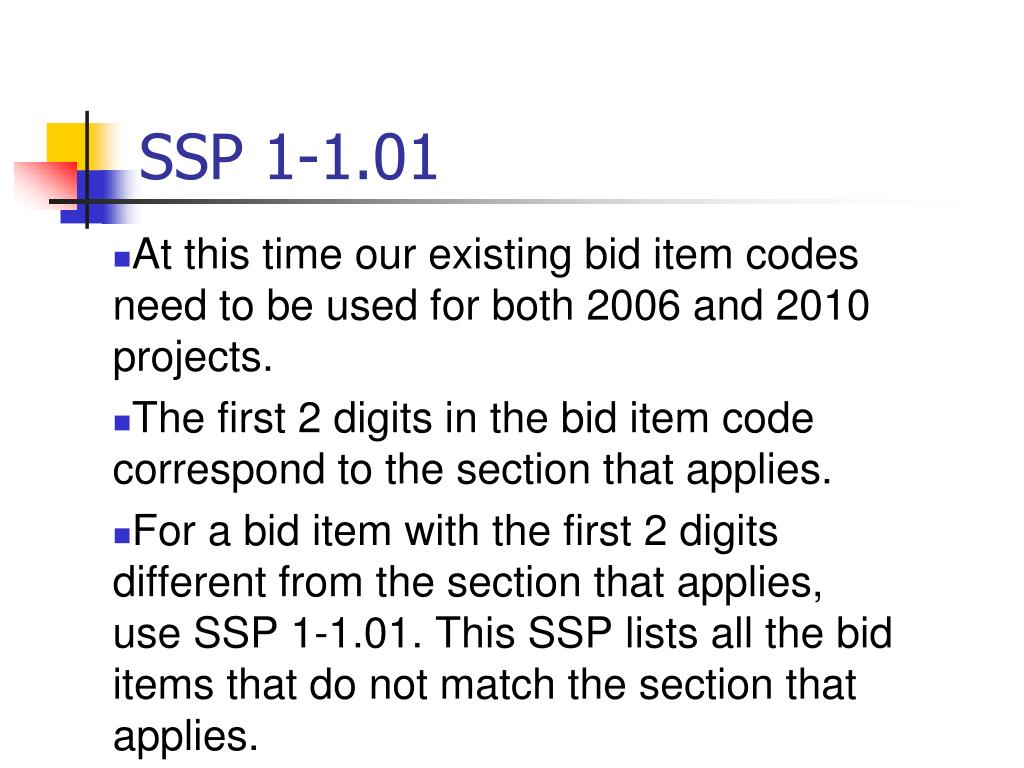

  25. Let’s look at SSP 1-1.01. Notice the 1st bid item is 070012, Progress Schedule (Critical Path Method). The far right column shows that section 8 is the applicable section. The first 2 digits of the bid item would take you to section 7, however this SSP overrides what is specified in the Standard Specifications. SSP 1-1.01

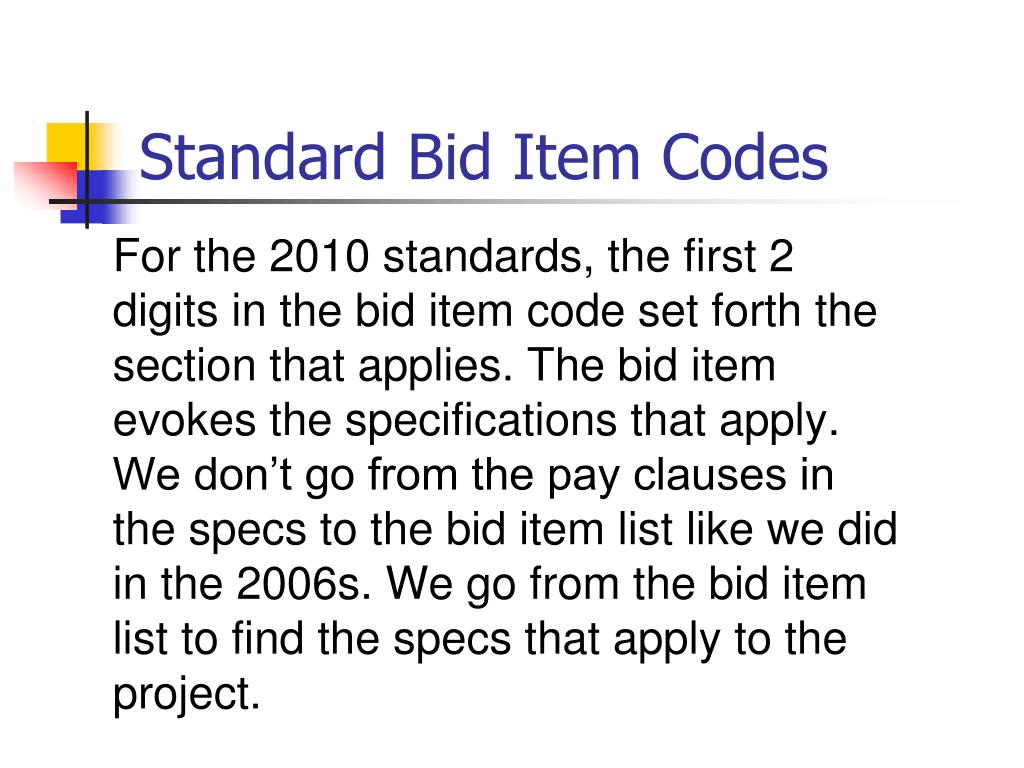

  26. For the 2010 standards, the first 2 digits in the bid item code set forth the section that applies. The bid item evokes the specifications that apply. We don’t go from the pay clauses in the specs to the bid item list like we did in the 2006s. We go from the bid item list to find the specs that apply to the project. Standard Bid Item Codes

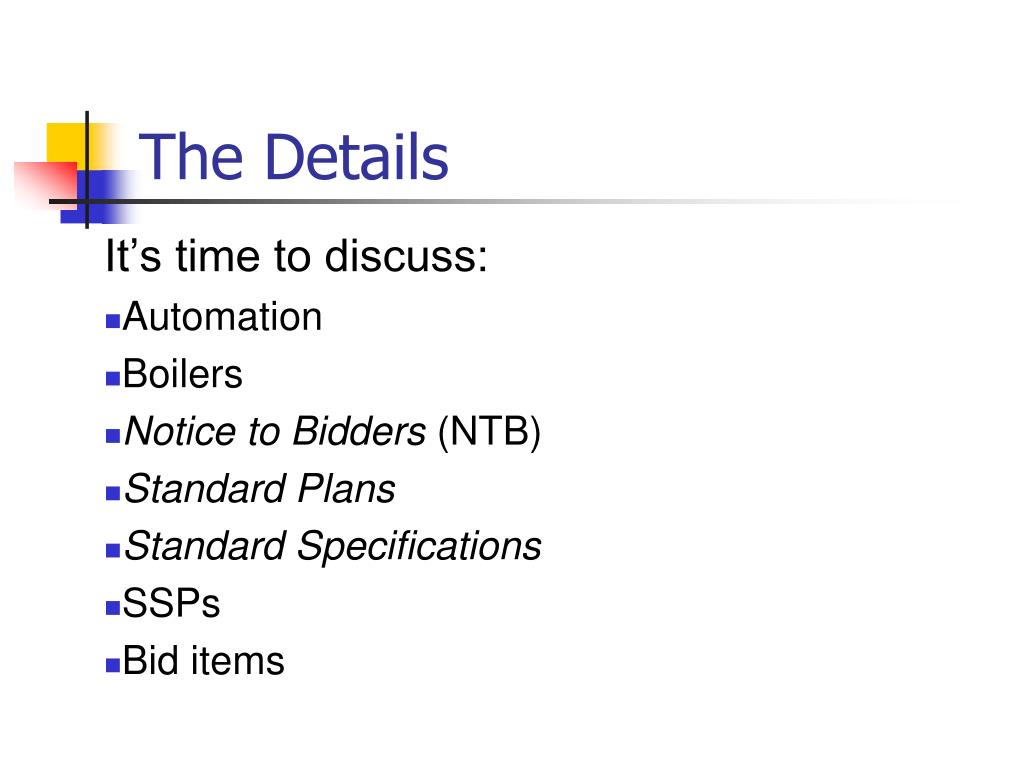

  27. It’s time to discuss: Automation Boilers Notice to Bidders (NTB) Standard Plans Standard Specifications SSPs Bid items The Details

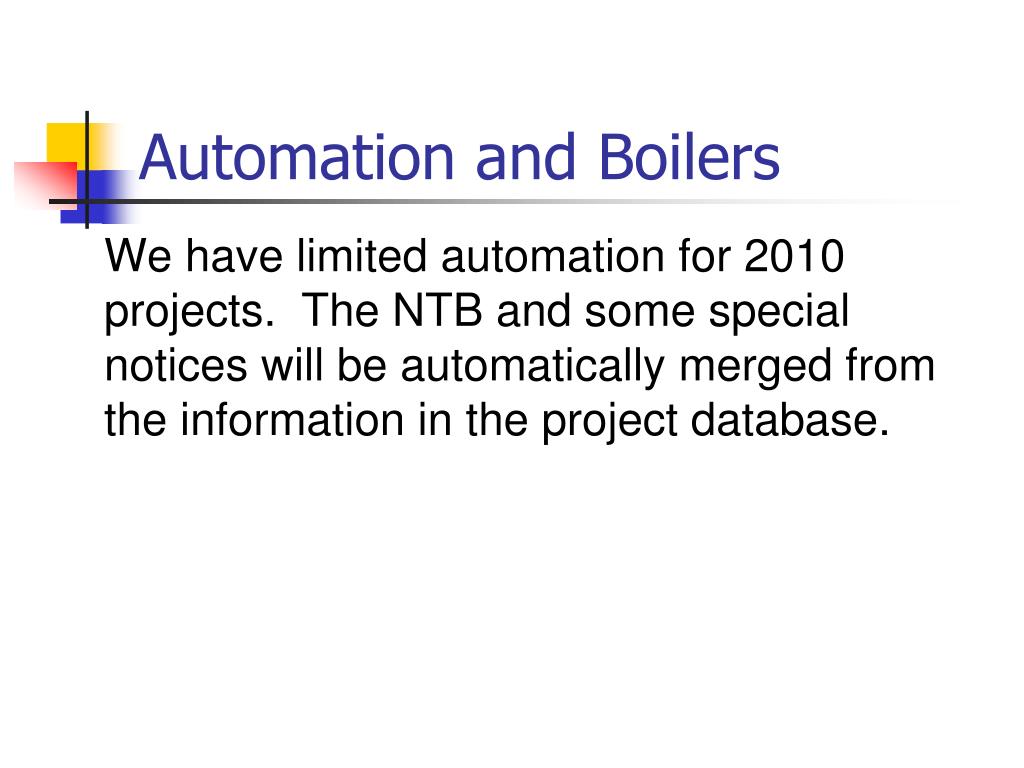

  28. We have limited automation for 2010 projects. The NTB and some special notices will be automatically merged from the information in the project database. Automation and Boilers

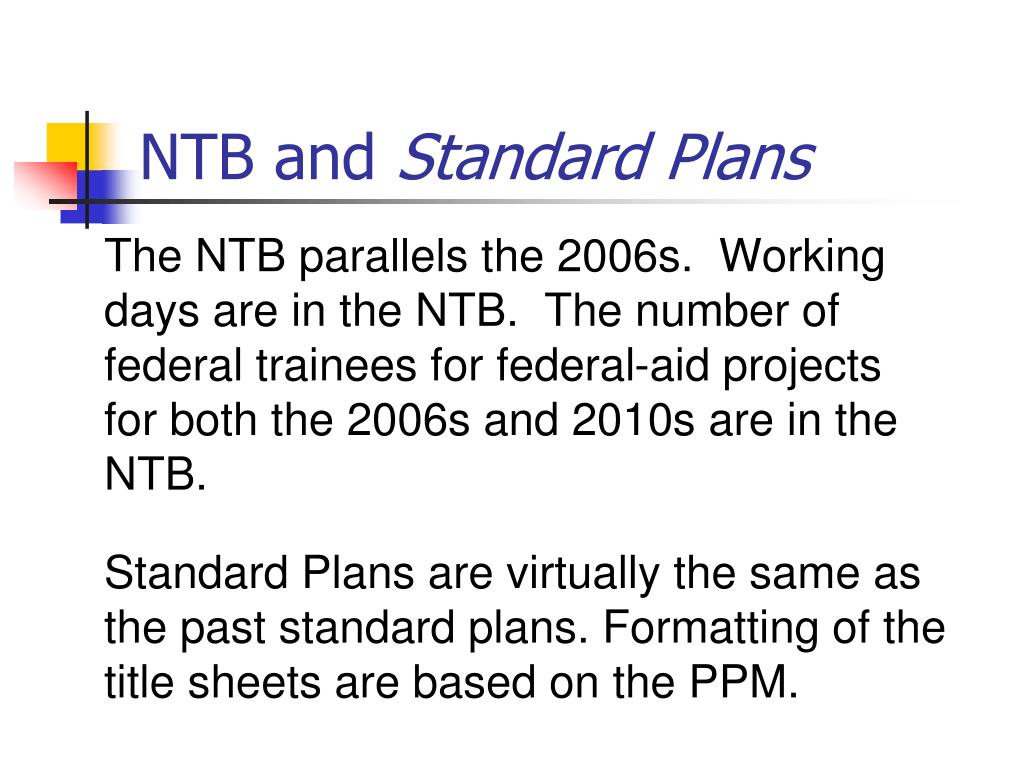

  29. The NTB parallels the 2006s. Working days are in the NTB. The number of federal trainees for federal-aid projects for both the 2006s and 2010s are in the NTB. Standard Plans are virtually the same as the past standard plans. Formatting of the title sheets are based on the PPM. NTB and Standard Plans

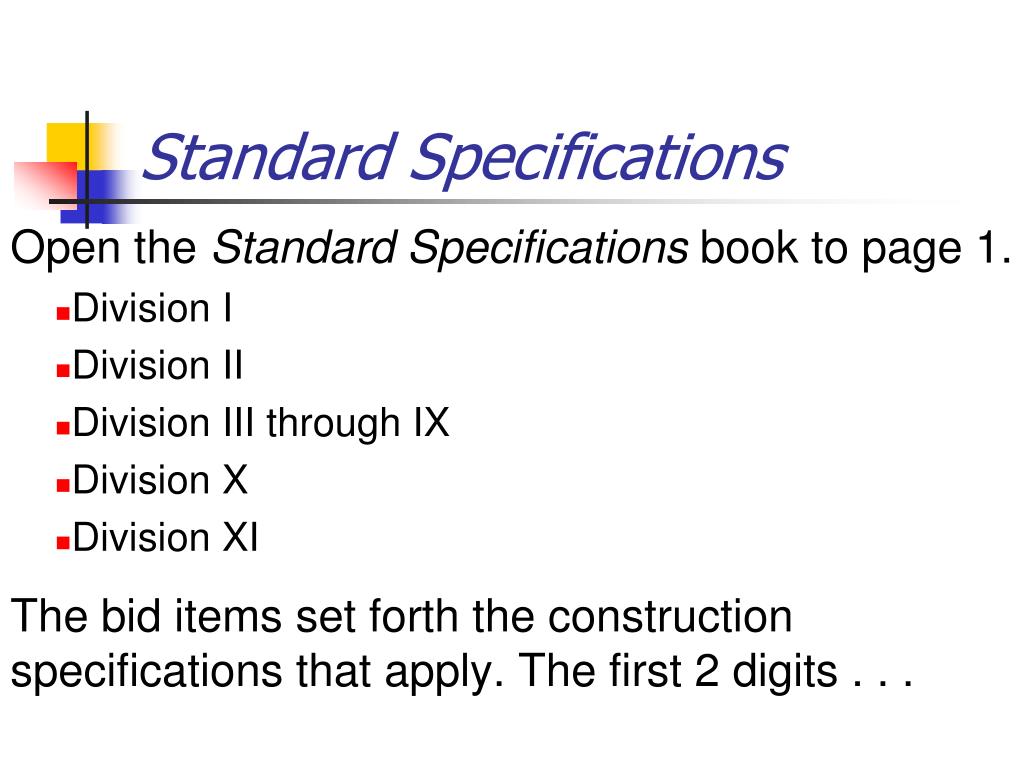

  30. Open the Standard Specifications book to page 1. Division I Division II Division III through IX Division X Division XI The bid items set forth the construction specifications that apply. The first 2 digits . . . Standard Specifications

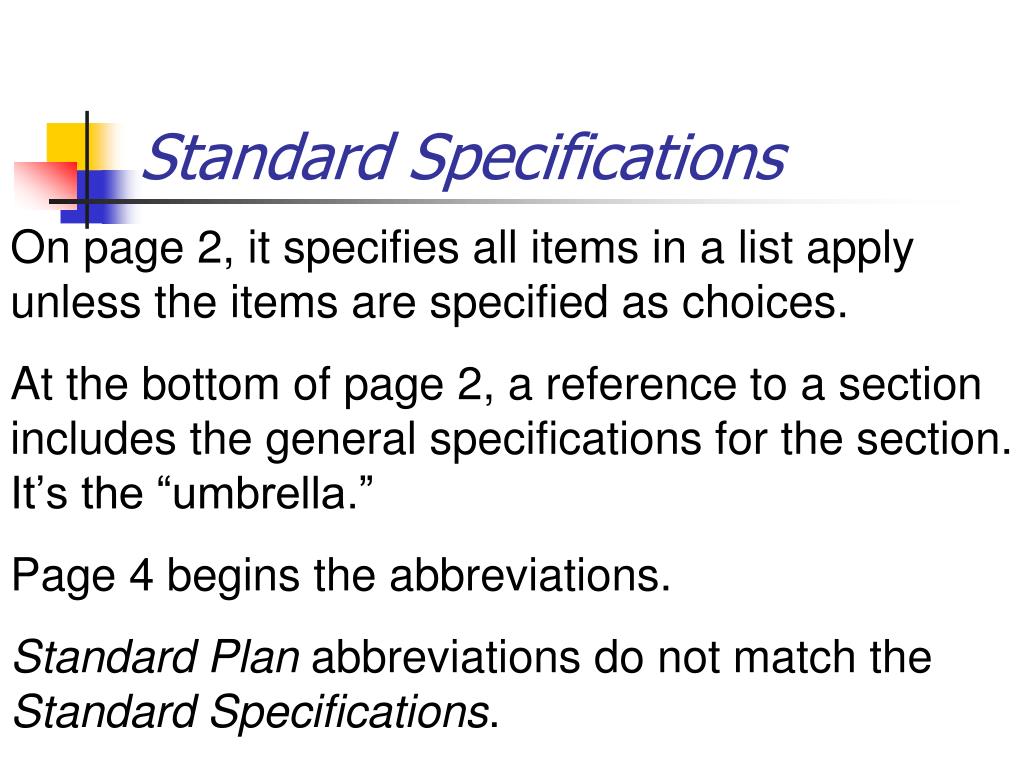

  31. On page 2, it specifies all items in a list apply unless the items are specified as choices. At the bottom of page 2, a reference to a section includes the general specifications for the section. It’s the “umbrella.” Page 4 begins the abbreviations. Standard Plan abbreviations do not match the Standard Specifications. Standard Specifications

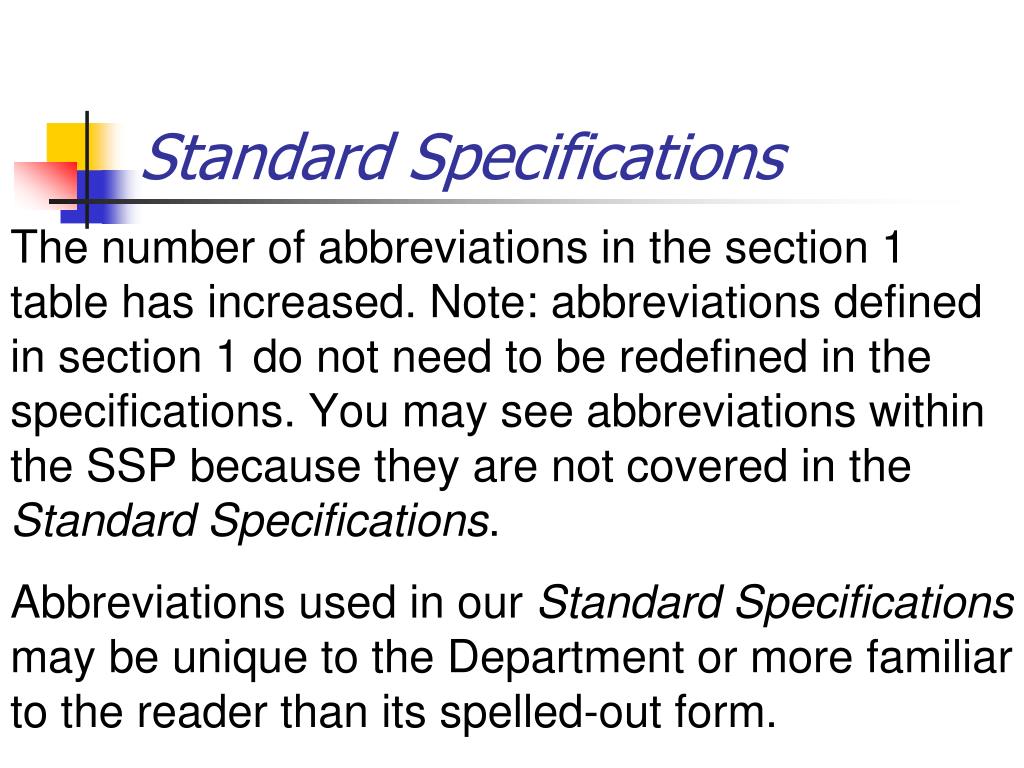

  32. The number of abbreviations in the section 1 table has increased. Note: abbreviations defined in section 1 do not need to be redefined in the specifications. You may see abbreviations within the SSP because they are not covered in the Standard Specifications. Abbreviations used in our Standard Specifications may be unique to the Department or more familiar to the reader than its spelled-out form. Standard Specifications

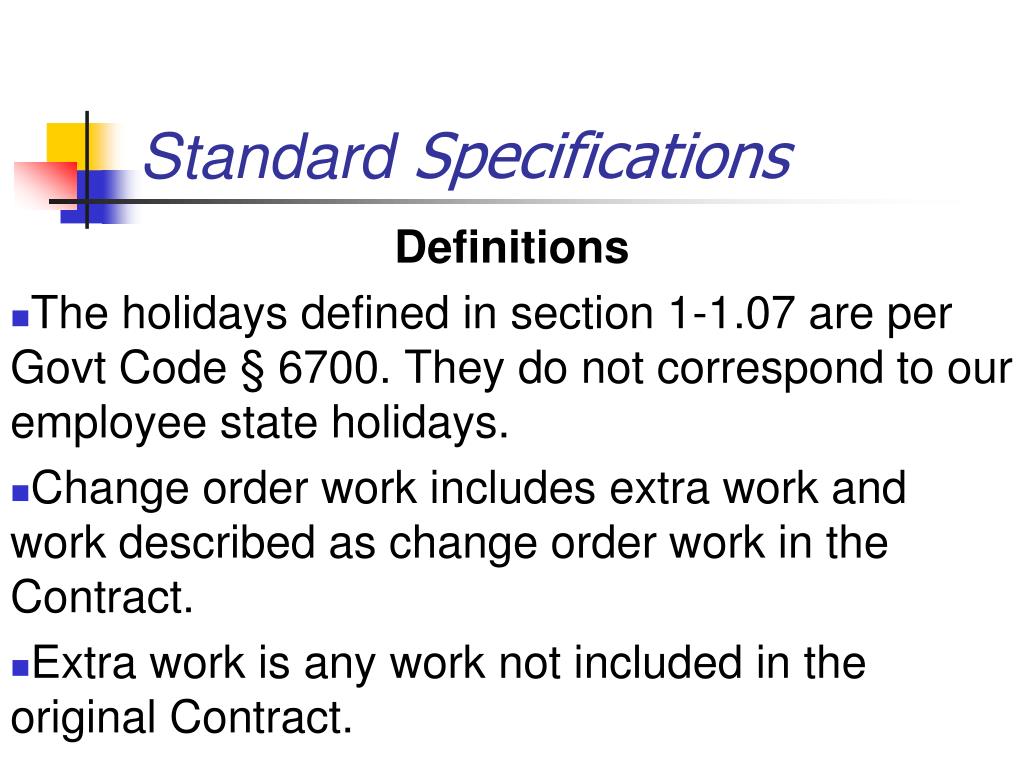

  33. Definitions The holidays defined in section 1-1.07 are per Govt Code § 6700. They do not correspond to our employee state holidays. Change order work includes extra work and work described as change order work in the Contract. Extra work is any work not included in the original Contract. Standard Specifications

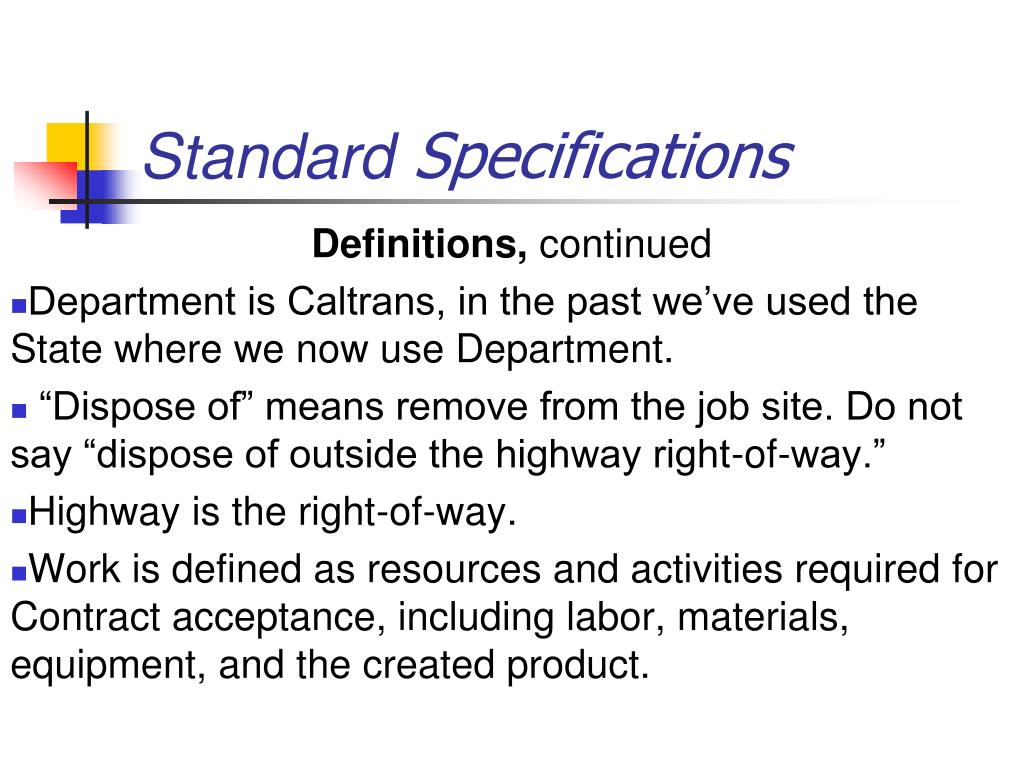

  34. Definitions, continued Department is Caltrans, in the past we’ve used the State where we now use Department. “Dispose of” means remove from the job site. Do not say “dispose of outside the highway right-of-way.” Highway is the right-of-way. Work is defined as resources and activities required for Contract acceptance, including labor, materials, equipment, and the created product. Standard Specifications

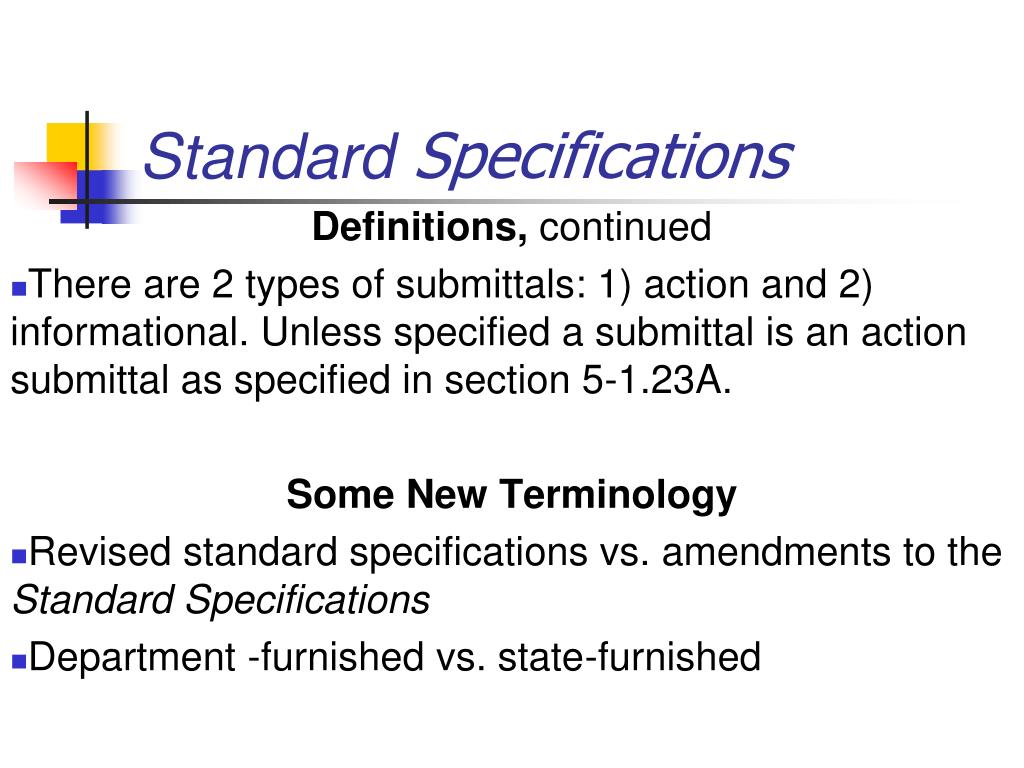

  35. Definitions, continued There are 2 types of submittals: 1) action and 2) informational. Unless specified a submittal is an action submittal as specified in section 5-1.23A. Some New Terminology Revised standard specifications vs. amendments to the Standard Specifications Department -furnished vs. state-furnished Standard Specifications

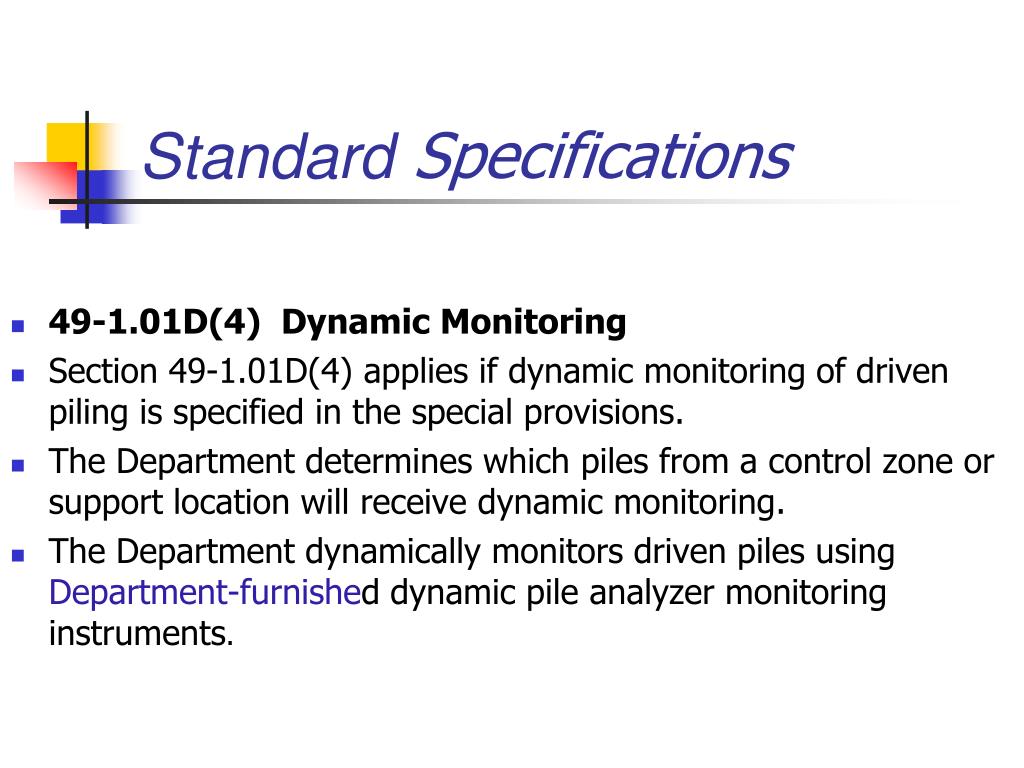

  36. 49-1.01D(4) Dynamic Monitoring Section 49-1.01D(4) applies if dynamic monitoring of driven piling is specified in the special provisions. The Department determines which piles from a control zone or support location will receive dynamic monitoring. The Department dynamically monitors driven piles using Department-furnished dynamic pile analyzer monitoring instruments. Standard Specifications

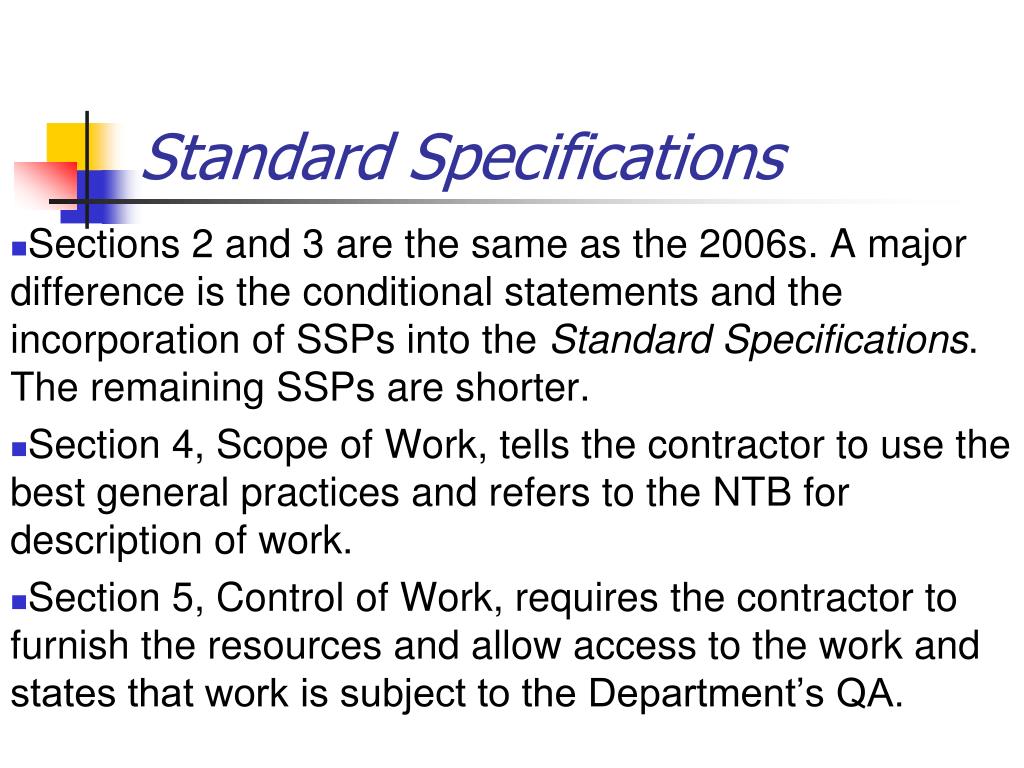

  37. Sections 2 and 3 are the same as the 2006s. A major difference is the conditional statements and the incorporation of SSPs into the Standard Specifications. The remaining SSPs are shorter. Section 4, Scope of Work, tells the contractor to use the best general practices and refers to the NTB for description of work. Section 5, Control of Work, requires the contractor to furnish the resources and allow access to the work and states that work is subject to the Department’s QA. Standard Specifications

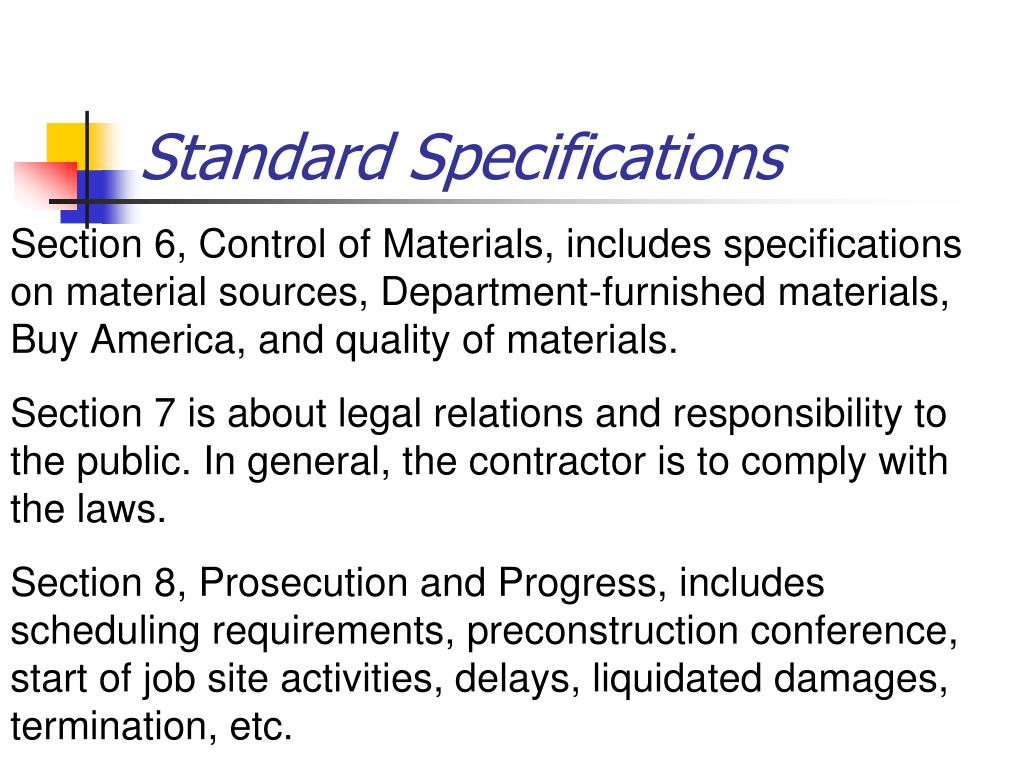

  38. Section 6, Control of Materials, includes specifications on material sources, Department-furnished materials, Buy America, and quality of materials. Section 7 is about legal relations and responsibility to the public. In general, the contractor is to comply with the laws. Section 8, Prosecution and Progress, includes scheduling requirements, preconstruction conference, start of job site activities, delays, liquidated damages, termination, etc. Standard Specifications

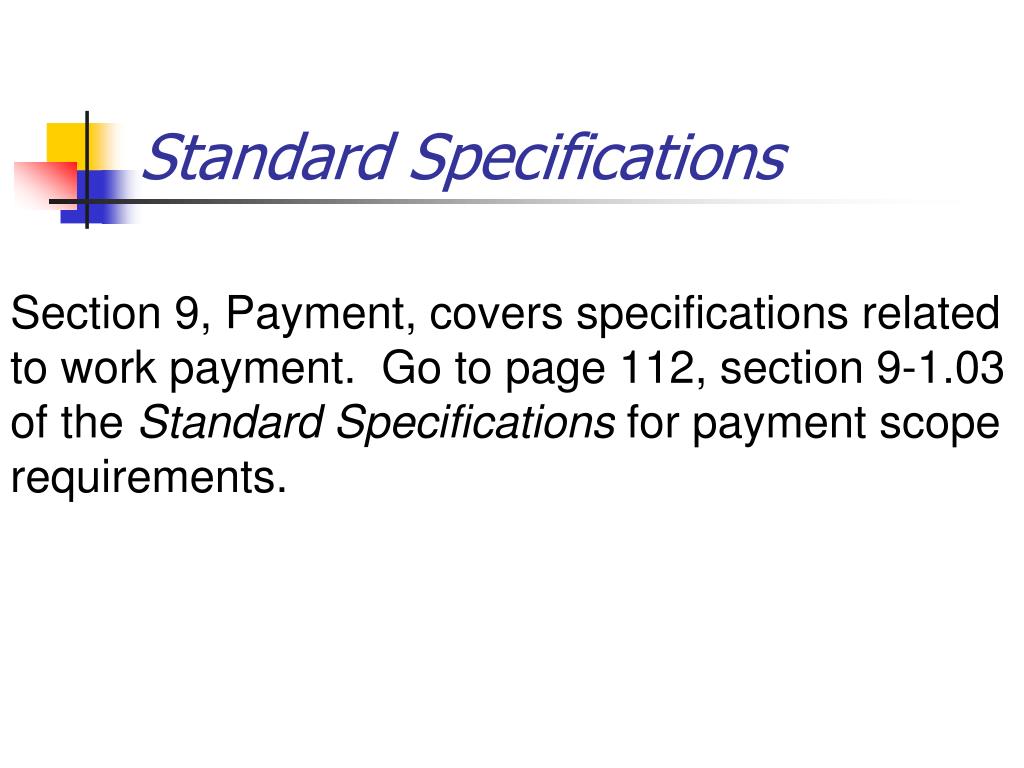

  39. Section 9, Payment, covers specifications related to work payment. Go to page 112, section 9-1.03 of the Standard Specifications for payment scope requirements. Standard Specifications

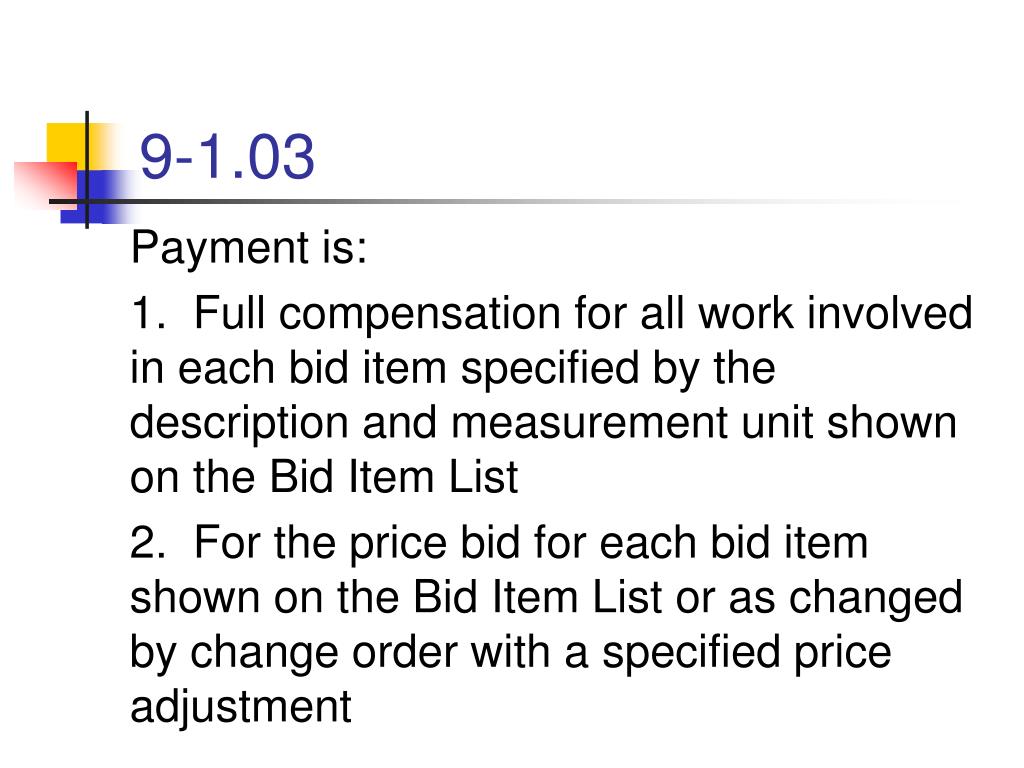

  40. Payment is: 1. Full compensation for all work involved in each bid item specified by the description and measurement unit shown on the Bid Item List 2. For the price bid for each bid item shown on the Bid Item List or as changed by change order with a specified price adjustment 9-1.03

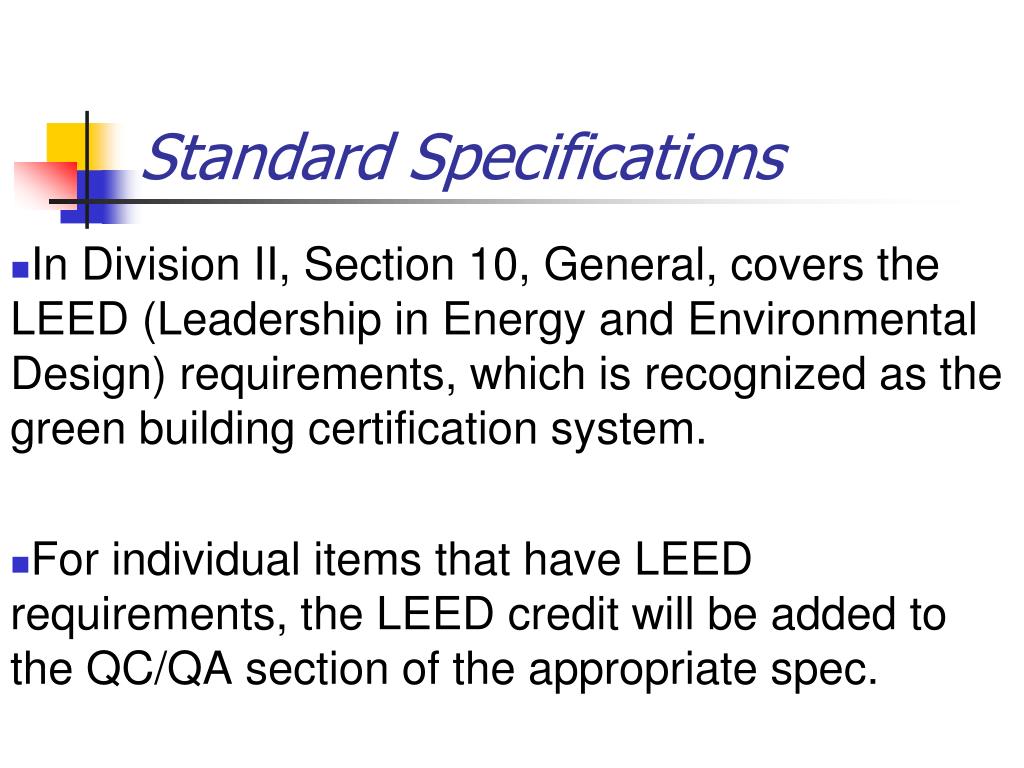

  41. In Division II, Section 10, General, covers the LEED (Leadership in Energy and Environmental Design) requirements, which is recognized as the green building certification system. For individual items that have LEED requirements, the LEED credit will be added to the QC/QA section of the appropriate spec. Standard Specifications

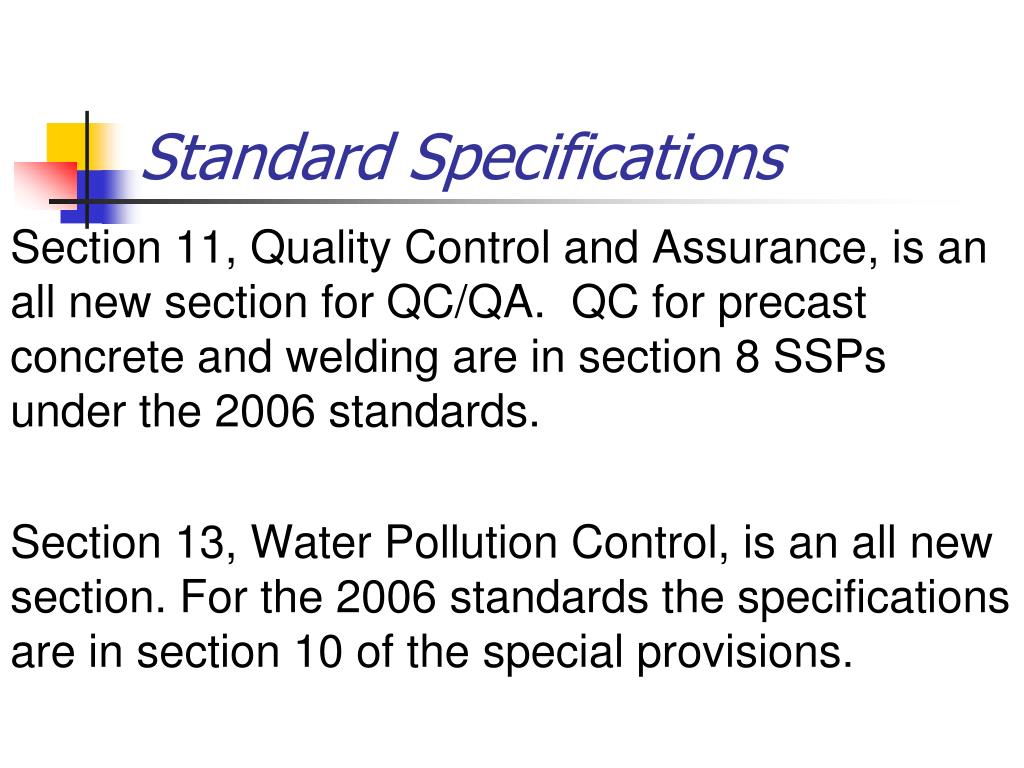

  42. Section 11, Quality Control and Assurance, is an all new section for QC/QA. QC for precast concrete and welding are in section 8 SSPs under the 2006 standards. Section 13, Water Pollution Control, is an all new section. For the 2006 standards the specifications are in section 10 of the special provisions. Standard Specifications

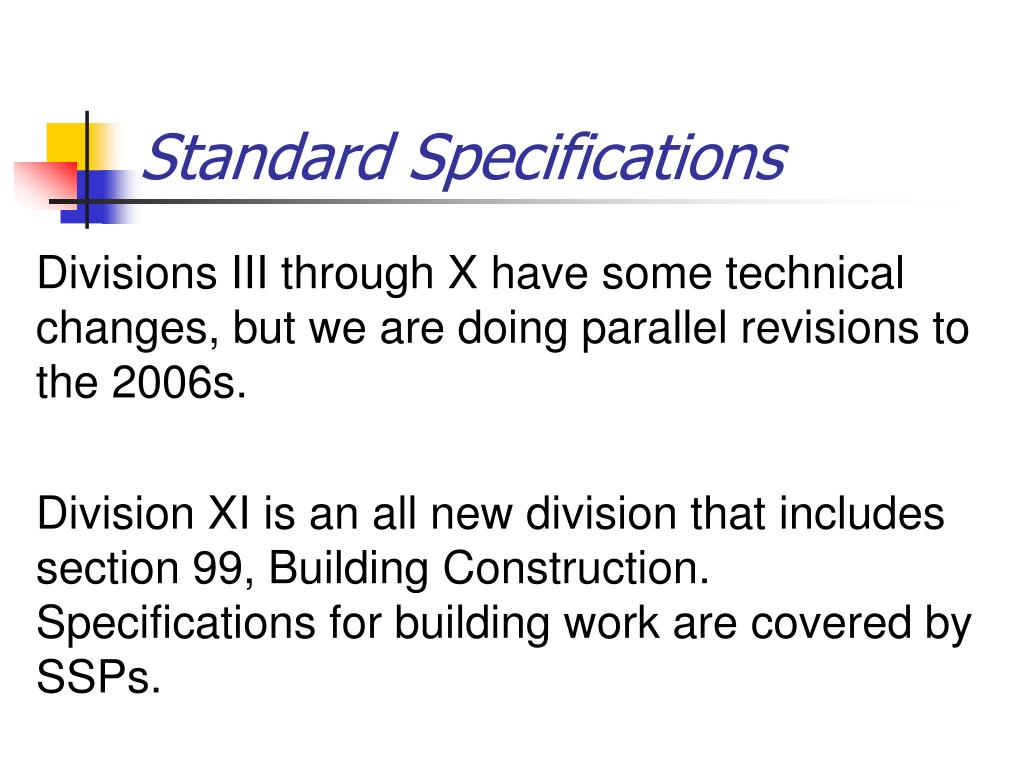

  43. Divisions III through X have some technical changes, but we are doing parallel revisions to the 2006s. Division XI is an all new division that includes section 99, Building Construction. Specifications for building work are covered by SSPs. Standard Specifications

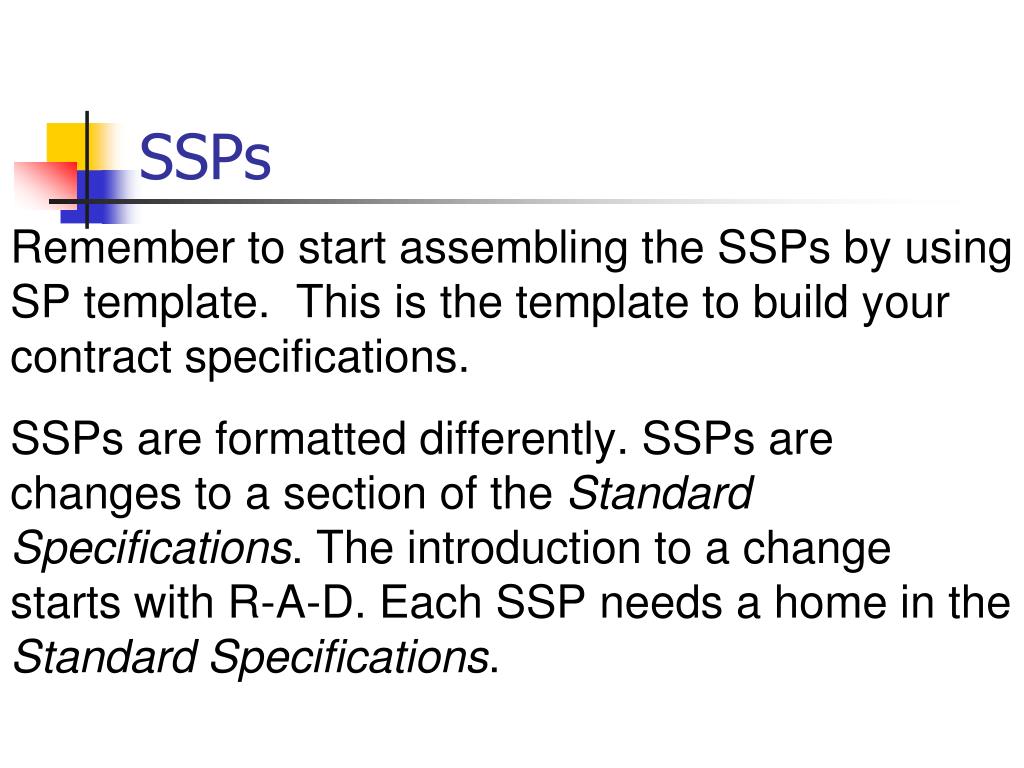

  44. Remember to start assembling the SSPs by using SP template. This is the template to build your contract specifications. SSPs are formatted differently. SSPs are changes to a section of the Standard Specifications. The introduction to a change starts with R-A-D. Each SSP needs a home in the Standard Specifications. SSPs

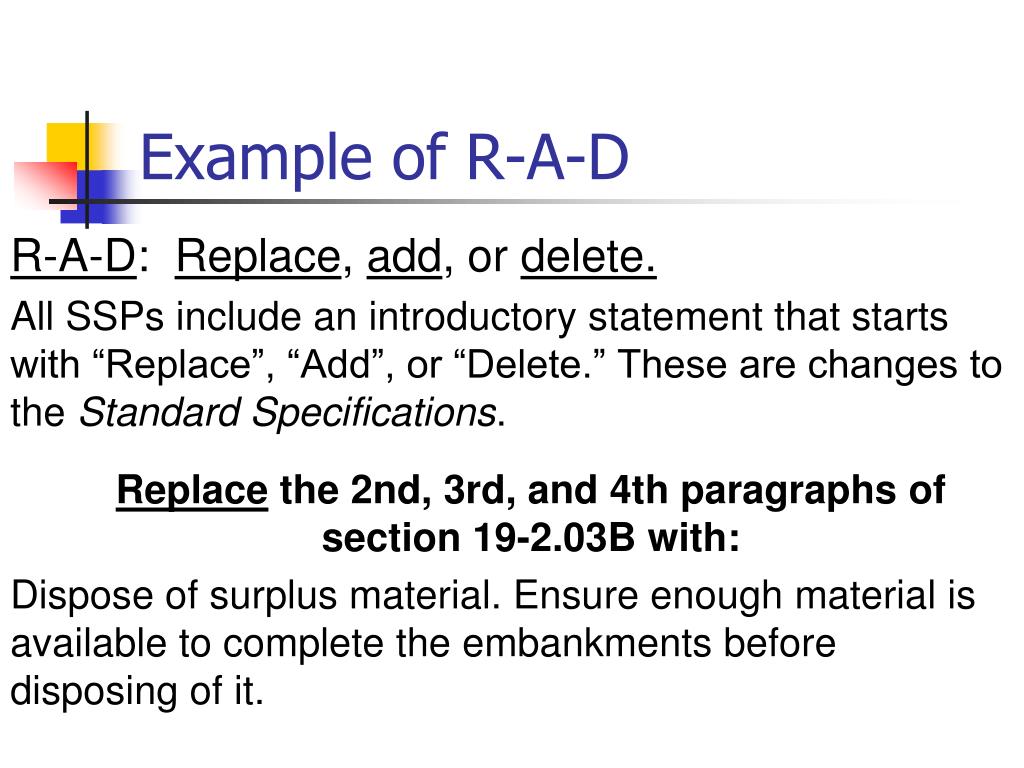

  45. R-A-D: Replace, add, or delete. All SSPs include an introductory statement that starts with “Replace”, “Add”, or “Delete.” These are changes to the Standard Specifications. Replace the 2nd, 3rd, and 4th paragraphs of section 19-2.03B with: Dispose of surplus material. Ensure enough material is available to complete the embankments before disposing of it. Example of R-A-D

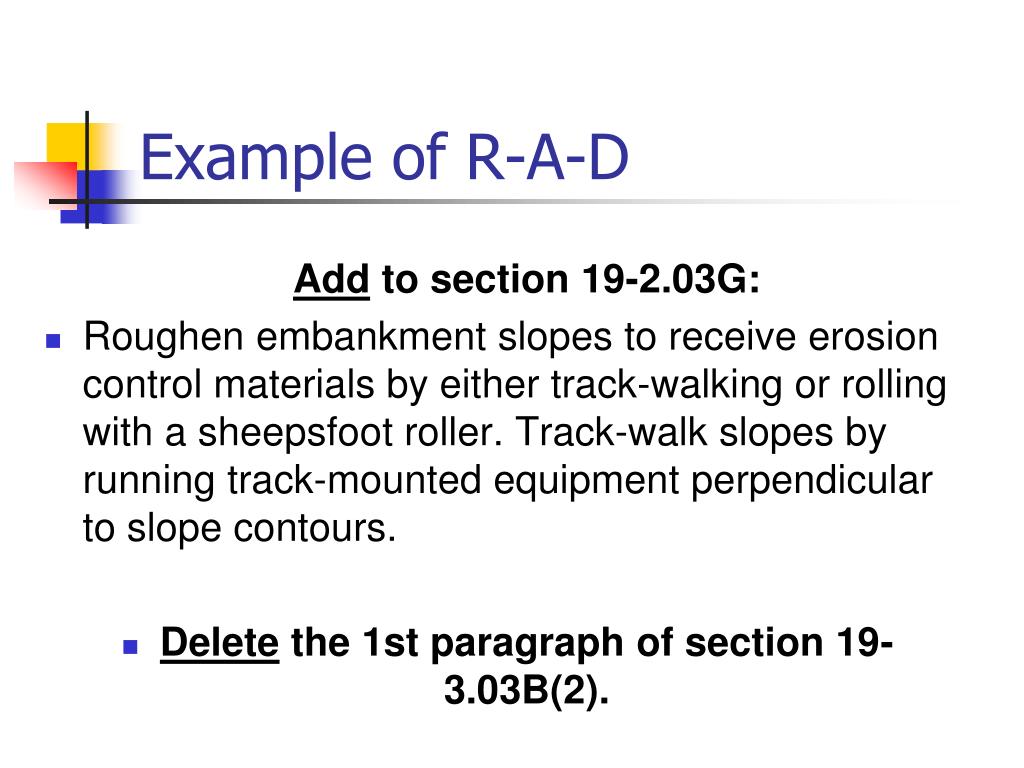

  46. Add to section 19-2.03G: Roughen embankment slopes to receive erosion control materials by either track-walking or rolling with a sheepsfoot roller. Track-walk slopes by running track-mounted equipment perpendicular to slope contours. Delete the 1st paragraph of section 19-3.03B(2). Example of R-A-D

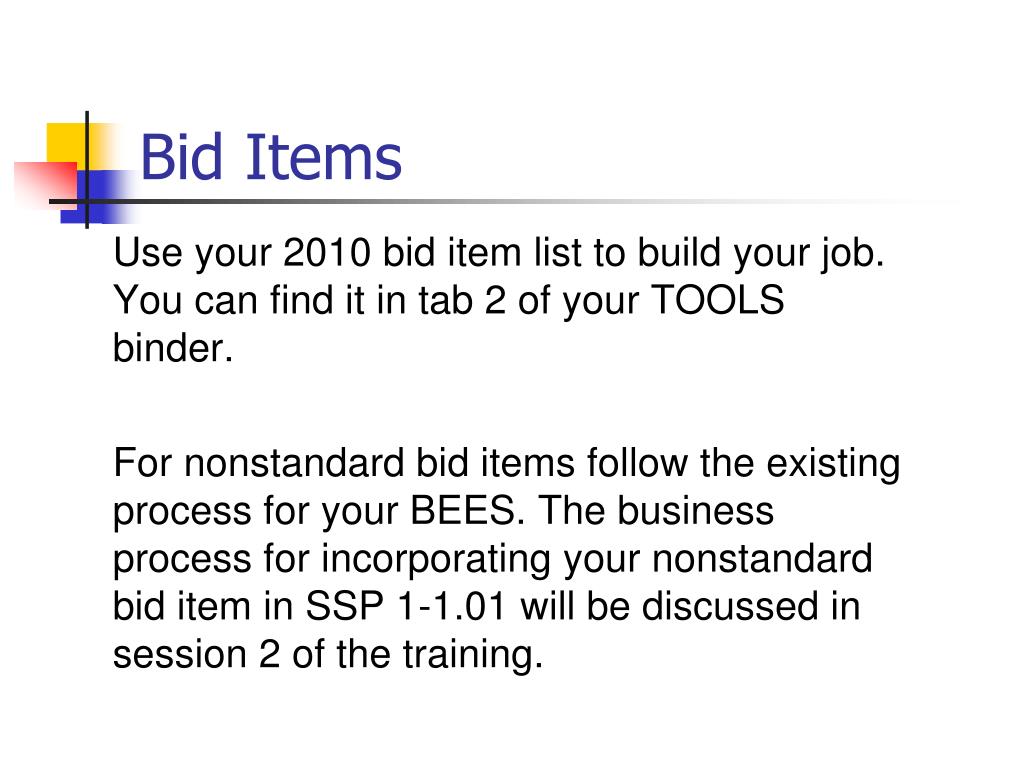

  47. Use your 2010 bid item list to build your job. You can find it in tab 2 of your TOOLS binder. For nonstandard bid items follow the existing process for your BEES. The business process for incorporating your nonstandard bid item in SSP 1-1.01 will be discussed in session 2 of the training. Bid Items

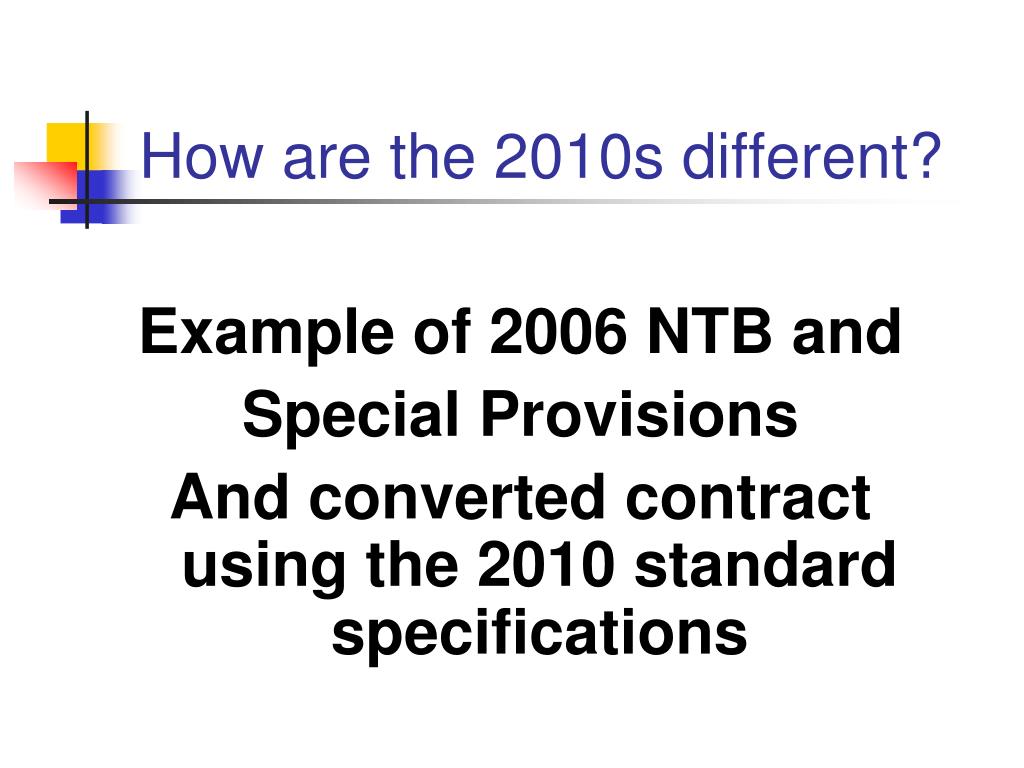

  48. How are the 2010s different? Example of 2006 NTB and Special Provisions And converted contract using the 2010 standard specifications
