  1. 1600 SeriesOperation (See Installation and Operation Manual for detailed instructions)

  2. FoamPro 1600 Series • Fully automatic • Class A foam ONLY • Proportions between 0.1% to 1% • Flowmeter standard (1", 1-1/2" or 2" tee) • Operators control panel

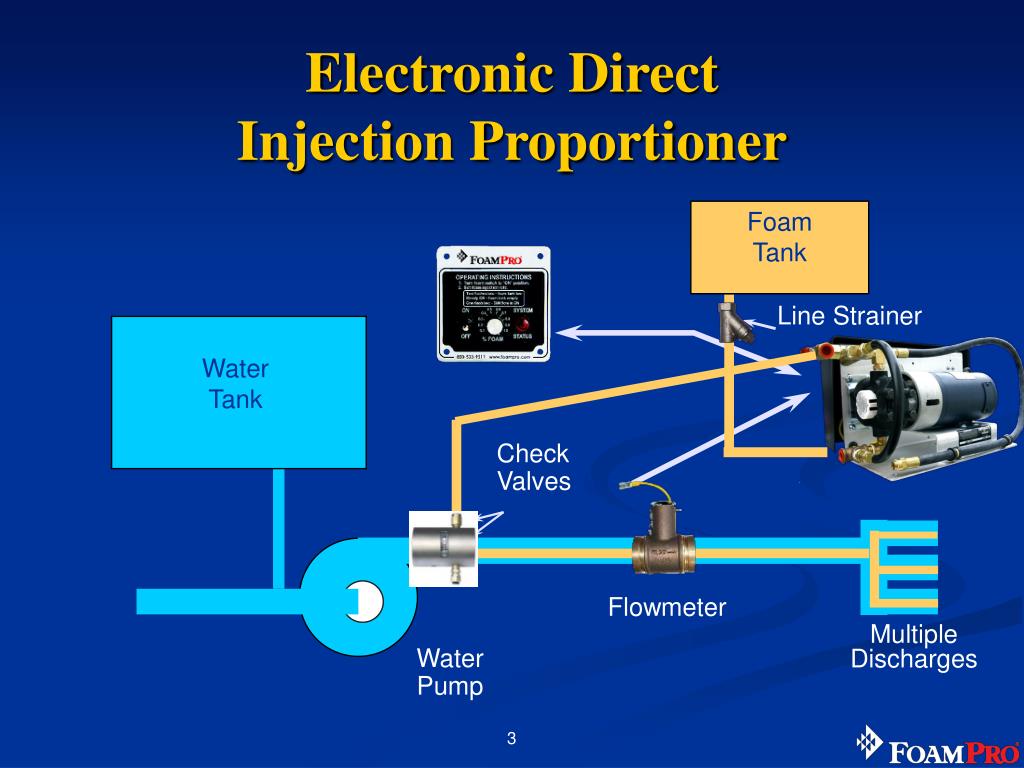

  3. Foam Tank Line Strainer Water Tank Water Pump Electronic DirectInjection Proportioner Check Valves Flowmeter Multiple Discharges

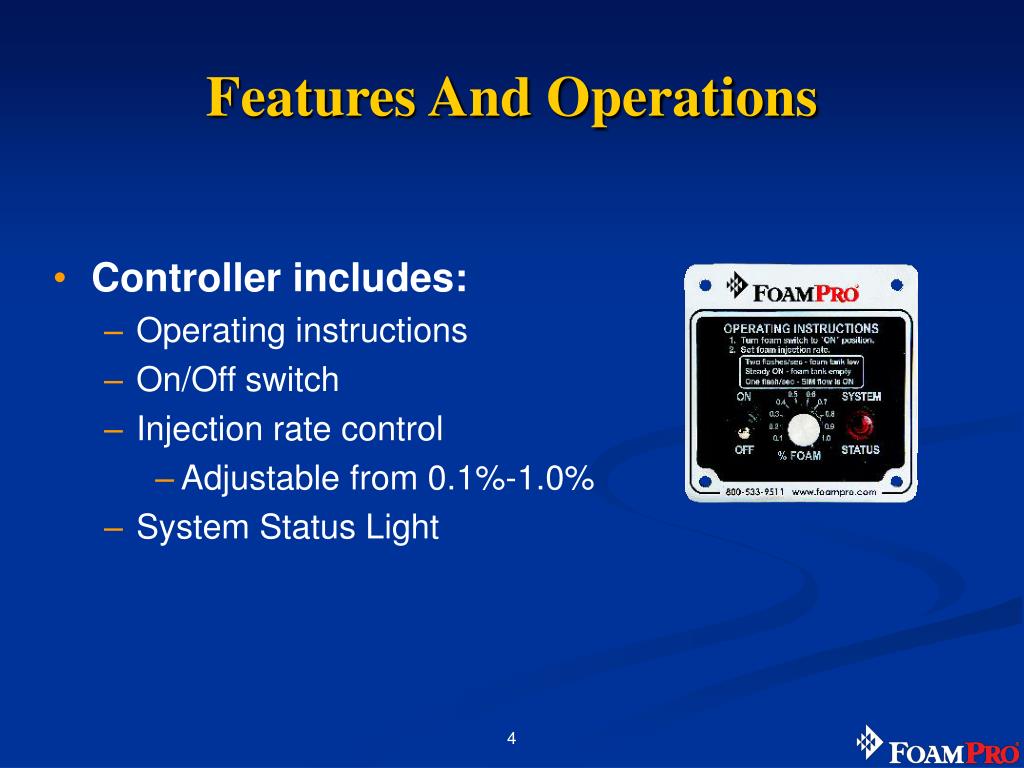

  4. Features And Operations • Controller includes: • Operating instructions • On/Off switch • Injection rate control • Adjustable from 0.1%-1.0% • System Status Light

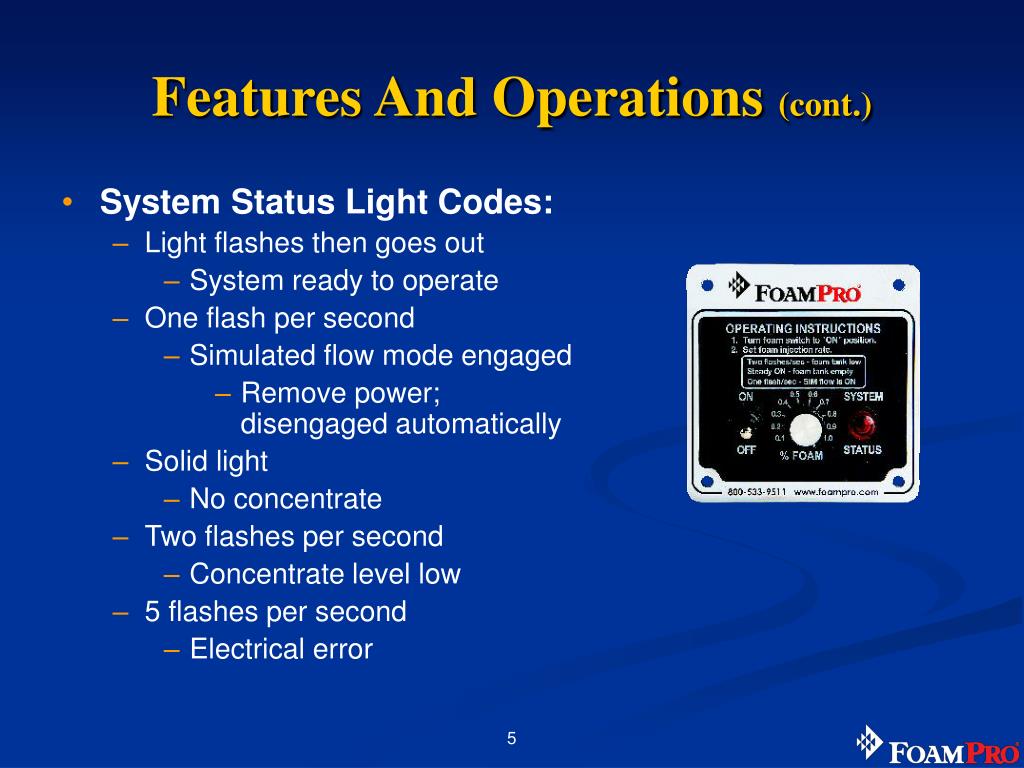

  5. Features And Operations (cont.) • System Status Light Codes: • Light flashes then goes out • System ready to operate • One flash per second • Simulated flow mode engaged • Remove power; disengaged automatically • Solid light • No concentrate • Two flashes per second • Concentrate level low • 5 flashes per second • Electrical error

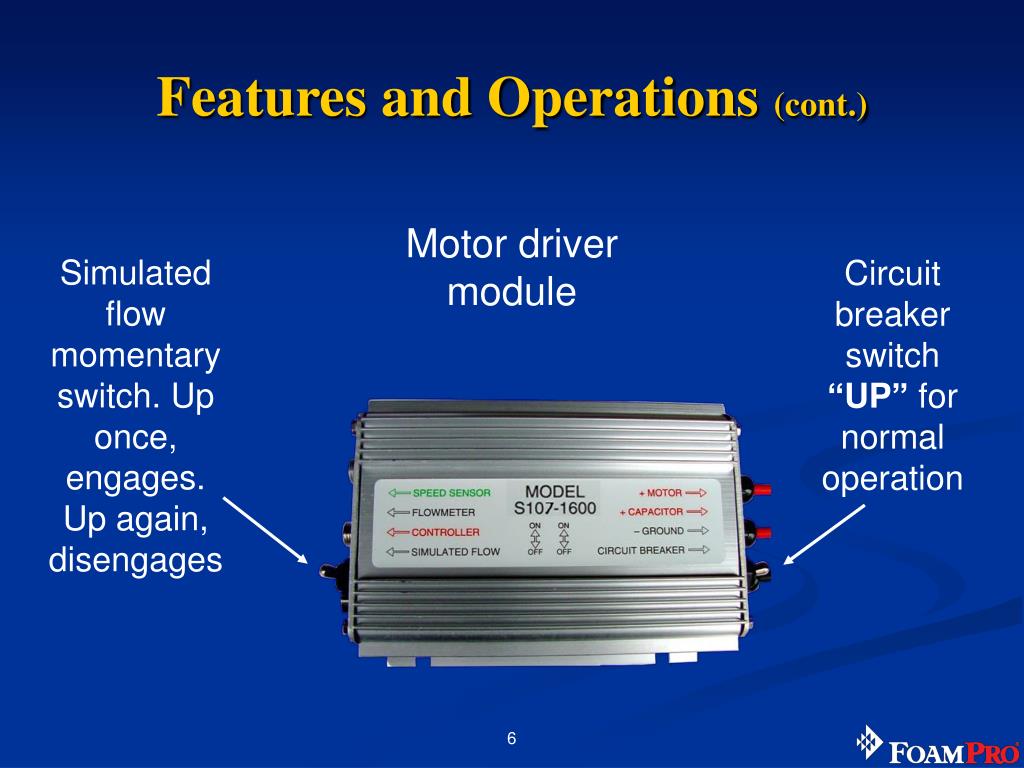

  6. Features and Operations (cont.) Motor driver module Simulated flow momentary switch. Up once, engages. Up again, disengages Circuit breaker switch “UP” for normal operation

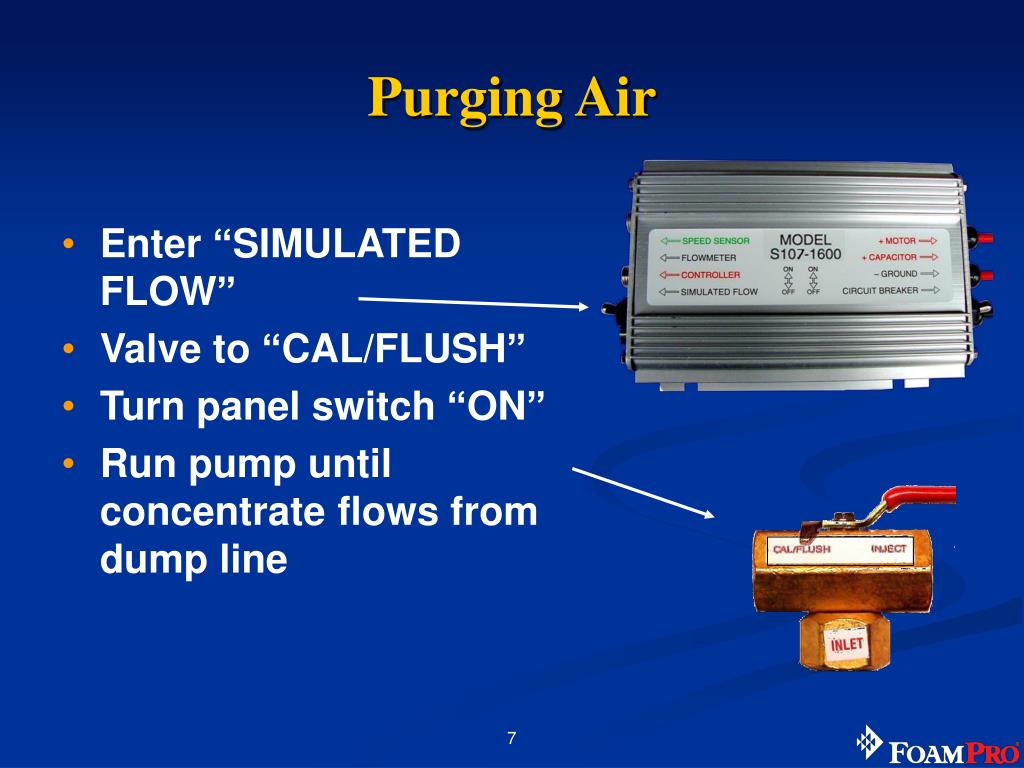

  7. Purging Air • Enter “SIMULATED FLOW” • Valve to “CAL/FLUSH” • Turn panel switch “ON” • Run pump until concentrate flows from dump line

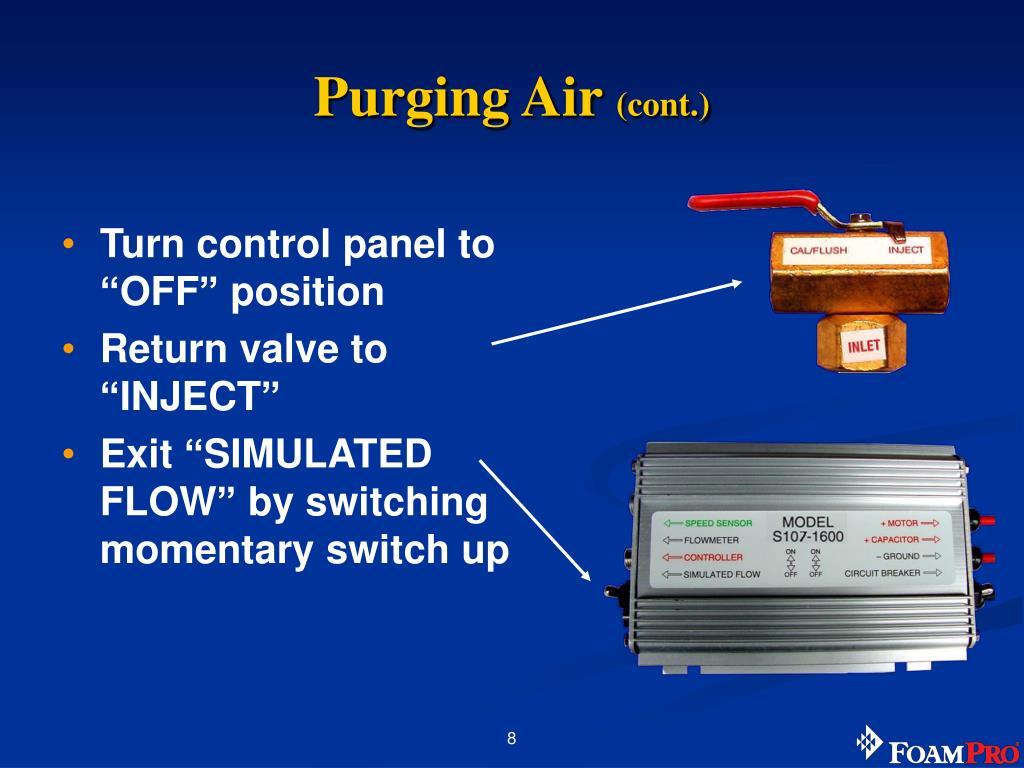

  8. Purging Air (cont.) • Turn control panel to “OFF” position • Return valve to “INJECT” • Exit “SIMULATED FLOW” by switching momentary switch up

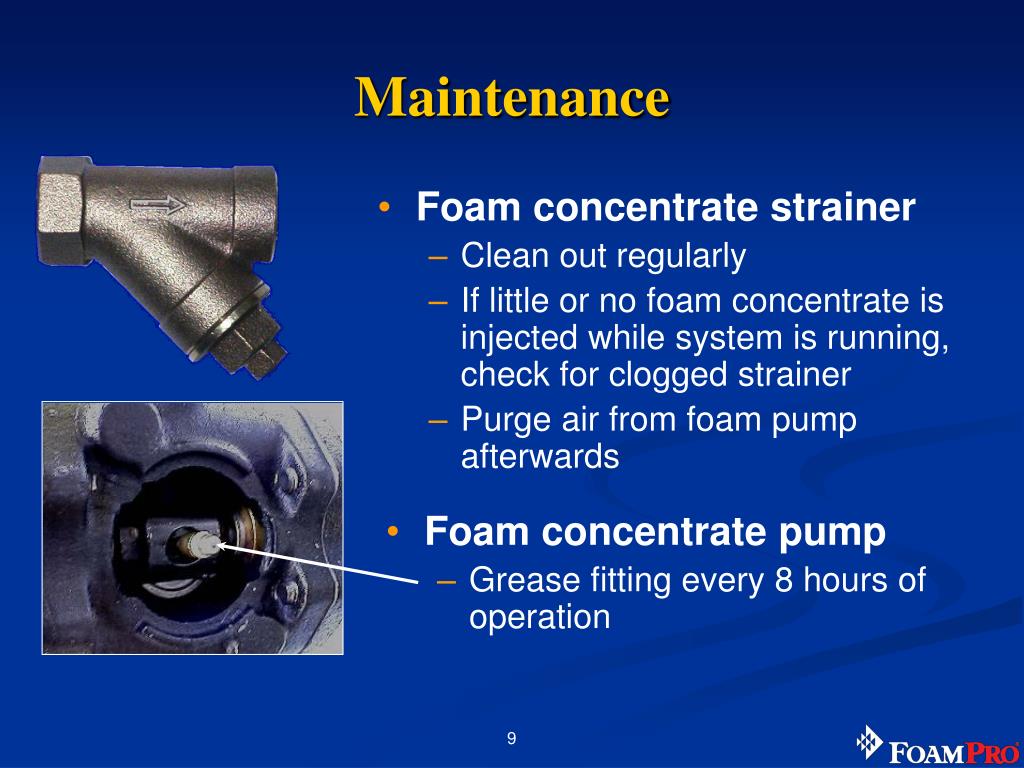

  9. Foam concentrate pump • Grease fitting every 8 hours of operation Maintenance • Foam concentrate strainer • Clean out regularly • If little or no foam concentrate is injected while system is running, check for clogged strainer • Purge air from foam pump afterwards
