  1. Architecture Working Group NEMO Phase 1 data transmission: considerations toward km3 F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  2. NEMO KM3 EXPERIMENT LAYOUT 200 m Tower 200 m Secondary JB 1400 m Primary JB Main electro optical cable F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

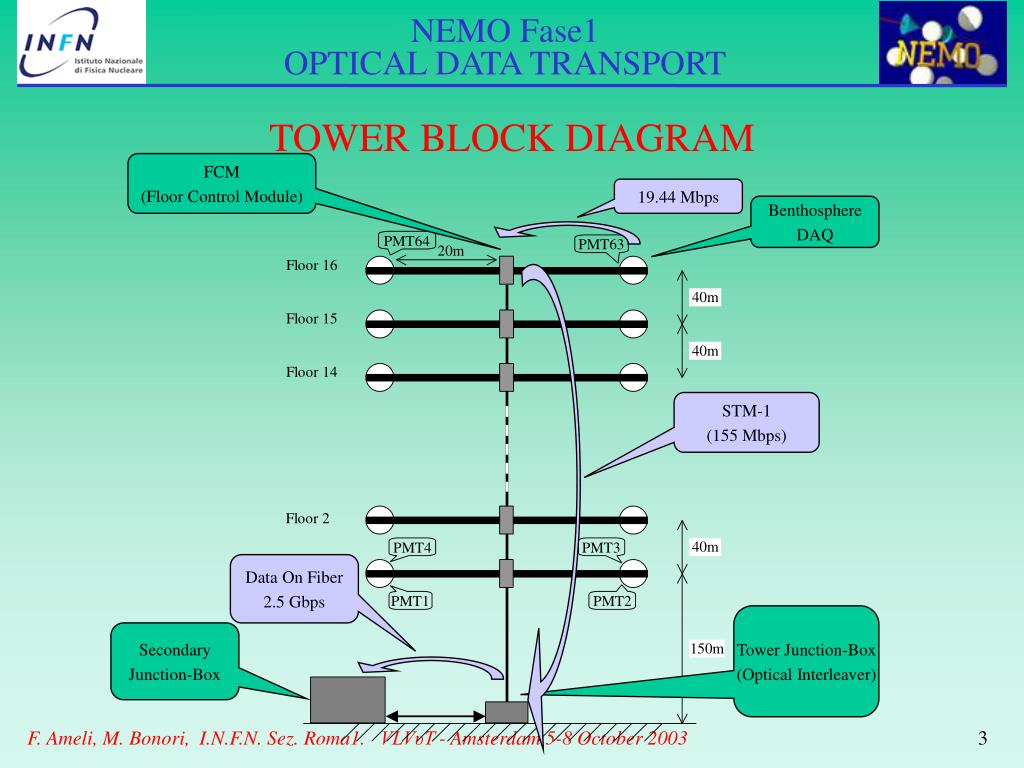

  3. TOWER BLOCK DIAGRAM FCM (Floor Control Module) 19.44 Mbps Benthosphere DAQ STM-1 (155 Mbps) Data On Fiber 2.5 Gbps Tower Junction-Box (Optical Interleaver) Secondary Junction-Box F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  4. OPTICAL DATA TRANSPORT TOPOLOGY (SEASIDE) 1 X 155 Mbit/s FCM # 1 2 X 2.5 Gbit/s 2 X 2.5 Gbit/s TJB # 1 SJB # 1 FCM # 16 4 X 2.5 Gbit/s + 2 spare Fibers 1 X 155 Mbit/s PJB TO LANDSIDE 1 X 155 Mbit/s FCM # 1 TJB # 2 SJB # 2 2 X 2.5 Gbit/s 2 X 2.5 Gbit/s FCM # 16 1 X 155 Mbit/s F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  5. OPTICAL DATA TRANSPORT TOPOLOGY (LANDSIDE) 155 Mbit/s from FCM # 1 FROM TJB # 1 155 Mbit/s from FCM # 16 4 X 2.5 Gbit/s + 2 spare Fibers MAIN OPTICAL BOX FROM SEASIDE 155 Mbit/s from FCM # 1 FROM TJB # 2 155 Mbit/s from FCM # 16 TWO AUXILIARY CHANNELS F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

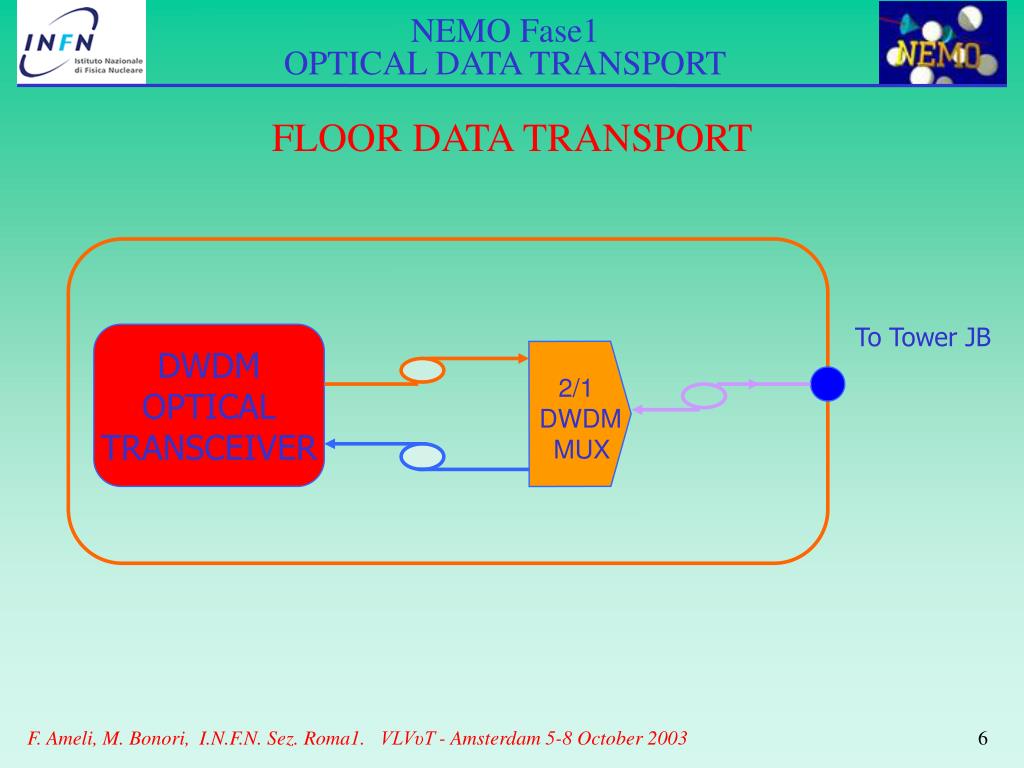

  6. FLOOR DATA TRANSPORT To Tower JB DWDM OPTICAL TRANSCEIVER 2/1 DWDM MUX F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

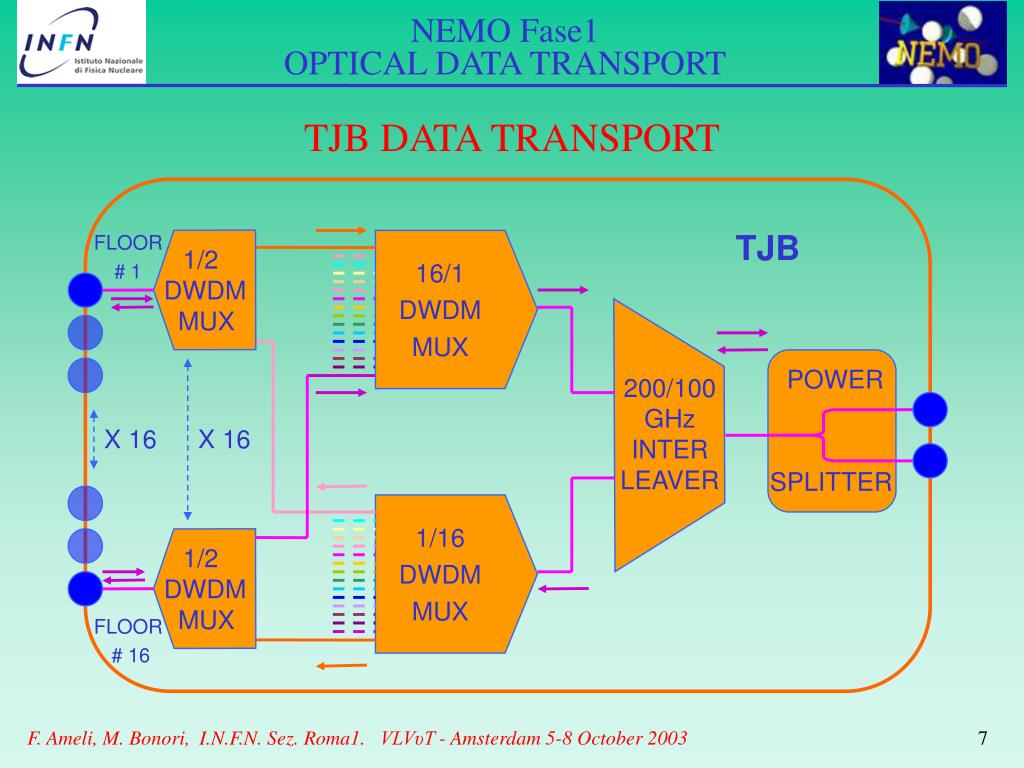

  7. TJB DATA TRANSPORT TJB 16/1 DWDM MUX FLOOR # 1 1/2 DWDM MUX POWER 200/100 GHz INTER LEAVER X 16 X 16 SPLITTER 1/16 DWDM MUX 1/2 DWDM MUX FLOOR # 16 F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  8. SJB DATA TRANSPORT SJB F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

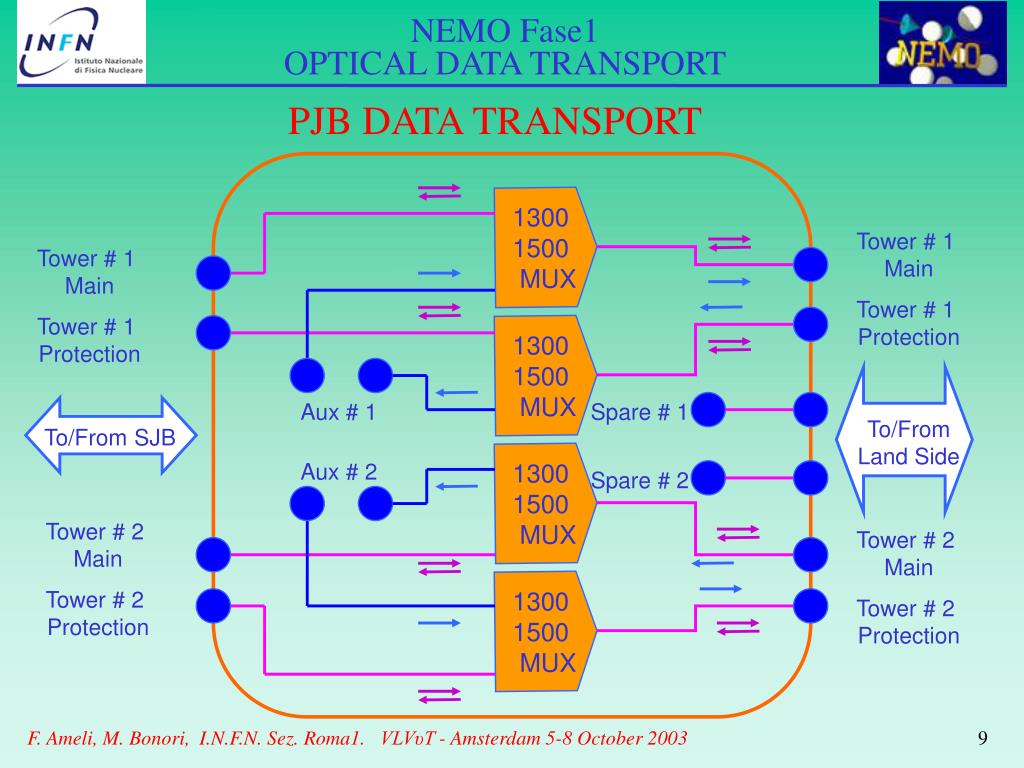

  9. PJB DATA TRANSPORT 1300 1500 MUX Tower # 1 Main Tower # 1 Main Tower # 1 Protection Tower # 1 Protection 1300 1500 MUX Aux # 1 Spare # 1 To/From Land Side To/From SJB Aux # 2 1300 1500 MUX Spare # 2 Tower # 2 Main Tower # 2 Main Tower # 2 Protection 1300 1500 MUX Tower # 2 Protection F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  10. MOB DATA TRANSPORT 1/16 DWDM MUX 1300 1500 MUX SW 1 Floor # 1 100/200 INTER LVR 1/16 DWDM MUX Tower # 1 1300 1500 MUX Aux # 1 Floor # 16 Floor # 1 1300 1500 MUX Aux # 2 1/16 DWDM MUX Tower # 1 100/200 INTER LVR Floor # 16 1/16 DWDM MUX 1300 1500 MUX SW 2 EO CABLE F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

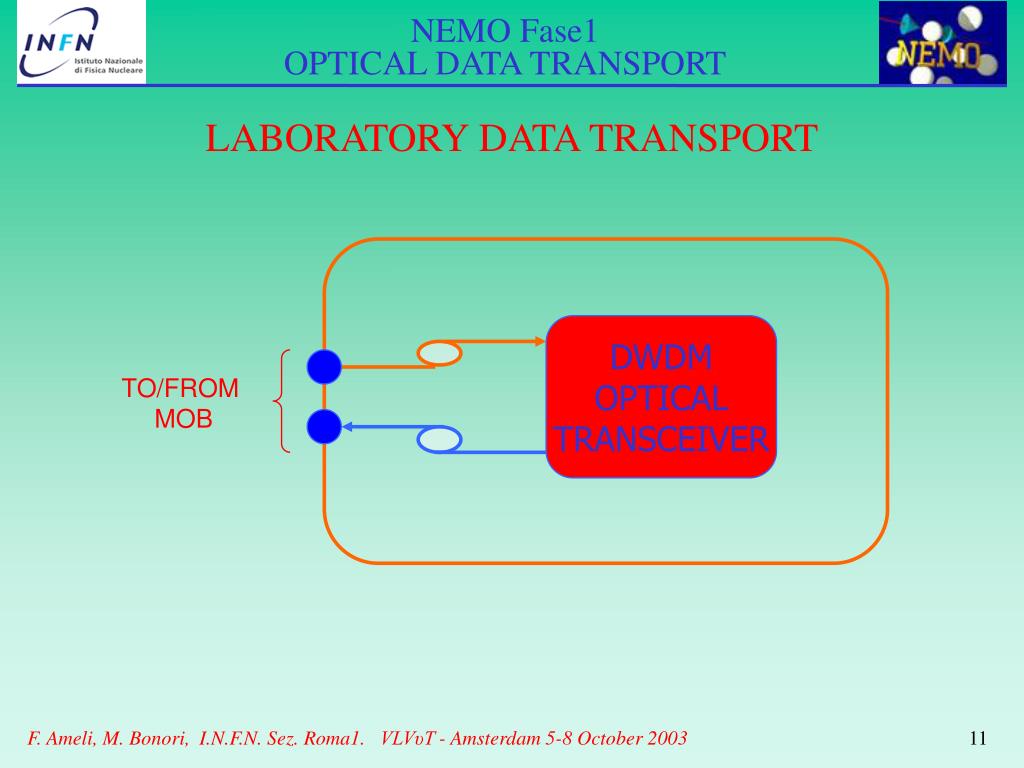

  11. LABORATORY DATA TRANSPORT DWDM OPTICAL TRANSCEIVER TO/FROM MOB F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  12. POWER LOSS BUDGET F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

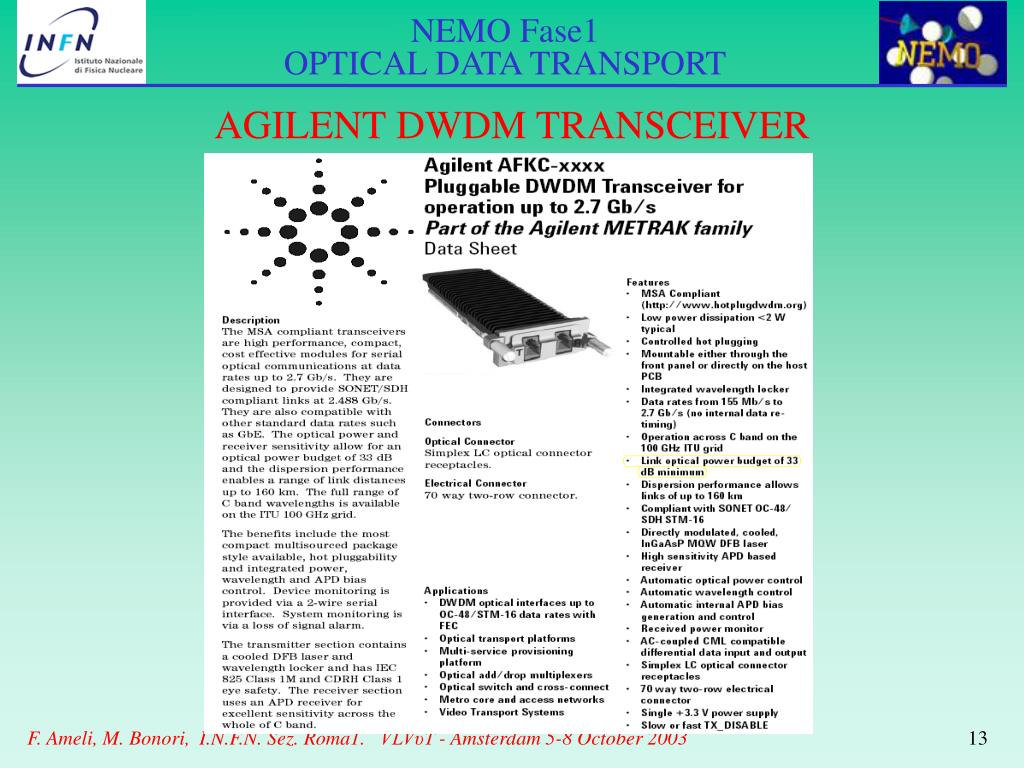

  13. AGILENT DWDM TRANSCEIVER F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003

  14. SYSTEM BENEFITS • NETWORK TOTALLY PASSIVE (but for the Transceivers) • PROVIDES AN AUXILIARY CHANNEL FOR TOWER • LEAVES TWO FIBERS FREE FOR FUTURE NEEDS • USES ONLY ONE FIBER FROM EACH FLOOR TO TJB • ACHIEVES 100 % FIBER REDUNDANCY FROM TJB TO MOB • ALL REDUNDANCY SWITCHES ARE ONSHORE • USES ONLY COMMERCIALLY AVAILABLE COMPONENTS • LOW COST F. Ameli, M. Bonori, I.N.F.N. Sez. Roma1. VLVυT - Amsterdam 5-8 October 2003
