  1. Architecture Working Group Andrew Jacobs

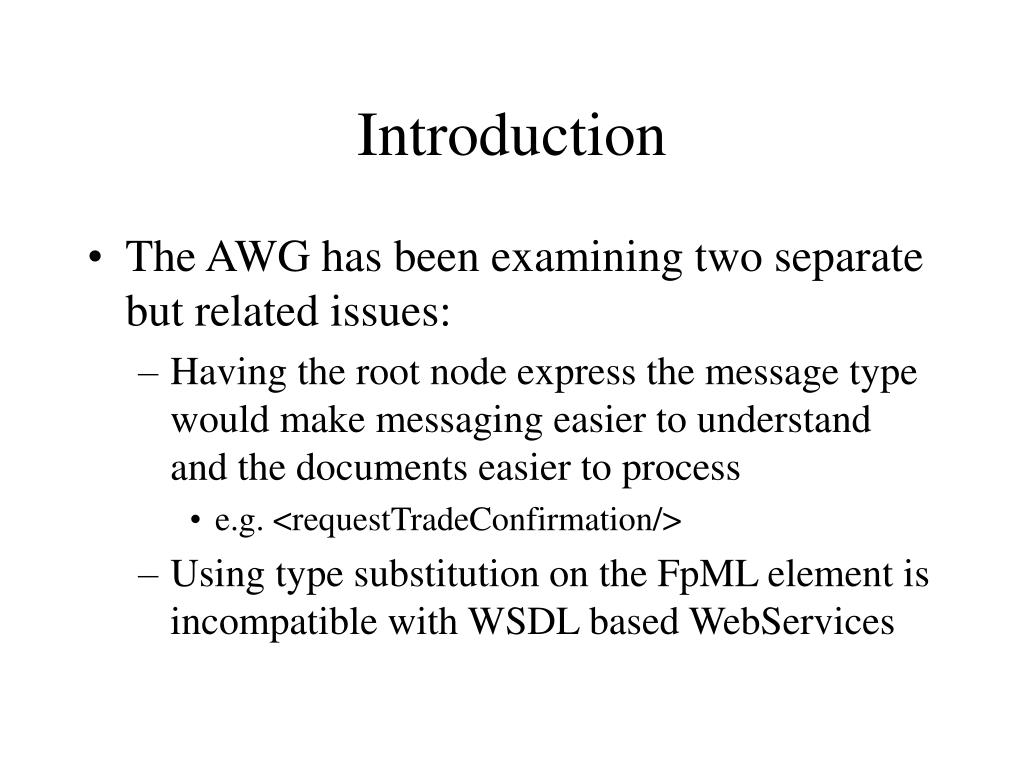

  2. Introduction • The AWG has been examining two separate but related issues: • Having the root node express the message type would make messaging easier to understand and the documents easier to process • e.g. <requestTradeConfirmation/> • Using type substitution on the FpML element is incompatible with WSDL based WebServices

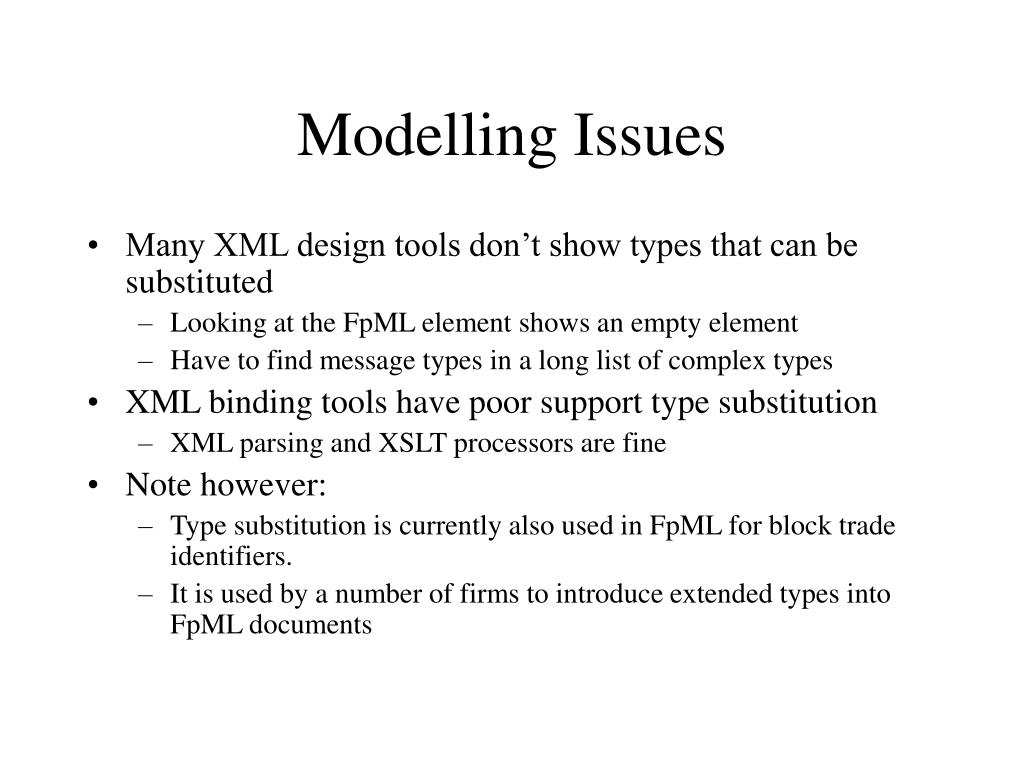

  3. Modelling Issues • Many XML design tools don’t show types that can be substituted • Looking at the FpML element shows an empty element • Have to find message types in a long list of complex types • XML binding tools have poor support type substitution • XML parsing and XSLT processors are fine • Note however: • Type substitution is currently also used in FpML for block trade identifiers. • It is used by a number of firms to introduce extended types into FpML documents

  4. The WSDL Problem • WSDL interfaces are defined in terms of elements • Type substitution within the element is not allowed • The W3C were queried and did not support a change to the WSDL specification to allow it.

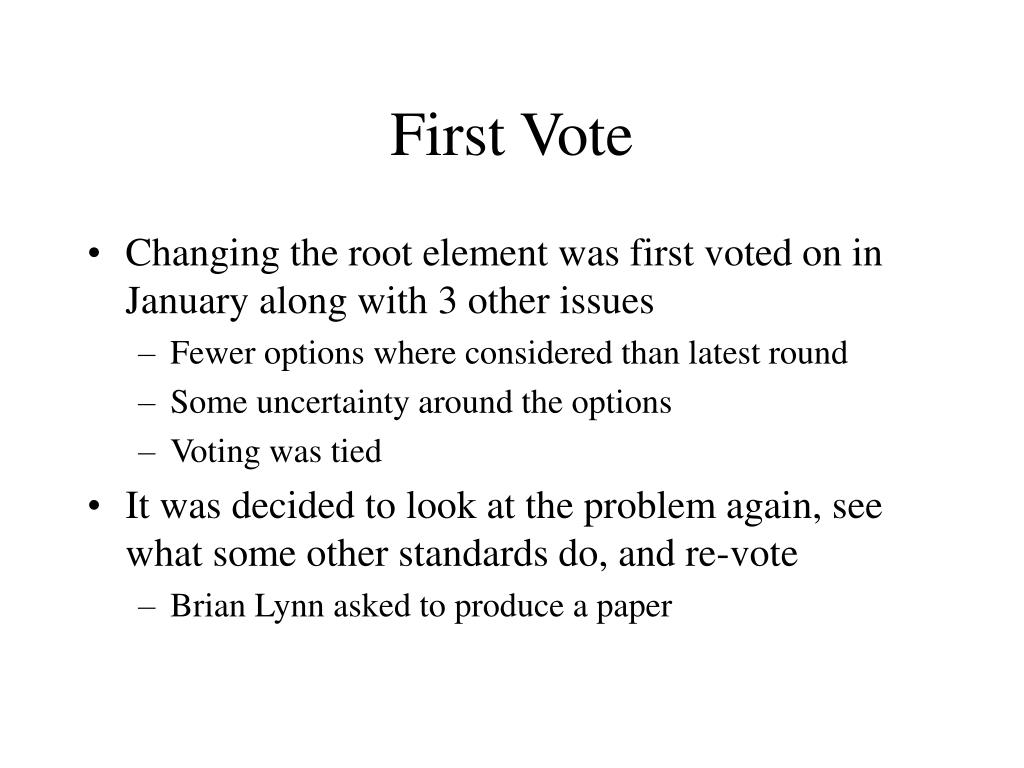

  5. First Vote • Changing the root element was first voted on in January along with 3 other issues • Fewer options where considered than latest round • Some uncertainty around the options • Voting was tied • It was decided to look at the problem again, see what some other standards do, and re-vote • Brian Lynn asked to produce a paper

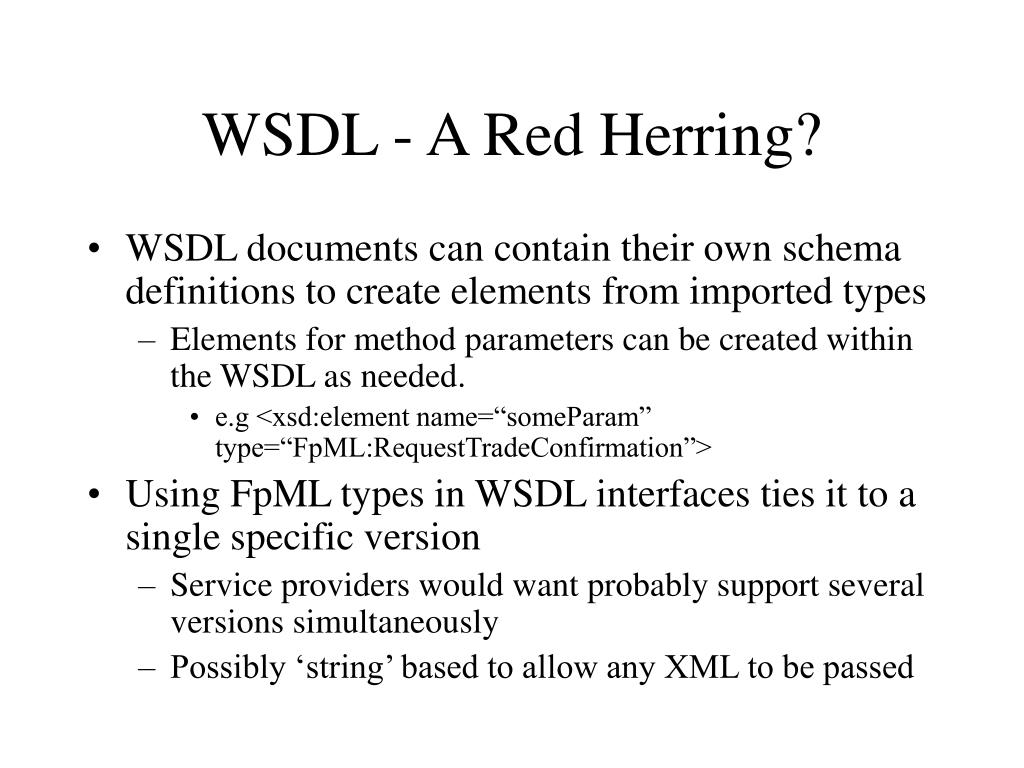

  6. WSDL - A Red Herring? • WSDL documents can contain their own schema definitions to create elements from imported types • Elements for method parameters can be created within the WSDL as needed. • e.g <xsd:element name=“someParam” type=“FpML:RequestTradeConfirmation”> • Using FpML types in WSDL interfaces ties it to a single specific version • Service providers would want probably support several versions simultaneously • Possibly ‘string’ based to allow any XML to be passed

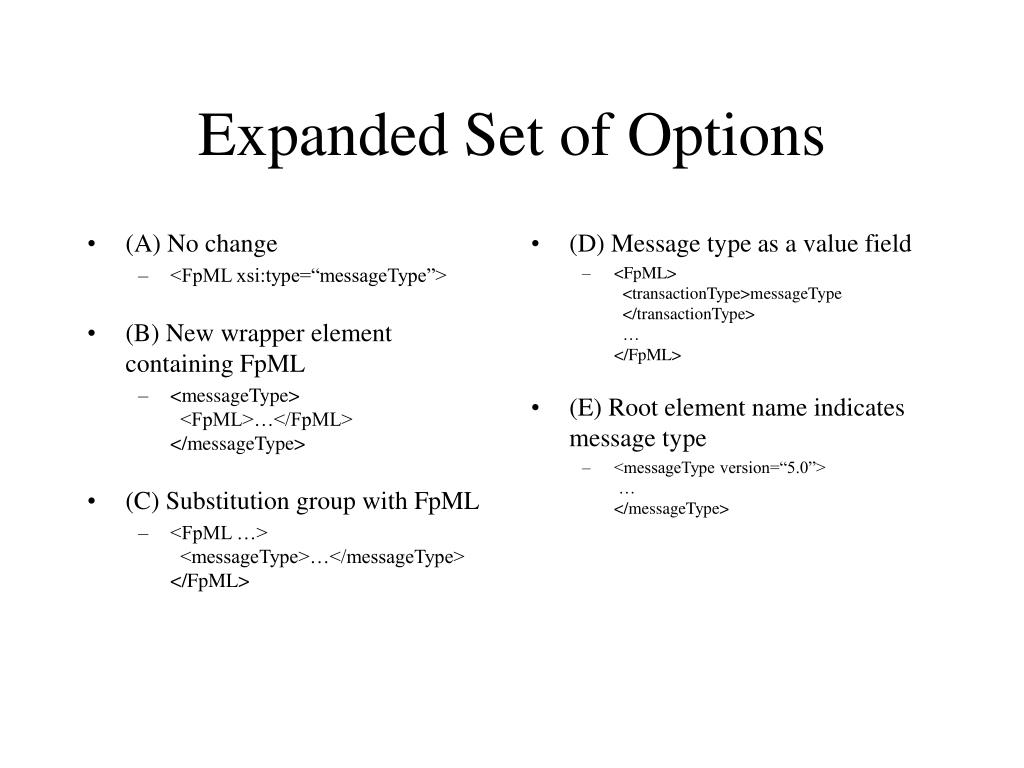

  7. (A) No change <FpML xsi:type=“messageType”> (B) New wrapper element containing FpML <messageType> <FpML>…</FpML></messageType> (C) Substitution group with FpML <FpML …> <messageType>…</messageType></FpML> (D) Message type as a value field <FpML> <transactionType>messageType </transactionType> …</FpML> (E) Root element name indicates message type <messageType version=“5.0”> …</messageType> Expanded Set of Options

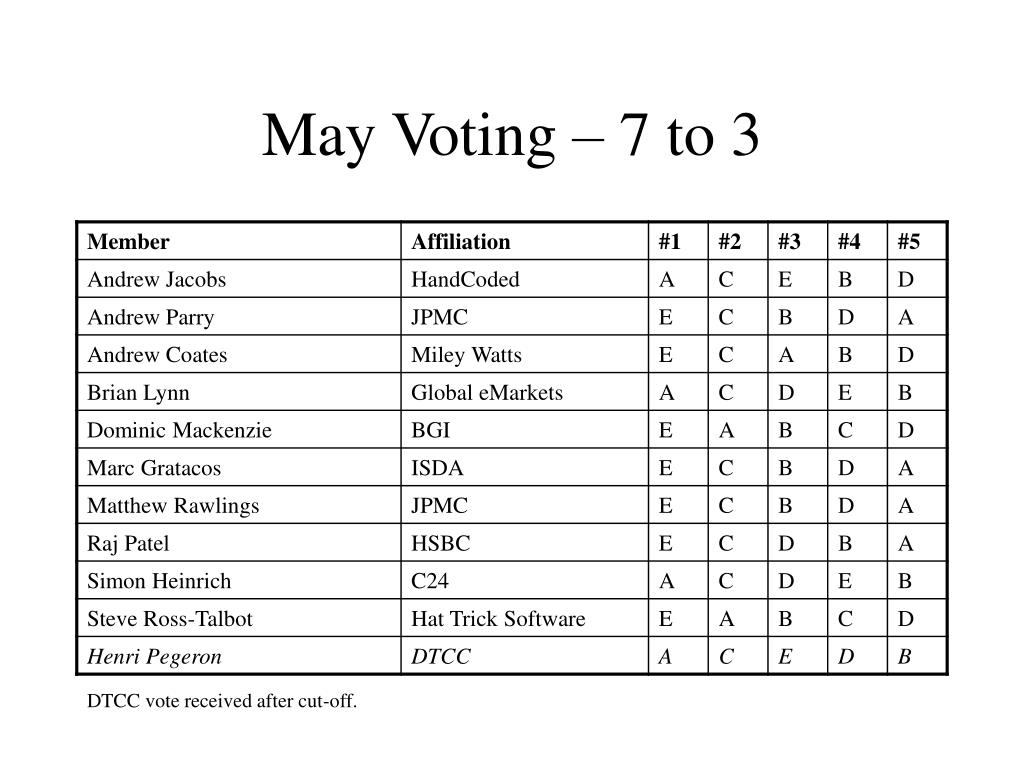

  8. May Voting – 7 to 3 DTCC vote received after cut-off.

  9. Modifications to Rules of Operation • Currently doesn’t allow a change to: • The root element, or • FpML version attributes • Both need to changed • To allow multiple root elements • Make version attribute more FpML specific • e.g. fpmlVersion • Requires Standards committee approval.

  10. Related Work • Changes will require updates to: • Architecture specification • Messaging specification • Schemas • Examples & test cases • Other 5.0 features are scheduled for the summer but implementation may take longer • Delay 5.0 or release later as 6.0? • Can’t be 5.1 as changes are not backwards compatible
