Modeling and Visualization of CFSM Networks in JavaTime

1. Modeling and Visualization of CFSM Networks in JavaTime Michael Shilman James Shin Young EE249 Project Presentation December 8, 1998

2. Outline • Introduction • JavaTime Components • Abstract Reactive Model • Modeling of CFSM’s • AR and CFSM JavaTime Packages • Visualization of CFSM Networks • Design Example - Seatbelt Controller • Conclusions

3. Introduction • The JavaTime Project • Collection of tools, libraries, and methodologies for embedded systems design. • Use JavaTM, enhanced via packages, as textual design input syntax. • Graphical input syntax and visualization infrastructure. • Common model for system representation • Goals for EE249 • Incorporate CFSM model into JavaTime environment. • Describe, visualize, and execute CFSM networks on standard Java platforms.

4. JavaTime Component Package • Components • Central design entities. • Ports • Access points for connecting components. • Connections • Relation between ports. • Containers • Hierarchical nesting of components and containers

5. The Abstract Reactive Model • Components react to all input events. • Events are changes in signal values. • Fully asynchronous communication. • No events happen “at the same time.” • Networks for abstraction • Temporal and structural abstraction • Fundamental-mode asynchronous assumption. • All internal signals converge to a stable value before output is emitted. • Used in JavaTime as building block for describing other models.

6. The javatime.jcp.ar Package • ARComponent • User specifies behavior by defining the react(ARPort p, Object v) method. • ARNetwork • Executes components contained within according to semantics of AR model. • ARThread • Enables Esterel-style description of component behavior. public class Foo extends ARComponent { public void react() { // do something } }

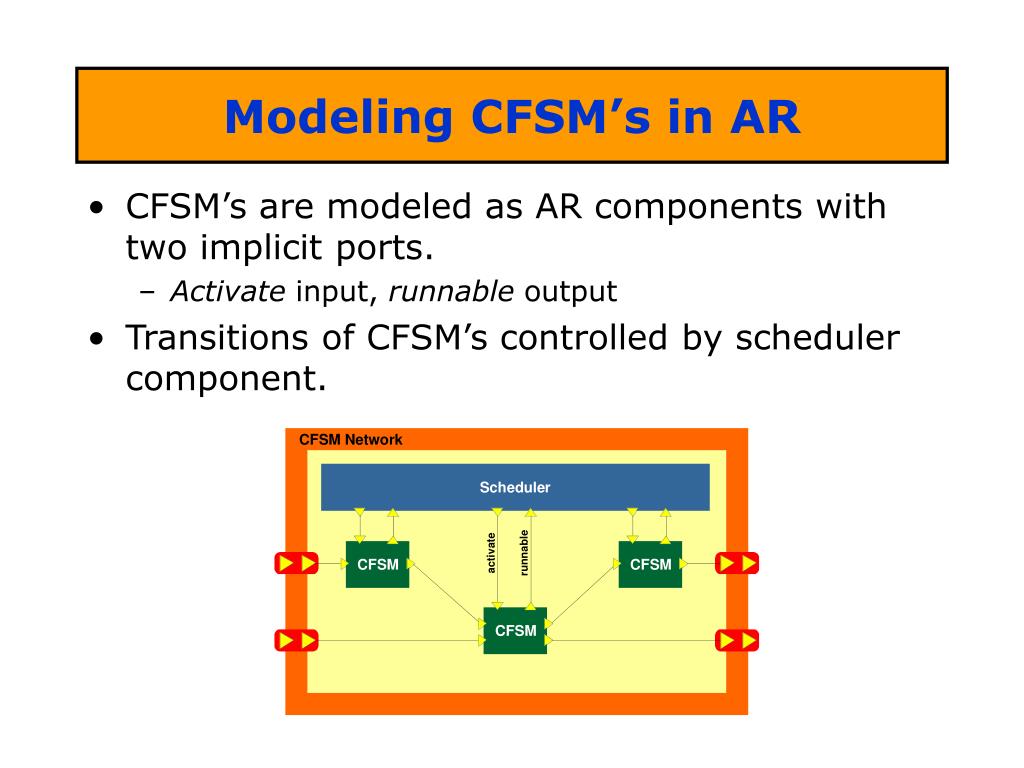

7. Modeling CFSM’s in AR • CFSM’s are modeled as AR components with two implicit ports. • Activate input, runnable output • Transitions of CFSM’s controlled by scheduler component.

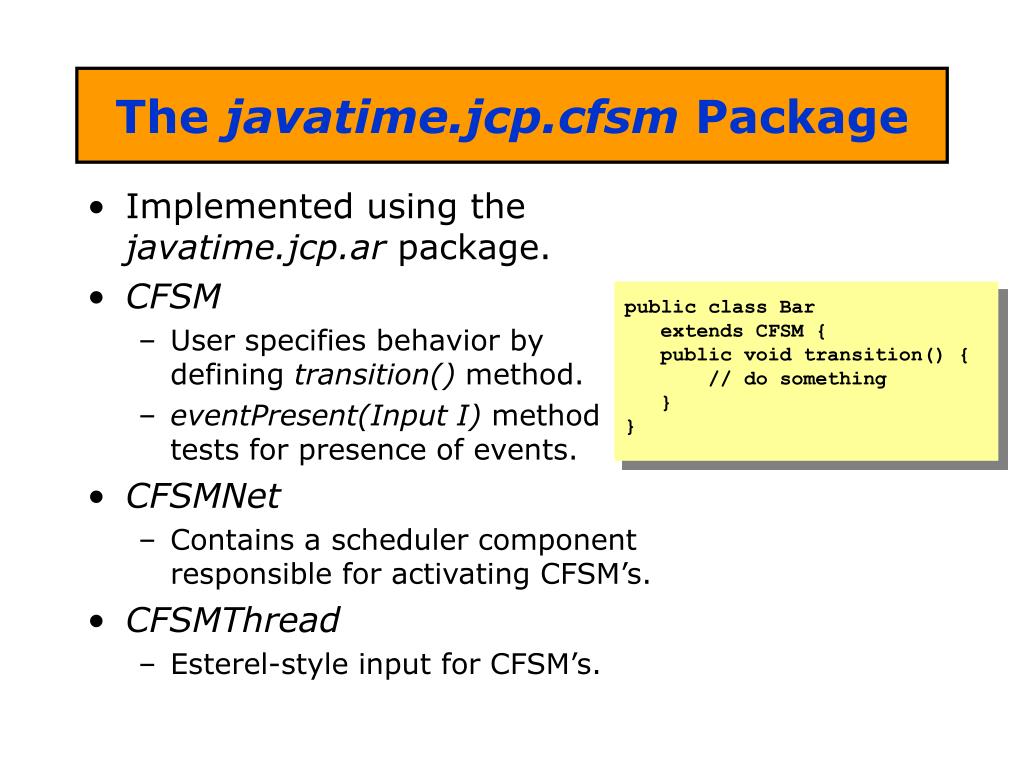

8. The javatime.jcp.cfsm Package • Implemented using the javatime.jcp.ar package. • CFSM • User specifies behavior by defining transition() method. • eventPresent(Input I) method tests for presence of events. • CFSMNet • Contains a scheduler component responsible for activating CFSM’s. • CFSMThread • Esterel-style input for CFSM’s. public class Bar extends CFSM { public void transition() { // do something } }

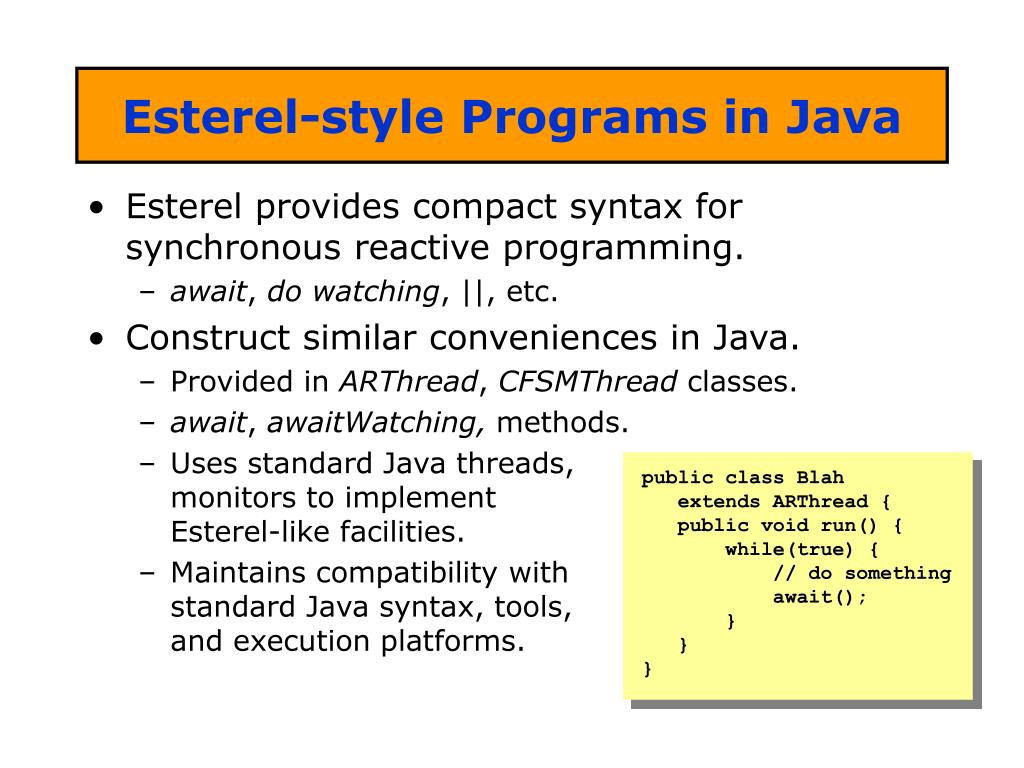

9. Esterel-style Programs in Java • Esterel provides compact syntax for synchronous reactive programming. • await, do watching, ||, etc. • Construct similar conveniences in Java. • Provided in ARThread, CFSMThread classes. • await, awaitWatching, methods. • Uses standard Java threads,monitors to implement Esterel-like facilities. • Maintains compatibility with standard Java syntax, tools, and execution platforms. public class Blah extends ARThread { public void run() { while(true) { // do something await(); } } }

10. CFSM Visualization • Focus on infrastructure rather than application • Make it easy to construct visualizations, rather than trying to pre-package all possible visualizations. • Able to develop in parallel with modeling effort. • Our goal: view, edit, and animate component networks at different levels of abstraction

11. Visualization Probes • Components which sample signals to construct visualizations. • Modular and easy to write; drag and drop just like any other component. • Probe to modify network display as system executes, via protocol-based API. Image probes at different stages in a JPEG decoder

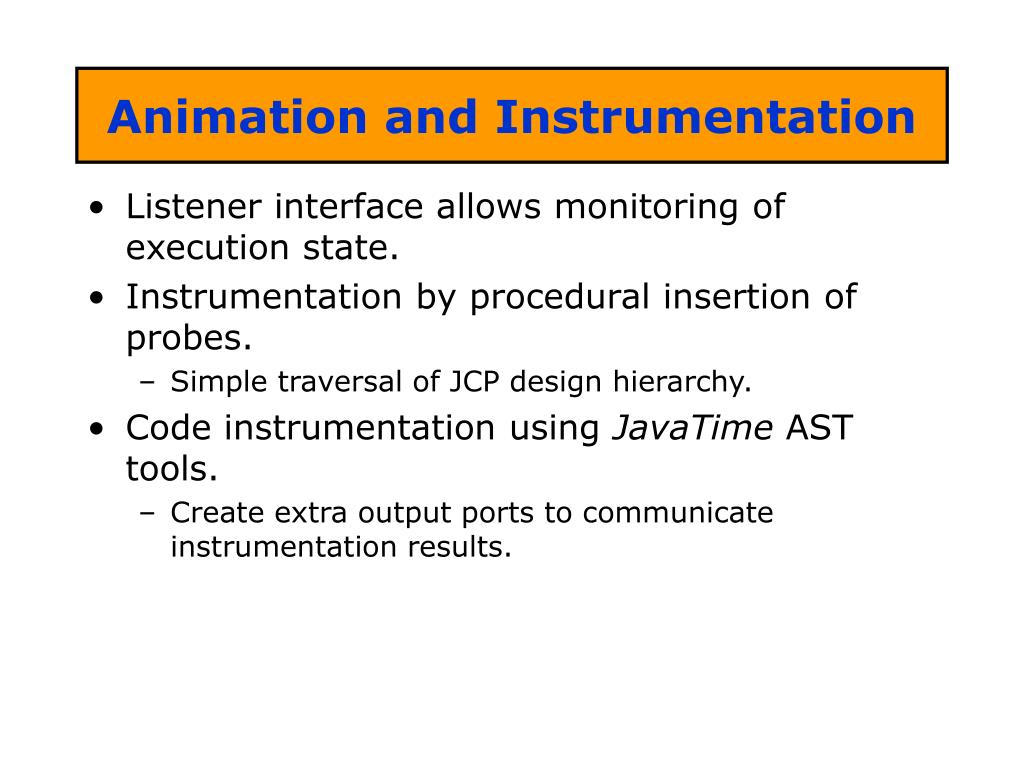

12. Animation and Instrumentation • Listener interface allows monitoring of execution state. • Instrumentation by procedural insertion of probes. • Simple traversal of JCP design hierarchy. • Code instrumentation using JavaTime AST tools. • Create extra output ports to communicate instrumentation results.

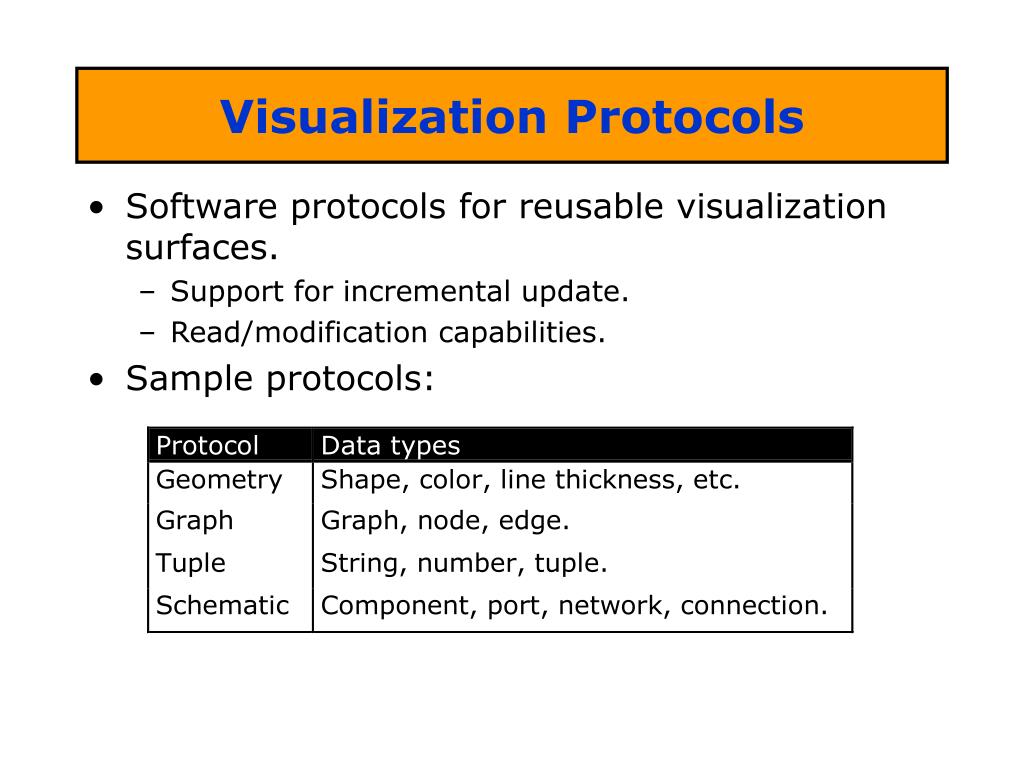

13. Visualization Protocols • Software protocols for reusable visualization surfaces. • Support for incremental update. • Read/modification capabilities. • Sample protocols:

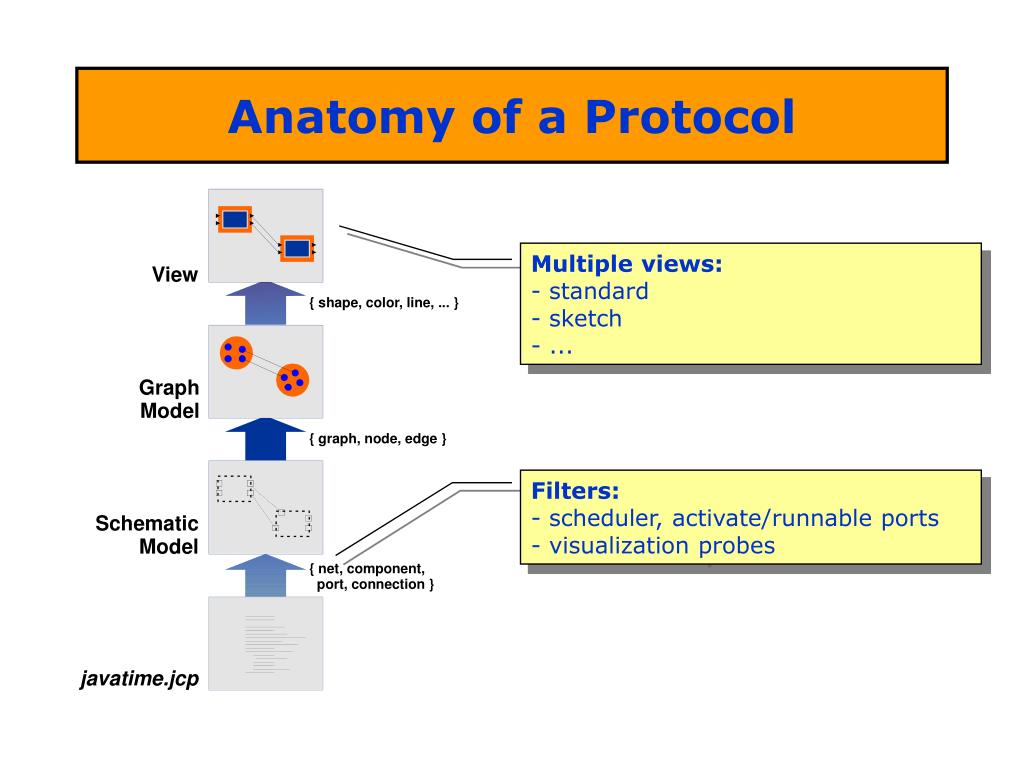

14. Anatomy of a Protocol Multiple views: - standard - sketch - ... Filters: - scheduler, activate/runnable ports - visualization probes

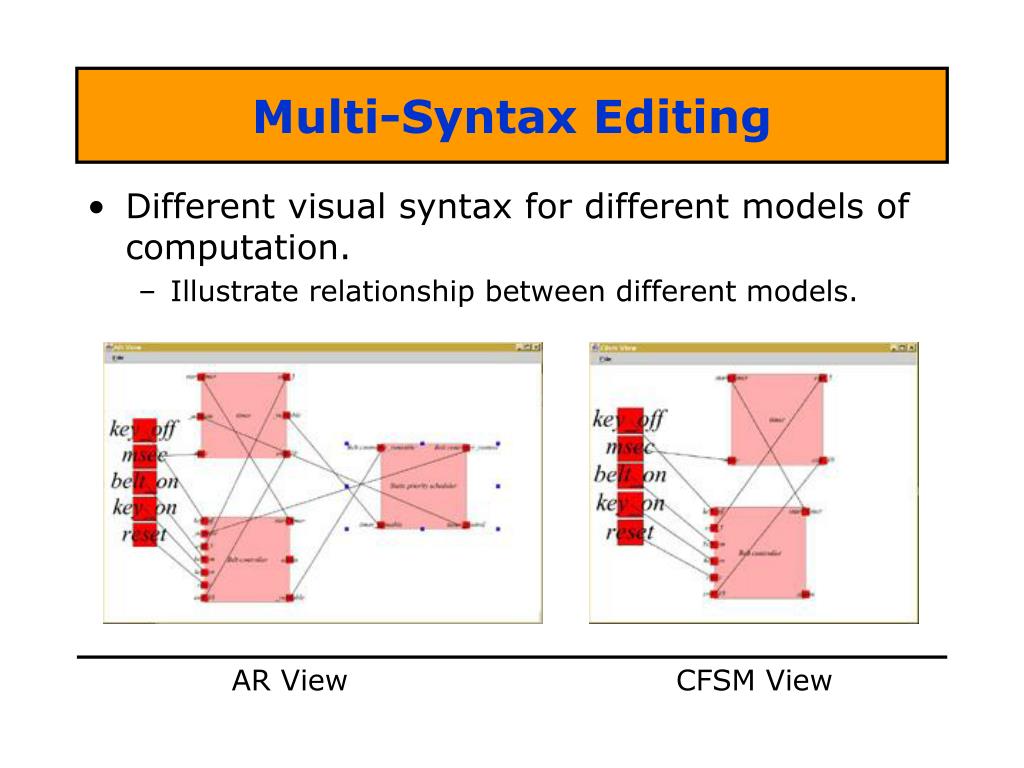

15. Multi-Syntax Editing • Different visual syntax for different models of computation. • Illustrate relationship between different models. AR View CFSM View

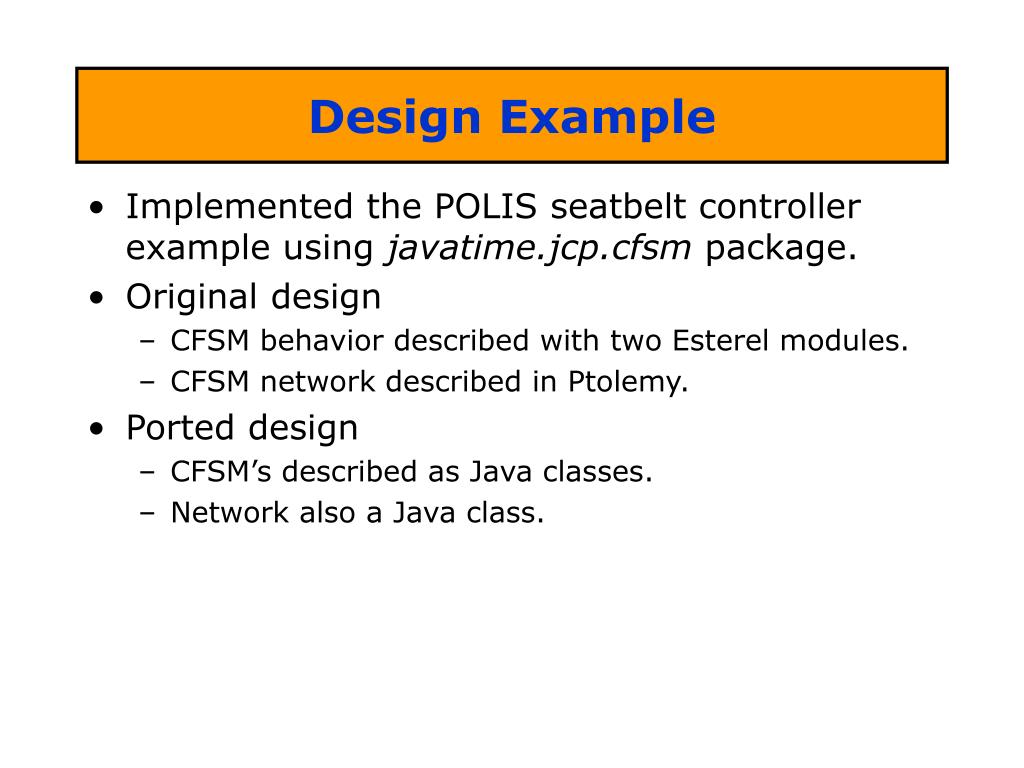

17. Design Example • Implemented the POLIS seatbelt controller example using javatime.jcp.cfsm package. • Original design • CFSM behavior described with two Esterel modules. • CFSM network described in Ptolemy. • Ported design • CFSM’s described as Java classes. • Network also a Java class.

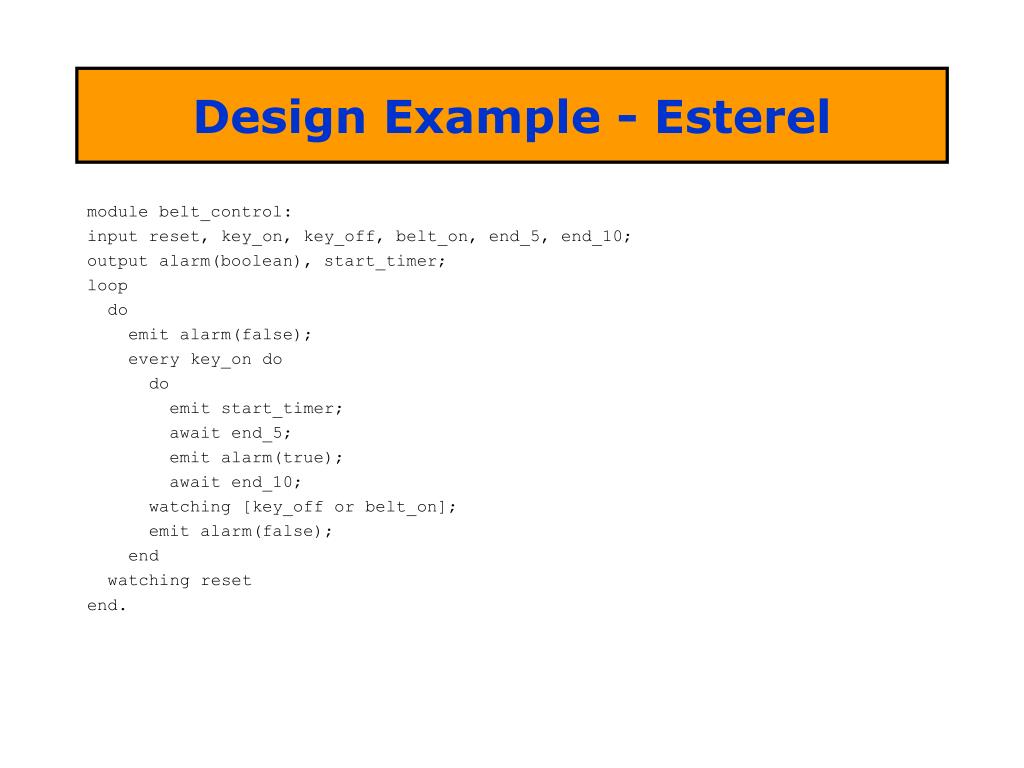

18. Design Example - Esterel module belt_control: input reset, key_on, key_off, belt_on, end_5, end_10; output alarm(boolean), start_timer; loop do emit alarm(false); every key_on do do emit start_timer; await end_5; emit alarm(true); await end_10; watching [key_off or belt_on]; emit alarm(false); end watching reset end.

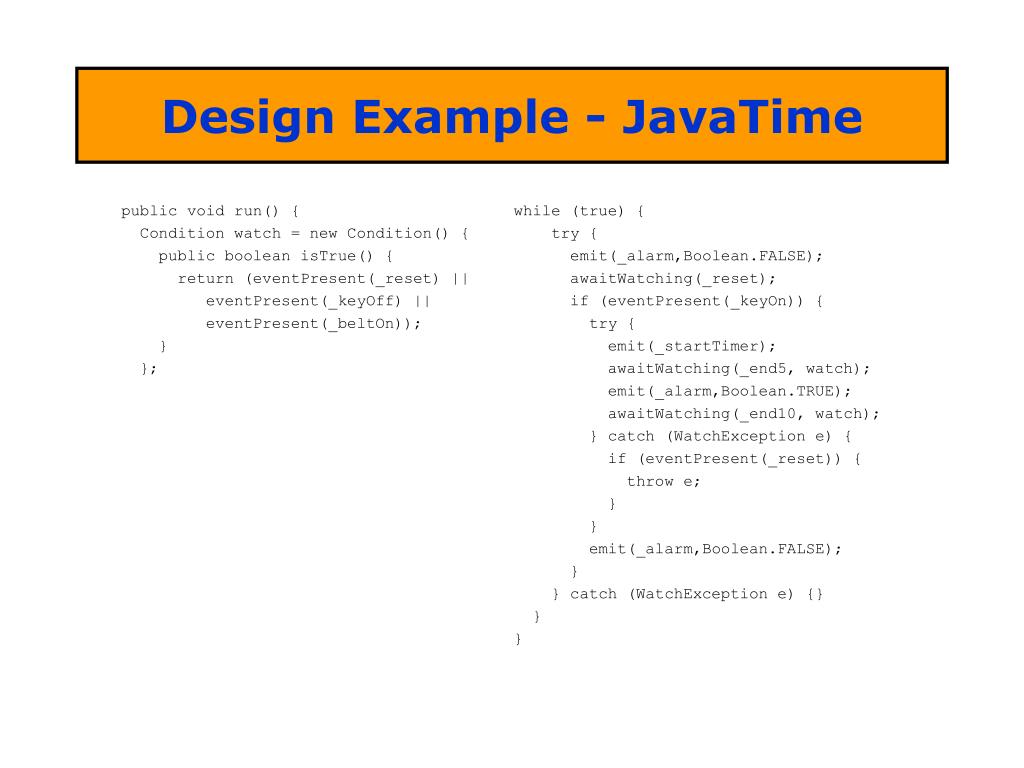

19. Design Example - JavaTime public void run() { Condition watch = new Condition() { public boolean isTrue() { return (eventPresent(_reset) || eventPresent(_keyOff) || eventPresent(_beltOn)); } }; while (true) { try { emit(_alarm,Boolean.FALSE); awaitWatching(_reset); if (eventPresent(_keyOn)) { try { emit(_startTimer); awaitWatching(_end5, watch); emit(_alarm,Boolean.TRUE); awaitWatching(_end10, watch); } catch (WatchException e) { if (eventPresent(_reset)) { throw e; } } emit(_alarm,Boolean.FALSE); } } catch (WatchException e) {} } }

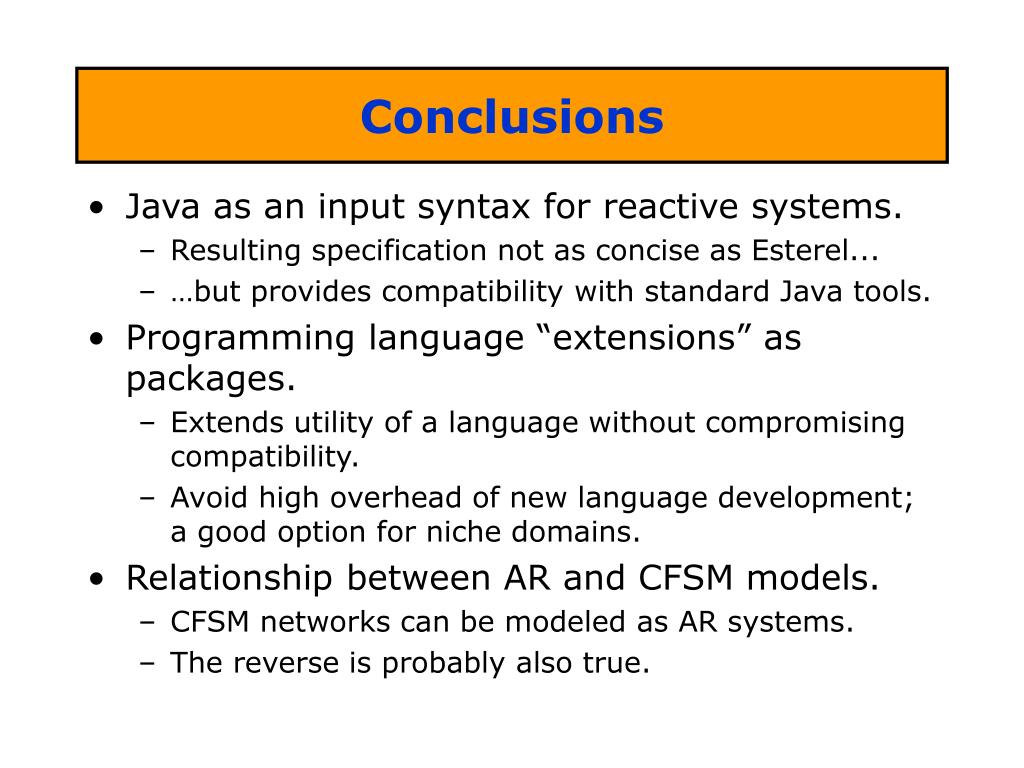

20. Conclusions • Java as an input syntax for reactive systems. • Resulting specification not as concise as Esterel... • …but provides compatibility with standard Java tools. • Programming language “extensions” as packages. • Extends utility of a language without compromising compatibility. • Avoid high overhead of new language development; a good option for niche domains. • Relationship between AR and CFSM models. • CFSM networks can be modeled as AR systems. • The reverse is probably also true.

21. More Conclusions • Visual editing and animation of systems • Multi-syntax editing reveals relationship between models of computation. • Software protocols enable rapid development of interactive visualizations. • Visualization probes simplify user-level construction of visualizations.
