  1. Since 1969

  2. Where and how are twin wheels used? • - to prevent soil compaction • - floating • - many uses of a tractor • Ploughing • Pulling diet mixers • Tilling • Sowing

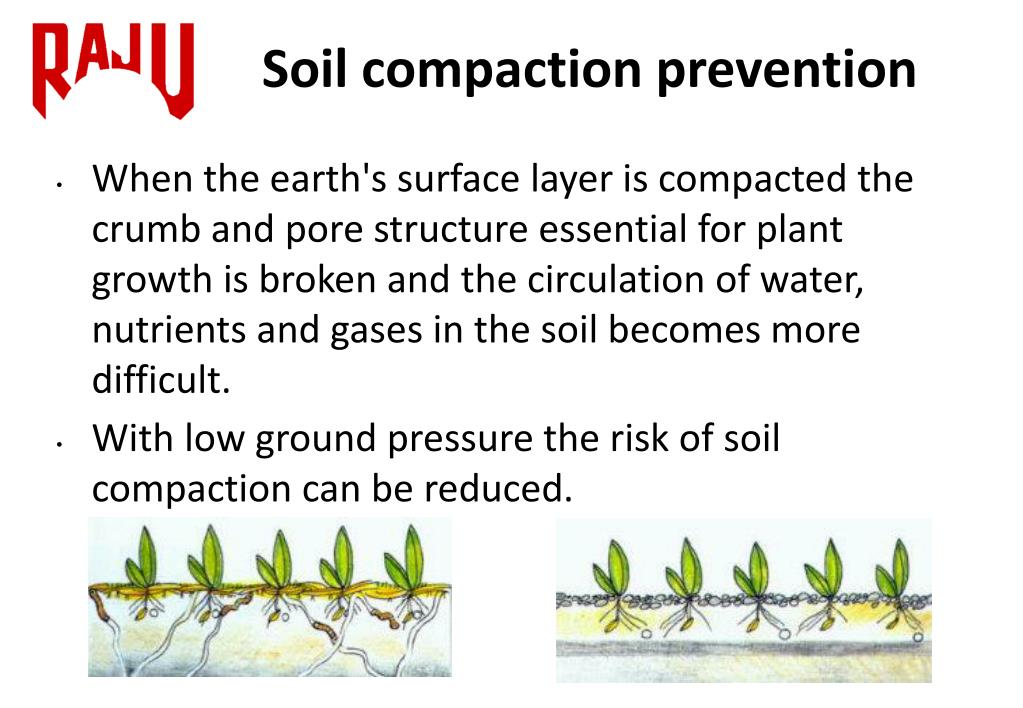

  3. Soil compaction prevention • When the earth's surface layer is compacted the crumb and pore structure essential for plant growth is broken and the circulation of water, nutrients and gases in the soil becomes more difficult. • With low ground pressure the risk of soil compaction can be reduced.

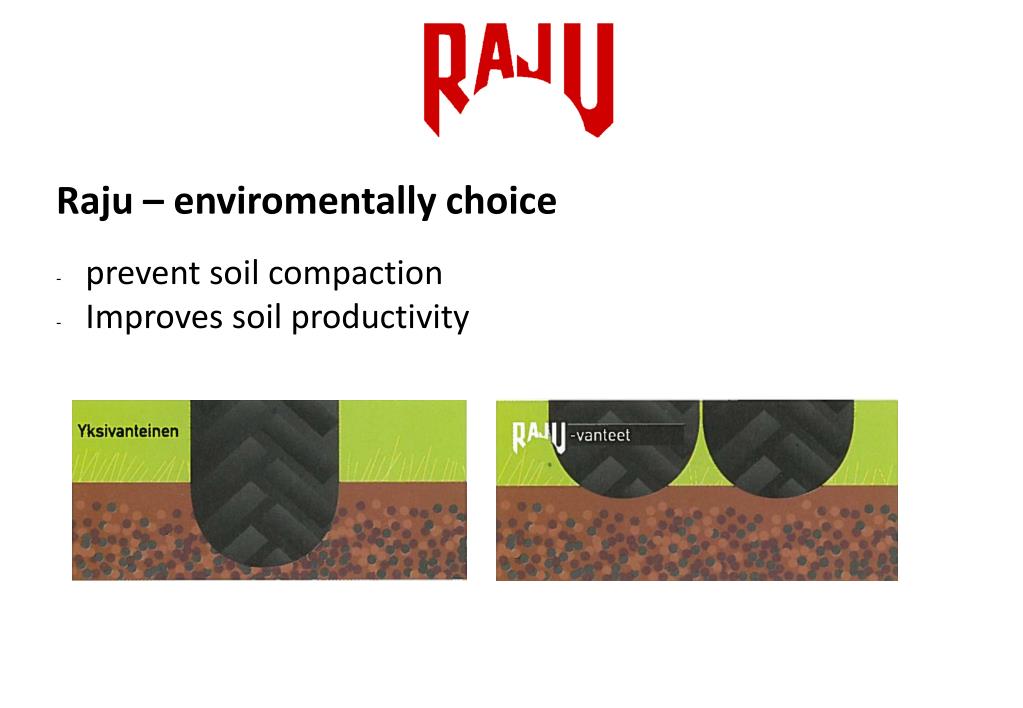

  4. Raju – enviromentally choice • prevent soil compaction • Improves soil productivity

  5. Raju rims are equipped with a removable spacer rim whose width can be selected as required. The rims are produced according to international standards. Precision engineering ensures that the twin wheels can cope with heavy loads and high speeds.

  6. Installing Raju rims • No inner tube - The tyre can be mounted on the rim mechanically

  7. Installing Raju rims Thanks to a slide bar and a bracket Raju twin wheel installation is easy. The bracket can be slid along the slide bar exactly to the U-bracket. With this installation method it is not necessary to rotate the heavy twin wheel. Raju is precisely designed for all rim types. That is why the Raju twin wheel rim can be fitted tightly against the tractor’s own rim without straining the ties.

  8. Telescopic fastener - Quick to install with a pneumatic srcewdriver- Easy to handle- Solidly built- Protected structure prevents the thread from getting damaged

  9. The new Quick Lock • Nice to fit and release • Heavy duty – needs less • Safe • Lasts from father to son

  10. High quality Raju spacer rims are manufactured from 4 mm steel plate. The straight spacer rims have a tensioning groove in the middle making the rim stronger. Spacer rim Tapered spacer rim

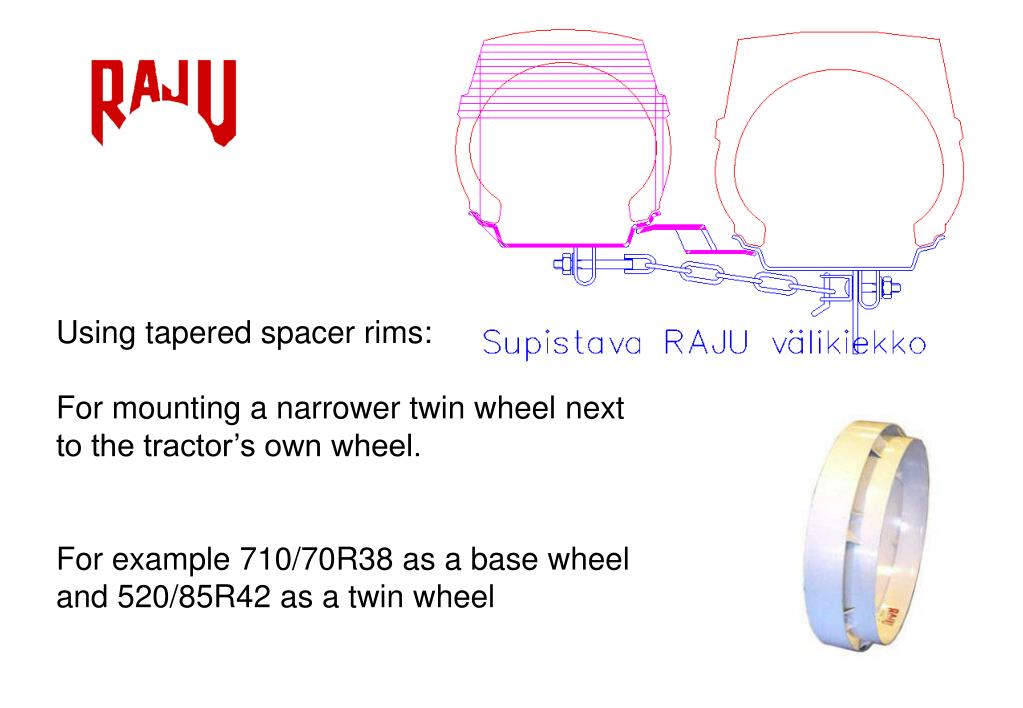

  11. Using tapered spacer rims: For mounting a narrower twin wheel next to the tractor’s own wheel. For example 710/70R38 as a base wheel and 520/85R42 as a twin wheel

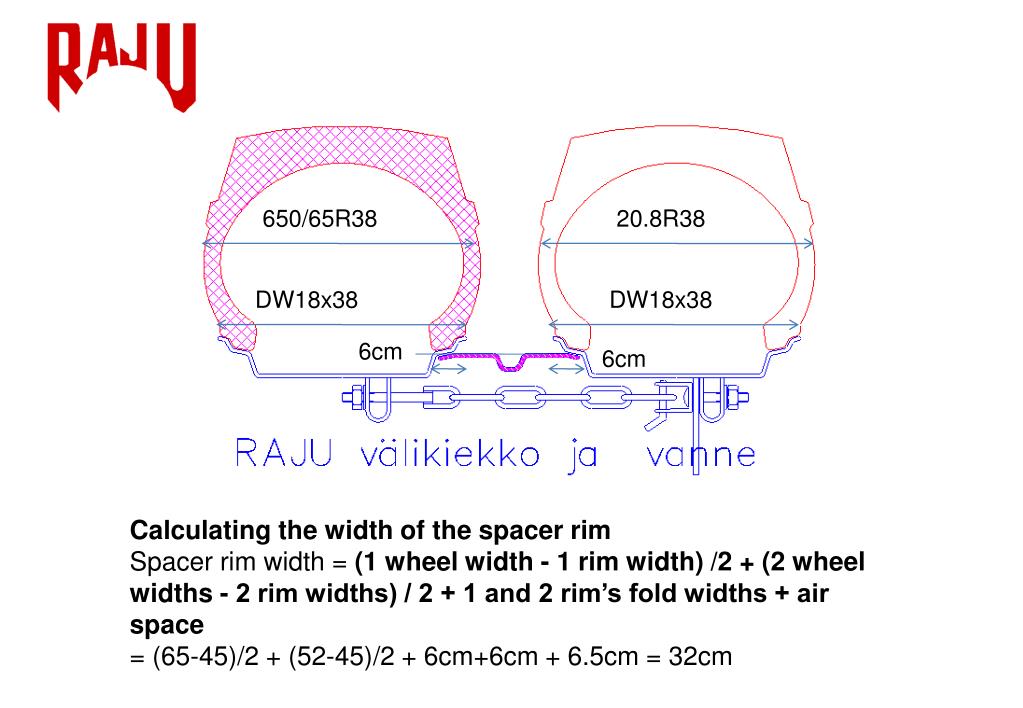

  12. 650/65R38 20.8R38 DW18x38 DW18x38 6cm 6cm Calculating the width of the spacer rim Spacer rim width = (1 wheel width - 1 rim width) /2 + (2 wheel widths - 2 rim widths) / 2 + 1 and 2 rim’s fold widths + air space = (65-45)/2 + (52-45)/2 + 6cm+6cm + 6.5cm = 32cm

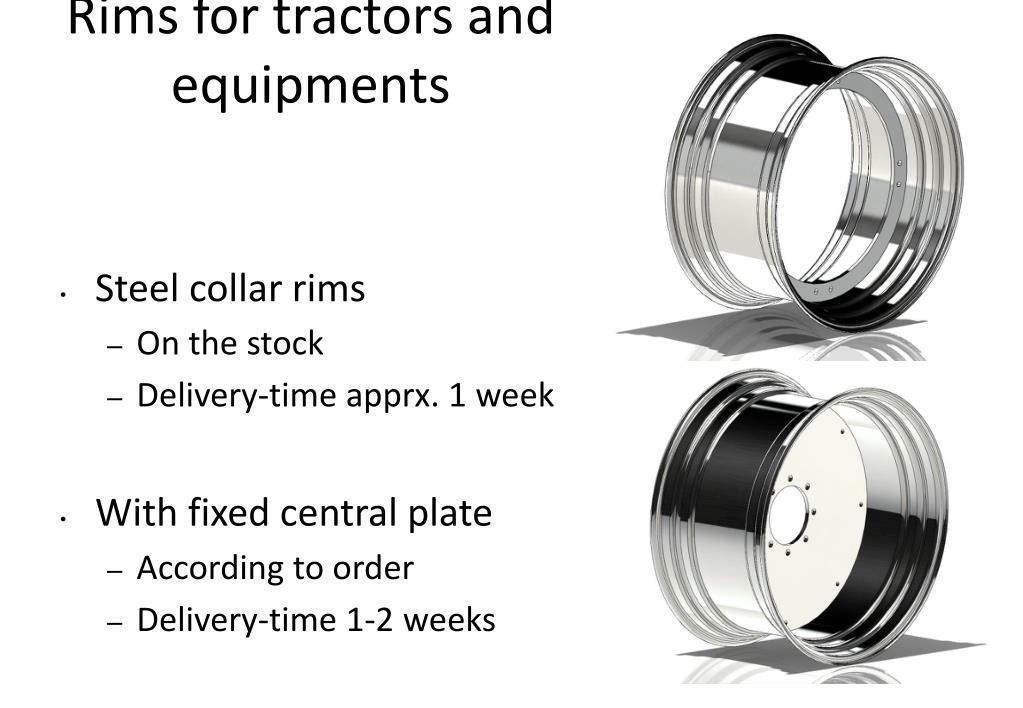

  13. Rims for tractors and equipments • Steel collar rims • On the stock • Delivery-time apprx. 1 week • With fixed central plate • According to order • Delivery-time 1-2 weeks
