  1. April 18, 2008 Jude Collins Christopher Madsen IAB-RCInverted Autonomous BalancerRemote Controlled

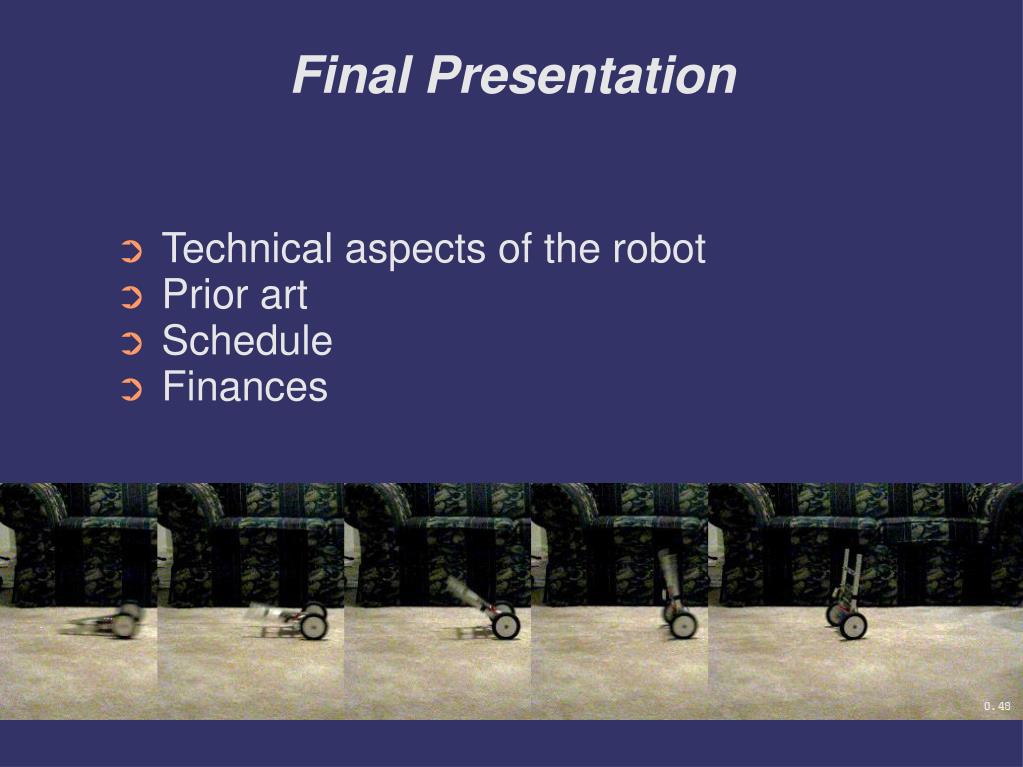

  2. Final Presentation • Technical aspects of the robot • Prior art • Schedule • Finances

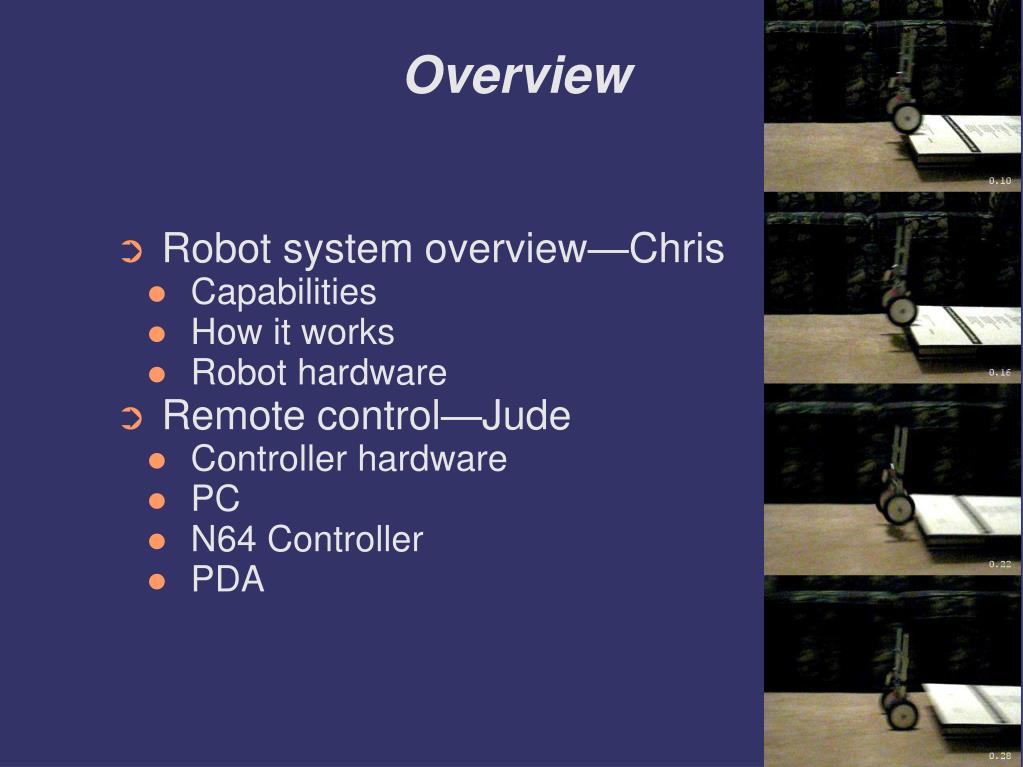

  3. Overview • Robot system overview—Chris • Capabilities • How it works • Robot hardware • Remote control—Jude • Controller hardware • PC • N64 Controller • PDA

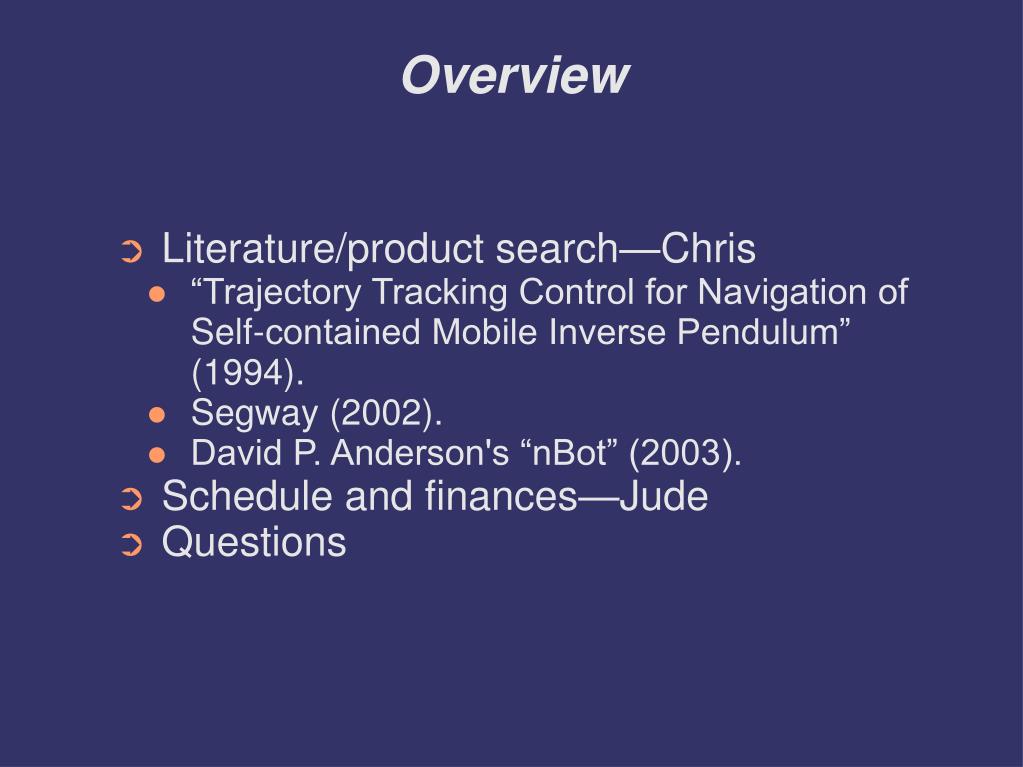

  4. Overview • Literature/product search—Chris • “Trajectory Tracking Control for Navigation of Self-contained Mobile Inverse Pendulum” (1994). • Segway (2002). • David P. Anderson's “nBot” (2003). • Schedule and finances—Jude • Questions

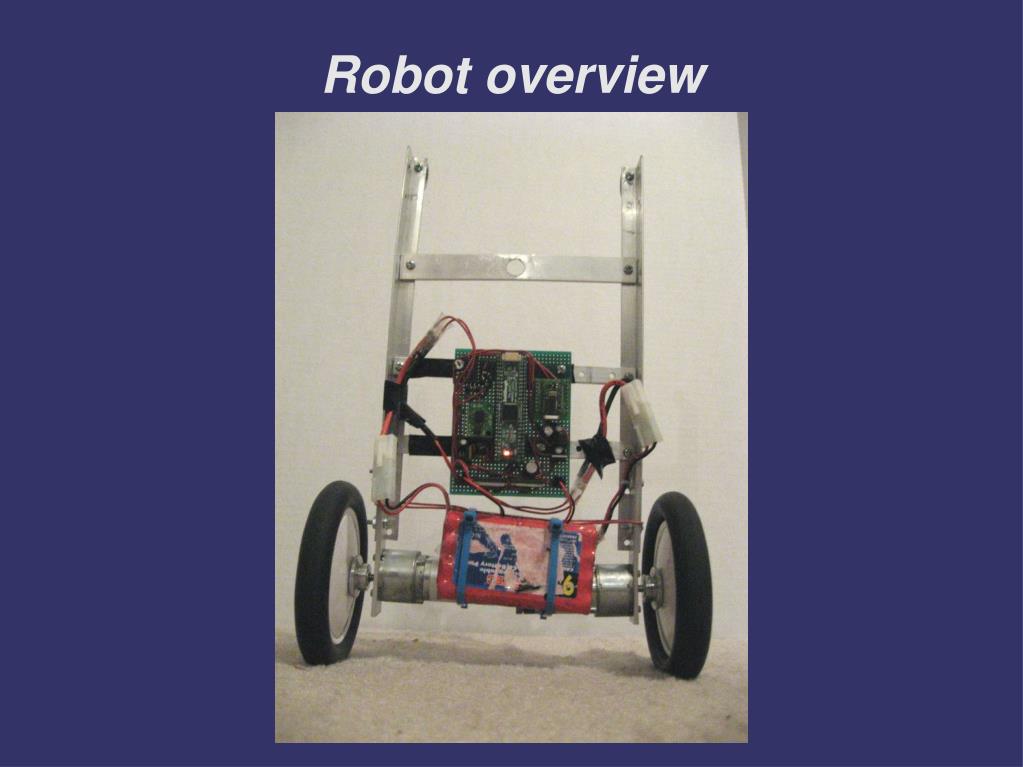

  5. Robot overview

  6. Capabilities • Balance • Stand up • Lay down • Slide • Jump curbs • Crash • ?????

  7. How does it work? • Hardware calculates “lean” of the robot • Wheels turn to prevent “lean” • Forcing the robot to lean causes the robot to drive • The robot learns to lean into external forces to keep balanced • Spinning one wheel faster than the other causes the robot to turn • Kicking the robot may make the robot angry

  8. Robot system overview

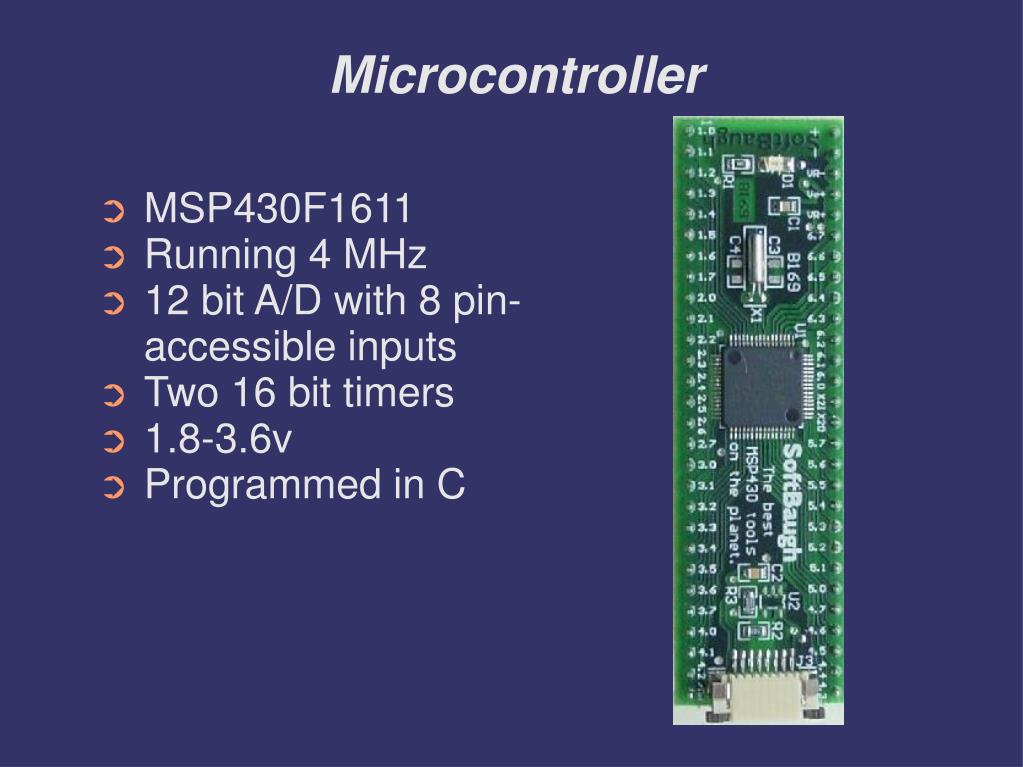

  9. Microcontroller • MSP430F1611 • Running 4 MHz • 12 bit A/D with 8 pin-accessible inputs • Two 16 bit timers • 1.8-3.6v • Programmed in C

  10. Inertial Measurement Unit • IDG-300Gyroscope • ADXL-330Accelerometer

  11. IDG-300 Gyroscope • Dual-Axis rate gyroscope • Operates by oscillating masses and capacitively measuring vibration caused by Coriolis effect. • Sensitivity: 2 mV/deg/s • Max rate: 500 deg/s • Operating voltage: 3.0-3.3v

  12. ADXL-330 Accelerometer • Triple-axis accelerometer • Micro-machined structure suspended over silicon by polysilicon springs. Plates mounted on moving structure and a fixed structure act as a variable capacitor in a filter circuit to measure acceleration. • Sensitivity: ~300mV/g • Max acceleration: ±3.0g • Operating voltage: 2.0-3.6v (sensitivity is ratiometric)‏

  13. PID Controller

  14. Estimating pendulum orientation • Integrating rate gyros is subject to drift errors. • Accelerometers only work to determine orientation when not accelerating. • Using both estimates together gives better estimate of orientation.

  15. Bluetooth Radio • Basically a breakout board for NXP's BGB203. • Class 1 so has a 100m range • 100 mW max transmitted power • 3.3 volts • 1 Mbps max UART

  16. Remote Control

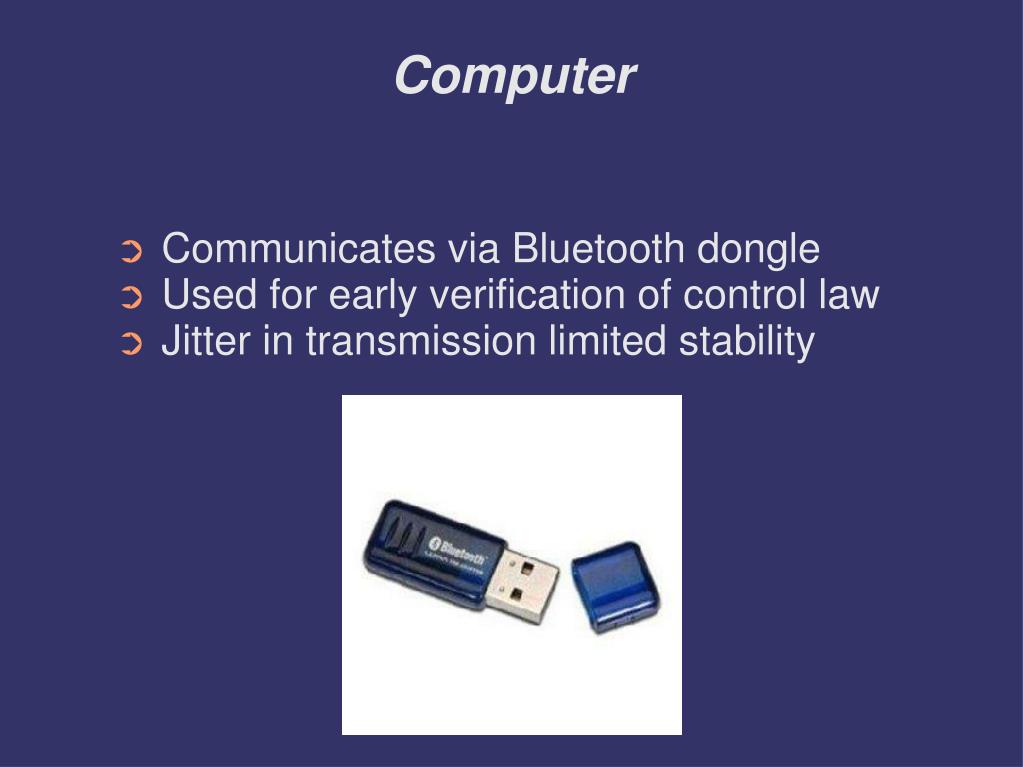

  17. Computer • Communicates via Bluetooth dongle • Used for early verification of control law • Jitter in transmission limited stability

  18. The Remote Control • Needed Peripherals • Joystick • A few buttons • Modify old N64 controller. • Exceeds requirements • Cheap ($5-$15 on Amazon.com)‏

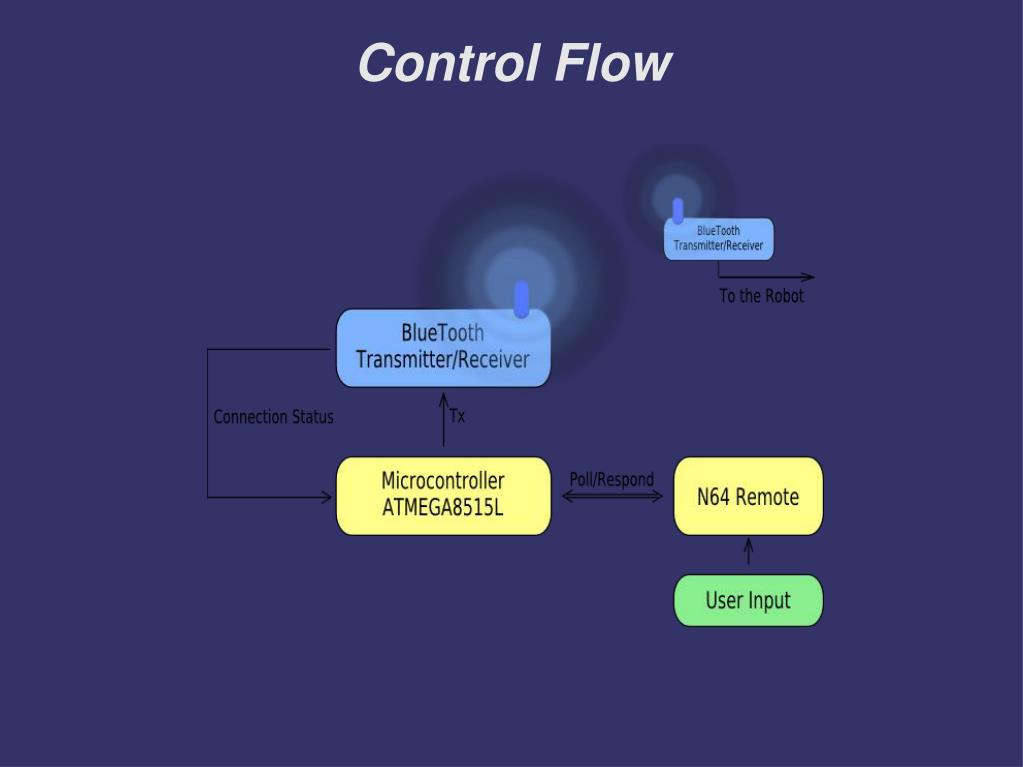

  19. Control Flow

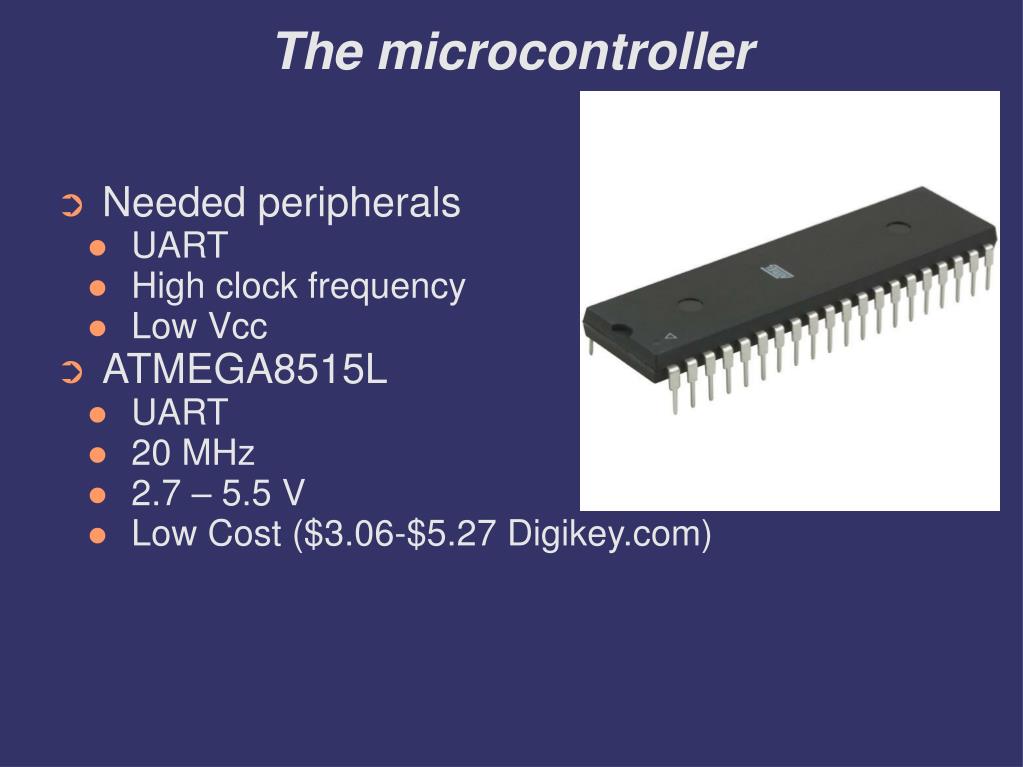

  20. The microcontroller • Needed peripherals • UART • High clock frequency • Low Vcc • ATMEGA8515L • UART • 20 MHz • 2.7 – 5.5 V • Low Cost ($3.06-$5.27 Digikey.com)‏

  21. PDA • Can also be used to remotely control robot. • And ?????

  22. Prior art • First appearance of similar two-wheeled inverted pendulum that can navigate in 2 dimensions on a plane: “Trajectory Tracking Control for Navigation of Self-contained Mobile Inverse Pendulum” by Yunsu Ha and Shin'ichi Yuta of Japan in 1994. • Position encoders on wheels (2000 step)‏ • Sensors to detect obstacles • No remote-control

  23. Prior art • Segway • Most popular inverted-pendulum type product. • Patented just about everything imaginable concerning inverted pendulum human transportation. • Have several Robotic Mobility Platform (RMP) models

  24. Prior art • David P. Anderson's nBot • Received NASA's Cool Robot of the Week award and subsequently became well-known in the minds of robotics enthusiasts (2003). • Launched a revolution of inverted-pendulum robot building. • Homebrew shaft encoders.

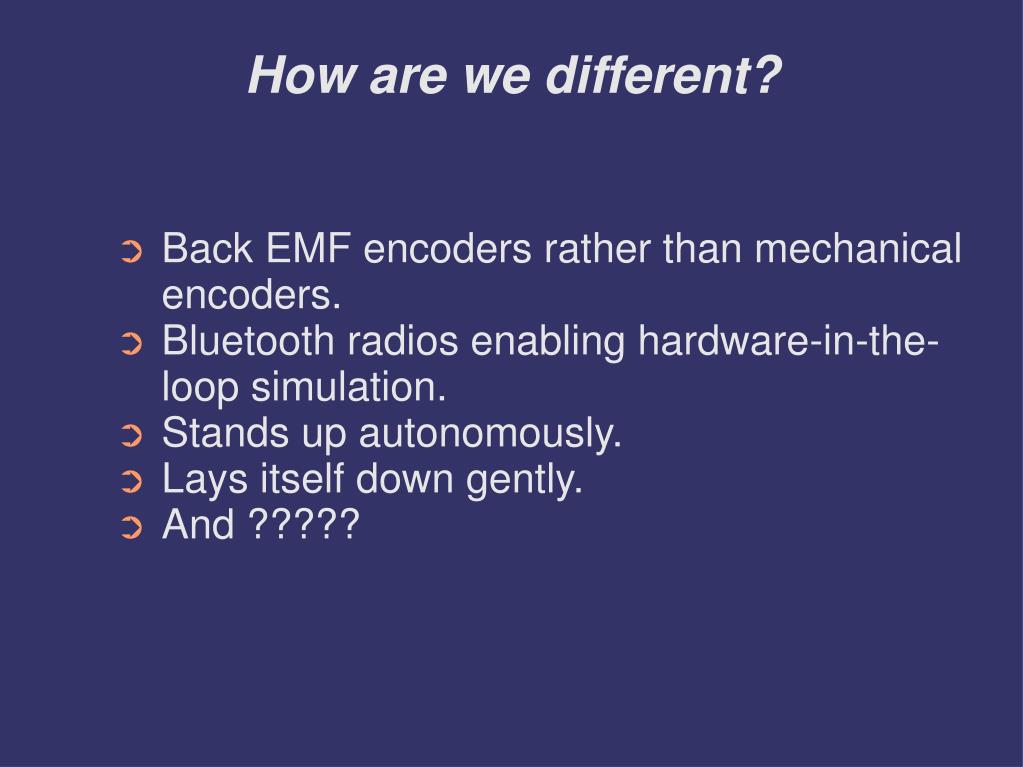

  25. How are we different? • Back EMF encoders rather than mechanical encoders. • Bluetooth radios enabling hardware-in-the-loop simulation. • Stands up autonomously. • Lays itself down gently. • And ?????

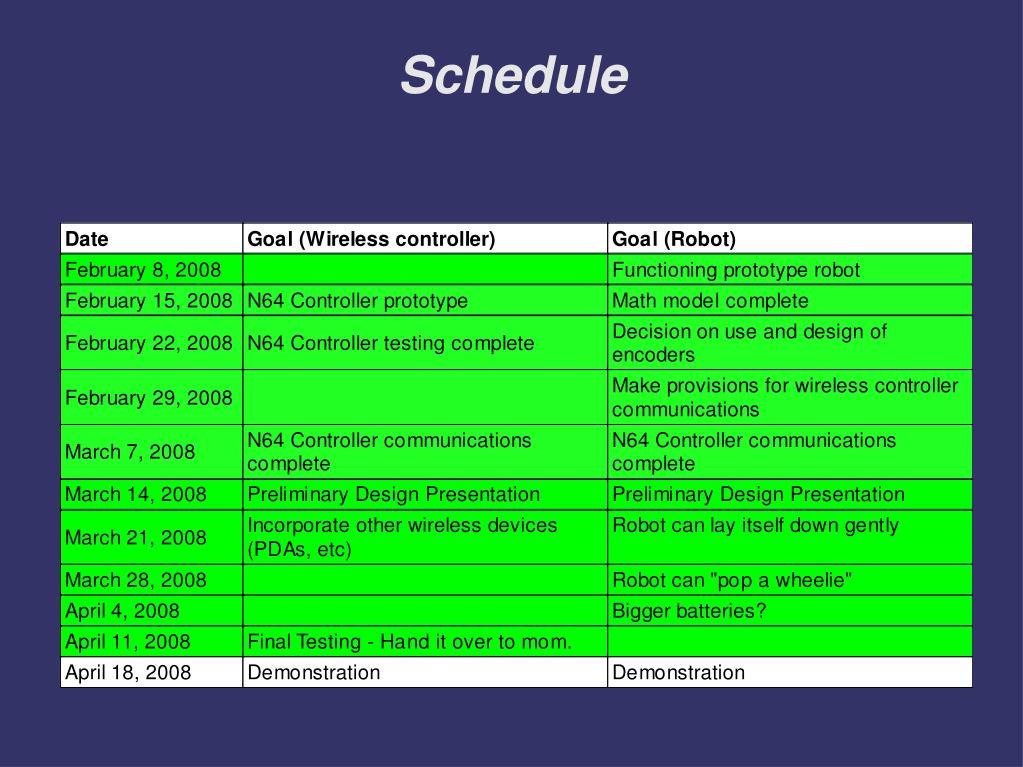

  26. Schedule

  27. Finances—Robot

  28. Finances—Remote Control

  29. Finances • Allotted budget: $1000 • Expenditures: ~$500 • Main expenses: • 1 IMU -- $110 • 2 Bluetooth radios -- $120 • 1 MSP430 on breakout board -- $50 • 2 Motors and H-Bridges -- $80

  30. Questions?
