LCP Product Guide |LCP Building Products PVT LTD

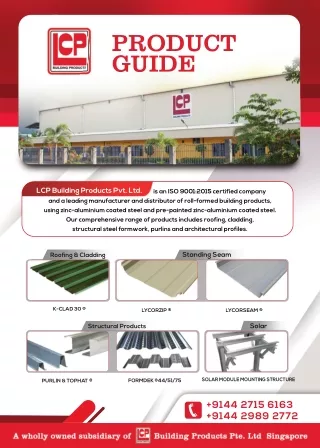

1. PRODUCT GUIDE LCP Building Products Pvt. Ltd. is an ISO 9001:2015 certified company and a leading manufacturer and distributor of roll-formed building products, using zinc-aluminium coated steel and pre-painted zinc-aluminium coated steel. Our comprehensive range of products includes roofing, cladding, structural steel formwork, purlins and architectural profiles. Standing Seam Roofing & Cladding K-CLAD 30 LYCORZIP LYCORSEAM Solar Structural Products SOLAR MODULE MOUNTING STRUCTURE FORMDEK 44/51/75 PURLIN & TOPHAT +9144 2715 6163 +9144 2989 2772

2. LCP K-CLAD 30® combines economy and modern appearance to produce a lightweight roofing and walling profile, suitable for a wide variety of applications. It provides easy handling with quick and simple installation using hi-tensile steel. LCP K-CLAD® 30 is lightweight, yet high strength and its domed crest provides greater foot traffic performance. Its deep ribs and anti-capillary side lap provides excellent spanning capability with good water carrying capacity. LCP K-CLAD® 30 can also be crimp curved in convex and concave design options. LCP LYCORZIP® standing seam roof profile panels of 480mm effective cover width having crest height of 75 mm is mechanically seamed with heavy duty electric portable seaming machine to withstand wind uplift and foot traffic. LCP LYCORZIP® standing seam roof system is an exceptional water proofing roof system due to its high ribs. Minimum roof pitch of 2° is recommended, subject to support spacing and structural tolerance with purlin and roof plane correctly aligned LCP LYCORSEAM® standing seam roof system has concealed clips that are specially designed to minimise heat conductivity whilst maximising sliding efficiency. LCP LYCORSEAM is a cold roll formed roof and wall cladding manufactured from high strength steel of G300 base material (300MPa minimum yield stress), with Galvalume steel (zinc Aluminium alloy) coating and color coated Galvalume steel. LCP LYCORSEAM is also available in other non-ferrous materials. -+ LCP FORMDEK® Structural Steel Formwork system is a 'W' profile structural decking system manufactured by LCP Building Products Pvt. Ltd. It is available in three different rib depths of 44mm, 51mm and 75 mm. It is suitable for use with steel support (e.g. I - beams), masonry or concrete framed buildings. It is long-lasting and acts as an ideal supporting concrete slabs. LCP FORMDEK® is available in Galvanised Steel in various thickness. SOLAR MODULE MOUNTING STRUCTURES: We offer “C” & ”Z” purlins for Solar Module Mounting structures for ground mounting in both Fixed and Tracker System. We also provide HDP (Hot Dip Galvanizing) for the purlins as per IS2629. LCP Solar Module Mounting structures are available in both Pre-Galvanised material and Post-Galvanization, and are customized as per design requirements. Gutter and Downtake Pipe Crimp Ridge Flashing Spectra Lycorpanel Polycorbonate Sheet Louvre Fastner IMPORTANT NOTE: The information published in this brochure is as far as possible accurate at the date of publication. However, prior to application in a particular situation LCP Building Products Pvt. Ltd. recommends that you obtain qualified expert advice confirming the suitability of products(s) in question for the application proposed. While LCP Building Products Pvt. Ltd. accepts its legal obligations, be aware however that to the extent permitted by law. LCP Building Products Pvt. Ltd. disclaims all liability (including (including liability of negligence) for all losses and damages resulting from the use of the information provided in this flyers. Photographs of the premises displayed in this flyer are not to be constructed as an endorsement or recommendation by the owners of the premises to LCP and its products. LCP PRODUCT GUIDE Flyer. All rights reserved.
