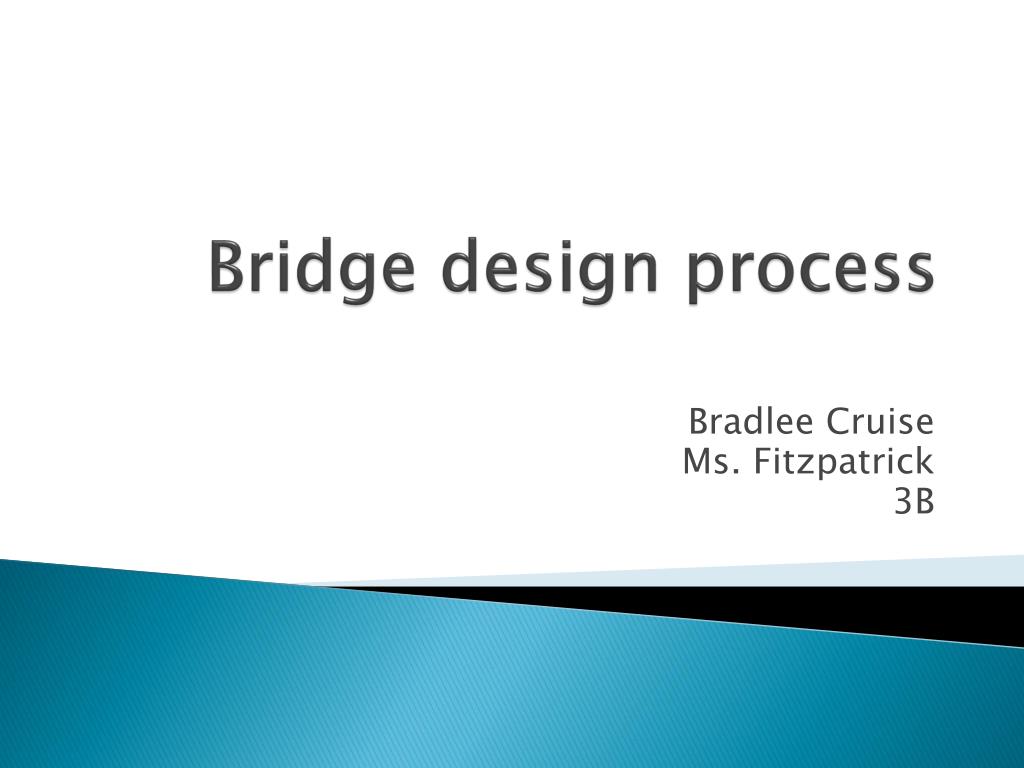

  1. Bridge design process Bradlee Cruise Ms. Fitzpatrick 3B

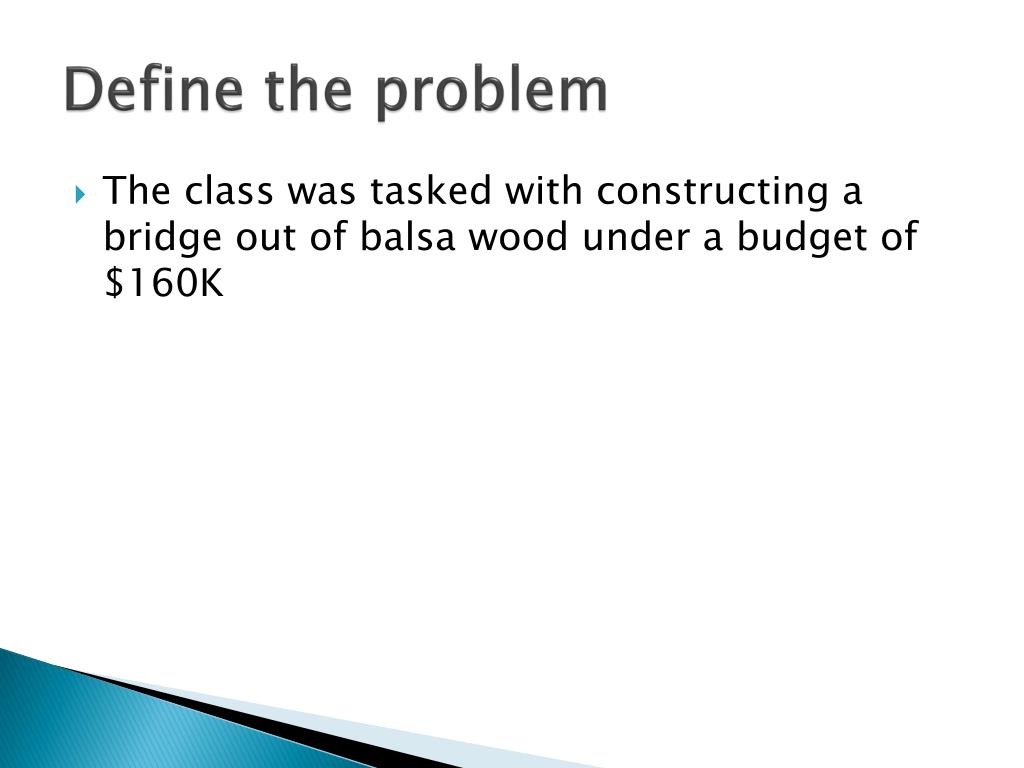

  2. Define the problem • The class was tasked with constructing a bridge out of balsa wood under a budget of $160K

  3. Brainstorm • I know the bridge must be constructed using triangles to ensure stability

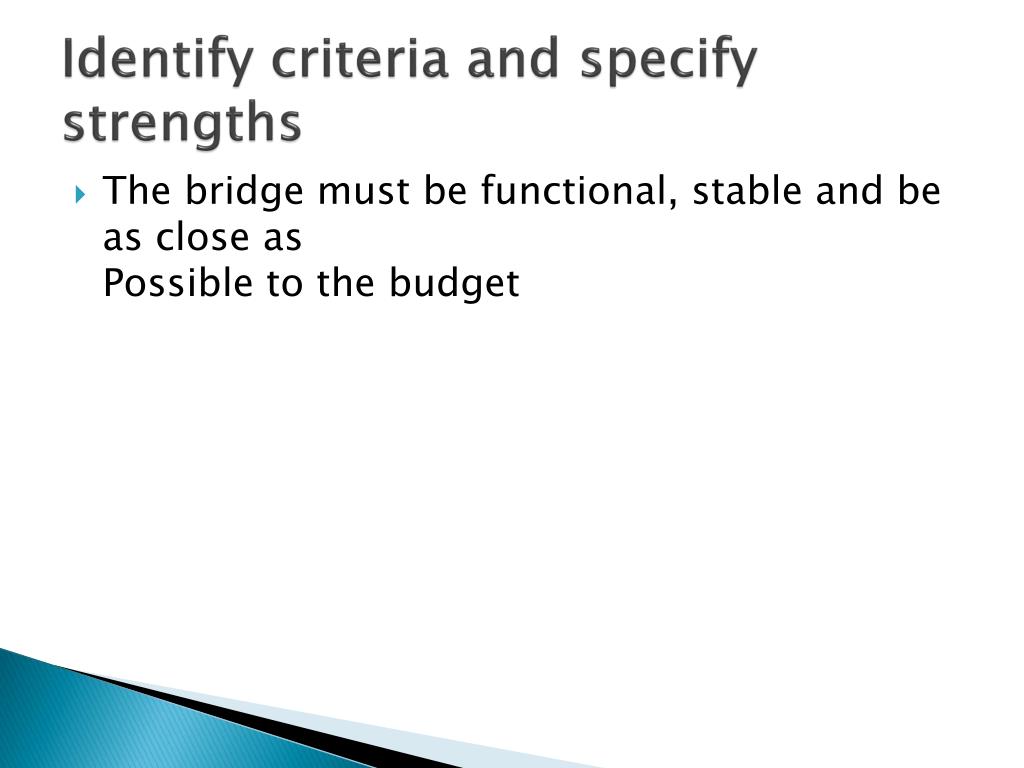

  4. Identify criteria and specify strengths • The bridge must be functional, stable and be as close asPossible to the budget

  5. Explore possibilities • I know I can use different measurements on each piece to ensure stability while reducing the price significantly.

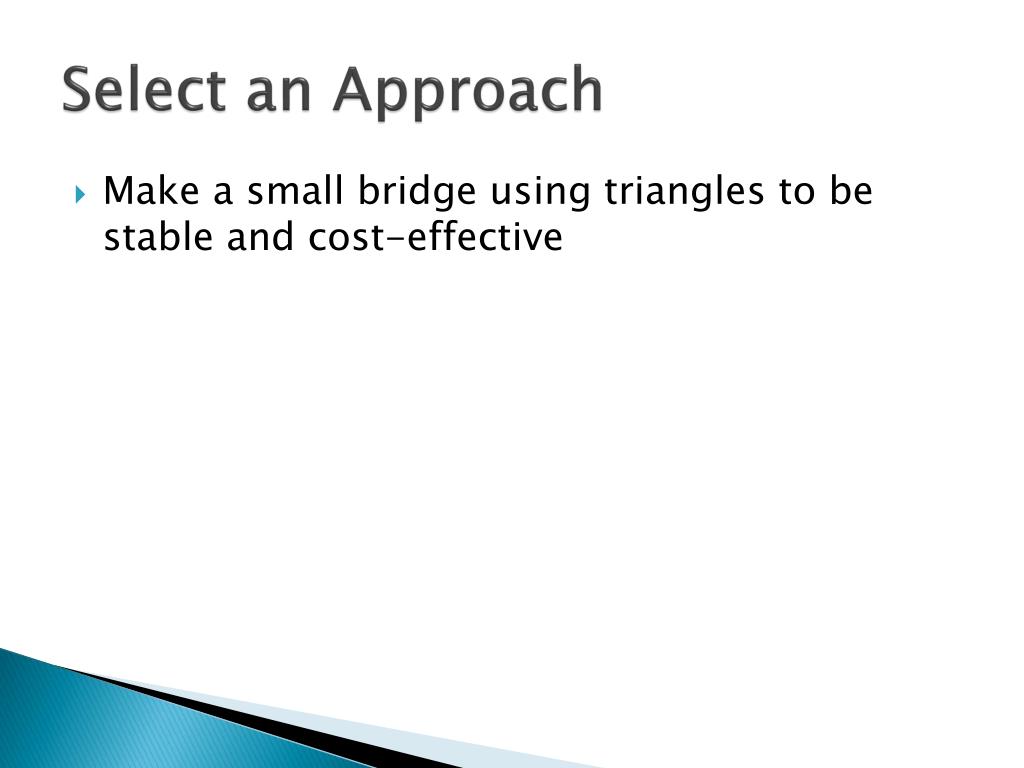

  6. Select an Approach • Make a small bridge using triangles to be stable and cost-effective

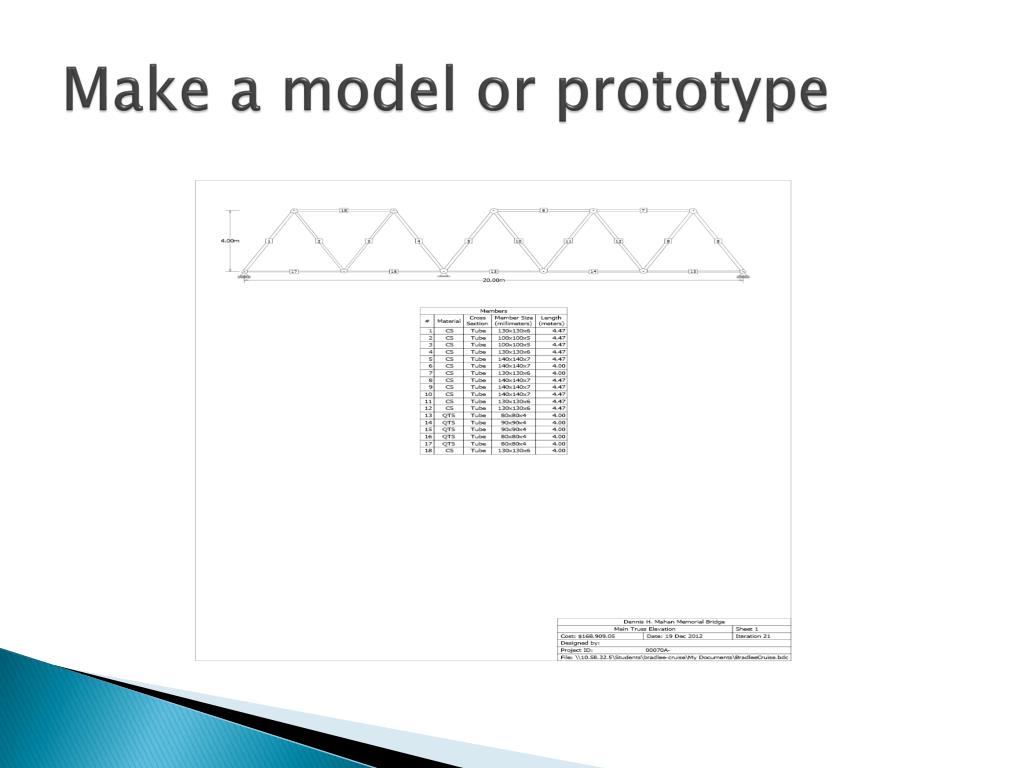

  7. Make a model or prototype

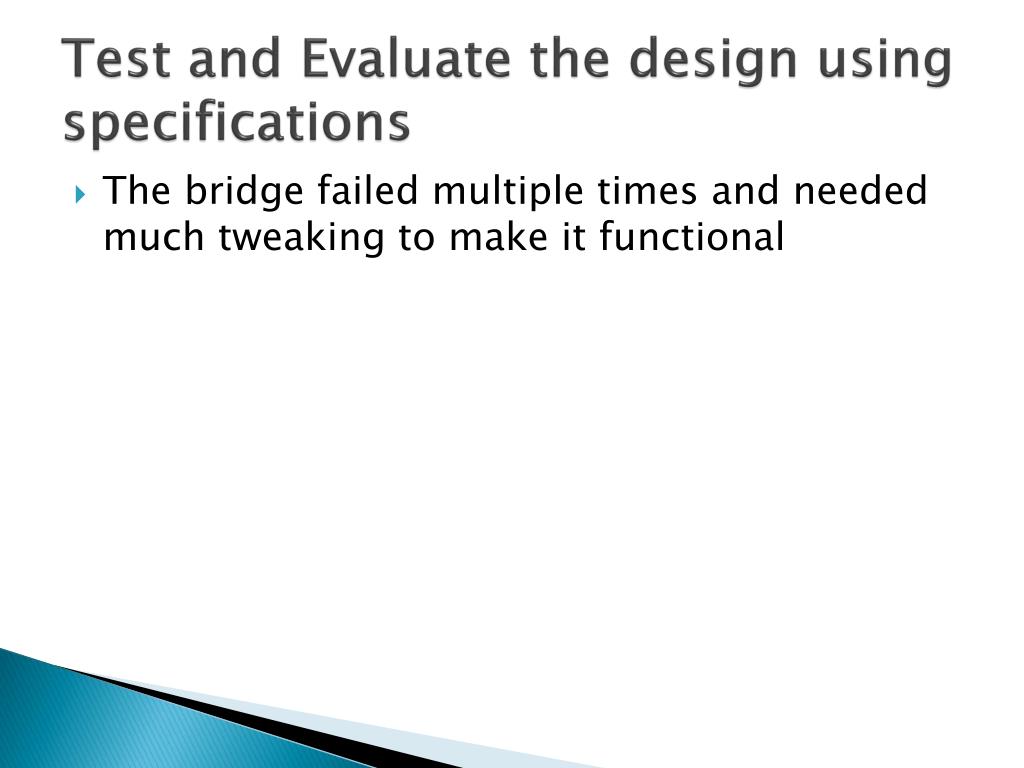

  8. Test and Evaluate the design using specifications • The bridge failed multiple times and needed much tweaking to make it functional

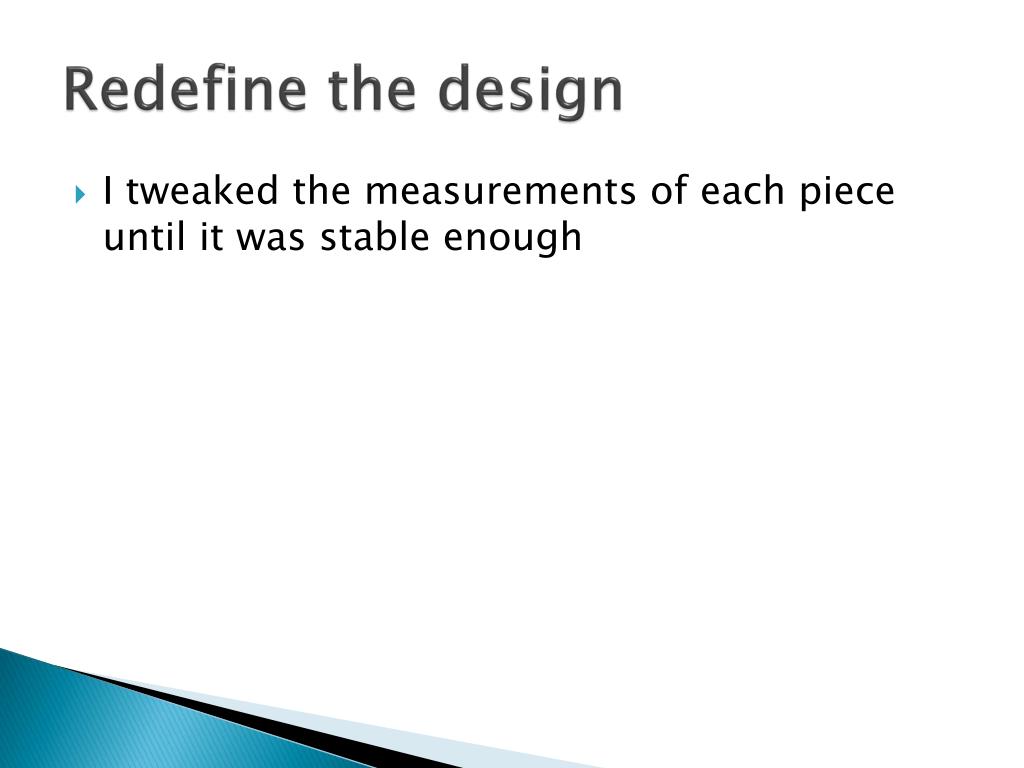

  9. Redefine the design • I tweaked the measurements of each piece until it was stable enough

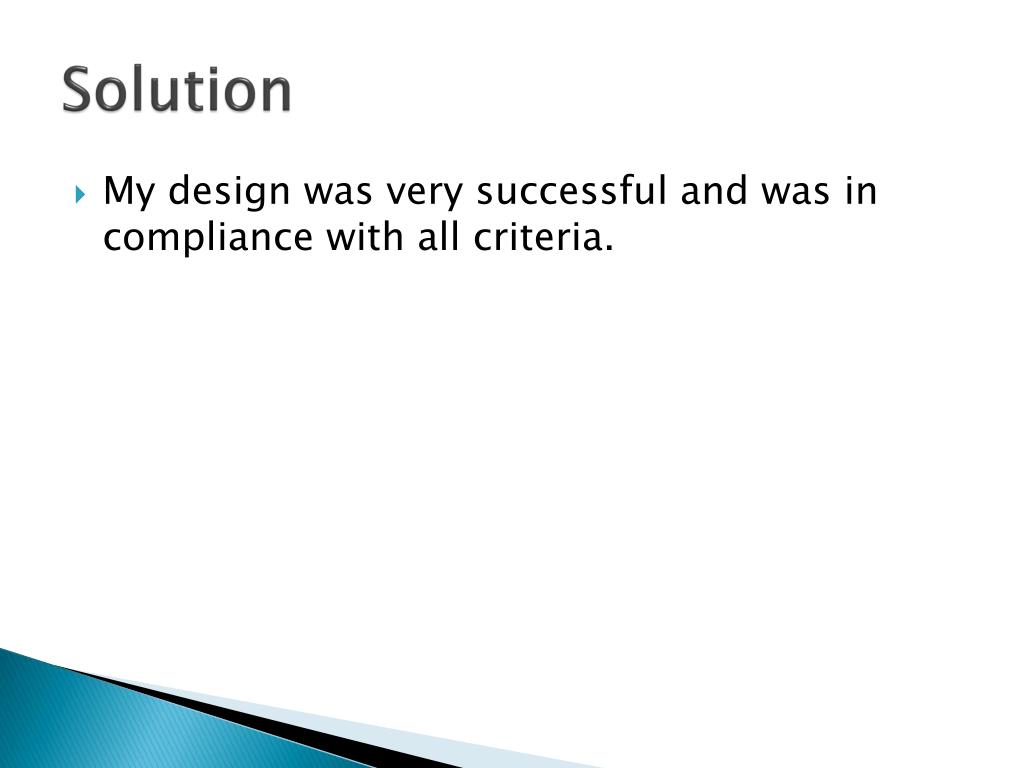

  10. Solution • My design was very successful and was in compliance with all criteria.

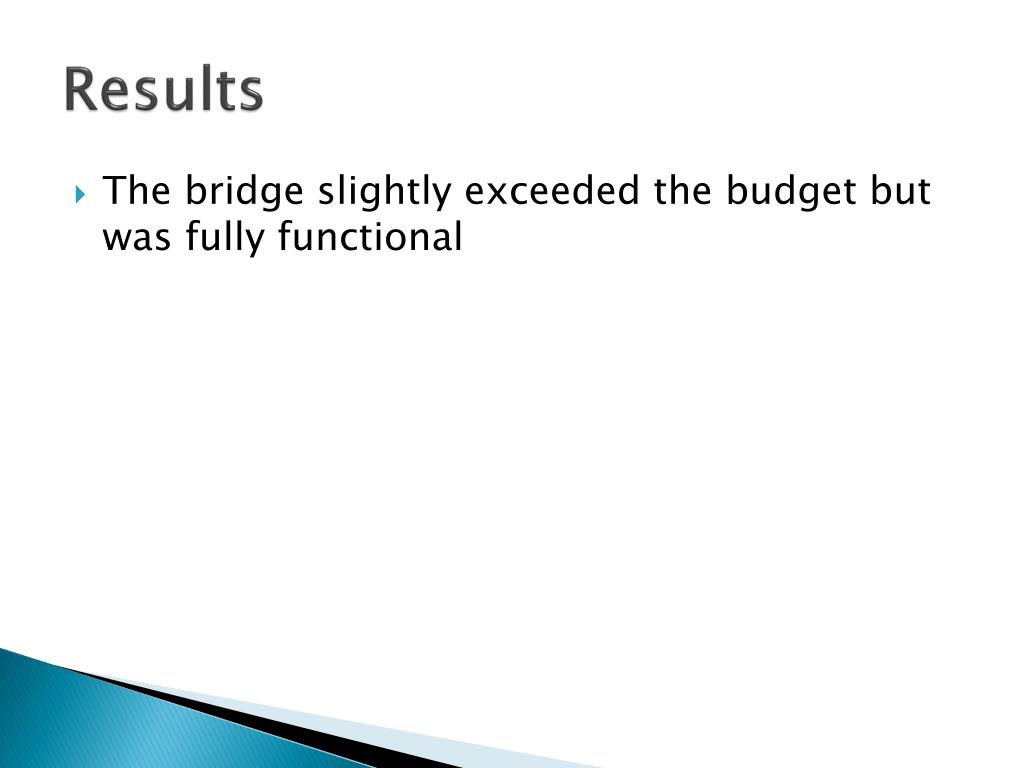

  11. Results • The bridge slightly exceeded the budget but was fully functional
